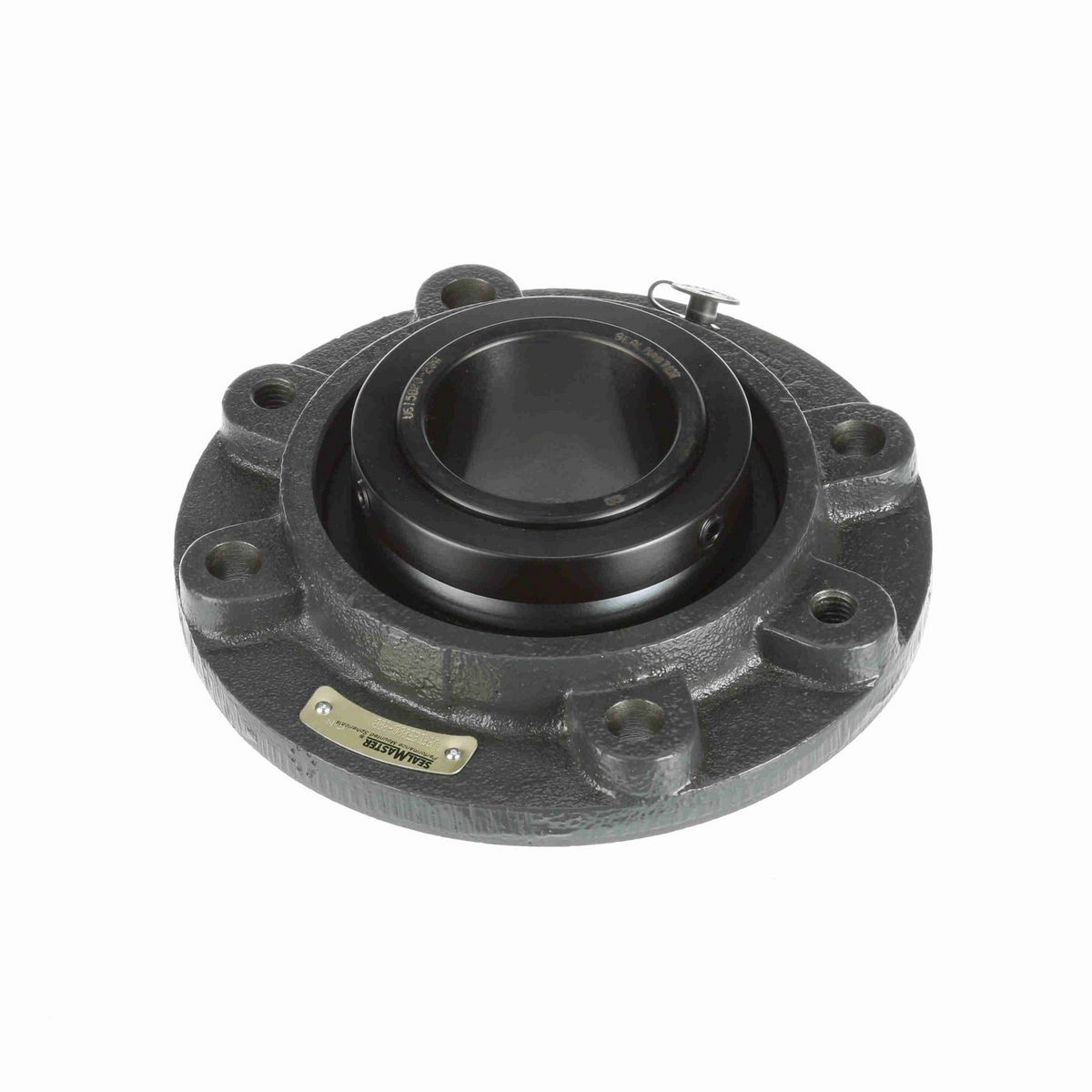

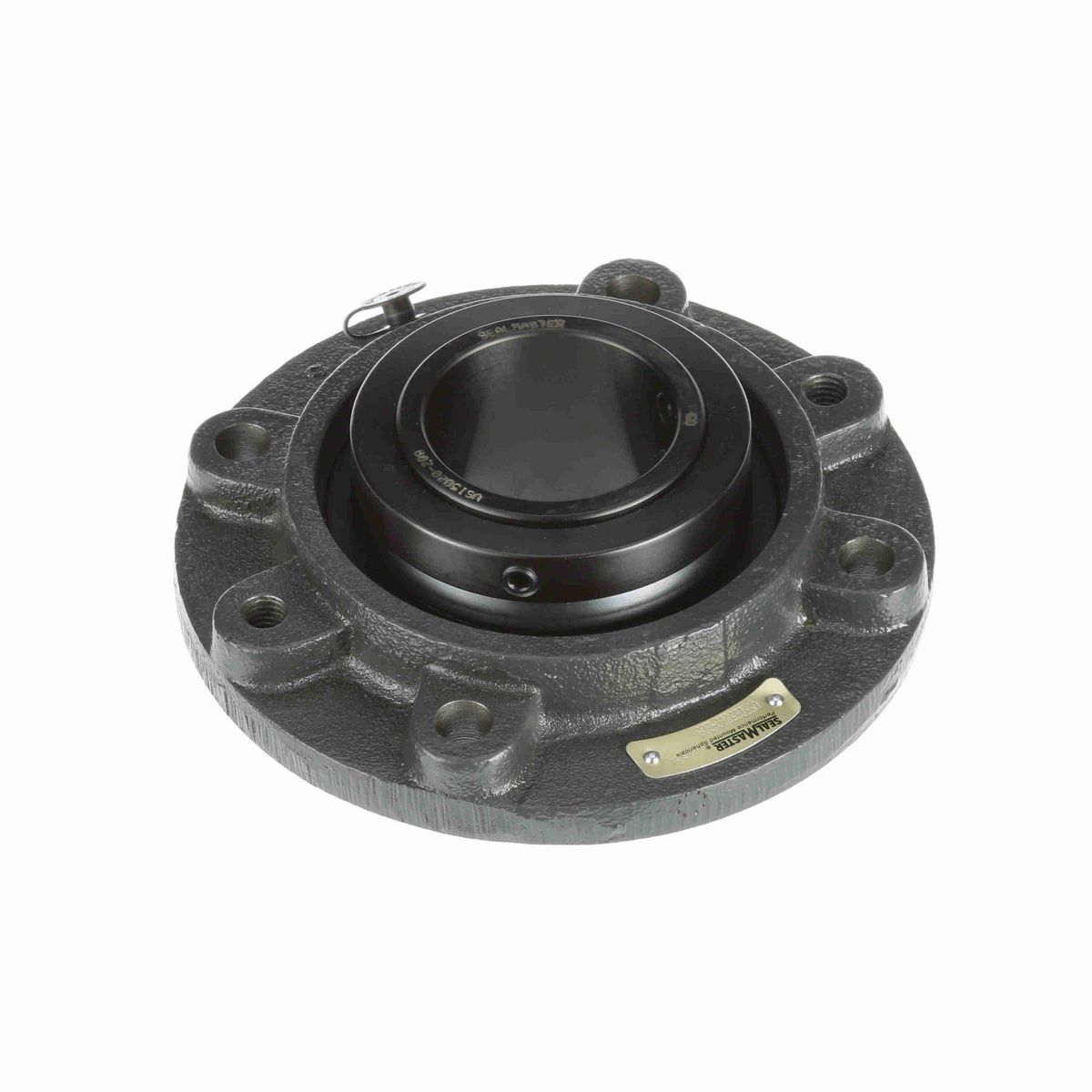

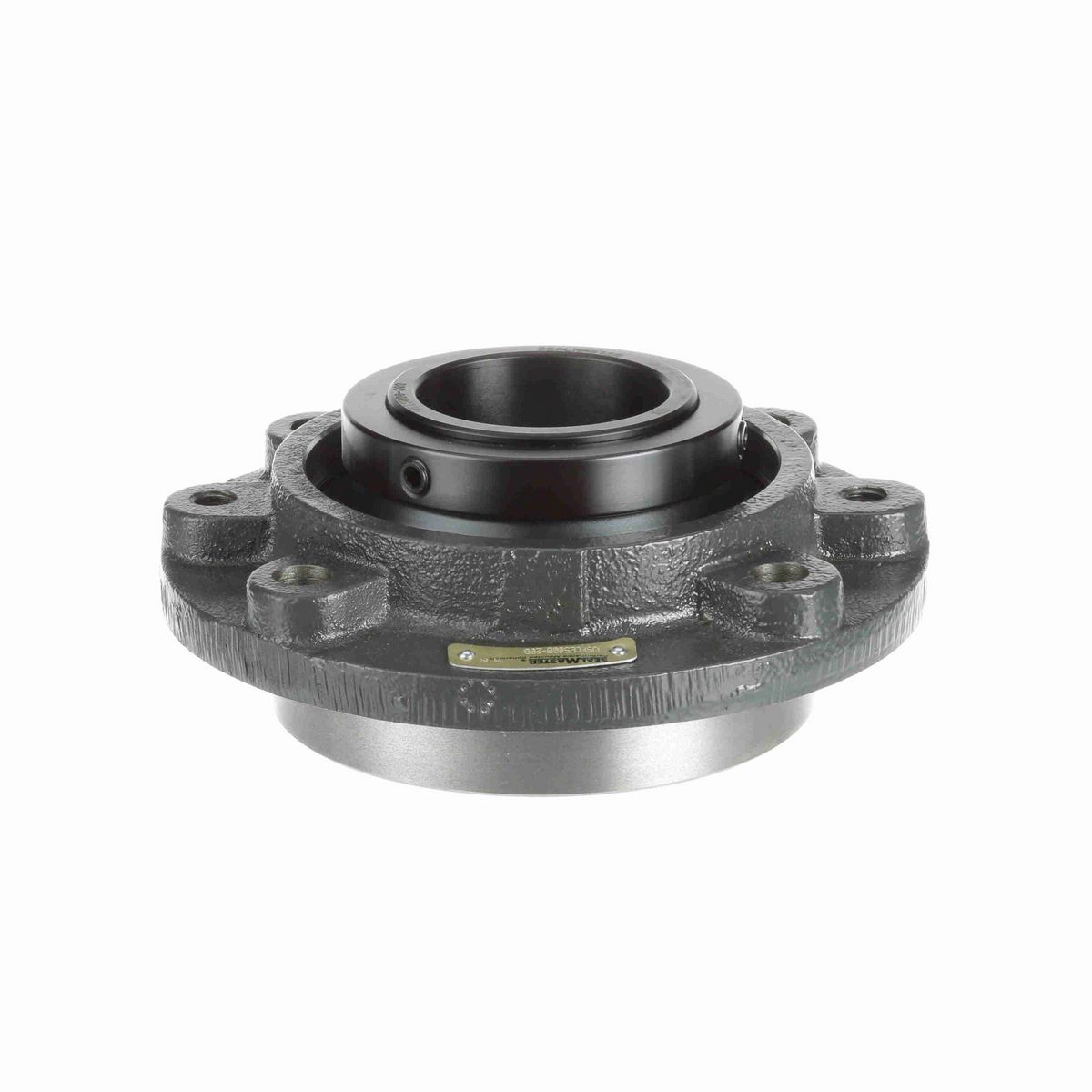

• Wide race and rollers and steel cage for high dynamic load ratings
• Race-mounted felt seal with flinger and misalignment sealing
• Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy ductile iron housing with Type E dimensions

Dimensions

Bolt Size (in)	1/2 in
Bore Diameter (in)	2.5000 in
Overall Width (in)	7.63 in
Overall Length (in)	7.63 in
Overall Height (in)	3.37 in
Foot Height (in)	1.06 in
Pilot Diameter (in)	5.5 in
Overall Height to Inner Ring (in)	2.16 in
Locking Collar Outside Diameter (in)	4.1 in
Housing Outside Diameter (in)	7.63 in
Bolt Spacing (in)	4.594 in
Bolt Circle (in)	6.5 in
Centerline to Outermost Bearing Face (in)	2.25 in
Mounting Surface to End of Housing (in)	1.13 in
Length Through Bore (in)	3.375 in

Technical Specifications

Rolling Element	Spherical Roller
Bore Shape	Straight
Seal Type	Felt Labyrinth Seal
Measure Units	Inch
Pilot Configuration	With Pilot
Maximum Speed (RPM)	3250 rpm
Housing Construction	Solid
Radial Dynamic Load Capacity (lb)	44,691 lb
Platform	USRB
Outer Ring Land Profile	Standard
End Cap	No
Housing Color	Black
Misalignment Type	Dynamic
Series	USFCE5000
Lubrication Method	Lubrication Fitting
Static Load Rating (lb)	59,535 lb
Housing Type	Flange, Cartridge
Housing Style	Flange Block
Shaft Locking Type	Single Set Collar
Housing Material	Ductile Iron
Cage Material	Steel
Fixed/Expansion	Fixed
Radial Clearance	Standard
Ability to Relubricate	Yes
Bolt Hole Shape	Round Hole
Bearing Insert Finish	Black Oxide Coated
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Dynamic
Housing Coating	POWDER COATED
Insert	USI5000-208
Bearing Insert Material	52100 Bearing Steel, Black Oxided
Size Code	8
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461365762
Weight	14.79 LB
Packaged Length	8.13 IN
Packaged Width	7.94 IN
Packaged Height	3.50 IN
HTC	8483.20.4080
Country of Origin	Mexico
