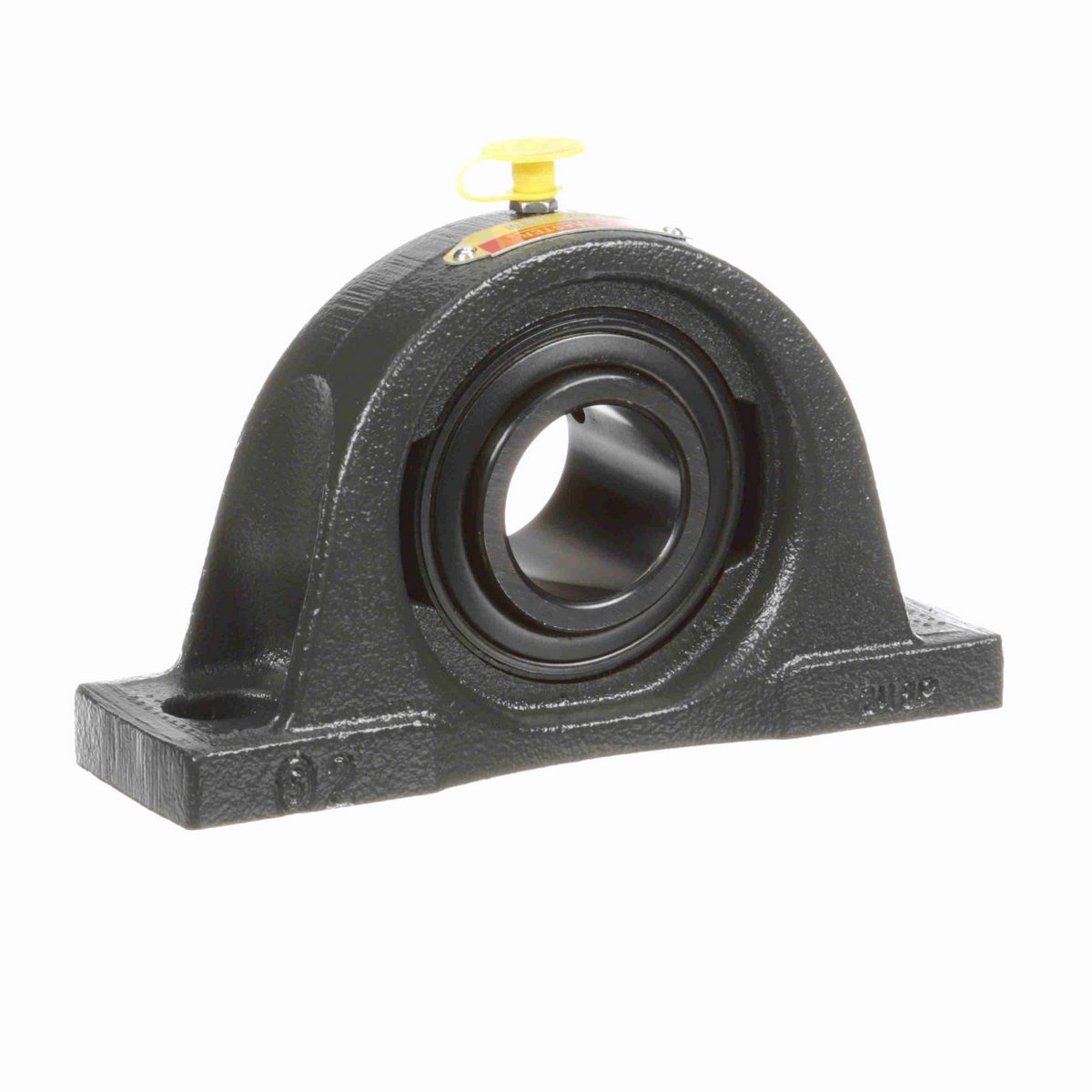

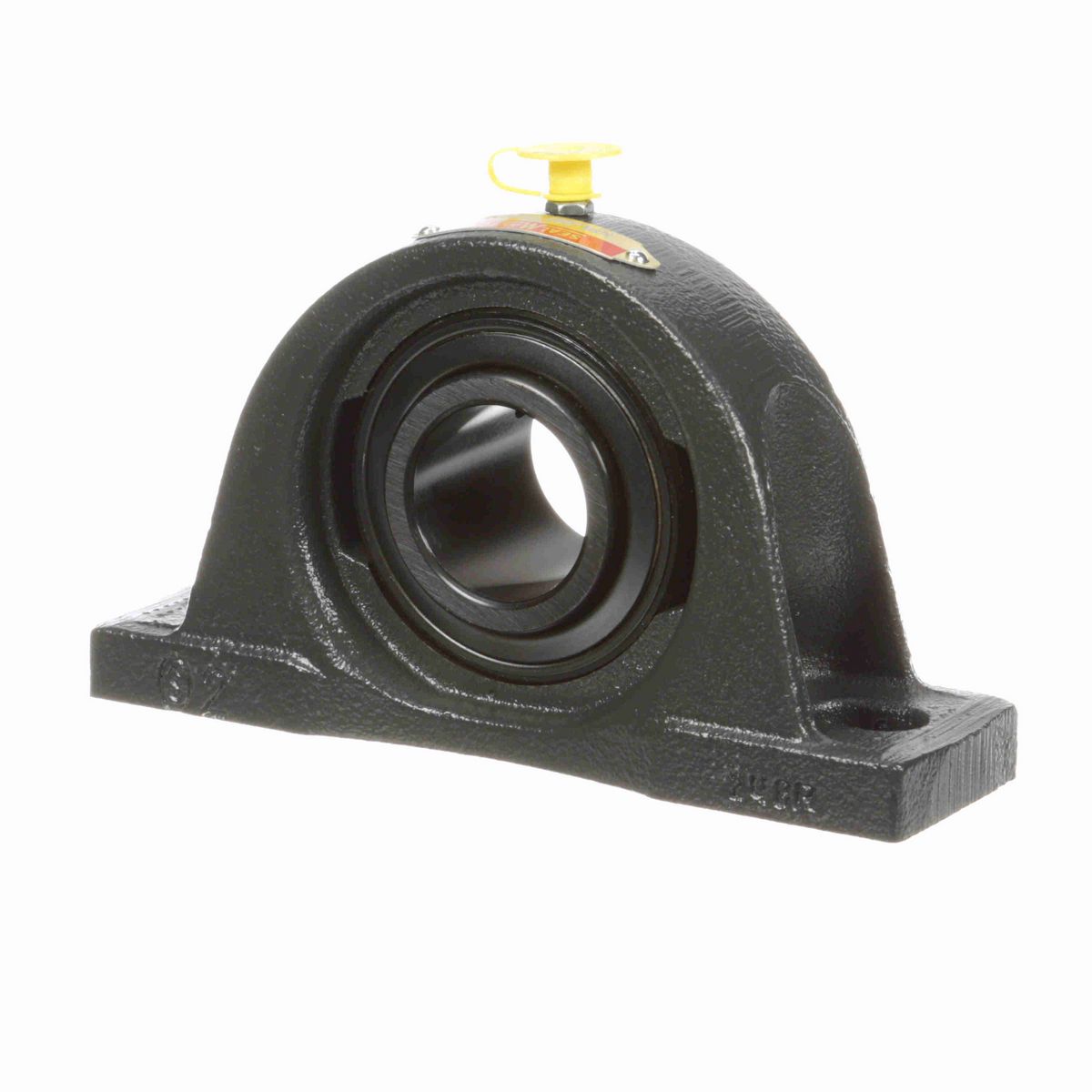

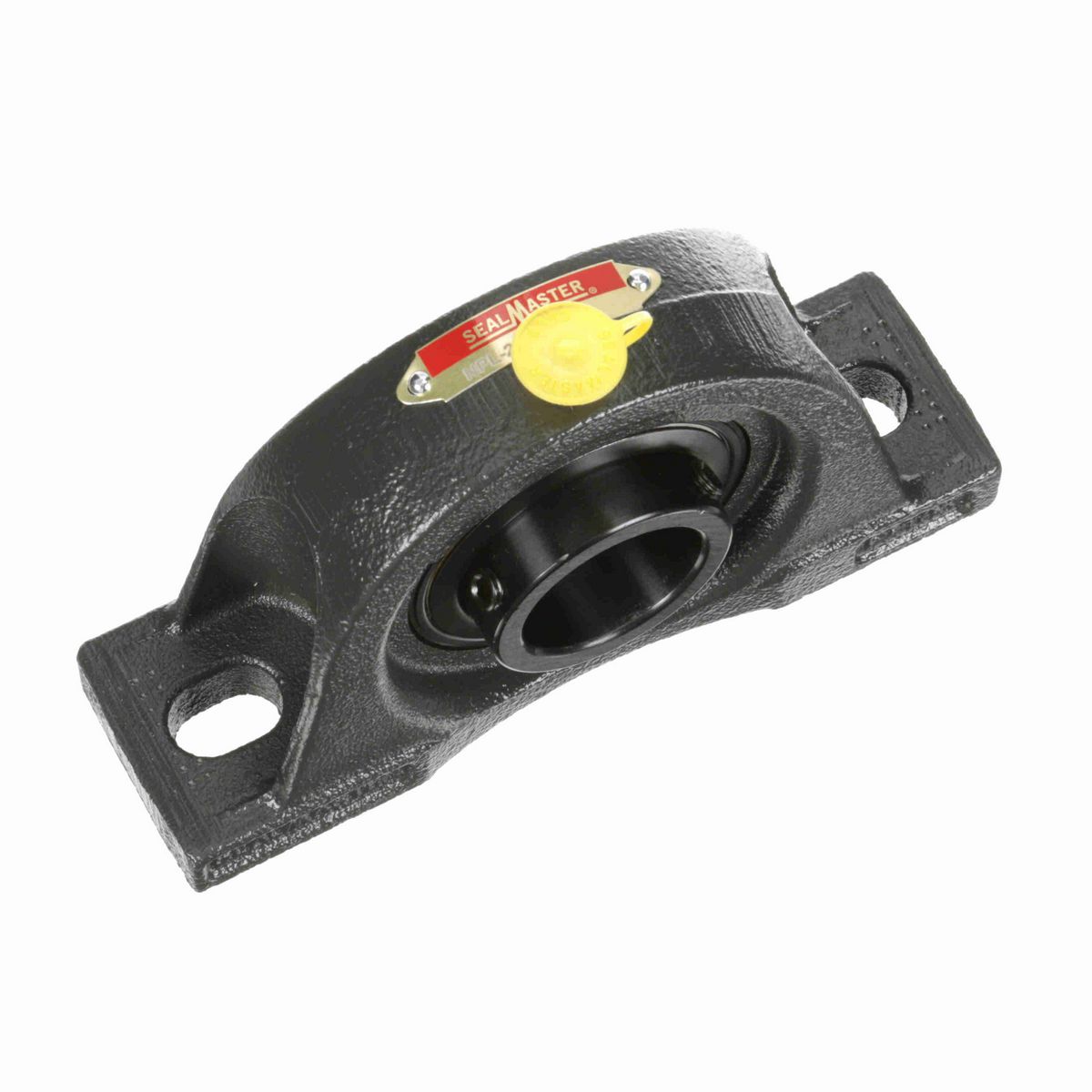

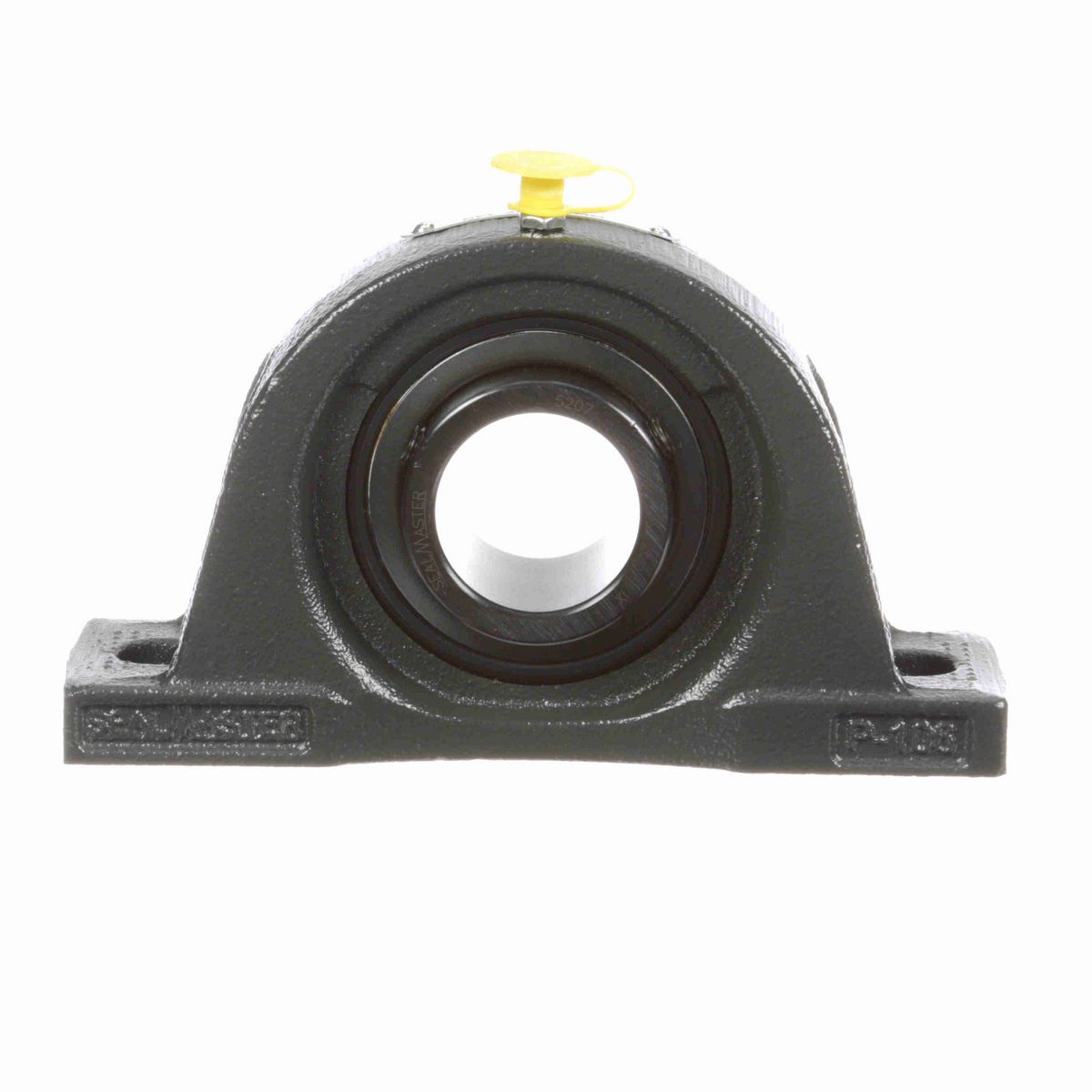

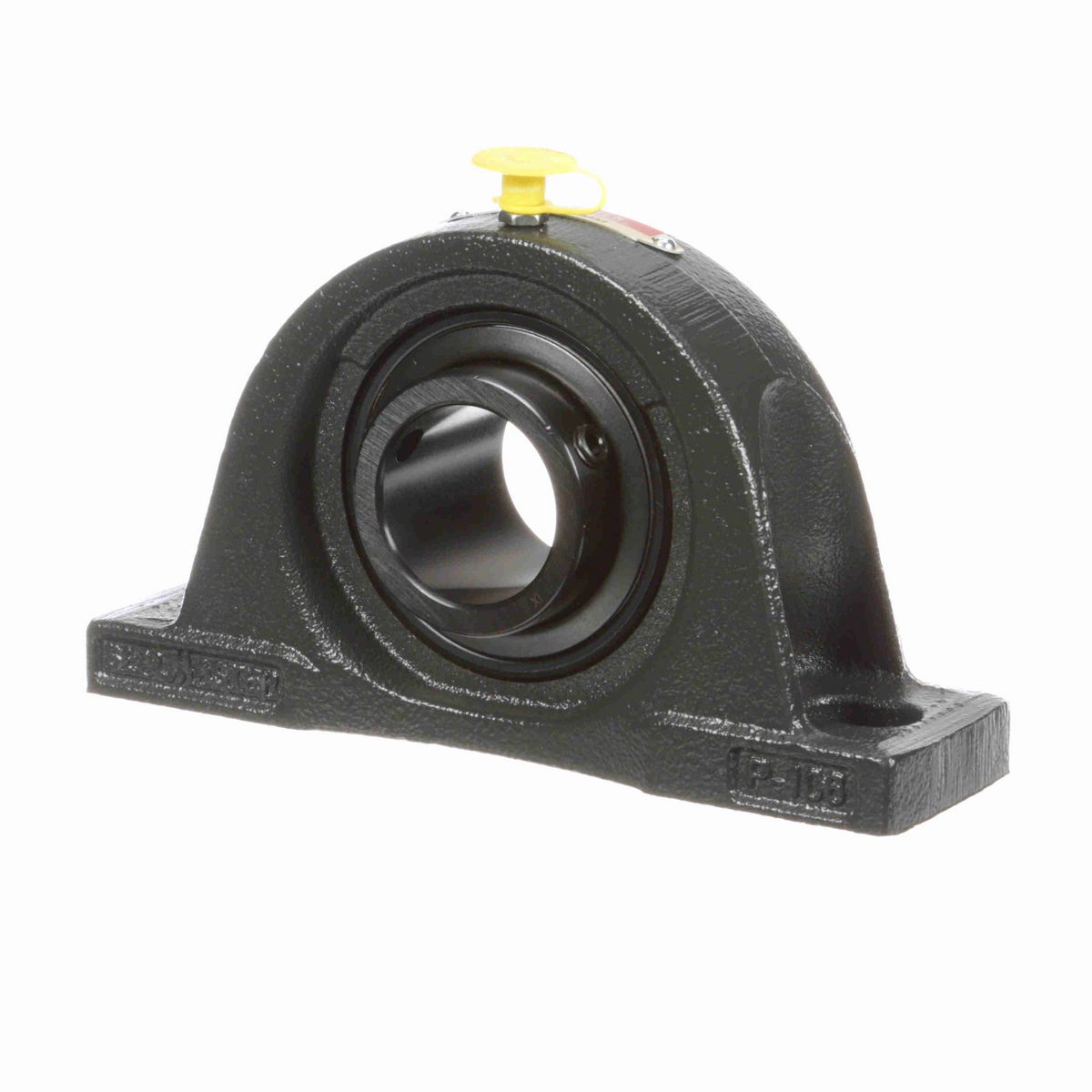

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	6.56 in
Overall Height (in)	3.69 in
Overall Width (in)	1.88 in
Base Width (in)	1.88 in
Bolt Size (in)	1/2 in
Bore Diameter (mm)	35 mm
Foot Height (in)	0.56 in
Base to Center Height (in)	1.8125 in
Length Through Bore (in)	1.685 in
Centerline to Outermost Bearing Face (in)	1 in
Bolt Spacing (in)	5 in
Bolt Spacing Min (in)	4.69 in
Bolt Spacing Max (in)	5.31 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Maximum Speed (RPM)	4650 rpm
Max Operating Temperature (F)	220 °F
Size Code	2-17
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0386 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Lubricant	Lithium Complex NLGI 2 Grease
Inner Ring Outside Diameter (in)	1.851 in
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	5,782 lb
Base Length (in)	6.56 in
Insert	5207
Bearing Type	Standard Duty
Housing Coating	Powder Coated
Shaft Locking Type	Set Screw
Static Load Rating (lb)	3,493 lb
End Cap Available	No
Cage Type	Land Riding Retainer
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0595 cps

General Specifications

UPC	662461052570
Weight	4.40 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
