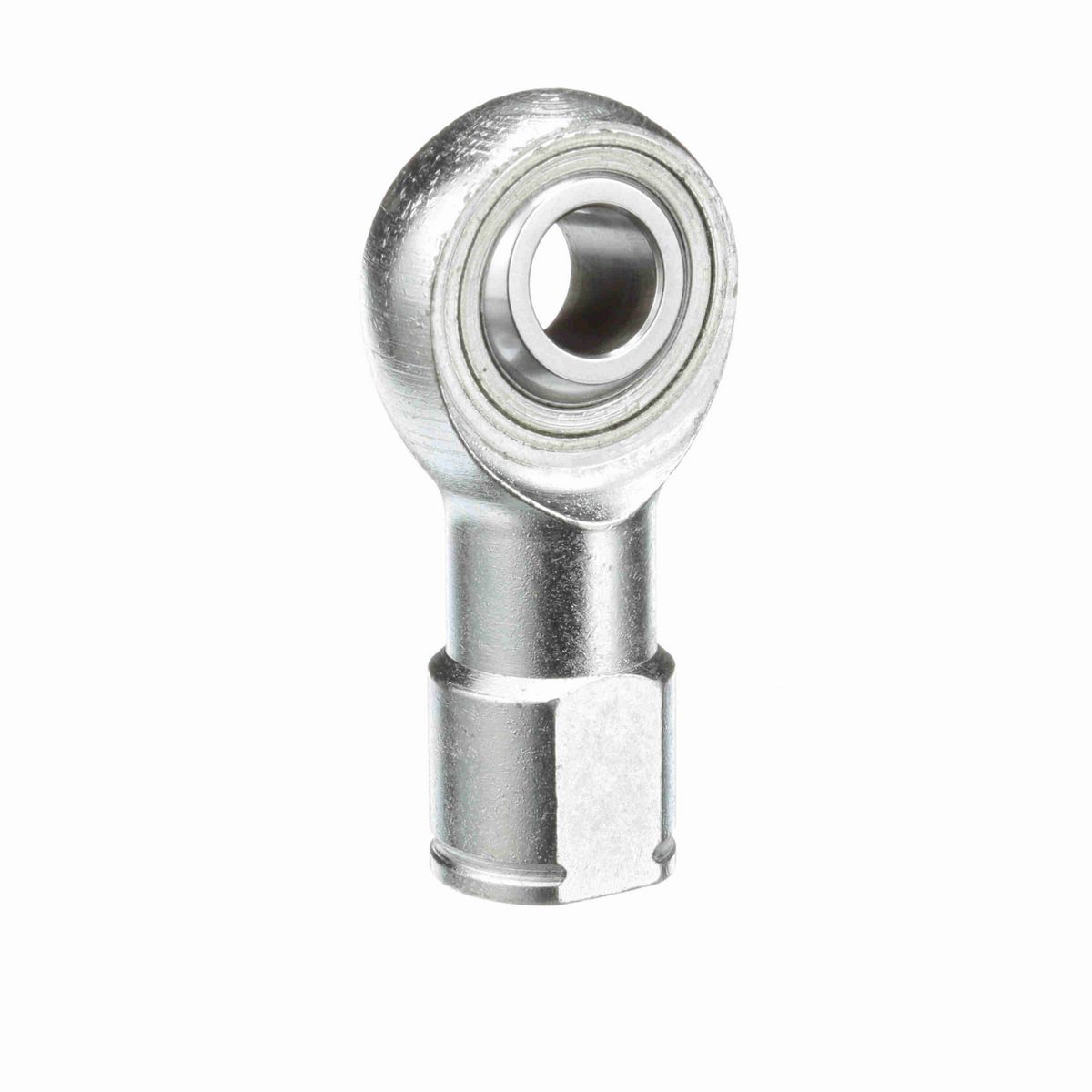

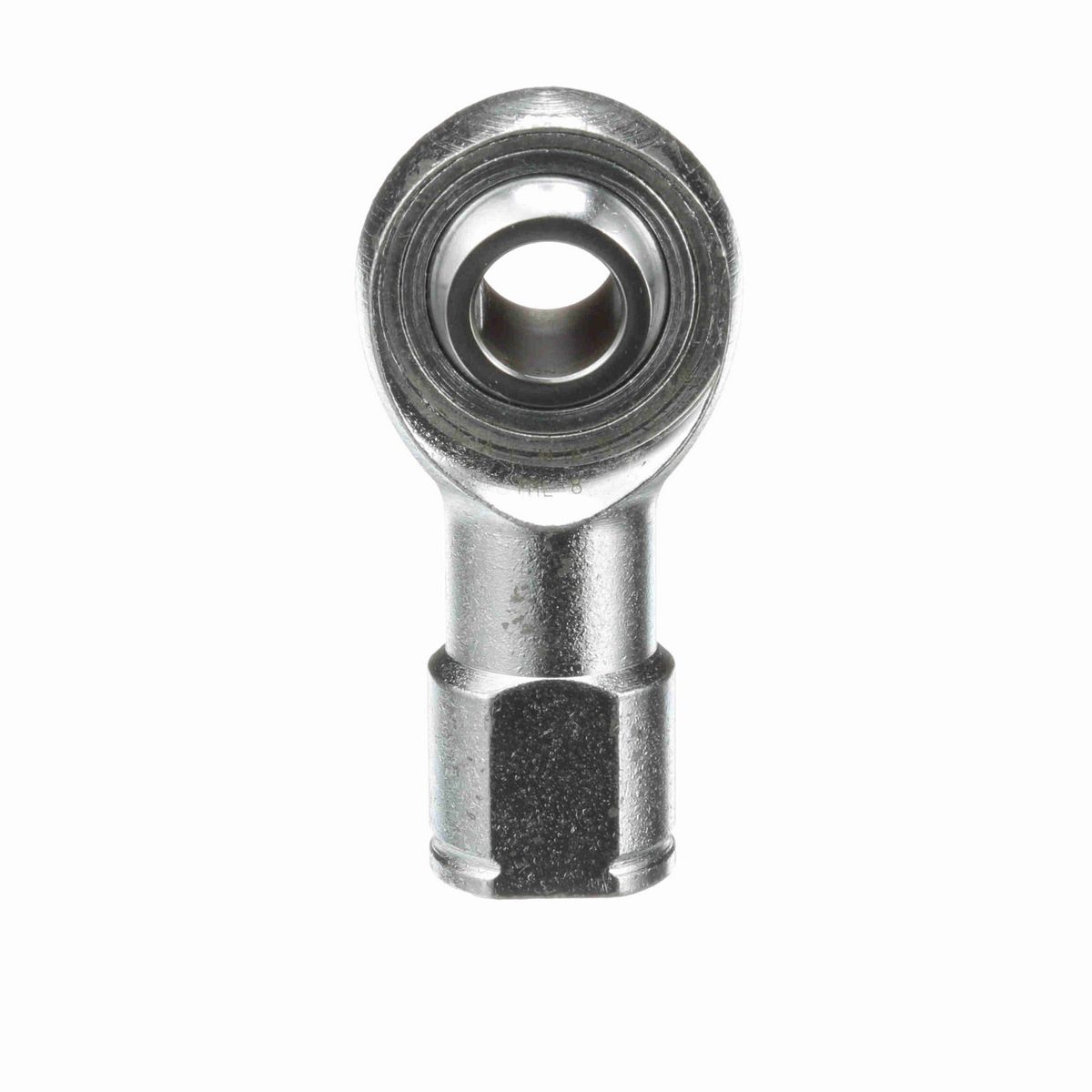

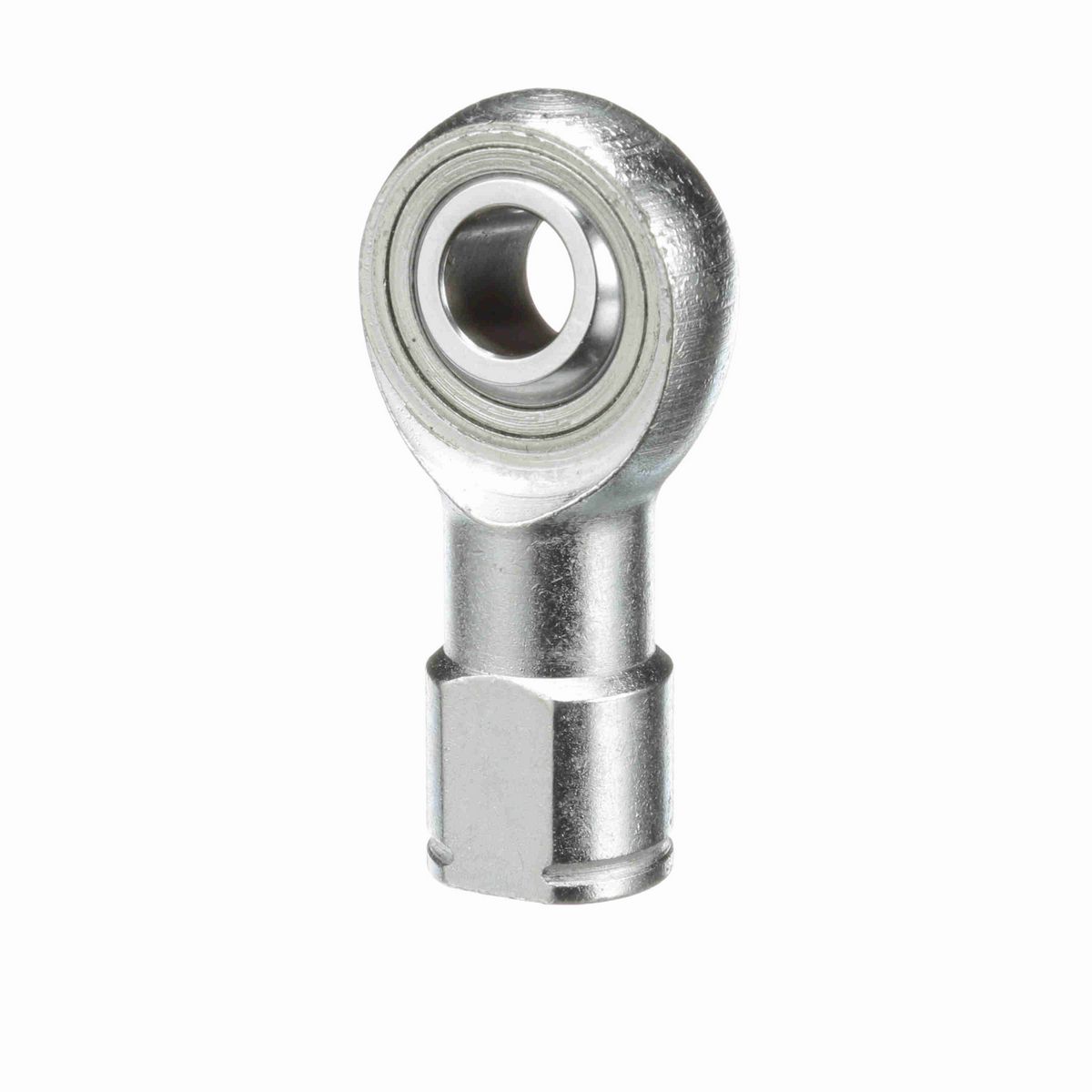

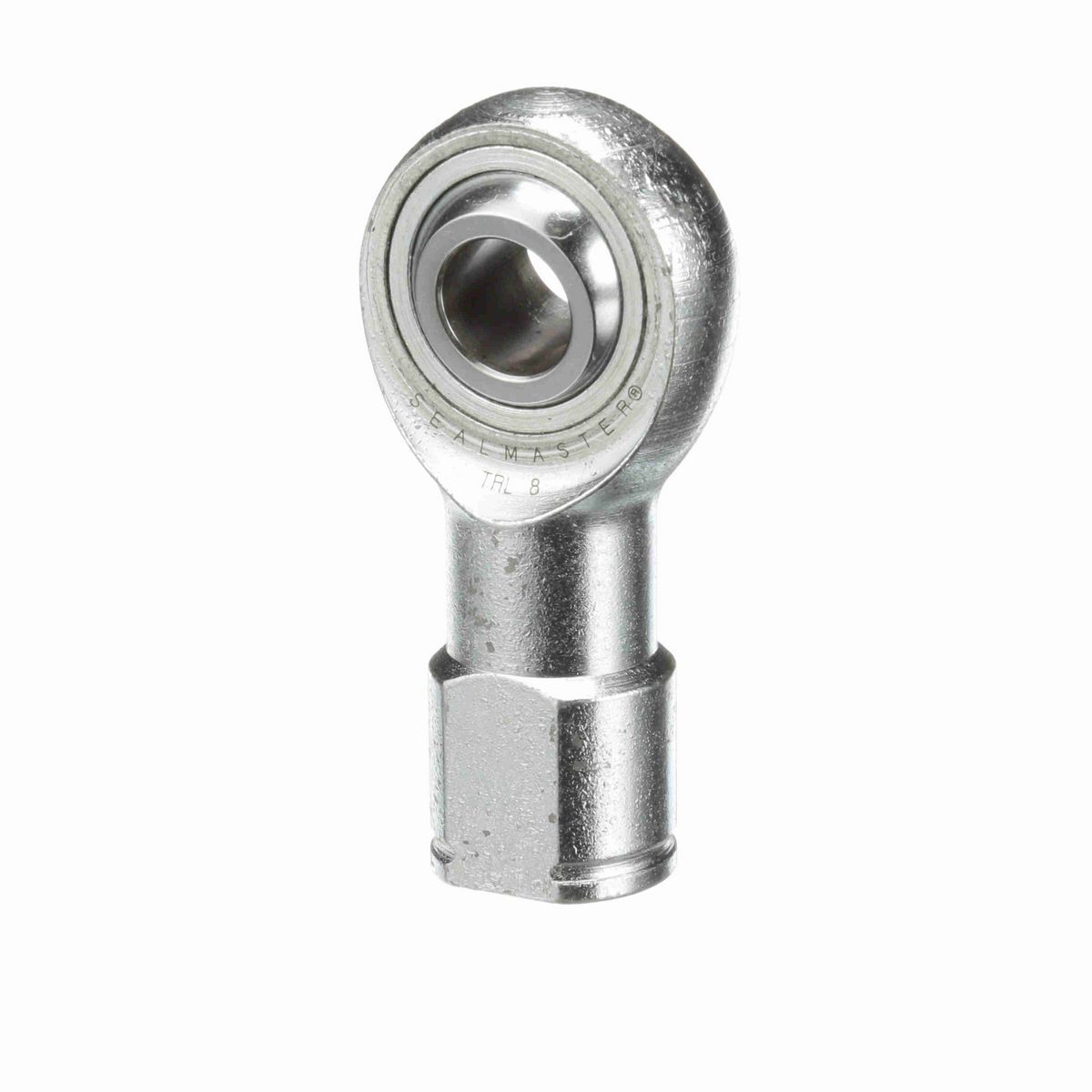

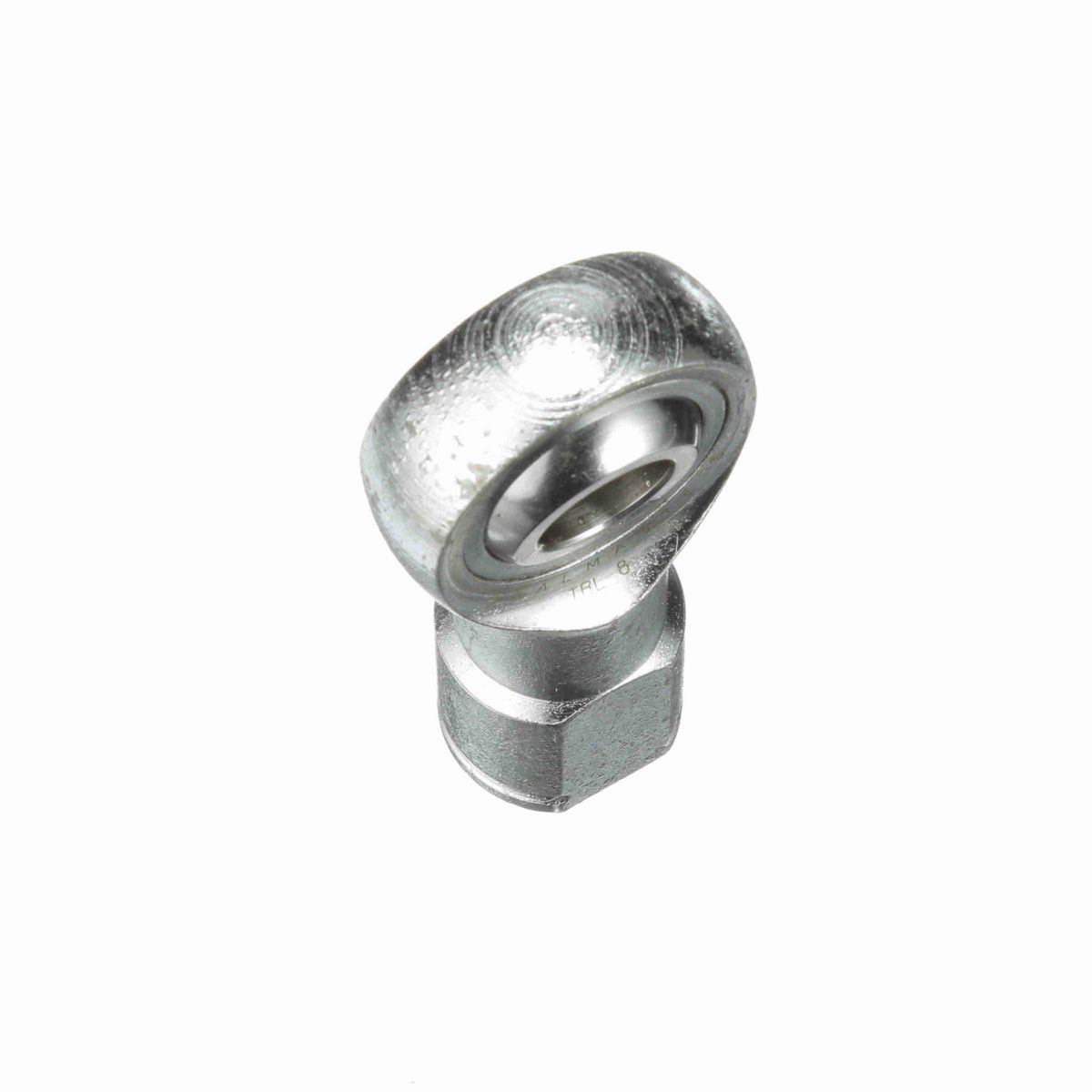

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Head Diameter (in)	1.312 in
Housing Width (in)	0.5 in
Base Diameter (in)	0.875 in
Ball Width (in)	0.625 in
Ball Diameter (in)	0.937 in
Thread Size	#1/2-20
Ball Flat Diameter (in)	0.698 in
Thread Length (in)	1.156 in
Length to Center of Ball (in)	2.13 in

Technical Specifications

Race Material	Carbon Steel - corrosion resistant plating
Across Wrench Flats	0.75
Zerk Fitting SW	N
Outer Material	Carbon Steel - Corrosion Resistant Plating
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Misalignment Angle - a Deg. +/-	6
Product Type	TR
Construction	Three-Piece Rod End with Zerk Fitting
Configuration	Female
Thread Type	UNF
Product Selection Available SW	Y
Bearing Type	Rod End
Housing Style	Female Rod End
Series	Precision
Axial Load	740
Lubrication Type	Grease
Max Static Radial Load	7,400
Thread	LH
Lubrication	No Zerk Fitting
Type	Female Rod End
Bore Size (in)	0.5000 in
Class	Precision
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288719526
Weight	0.32 LB
Packaged Length	2.25 IN
Packaged Width	2.95 IN
Packaged Height	1.15 IN
HTC	8483.30.8055
Country of Origin	Mexico
