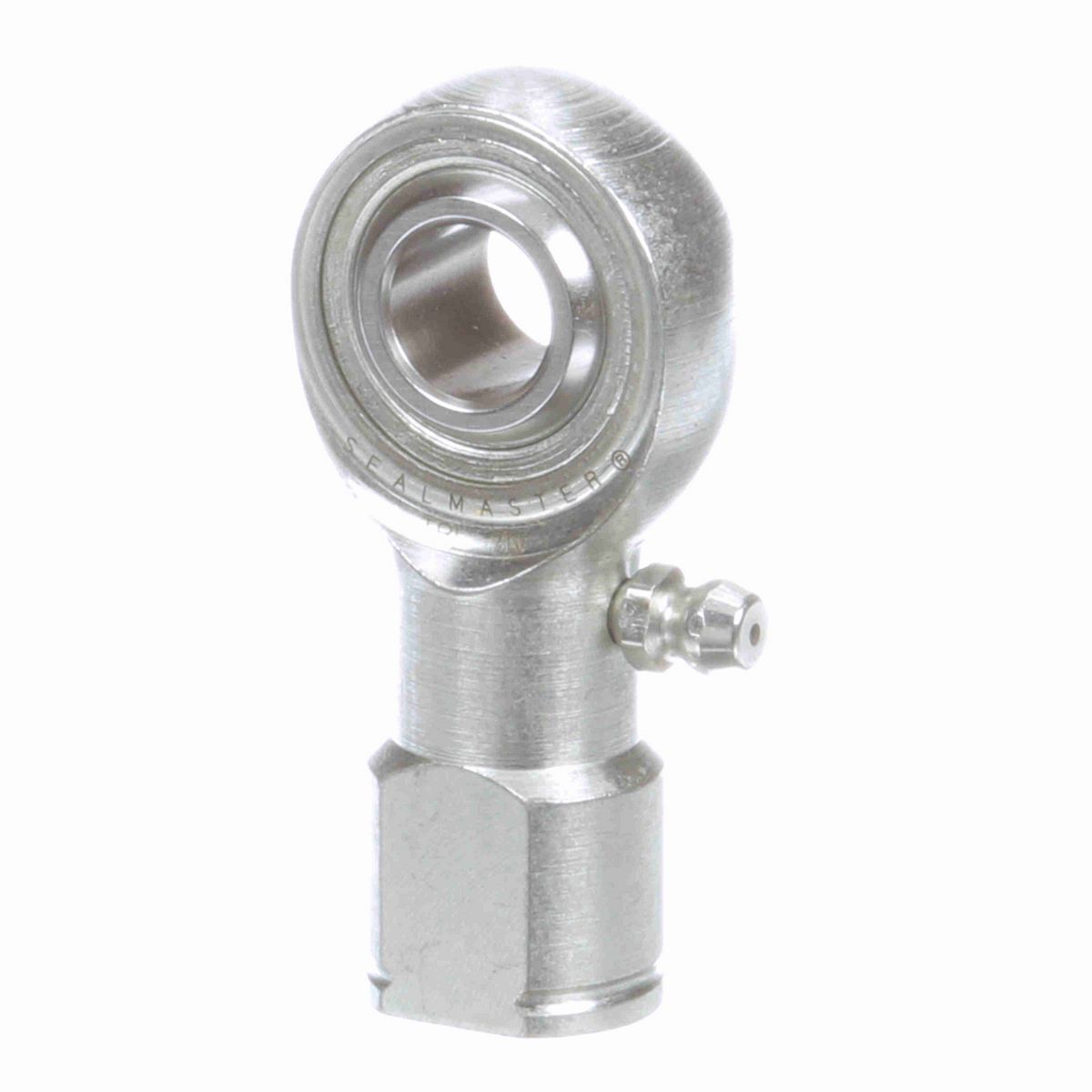

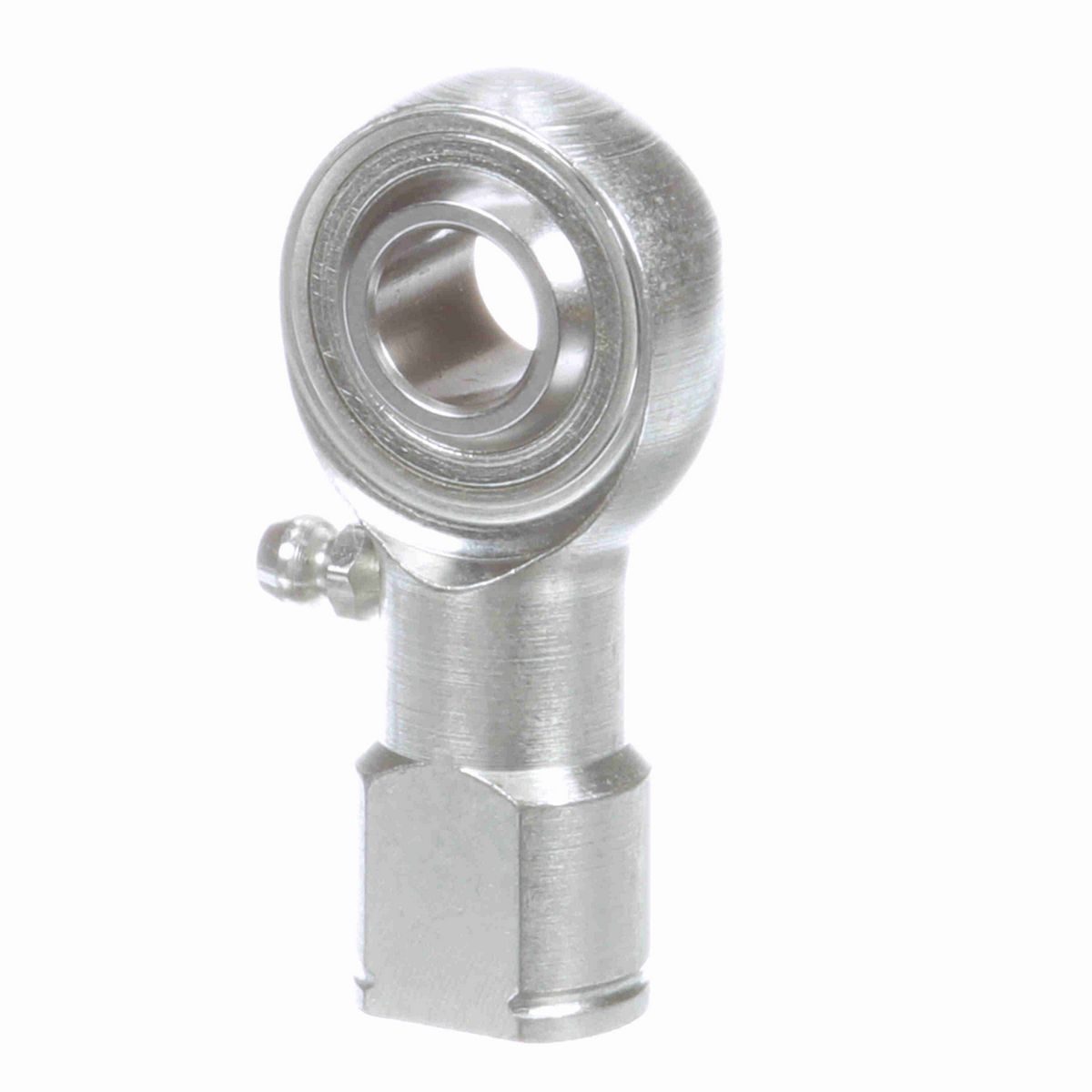

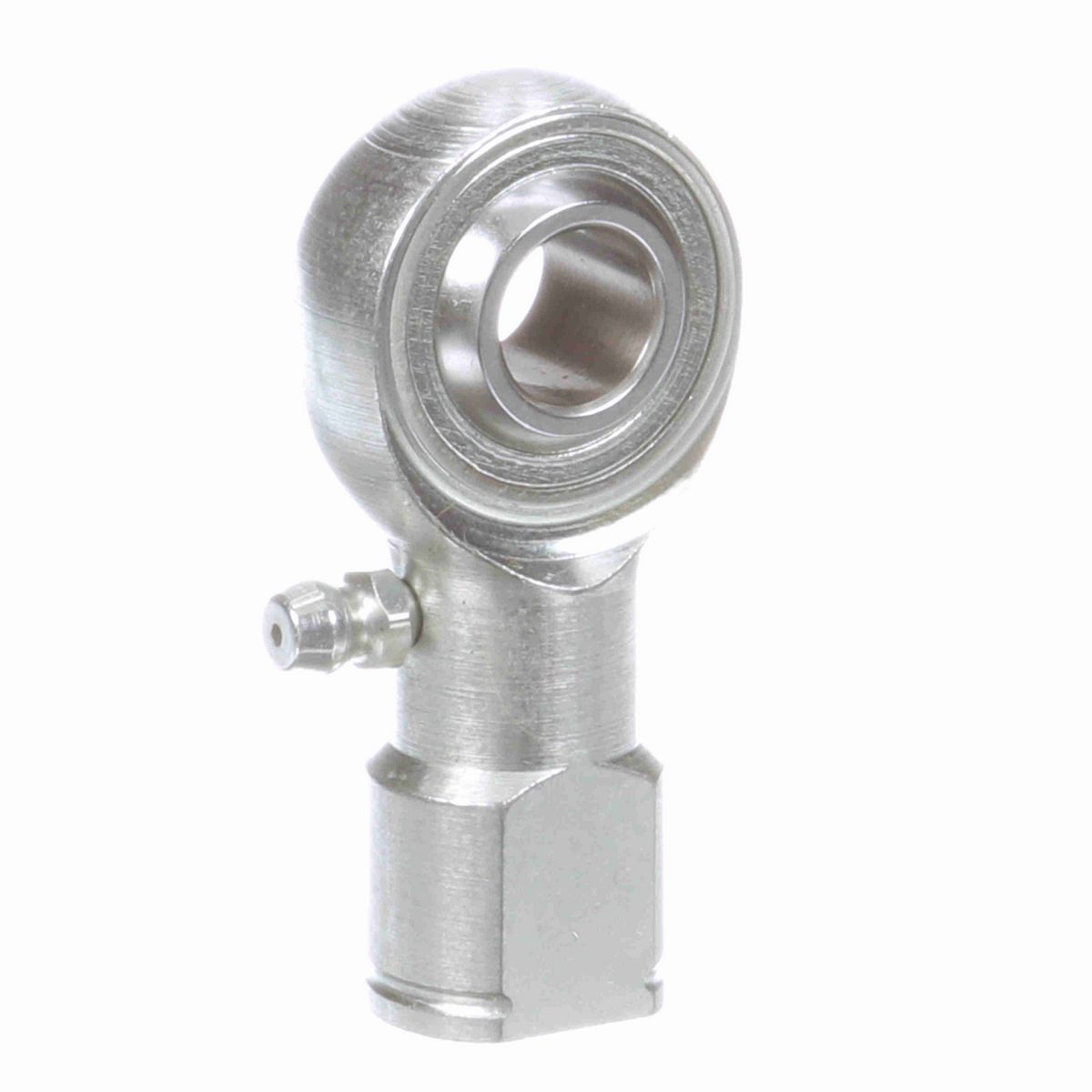

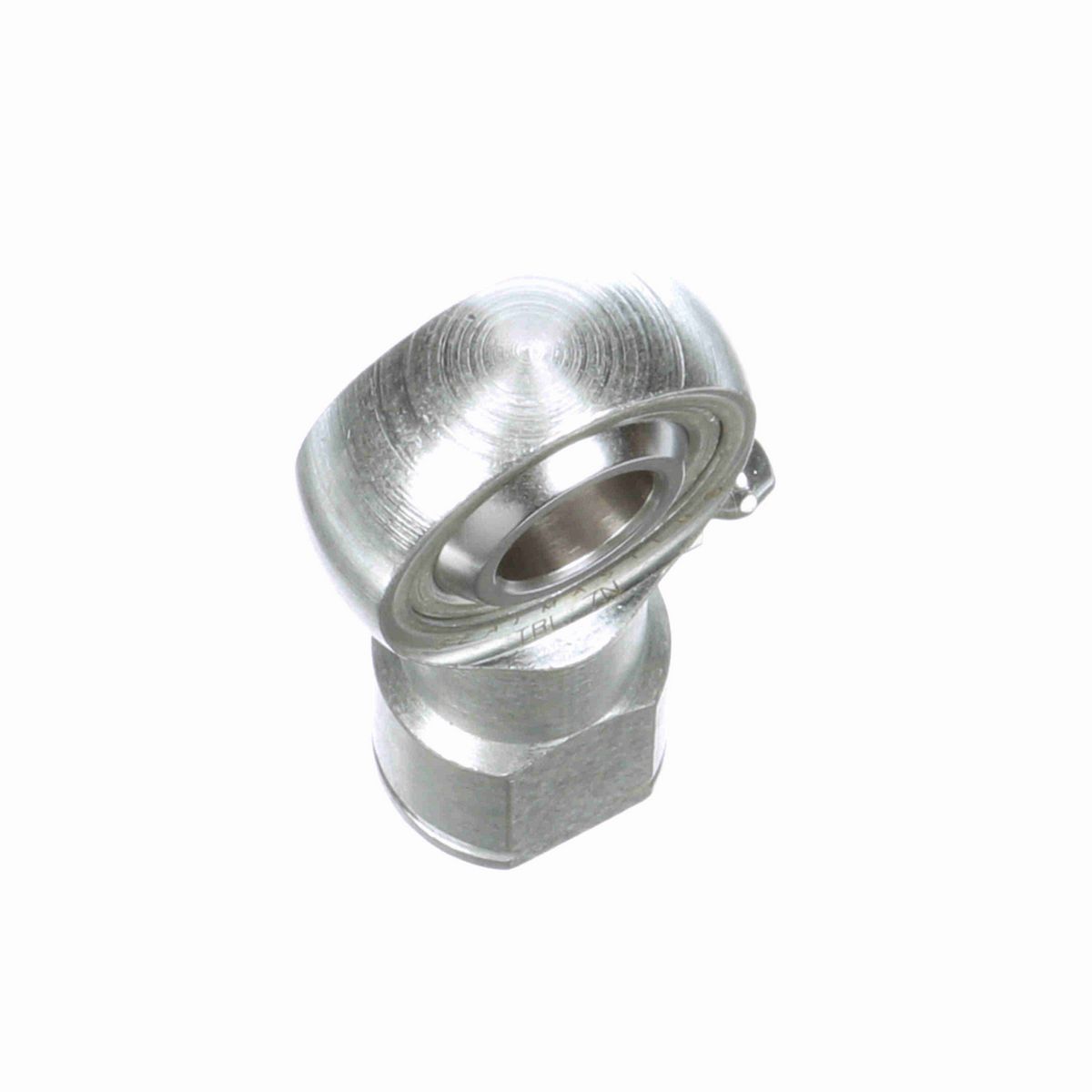

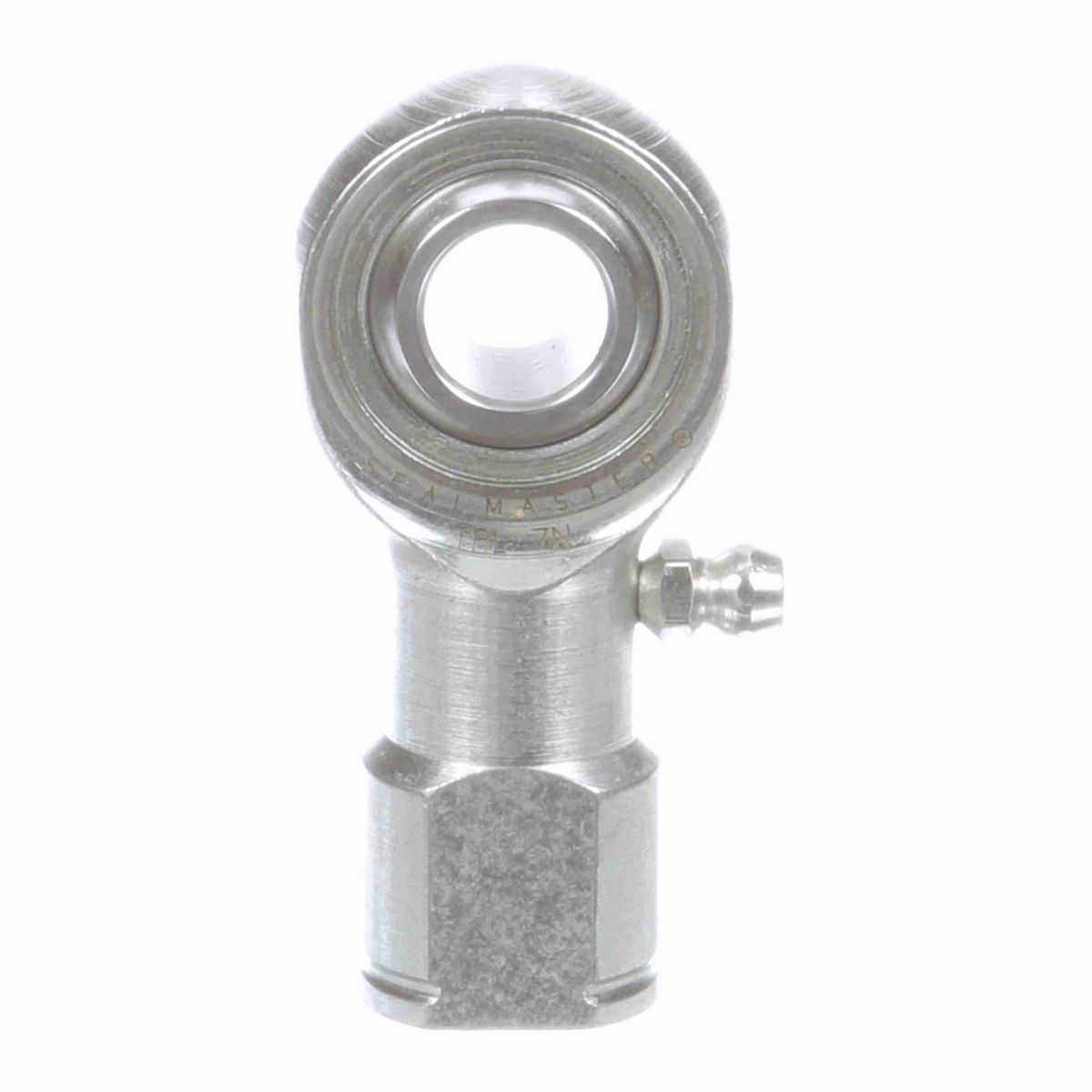

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Width (in)	0.562 in
Ball Flat Diameter (in)	0.586 in
Ball Diameter (in)	0.812 in
Head Diameter (in)	1.125 in
Thread Length (in)	1.031 in
Base Diameter (in)	0.75 in
Thread Size	#7/16-20
Housing Width (in)	0.437 in
Length to Center of Ball (in)	1.81 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Thread Type	UNF
Axial Load	535
Construction	Three-Piece Rod End with Zerk Fitting
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication Type	Grease
Configuration	Female
Housing Style	Female Rod End
Race Material	Carbon Steel - corrosion resistant plating
Zerk Fitting SW	Y
Product Selection Available SW	Y
Across Wrench Flats	0.625
Series	Precision
Misalignment Angle - a Deg. +/-	7
Product Type	TR
Bearing Type	Rod End
Type	Female Rod End
Lubrication	Zerk Fitting
Thread	LH
Max Static Radial Load	5,350
Class	Precision
Bore Size (in)	0.4375 in
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288720249
Weight	0.19 LB
Packaged Length	1.00 IN
Packaged Width	0.44 IN
Packaged Height	2.50 IN
HTC	8483.30.8055
Country of Origin	Mexico
