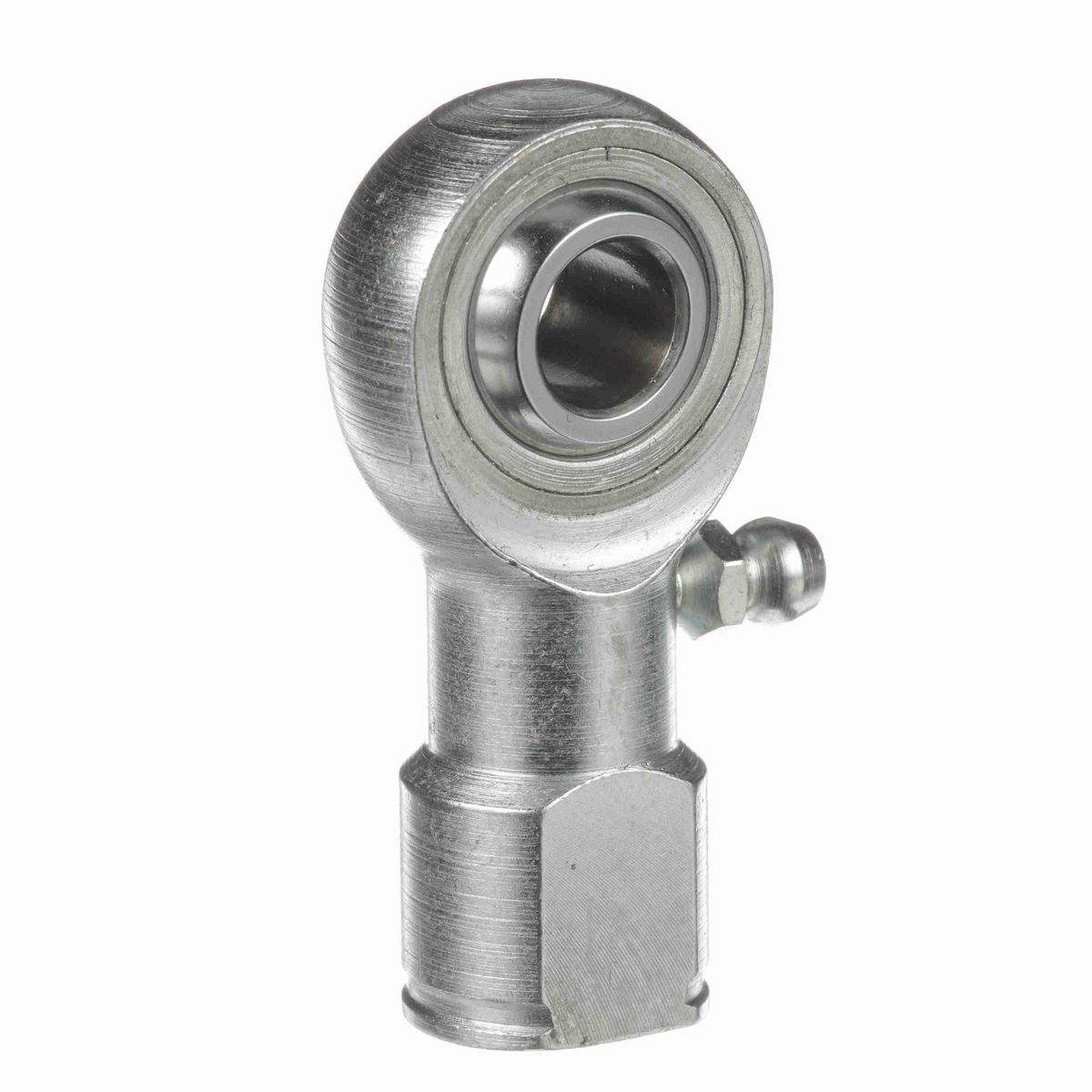

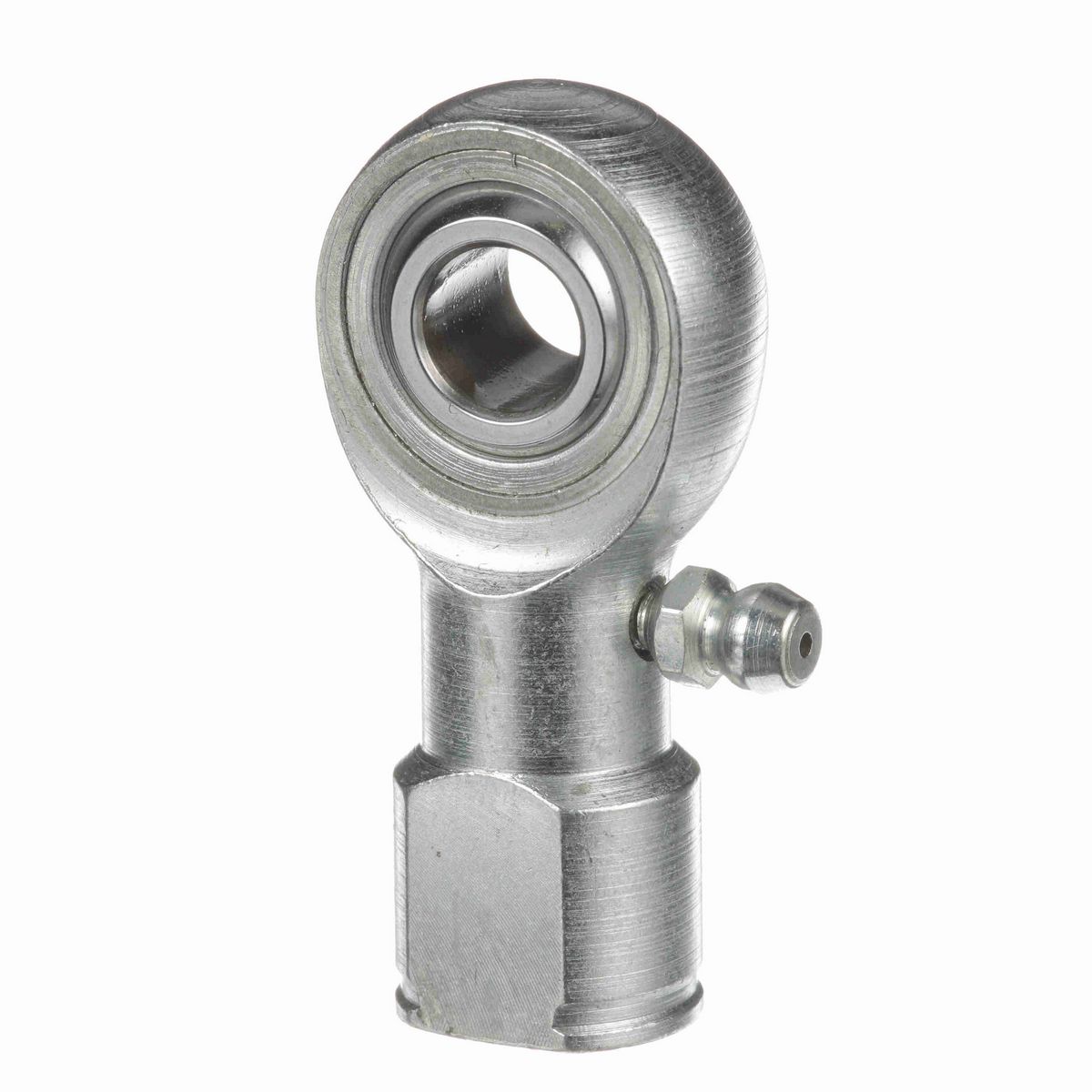

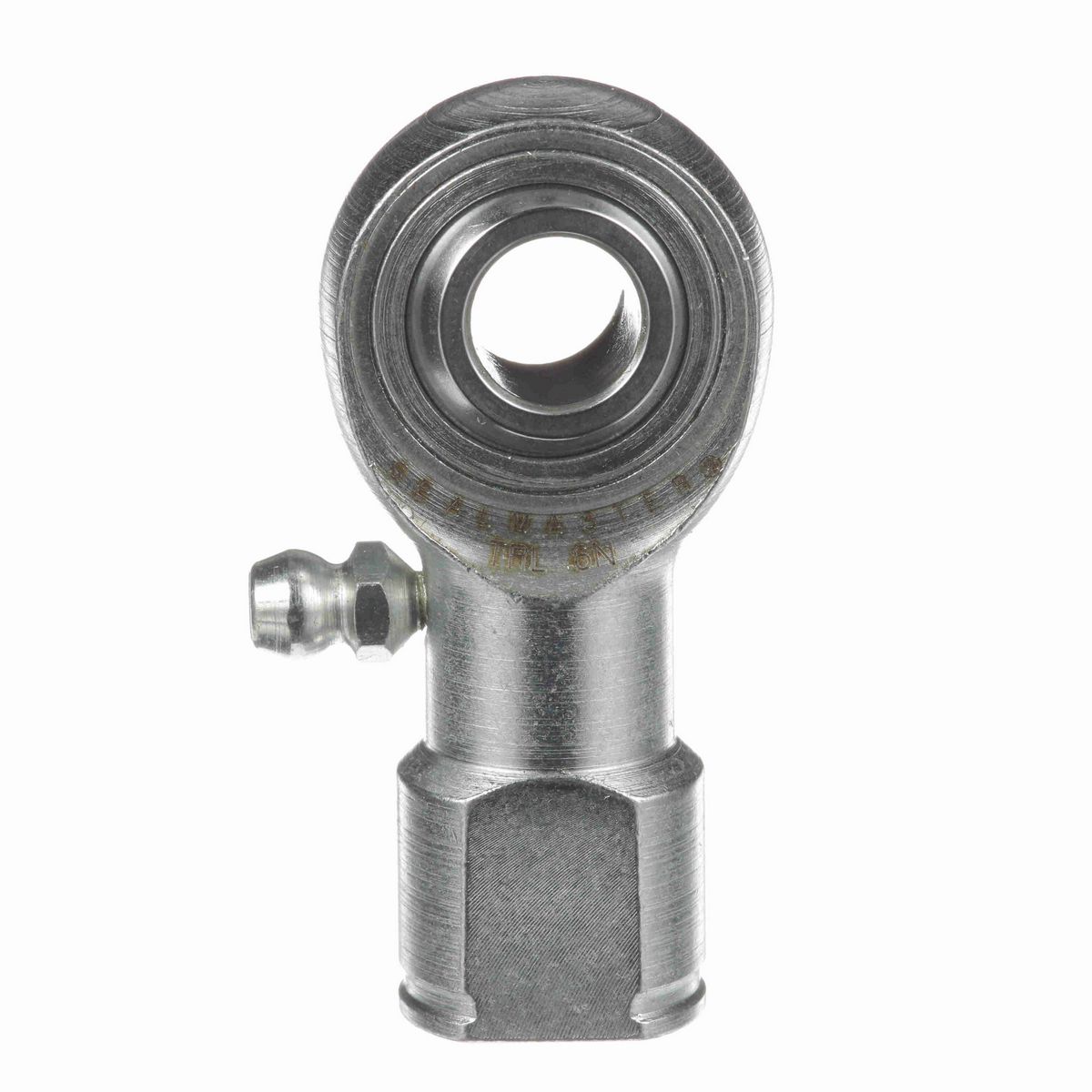

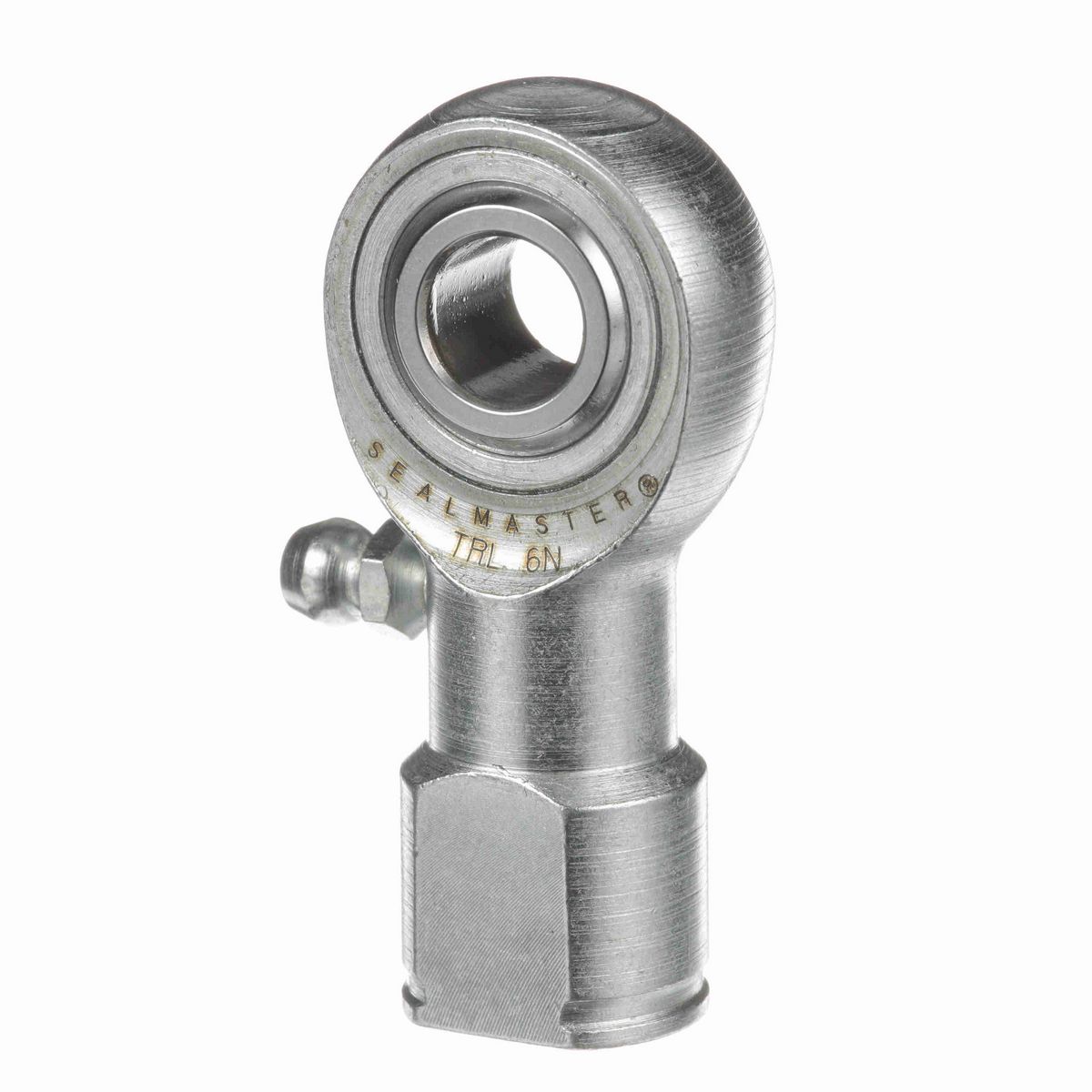

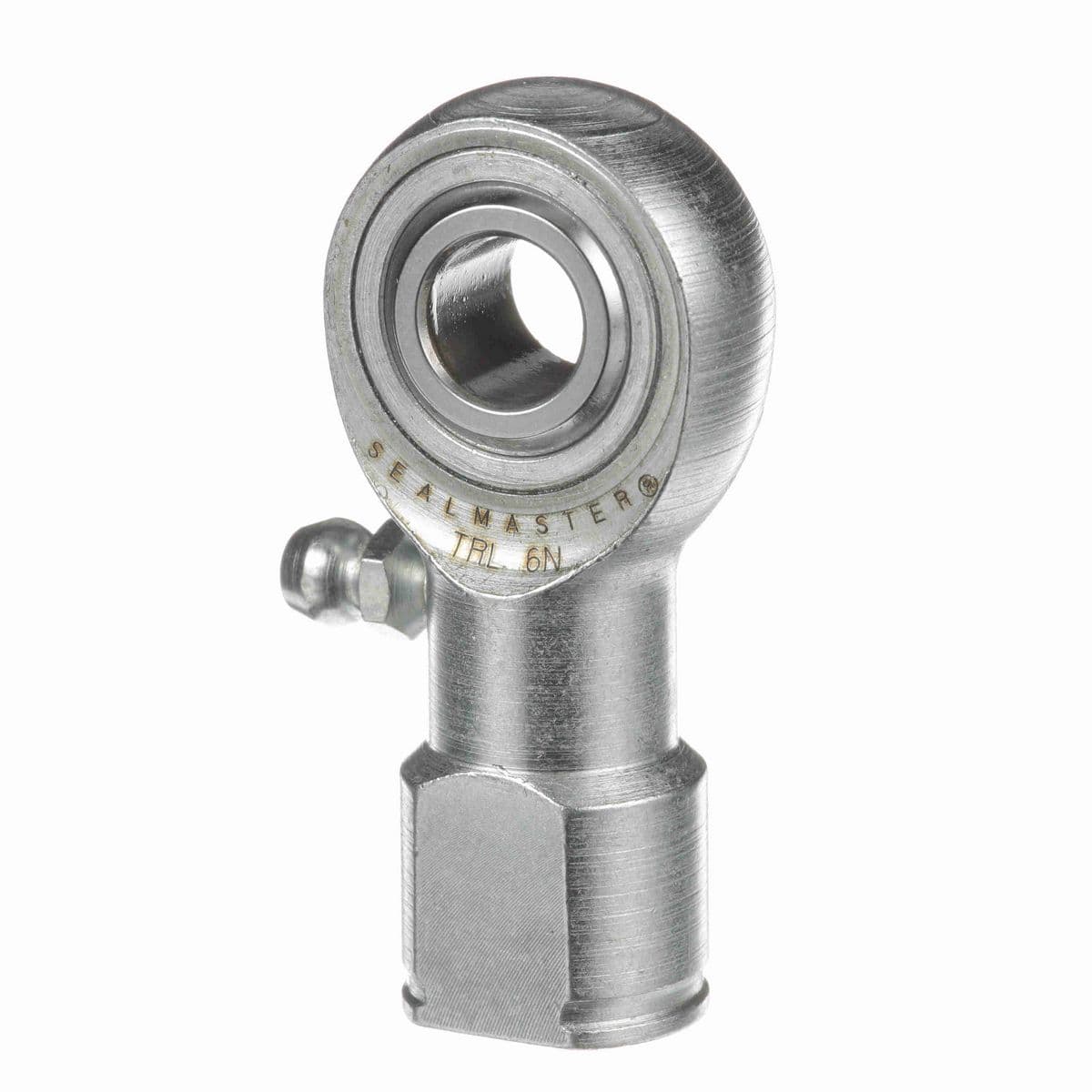

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Length (in)	0.906 in
Head Diameter (in)	1 in
Thread Size	#3/8-24
Ball Flat Diameter (in)	0.517 in
Base Diameter (in)	0.688 in
Ball Diameter (in)	0.718 in
Ball Width (in)	0.5 in
Housing Width (in)	0.406 in
Length to Center of Ball (in)	1.63 in

Technical Specifications

Product Type	TR
Construction	Three-Piece Rod End with Zerk Fitting
Configuration	Female
Product Selection Available SW	Y
Series	Precision
Zerk Fitting SW	Y
Race Material	Carbon Steel - corrosion resistant plating
Axial Load	445
Thread Type	UNF
Across Wrench Flats	0.562
Lubrication Type	Grease
Misalignment Angle - a Deg. +/-	6
Outer Material	Carbon Steel - Corrosion Resistant Plating
Bearing Type	Rod End
Housing Style	Female Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Thread	LH
Max Static Radial Load	4,450
Type	Female Rod End
Lubrication	Zerk Fitting
Bore Size (in)	0.3750 in
Class	Precision
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288720232
Weight	0.15 LB
Packaged Length	4.35 IN
Packaged Width	2.20 IN
Packaged Height	0.80 IN
HTC	8483.30.8055
Country of Origin	Mexico
