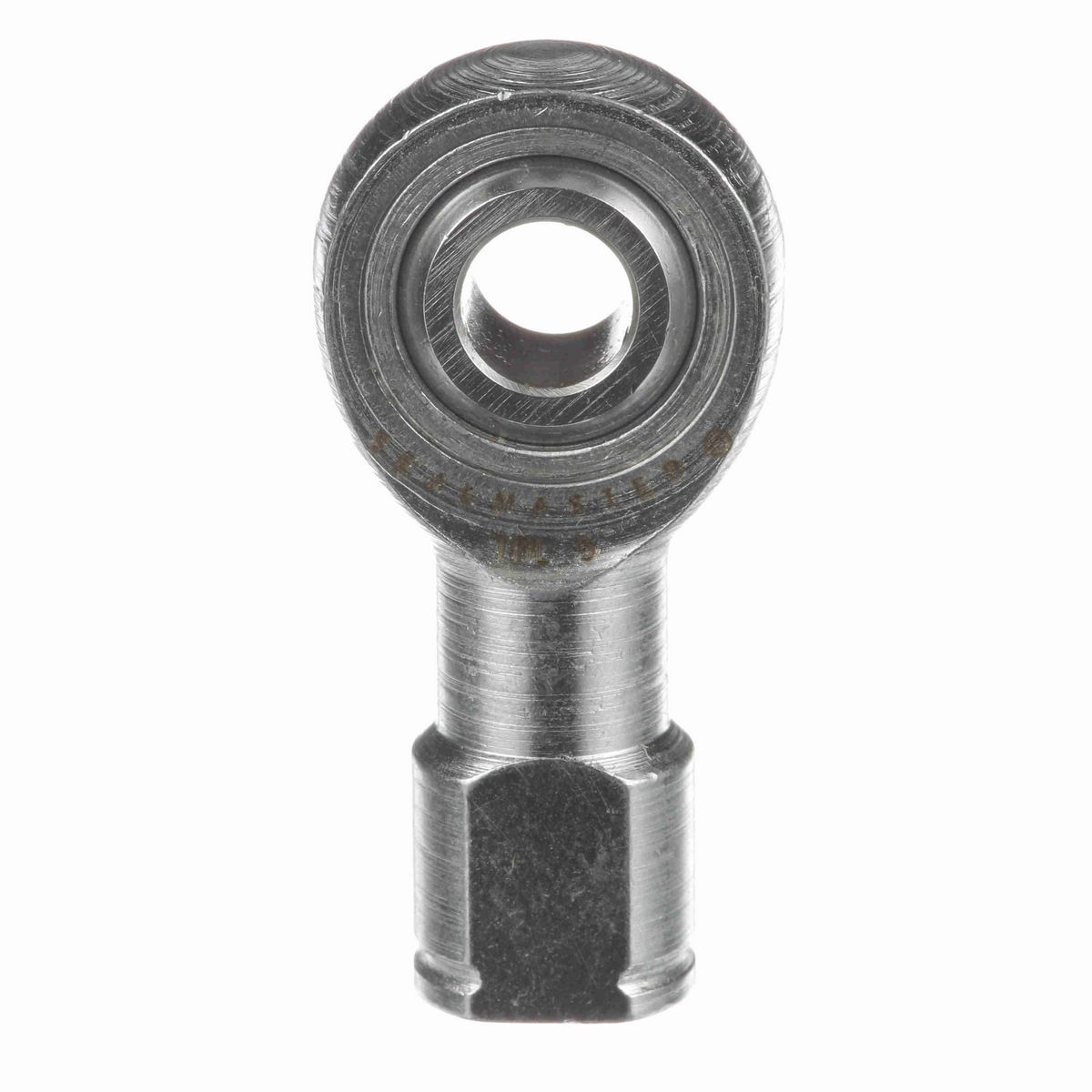

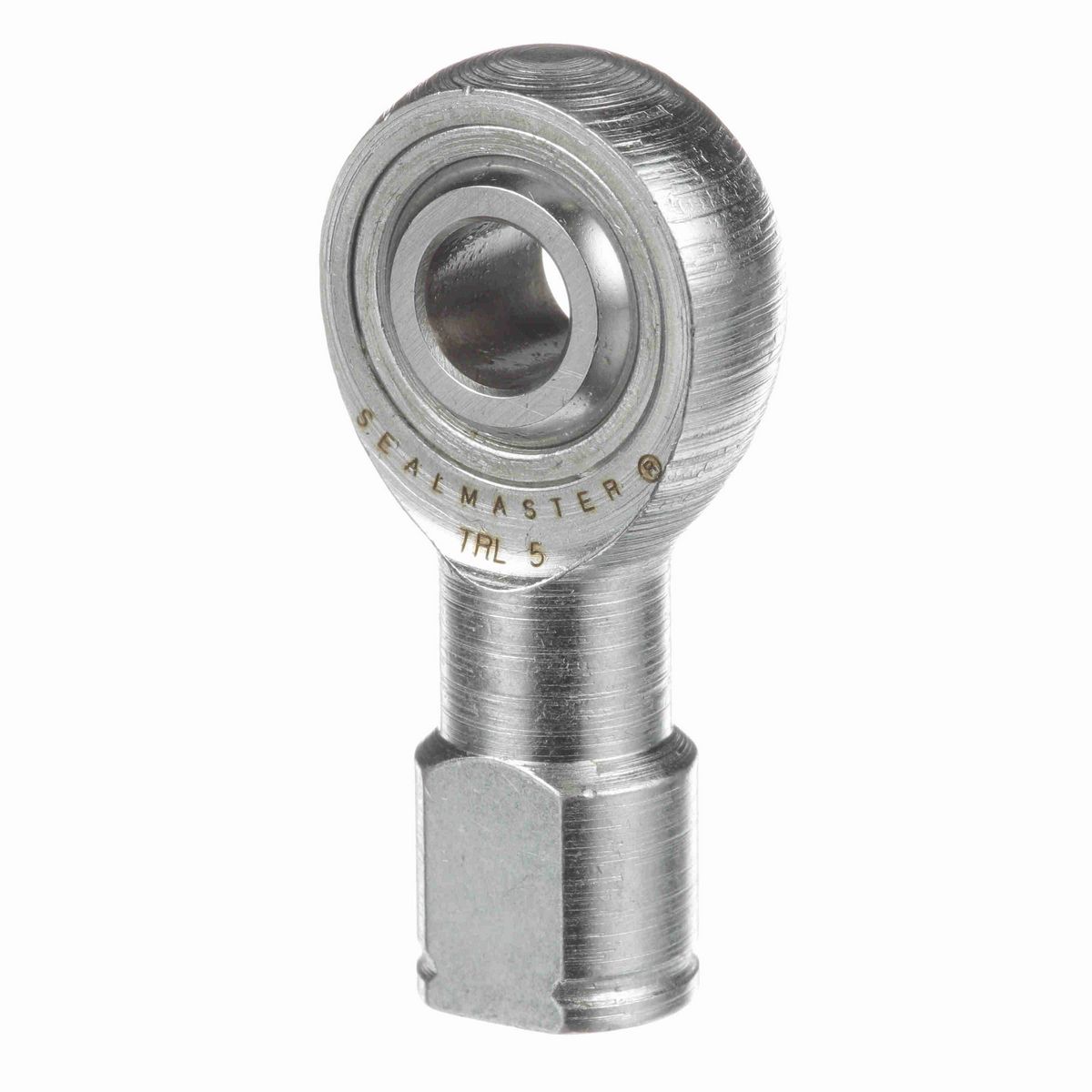

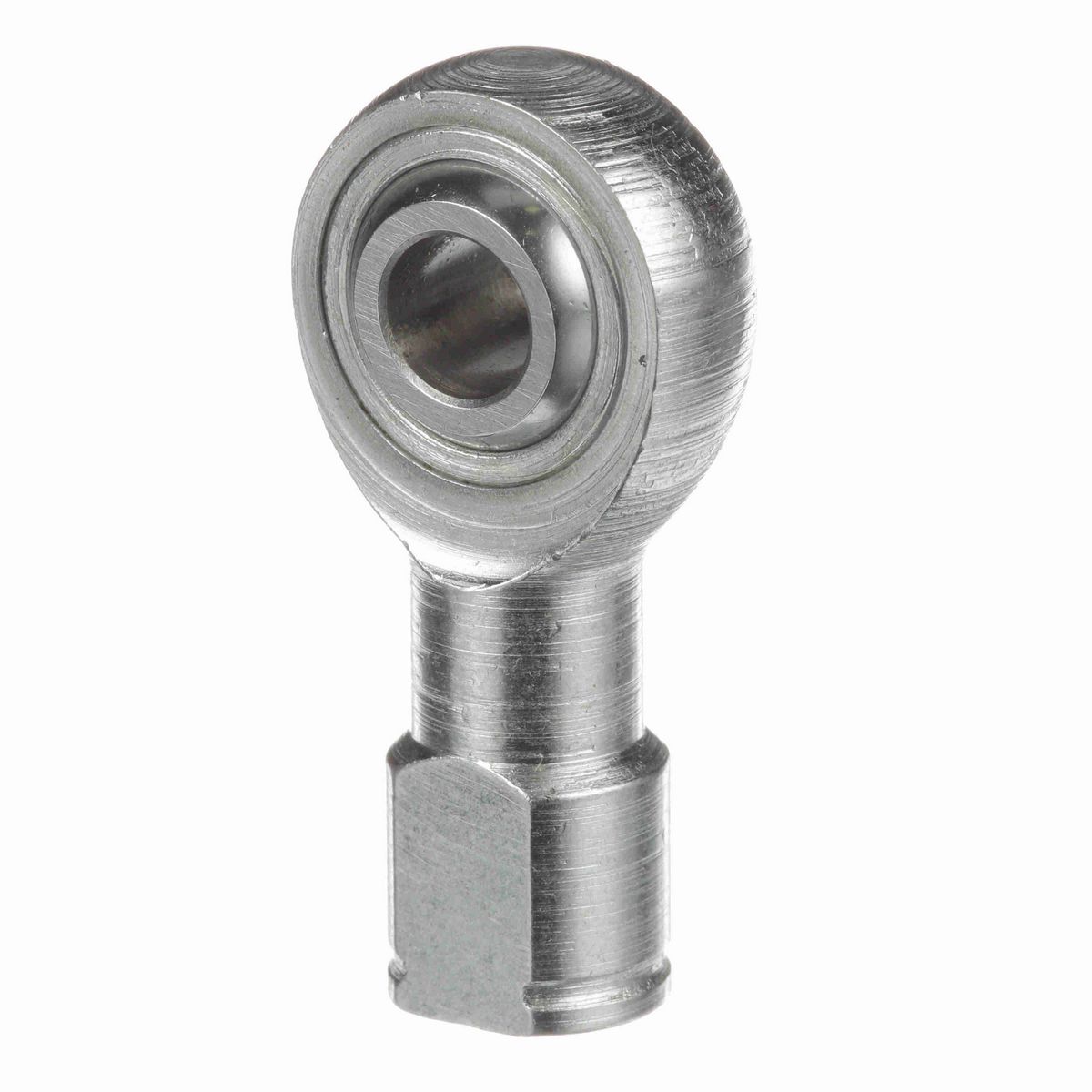

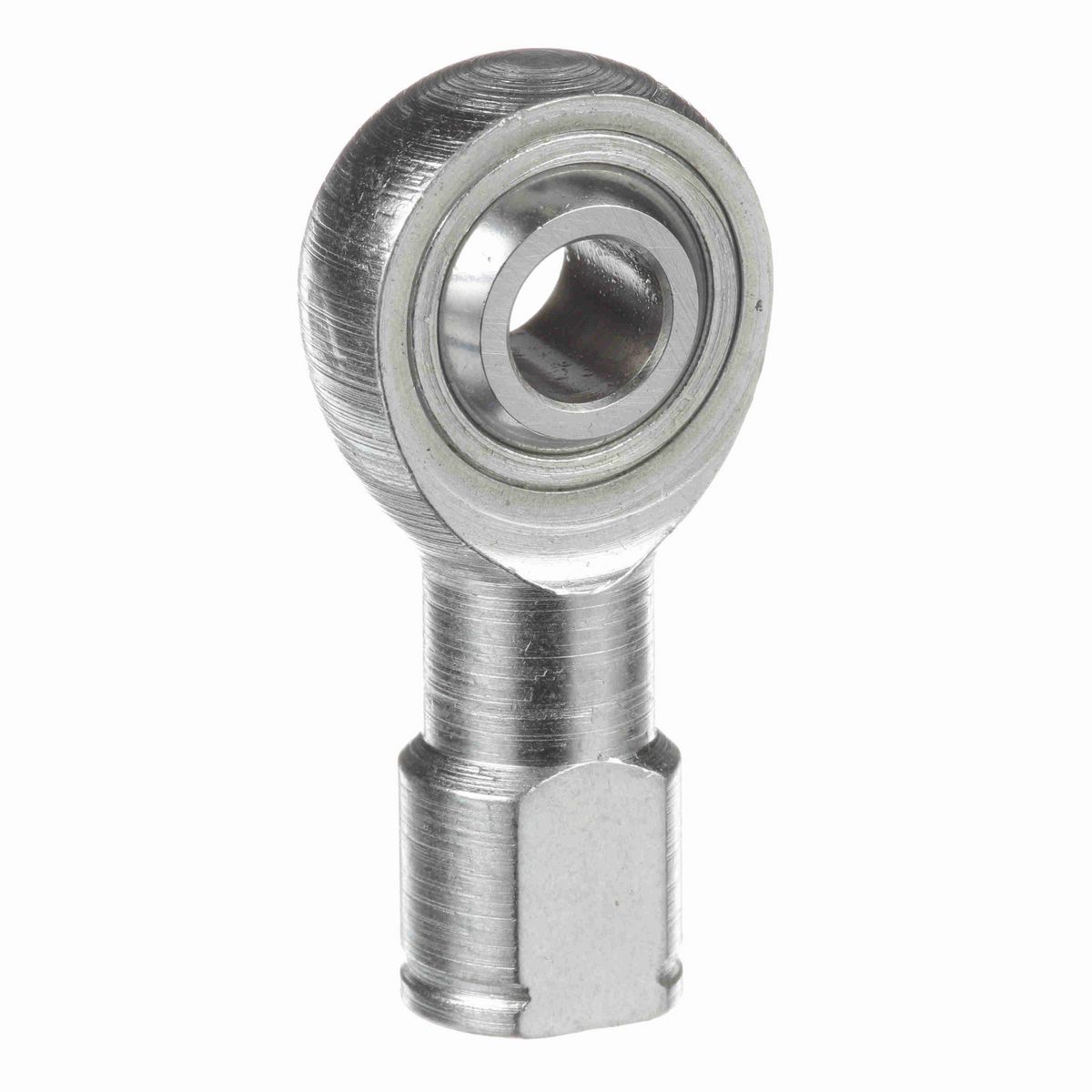

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Flat Diameter (in)	0.447 in
Housing Width (in)	0.344 in
Base Diameter (in)	0.531 in
Thread Length (in)	0.719 in
Head Diameter (in)	0.875 in
Ball Diameter (in)	0.625 in
Thread Size	#5/16-24
Ball Width (in)	0.437 in
Length to Center of Ball (in)	1.38 in

Technical Specifications

Misalignment Angle - a Deg. +/-	7
Race Material	Carbon Steel - corrosion resistant plating
Across Wrench Flats	0.437
Configuration	Female
Thread Type	UNF
Construction	Three-Piece Rod End with Zerk Fitting
Bearing Type	Rod End
Series	Precision
Product Type	TR
Lubrication Type	Grease
Product Selection Available SW	Y
Zerk Fitting SW	N
Outer Material	Carbon Steel - Corrosion Resistant Plating
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Axial Load	335
Housing Style	Female Rod End
Type	Female Rod End
Lubrication	No Zerk Fitting
Max Static Radial Load	3,350
Thread	LH
Class	Precision
Bore Size (in)	0.3125 in
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288719496
Weight	0.09 LB
Packaged Length	2.30 IN
Packaged Width	2.85 IN
Packaged Height	0.85 IN
HTC	8483.30.8055
Country of Origin	Mexico
