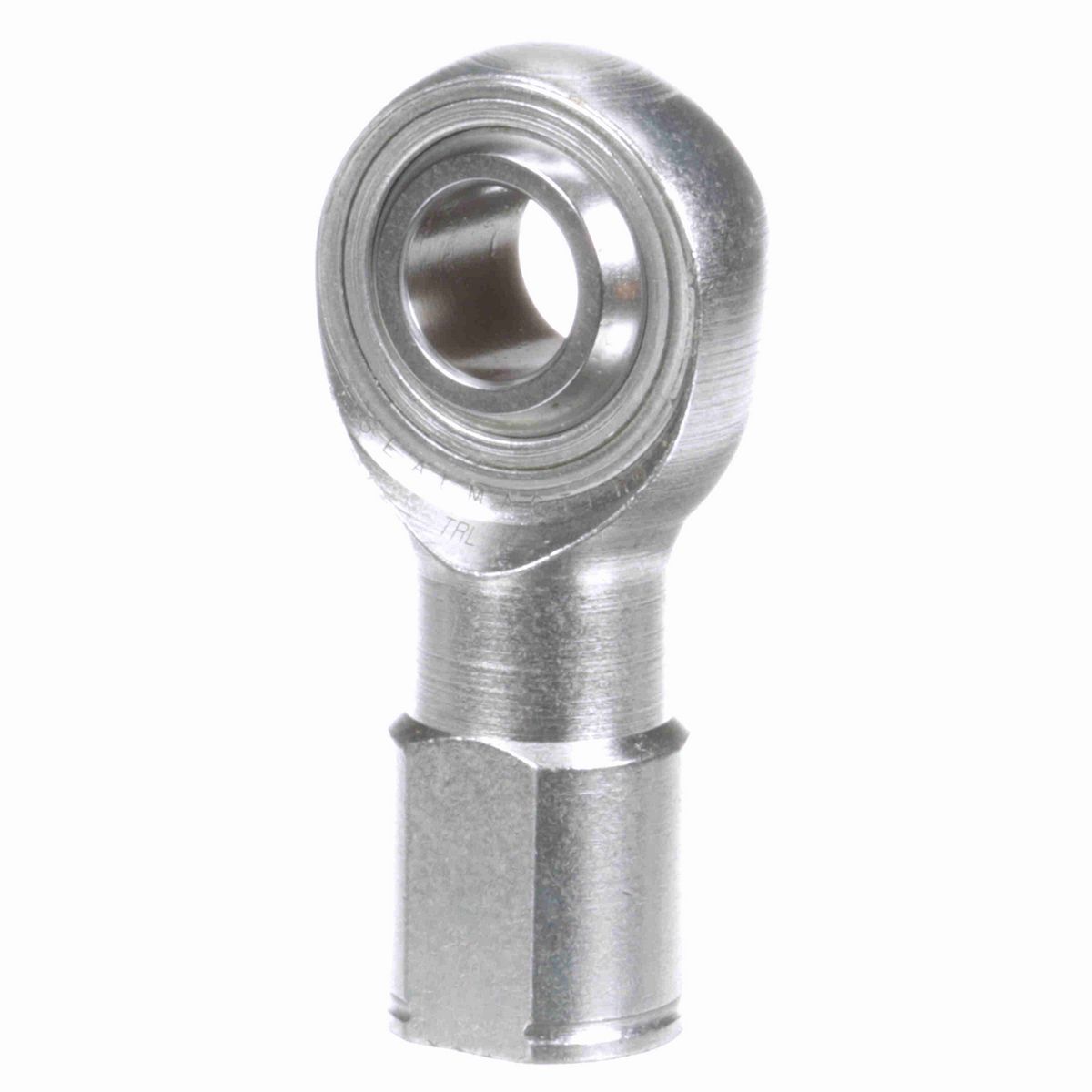

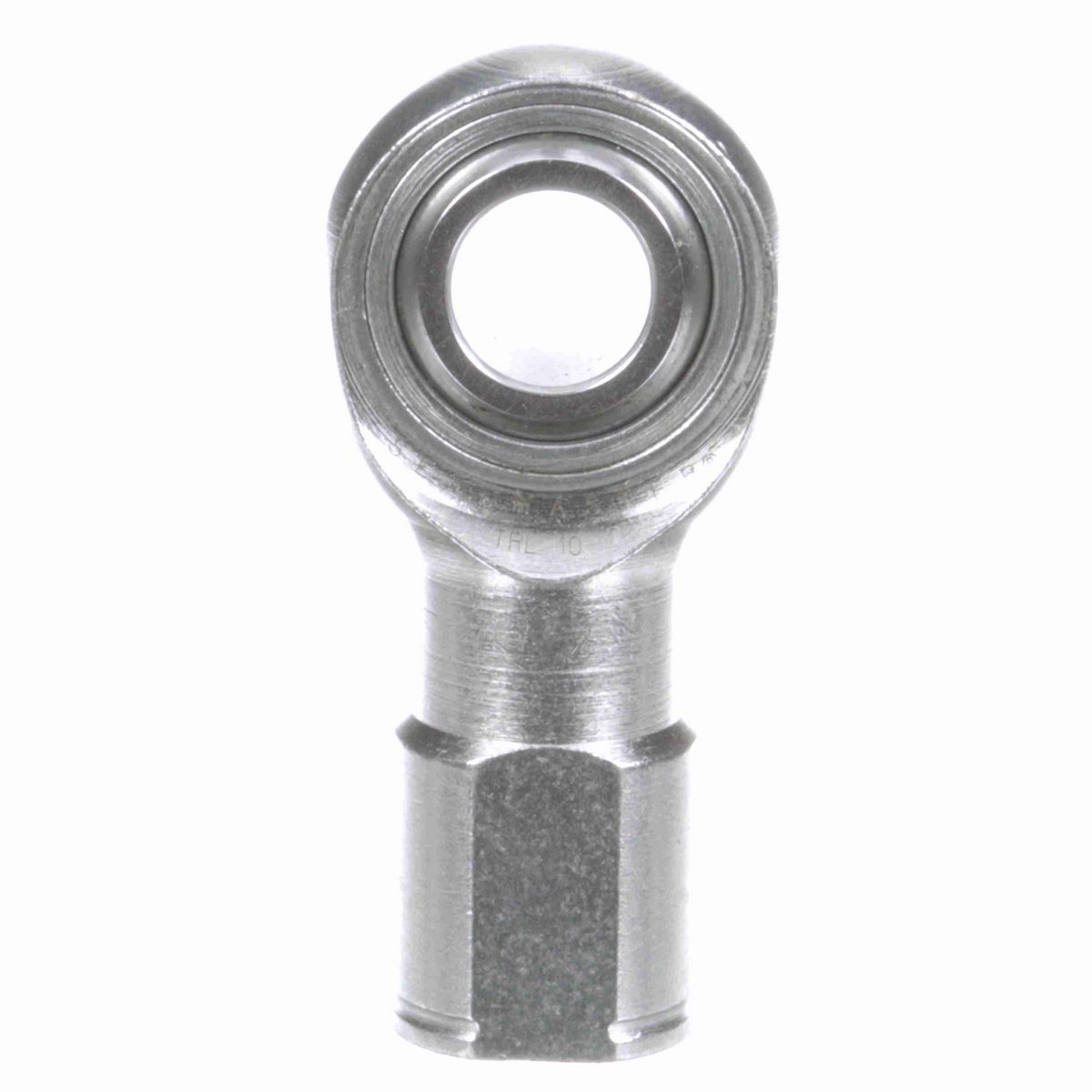

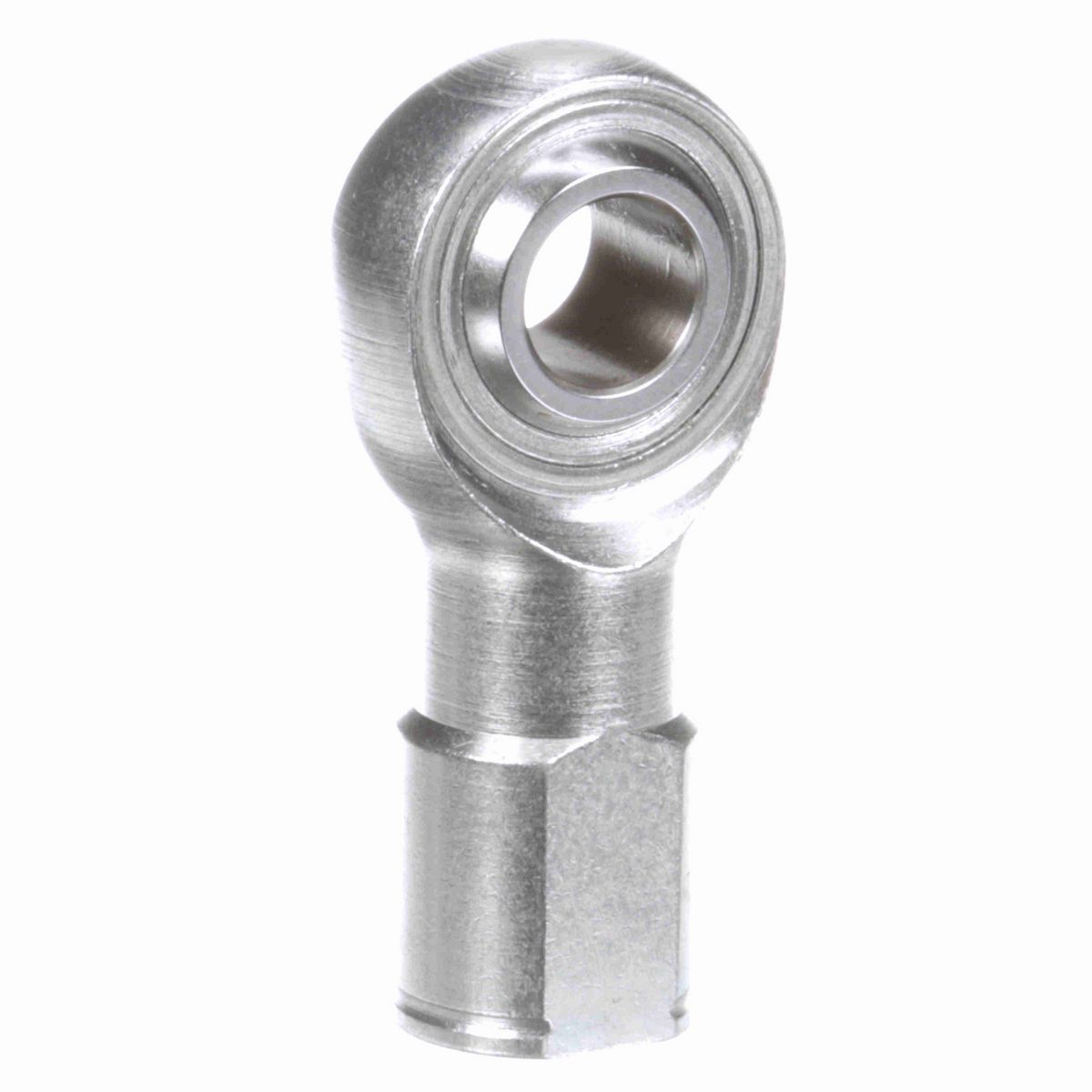

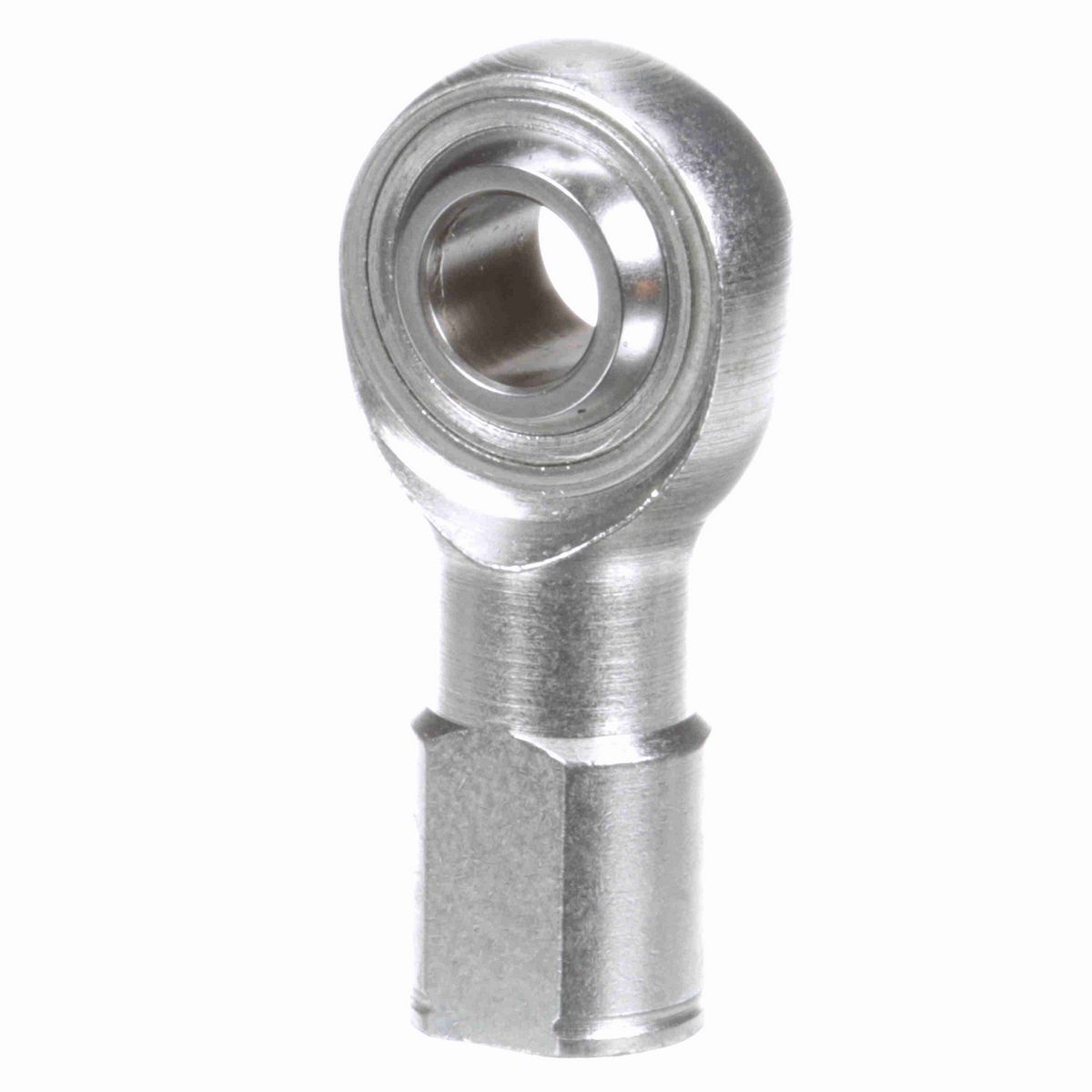

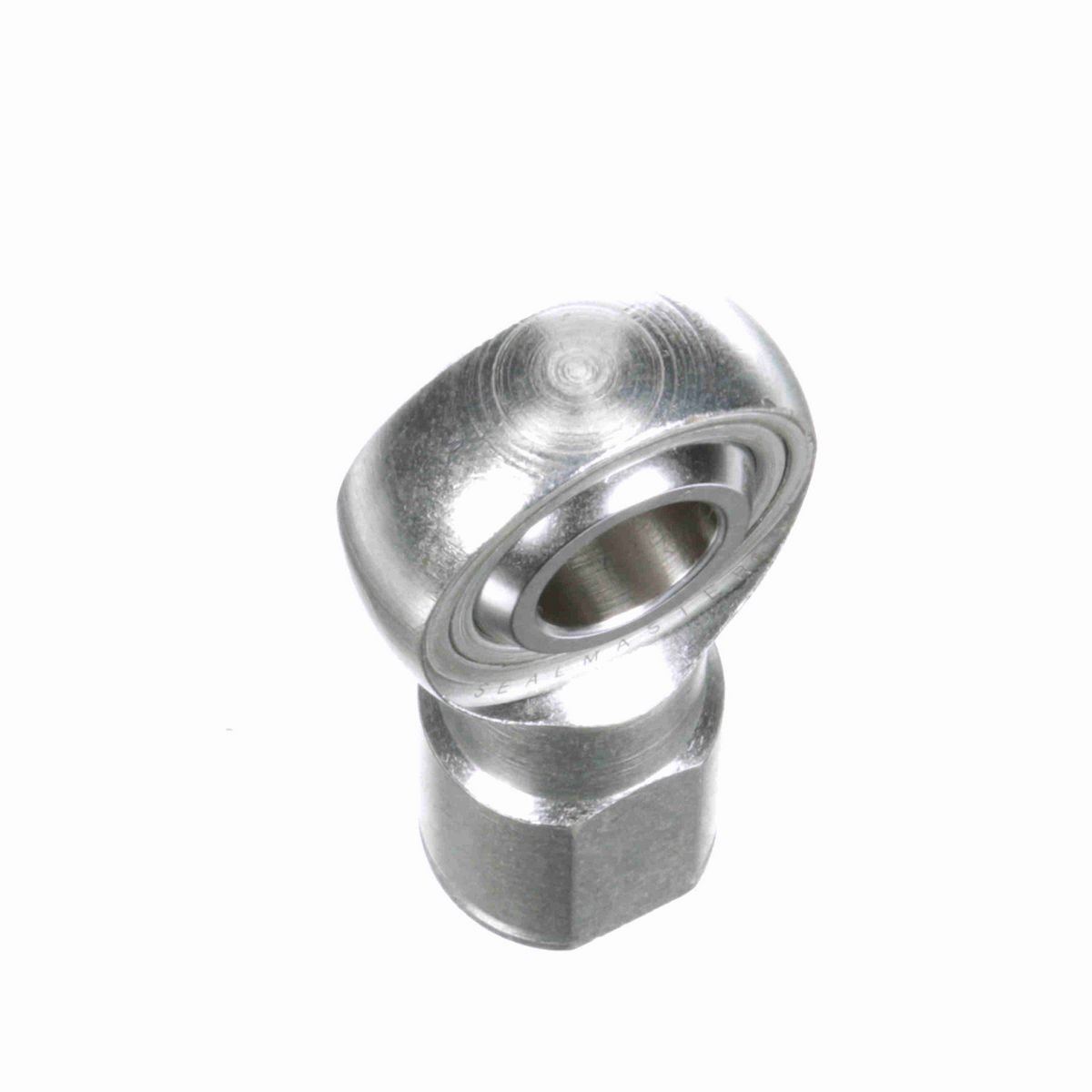

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Base Diameter (in)	1 in
Housing Width (in)	0.562 in
Head Diameter (in)	1.5 in
Ball Flat Diameter (in)	0.839 in
Thread Length (in)	1.469 in
Thread Size	#5/8-18
Ball Width (in)	0.75 in
Ball Diameter (in)	1.125 in
Length to Center of Ball (in)	2.5 in

Technical Specifications

Product Type	TR
Zerk Fitting SW	N
Thread Type	UNF
Construction	Three-Piece Rod End with Zerk Fitting
Lubrication Type	Grease
Housing Style	Female Rod End
Bearing Type	Rod End
Outer Material	Carbon Steel - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	8
Across Wrench Flats	0.875
Axial Load	805
Series	Precision
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Configuration	Female
Product Selection Available SW	Y
Race Material	Carbon Steel - corrosion resistant plating
Max Static Radial Load	8,050
Thread	LH
Type	Female Rod End
Lubrication	No Zerk Fitting
Class	Precision
Bore Size (in)	0.6250 in
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288719533
Weight	0.46 LB
Packaged Length	2.40 IN
Packaged Width	3.60 IN
Packaged Height	0.95 IN
HTC	8483.30.8055
Country of Origin	Mexico
