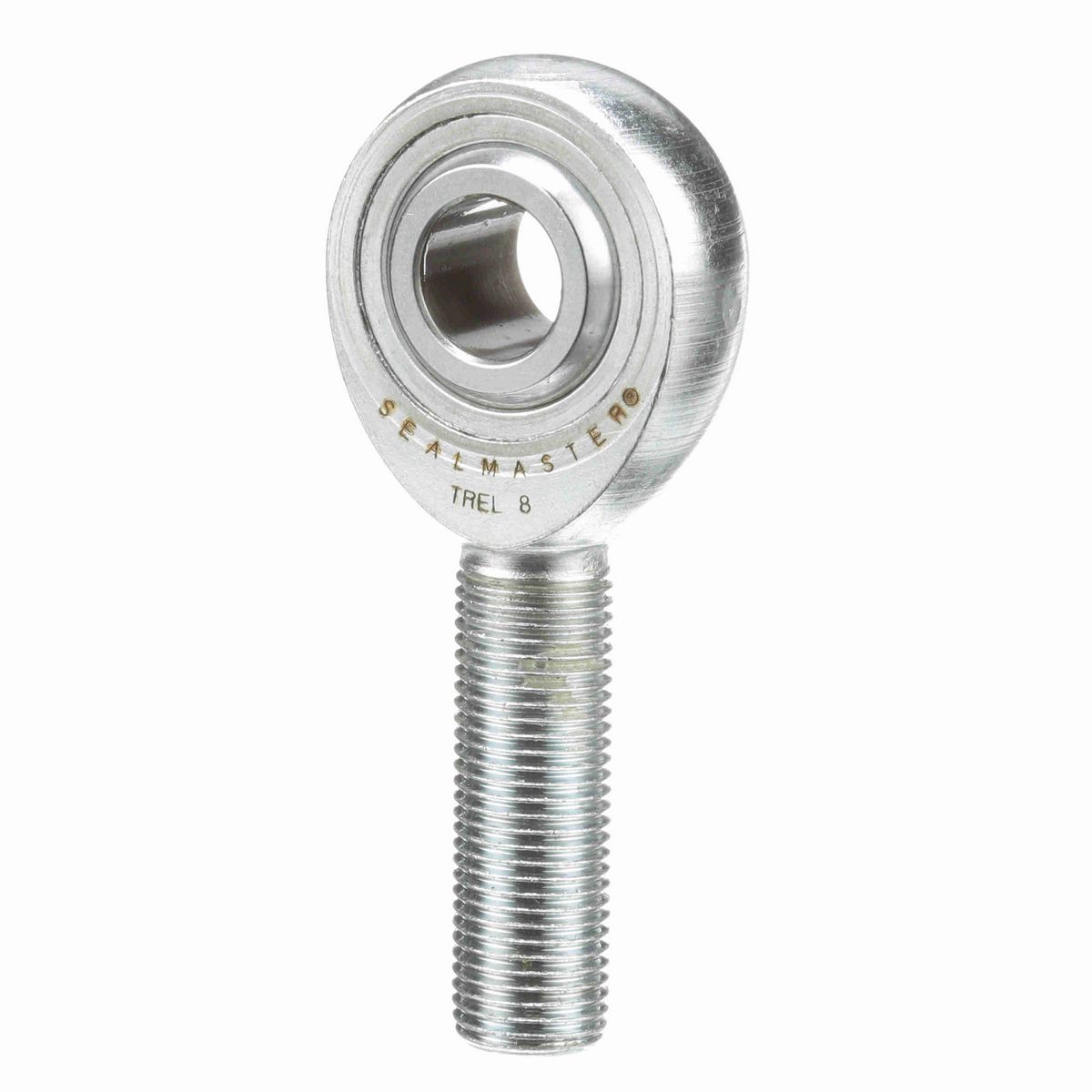

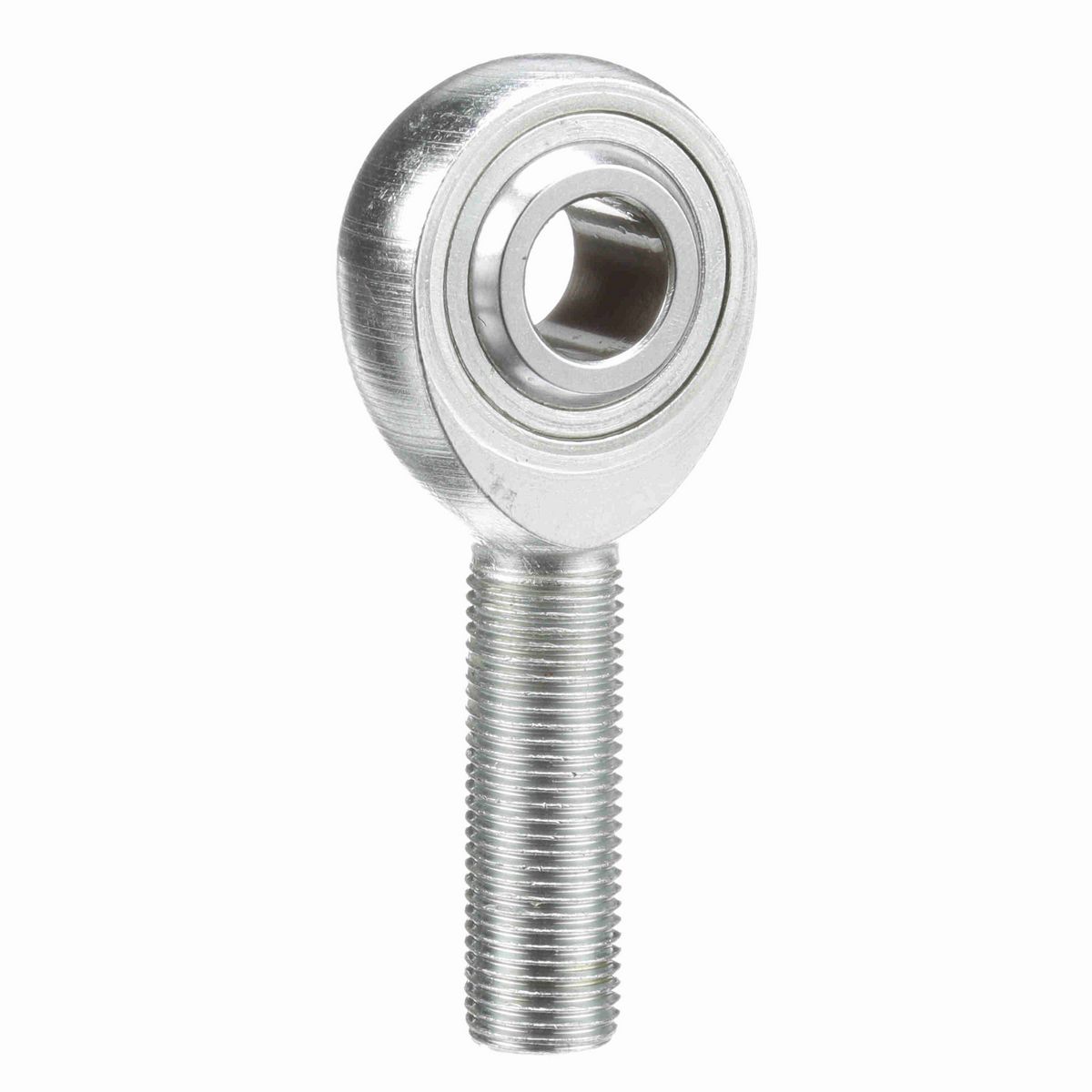

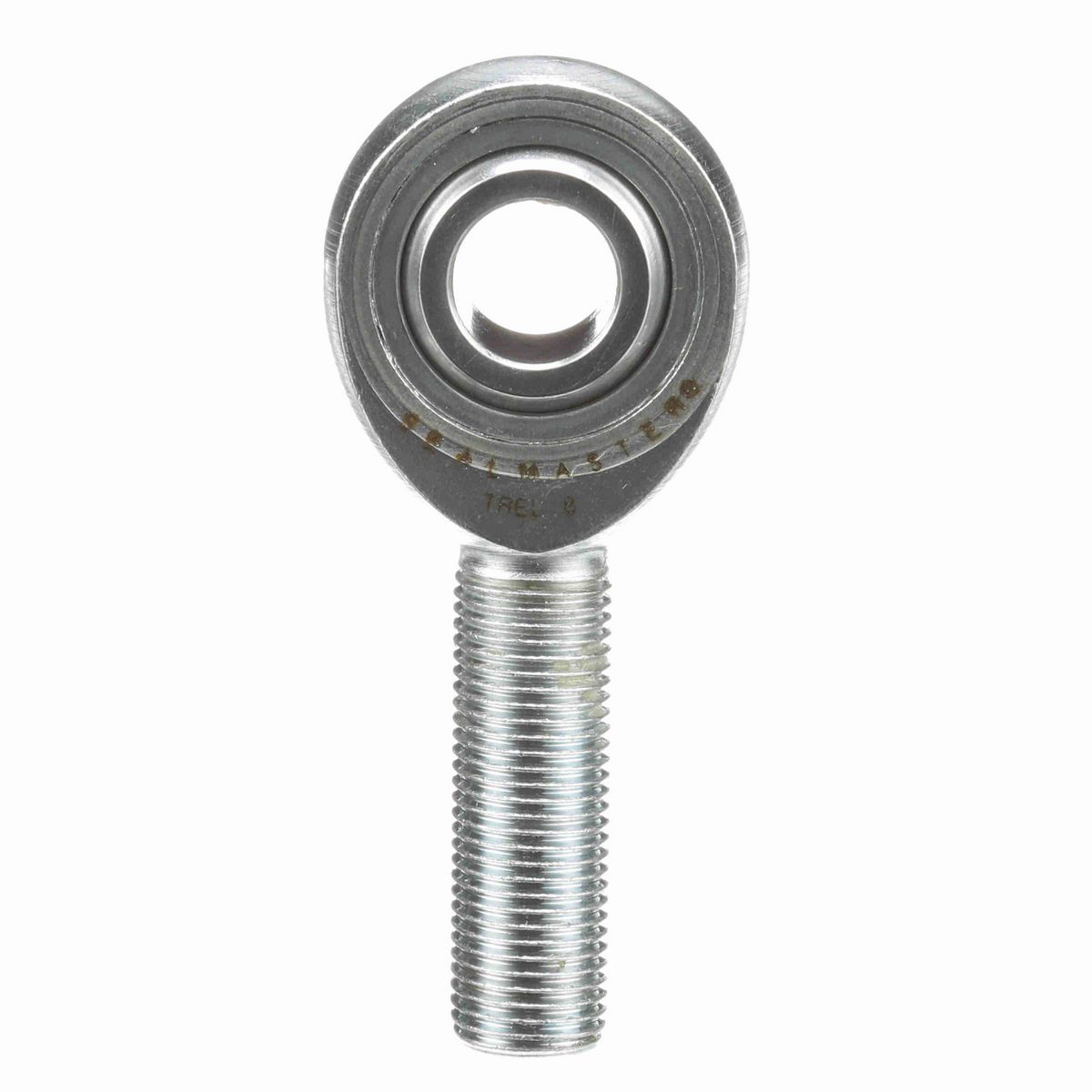

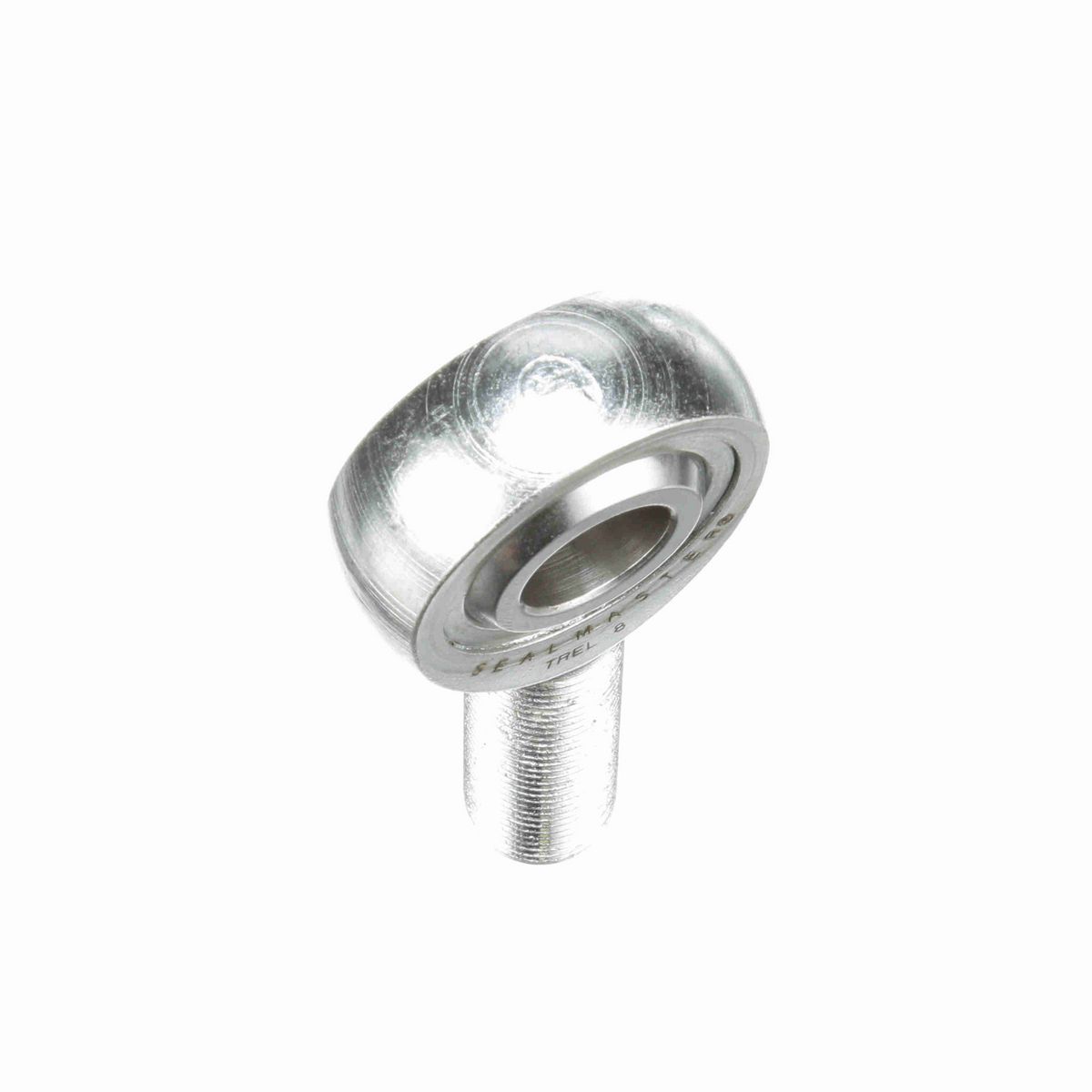

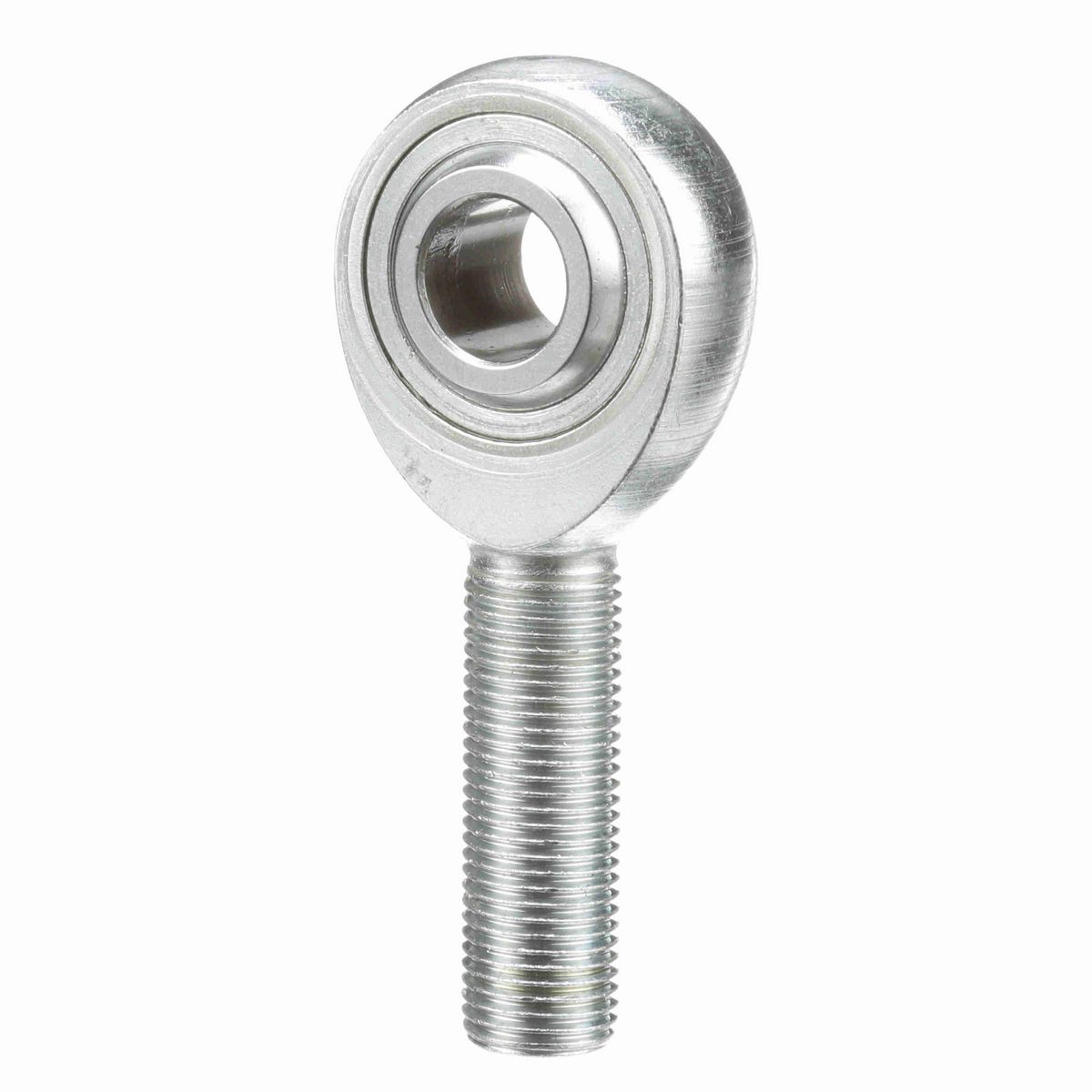

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#1/2-20
Ball Flat Diameter (in)	0.698 in
Housing Width (in)	0.5 in
Thread Length (in)	1.469 in
Head Diameter (in)	1.312 in
Ball Diameter (in)	0.937 in
Ball Width (in)	0.625 in
Length to Center of Ball (in)	2.44 in

Technical Specifications

Product Type	TRE
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Misalignment Angle - a Deg. +/-	6
Housing Style	Male Rod End
Race Material	Carbon Steel - corrosion resistant plating
Product Selection Available SW	Y
Axial Load	700
Outer Material	Carbon Steel - Corrosion Resistant Plating
Thread Type	UNF
Series	Precision
Bearing Type	Rod End
Zerk Fitting SW	N
Construction	Three-Piece Rod End with Zerk Fitting
Lubrication Type	Grease
Configuration	Male
Type	Male Rod End
Thread	LH
Lubrication	No Zerk Fitting
Max Static Radial Load	7,000
Bore Size (in)	0.5000 in
Class	Precision
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288718710
Weight	0.69 LB
Packaged Length	2.15 IN
Packaged Width	5.05 IN
Packaged Height	1.00 IN
HTC	8483.30.8055
Country of Origin	Mexico
