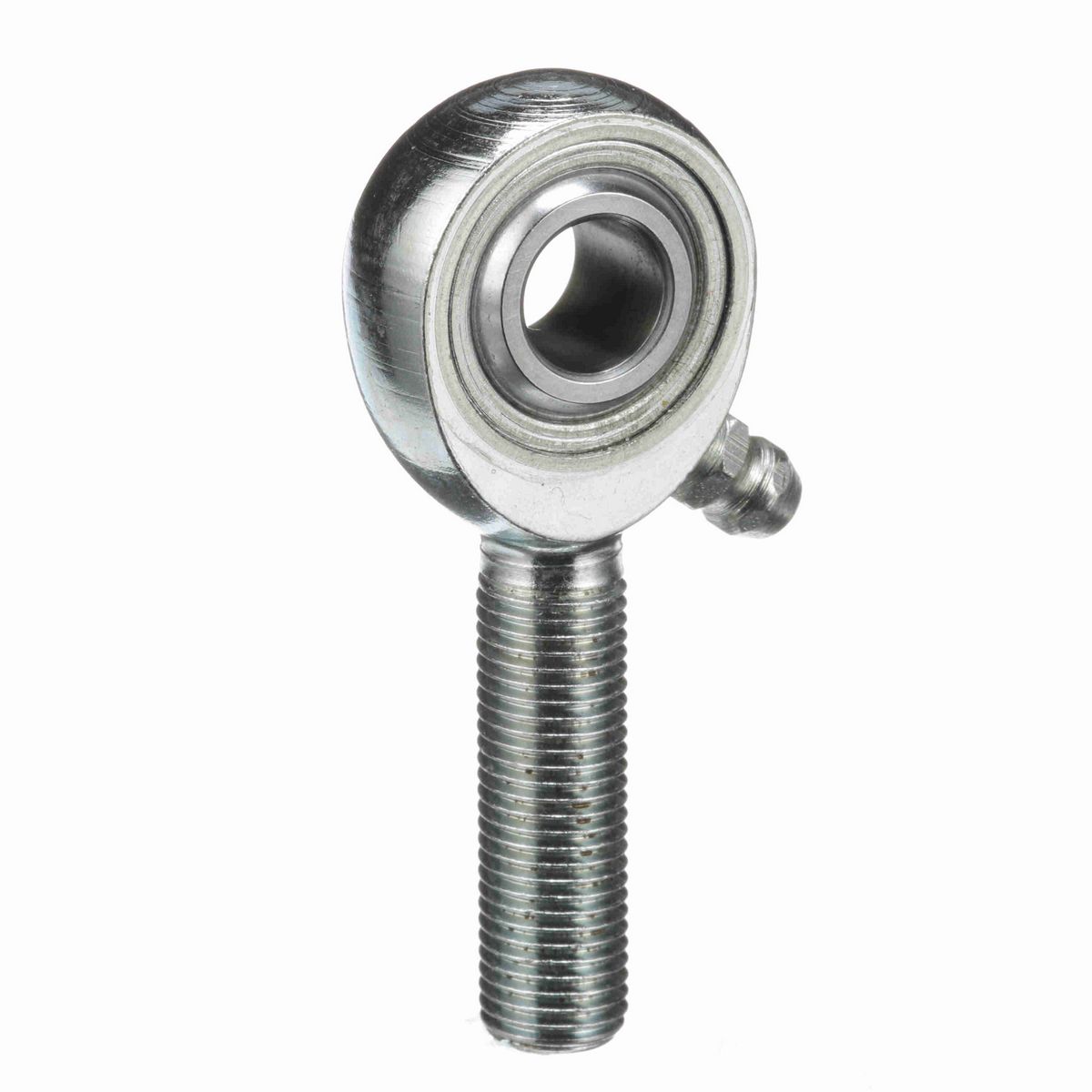

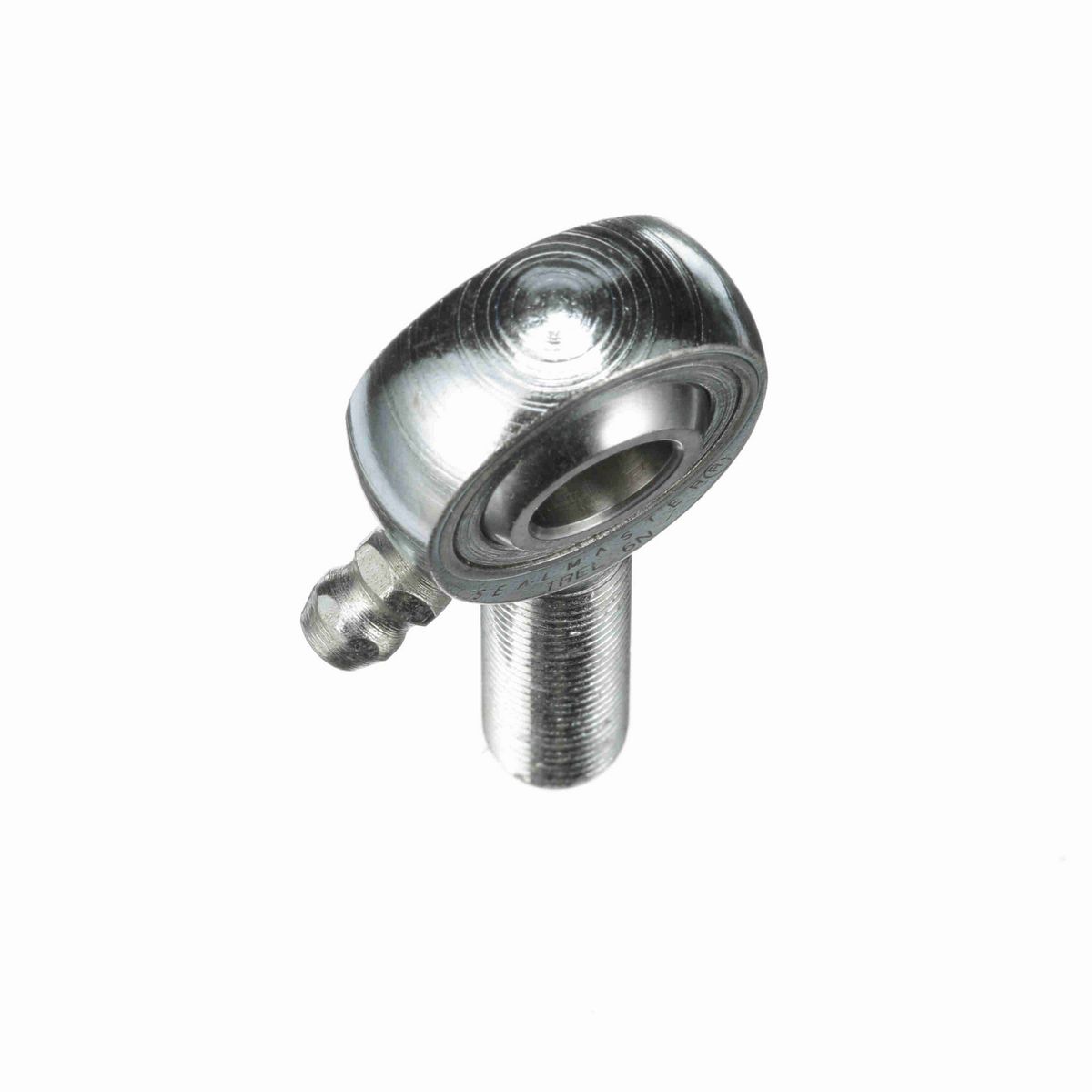

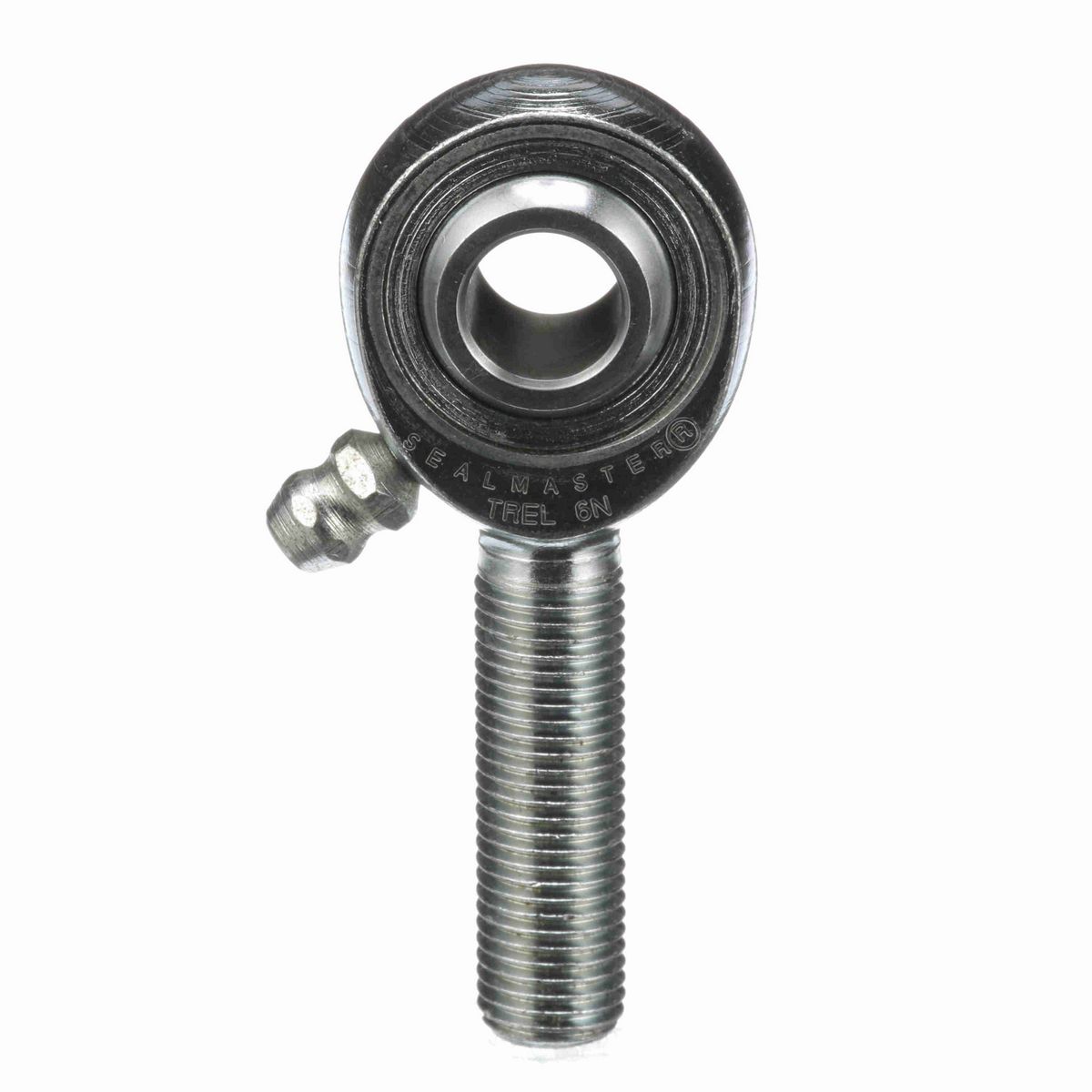

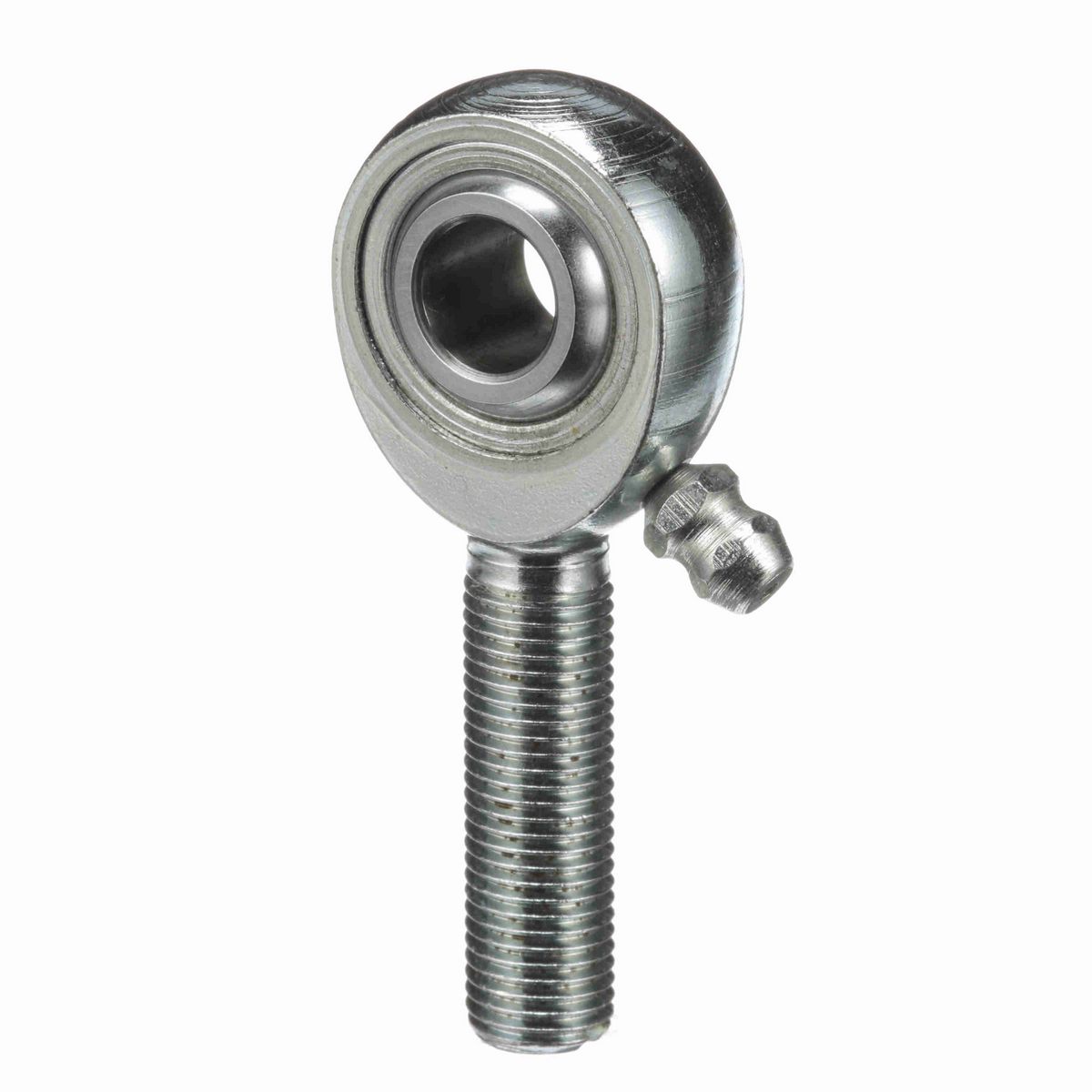

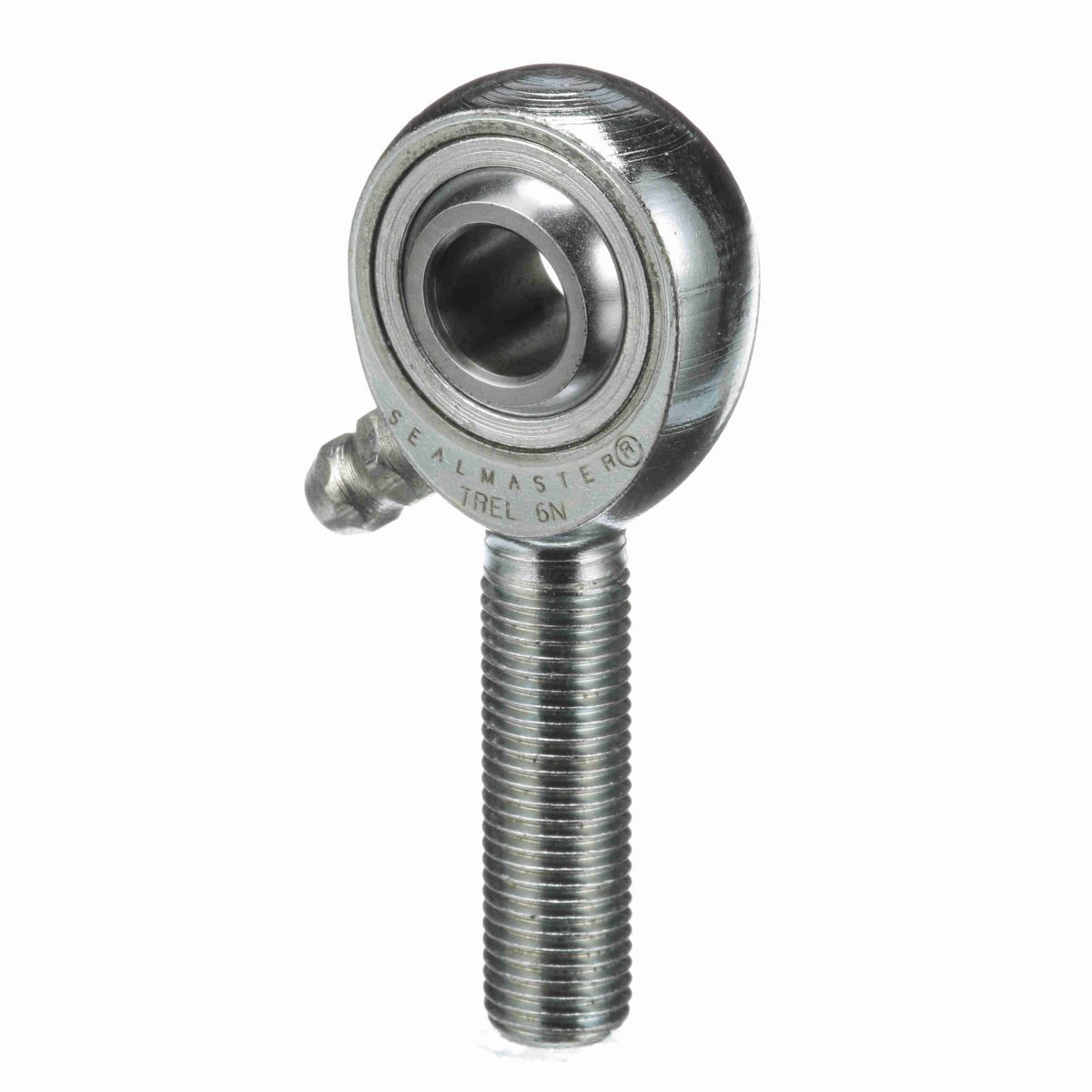

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#3/8-24
Housing Width (in)	0.406 in
Ball Flat Diameter (in)	0.517 in
Ball Width (in)	0.5 in
Ball Diameter (in)	0.718 in
Head Diameter (in)	1 in
Thread Length (in)	1.219 in
Length to Center of Ball (in)	1.94 in

Technical Specifications

Construction	Three-Piece Rod End with Zerk Fitting
Lubrication Type	Grease
Series	Precision
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Race Material	Carbon Steel - corrosion resistant plating
Zerk Fitting SW	Y
Thread Type	UNF
Housing Style	Male Rod End
Configuration	Male
Misalignment Angle - a Deg. +/-	6
Product Selection Available SW	Y
Product Type	TRE
Bearing Type	Rod End
Axial Load	400
Outer Material	Carbon Steel - Corrosion Resistant Plating
Type	Male Rod End
Lubrication	Zerk Fitting
Max Static Radial Load	4,000
Thread	LH
Bore Size (in)	0.3750 in
Class	Precision
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288720317
Weight	0.12 LB
Packaged Length	2.44 IN
Packaged Width	1.00 IN
Packaged Height	0.50 IN
HTC	8483.30.8055
Country of Origin	Mexico
