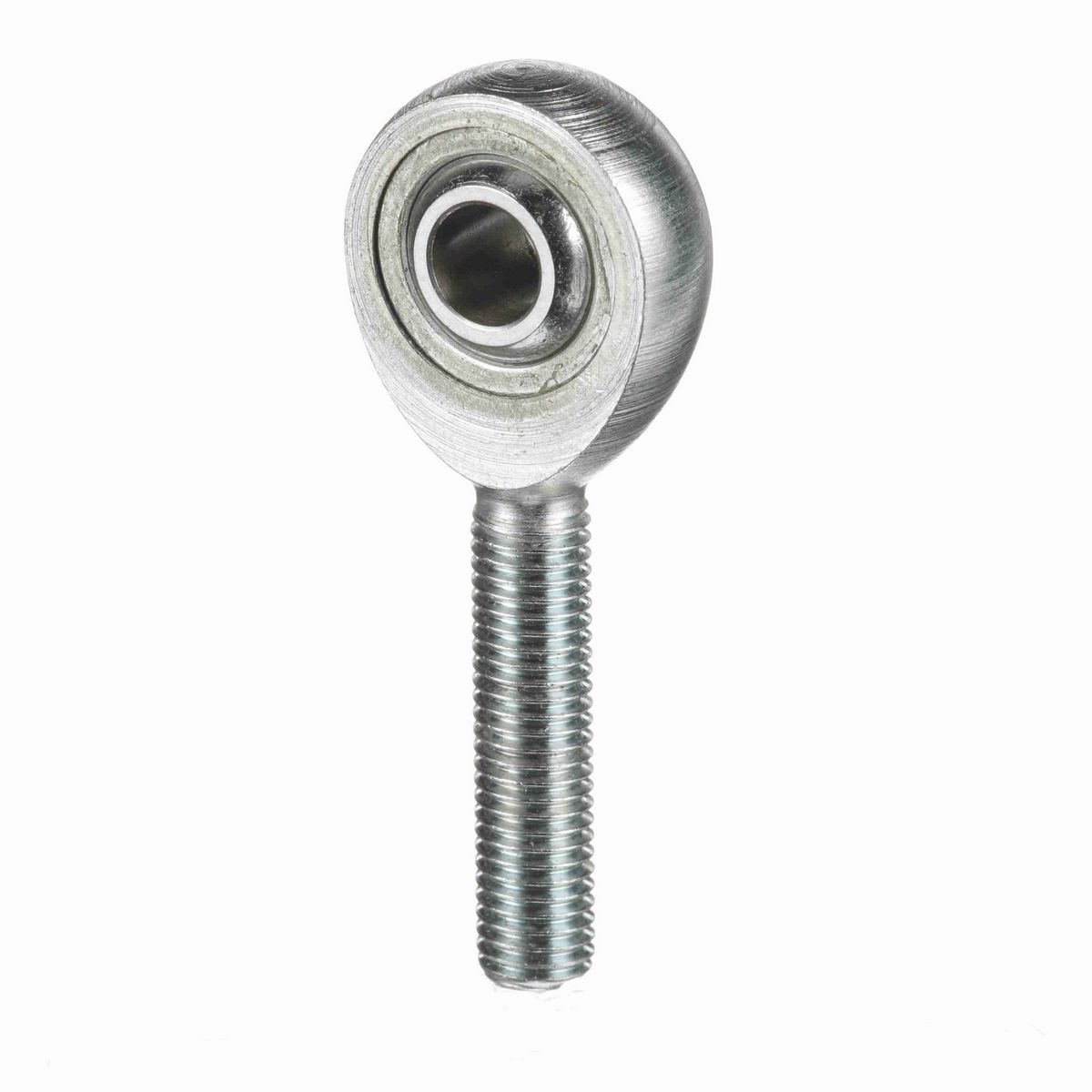

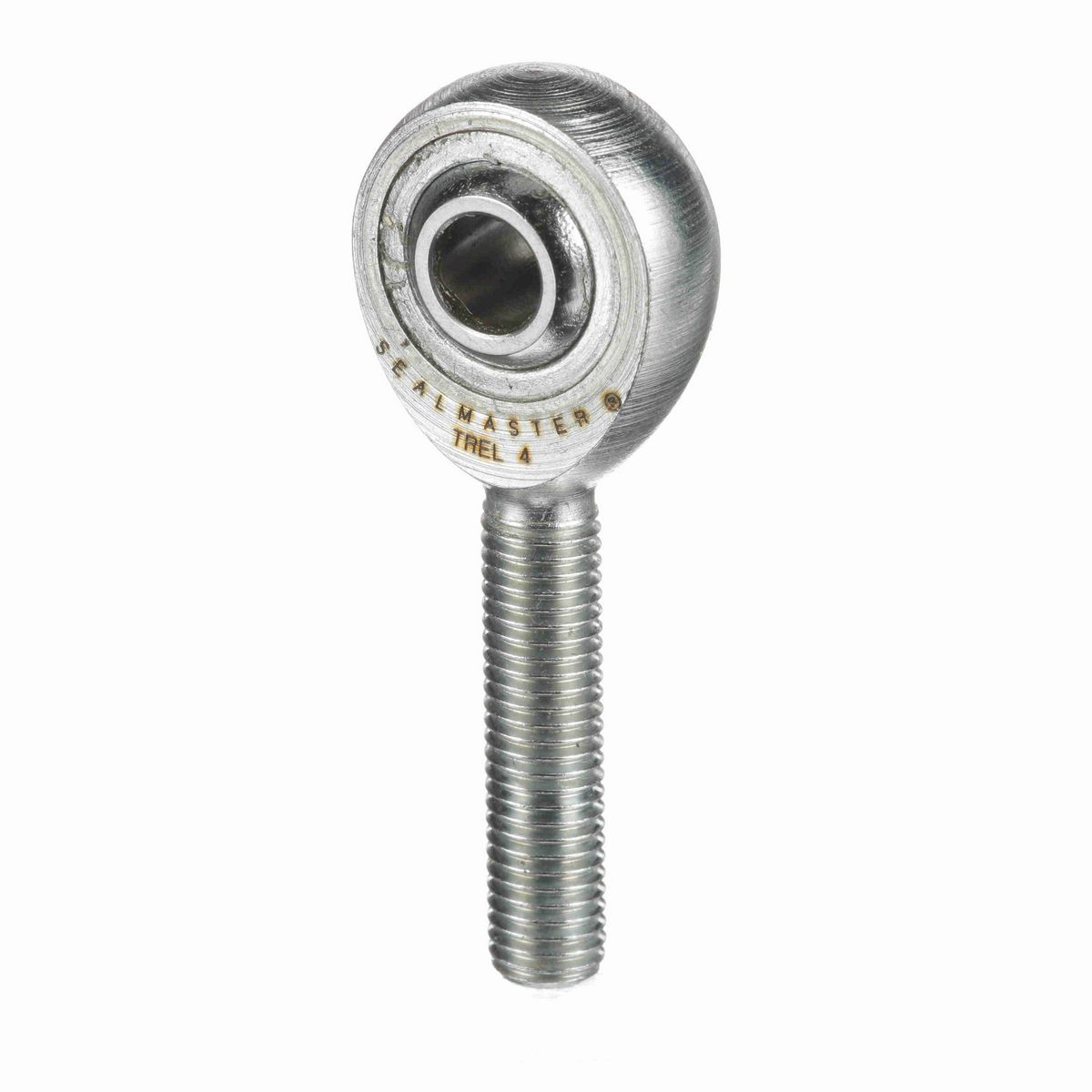

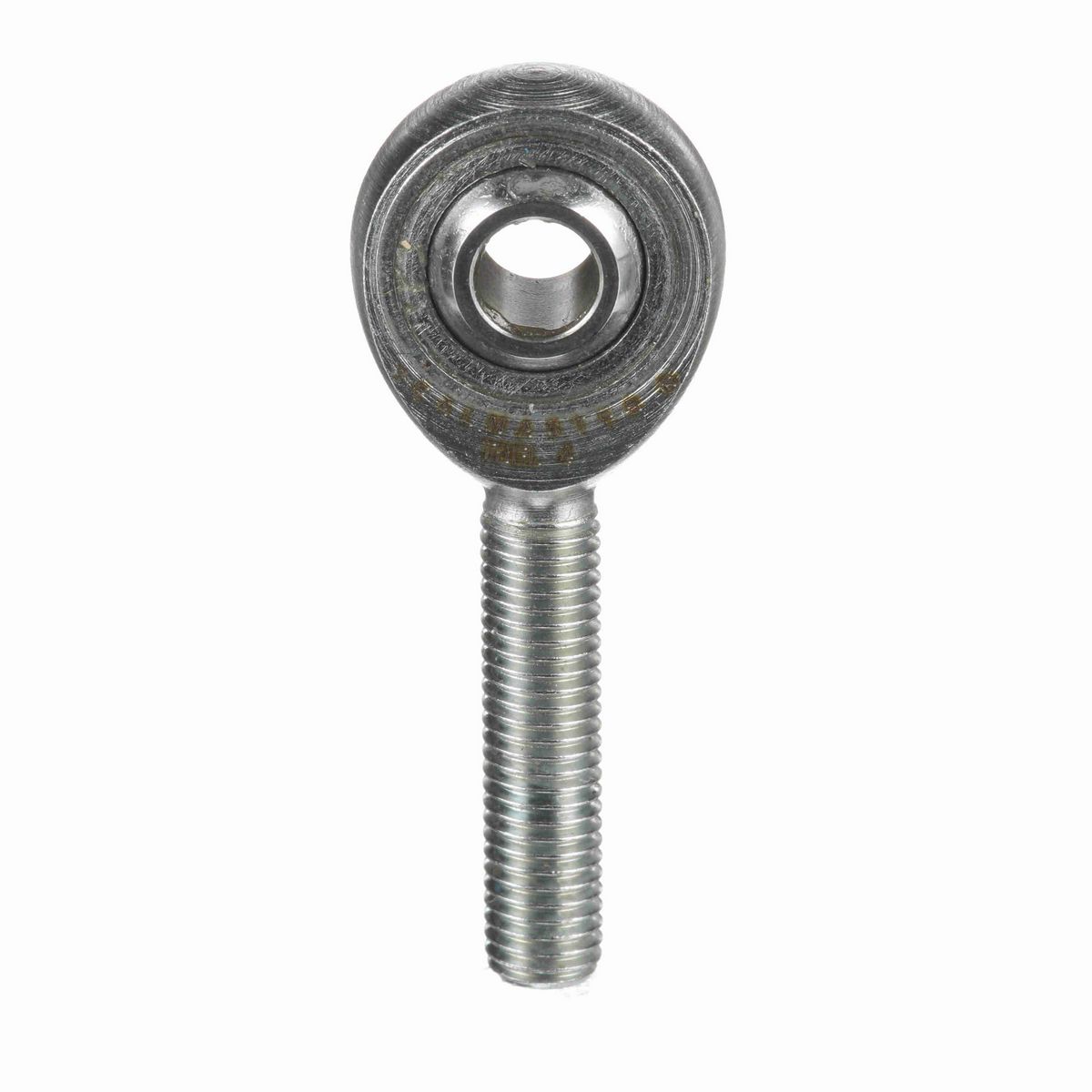

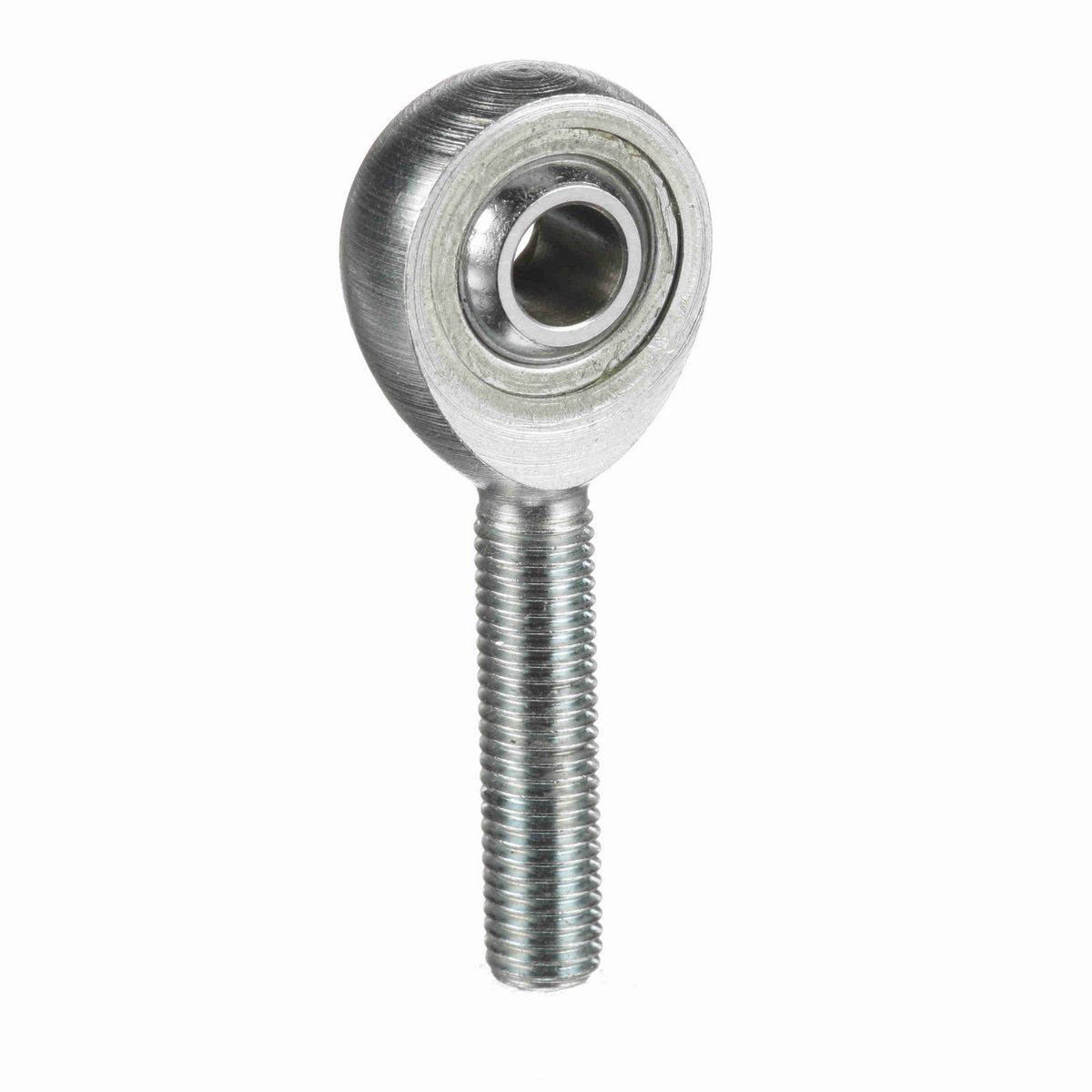

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Length (in)	0.969 in
Ball Width (in)	0.375 in
Ball Diameter (in)	0.5 in
Ball Flat Diameter (in)	0.331 in
Housing Width (in)	0.281 in
Thread Size	#1/4-28
Head Diameter (in)	0.75 in
Length to Center of Ball (in)	1.56 in

Technical Specifications

Configuration	Male
Product Type	TRE
Series	Precision
Product Selection Available SW	Y
Construction	Three-Piece Rod End with Zerk Fitting
Race Material	Carbon Steel - corrosion resistant plating
Misalignment Angle - a Deg. +/-	8
Axial Load	170
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Housing Style	Male Rod End
Lubrication Type	Grease
Zerk Fitting SW	N
Thread Type	UNF
Outer Material	Carbon Steel - Corrosion Resistant Plating
Bearing Type	Rod End
Max Static Radial Load	1,700
Type	Male Rod End
Thread	LH
Lubrication	No Zerk Fitting
Bore Size (in)	0.2500 in
Class	Precision
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288719571
Weight	0.46 LB
Packaged Length	4.40 IN
Packaged Width	1.95 IN
Packaged Height	0.65 IN
HTC	8483.30.8055
Country of Origin	Mexico
