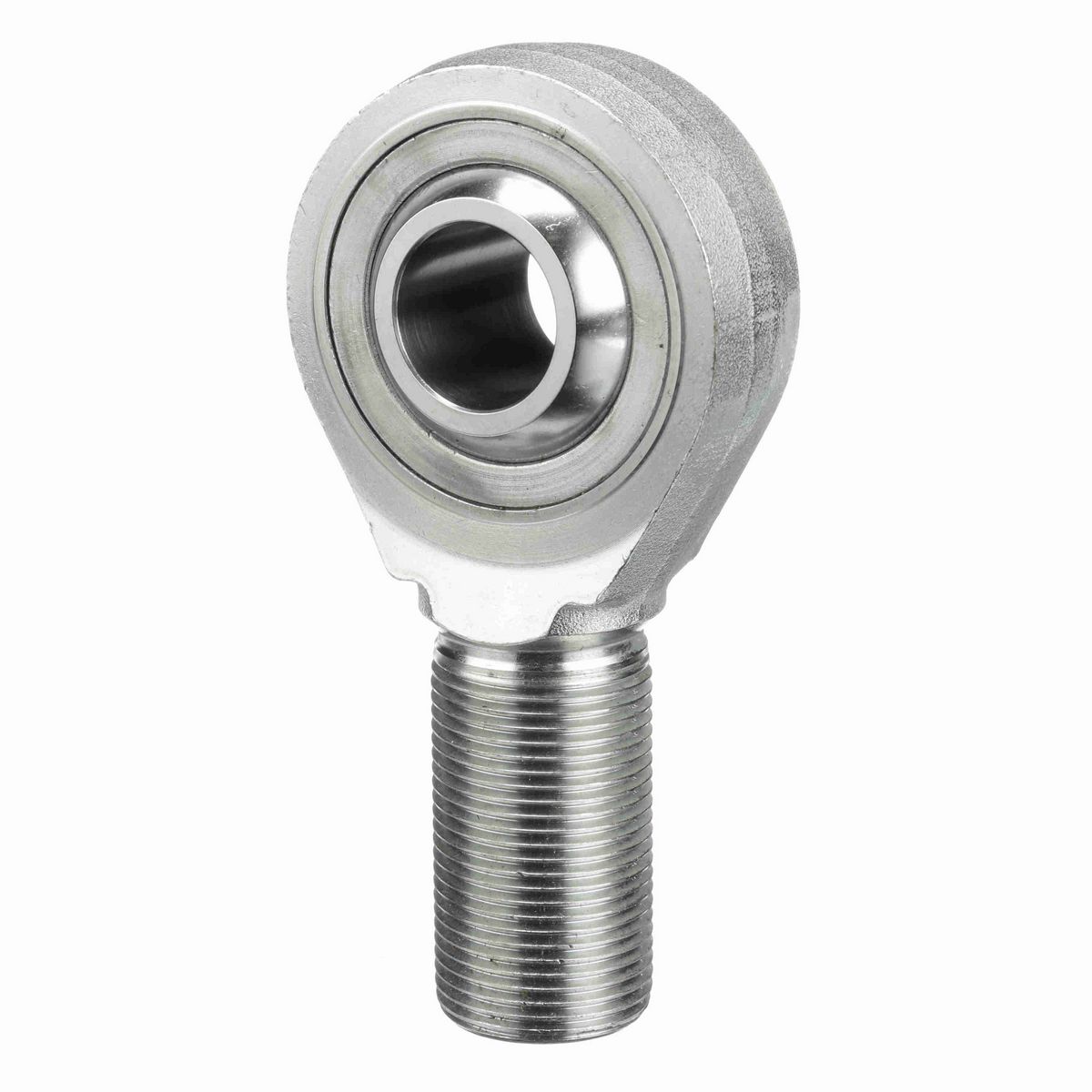

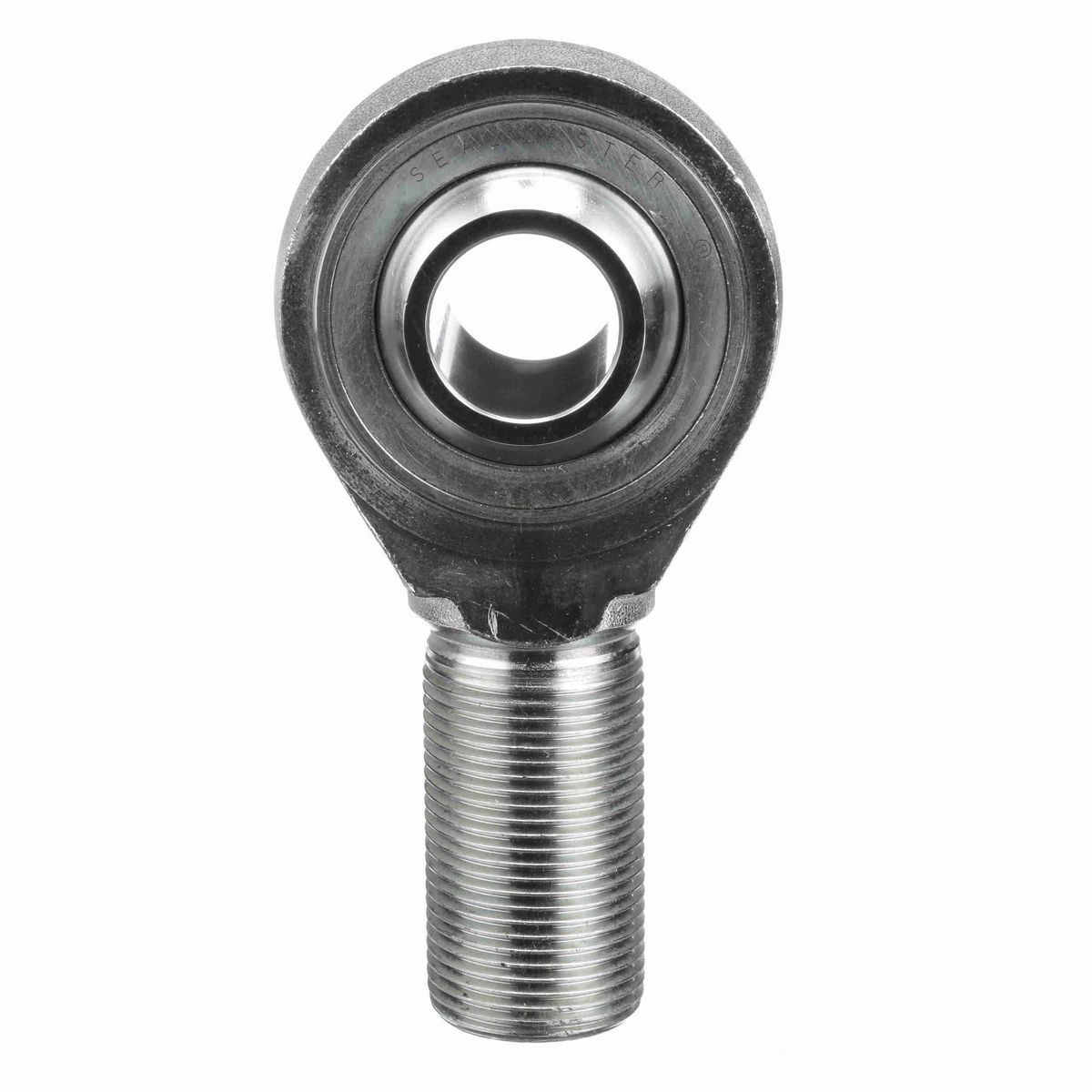

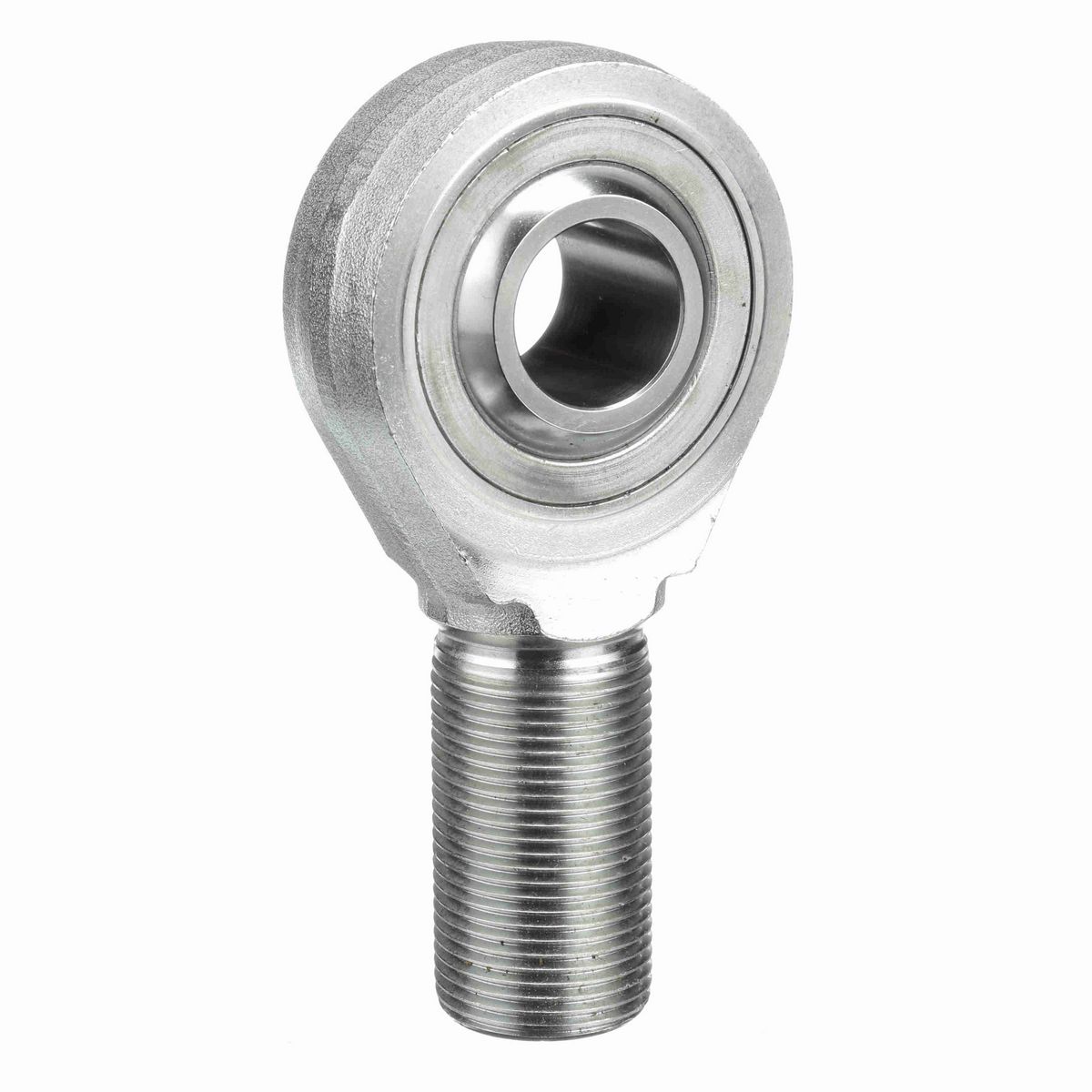

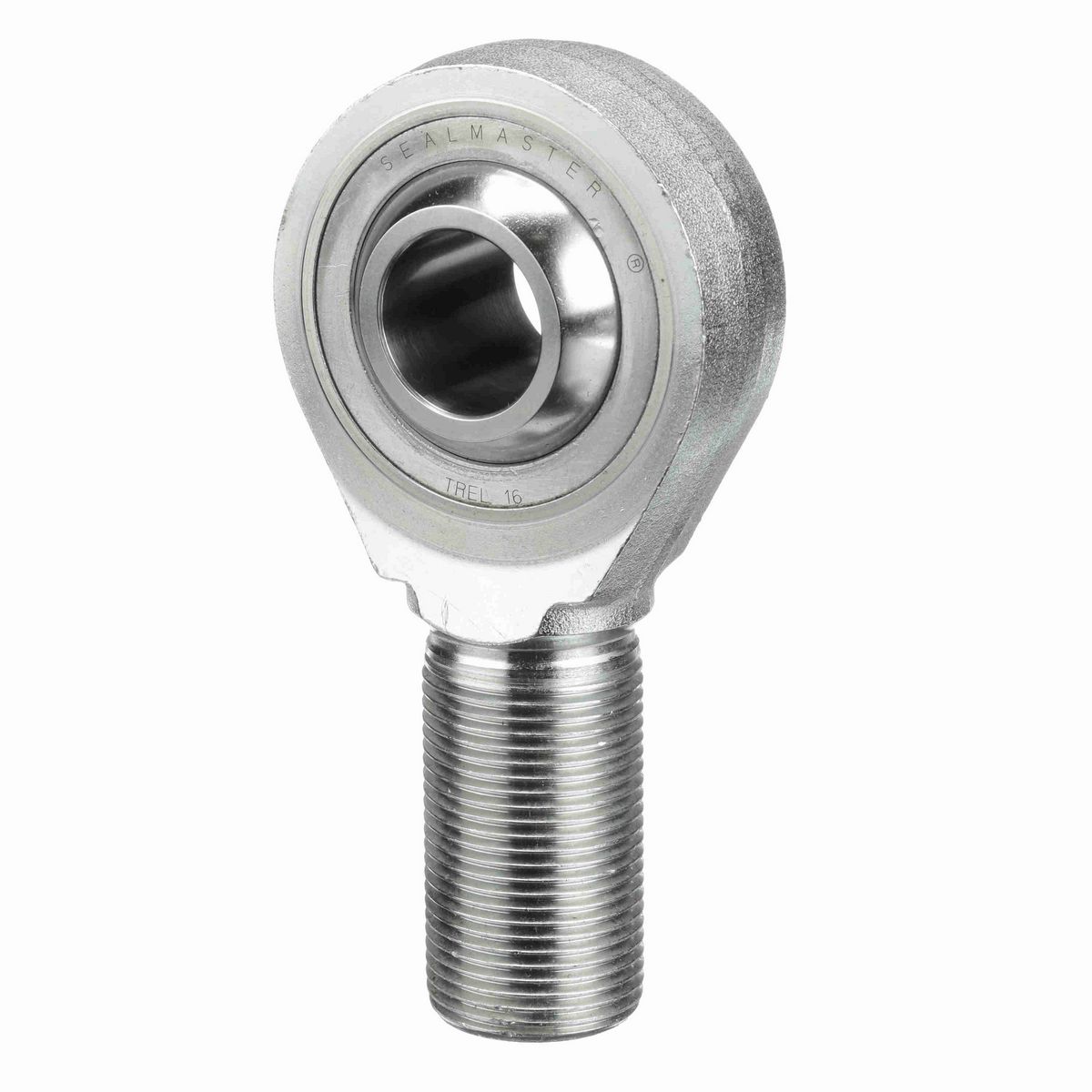

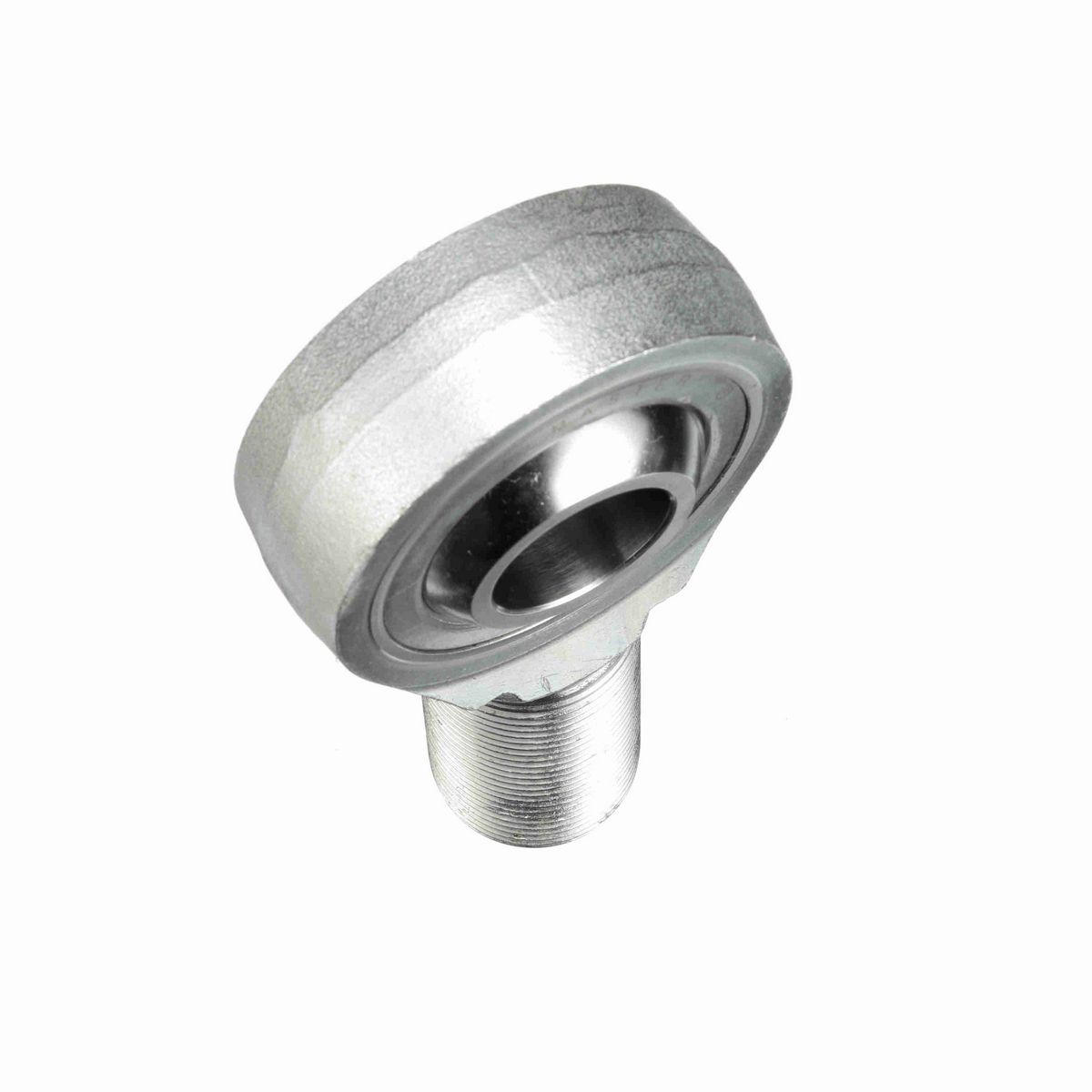

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#1 1/4-12
Head Diameter (in)	2.75 in
Housing Width (in)	1 in
Ball Flat Diameter (in)	1.269 in
Ball Diameter (in)	1.875 in
Thread Length (in)	2.094 in
Ball Width (in)	1.375 in
Length to Center of Ball (in)	4.13 in

Technical Specifications

Housing Style	Male Rod End
Configuration	Male
Outer Material	Carbon Steel - Corrosion Resistant Plating
Bearing Type	Rod End
Product Selection Available SW	Y
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Thread Type	UNF
Construction	Three-Piece Rod End with Zerk Fitting
Product Type	TRE
Misalignment Angle - a Deg. +/-	8.5
Zerk Fitting SW	N
Series	Precision
Axial Load	2,100
Lubrication Type	Grease
Race Material	Carbon Steel - corrosion resistant plating
Type	Male Rod End
Thread	LH
Lubrication	No Zerk Fitting
Max Static Radial Load	21,000
Class	Precision
Bore Size (in)	1 in
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288719632
Weight	2.52 LB
Packaged Length	6.00 IN
Packaged Width	2.90 IN
Packaged Height	1.70 IN
HTC	8483.30.8055
Country of Origin	Mexico
