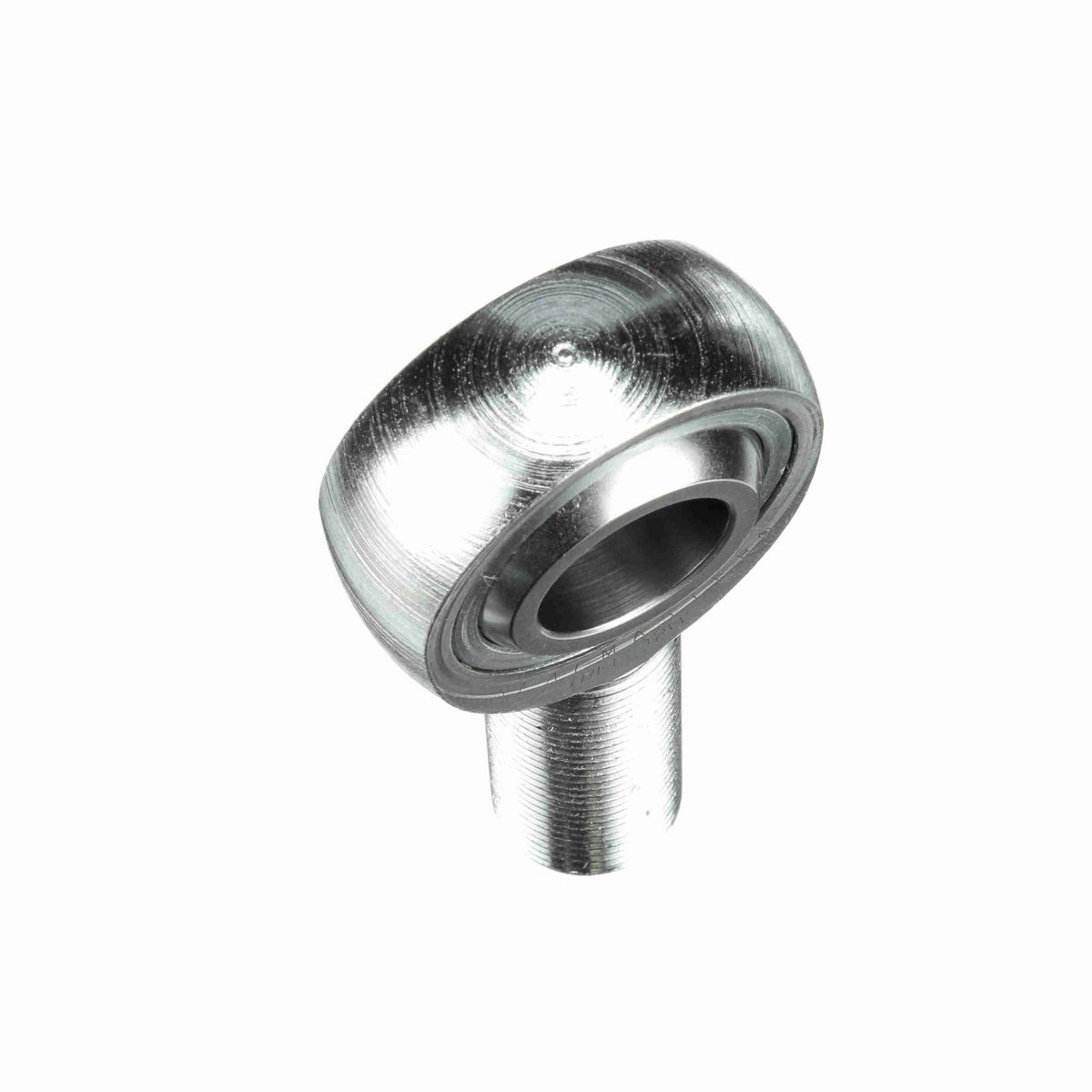

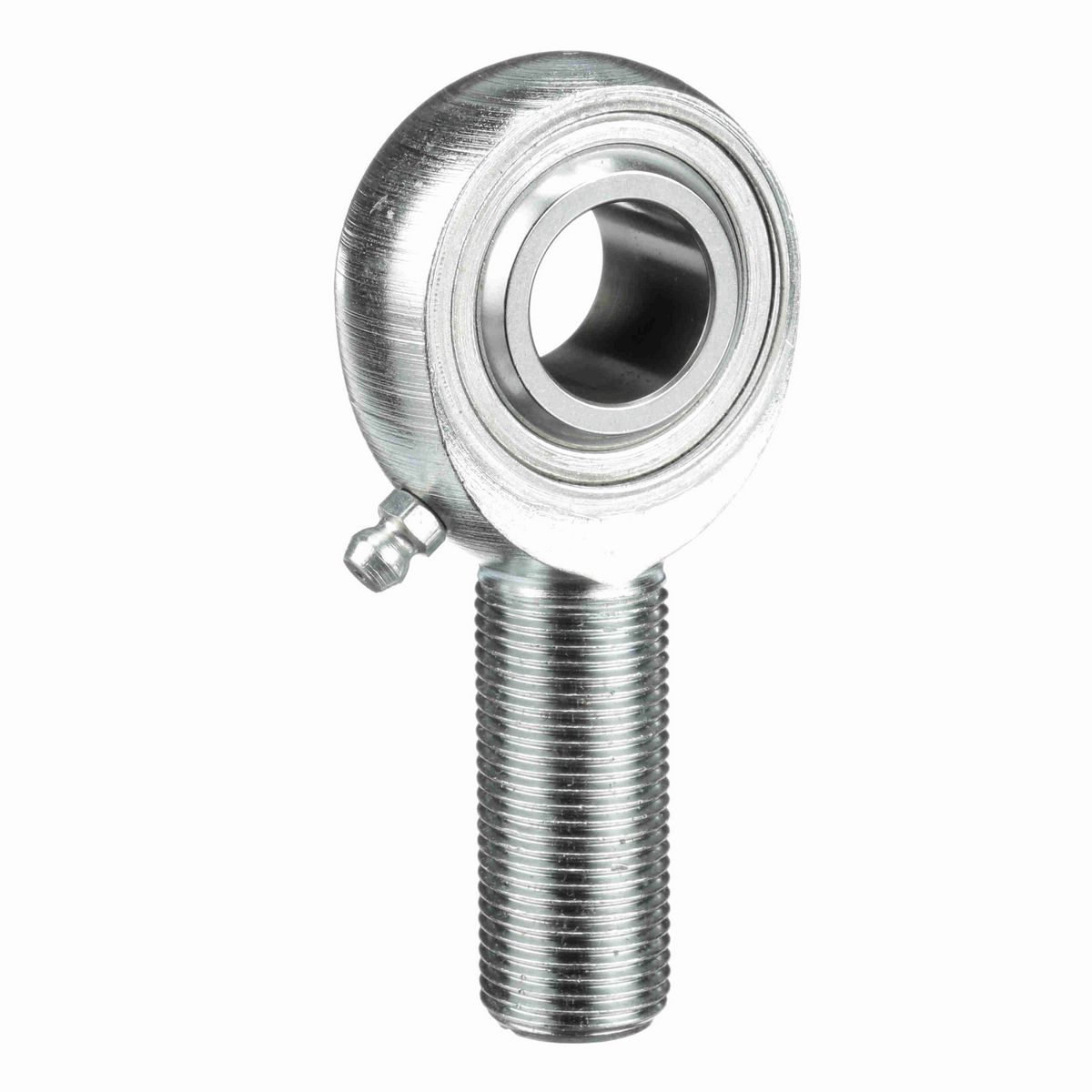

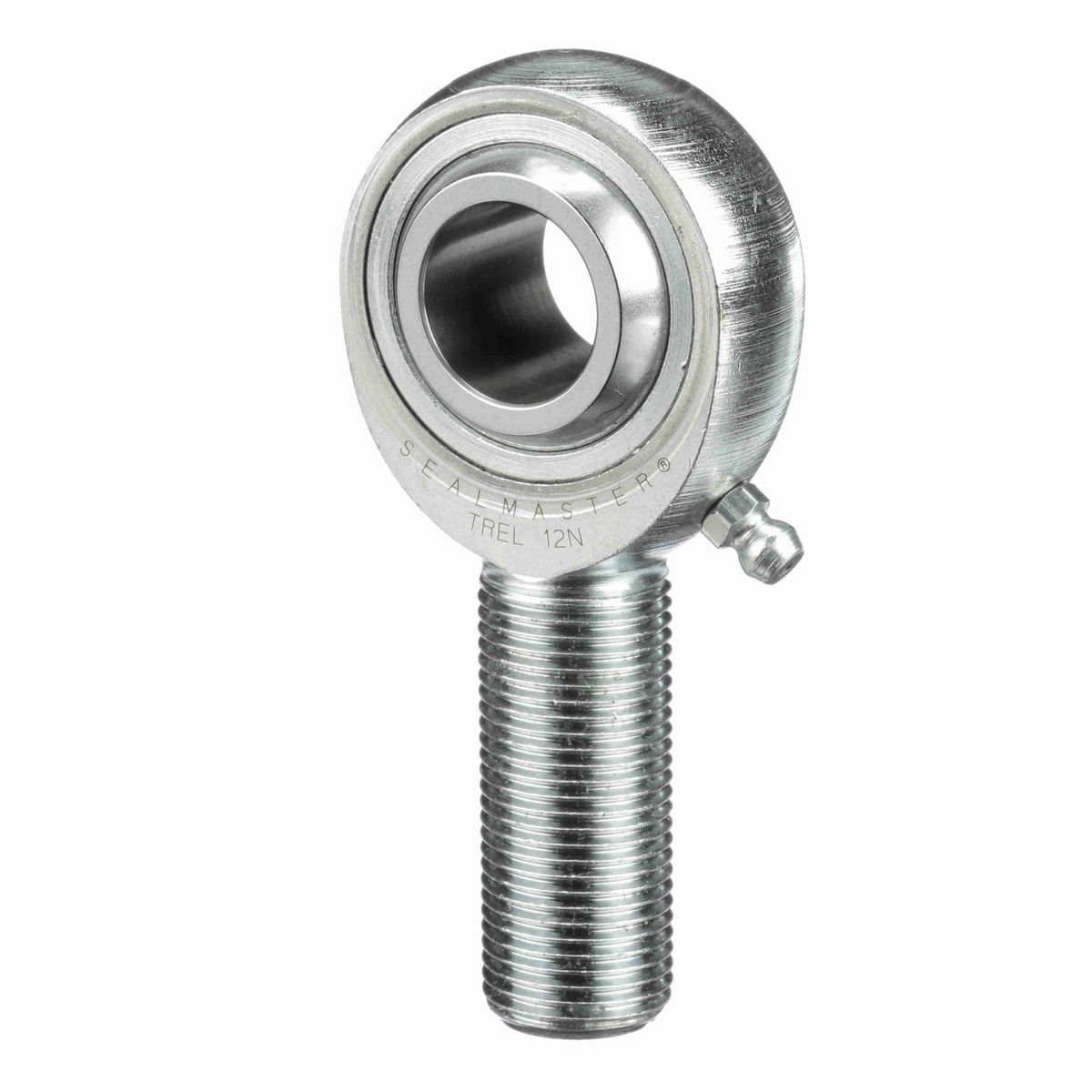

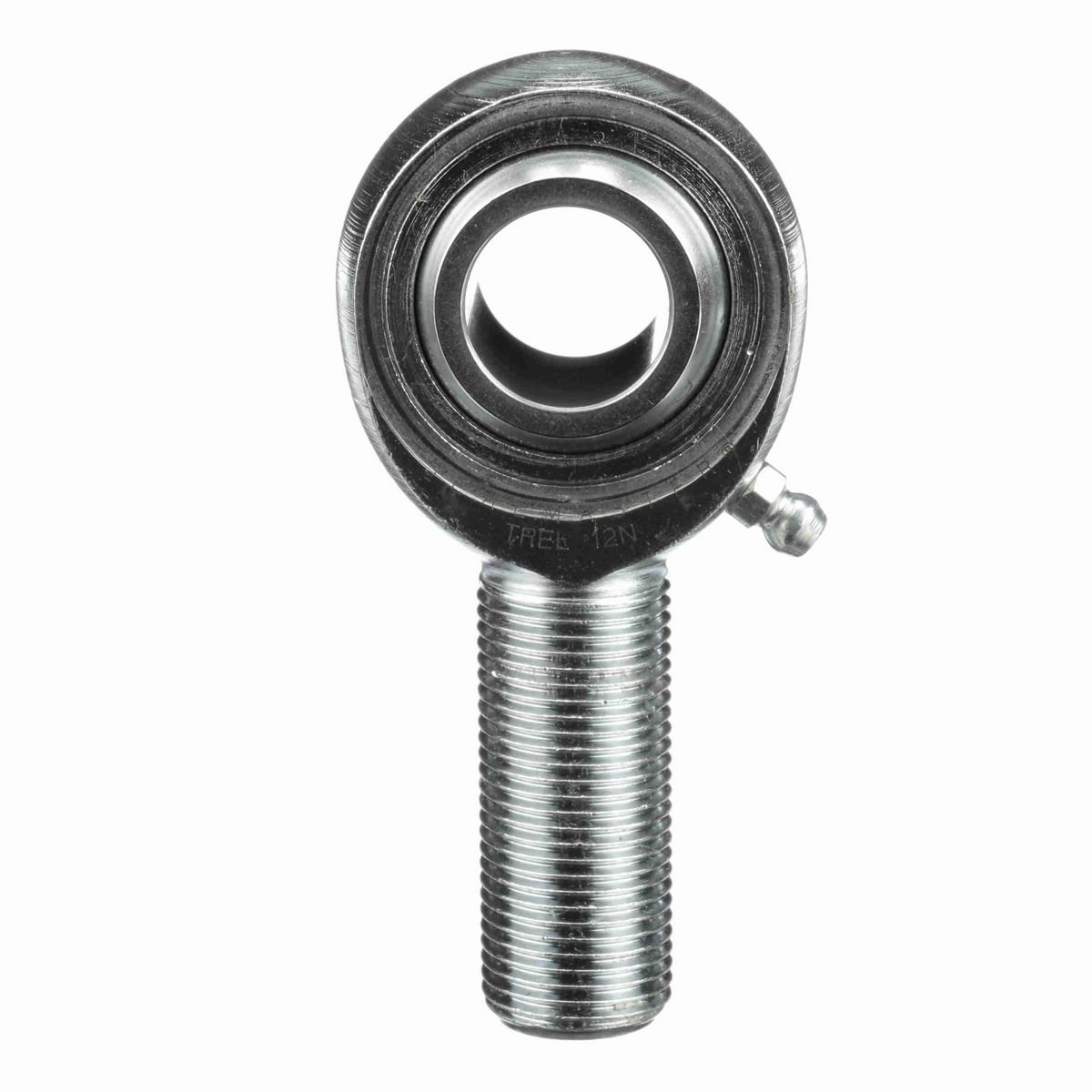

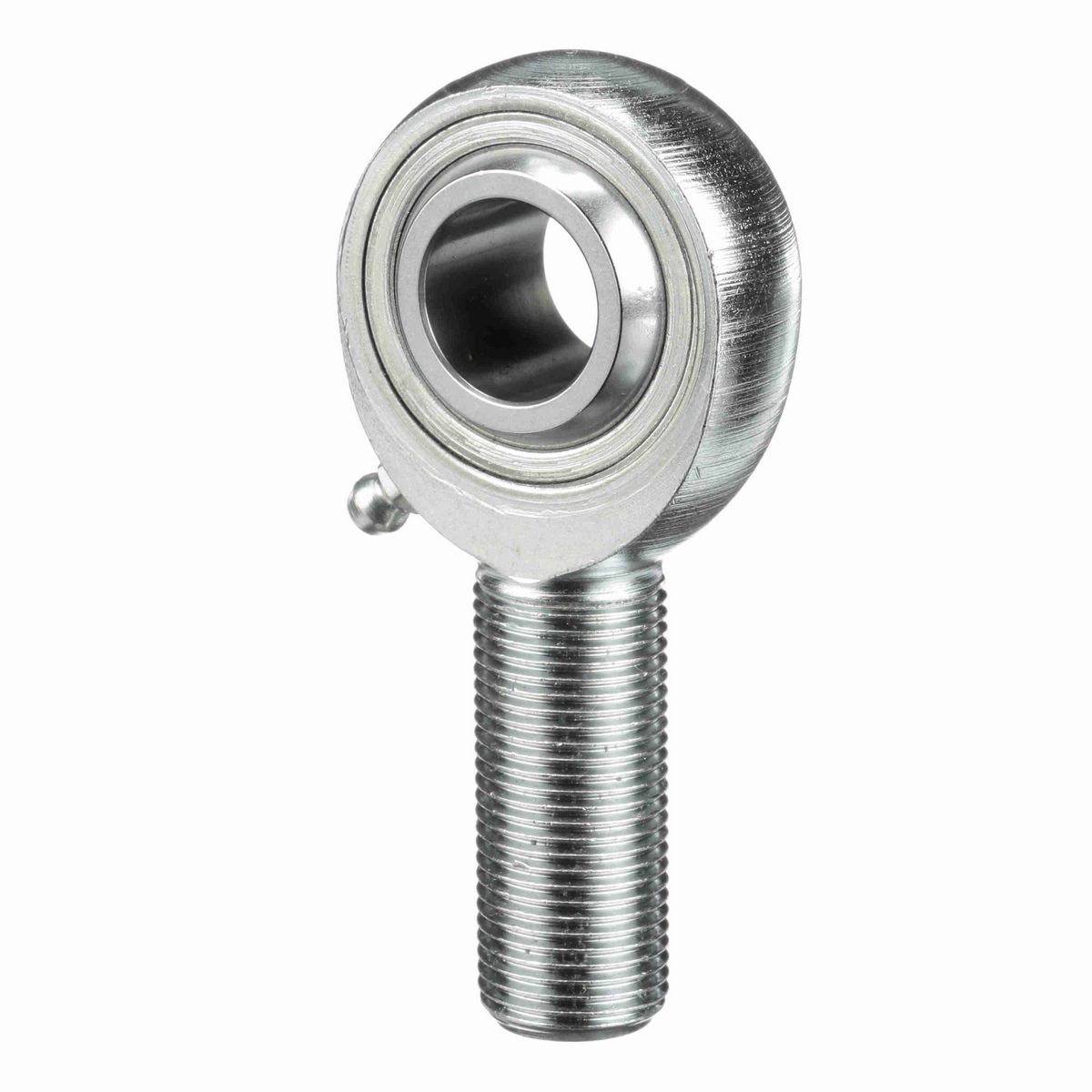

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#3/4-16
Ball Width (in)	0.875 in
Head Diameter (in)	1.75 in
Thread Length (in)	1.719 in
Ball Diameter (in)	1.312 in
Housing Width (in)	0.687 in
Ball Flat Diameter (in)	0.978 in
Length to Center of Ball (in)	2.88 in

Technical Specifications

Housing Style	Male Rod End
Bearing Type	Rod End
Zerk Fitting SW	Y
Race Material	Carbon Steel - corrosion resistant plating
Product Selection Available SW	Y
Axial Load	1,130
Product Type	TRE
Thread Type	UNF
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Construction	Three-Piece Rod End with Zerk Fitting
Outer Material	Carbon Steel - Corrosion Resistant Plating
Series	Precision
Misalignment Angle - a Deg. +/-	7
Lubrication Type	Grease
Configuration	Male
Lubrication	Zerk Fitting
Max Static Radial Load	11,300
Thread	LH
Type	Male Rod End
Bore Size (in)	0.7500 in
Class	Precision
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288720348
Weight	0.65 LB
Packaged Length	2.65 IN
Packaged Width	4.80 IN
Packaged Height	1.65 IN
HTC	8483.30.8055
Country of Origin	Mexico
