• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race
• Y Stud

Dimensions

Thread Size	#1/2-20
Ball Flat Diameter (in)	0.698 in
Head Diameter (in)	1.312 in
Housing Width (in)	0.5 in
Ball Diameter (in)	0.937 in
Thread Length (in)	1.469 in
Ball Width (in)	0.625 in
Stud Thread Length (in)	1 in
Length to Center of Ball (in)	2.44 in
Stud Length to Hex (in)	1.13 in
Stud Length to Center of Ball (in)	2 in

Technical Specifications

Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Race Material	Carbon Steel - corrosion resistant plating
Housing Style	Male Rod End
Axial Load	700
Lubrication Type	Grease
Product Selection Available SW	N
Configuration	Male
Bearing Type	Rod End
Product Type	TRE

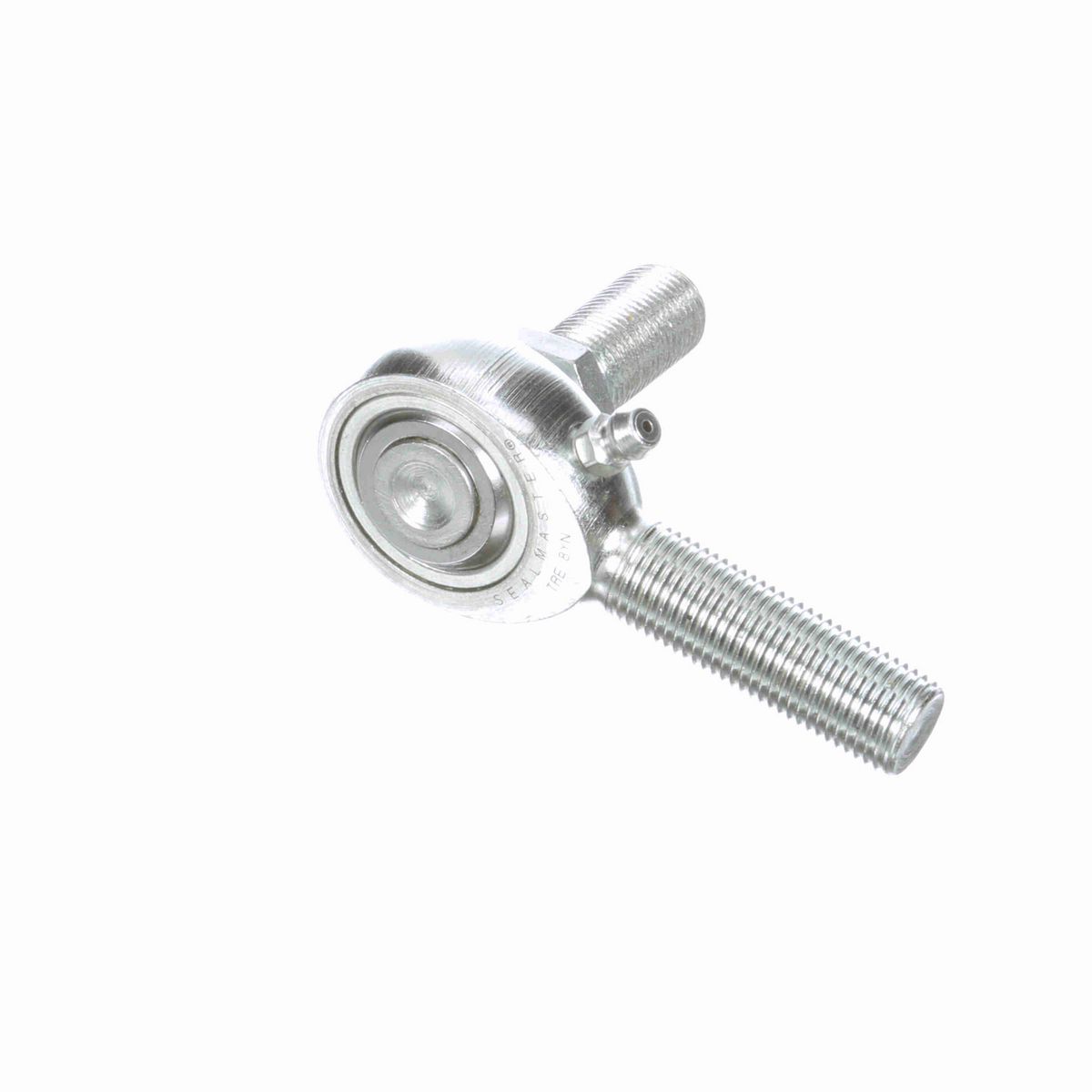

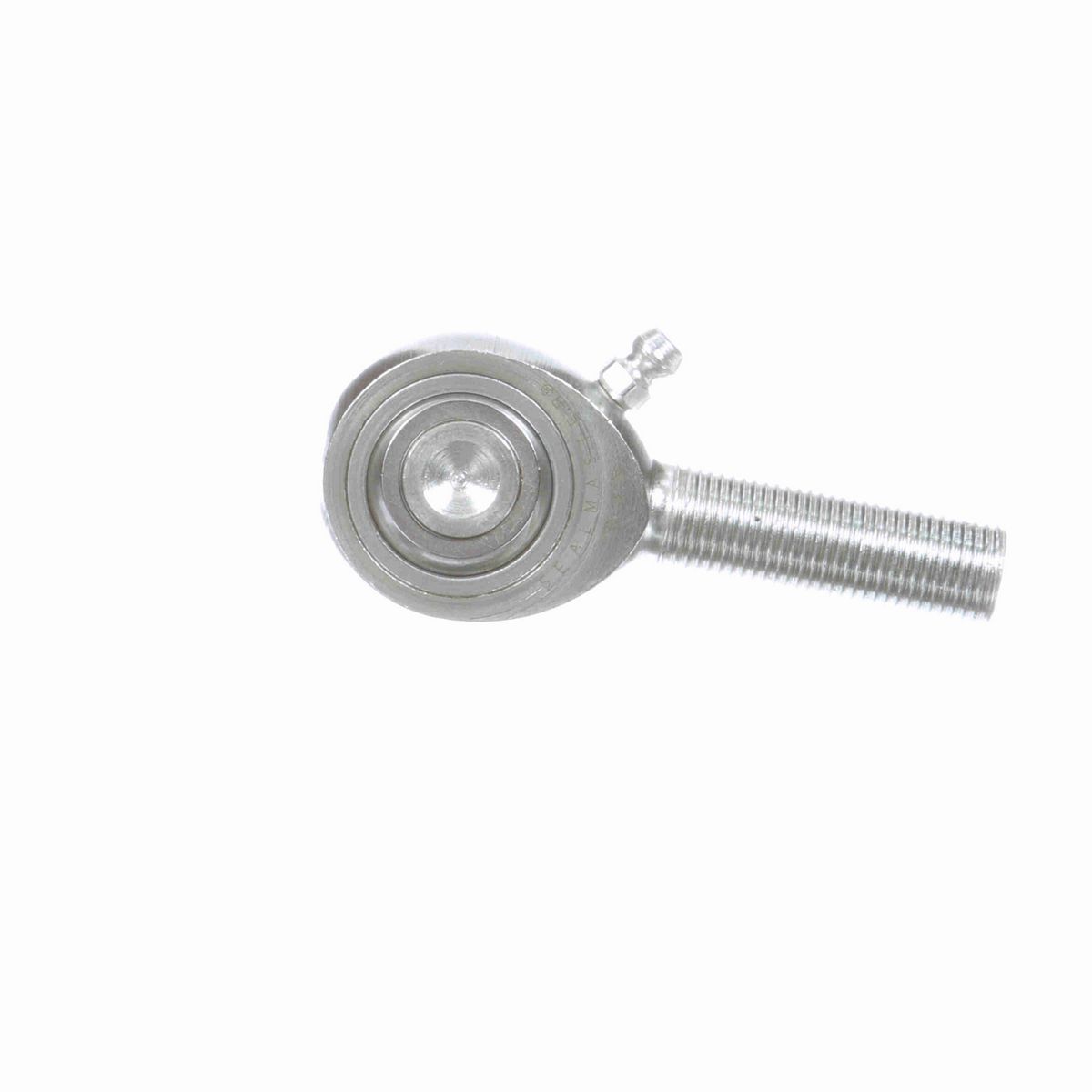

Construction	Three-Piece Rod End with Y Stud and Zerk Fitting
Y Stud Material	Carbon Steel - corrosion resistant plating
Zerk Fitting SW	Y
Series	Precision
Thread Type	UNF
Outer Material	Carbon Steel - Corrosion Resistant Plating
Thread	RH
Type	Male Rod End
Max Static Radial Load	7,000
Misalignment Angle B3	24.3
Lubrication	Zerk Fitting
Class	Precision
Bore Size (in)	0.5000 in
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288720812
Weight	0.40 LB
Packaged Length	3.09 IN
Packaged Width	2.31 IN
Packaged Height	1.31 IN
HTC	8483.30.8055
Country of Origin	Mexico
