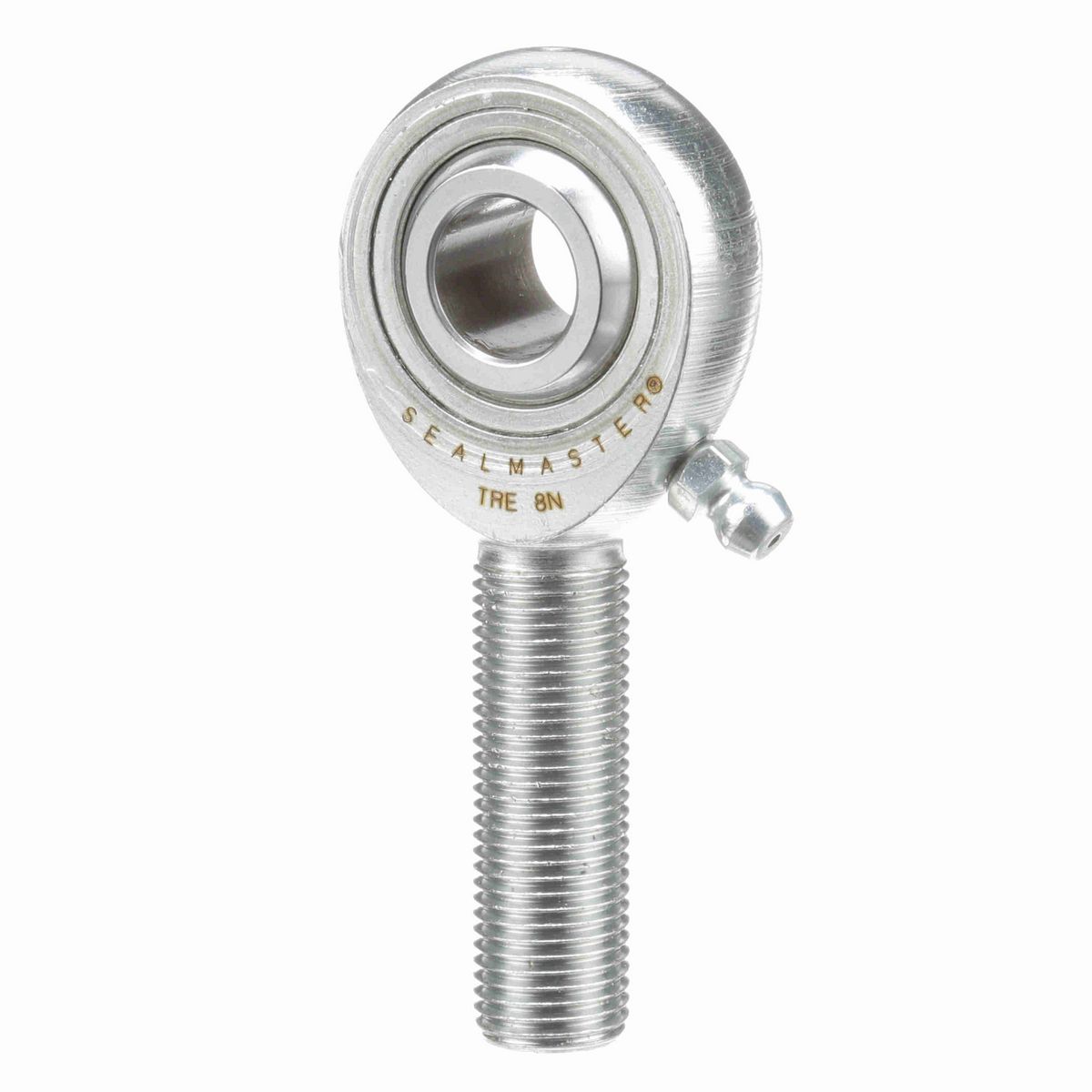

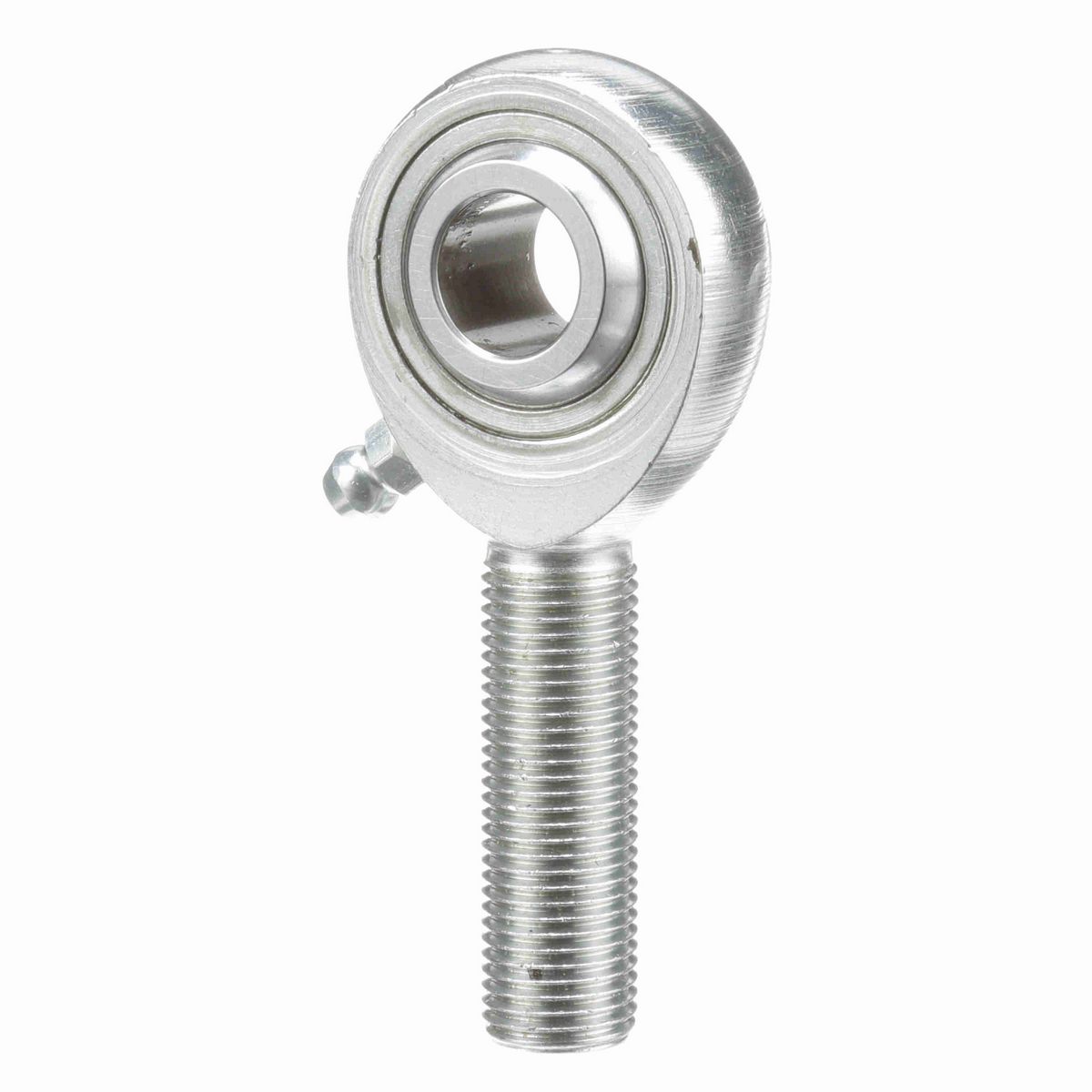

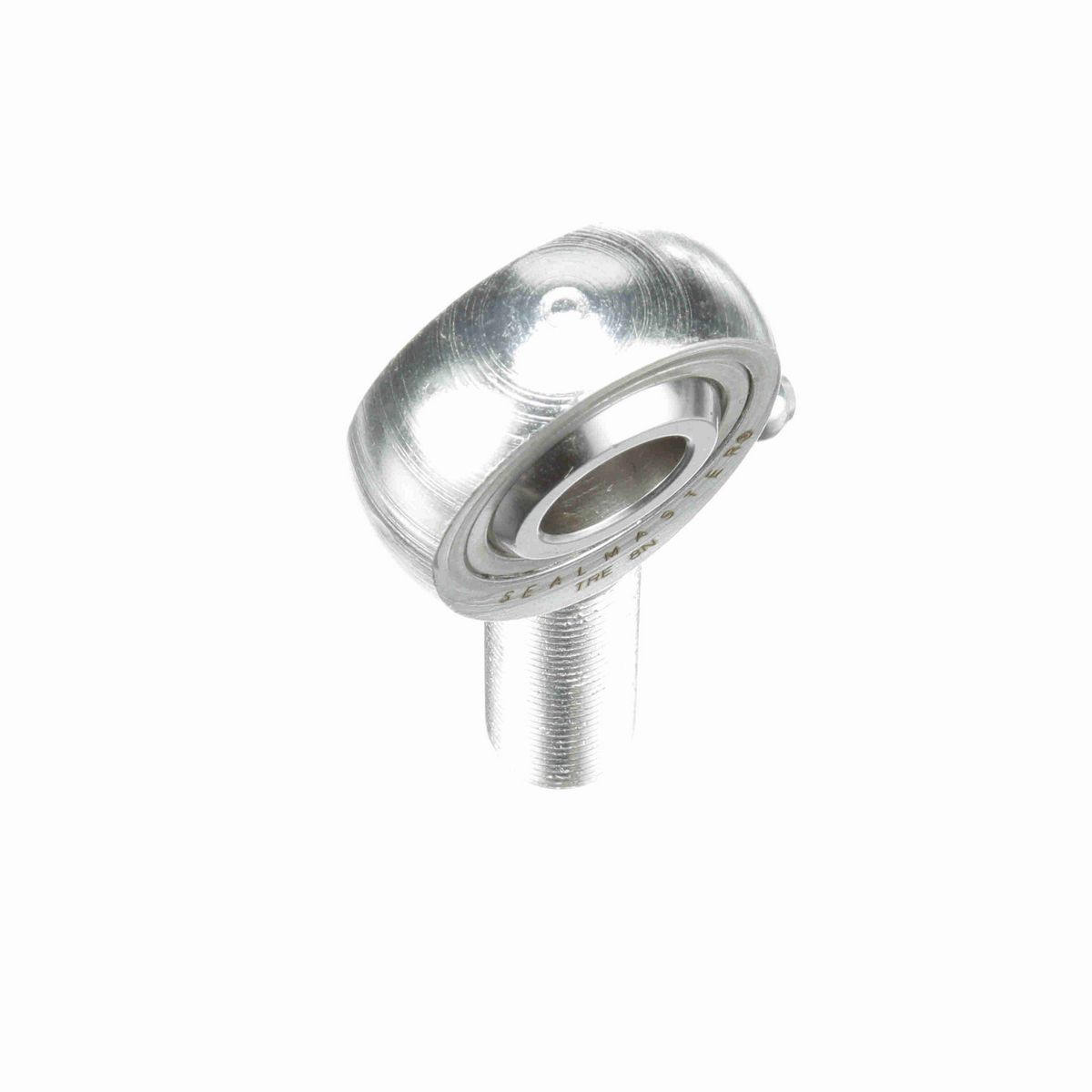

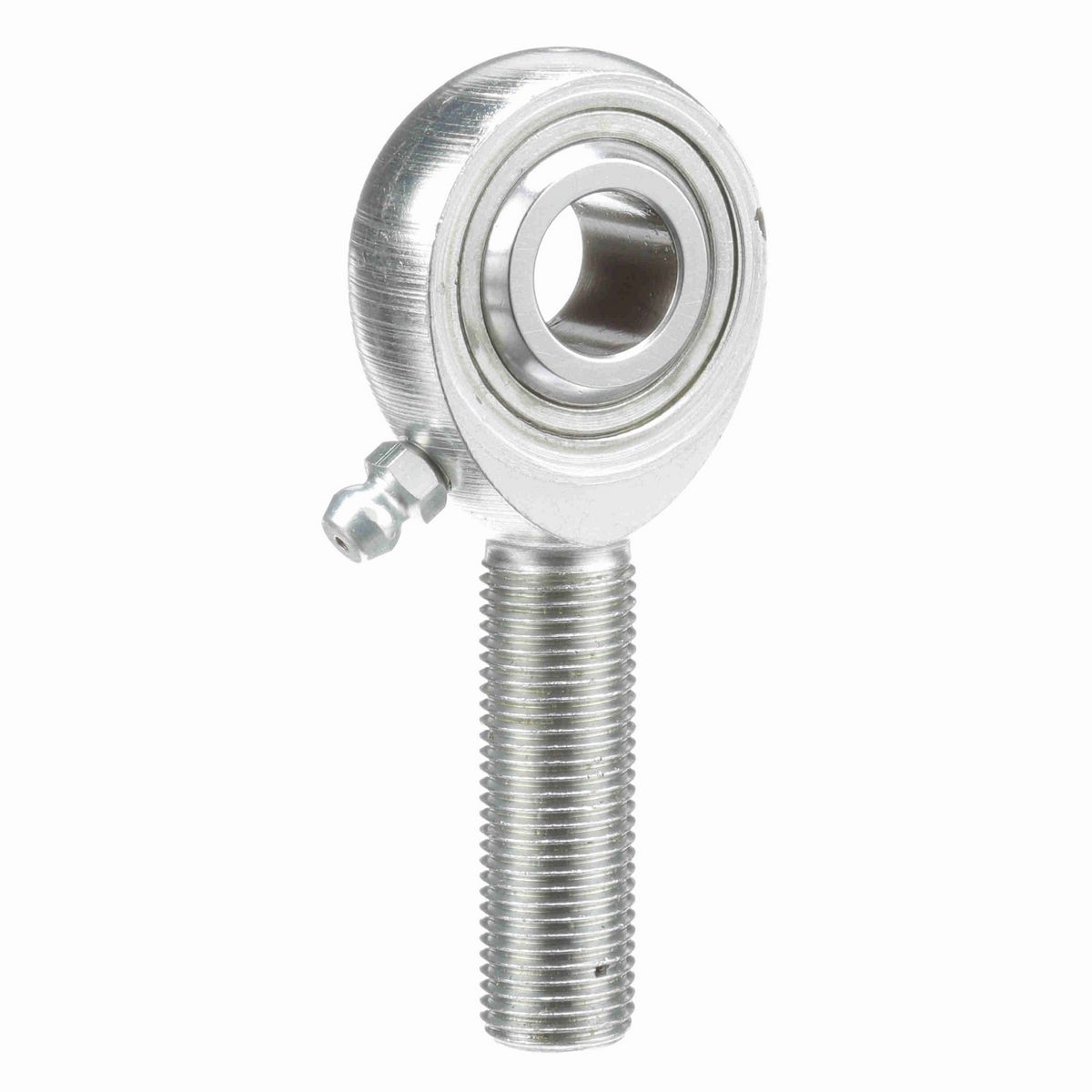

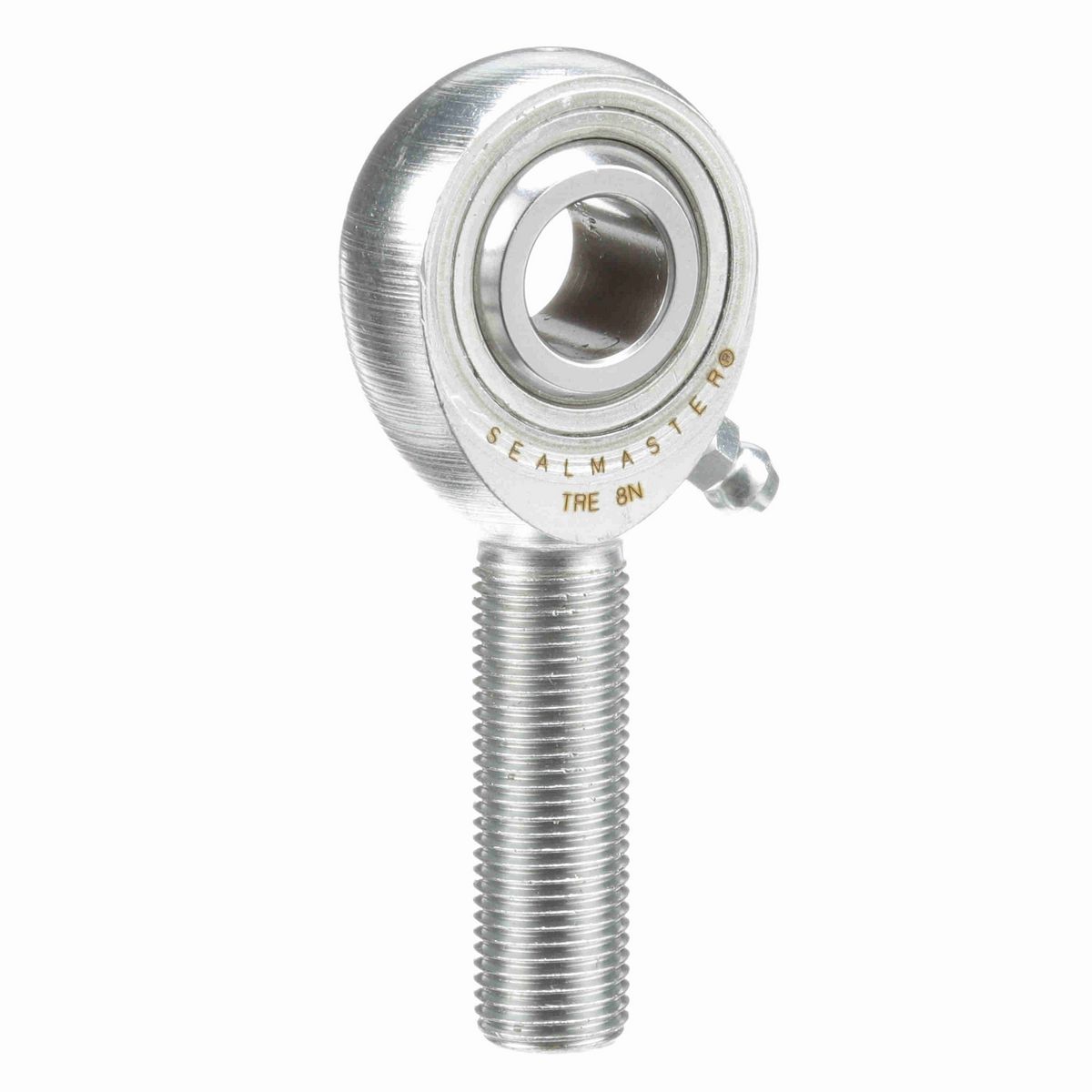

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#1/2-20
Housing Width (in)	0.5 in
Ball Diameter (in)	0.937 in
Ball Width (in)	0.625 in
Thread Length (in)	1.469 in
Ball Flat Diameter (in)	0.698 in
Head Diameter (in)	1.312 in
Length to Center of Ball (in)	2.44 in

Technical Specifications

Bearing Type	Rod End
Axial Load	700
Race Material	Carbon Steel - corrosion resistant plating
Zerk Fitting SW	Y
Series	Precision
Thread Type	UNF
Misalignment Angle - a Deg. +/-	6
Construction	Three-Piece Rod End with Zerk Fitting
Housing Style	Male Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication Type	Grease
Product Type	TRE
Outer Material	Carbon Steel - Corrosion Resistant Plating
Configuration	Male
Product Selection Available SW	Y
Max Static Radial Load	7,000
Type	Male Rod End
Lubrication	Zerk Fitting
Thread	RH
Bore Size (in)	0.5000 in
Class	Precision
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719960
Weight	0.28 LB
Packaged Length	2.40 IN
Packaged Width	3.35 IN
Packaged Height	1.00 IN
HTC	8483.30.8055
Country of Origin	Mexico
