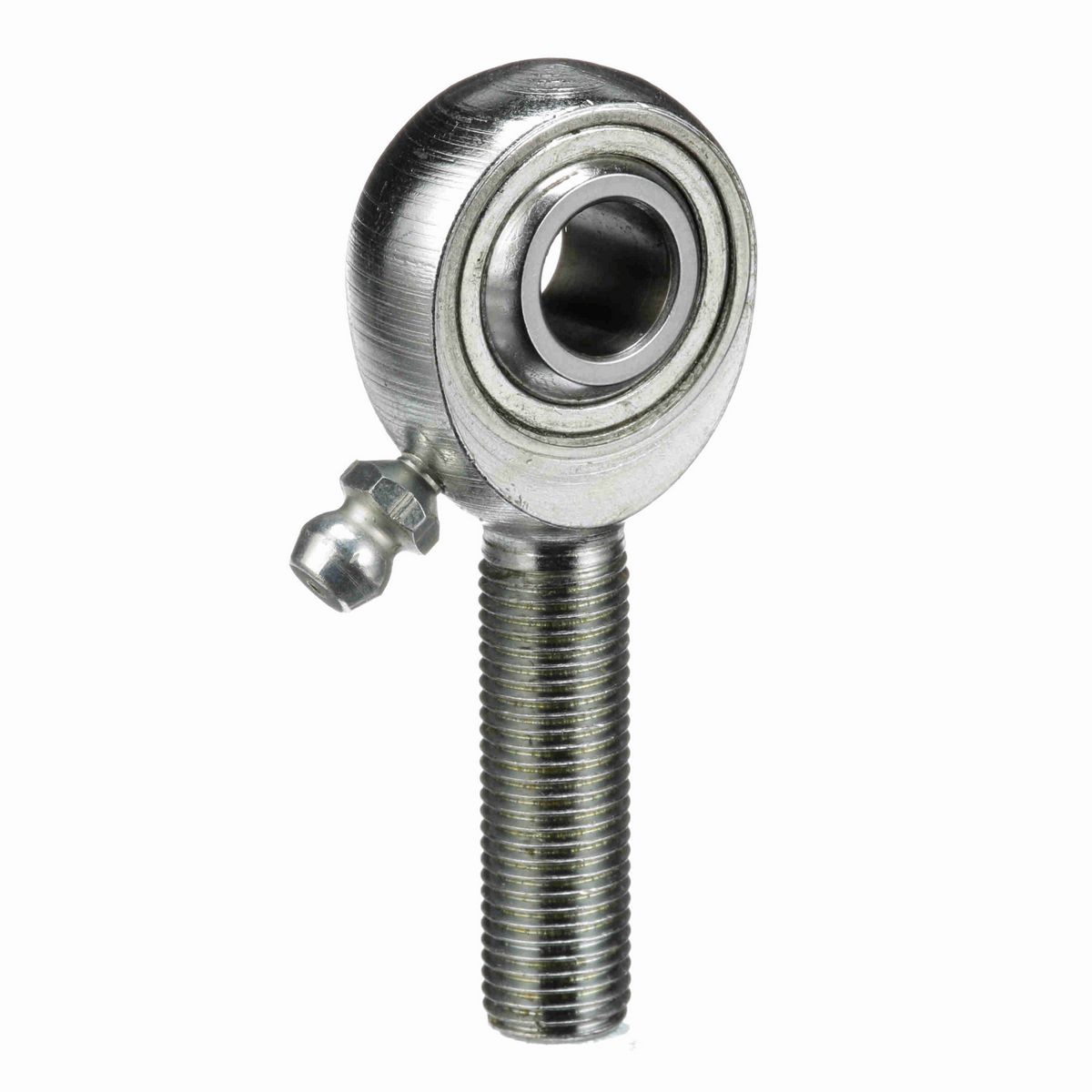

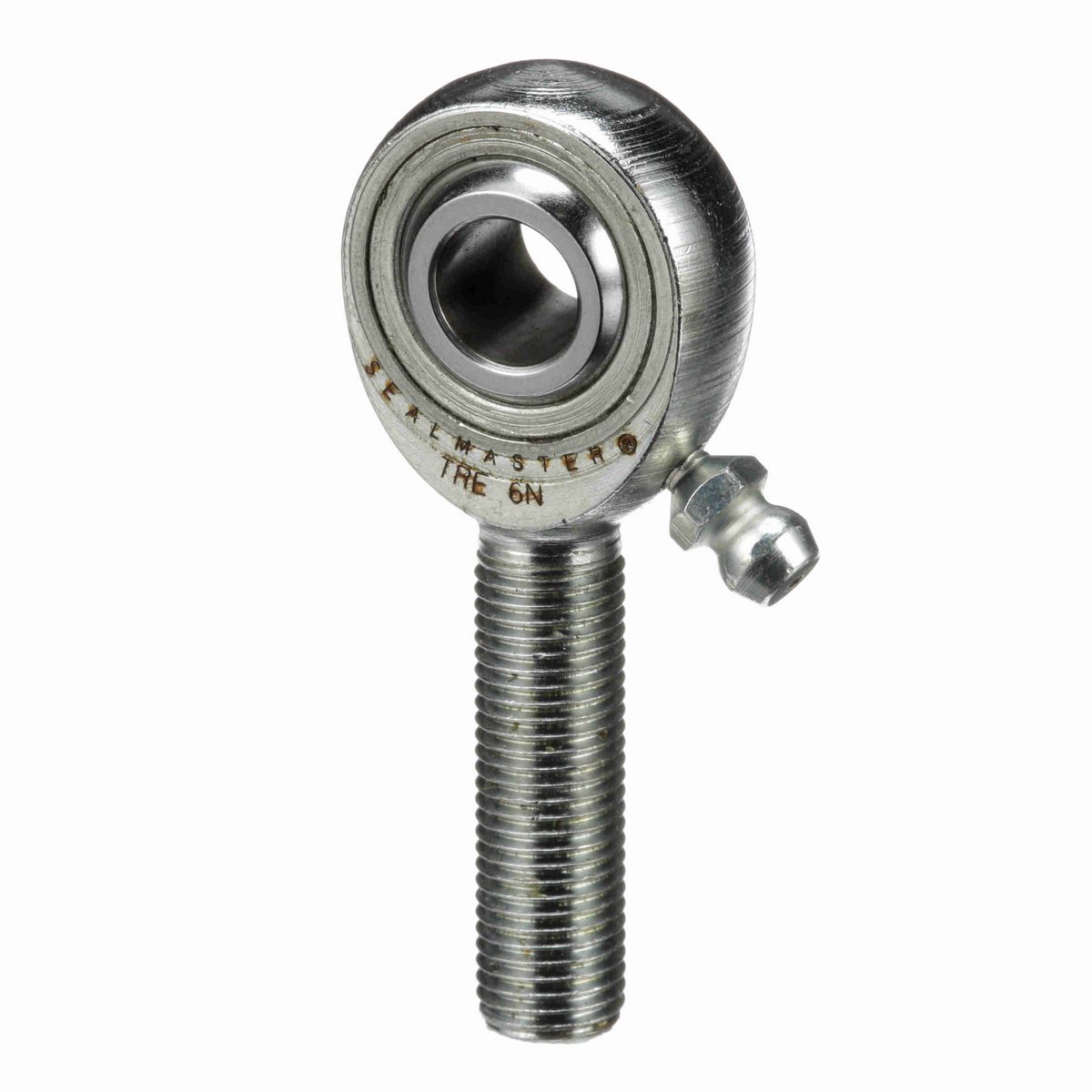

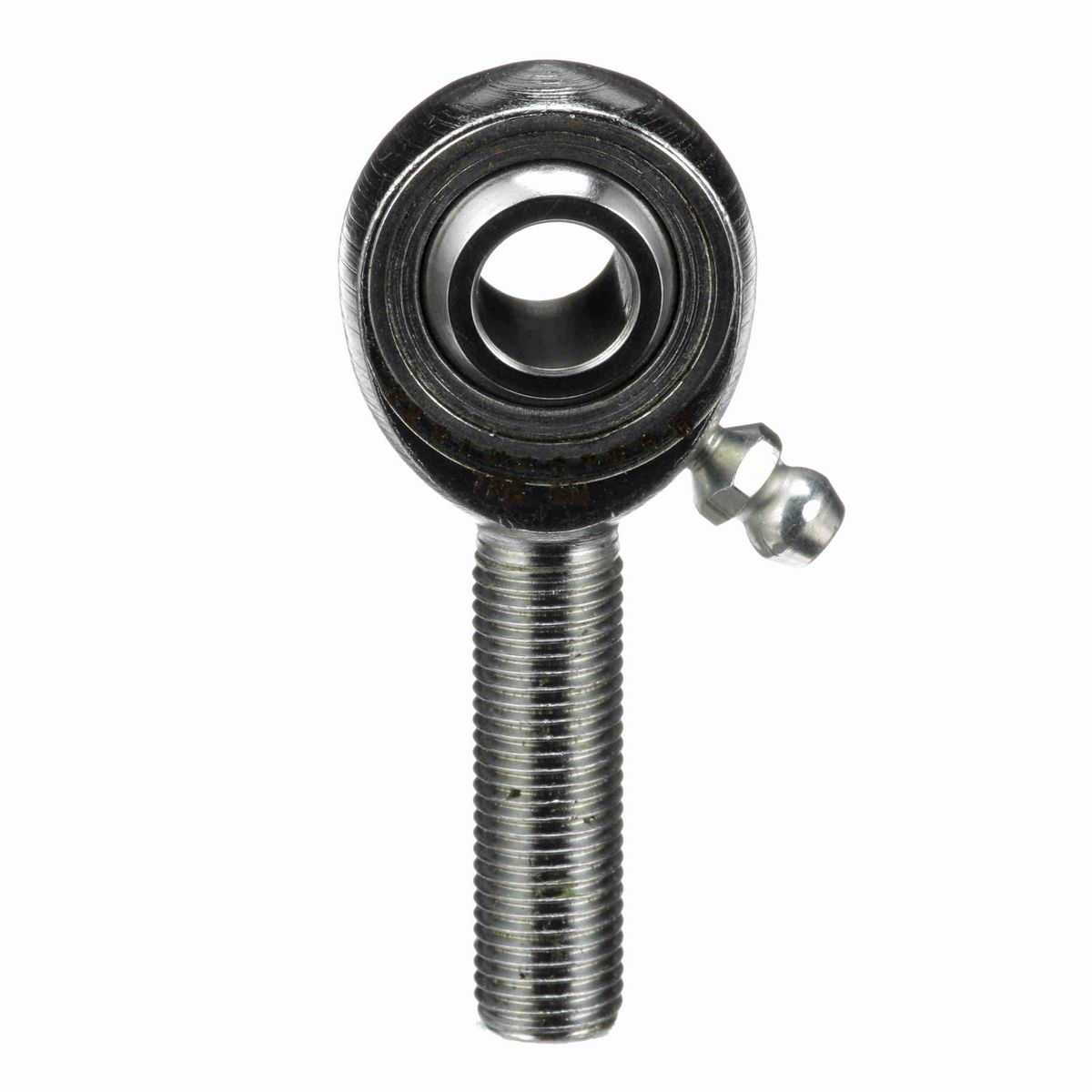

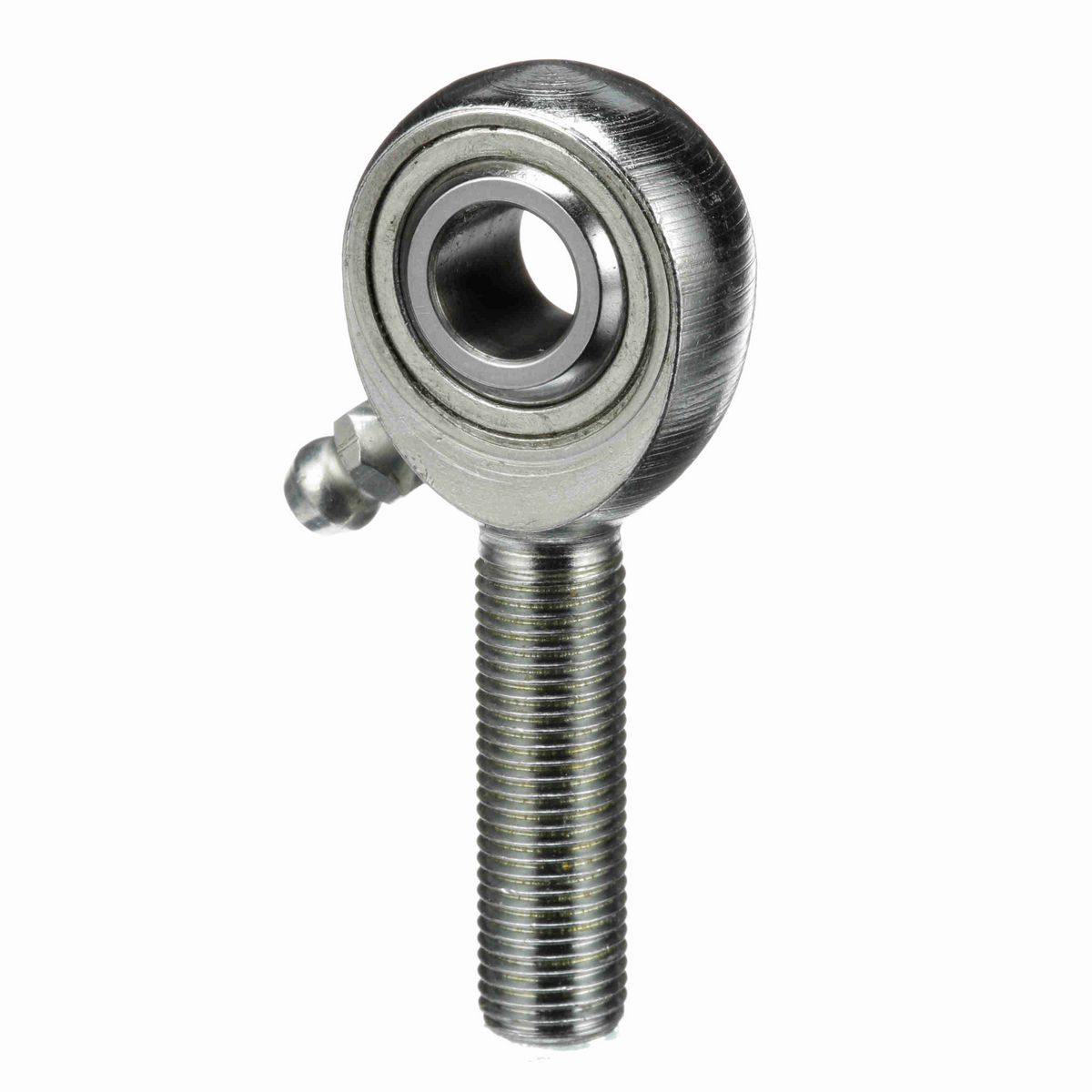

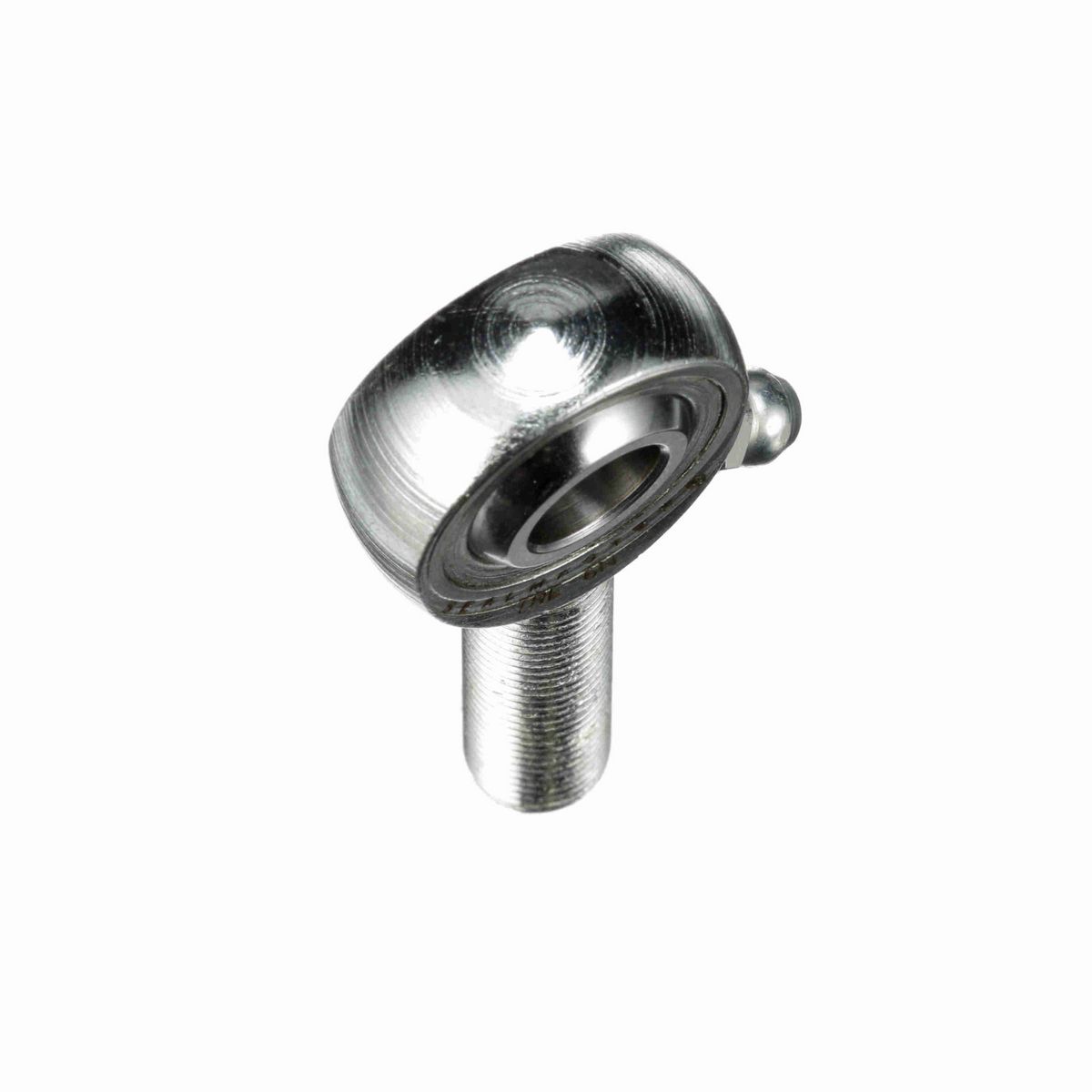

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Diameter (in)	0.718 in
Ball Flat Diameter (in)	0.517 in
Ball Width (in)	0.5 in
Head Diameter (in)	1 in
Housing Width (in)	0.406 in
Thread Length (in)	1.219 in
Thread Size	#3/8-24
Length to Center of Ball (in)	1.94 in

Technical Specifications

Misalignment Angle - a Deg. +/-	6
Construction	Three-Piece Rod End with Zerk Fitting
Product Type	TRE
Outer Material	Carbon Steel - Corrosion Resistant Plating
Axial Load	400
Zerk Fitting SW	Y
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Selection Available SW	Y
Bearing Type	Rod End
Configuration	Male
Housing Style	Male Rod End
Lubrication Type	Grease
Thread Type	UNF
Race Material	Carbon Steel - corrosion resistant plating
Series	Precision
Type	Male Rod End
Max Static Radial Load	4,000
Thread	RH
Lubrication	Zerk Fitting
Bore Size (in)	0.3750 in
Class	Precision
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719946
Weight	0.14 LB
Packaged Length	2.45 IN
Packaged Width	2.45 IN
Packaged Height	0.65 IN
HTC	8483.30.8055
Country of Origin	Mexico
