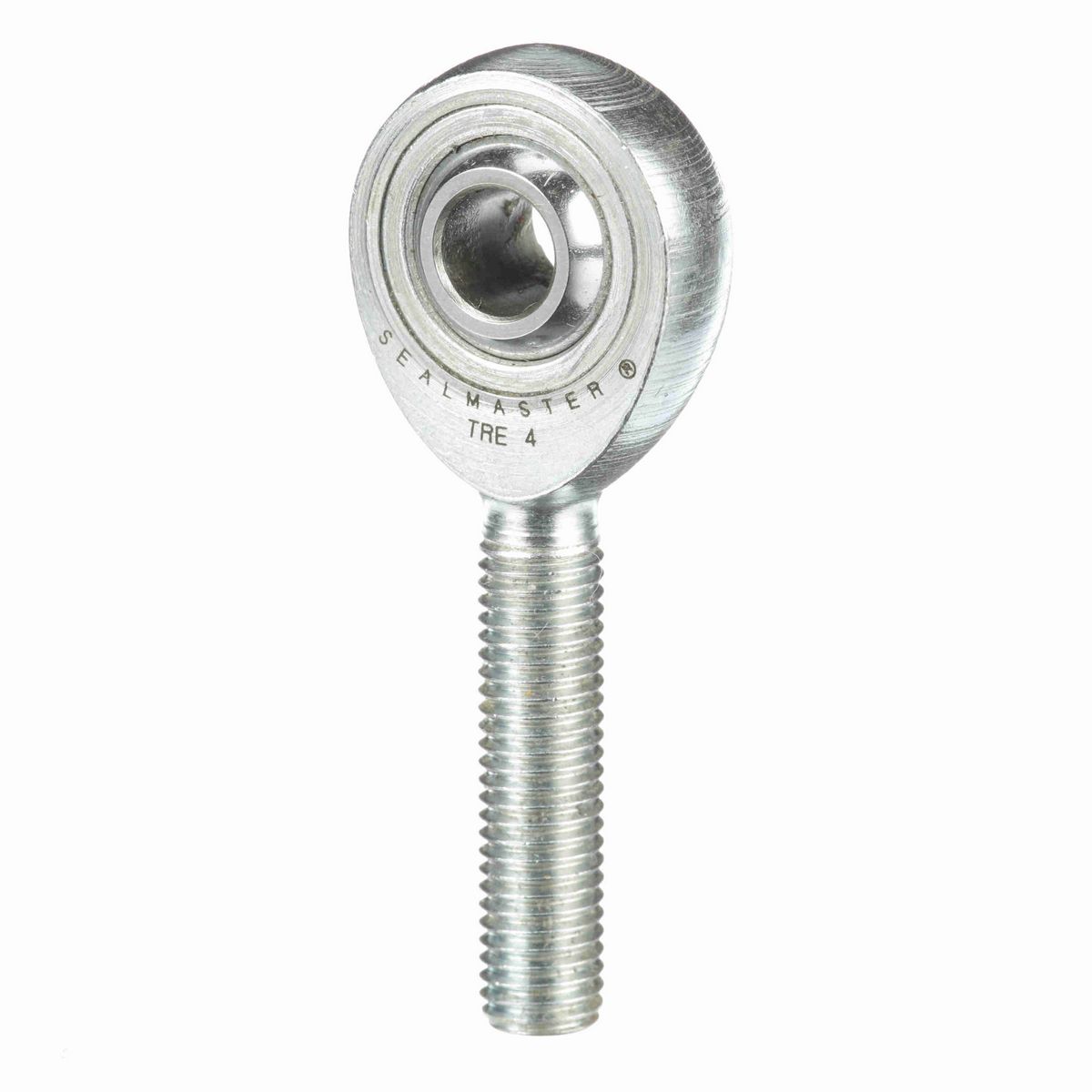

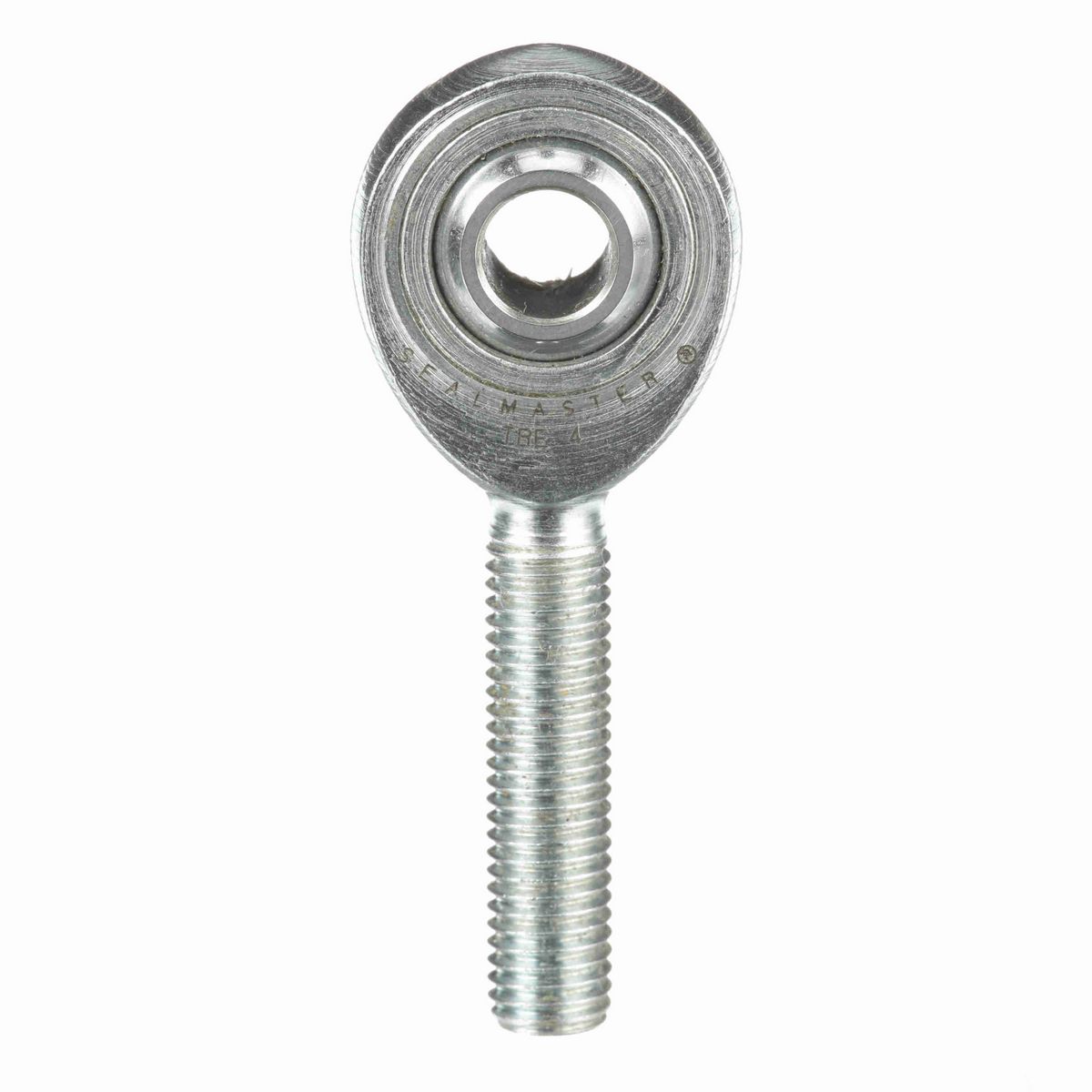

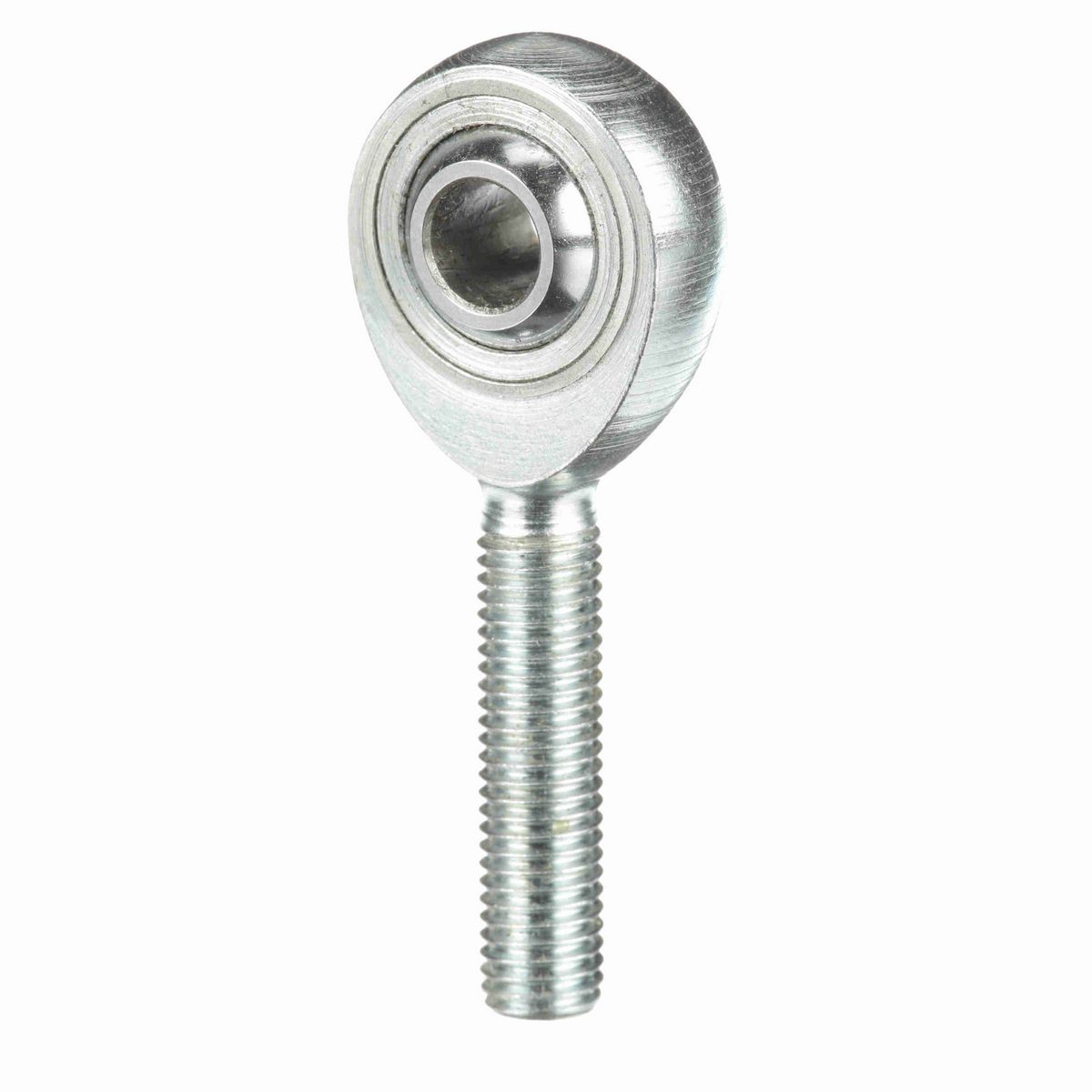

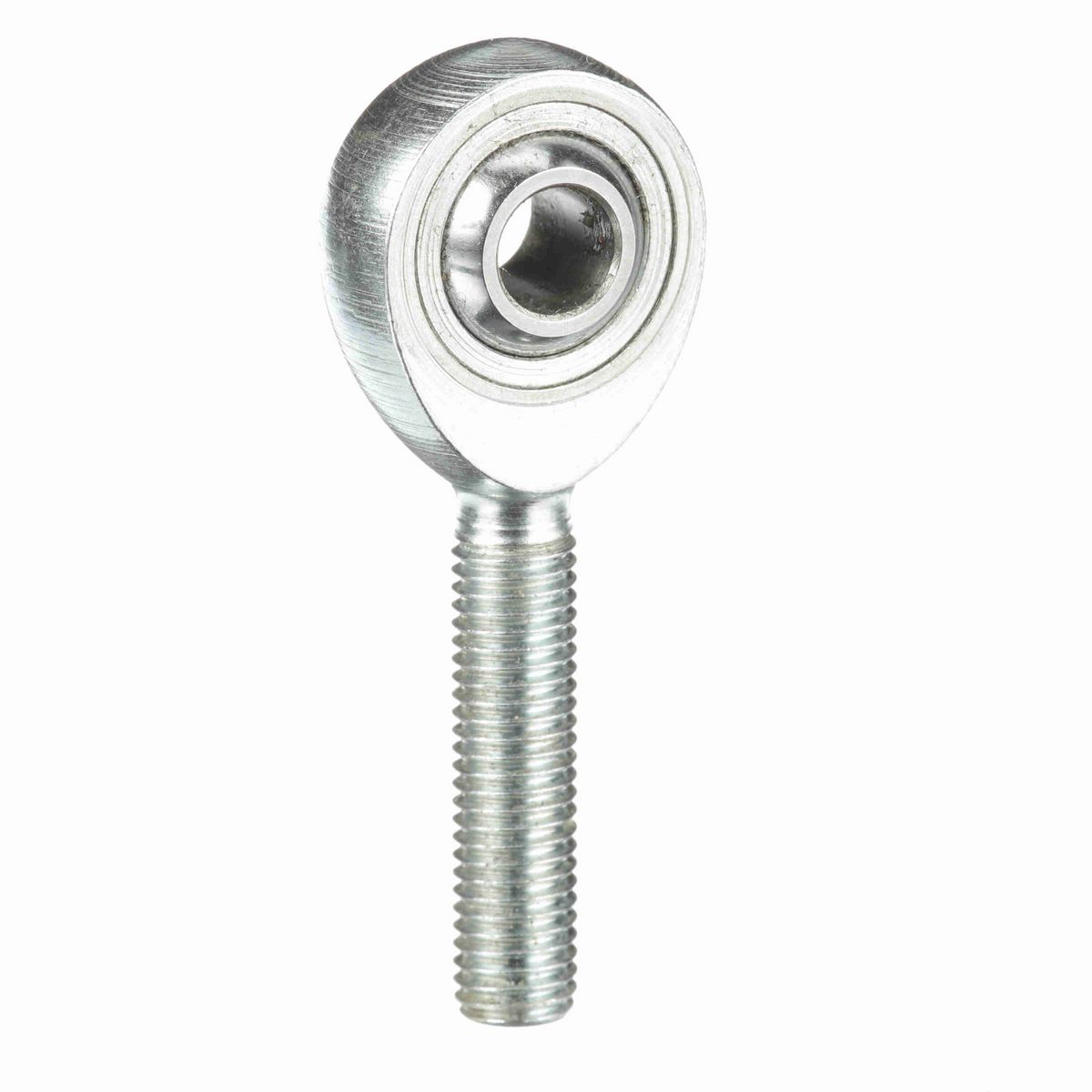

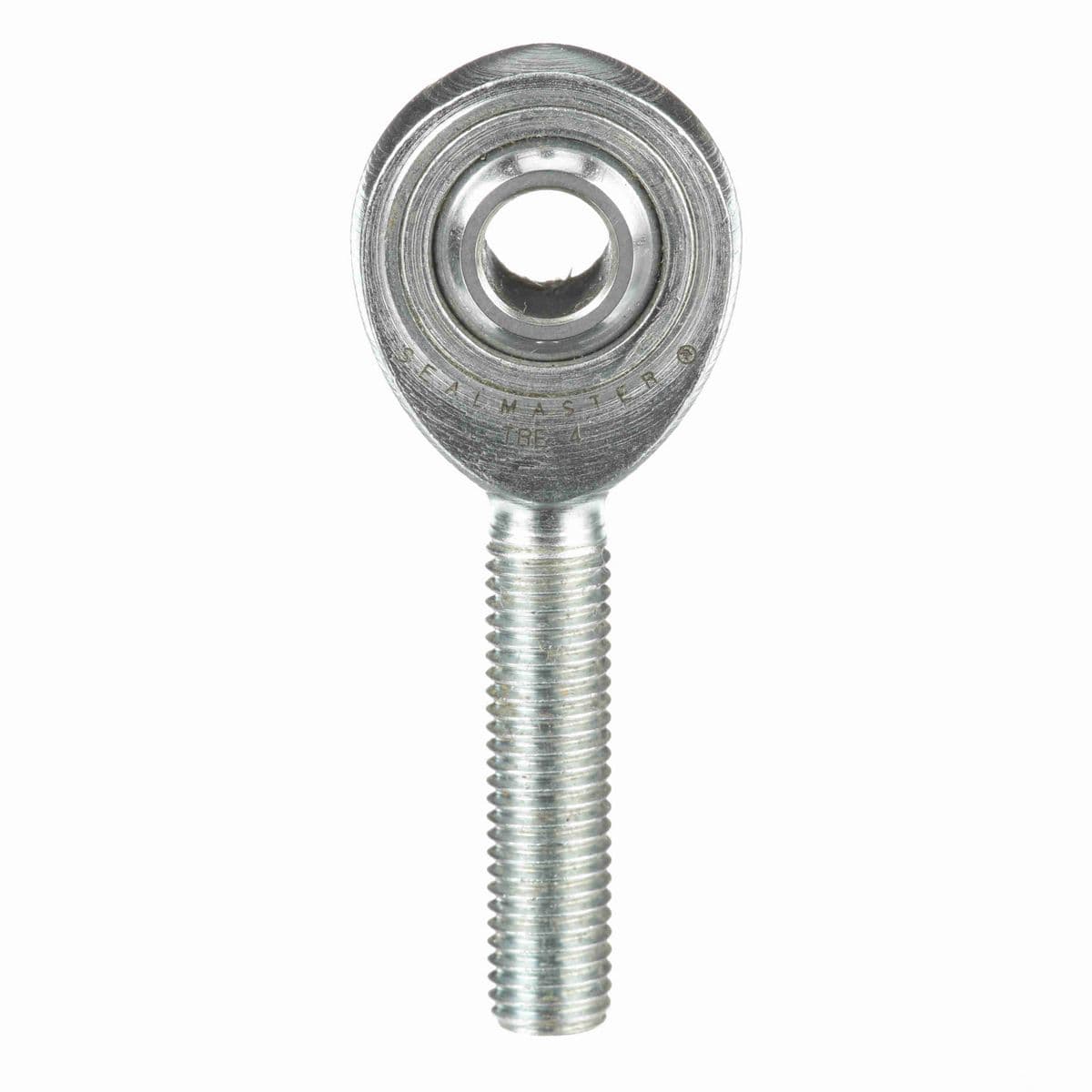

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#1/4-28
Head Diameter (in)	0.75 in
Ball Diameter (in)	0.5 in
Ball Flat Diameter (in)	0.331 in
Housing Width (in)	0.281 in
Ball Width (in)	0.375 in
Thread Length (in)	0.969 in
Length to Center of Ball (in)	1.56 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Axial Load	170
Housing Style	Male Rod End
Series	Precision
Misalignment Angle - a Deg. +/-	8
Construction	Three-Piece Rod End with Zerk Fitting
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Configuration	Male
Lubrication Type	Grease
Race Material	Carbon Steel - corrosion resistant plating
Thread Type	UNF
Zerk Fitting SW	N
Product Type	TRE
Product Selection Available SW	Y
Bearing Type	Rod End
Max Static Radial Load	1,700
Type	Male Rod End
Lubrication	No Zerk Fitting
Thread	RH
Bore Size (in)	0.2500 in
Class	Precision
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288719175
Weight	0.06 LB
Packaged Length	3.00 IN
Packaged Width	2.80 IN
Packaged Height	1.90 IN
HTC	8483.30.8055
Country of Origin	Mexico
