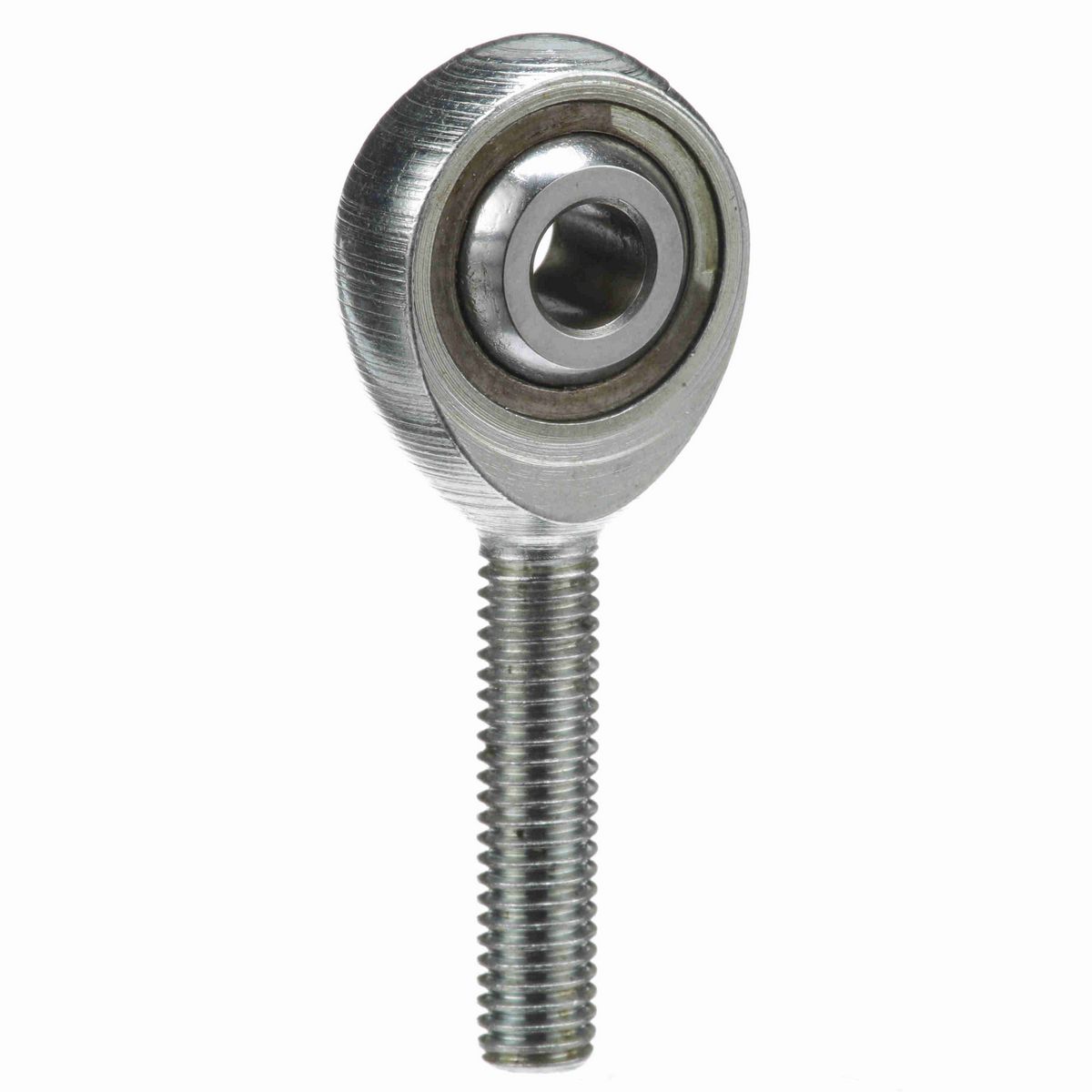

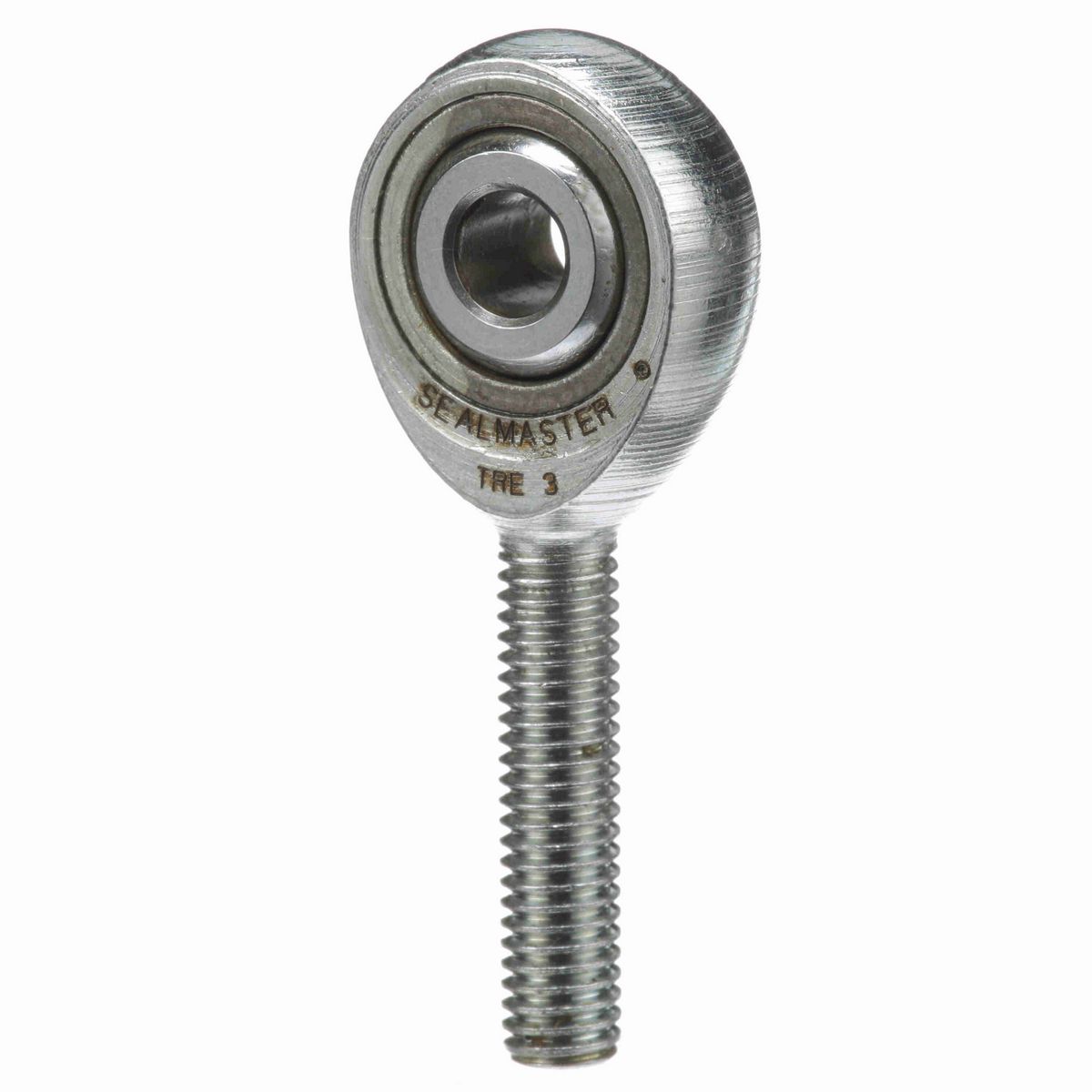

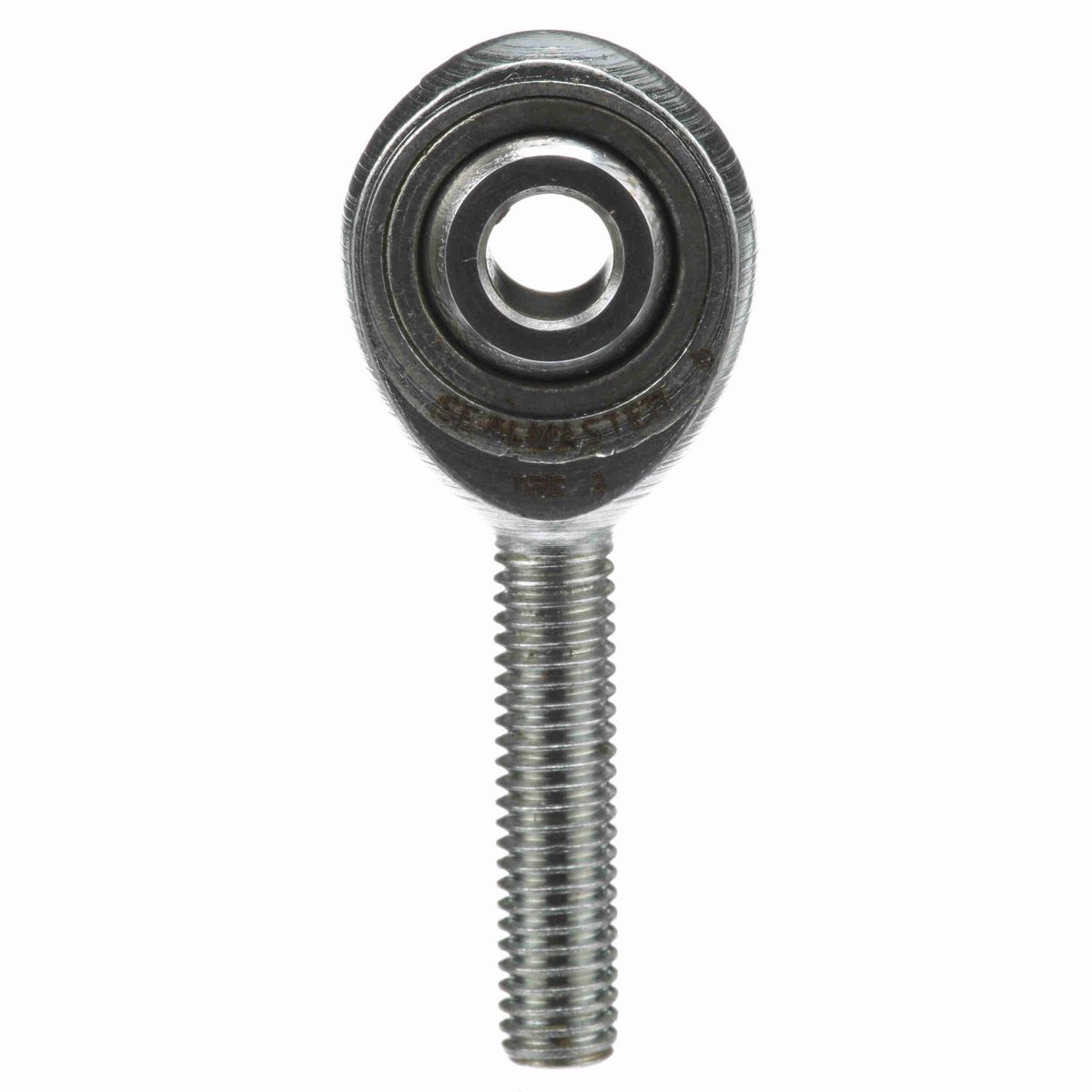

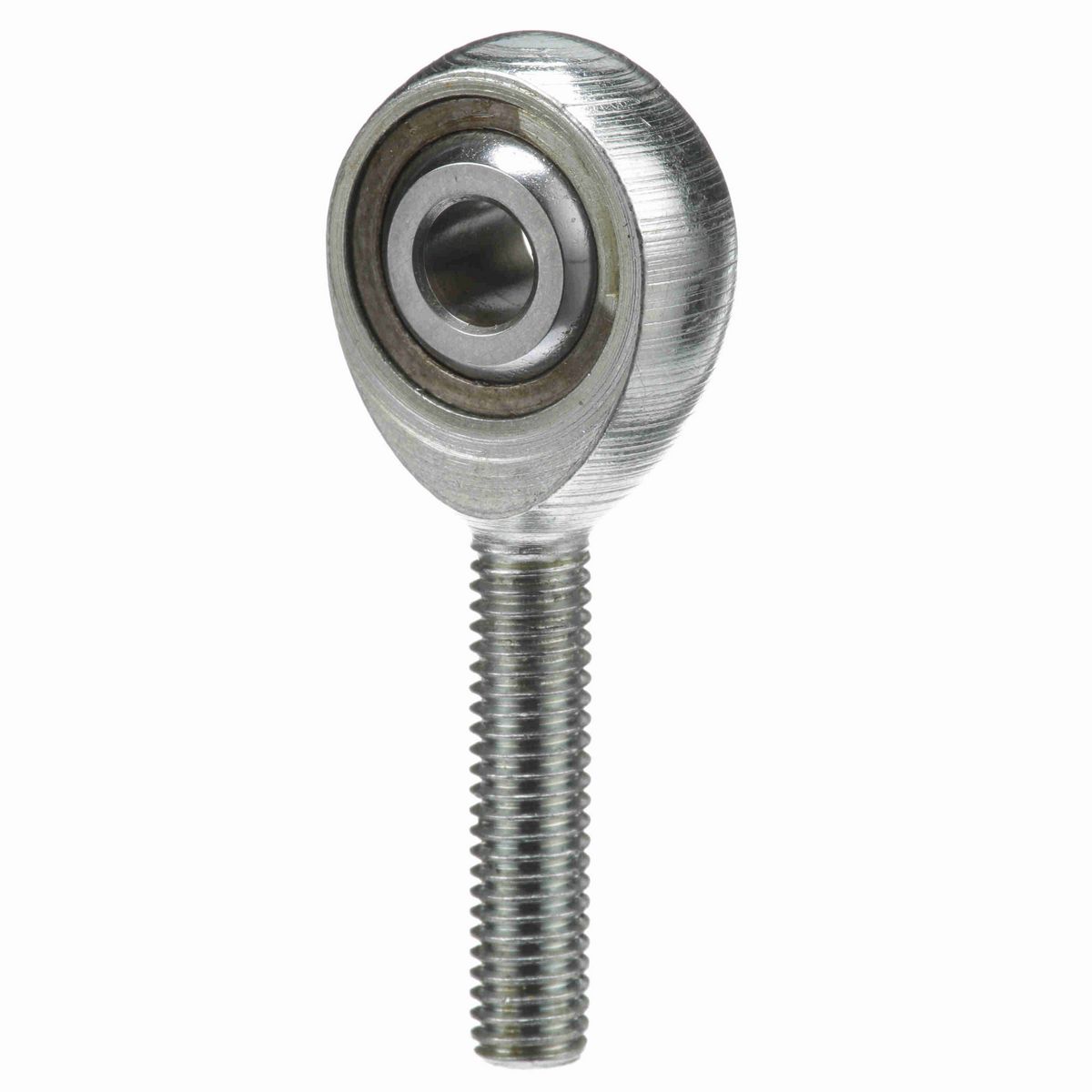

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Flat Diameter (in)	0.306 in
Housing Width (in)	0.25 in
Ball Diameter (in)	0.437 in
Ball Width (in)	0.312 in
Thread Length (in)	0.719 in
Head Diameter (in)	0.625 in
Thread Size	#10-32
Length to Center of Ball (in)	1.25 in

Technical Specifications

Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Zerk Fitting SW	N
Product Selection Available SW	Y
Housing Style	Male Rod End
Thread Type	UNF
Series	Precision
Outer Material	Carbon Steel - Corrosion Resistant Plating
Race Material	Carbon Steel - corrosion resistant plating
Axial Load	90
Construction	Three-Piece Rod End with Zerk Fitting
Bearing Type	Rod End
Misalignment Angle - a Deg. +/-	6.5
Configuration	Female
Lubrication Type	Grease
Product Type	TRE
Lubrication	No Zerk Fitting
Type	Male Rod End
Max Static Radial Load	900
Thread	RH
Class	Precision
Bore Size (in)	0.1875 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288719168
Weight	0.04 LB
Packaged Length	2.45 IN
Packaged Width	2.45 IN
Packaged Height	0.90 IN
HTC	8483.30.8055
Country of Origin	Mexico
