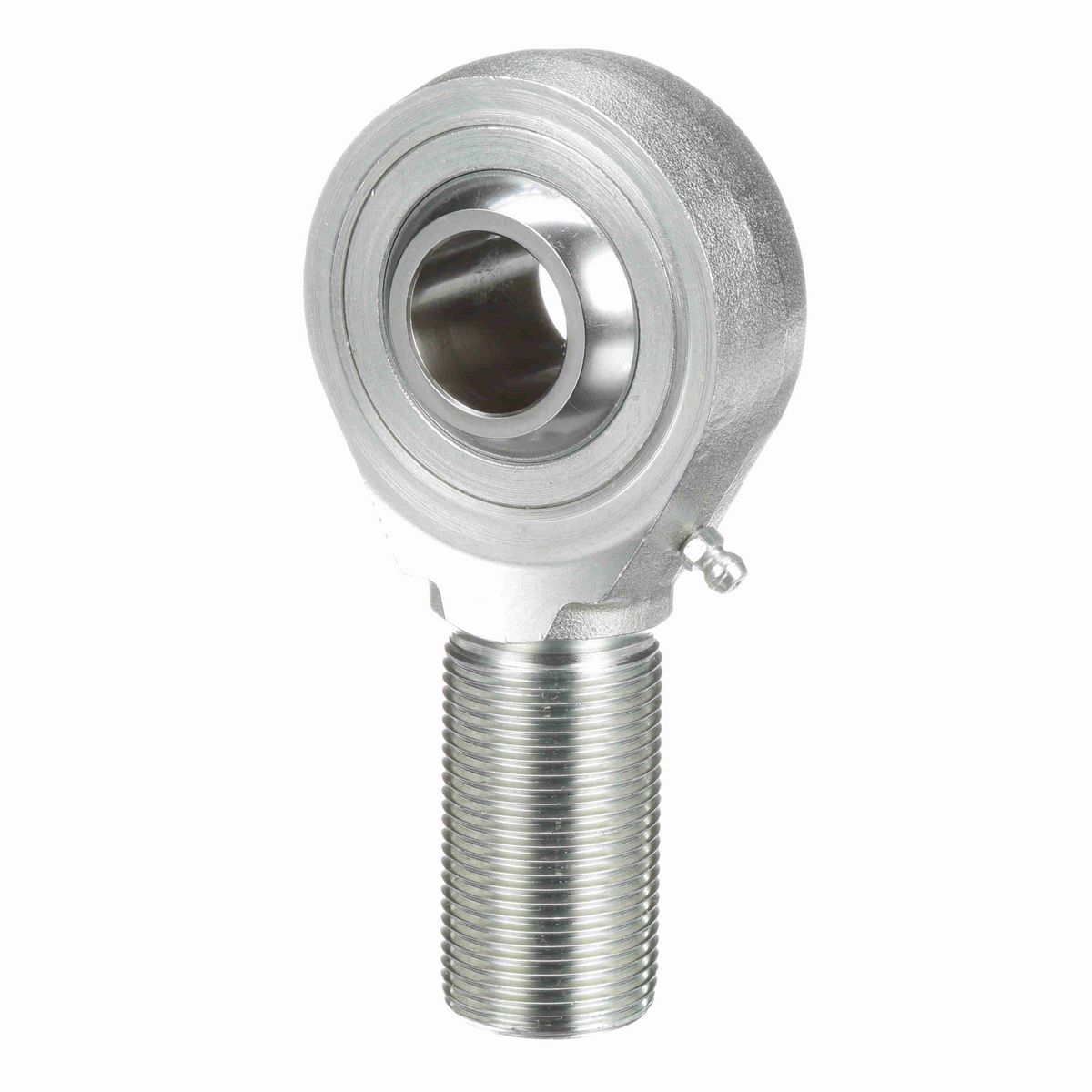

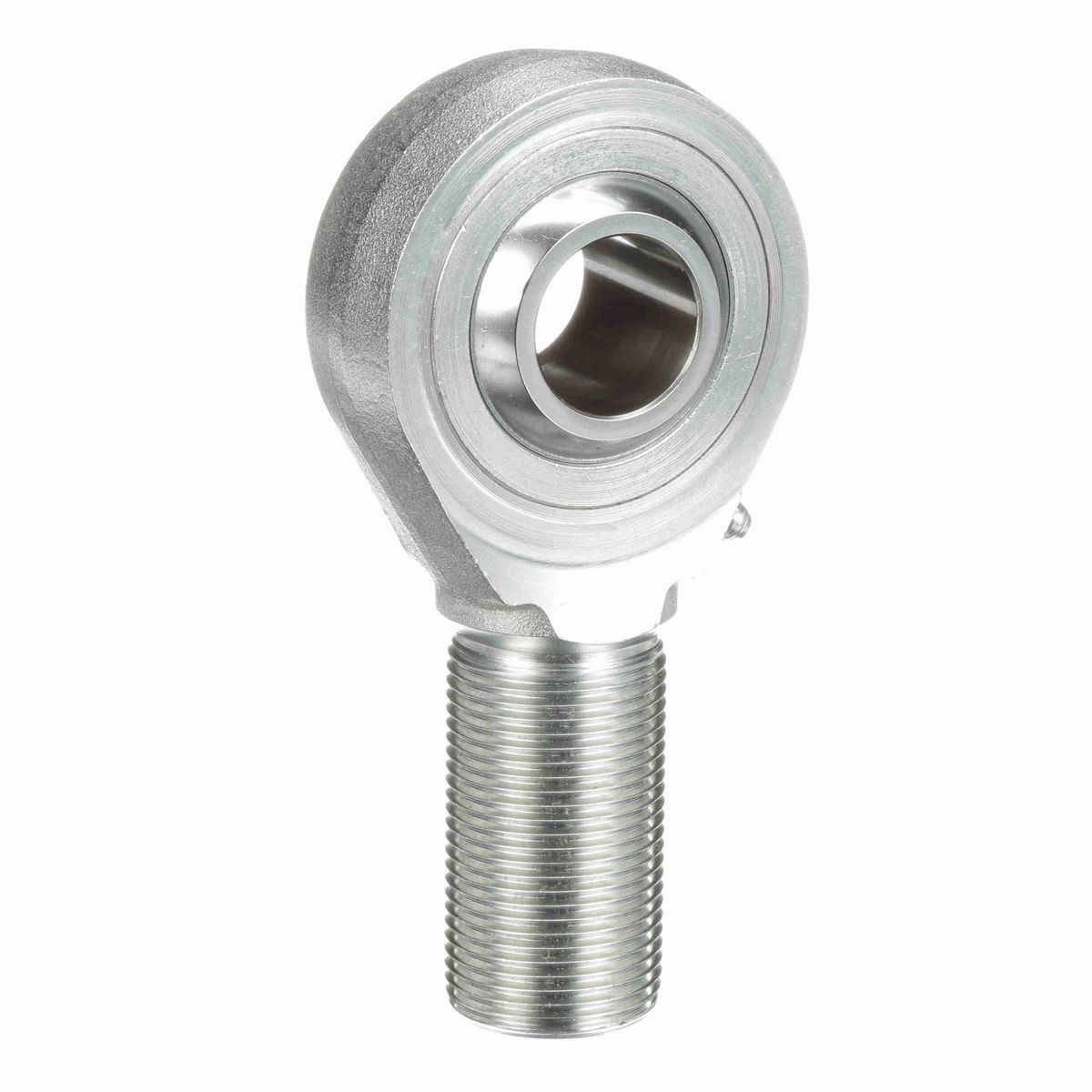

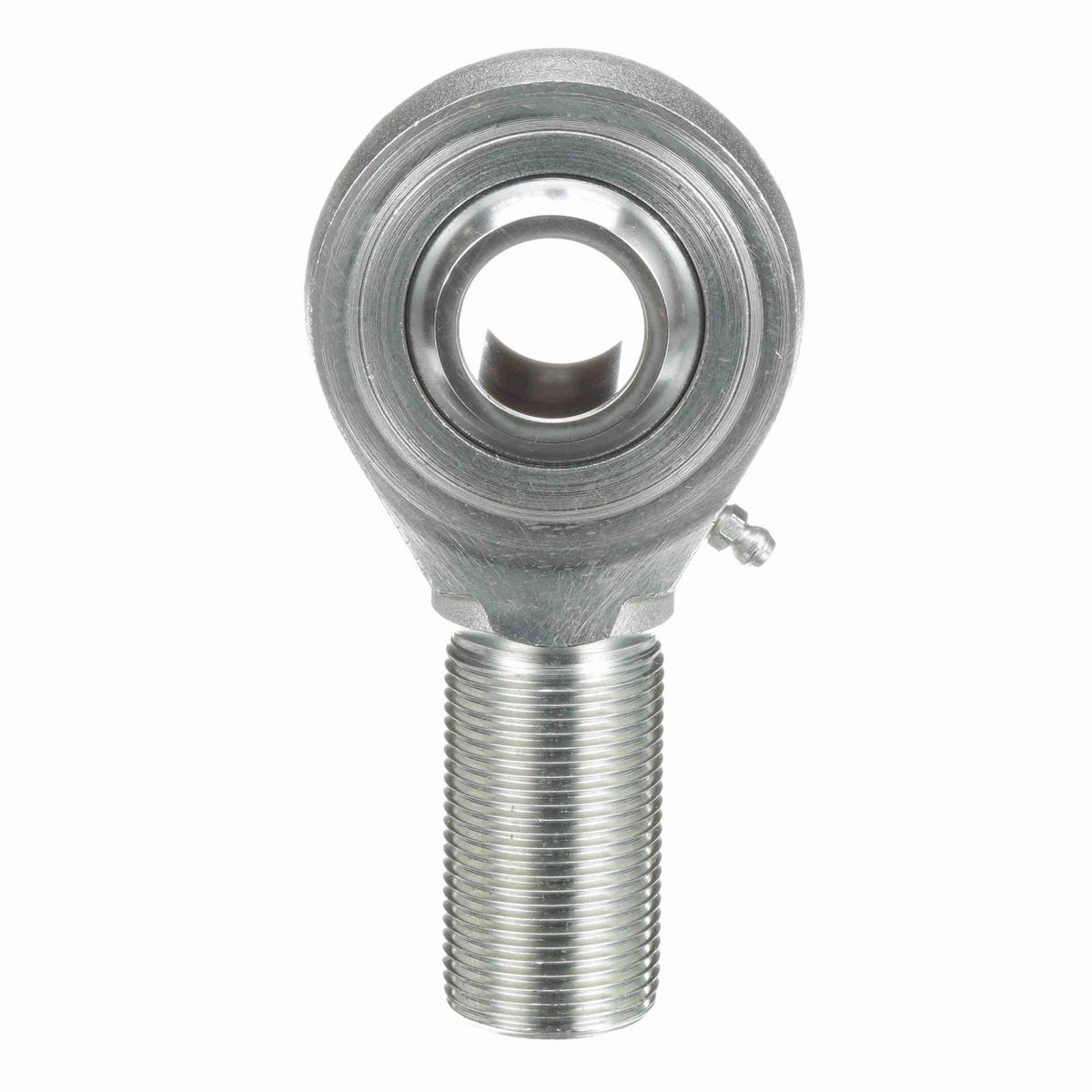

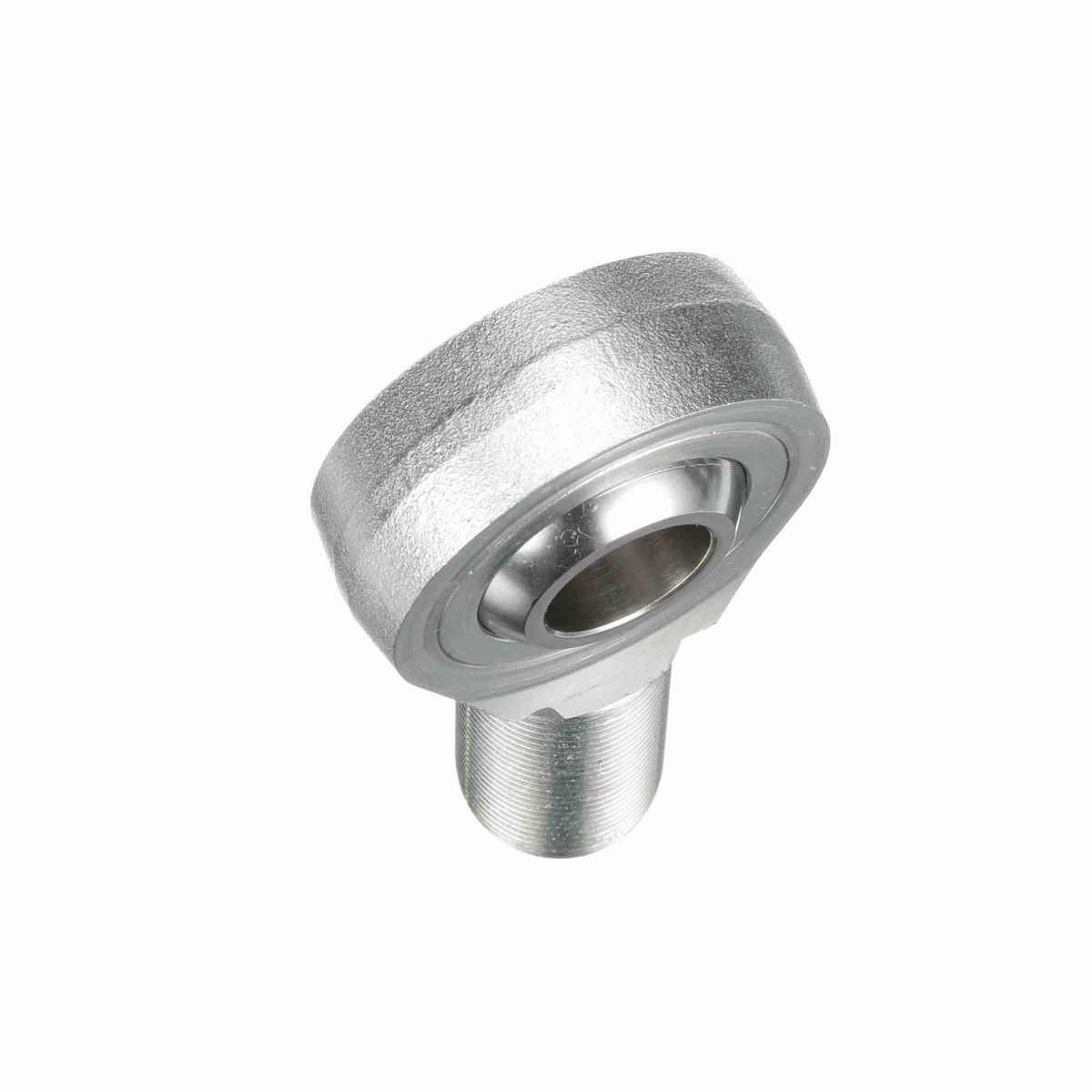

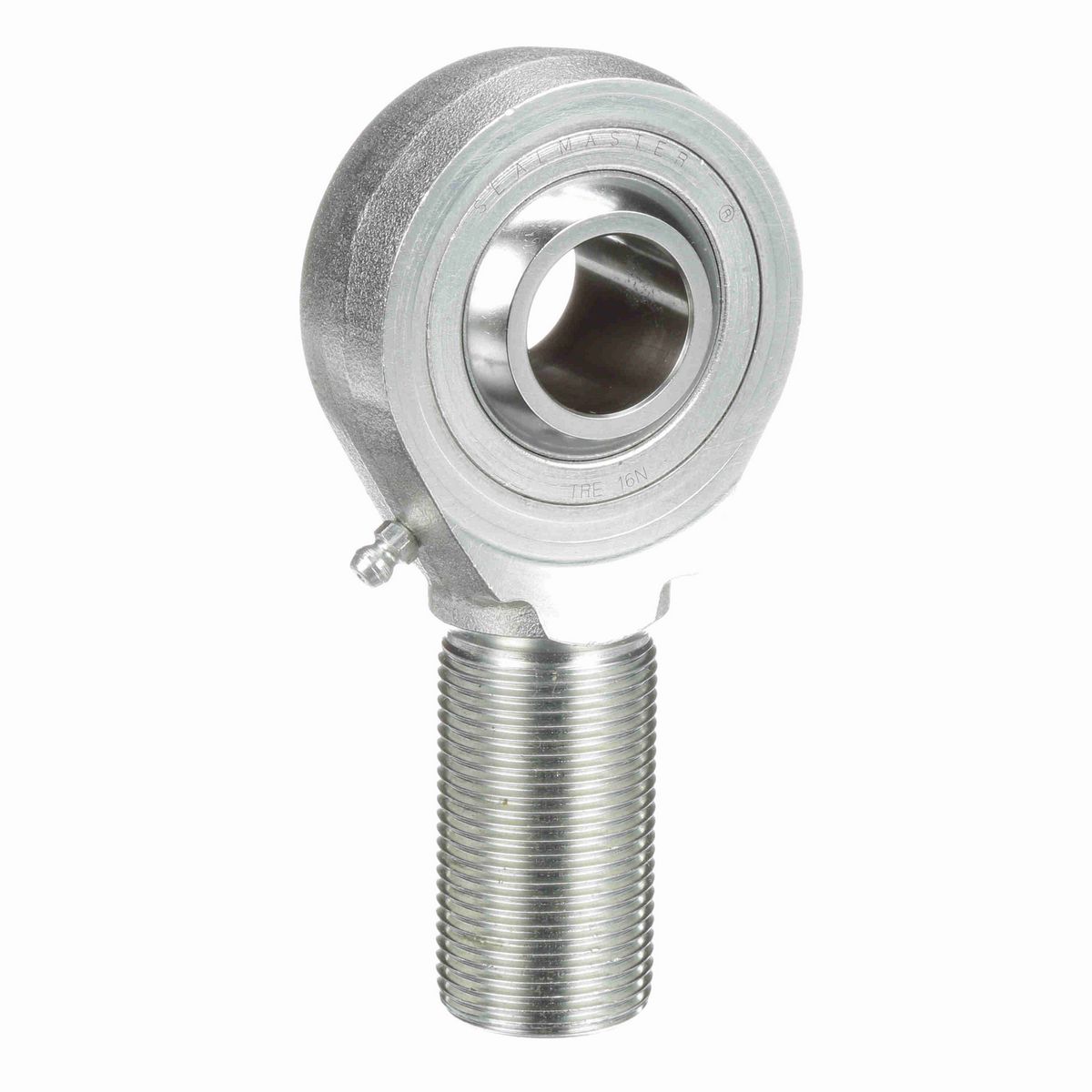

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Head Diameter (in)	2.75 in
Housing Width (in)	1 in
Ball Diameter (in)	1.875 in
Ball Flat Diameter (in)	1.269 in
Thread Size	#1 1/4-12
Thread Length (in)	2.094 in
Ball Width (in)	1.375 in
Length to Center of Ball (in)	4.13 in

Technical Specifications

Thread Type	UNF
Lubrication Type	Grease
Outer Material	Carbon Steel - Corrosion Resistant Plating
Product Selection Available SW	Y
Bearing Type	Rod End
Configuration	Male
Series	Precision
Zerk Fitting SW	Y
Axial Load	2,100
Housing Style	Male Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Race Material	Carbon Steel - corrosion resistant plating
Construction	Three-Piece Rod End with Zerk Fitting
Product Type	TRE
Misalignment Angle - a Deg. +/-	8.5
Type	Male Rod End
Max Static Radial Load	21,000
Lubrication	Zerk Fitting
Thread	RH
Bore Size (in)	1 in
Class	Precision
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719991
Weight	2.54 LB
Packaged Length	5.90 IN
Packaged Width	3.20 IN
Packaged Height	1.70 IN
HTC	8483.30.8055
Country of Origin	Mexico
