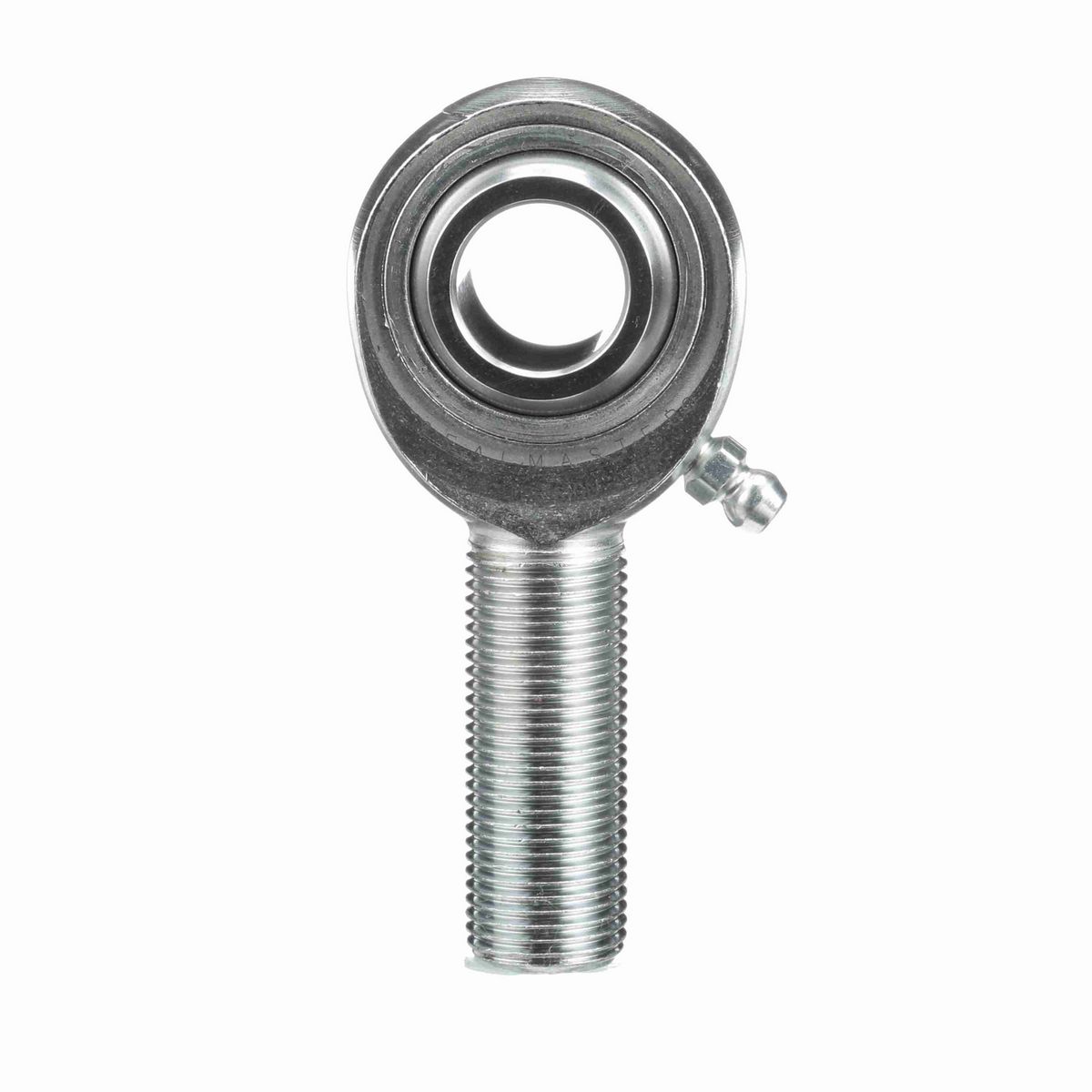

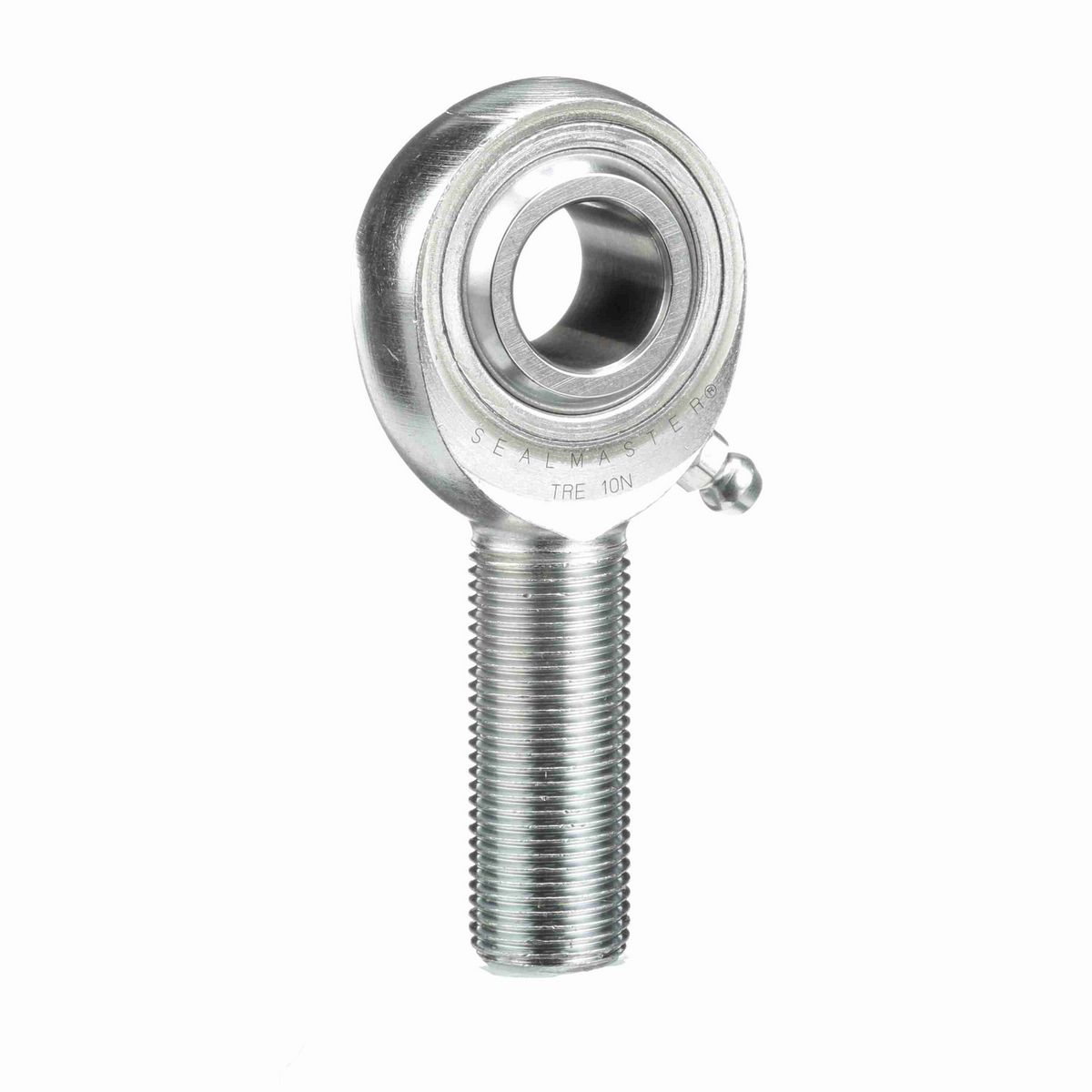

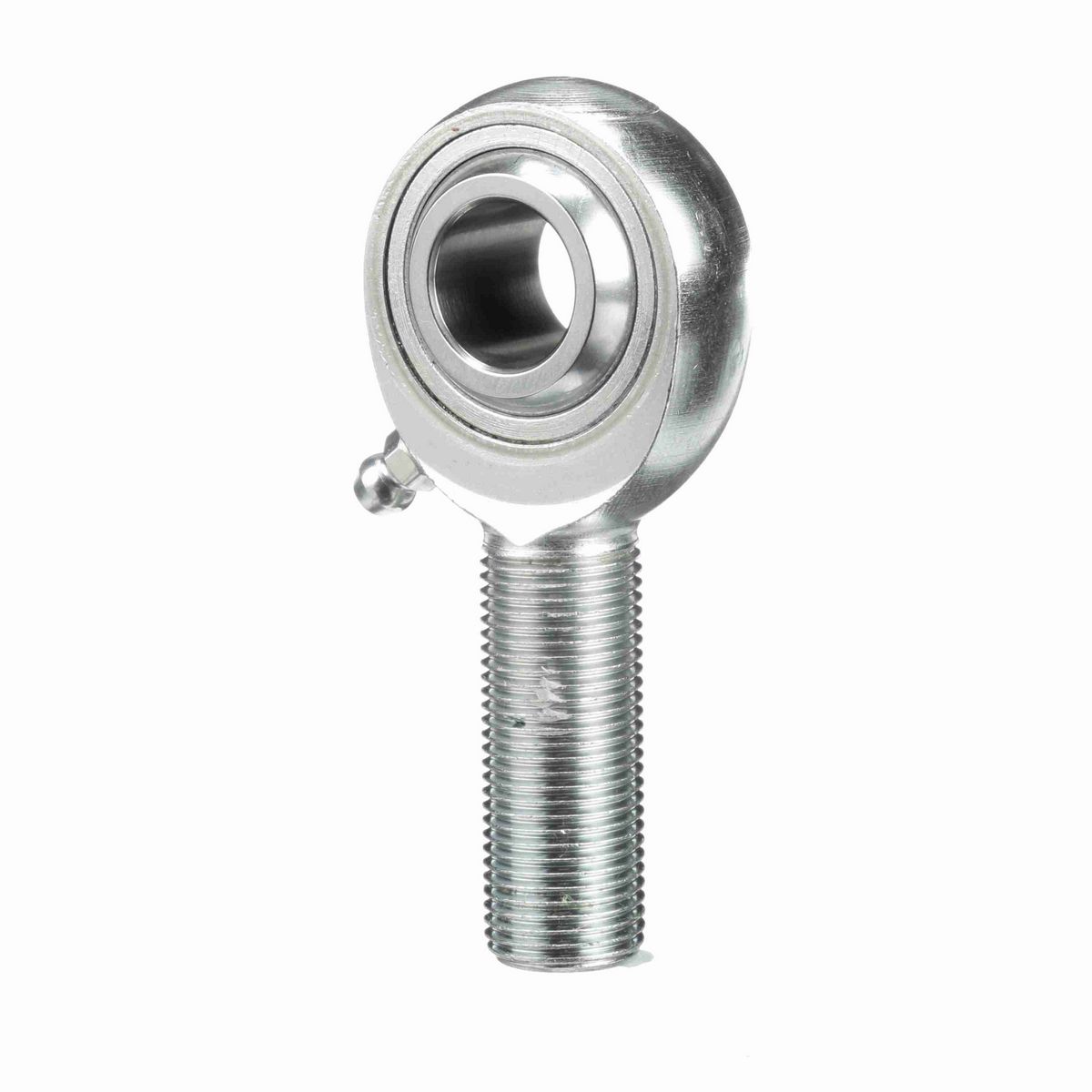

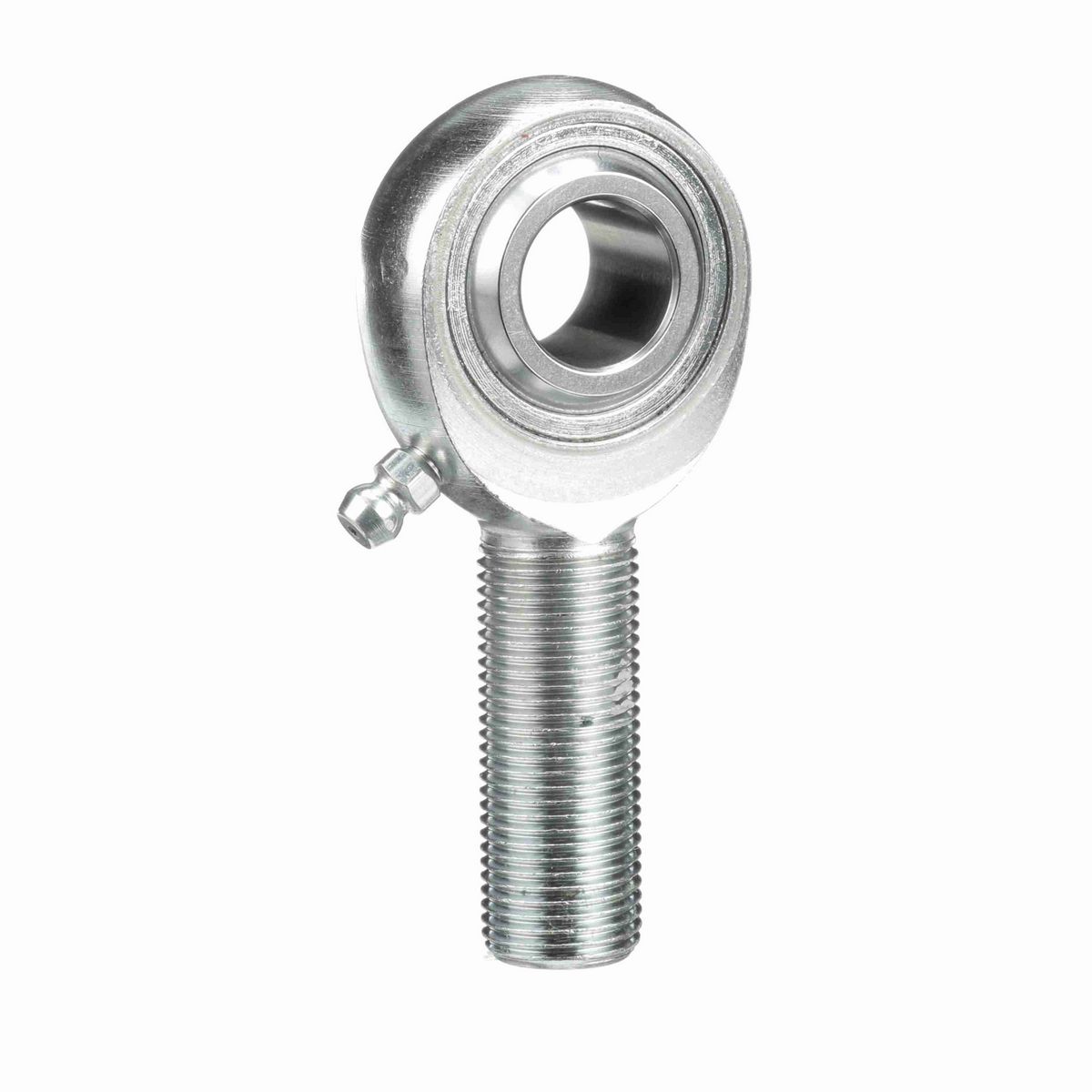

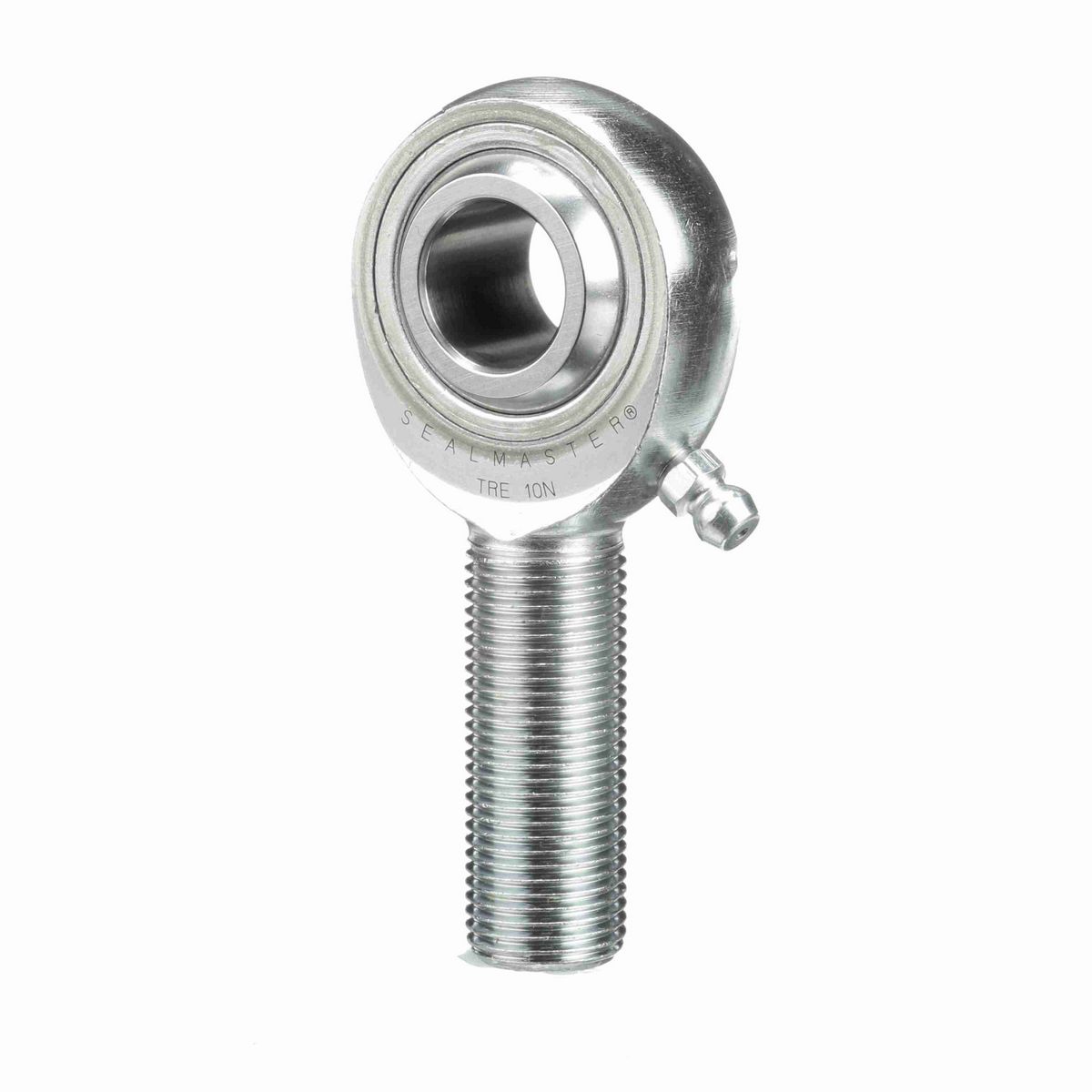

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Flat Diameter (in)	0.839 in
Housing Width (in)	0.562 in
Ball Width (in)	0.75 in
Thread Length (in)	1.594 in
Thread Size	#5/8-18
Head Diameter (in)	1.5 in
Ball Diameter (in)	1.125 in
Length to Center of Ball (in)	2.63 in

Technical Specifications

Configuration	Male
Misalignment Angle - a Deg. +/-	8
Lubrication Type	Grease
Axial Load	805
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Outer Material	Carbon Steel - Corrosion Resistant Plating
Zerk Fitting SW	Y
Race Material	Carbon Steel - corrosion resistant plating
Construction	Three-Piece Rod End with Zerk Fitting
Bearing Type	Rod End
Product Type	TRE
Series	Precision
Thread Type	UNF
Product Selection Available SW	Y
Housing Style	Male Rod End
Thread	RH
Lubrication	Zerk Fitting
Max Static Radial Load	8,050
Type	Male Rod End
Bore Size (in)	0.6250 in
Class	Precision
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288719977
Weight	0.34 LB
Packaged Length	5.30 IN
Packaged Width	4.90 IN
Packaged Height	2.70 IN
HTC	8483.30.8055
Country of Origin	Mexico
