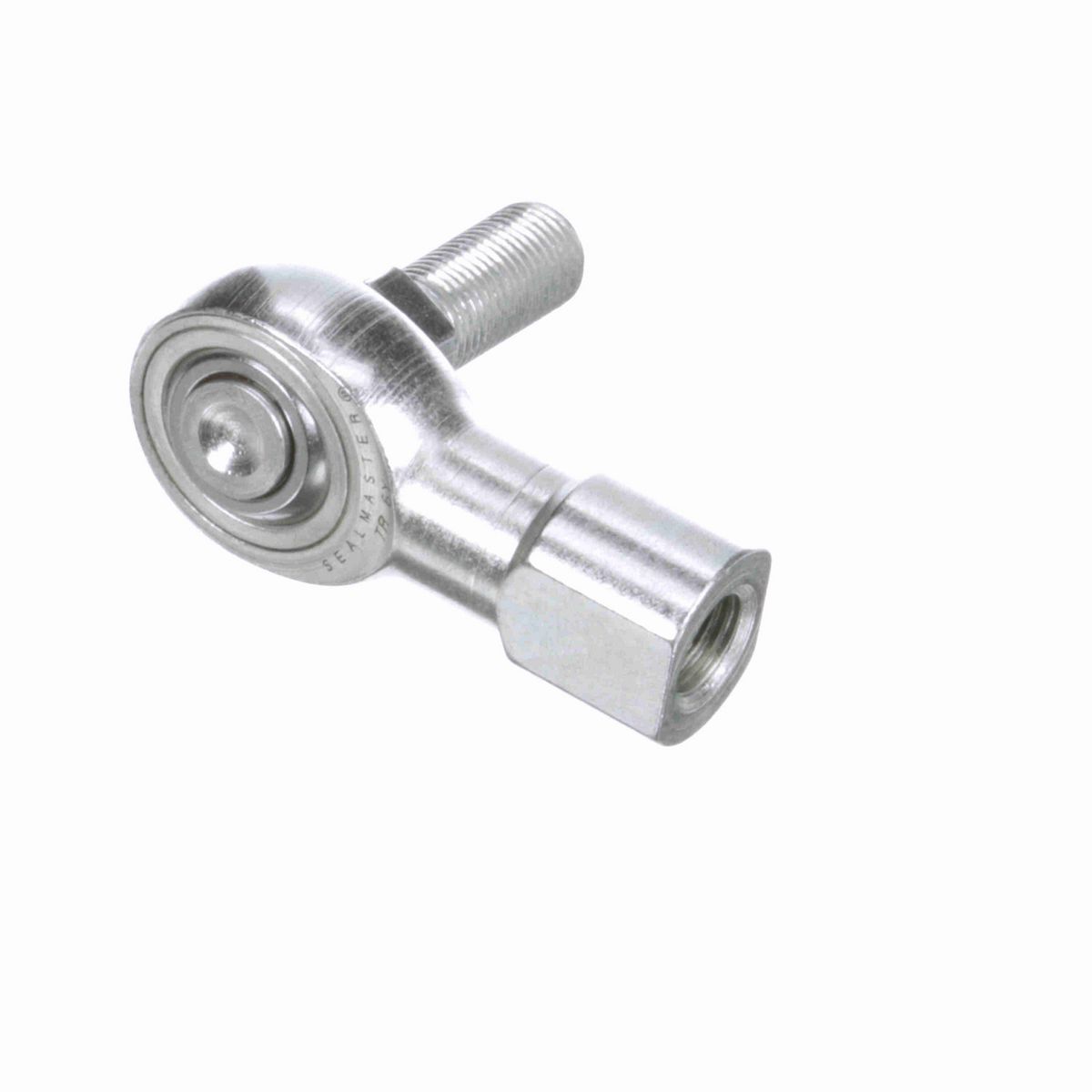

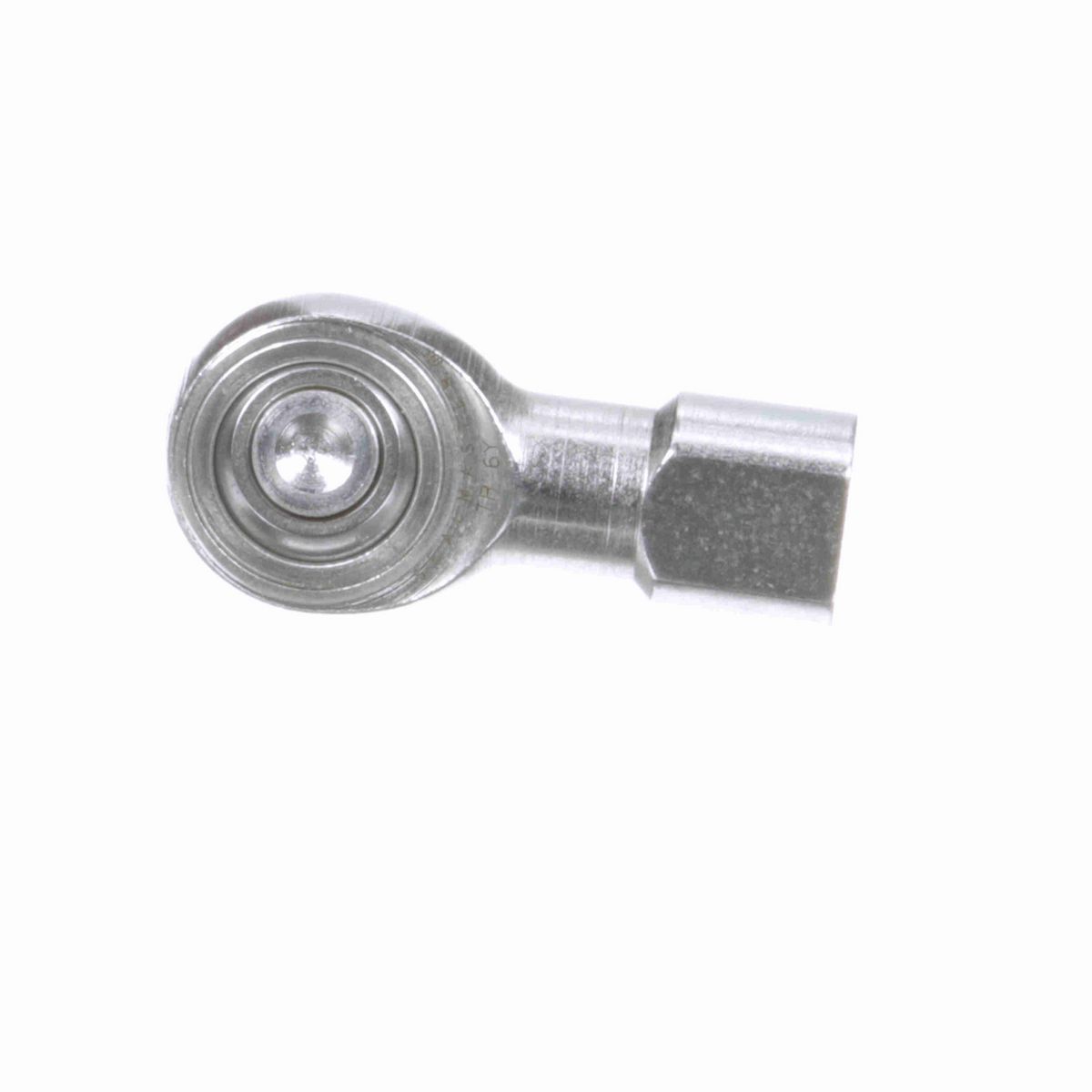

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Carbon Steel Outer Race
• Y Stud

Dimensions

Housing Width (in)	0.406 in
Thread Size	#3/8-24
Base Diameter (in)	0.688 in
Ball Flat Diameter (in)	0.517 in
Thread Length (in)	0.906 in
Head Diameter (in)	1 in
Ball Width (in)	0.5 in
Ball Diameter (in)	0.718 in
Stud Length to Hex (in)	0.91 in
Stud Length to Center of Ball (in)	1.54 in
Length to Center of Ball (in)	1.63 in
Stud Thread Length (in)	0.8125 in

Technical Specifications

Bearing Type	Rod End
Zerk Fitting SW	N
Series	Precision
Housing Style	Female Rod End
Product Selection Available SW	N
Lubrication Type	Grease
Configuration	Female
Axial Load	445
Race Material	Carbon Steel - corrosion resistant plating
Product Type	TR
Outer Material	Carbon Steel - Corrosion Resistant Plating
Thread Type	UNF
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Across Wrench Flats	0.562
Y Stud Material	Carbon Steel - corrosion resistant plating
Construction	Three-Piece Rod End with Y Stud and Zerk Fitting
Lubrication	No Zerk Fitting
Max Static Radial Load	4,450
Type	Female Rod End
Misalignment Angle B3	22.6
Thread	RH
Bore Size (in)	0.3750 in
Class	Precision
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288720416
Weight	0.20 LB
Packaged Length	2.13 IN
Packaged Width	1.79 IN
Packaged Height	1.00 IN
HTC	8483.30.8055
Country of Origin	Mexico
