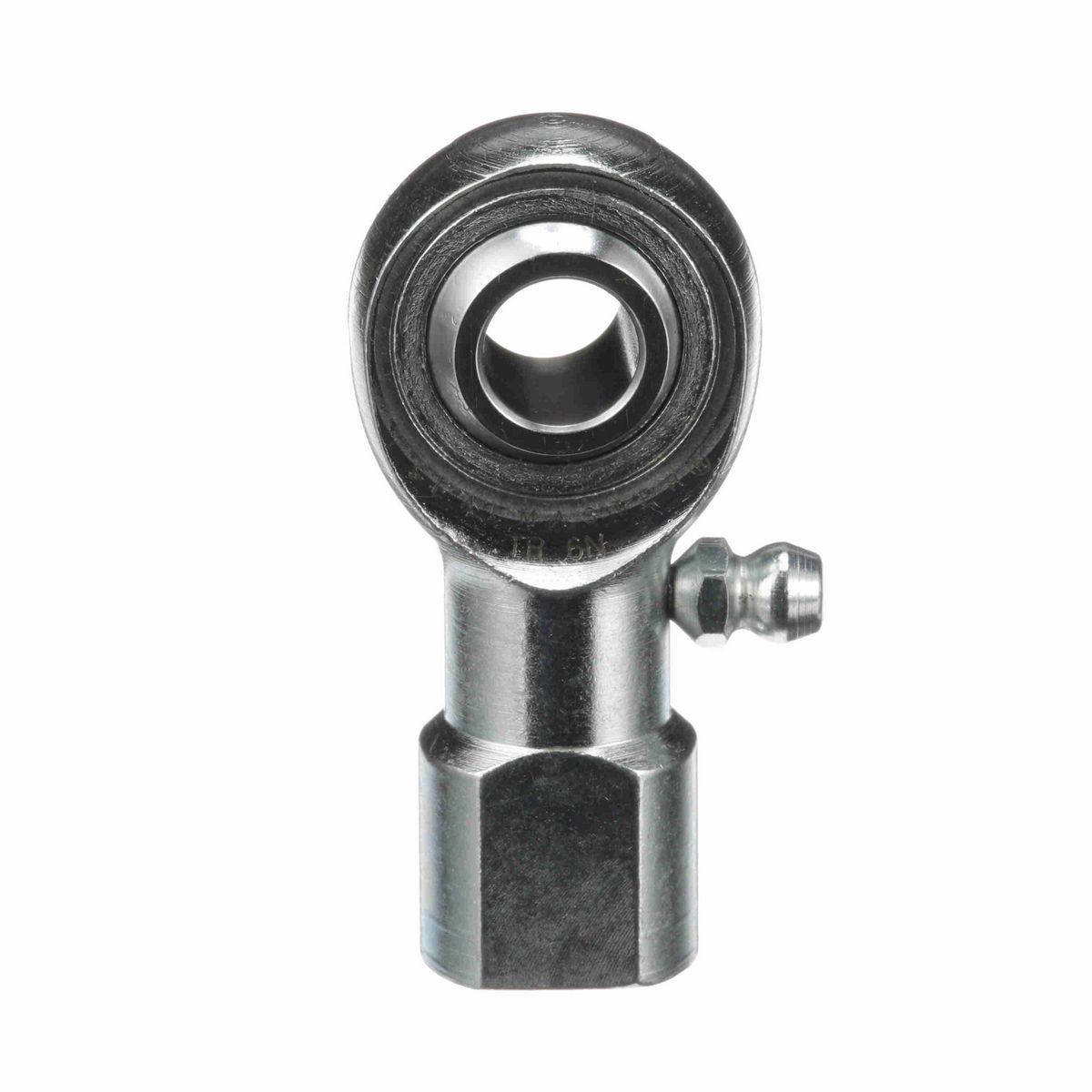

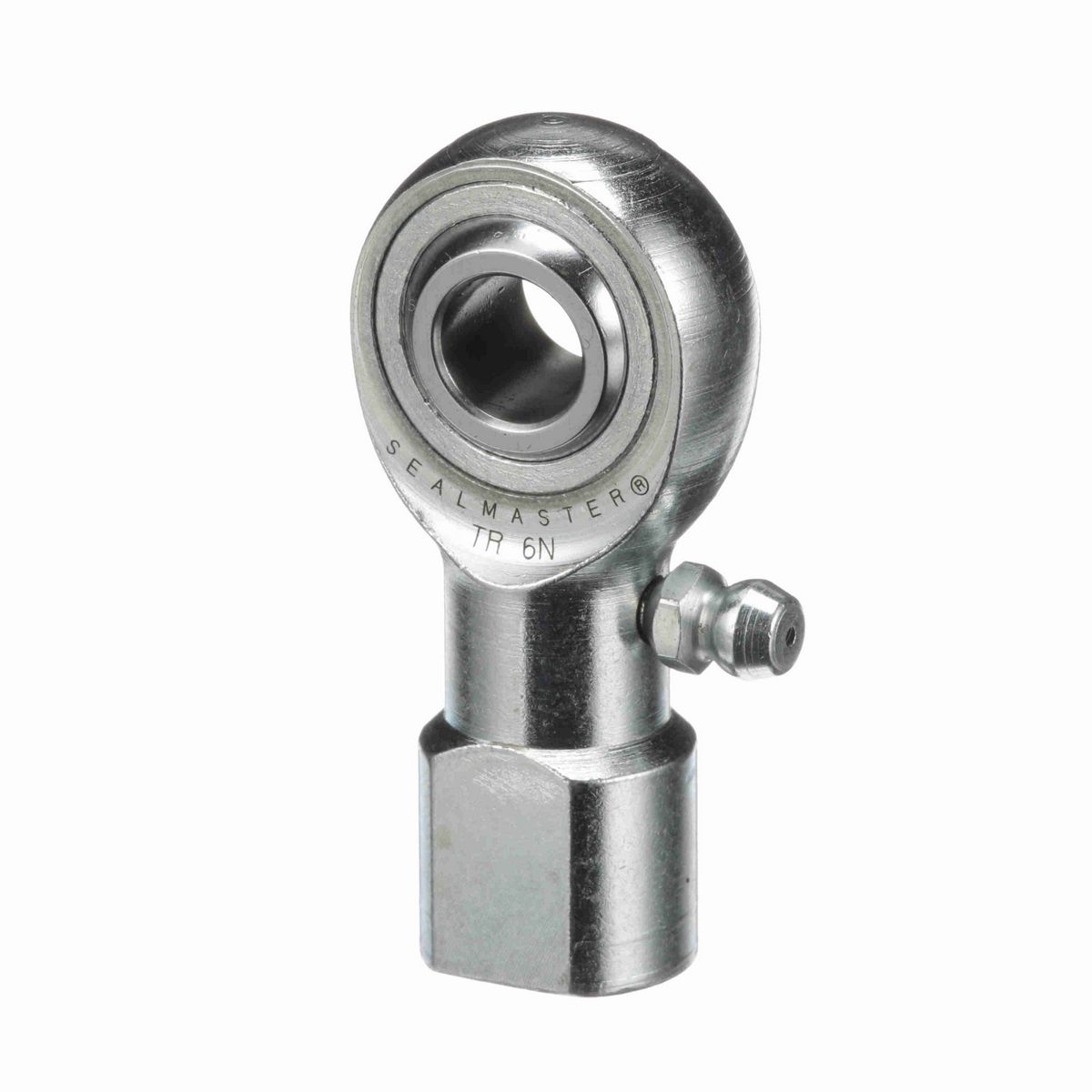

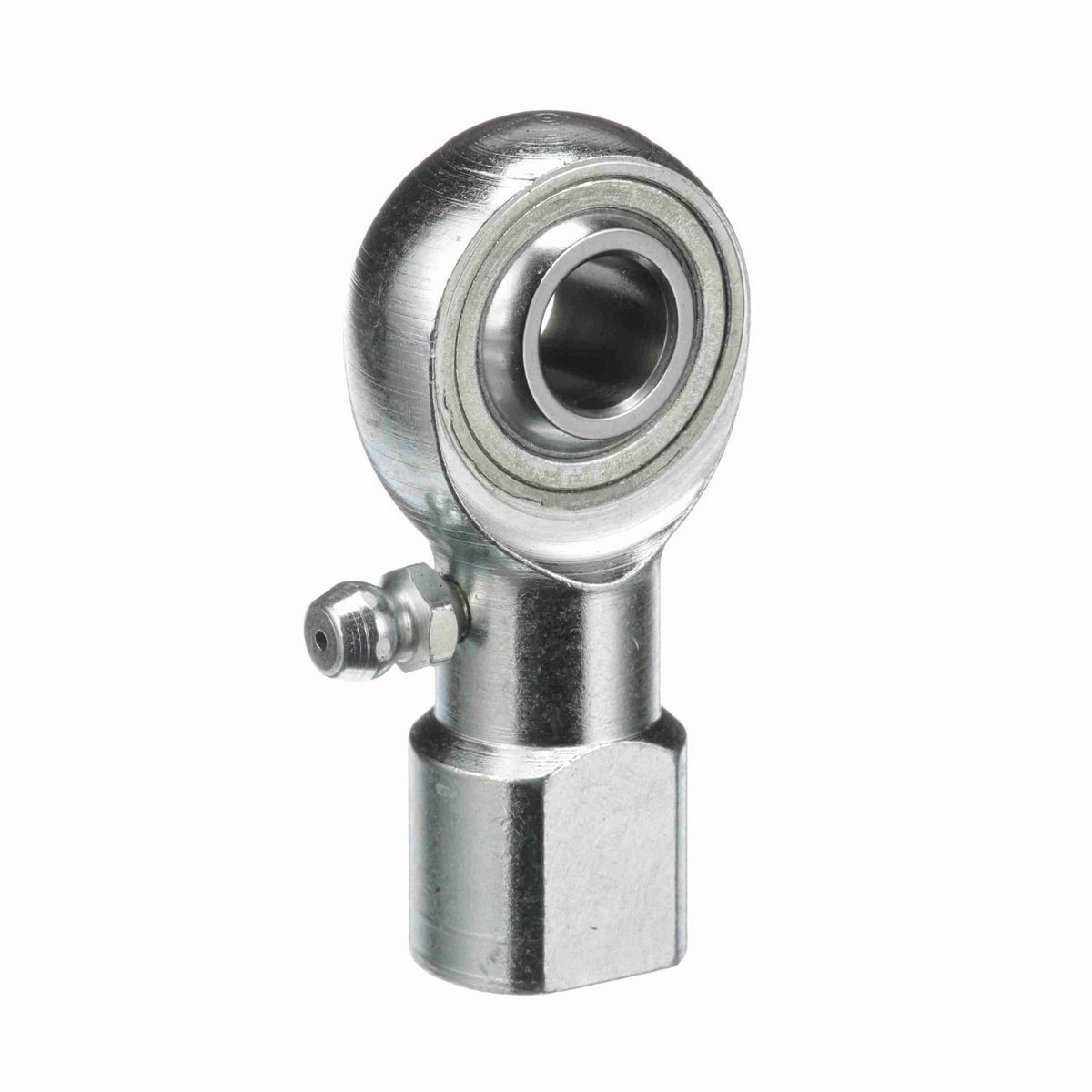

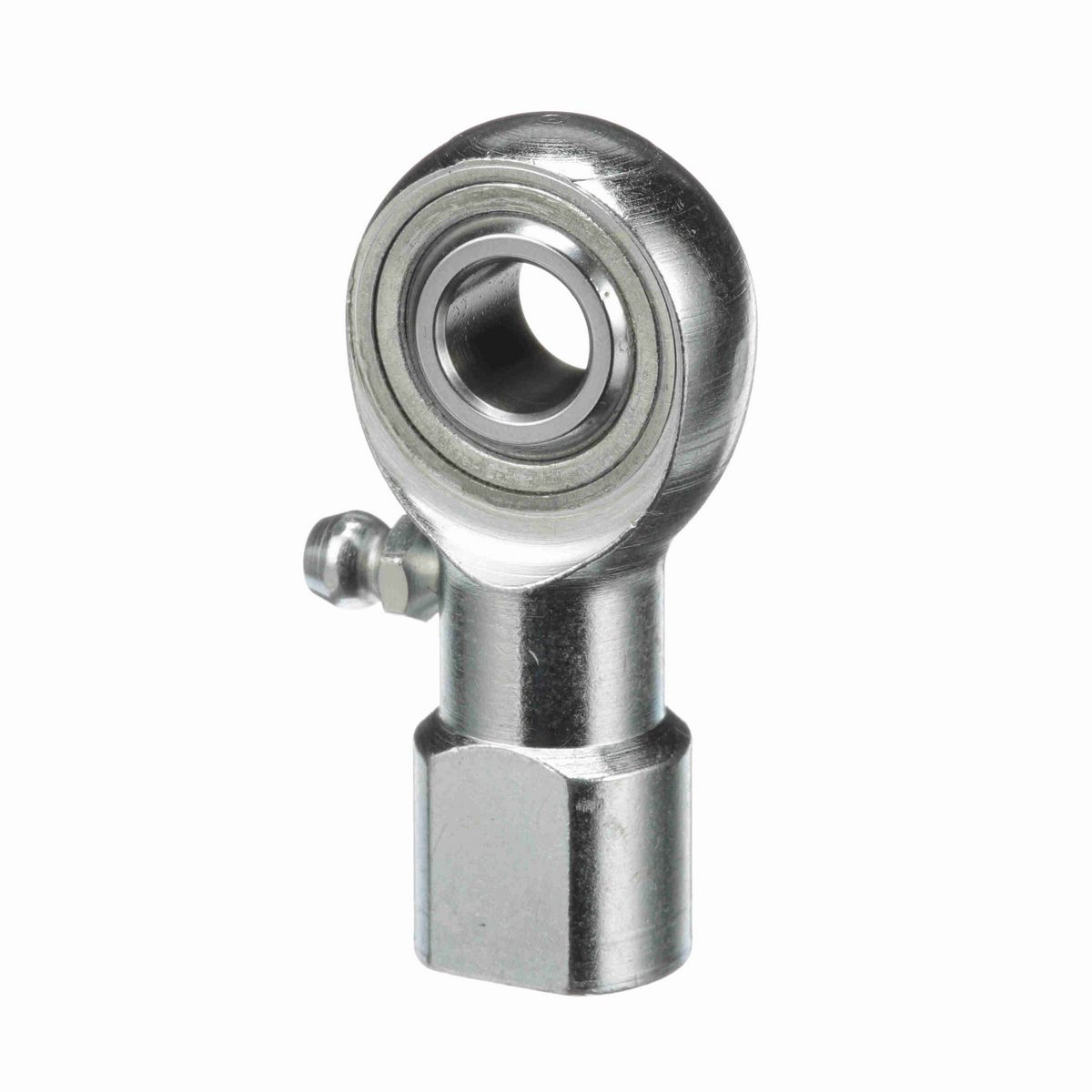

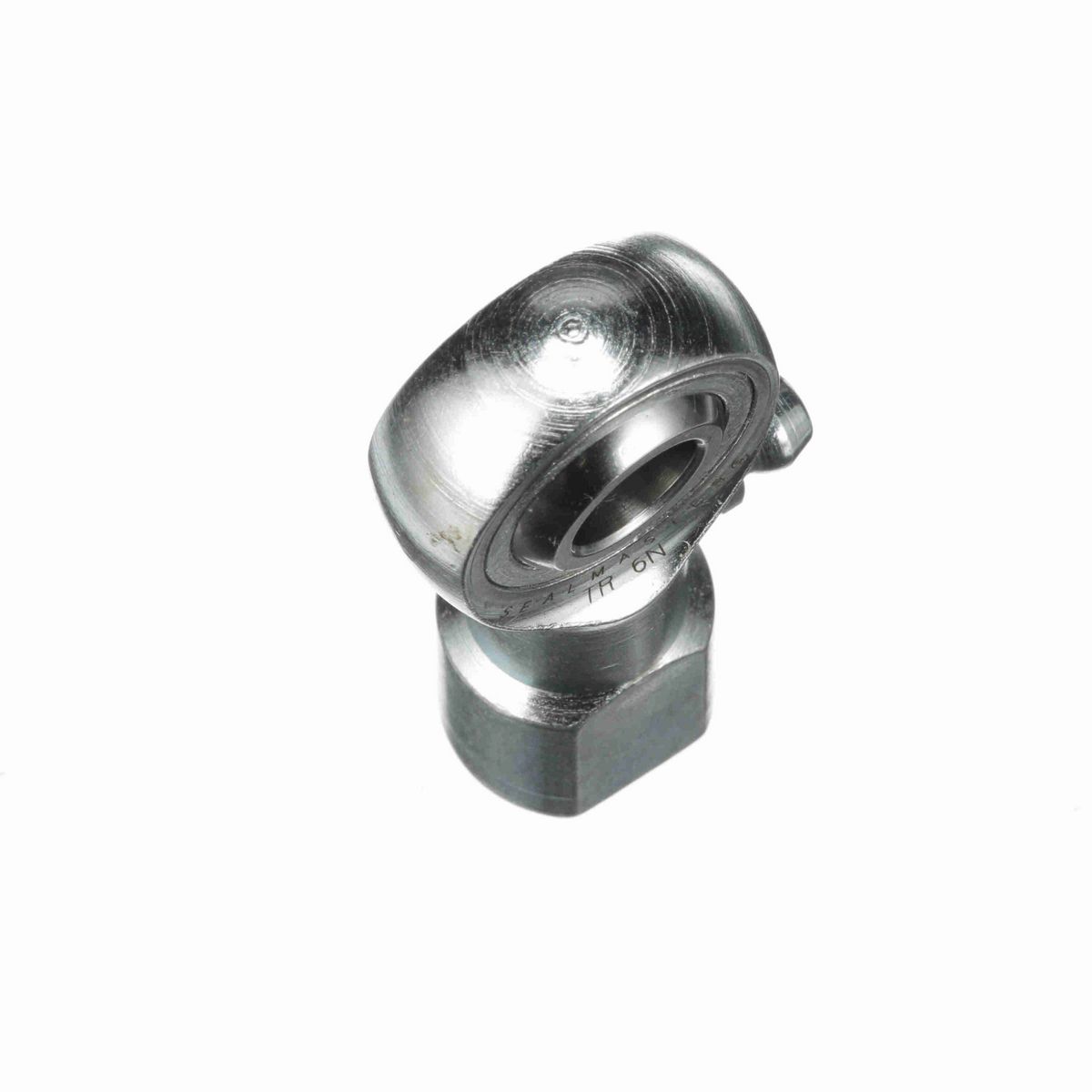

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Width (in)	0.5 in
Head Diameter (in)	1 in
Base Diameter (in)	0.688 in
Thread Length (in)	0.906 in
Ball Flat Diameter (in)	0.517 in
Ball Diameter (in)	0.718 in
Thread Size	#3/8-24
Housing Width (in)	0.406 in
Length to Center of Ball (in)	1.63 in

Technical Specifications

Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Type	TR
Configuration	Female
Zerk Fitting SW	Y
Product Selection Available SW	Y
Construction	Three-Piece Rod End with Zerk Fitting
Race Material	Carbon Steel - corrosion resistant plating
Lubrication Type	Grease
Housing Style	Female Rod End
Axial Load	445
Series	Precision
Outer Material	Carbon Steel - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	6
Thread Type	UNF
Bearing Type	Rod End
Across Wrench Flats	0.562
Thread	RH
Type	Female Rod End
Lubrication	Zerk Fitting
Max Static Radial Load	4,450
Bore Size (in)	0.3750 in
Class	Precision
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719861
Weight	0.15 LB
Packaged Length	2.35 IN
Packaged Width	2.20 IN
Packaged Height	0.65 IN
HTC	8483.30.8055
Country of Origin	Mexico
