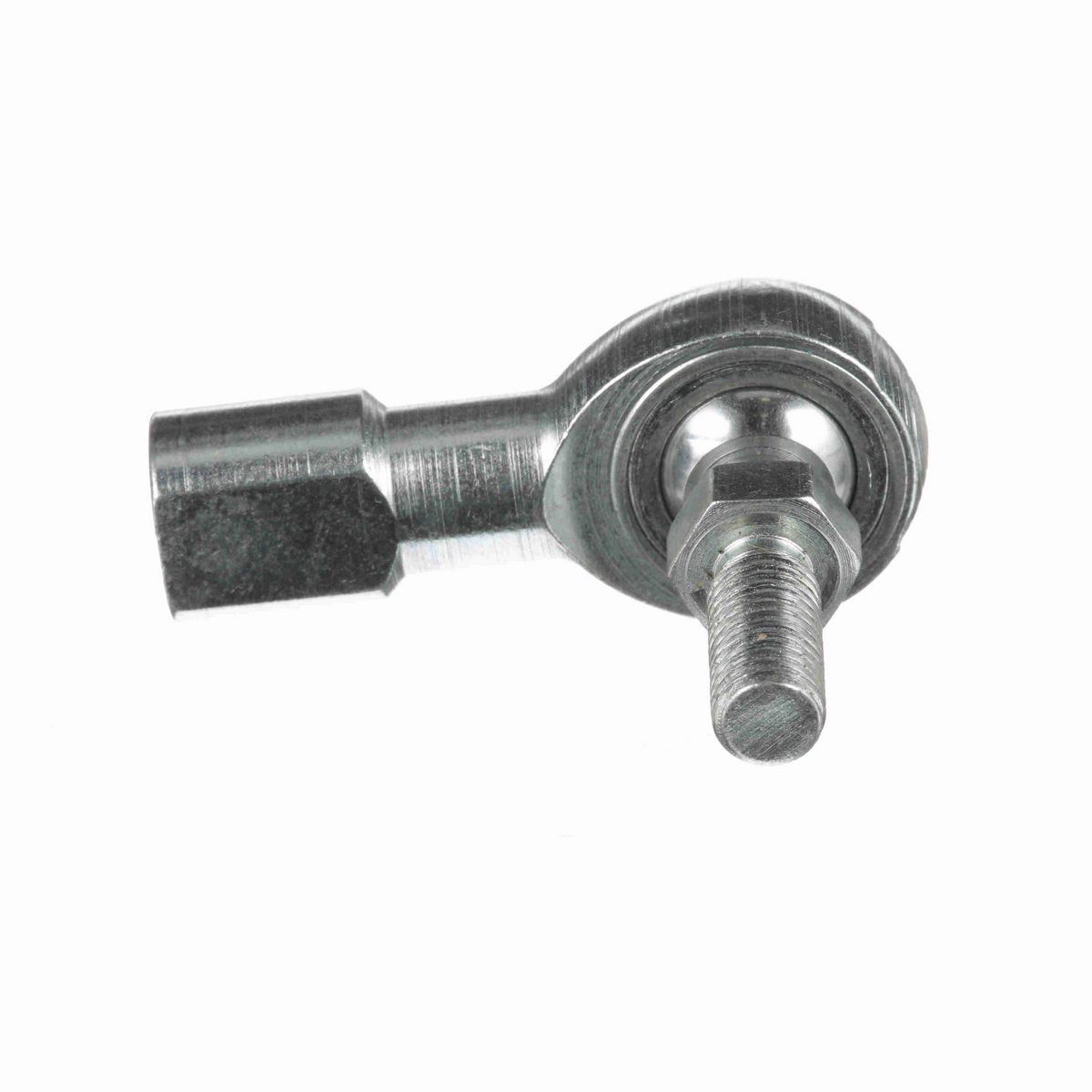

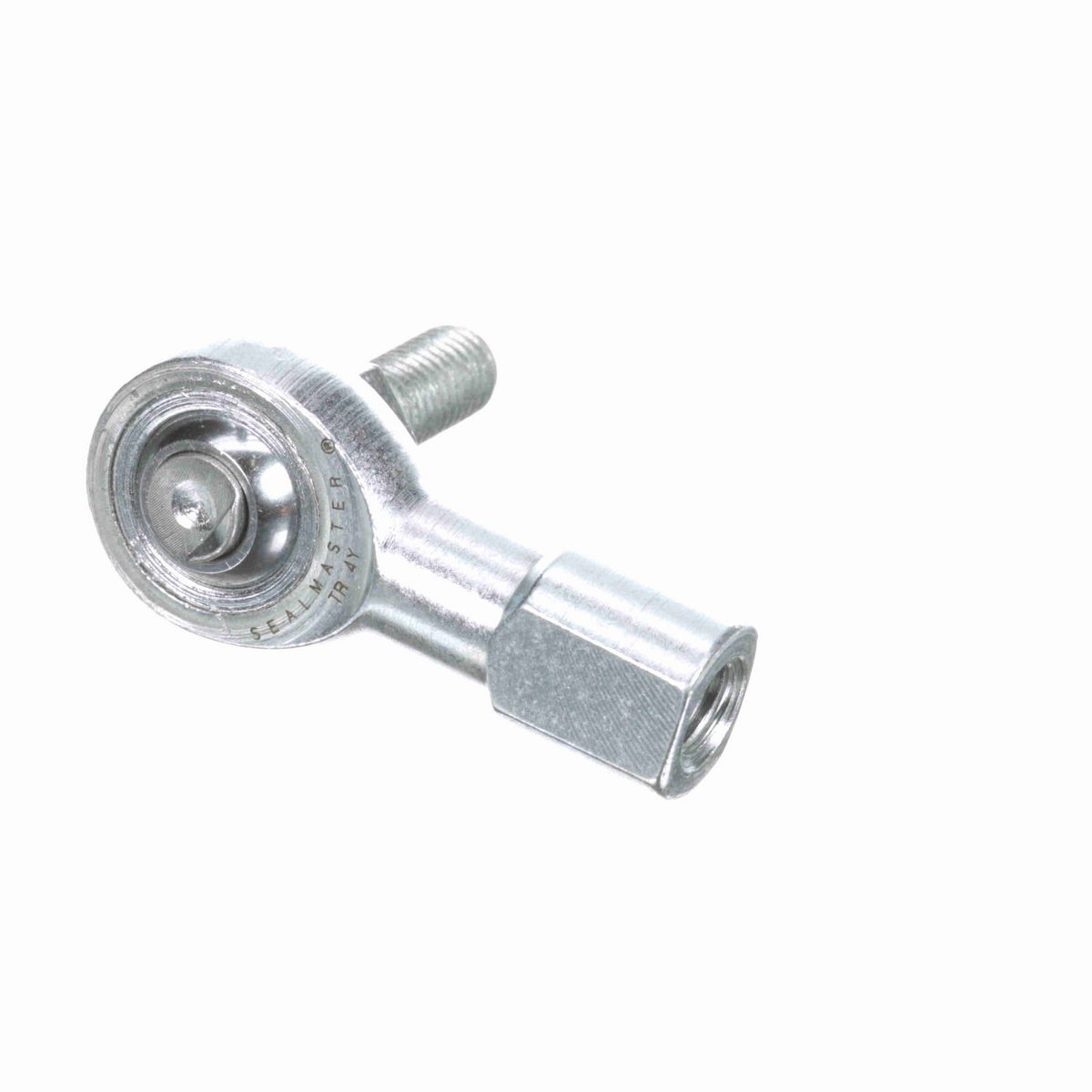

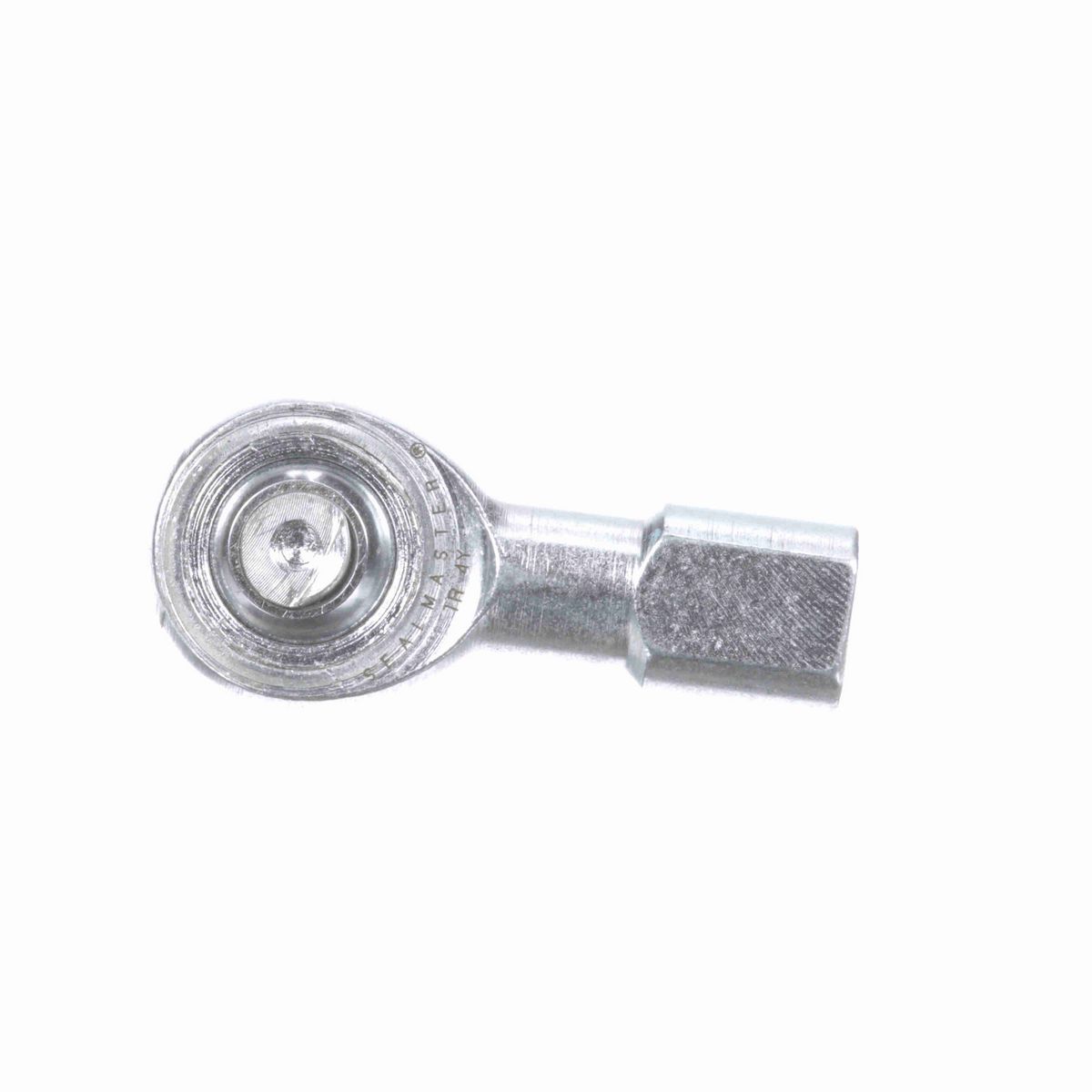

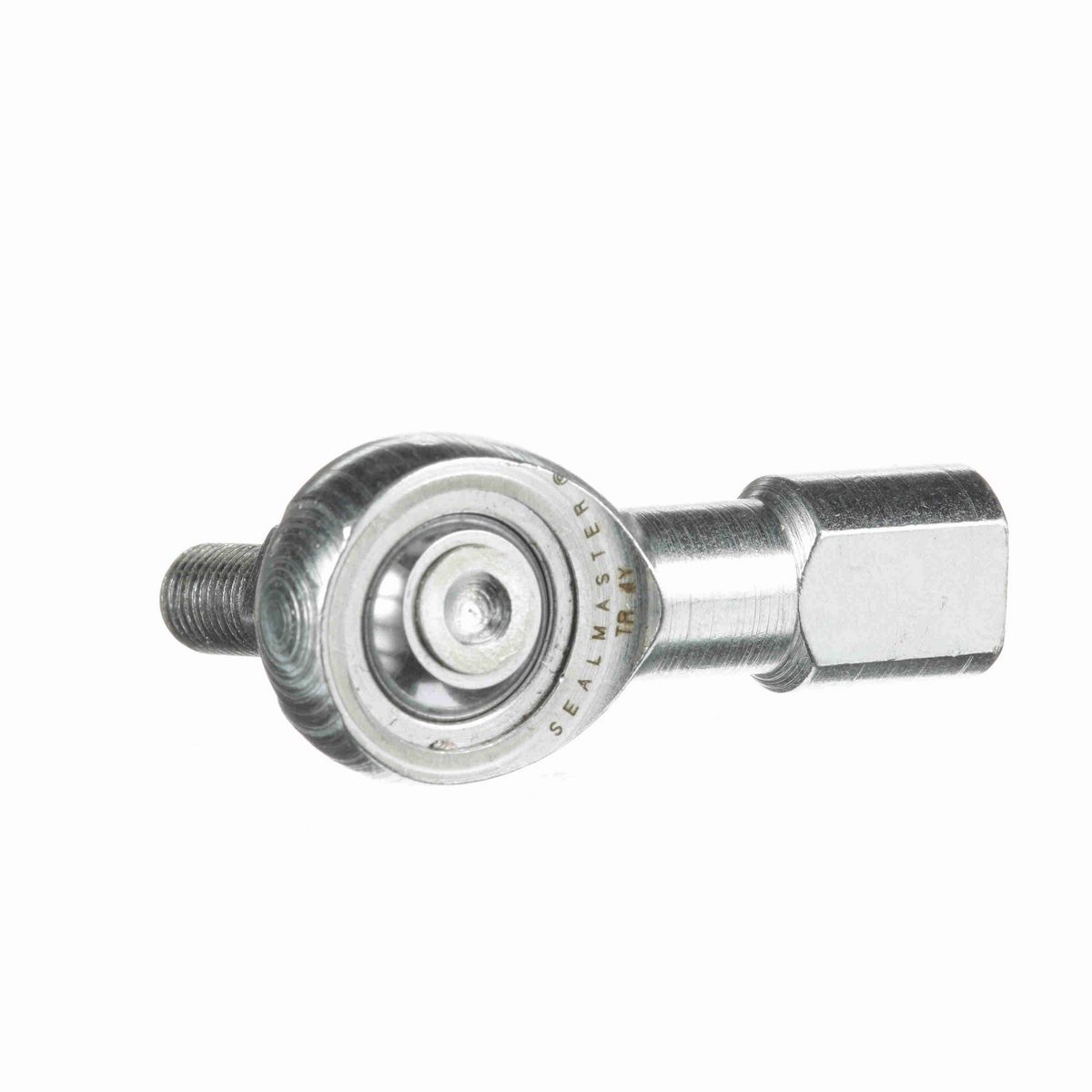

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Carbon Steel Outer Race
• Y Stud

Dimensions

Base Diameter (in)	0.469 in
Ball Width (in)	0.375 in
Ball Diameter (in)	0.5 in
Thread Size	#1/4-28
Head Diameter (in)	0.75 in
Ball Flat Diameter (in)	0.331 in
Housing Width (in)	0.281 in
Thread Length (in)	0.719 in
Stud Length to Hex (in)	0.56 in
Stud Length to Center of Ball (in)	1.05 in
Length to Center of Ball (in)	1.31 in
Stud Thread Length (in)	0.5 in

Technical Specifications

Lubrication Type	Grease
Across Wrench Flats	0.375
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Thread Type	UNF
Configuration	Female
Race Material	Carbon Steel - corrosion resistant plating
Product Type	TR
Construction	Three-Piece Rod End with Y Stud and Zerk Fitting
Housing Style	Female Rod End
Bearing Type	Rod End
Series	Precision
Axial Load	270
Zerk Fitting SW	N
Product Selection Available SW	N
Y Stud Material	Carbon Steel - corrosion resistant plating
Outer Material	Carbon Steel - Corrosion Resistant Plating
Max Static Radial Load	2,700
Misalignment Angle B3	23.7
Thread	RH
Type	Female Rod End
Lubrication	No Zerk Fitting
Bore Size (in)	0.2500 in
Class	Precision
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288720393
Weight	0.49 LB
Packaged Length	2.15 IN
Packaged Width	1.80 IN
Packaged Height	0.80 IN
HTC	8483.30.8055
Country of Origin	Mexico
