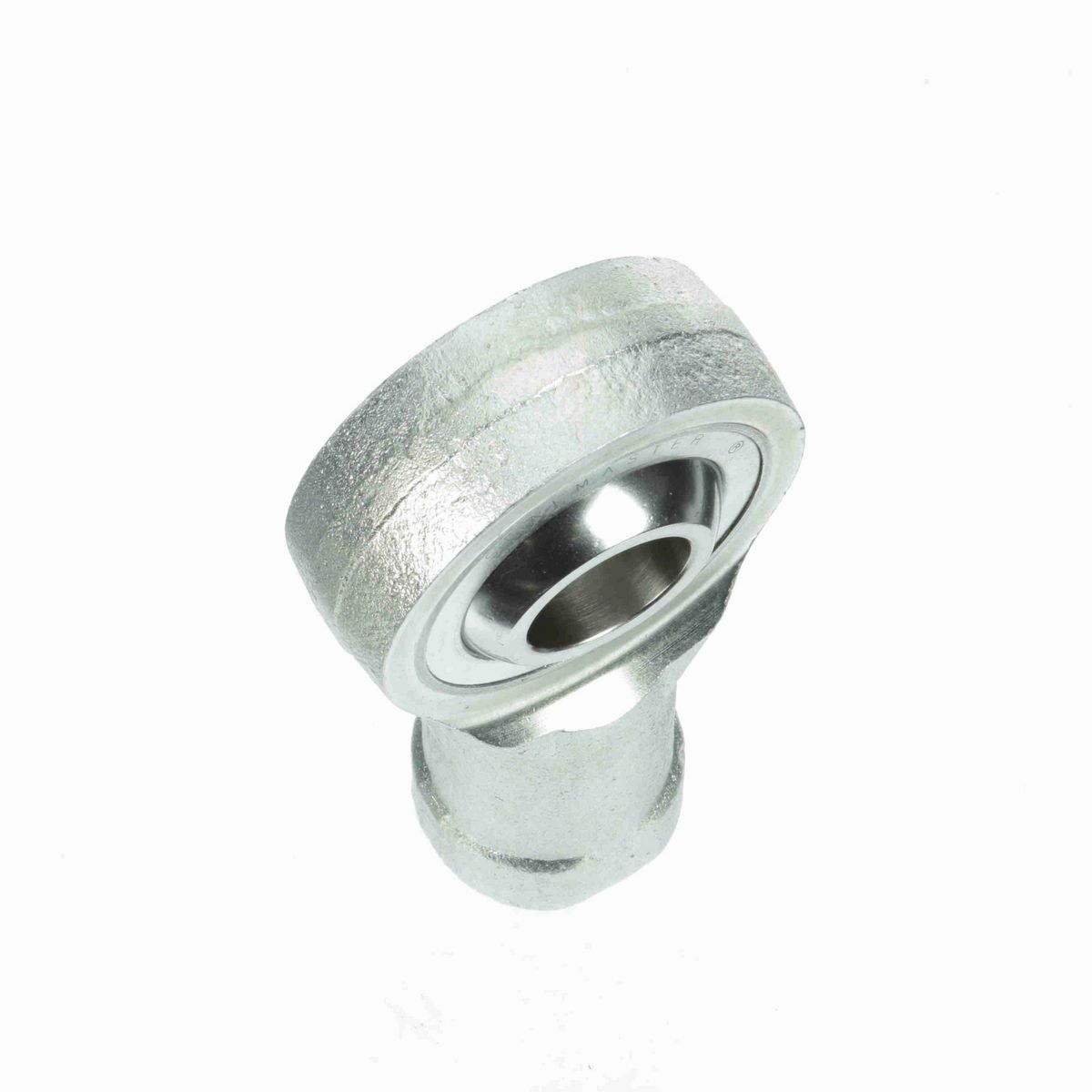

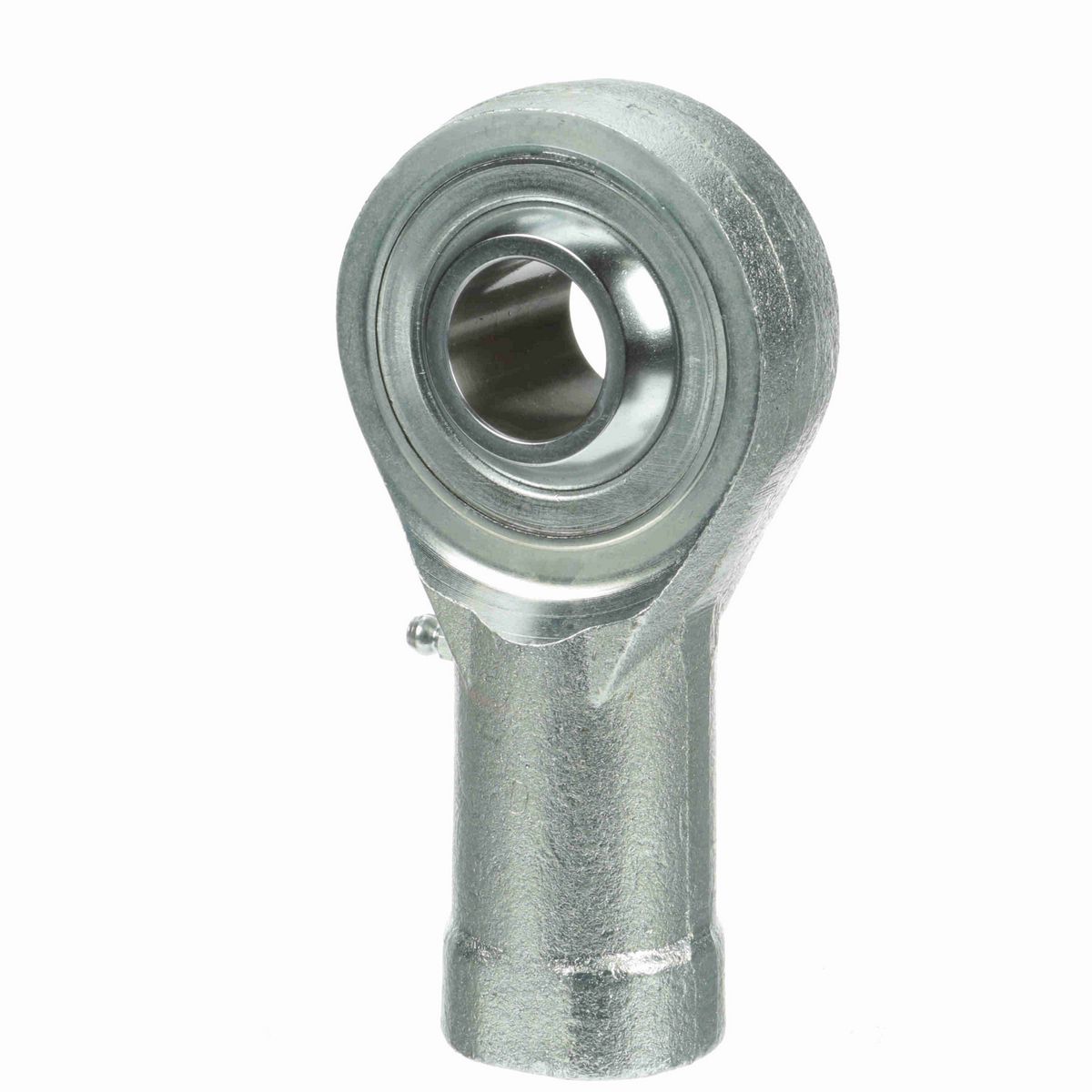

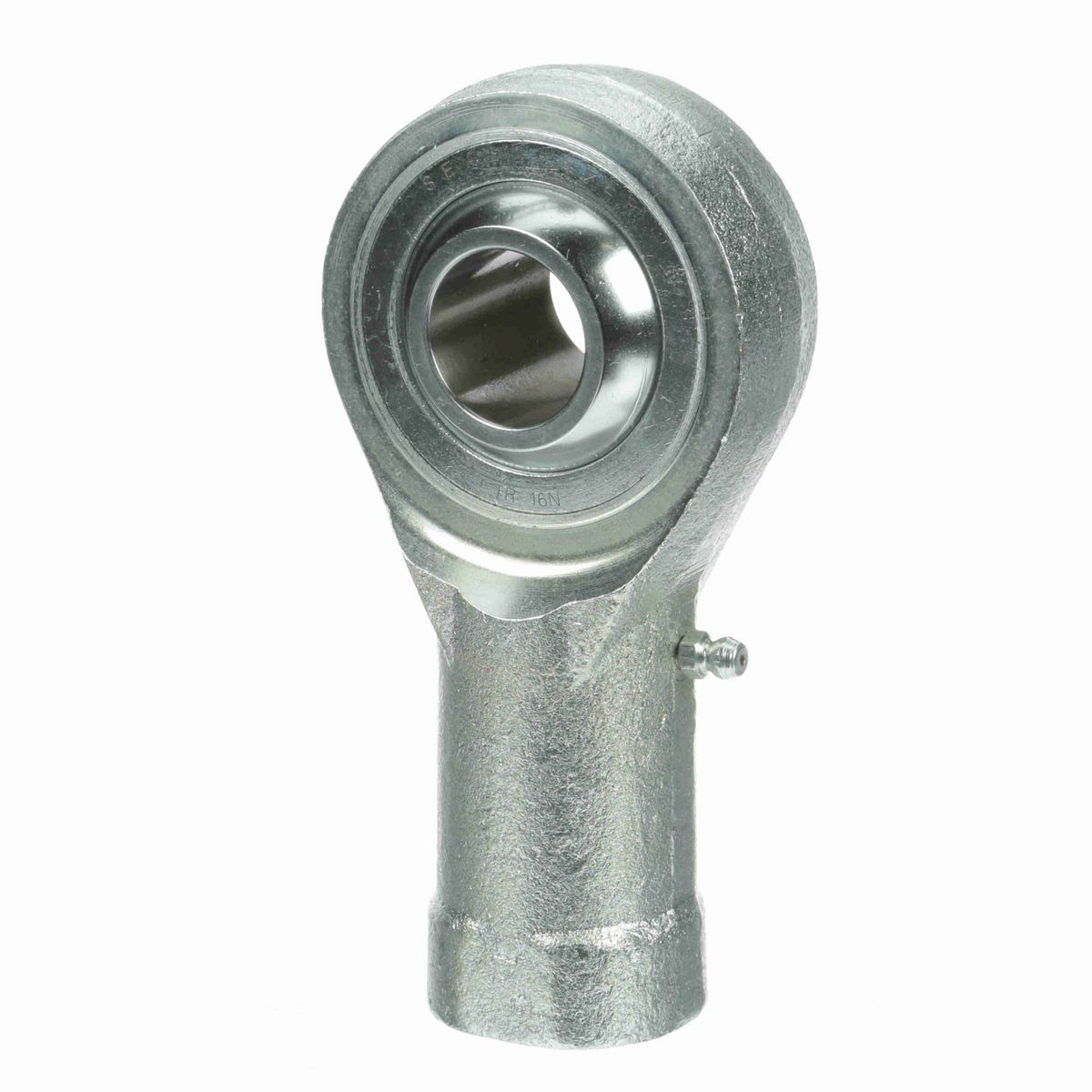

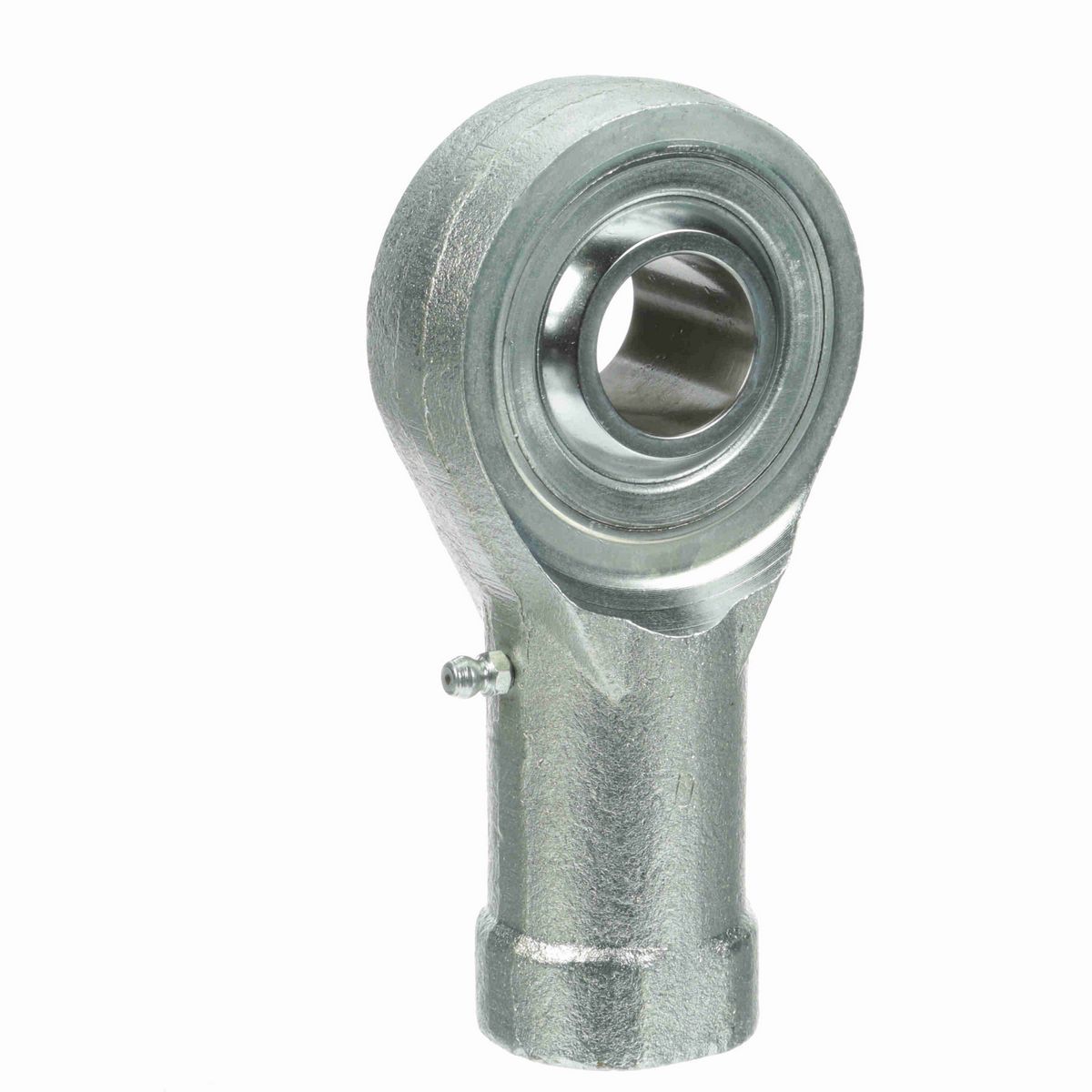

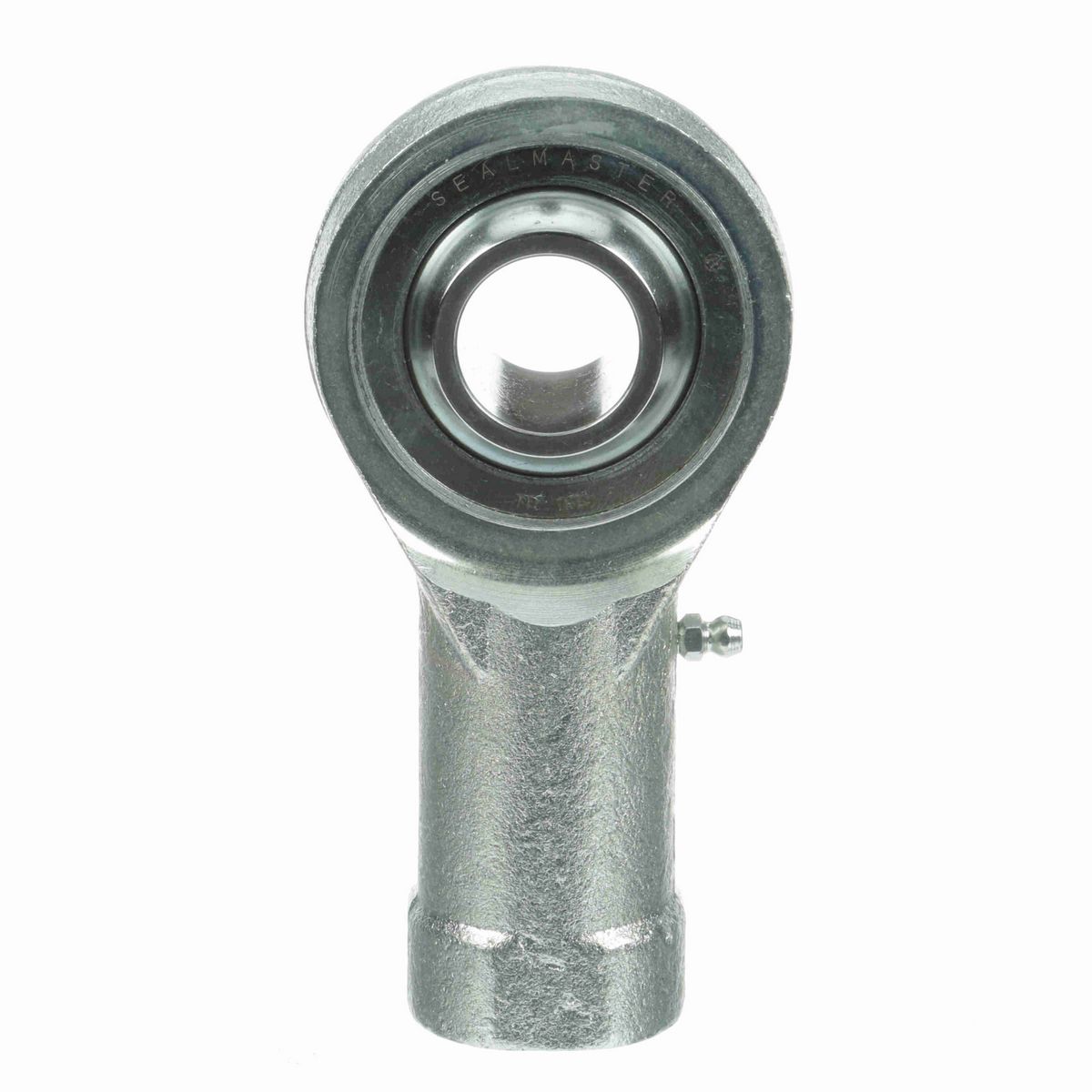

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Width (in)	1.375 in
Thread Size	#1 1/4-12
Base Diameter (in)	1.688 in
Housing Width (in)	1 in
Thread Length (in)	2.094 in
Ball Flat Diameter (in)	1.269 in
Head Diameter (in)	2.75 in
Ball Diameter (in)	1.875 in
Length to Center of Ball (in)	4.13 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Lubrication Type	Grease
Configuration	Female
Product Selection Available SW	Y
Across Wrench Flats	1.5
Zerk Fitting SW	Y
Misalignment Angle - a Deg. +/-	8.5
Housing Style	Female Rod End
Construction	Three-Piece Rod End with Zerk Fitting
Bearing Type	Rod End
Axial Load	2,100
Race Material	Carbon Steel - corrosion resistant plating
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Type	TR
Series	Precision
Thread Type	UNF
Thread	RH
Lubrication	Zerk Fitting
Max Static Radial Load	21,000
Type	Female Rod End
Class	Precision
Bore Size (in)	1 in
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288719915
Weight	2.18 LB
Packaged Length	3.25 IN
Packaged Width	1.63 IN
Packaged Height	5.69 IN
HTC	8483.30.8055
Country of Origin	Mexico
