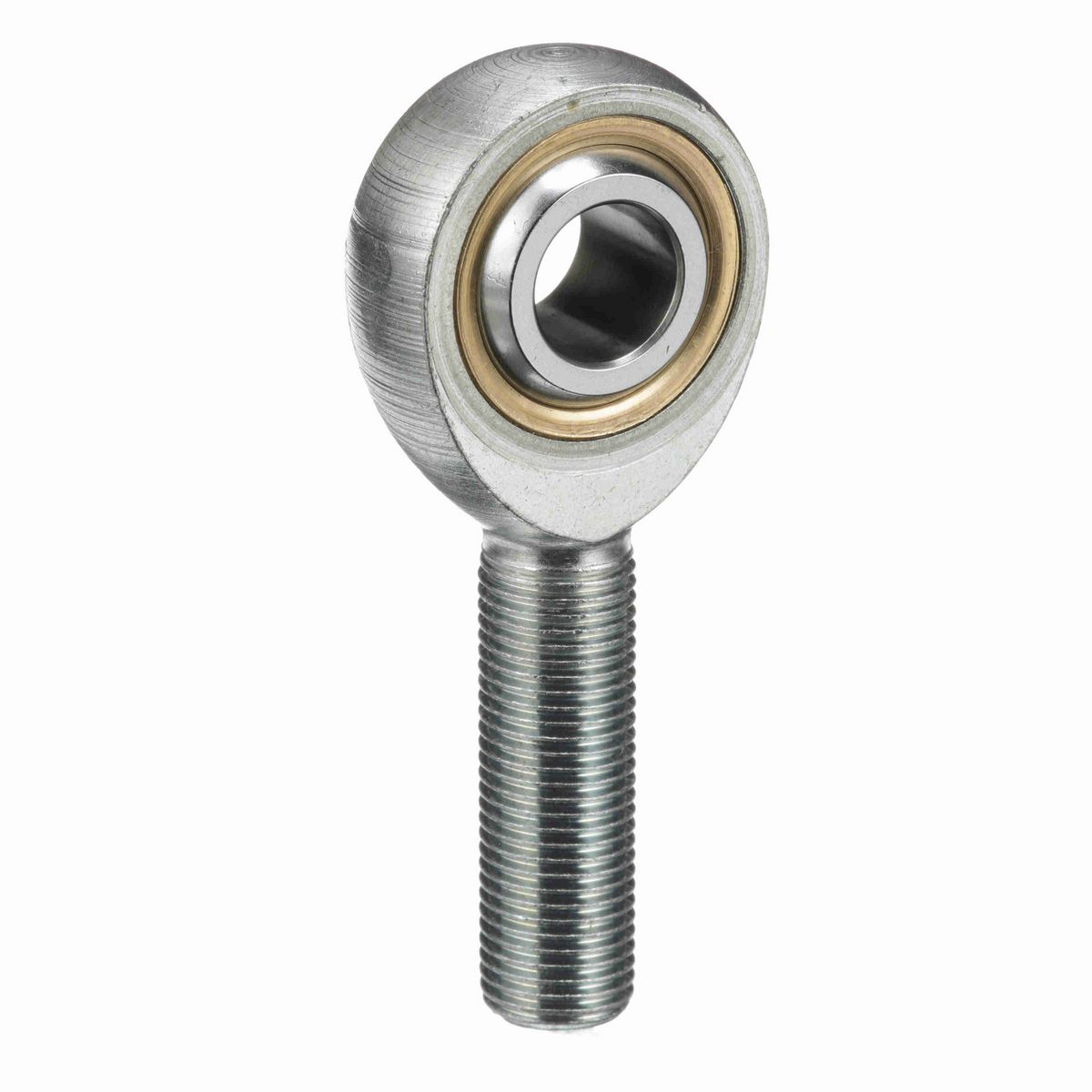

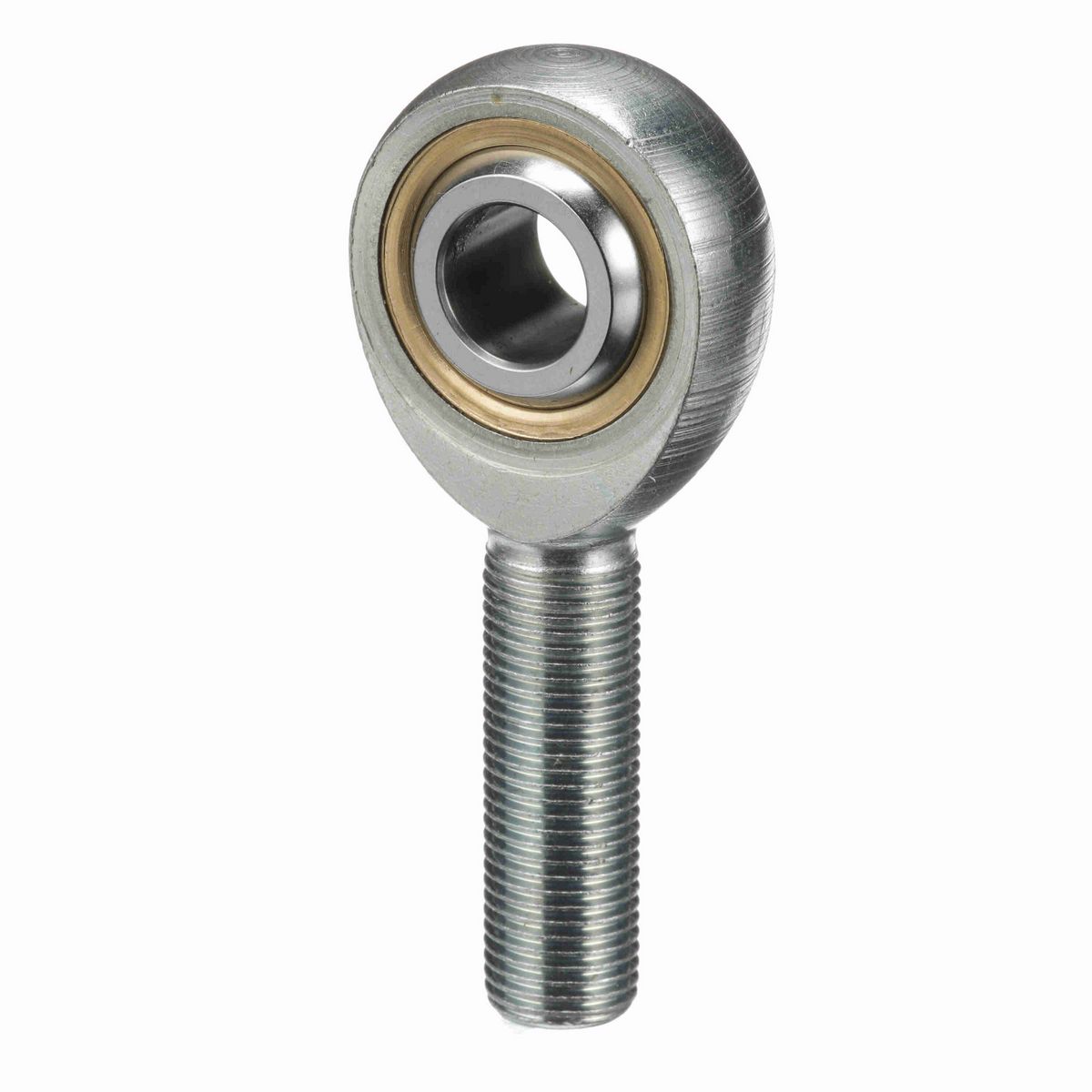

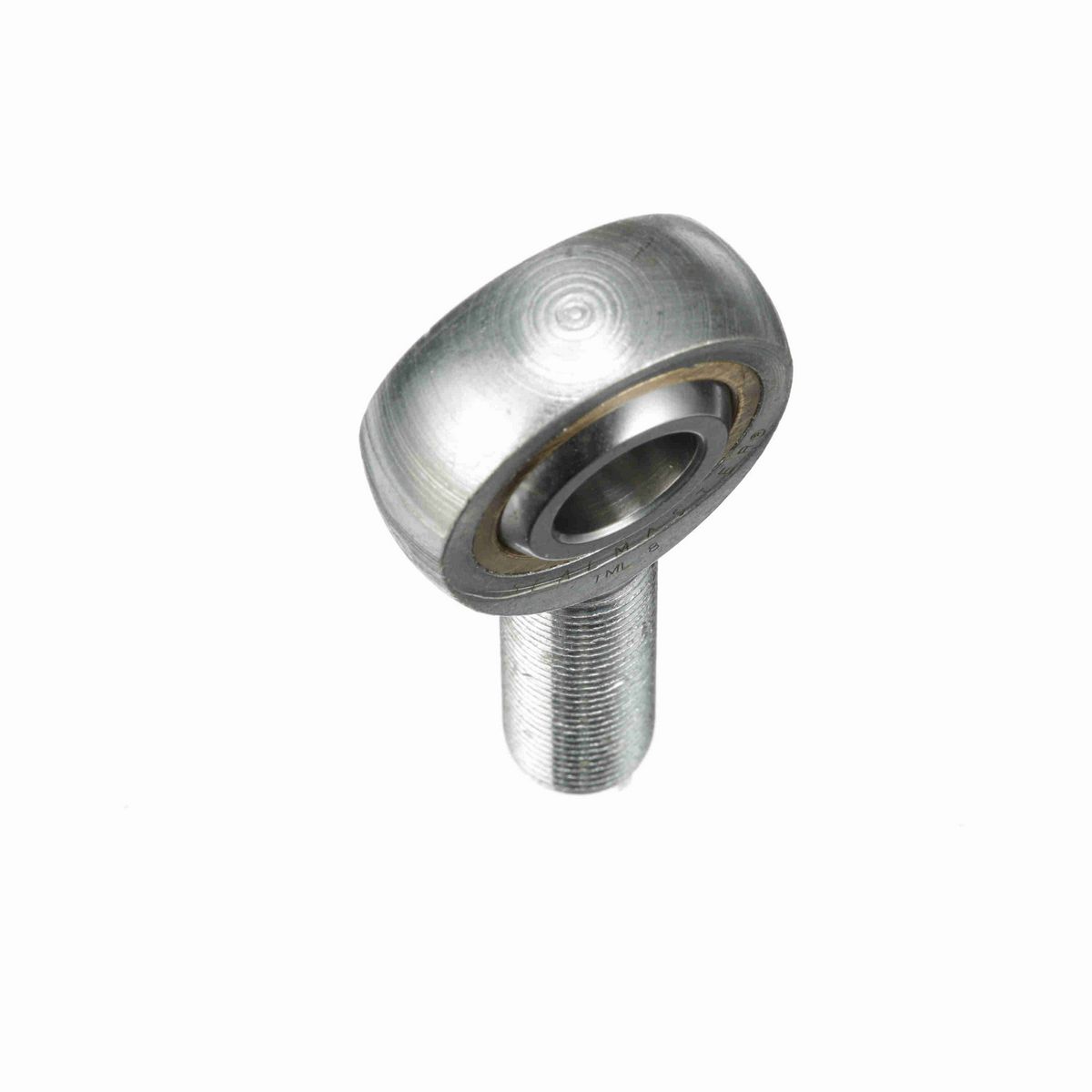

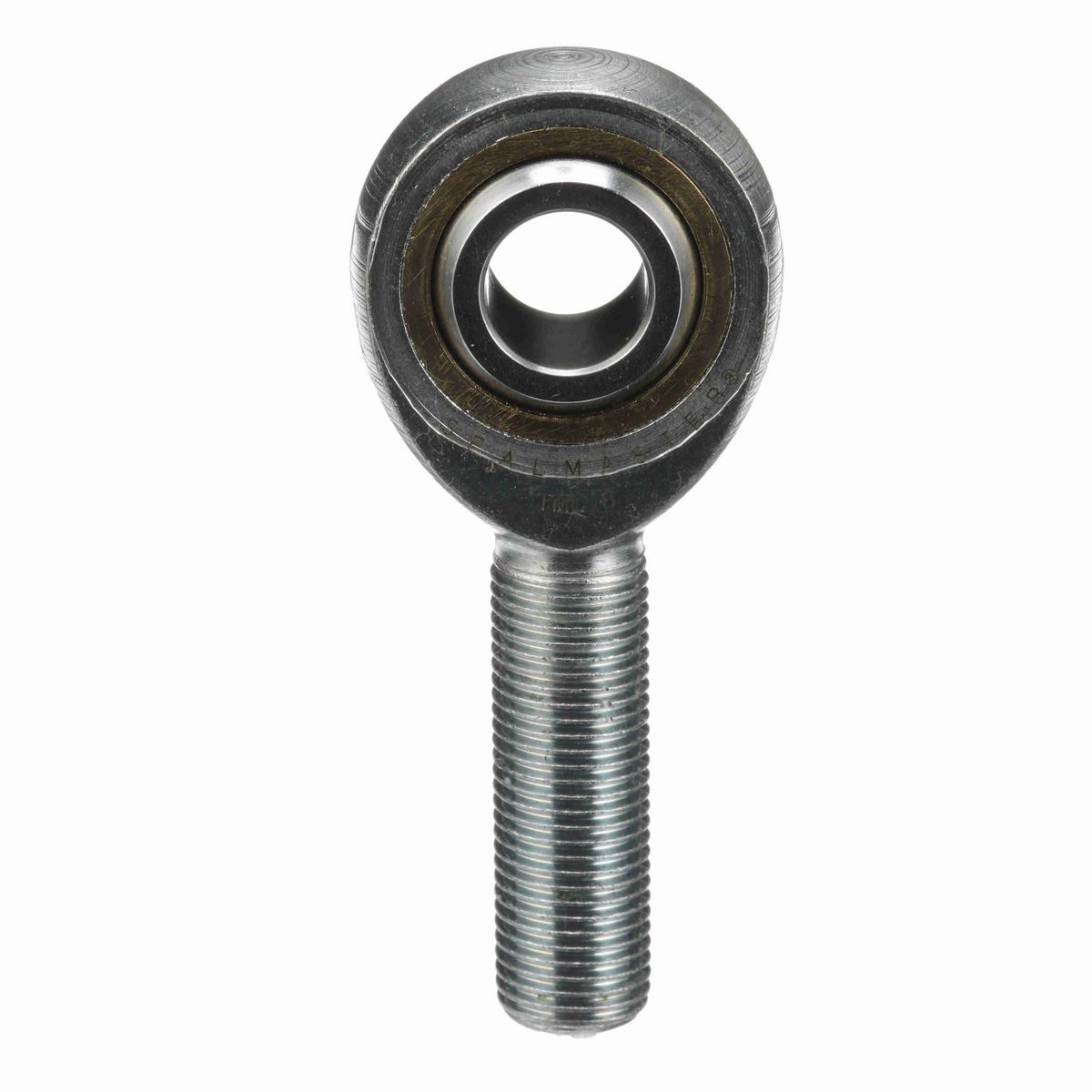

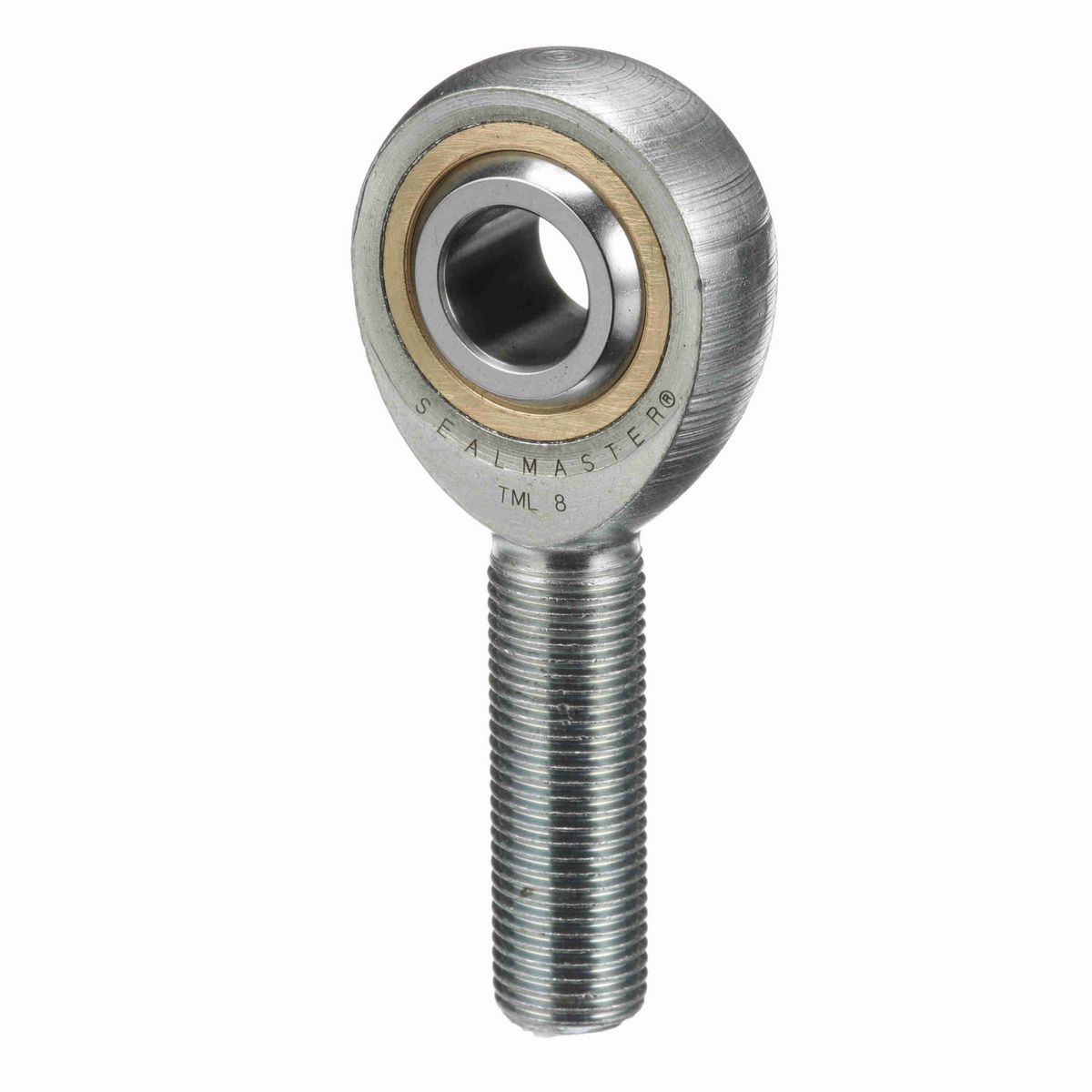

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads

Dimensions

Head Diameter (in)	1.312 in
Housing Width (in)	0.5 in
Thread Length (in)	1.469 in
Thread Size	#1/2-20
Ball Diameter (in)	0.937 in
Ball Width (in)	0.625 in
Ball Flat Diameter (in)	0.698 in
Length to Center of Ball (in)	2.44 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	6
Series	Commercial
Construction	Three-Piece Rod End
Zerk Fitting SW	N
Bearing Type	Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Thread Type	UNF
Race Material	Bronze
Configuration	Male
Product Selection Available SW	Y
Product Type	TM
Housing Style	Male Rod End
Lubrication Type	Grease
Axial Load	700
Lubrication	No Zerk Fitting
Max Static Radial Load	7,000
Thread	LH
Type	Male Rod End
Class	Commercial
Bore Size (in)	0.5000 in
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288723745
Weight	0.27 LB
Packaged Length	3.15 IN
Packaged Width	1.95 IN
Packaged Height	0.70 IN
HTC	8483.30.8055
Country of Origin	Mexico
