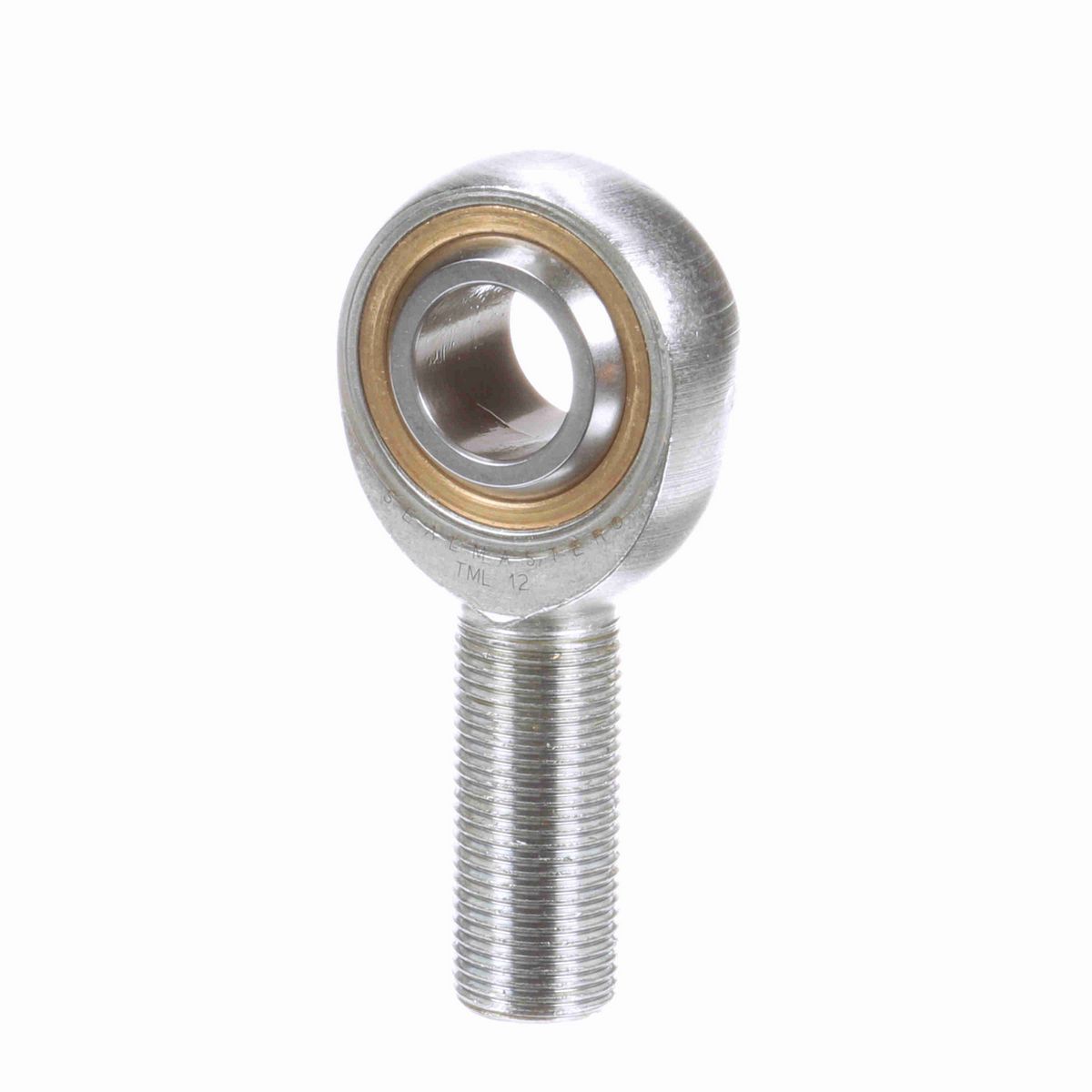

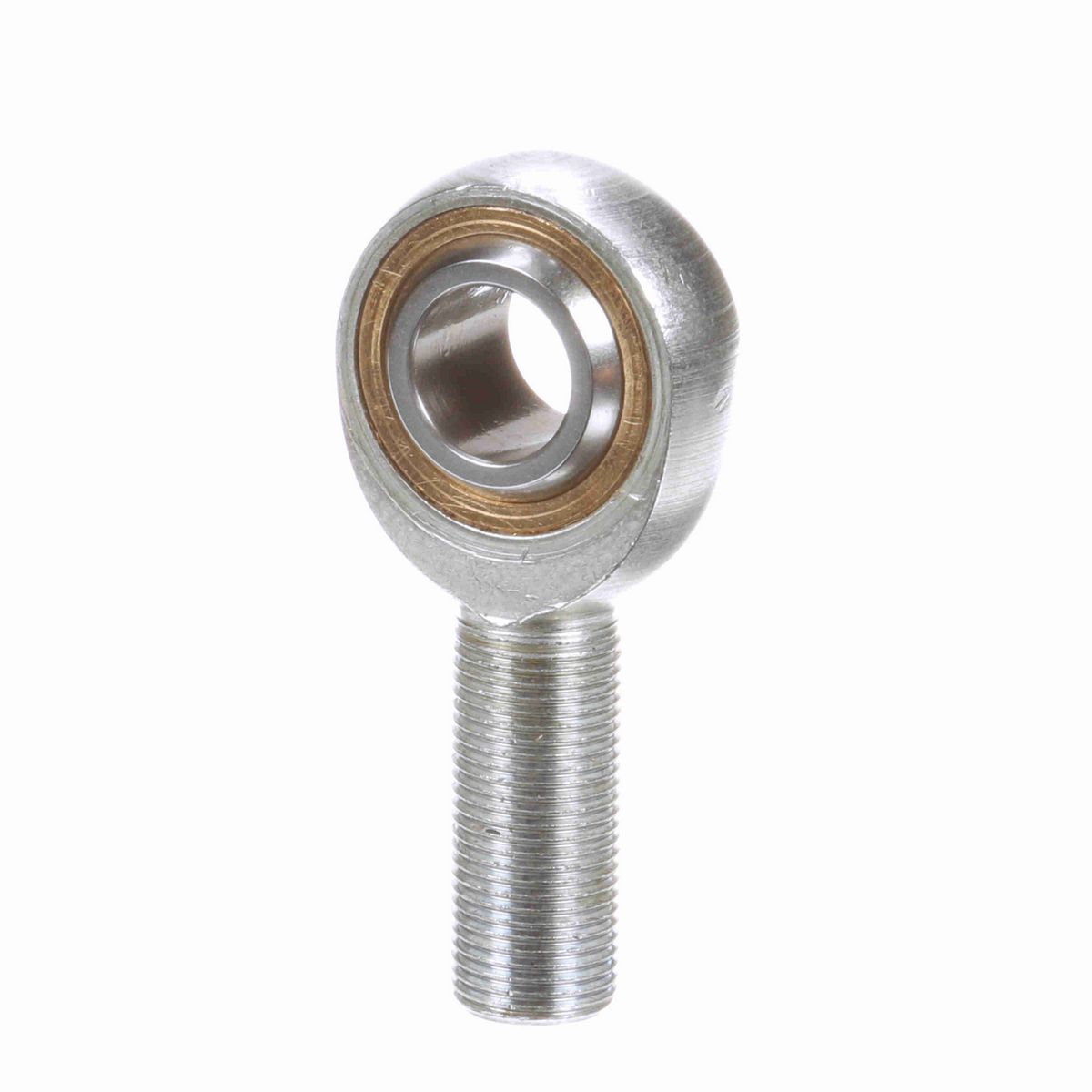

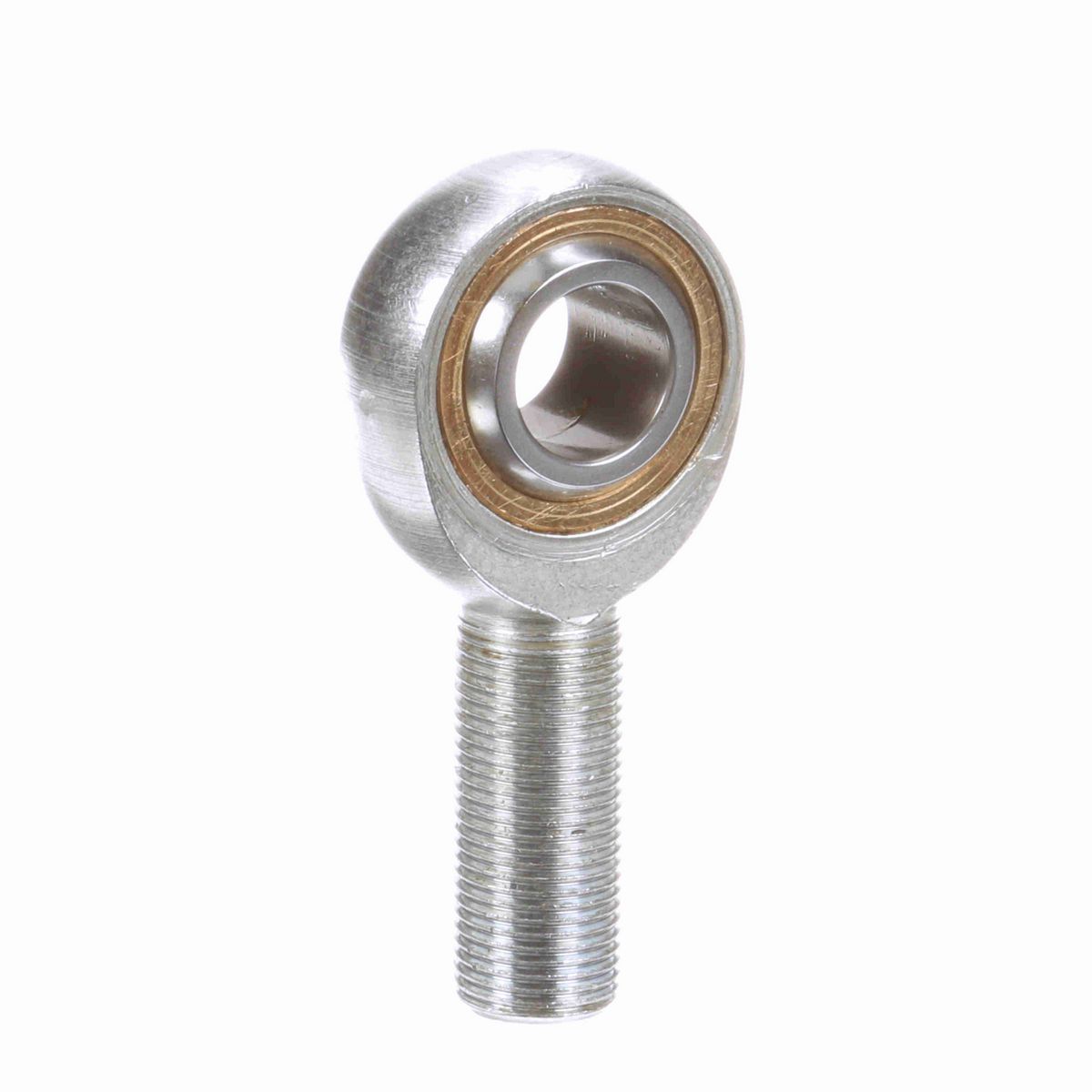

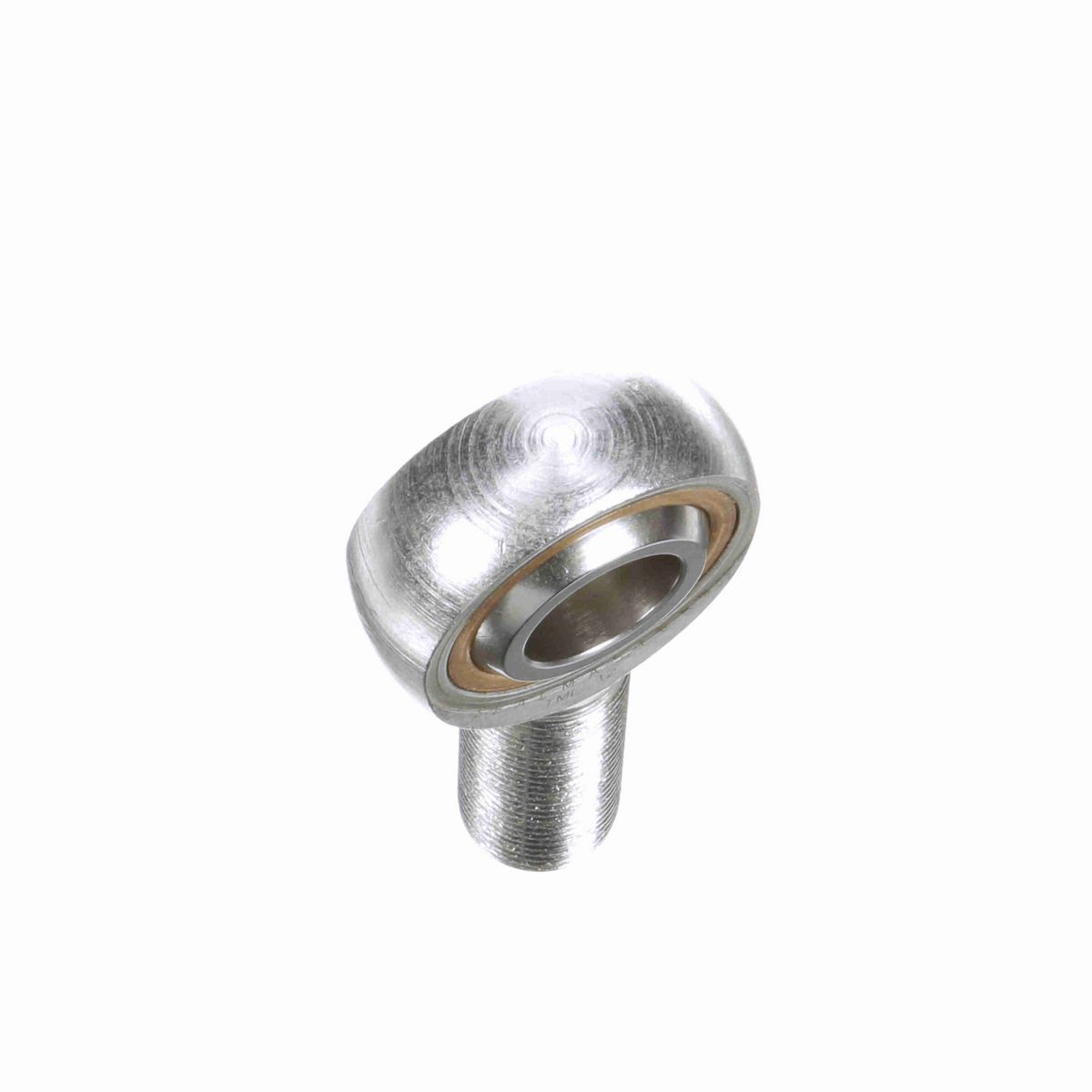

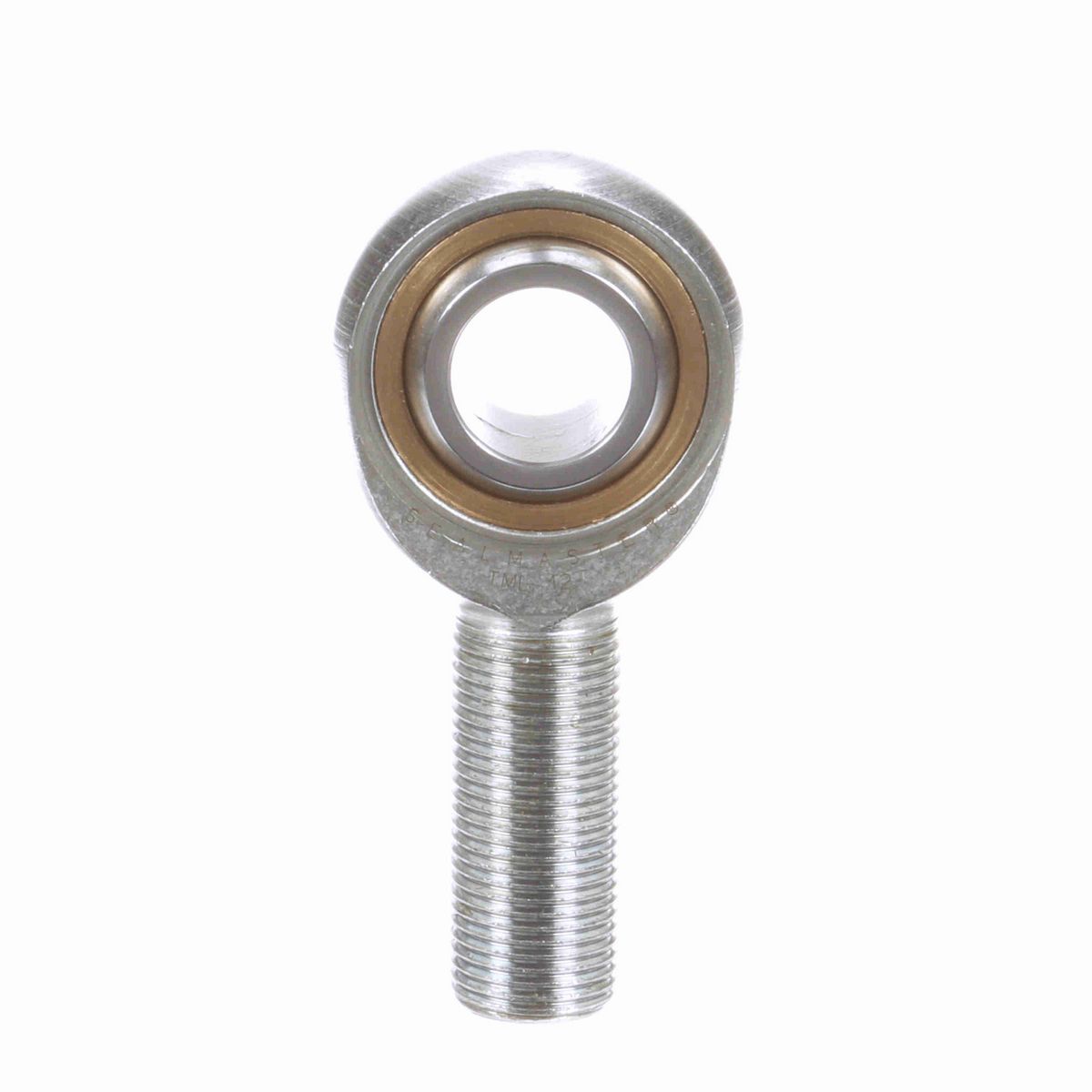

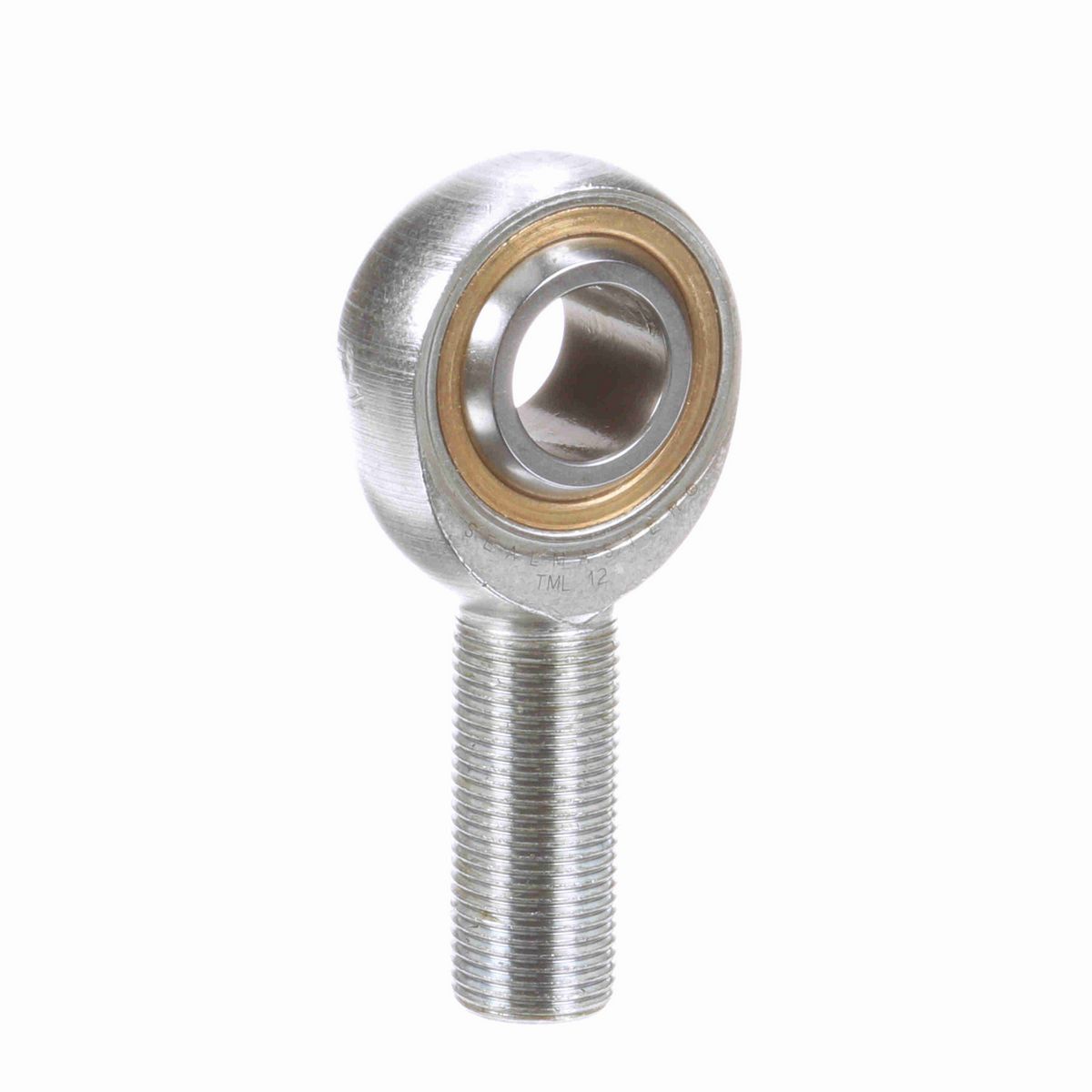

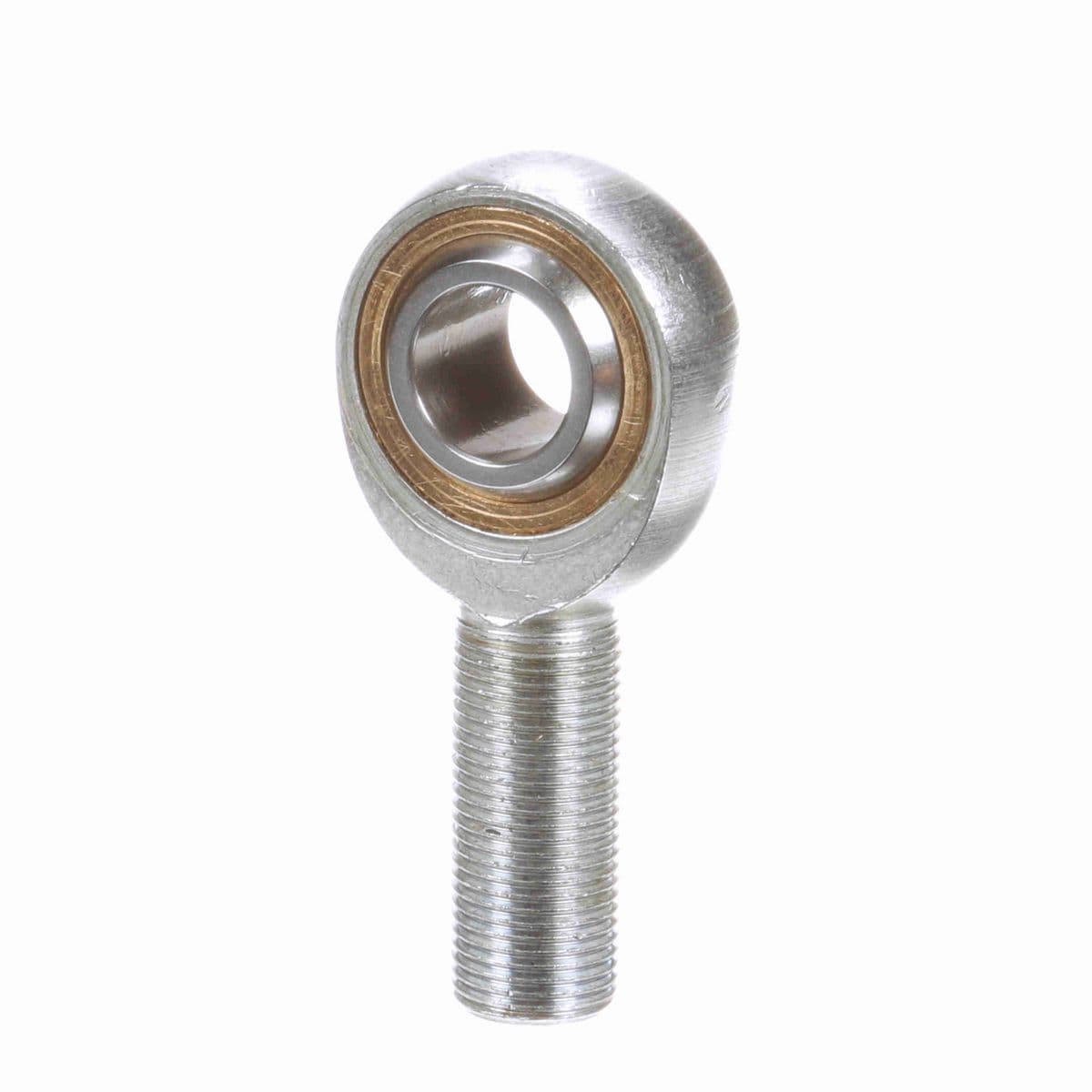

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads

Dimensions

Head Diameter (in)	1.75 in
Housing Width (in)	0.687 in
Ball Width (in)	0.875 in
Thread Length (in)	1.719 in
Ball Flat Diameter (in)	0.978 in
Thread Size	#3/4-16
Ball Diameter (in)	1.312 in
Length to Center of Ball (in)	2.88 in

Technical Specifications

Misalignment Angle - a Deg. +/-	7
Axial Load	1,130
Race Material	Bronze
Thread Type	UNF
Configuration	Male
Outer Material	Carbon Steel - Corrosion Resistant Plating
Zerk Fitting SW	N
Bearing Type	Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication Type	Grease
Product Selection Available SW	Y
Housing Style	Male Rod End
Construction	Three-Piece Rod End
Product Type	TM
Series	Commercial
Type	Male Rod End
Max Static Radial Load	11,300
Thread	LH
Lubrication	No Zerk Fitting
Class	Commercial
Bore Size (in)	0.7500 in
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288723769
Weight	0.65 LB
Packaged Length	3.70 IN
Packaged Width	2.60 IN
Packaged Height	1.40 IN
HTC	8483.30.8055
Country of Origin	Mexico
