• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads

Dimensions

Housing Width (in)	0.687 in
Ball Diameter (in)	1.312 in
Ball Width (in)	0.875 in
Thread Length (in)	1.719 in
Ball Flat Diameter (in)	0.978 in
Head Diameter (in)	1.75 in
Thread Size	#3/4-16
Length to Center of Ball (in)	2.88 in

Technical Specifications

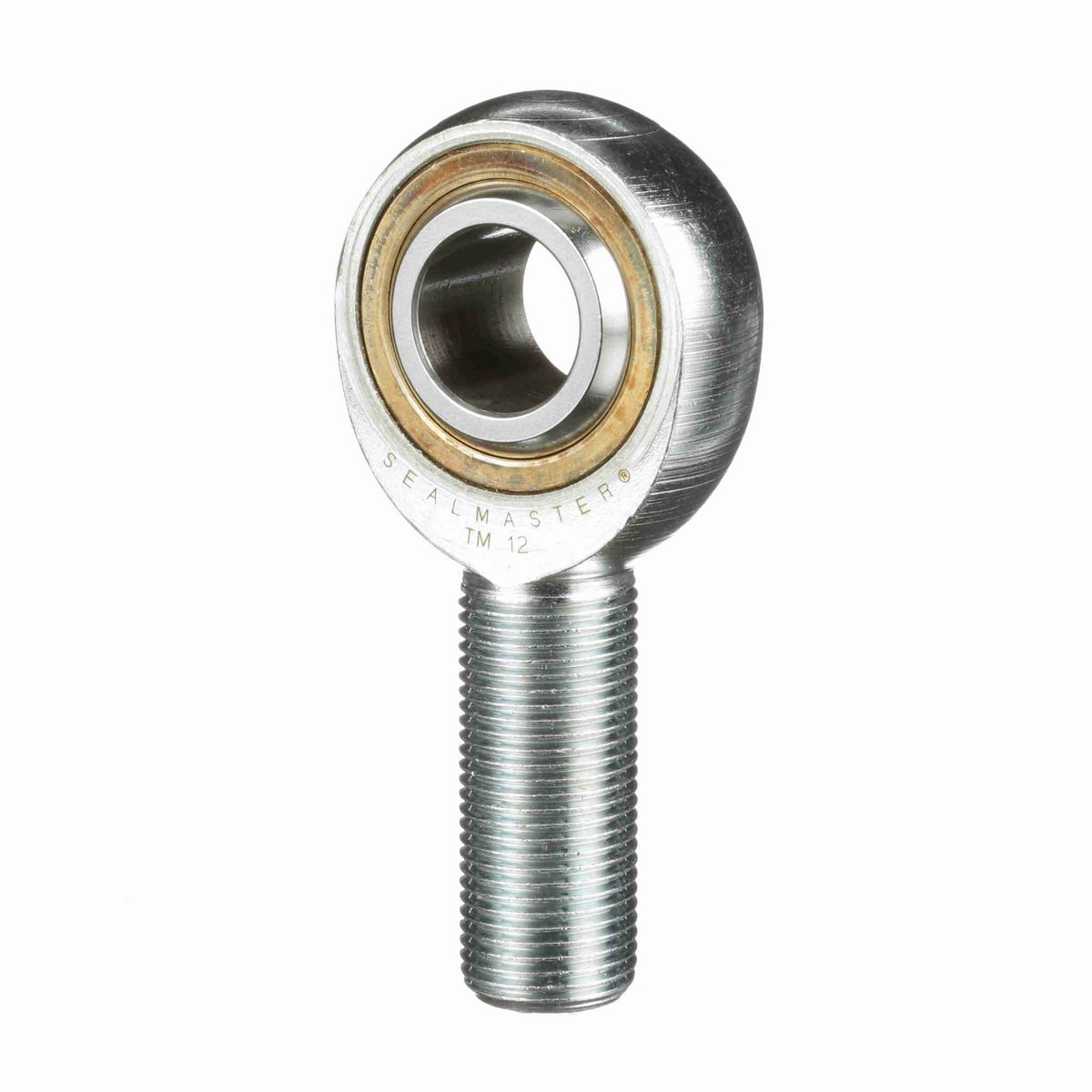

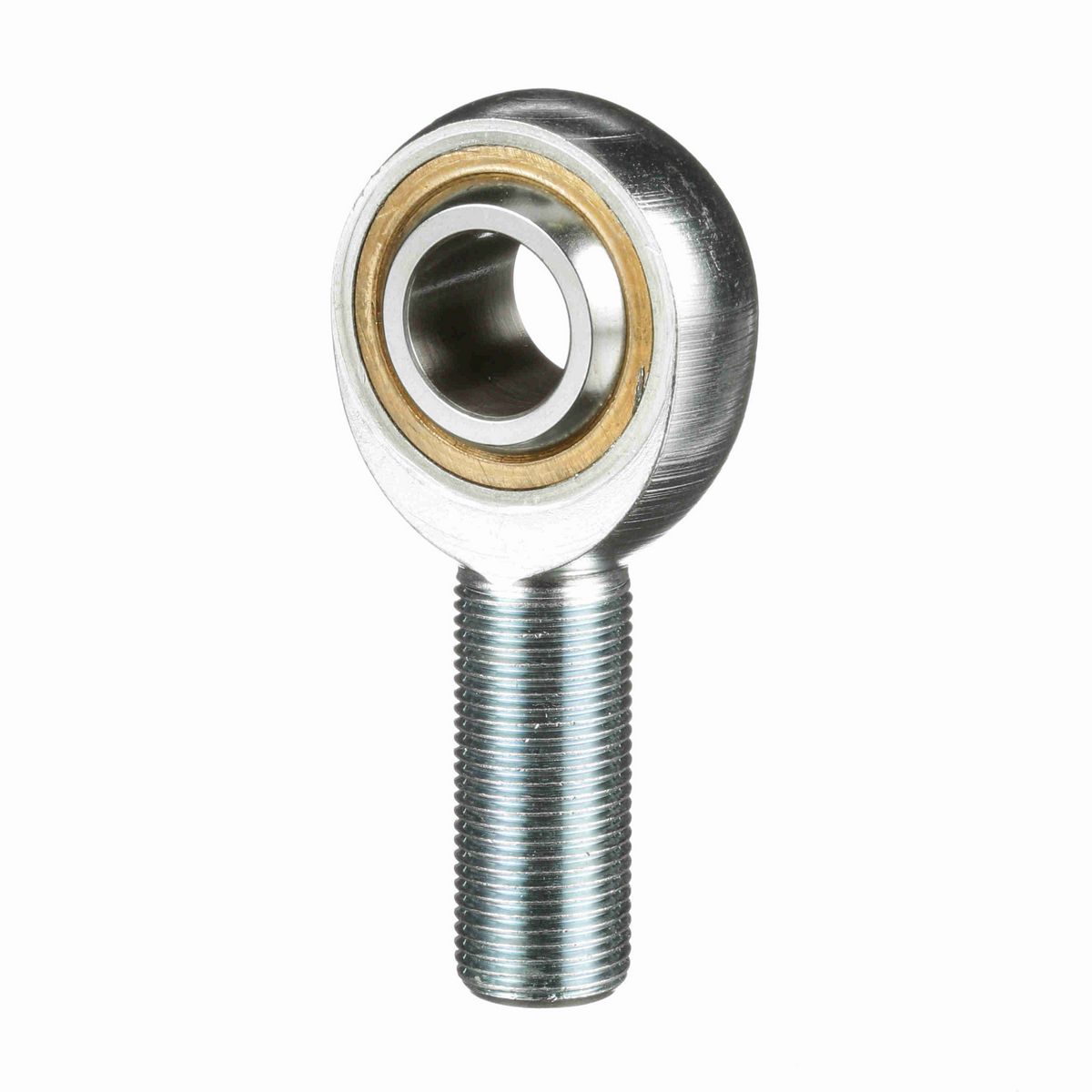

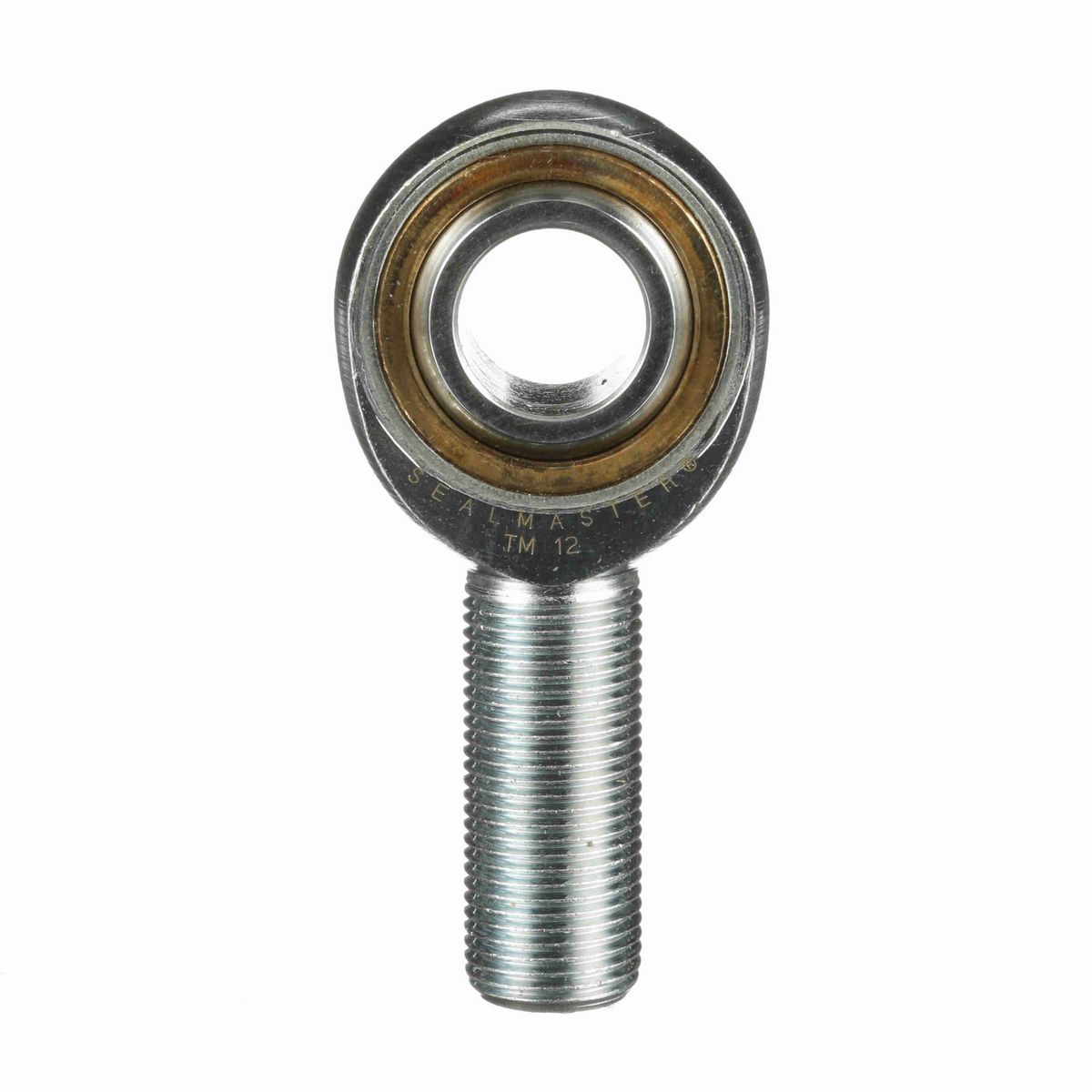

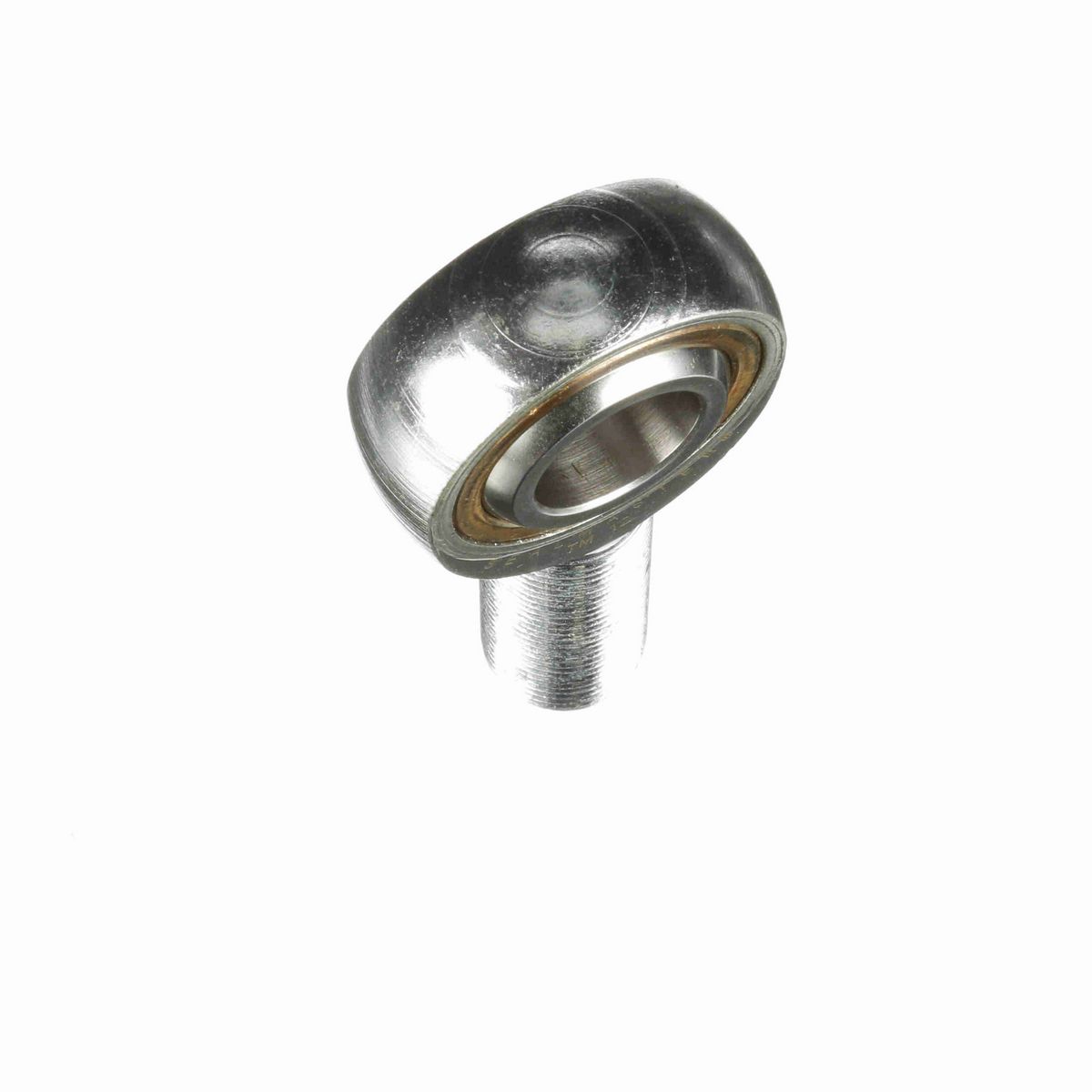

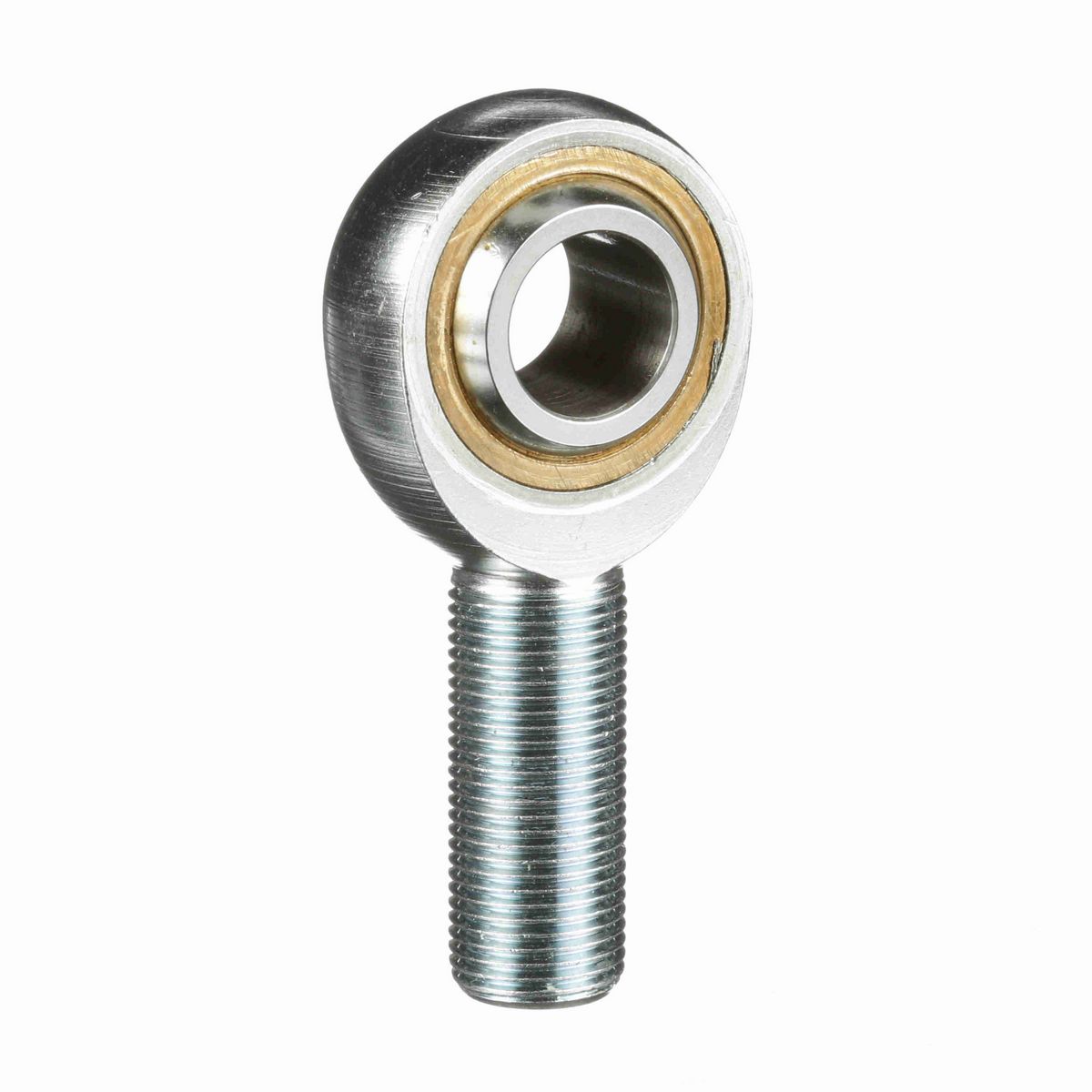

Housing Style	Male Rod End
Lubrication Type	Grease
Series	Commercial
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Construction	Three-Piece Rod End
Bearing Type	Rod End
Configuration	Male
Product Selection Available SW	Y
Product Type	TM
Misalignment Angle - a Deg. +/-	7
Axial Load	1,130
Thread Type	UNF
Race Material	Bronze
Zerk Fitting SW	N
Outer Material	Carbon Steel - Corrosion Resistant Plating
Thread	RH
Type	Male Rod End
Lubrication	No Zerk Fitting
Max Static Radial Load	11,300
Class	Commercial
Bore Size (in)	0.7500 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288723608
Weight	0.64 LB
Packaged Length	2.90 IN
Packaged Width	4.80 IN
Packaged Height	1.10 IN
HTC	8483.30.8055
Country of Origin	Mexico
