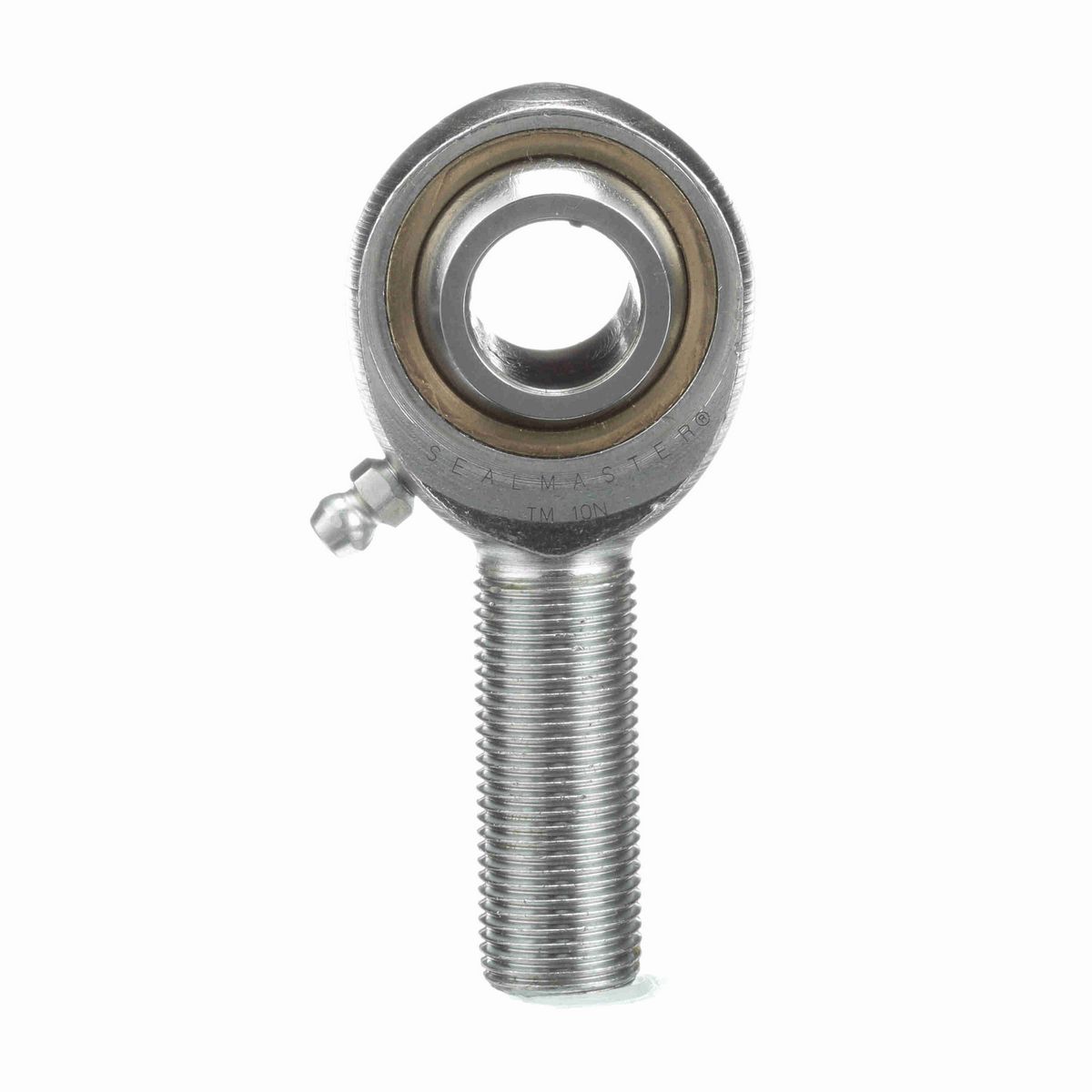

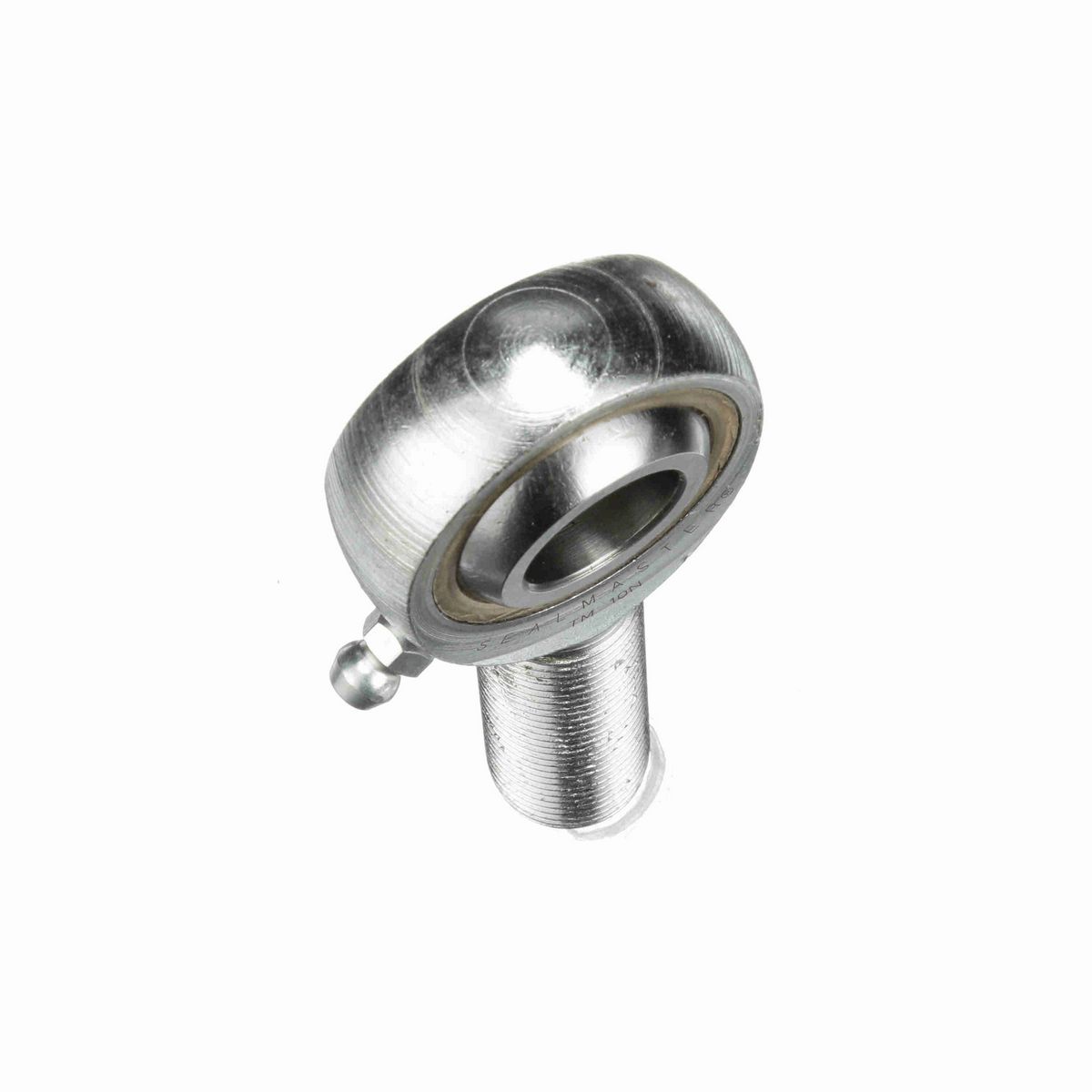

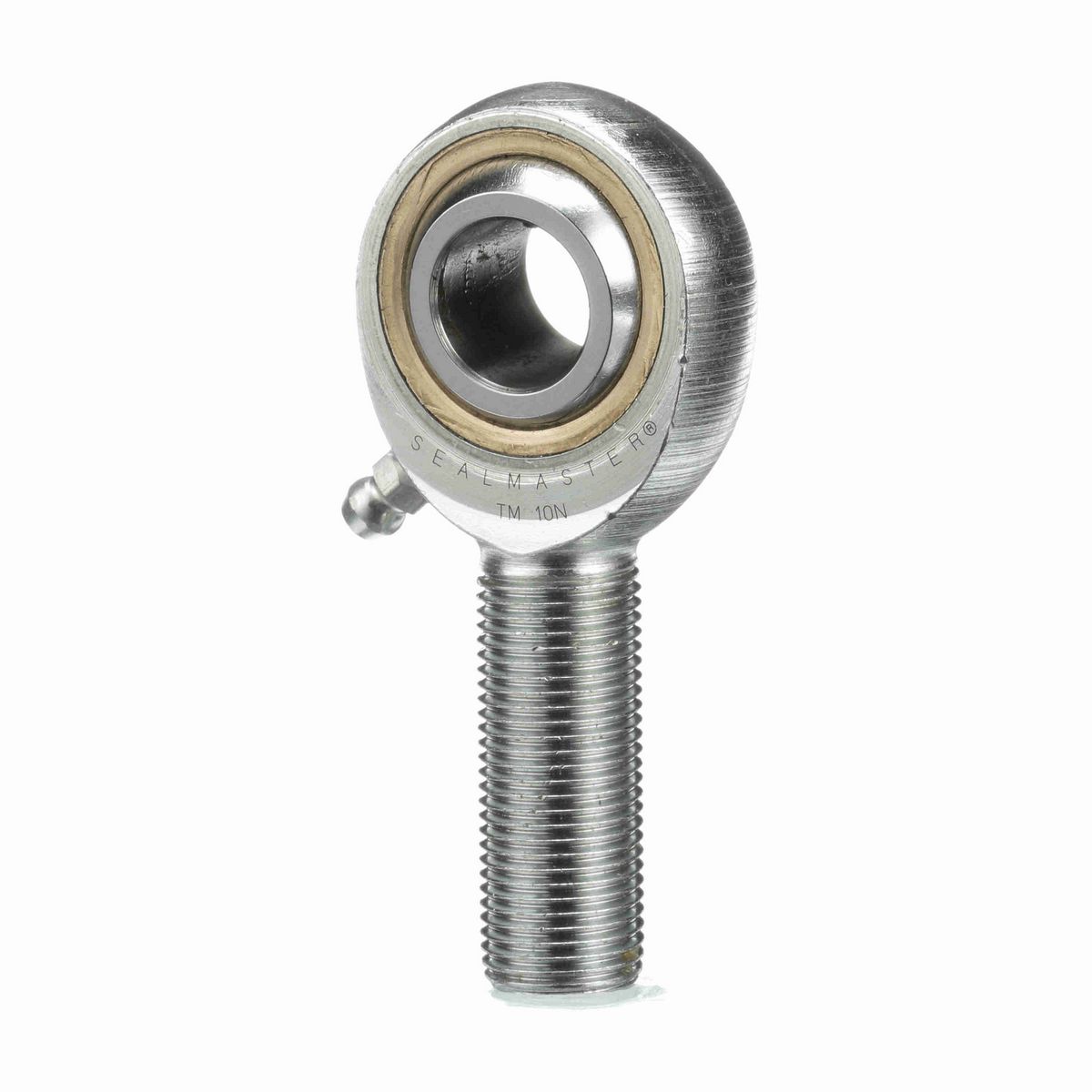

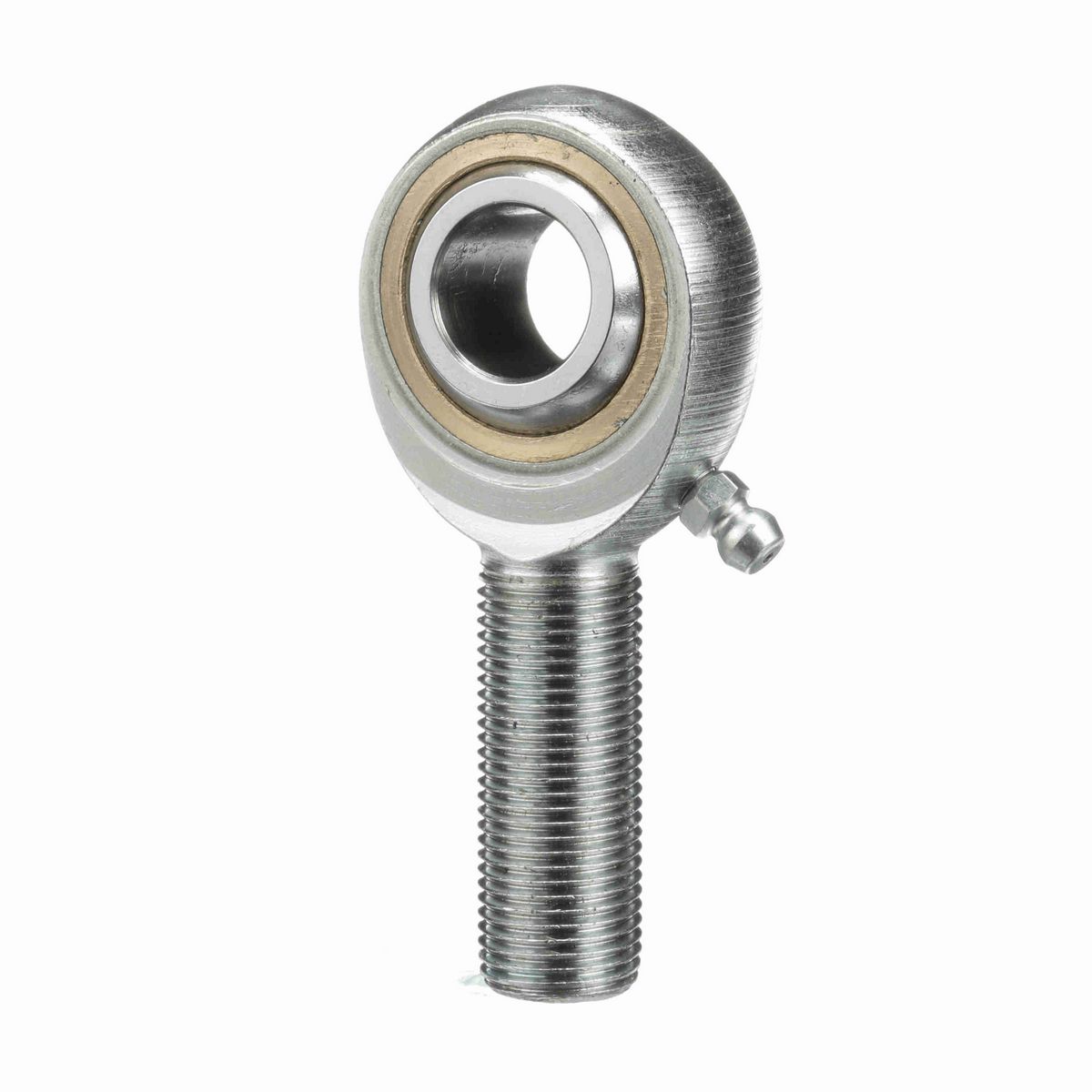

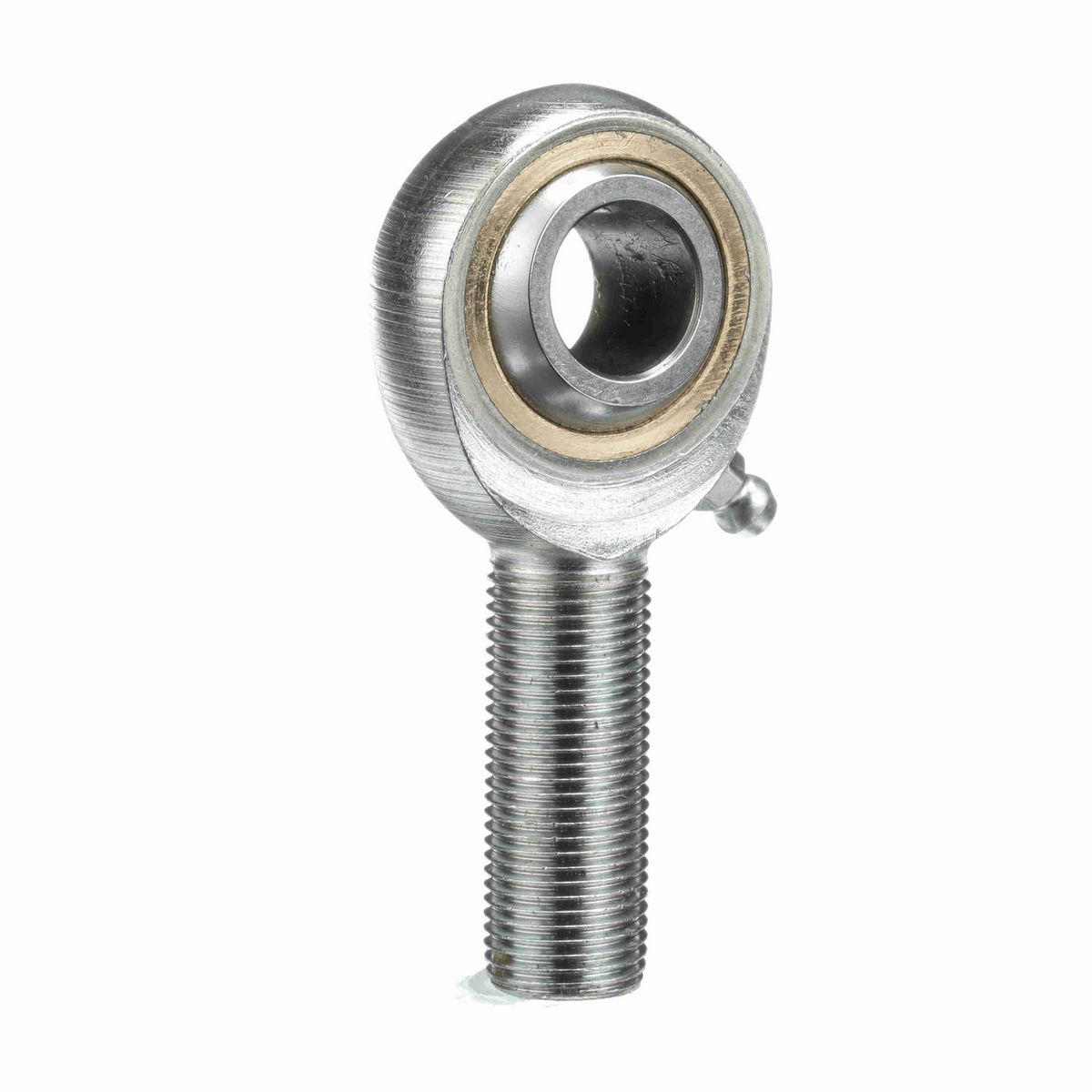

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads

Dimensions

Ball Width (in)	0.75 in
Housing Width (in)	0.562 in
Thread Size	#5/8-18
Ball Flat Diameter (in)	0.839 in
Head Diameter (in)	1.5 in
Thread Length (in)	1.594 in
Ball Diameter (in)	1.125 in
Length to Center of Ball (in)	2.63 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Product Type	TM
Race Material	Bronze
Bearing Type	Rod End
Construction	Three-Piece Rod End with Zerk Fitting
Axial Load	805
Housing Style	Male Rod End
Misalignment Angle - a Deg. +/-	8
Configuration	Male
Series	Commercial
Lubrication Type	Grease
Thread Type	UNF
Product Selection Available SW	Y
Zerk Fitting SW	Y
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication	Zerk Fitting
Max Static Radial Load	8,050
Thread	RH
Type	Male Rod End
Bore Size (in)	0.6250 in
Class	Commercial
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288724186
Weight	0.83 LB
Packaged Length	5.05 IN
Packaged Width	2.25 IN
Packaged Height	1.20 IN
HTC	8483.30.8055
Country of Origin	Mexico
