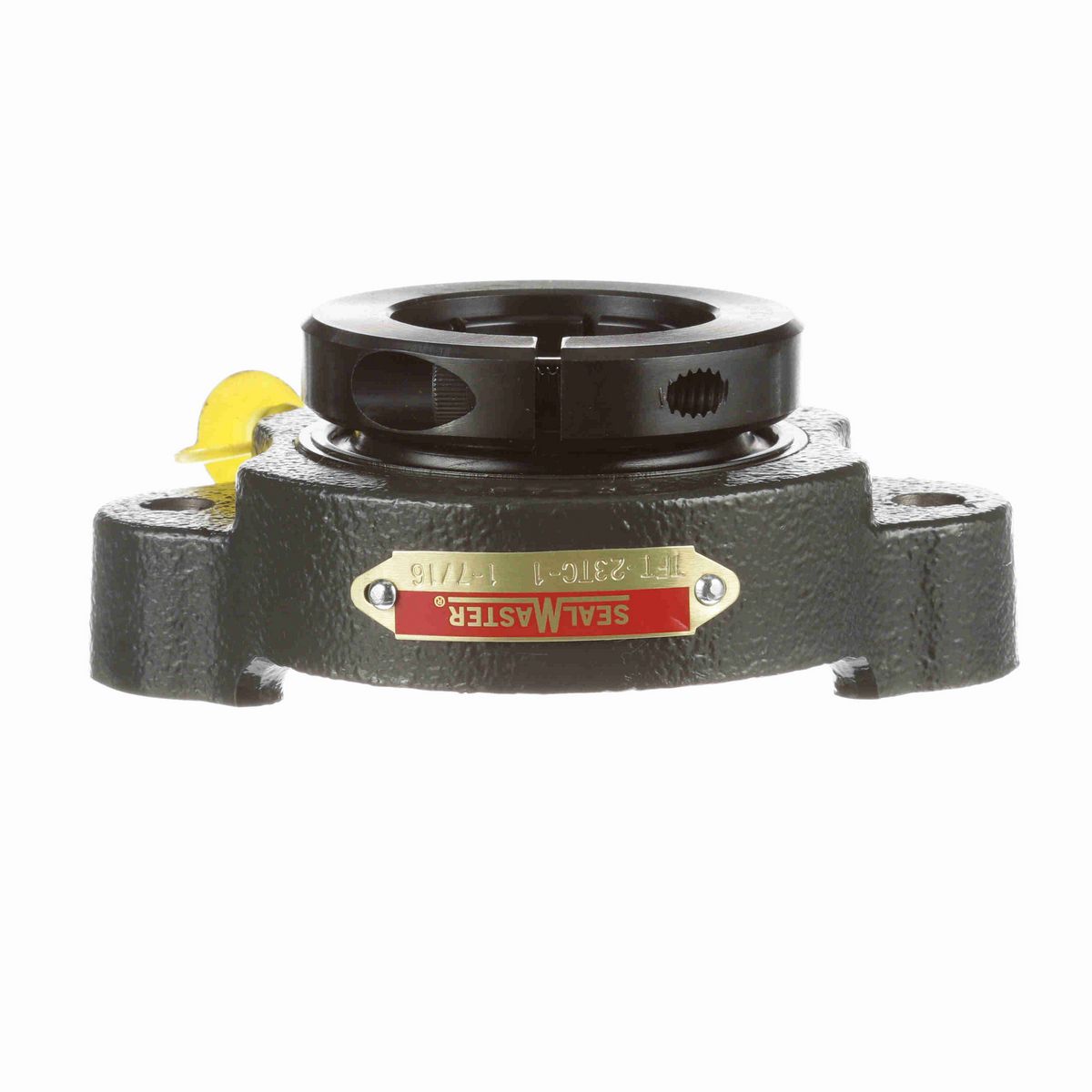

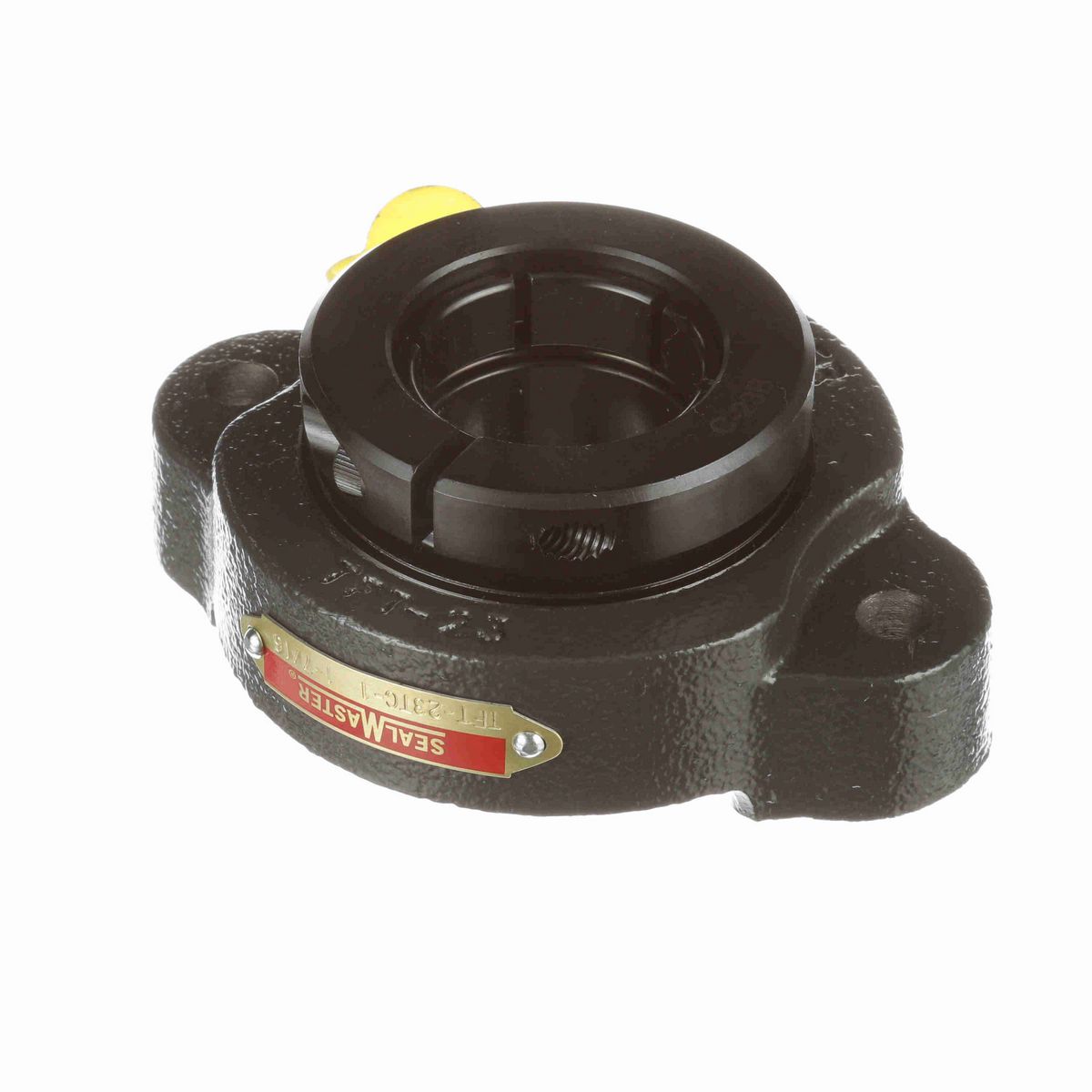

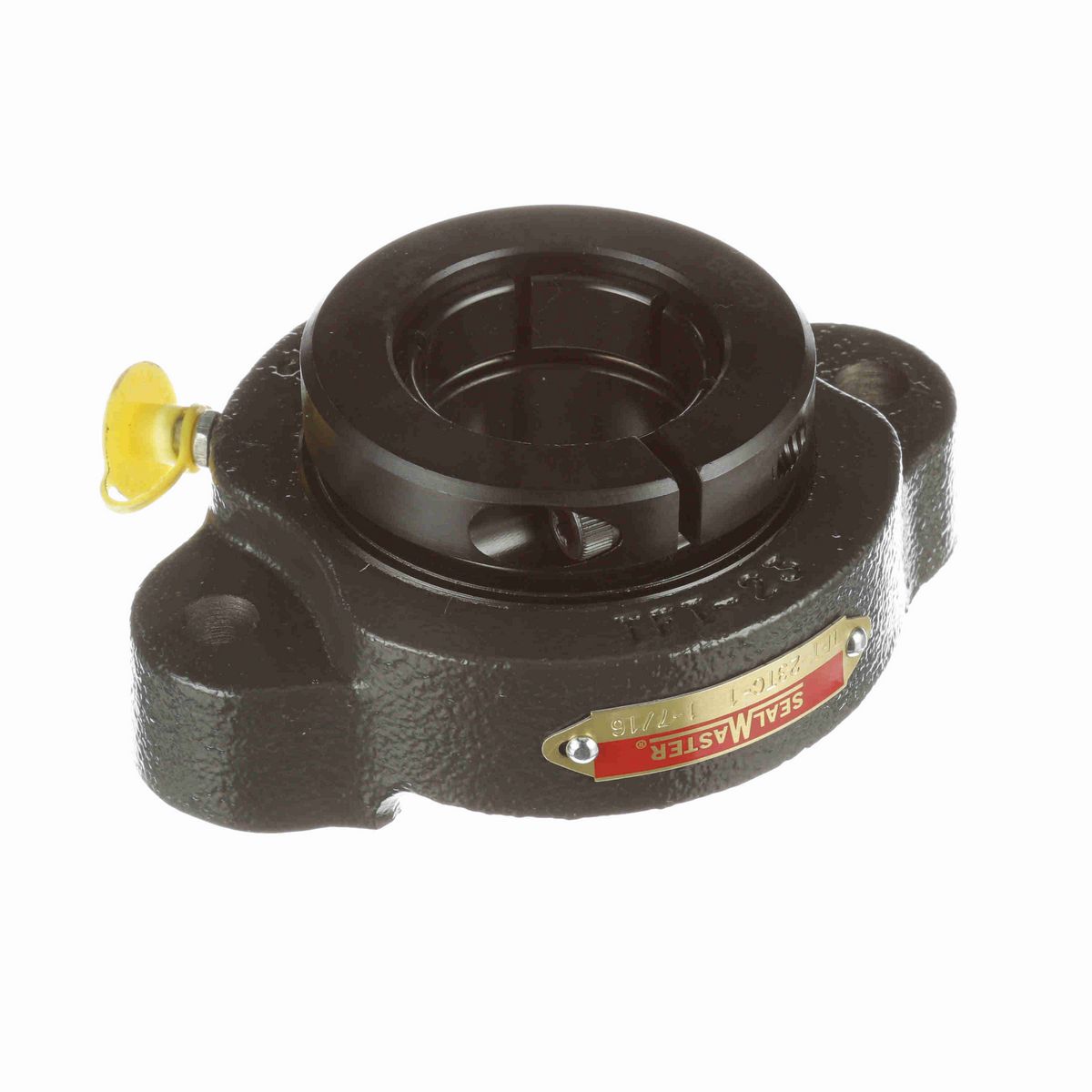

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	3.69 in
Overall Length (in)	4.88 in
Overall Height (in)	1.81 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	0.88 in
Length Through Bore (in)	1.81 in
Bolt Spacing (in)	3.9375 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	2.56 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	5,782 lb
Lubricant	Lithium Complex NLGI 2 Grease
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Standard Duty
Vibration Frequency Roller Spin	0.0386 cps
Inner Ring Outside Diameter (in)	1.859 in
Static Load Rating (lb)	3,493 lb
Maximum Speed (RPM)	4650 rpm
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer
Vibration Frequency Outer Ring Defect	0.0595 cps
Shaft Locking Type	Concentric
End Cap Available	No
Vibration Frequency Fundamental Train	0.0066 cps
Insert	2-17TC
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/4-28
Size Code	2-17
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461007914
Weight	2.84 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
