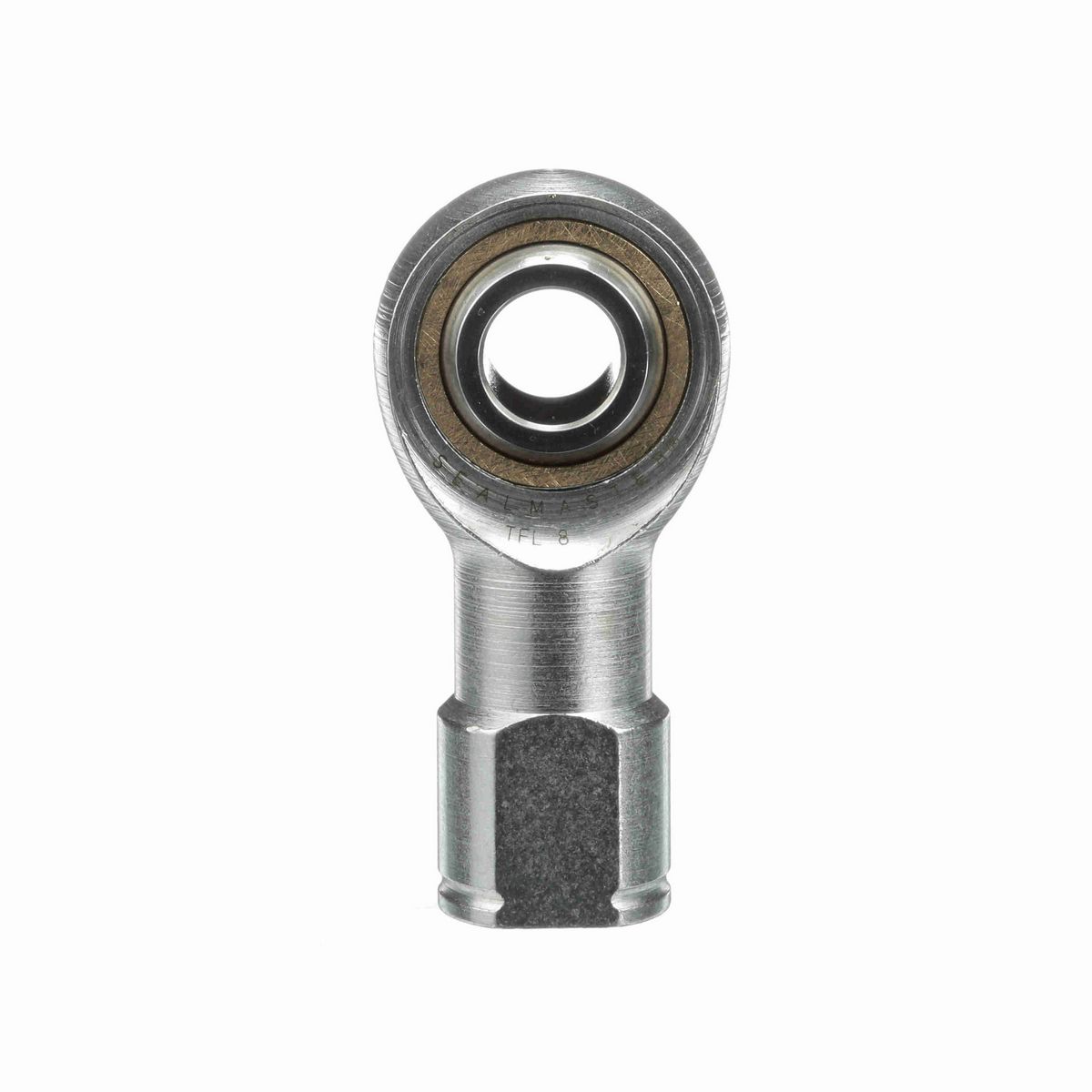

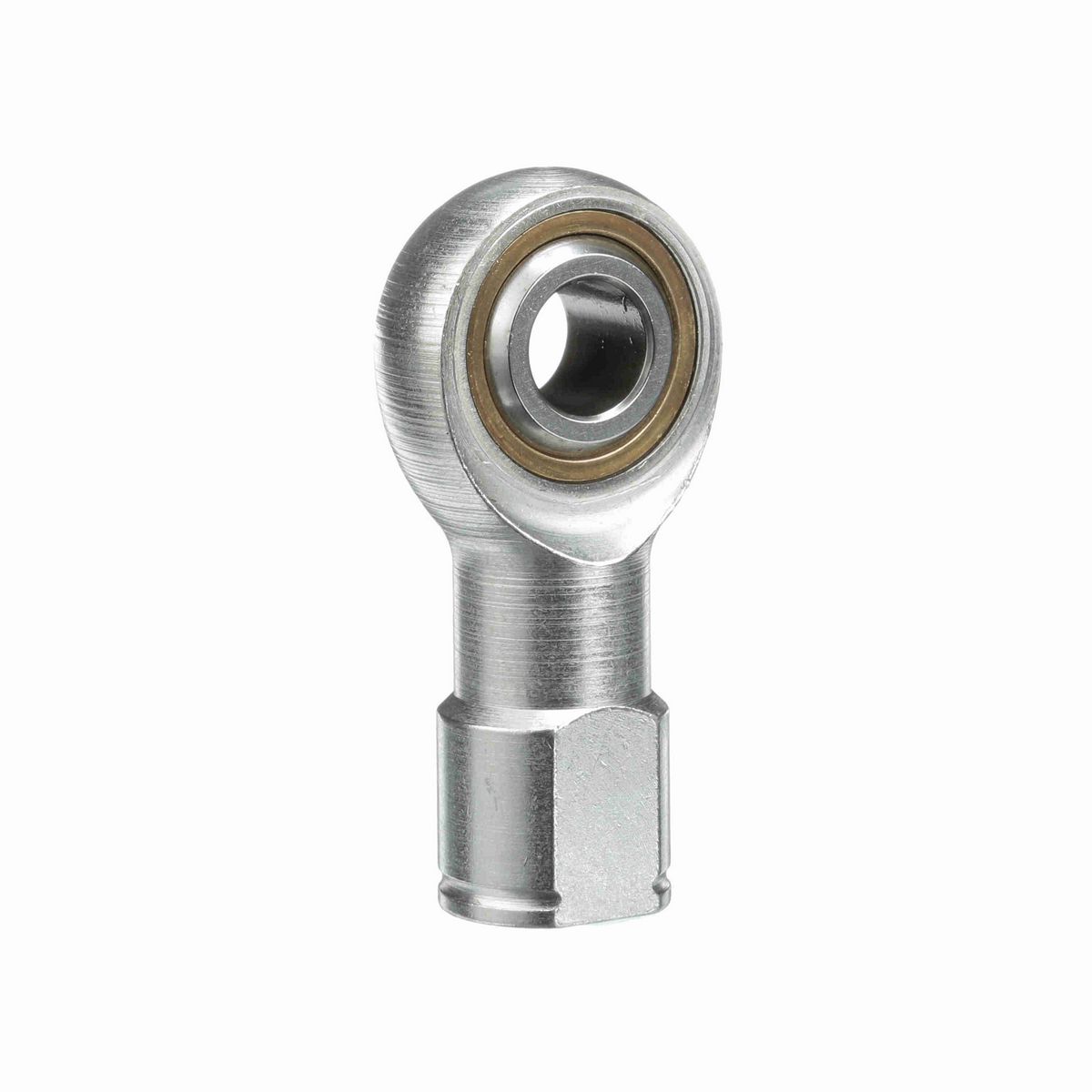

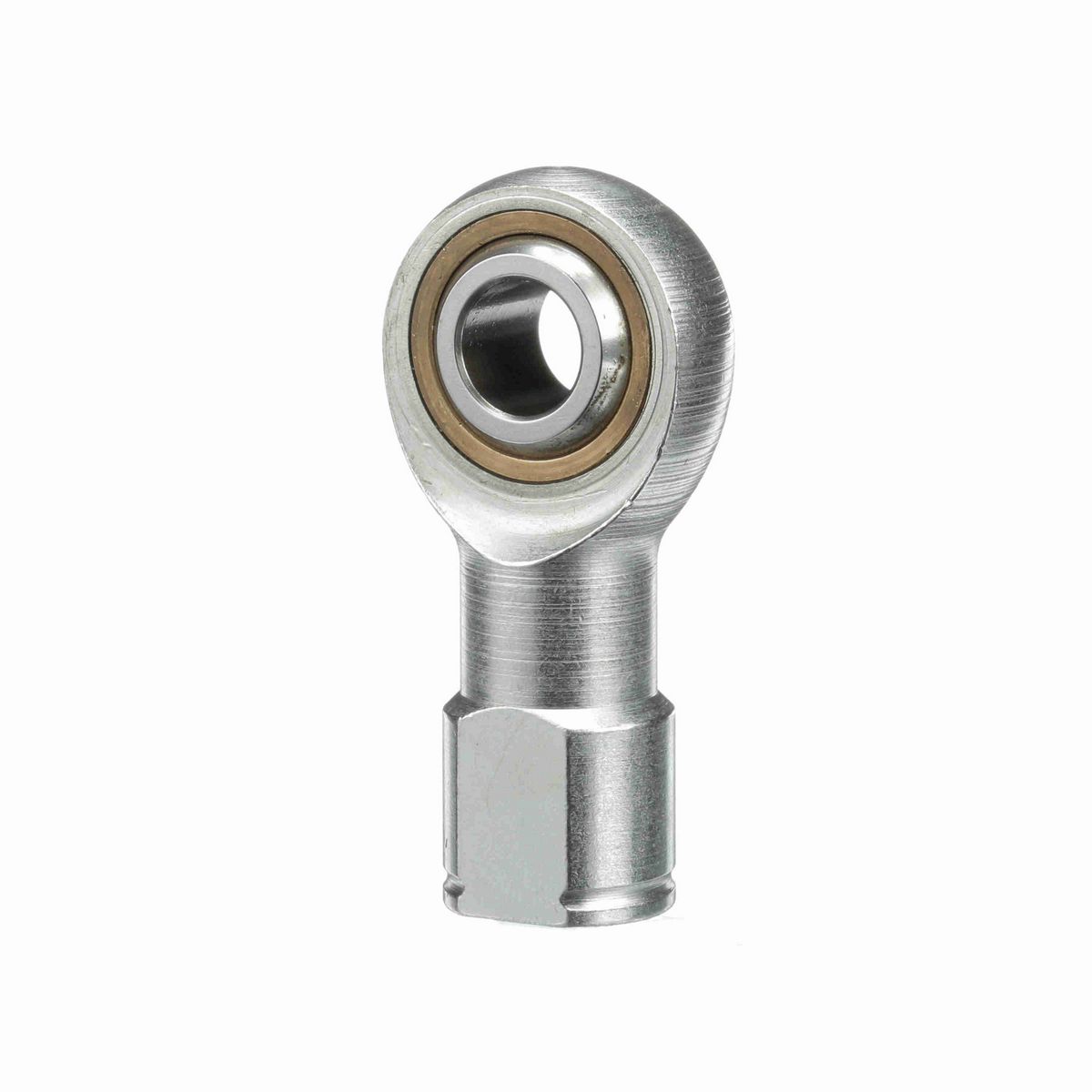

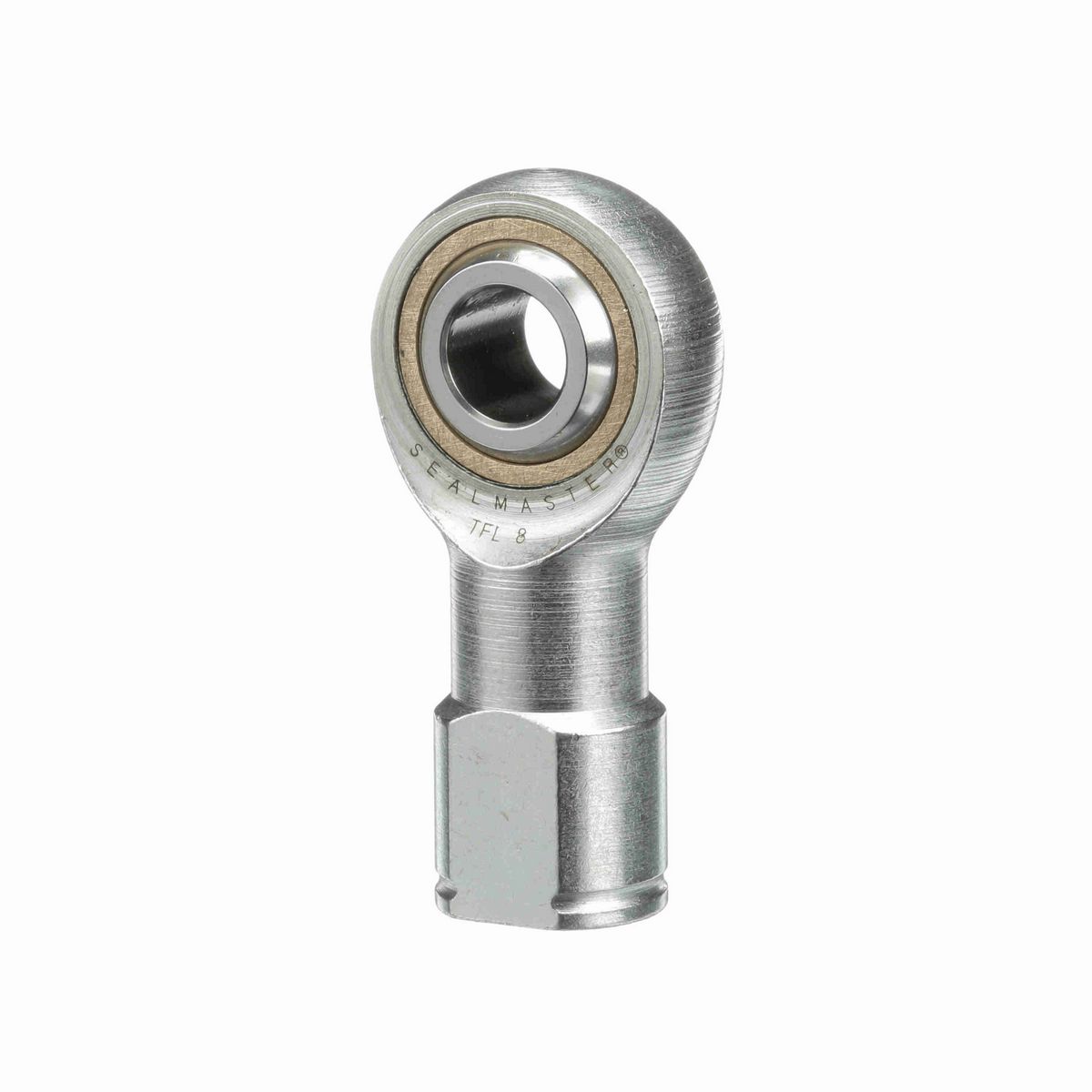

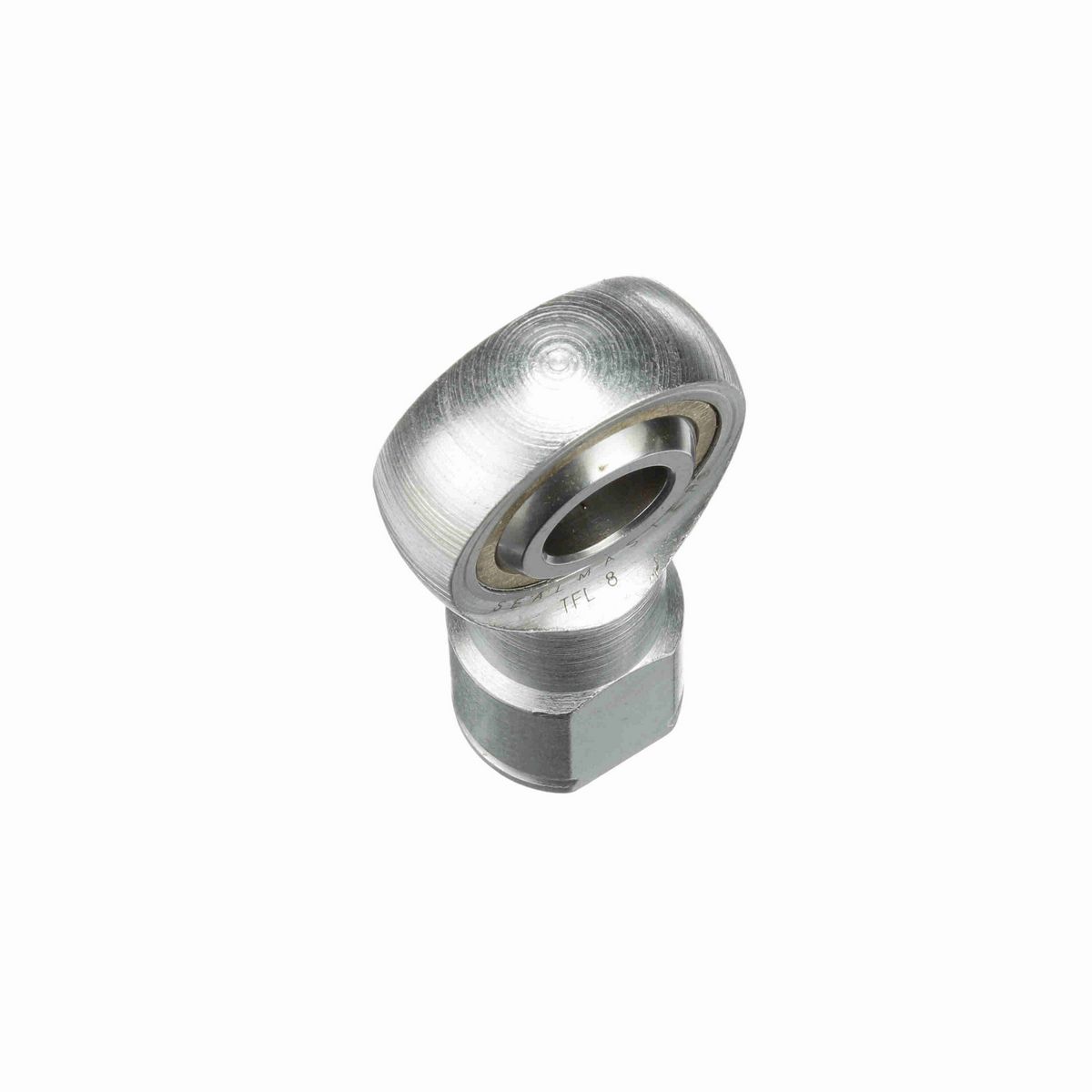

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Bronze Race

Dimensions

Housing Width (in)	0.5 in
Ball Flat Diameter (in)	0.698 in
Thread Size	#1/2-20
Base Diameter (in)	0.875 in
Head Diameter (in)	1.312 in
Thread Length (in)	1.156 in
Ball Diameter (in)	0.937 in
Ball Width (in)	0.625 in
Length to Center of Ball (in)	2.13 in

Technical Specifications

Misalignment Angle - a Deg. +/-	6
Product Selection Available SW	Y
Bearing Type	Rod End
Outer Material	Carbon Steel - Corrosion Resistant Plating
Construction	Three-Piece Rod End
Axial Load	740
Across Wrench Flats	0.75
Series	Commercial
Lubrication Type	Grease
Product Type	TF
Zerk Fitting SW	N
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Race Material	Bronze
Thread Type	UNF
Housing Style	Female Rod End
Configuration	Female
Thread	LH
Lubrication	No Zerk Fitting
Max Static Radial Load	7,400
Type	Female Rod End
Class	Commercial
Bore Size (in)	0.5000 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288723660
Weight	0.31 LB
Packaged Length	2.78 IN
Packaged Width	1.31 IN
Packaged Height	0.63 IN
HTC	8483.30.8055
Country of Origin	Mexico
