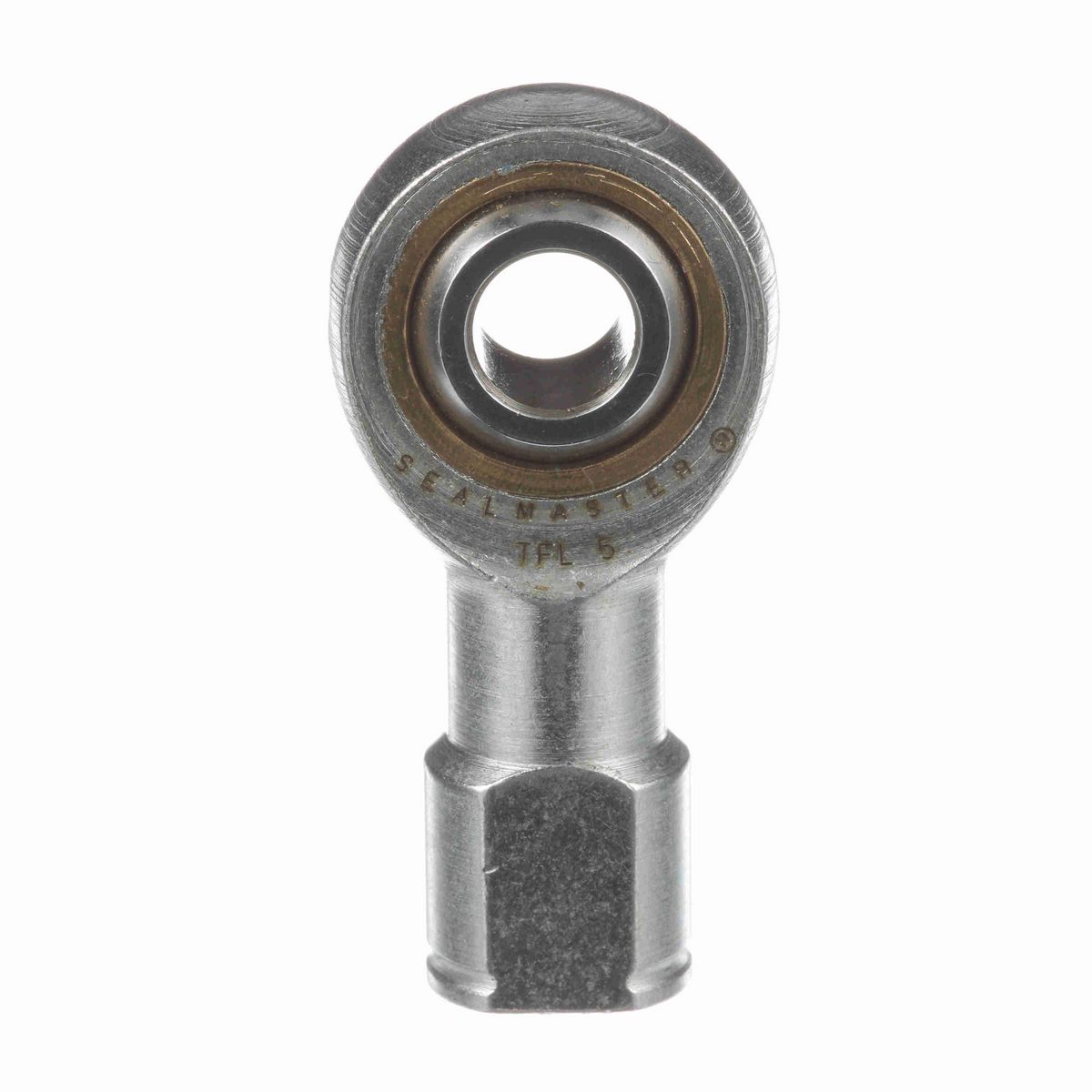

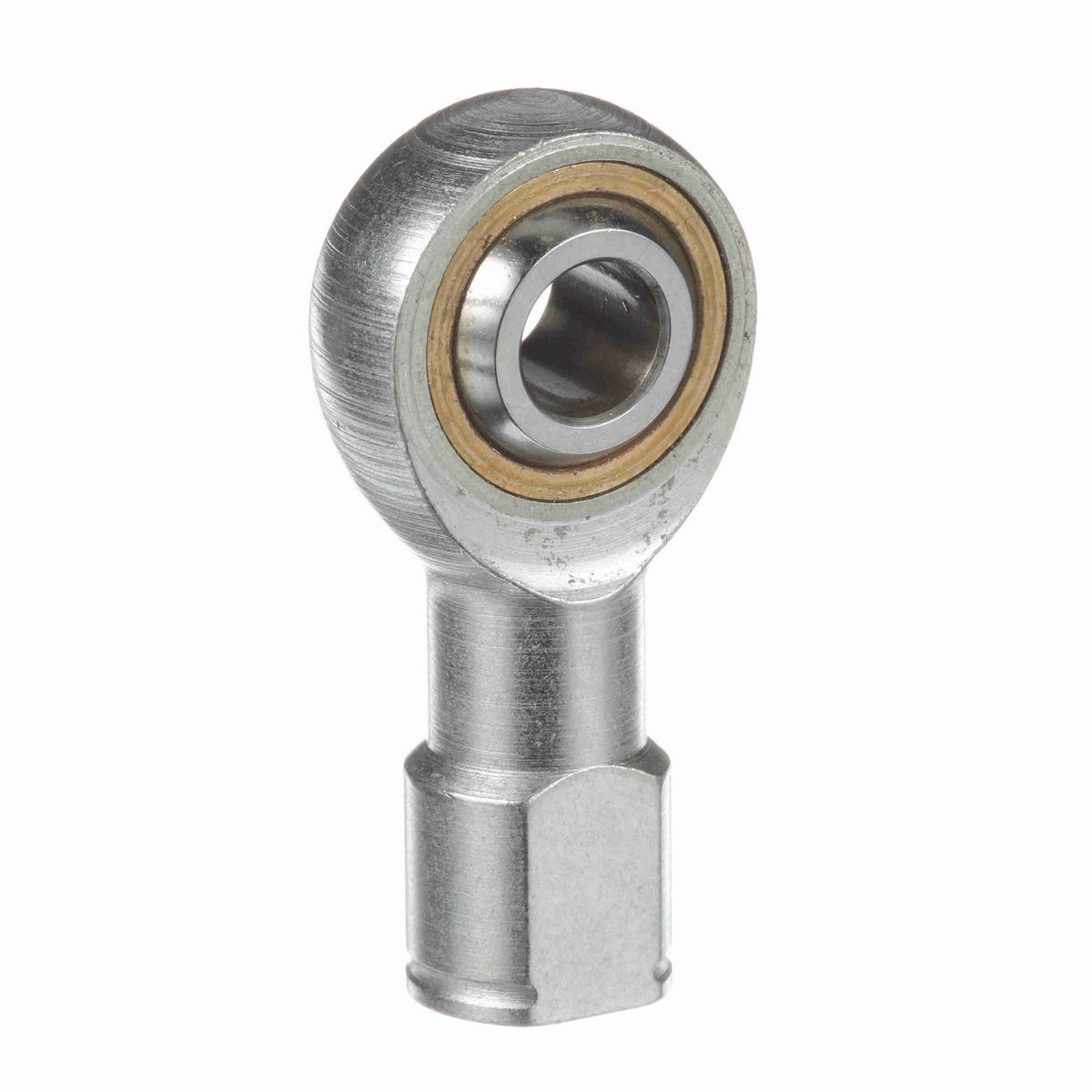

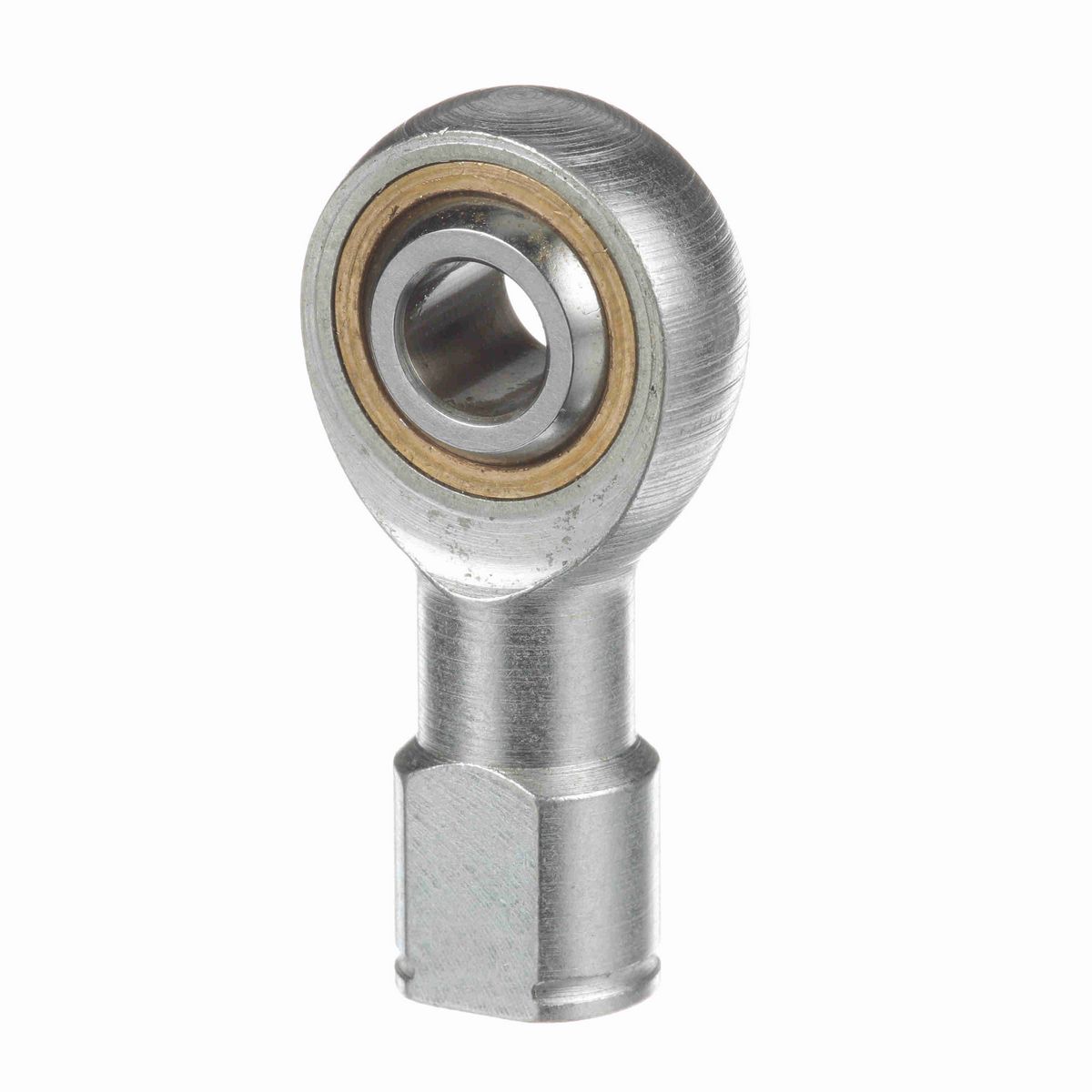

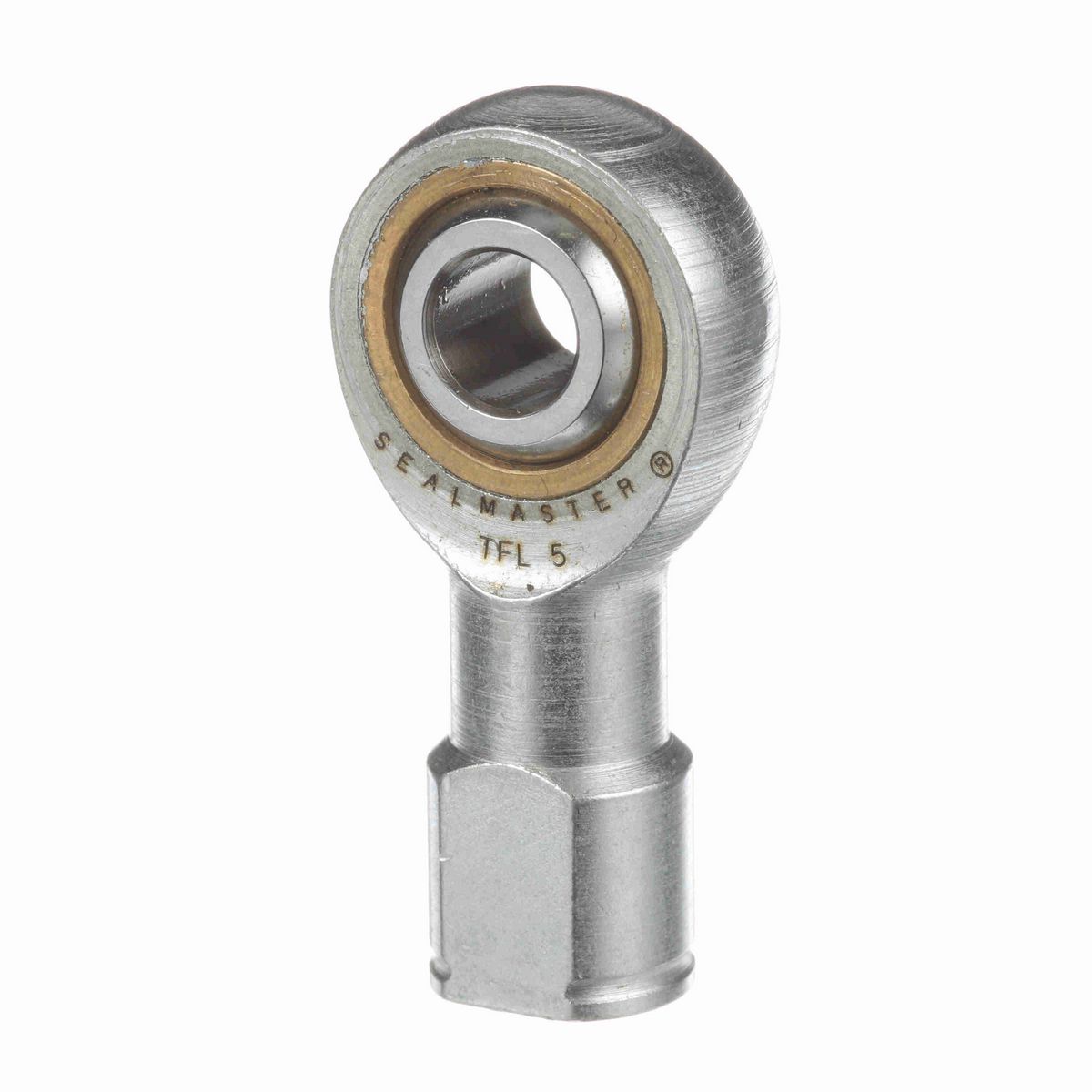

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Bronze Race

Dimensions

Ball Flat Diameter (in)	0.447 in
Ball Width (in)	0.437 in
Housing Width (in)	0.344 in
Thread Length (in)	0.719 in
Thread Size	#5/16-24
Ball Diameter (in)	0.625 in
Base Diameter (in)	0.531 in
Head Diameter (in)	0.875 in
Length to Center of Ball (in)	1.38 in

Technical Specifications

Series	Commercial
Lubrication Type	Grease
Thread Type	UNF
Product Selection Available SW	Y
Axial Load	335
Zerk Fitting SW	N
Across Wrench Flats	0.437
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Misalignment Angle - a Deg. +/-	7
Housing Style	Female Rod End
Race Material	Bronze
Configuration	Female
Product Type	TF
Bearing Type	Rod End
Construction	Three-Piece Rod End
Outer Material	Carbon Steel - Corrosion Resistant Plating
Thread	LH
Type	Female Rod End
Max Static Radial Load	3,350
Lubrication	No Zerk Fitting
Bore Size (in)	0.3125 in
Class	Commercial
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288723639
Weight	0.09 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	1.90 IN
HTC	8483.30.8055
Country of Origin	Mexico
