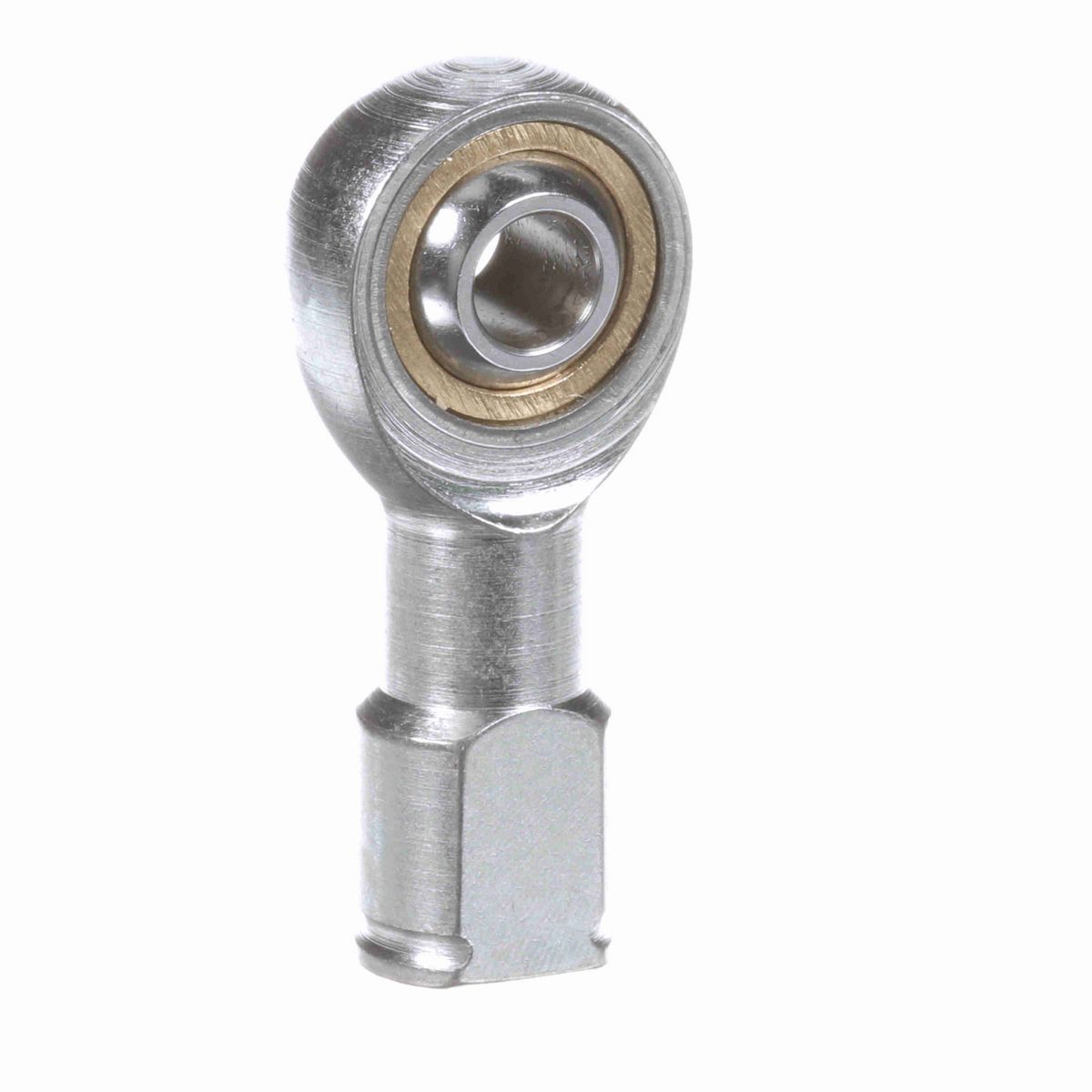

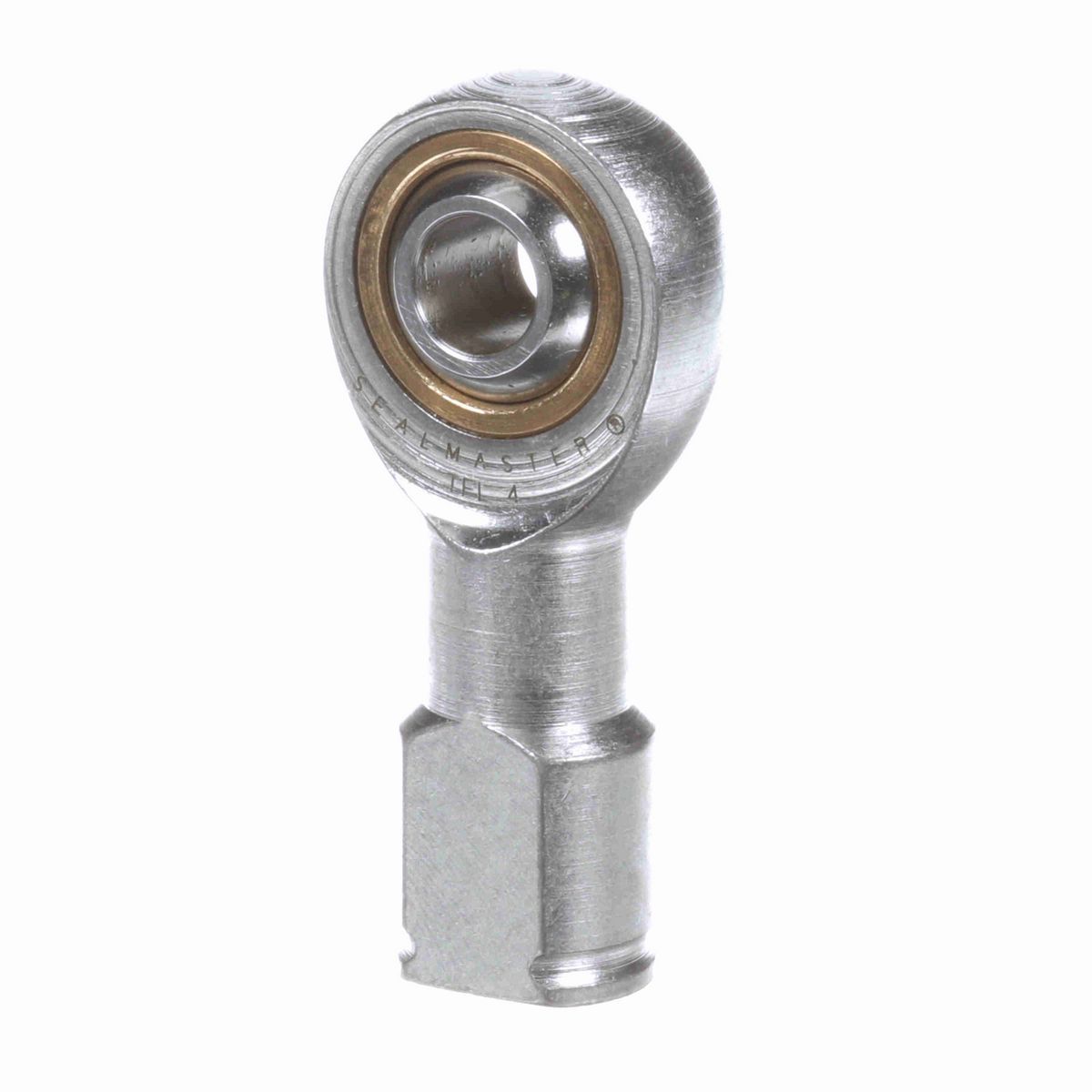

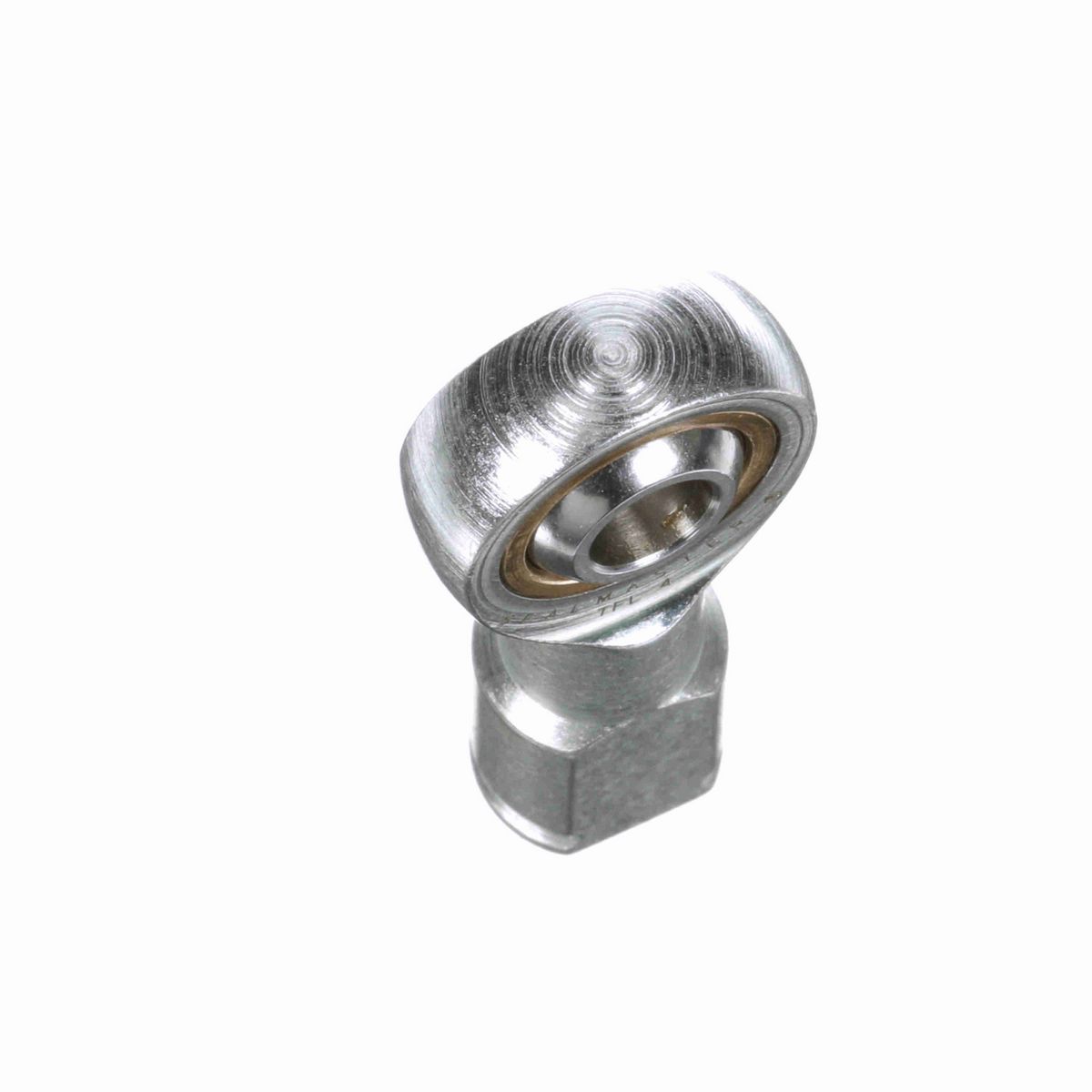

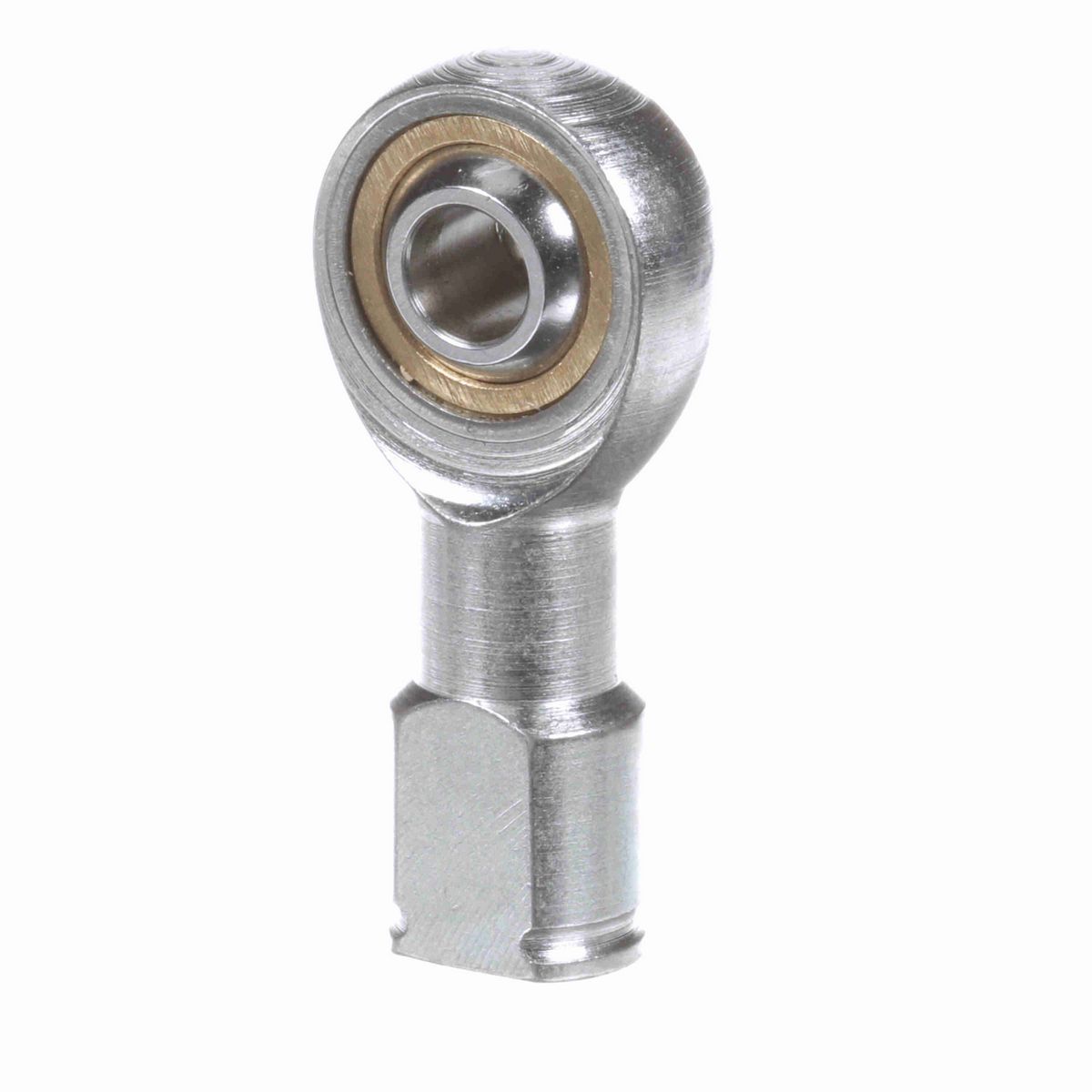

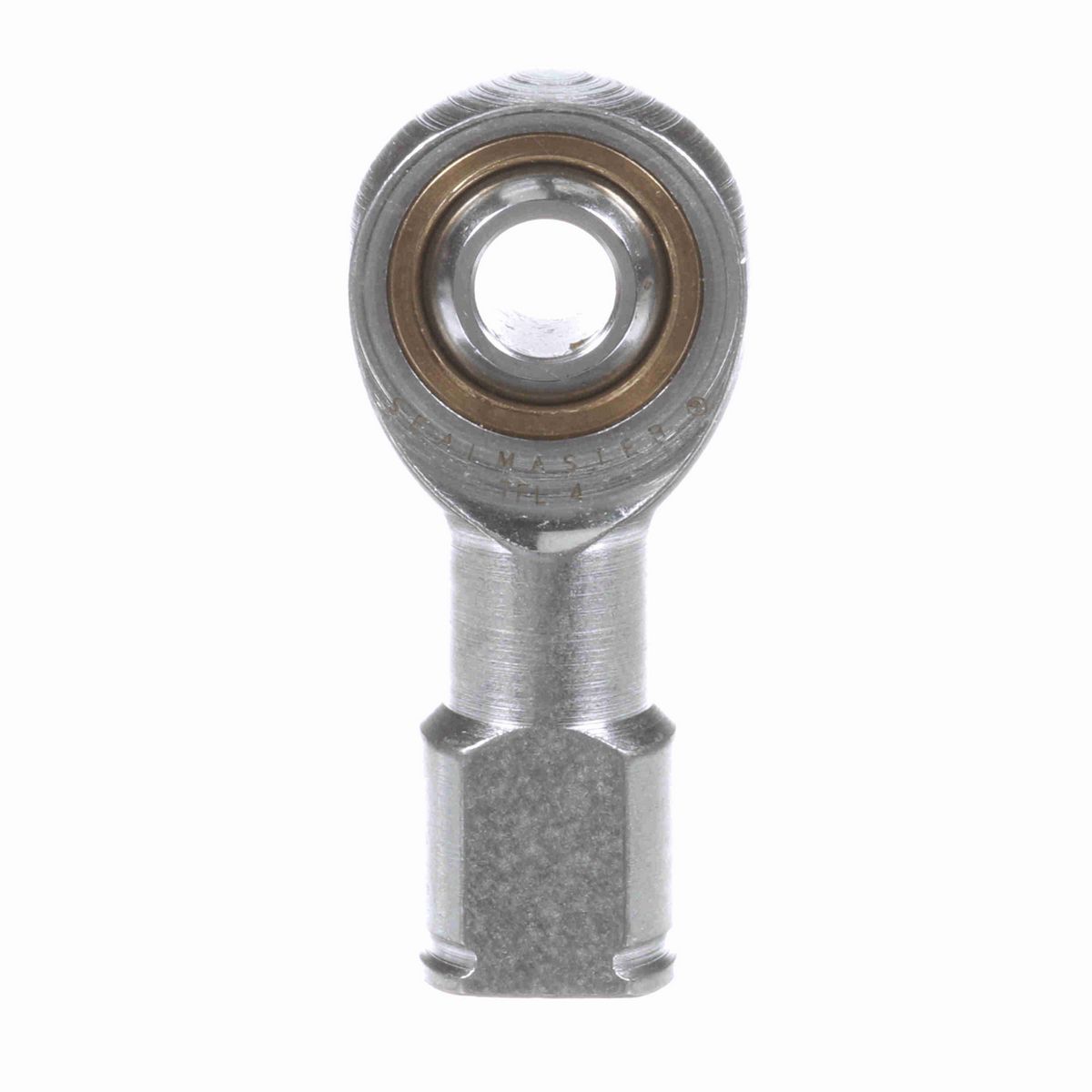

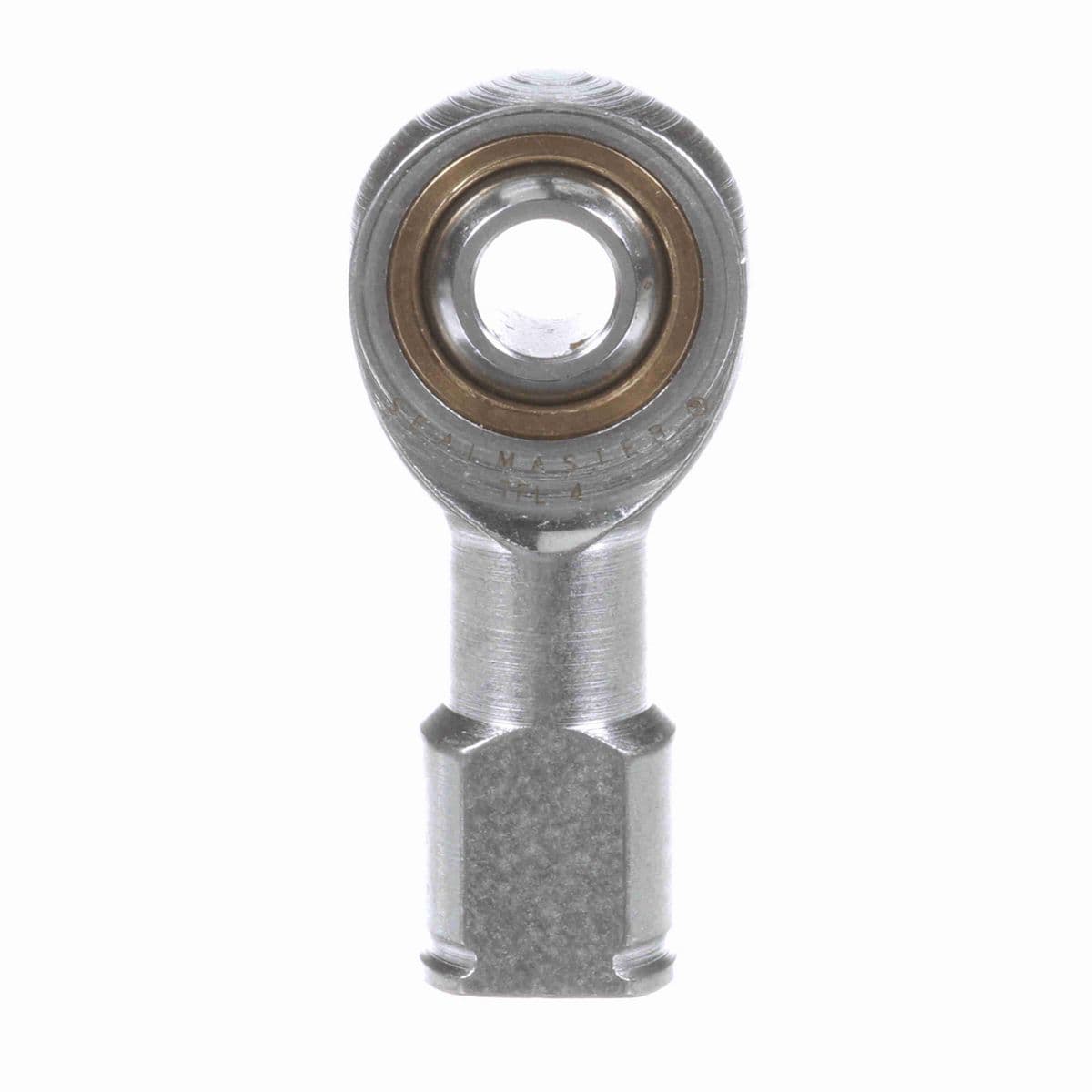

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Bronze Race

Dimensions

Housing Width (in)	0.281 in
Ball Flat Diameter (in)	0.331 in
Thread Length (in)	0.719 in
Head Diameter (in)	0.75 in
Base Diameter (in)	0.469 in
Ball Width (in)	0.375 in
Thread Size	#1/4-28
Ball Diameter (in)	0.5 in
Length to Center of Ball (in)	1.31 in

Technical Specifications

Construction	Three-Piece Rod End
Series	Commercial
Product Selection Available SW	Y
Race Material	Bronze
Zerk Fitting SW	N
Product Type	TF
Axial Load	270
Lubrication Type	Grease
Across Wrench Flats	0.375
Bearing Type	Rod End
Outer Material	Carbon Steel - Corrosion Resistant Plating
Configuration	Female
Thread Type	UNF
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Misalignment Angle - a Deg. +/-	8
Housing Style	Female Rod End
Type	Female Rod End
Lubrication	No Zerk Fitting
Thread	LH
Max Static Radial Load	2,700
Class	Commercial
Bore Size (in)	0.2500 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288723622
Weight	0.07 LB
Packaged Length	2.50 IN
Packaged Width	2.50 IN
Packaged Height	0.45 IN
HTC	8483.30.8055
Country of Origin	Mexico
