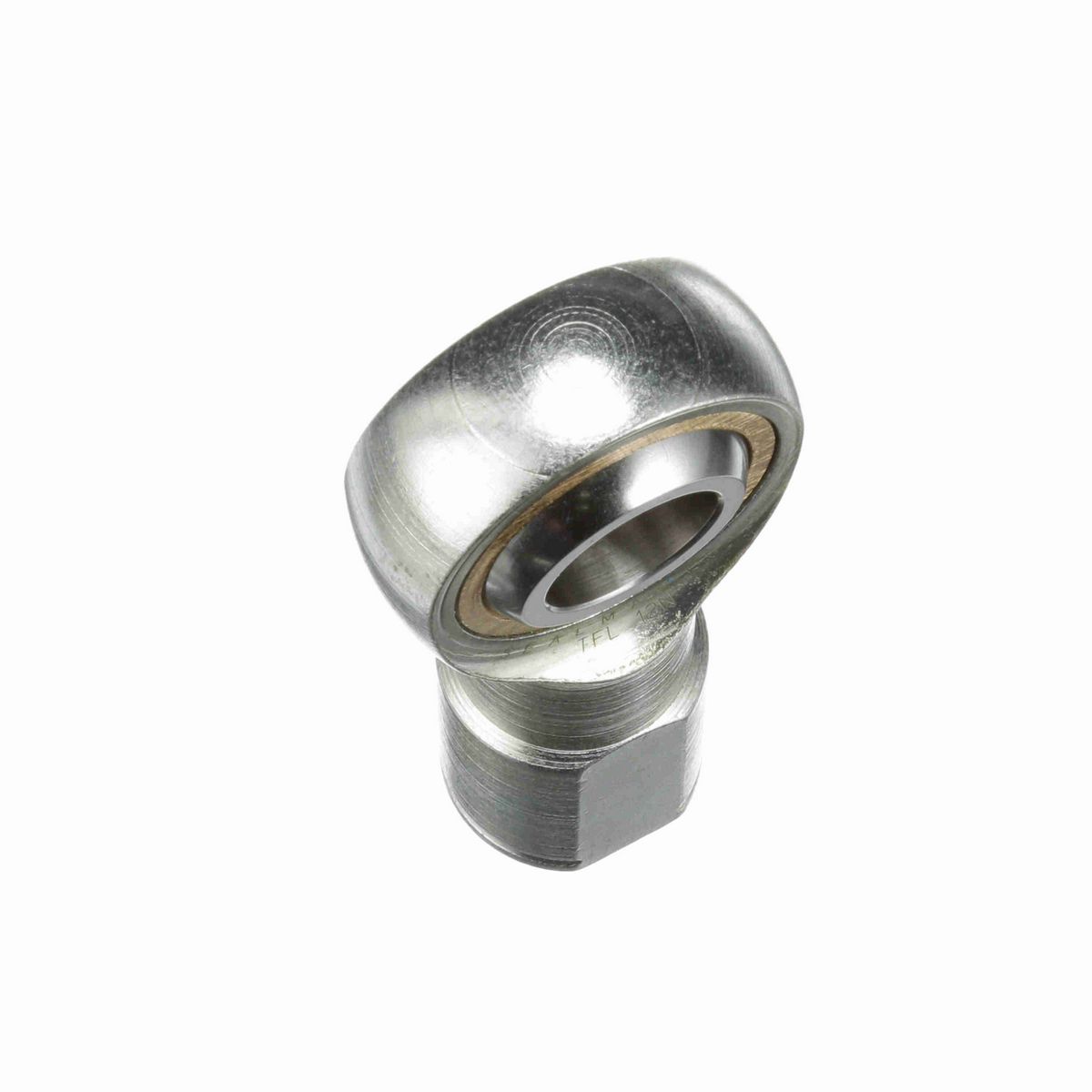

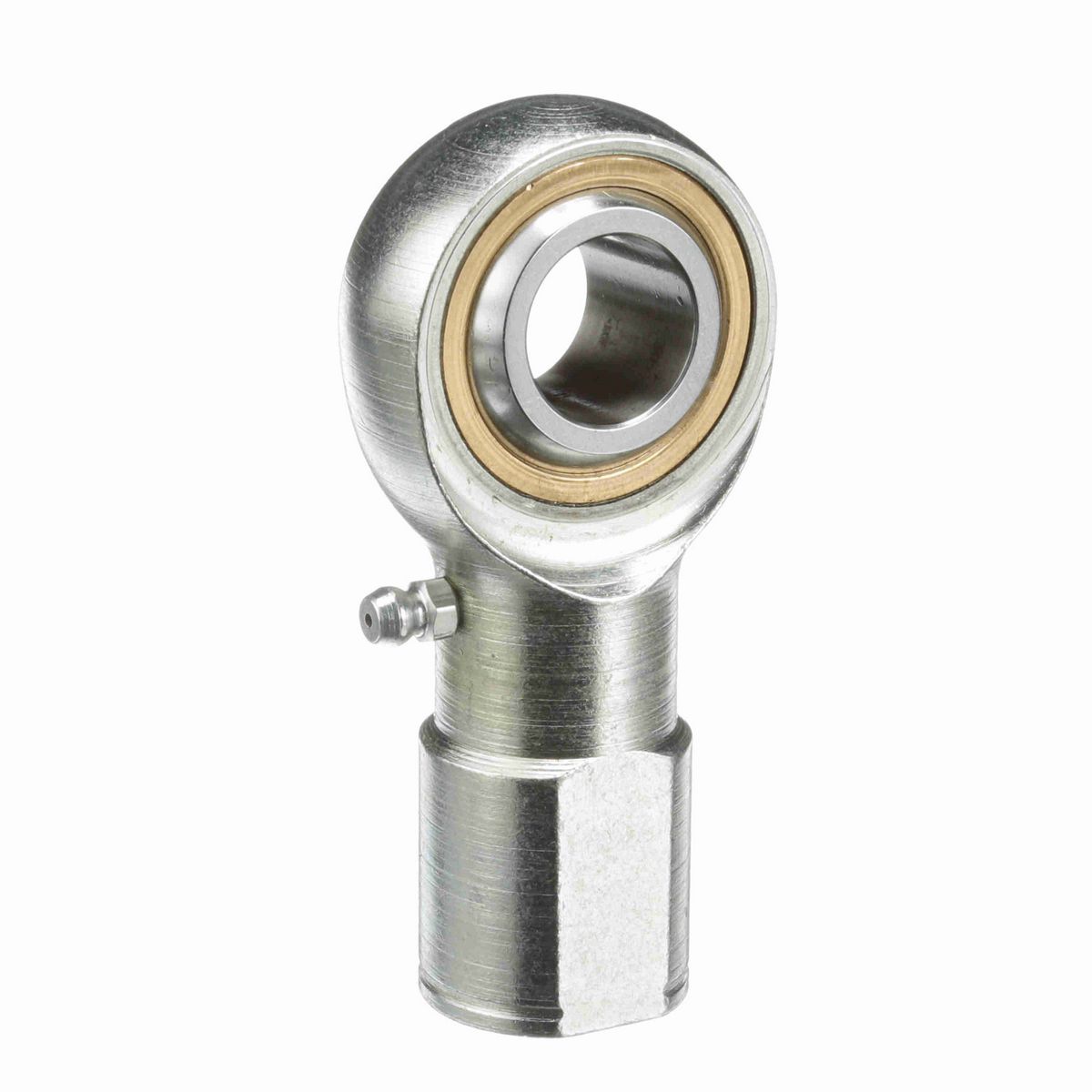

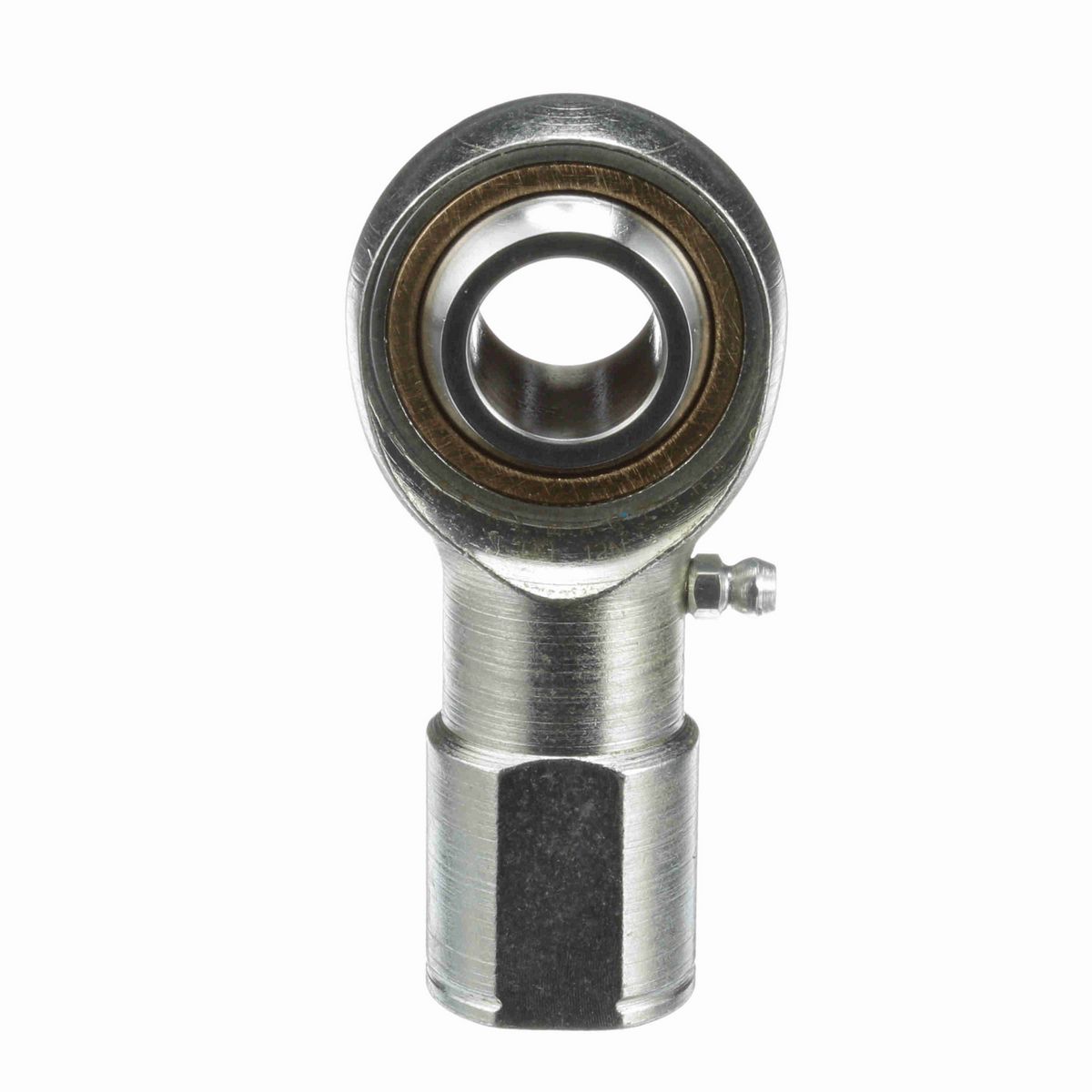

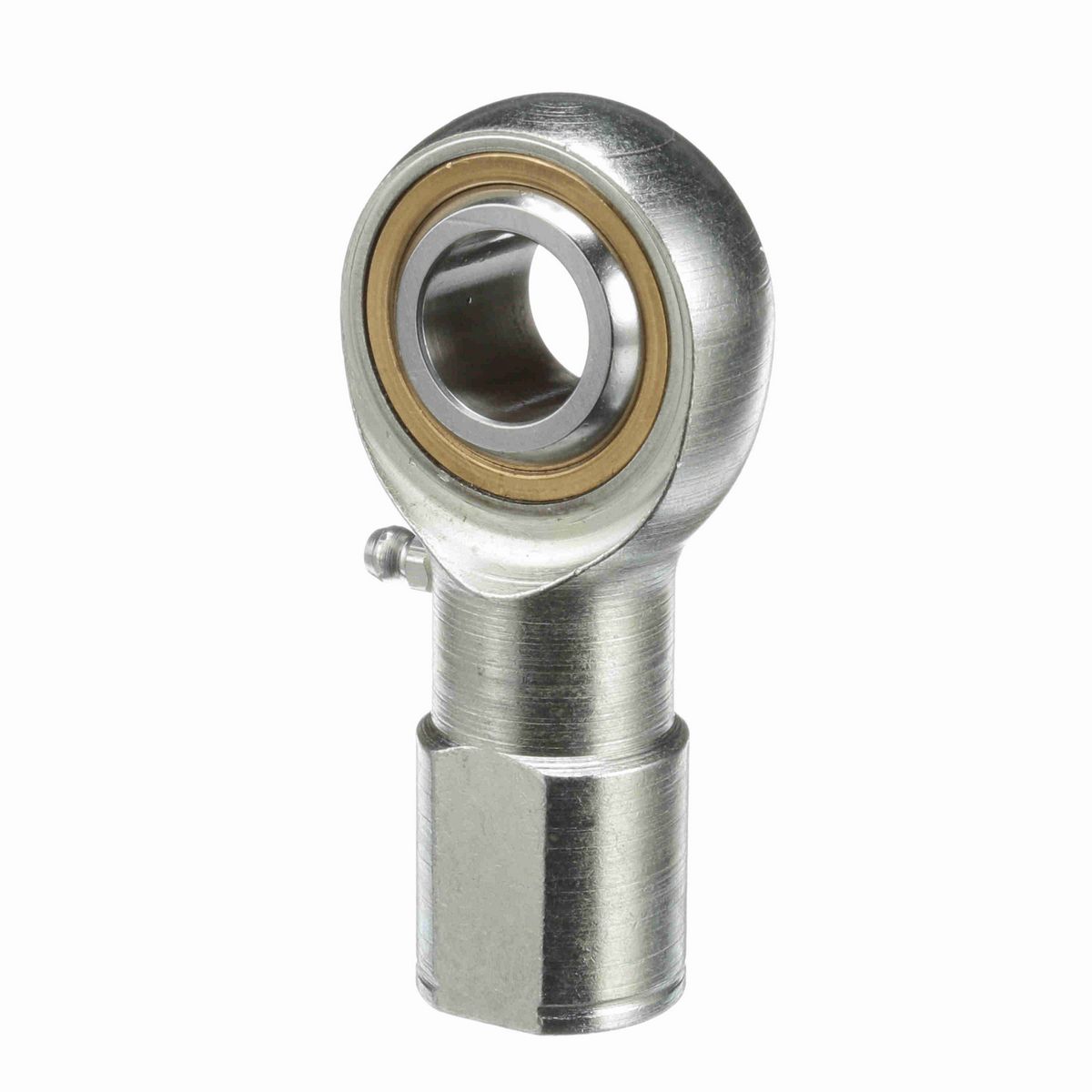

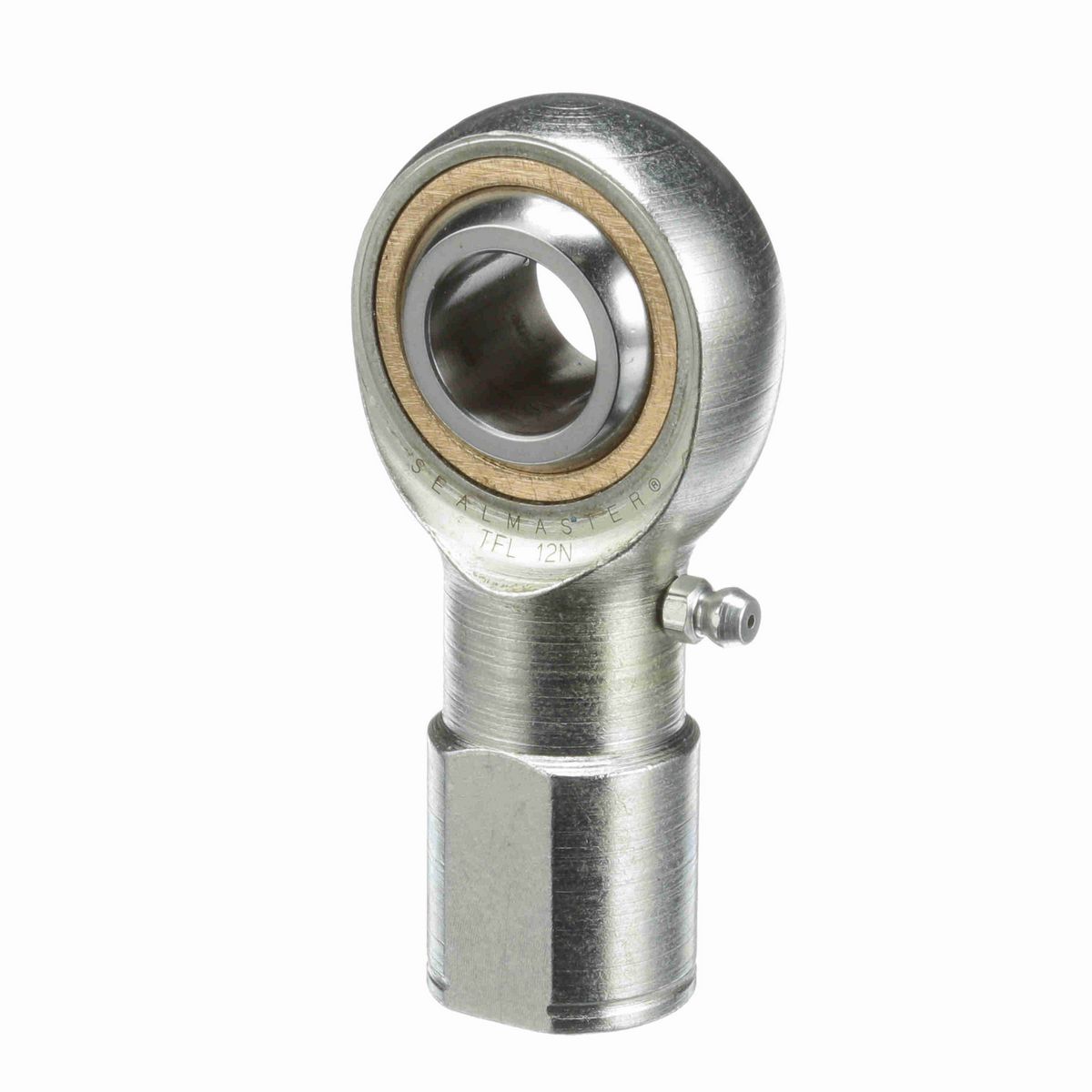

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• One-Piece Bronze Race

Dimensions

Head Diameter (in)	1.75 in
Housing Width (in)	0.687 in
Ball Flat Diameter (in)	0.978 in
Thread Size	#3/4-16
Base Diameter (in)	1.125 in
Ball Width (in)	0.875 in
Thread Length (in)	1.719 in
Ball Diameter (in)	1.312 in
Length to Center of Ball (in)	2.88 in

Technical Specifications

Housing Style	Female Rod End
Race Material	Bronze
Axial Load	1,130
Lubrication Type	Grease
Thread Type	UNF
Product Type	TF
Across Wrench Flats	1
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Selection Available SW	Y
Zerk Fitting SW	Y
Misalignment Angle - a Deg. +/-	7
Series	Commercial
Configuration	Female
Bearing Type	Rod End
Construction	Three-Piece Rod End with Zerk Fitting
Outer Material	Carbon Steel - Corrosion Resistant Plating
Type	Female Rod End
Thread	LH
Lubrication	Zerk Fitting
Max Static Radial Load	11,300
Bore Size (in)	0.7500 in
Class	Commercial
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288724247
Weight	1.10 LB
Packaged Length	5.90 IN
Packaged Width	3.15 IN
Packaged Height	1.70 IN
HTC	8483.30.8055
Country of Origin	Mexico
