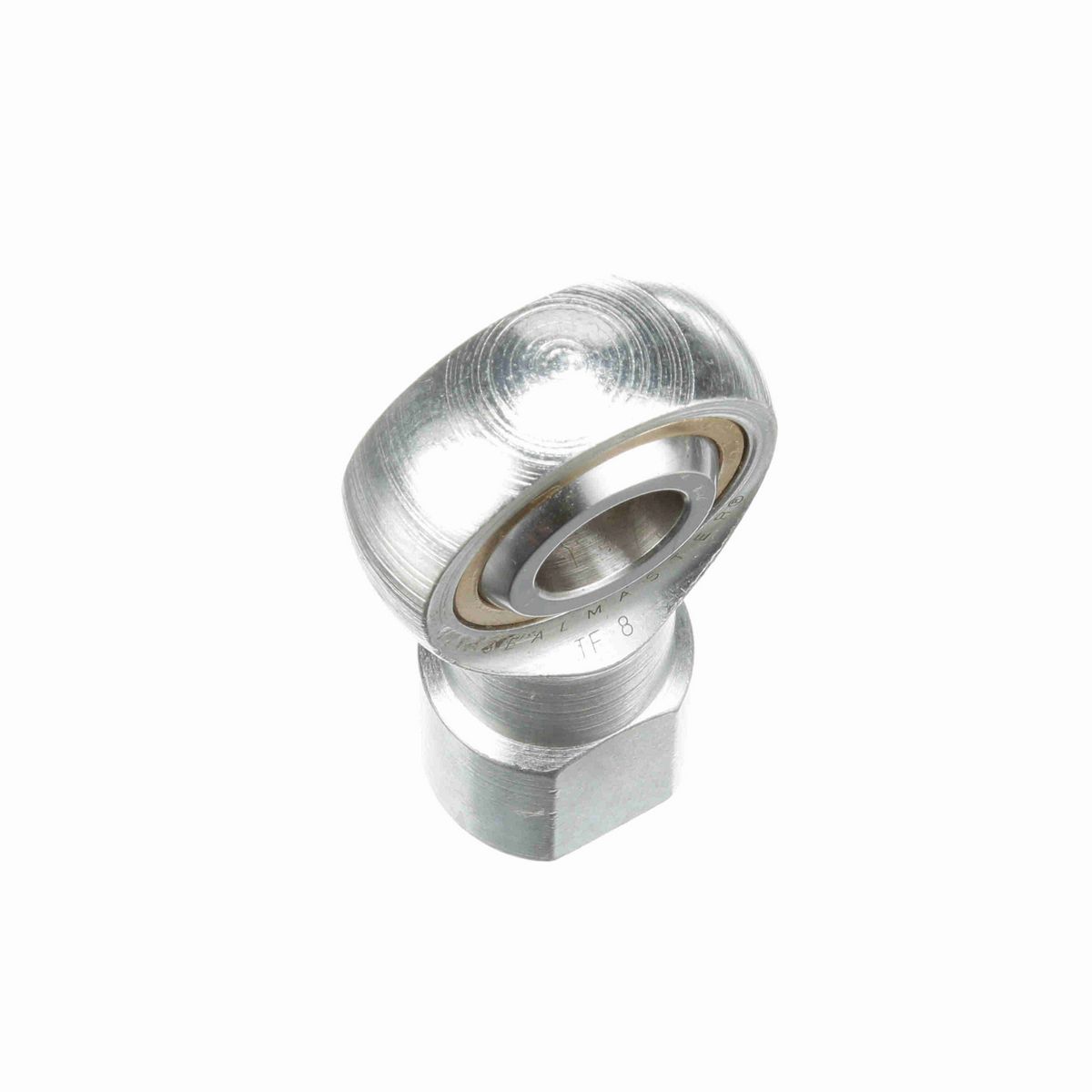

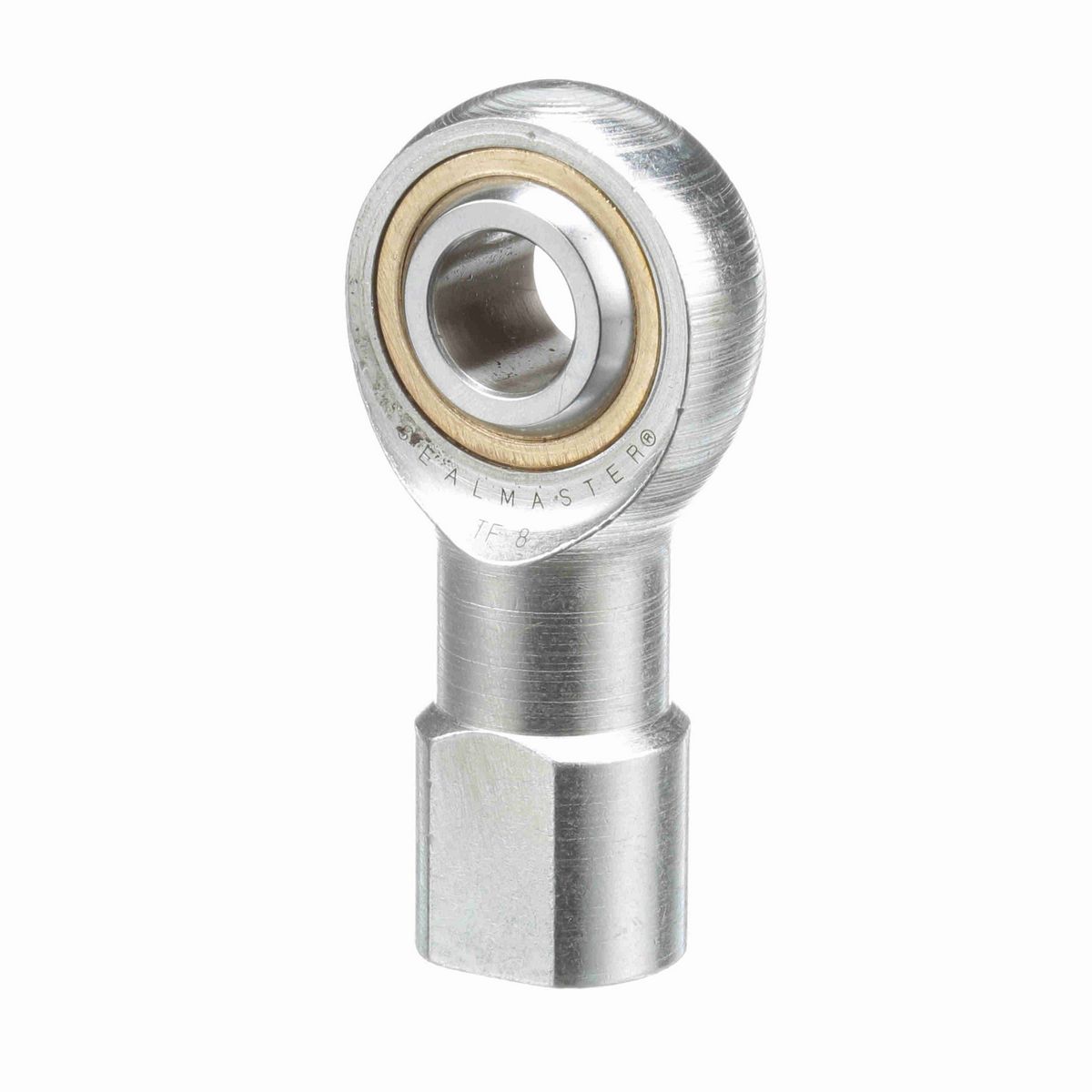

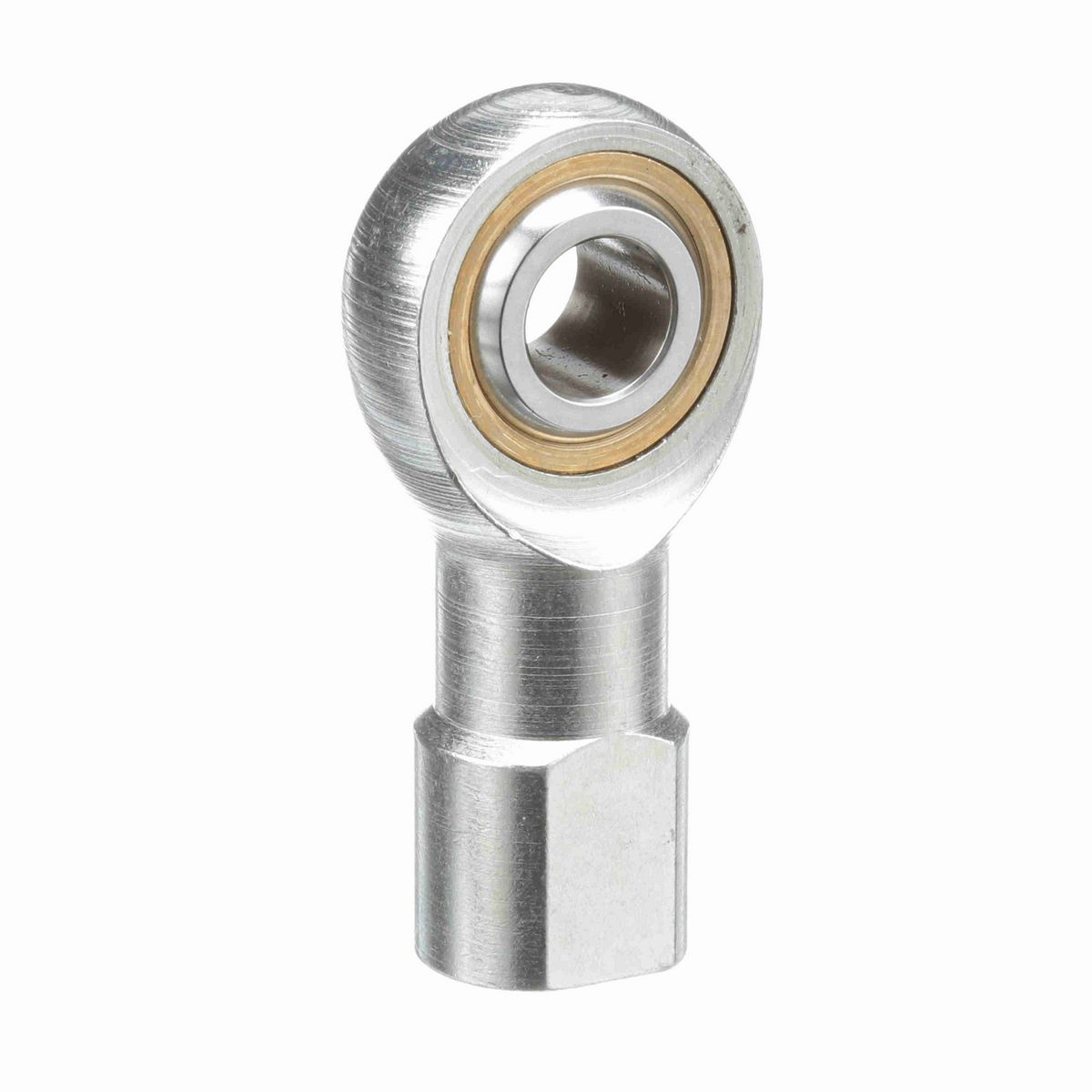

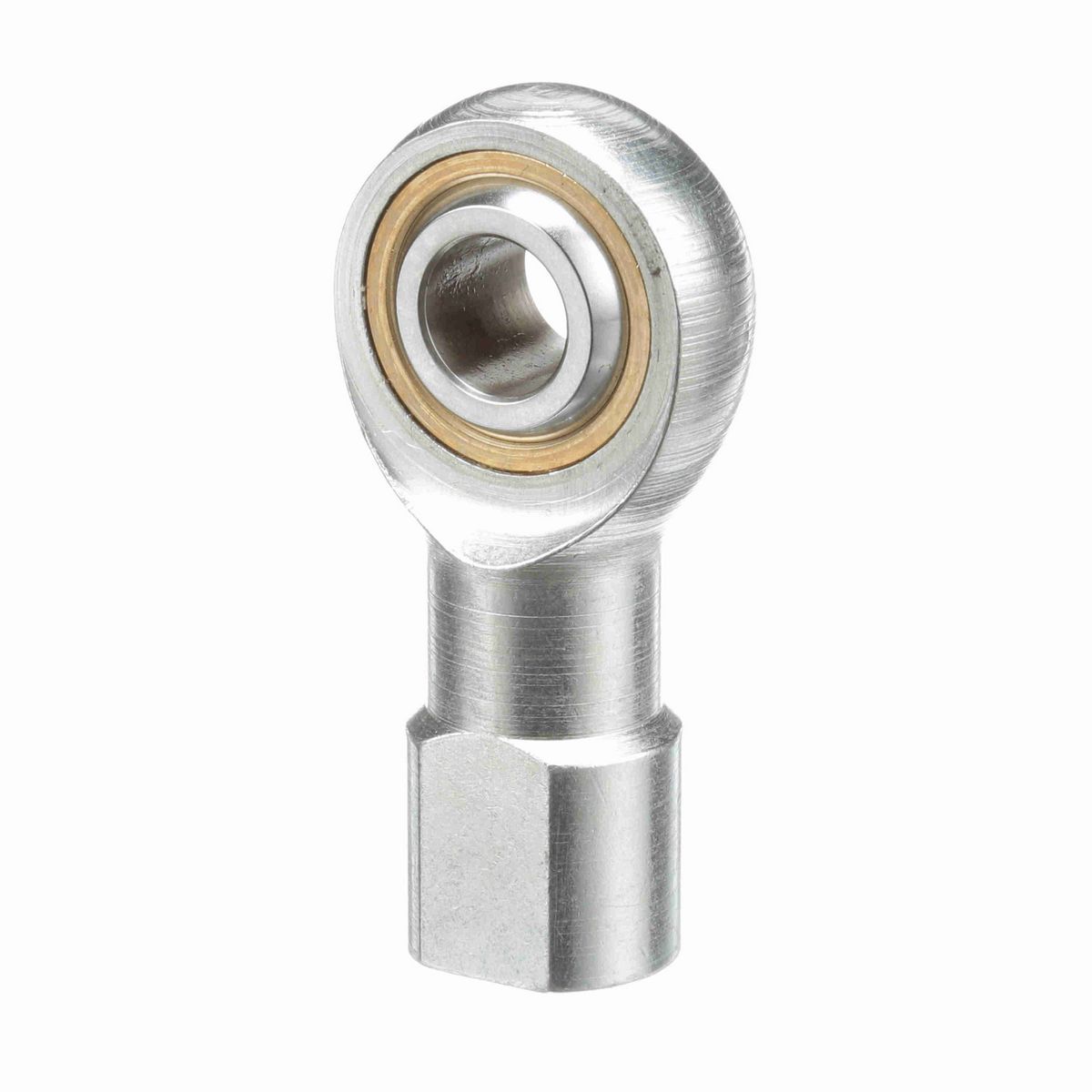

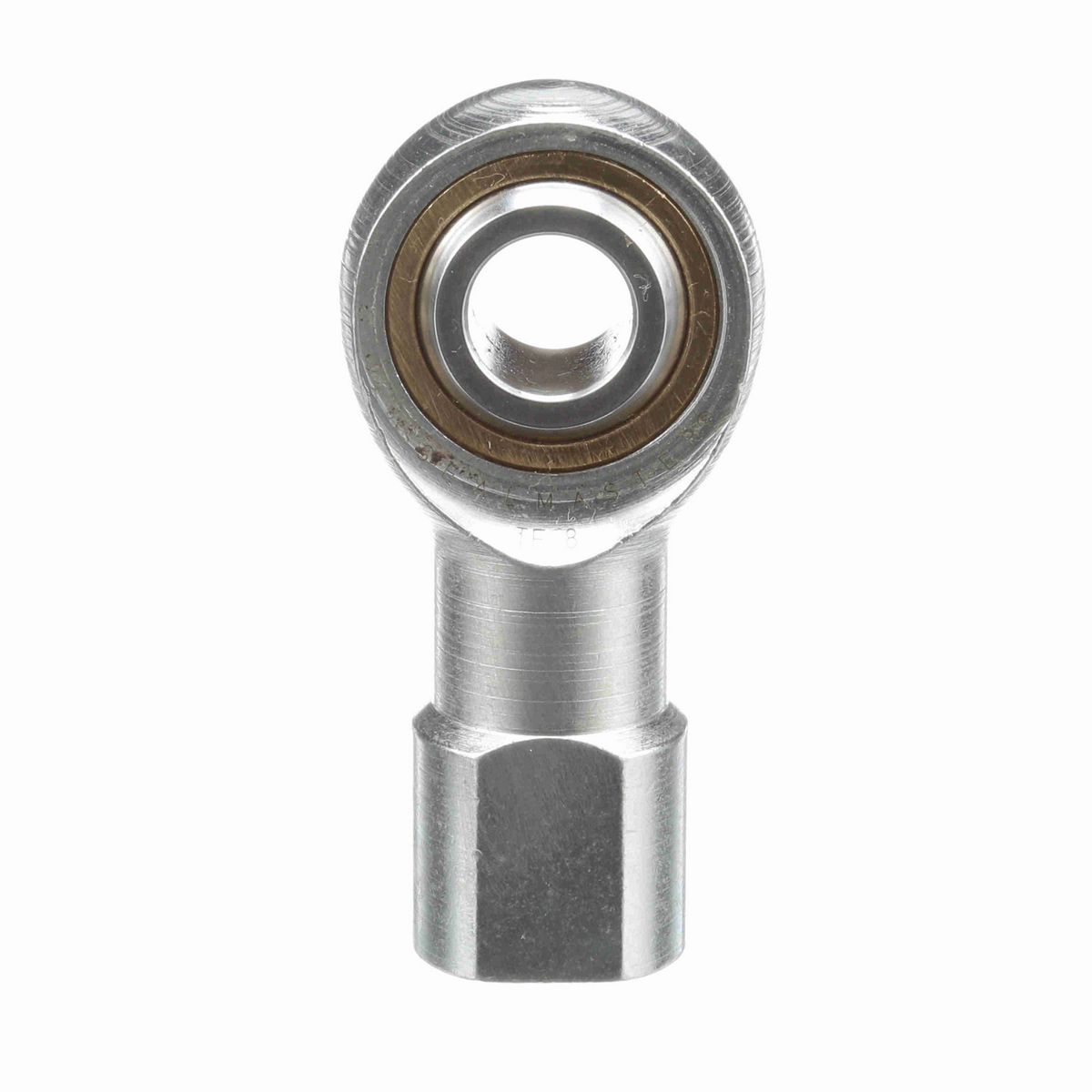

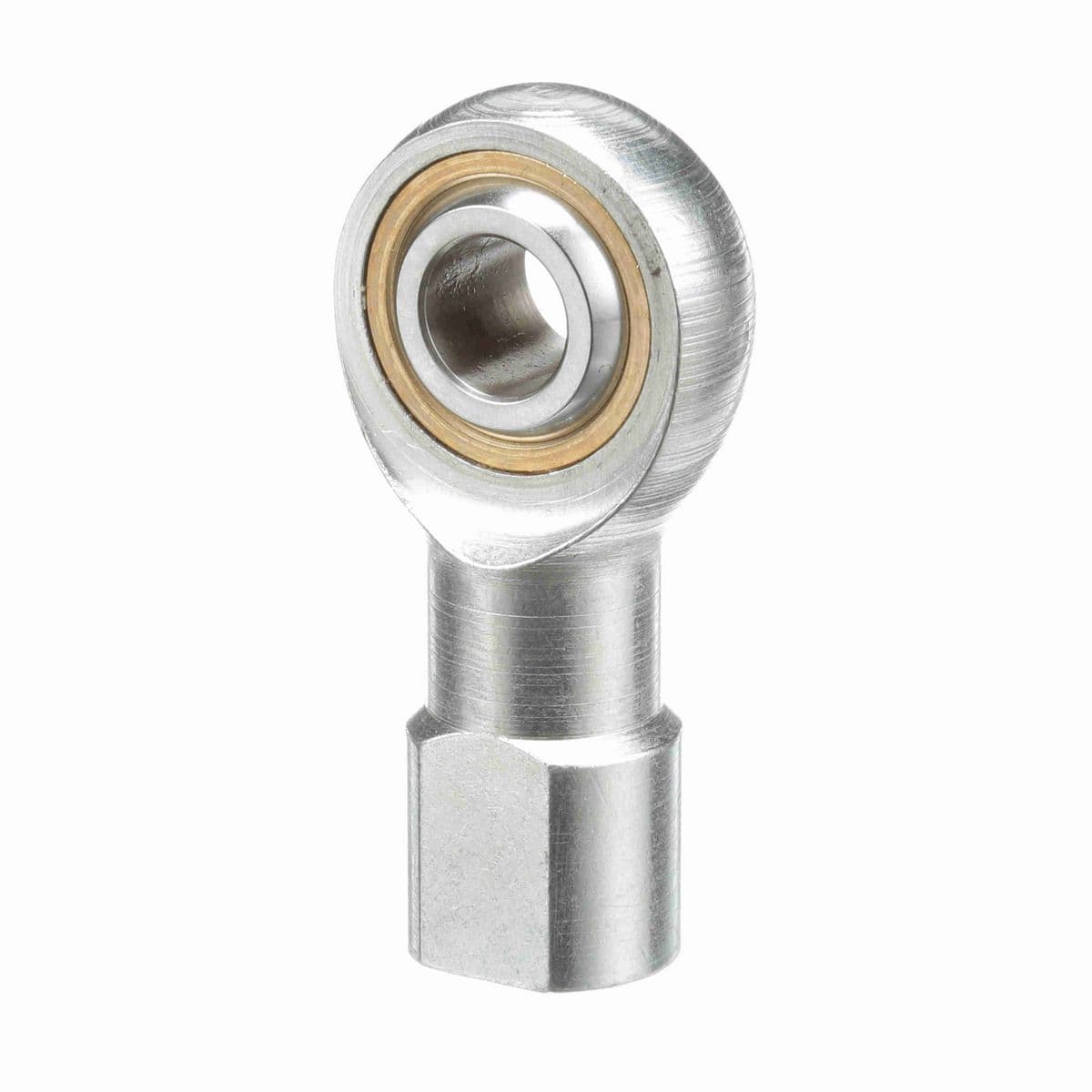

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race

Dimensions

Ball Diameter (in)	0.937 in
Head Diameter (in)	1.312 in
Thread Size	#1/2-20
Thread Length (in)	1.156 in
Ball Width (in)	0.625 in
Base Diameter (in)	0.875 in
Ball Flat Diameter (in)	0.698 in
Housing Width (in)	0.5 in
Length to Center of Ball (in)	2.13 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	6
Construction	Three-Piece Rod End
Product Selection Available SW	Y
Housing Style	Female Rod End
Series	Commercial
Configuration	Female
Lubrication Type	Grease
Thread Type	UNF
Across Wrench Flats	0.75
Bearing Type	Rod End
Axial Load	740
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Type	TF
Zerk Fitting SW	N
Race Material	Bronze
Max Static Radial Load	7,400
Thread	RH
Type	Female Rod End
Lubrication	No Zerk Fitting
Bore Size (in)	0.5000 in
Class	Commercial
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288723516
Weight	0.31 LB
Packaged Length	2.45 IN
Packaged Width	3.25 IN
Packaged Height	1.15 IN
HTC	8483.30.8055
Country of Origin	Mexico
