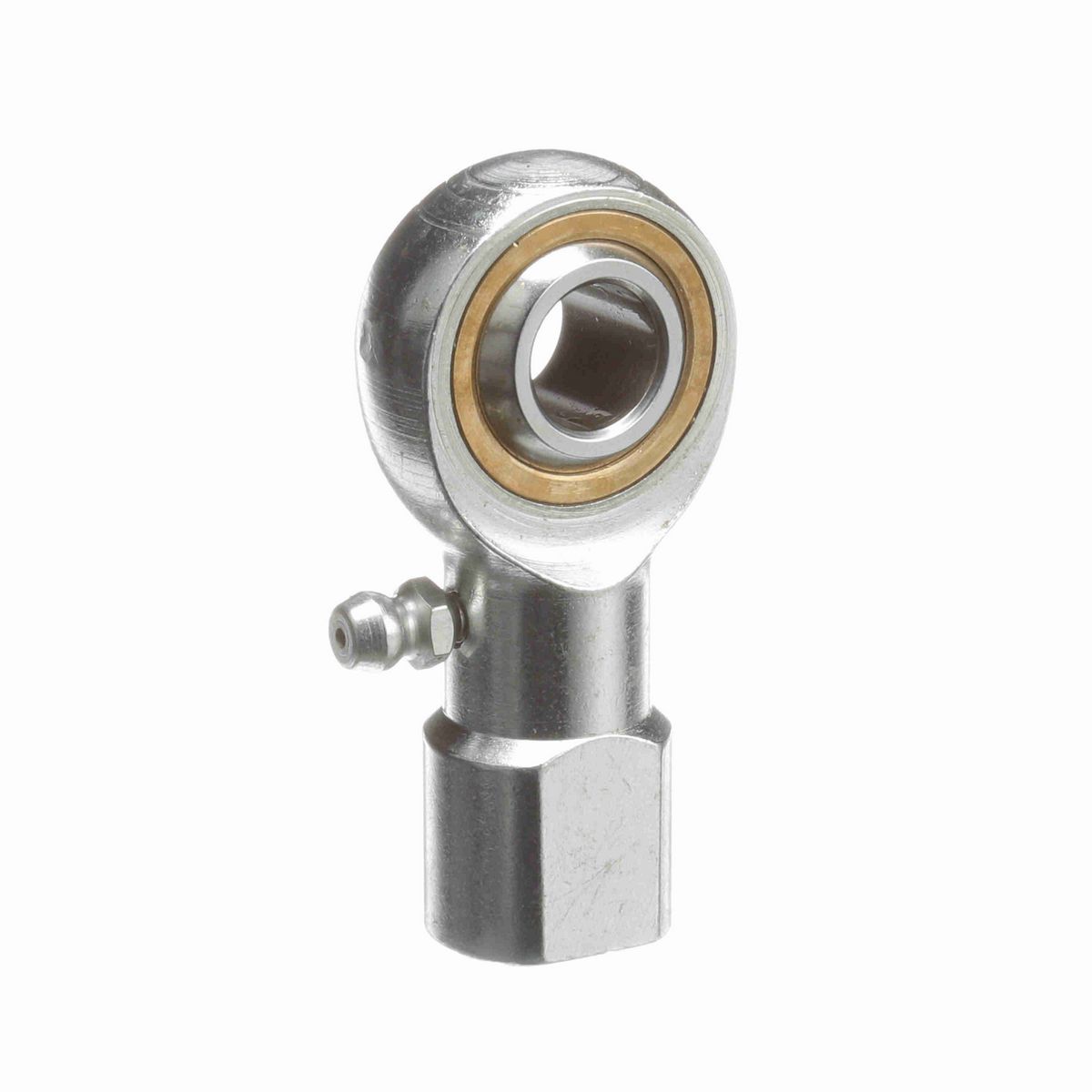

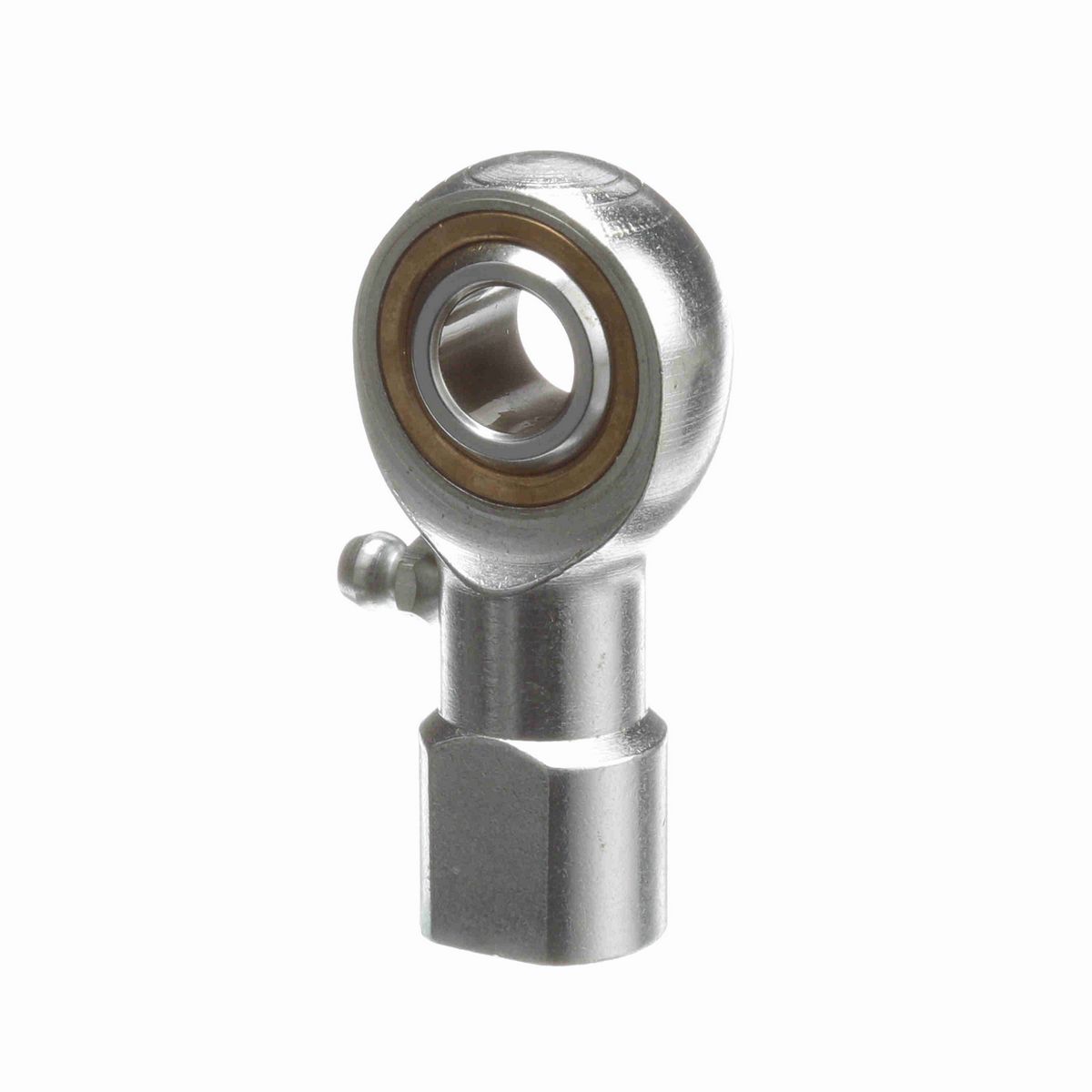

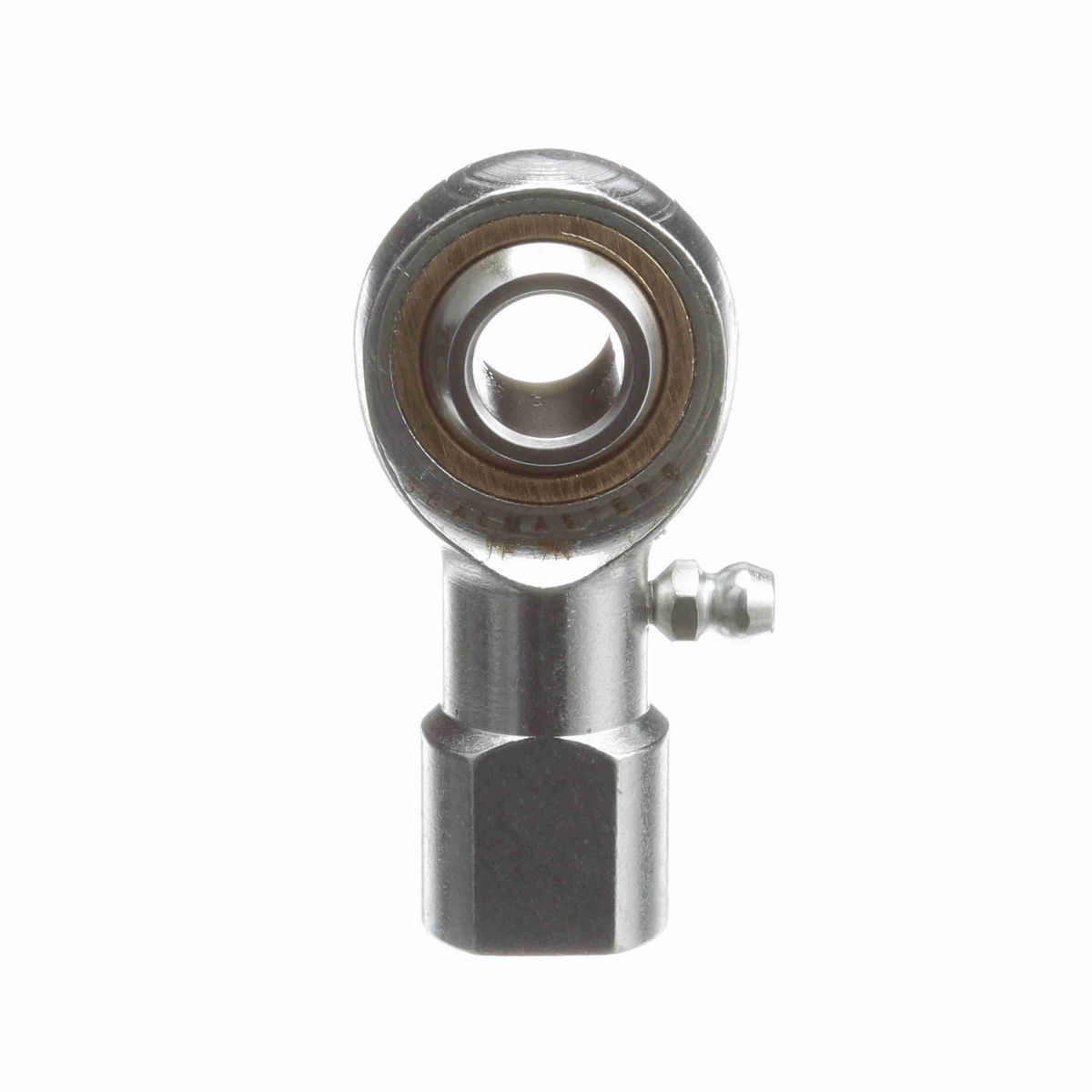

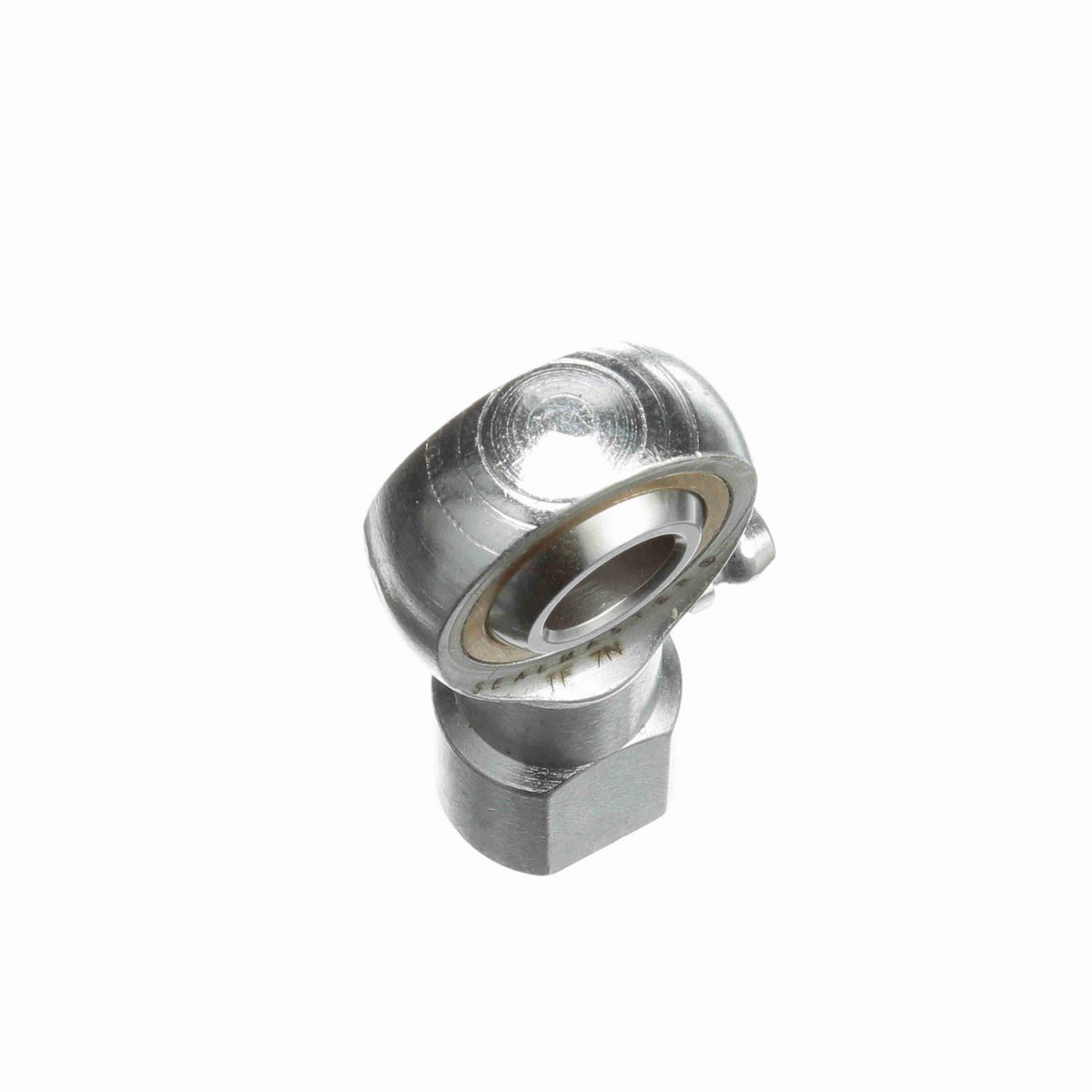

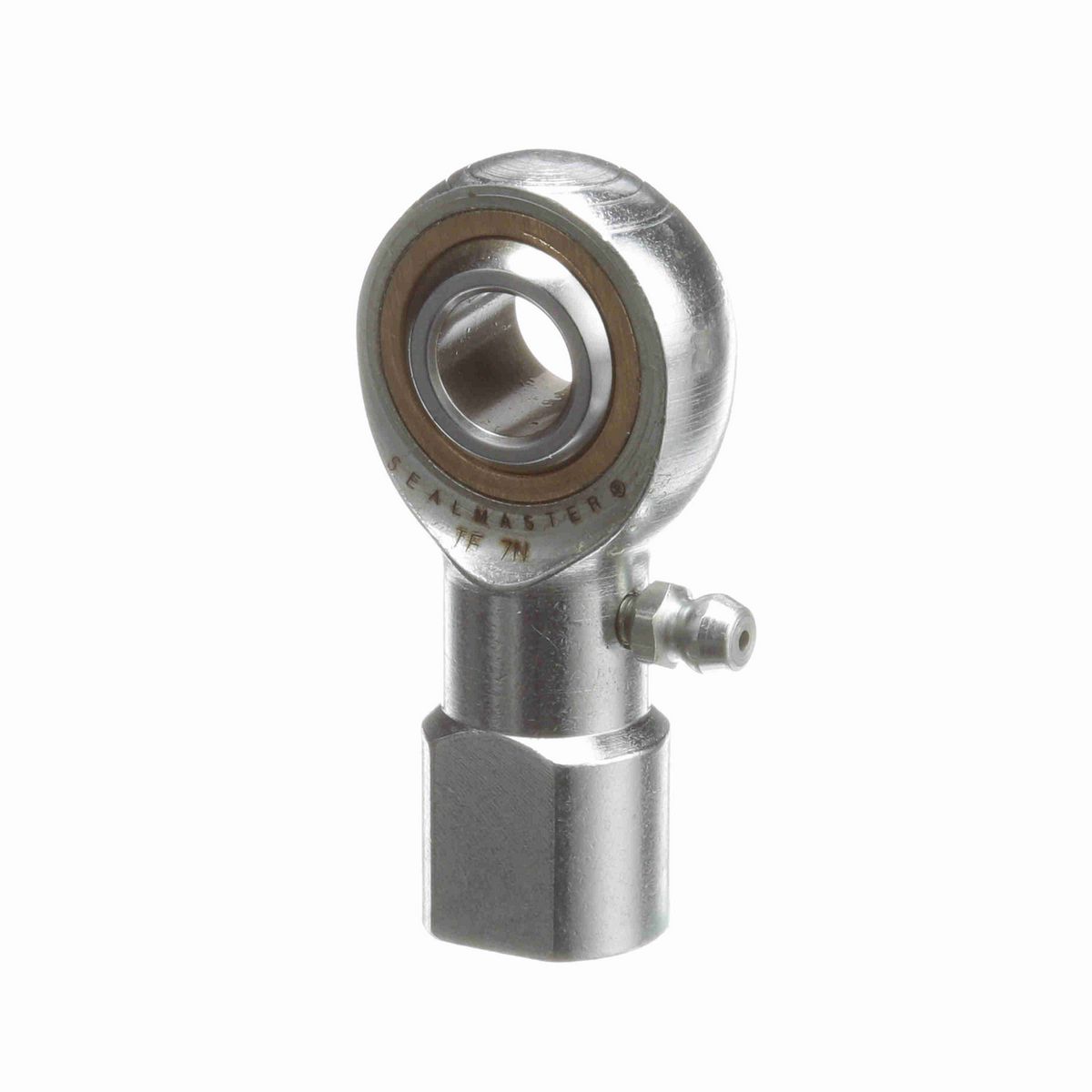

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race

Dimensions

Ball Flat Diameter (in)	0.586 in
Ball Width (in)	0.562 in
Thread Size	#7/16-20
Base Diameter (in)	0.75 in
Thread Length (in)	1.031 in
Ball Diameter (in)	0.812 in
Housing Width (in)	0.437 in
Head Diameter (in)	1.125 in
Length to Center of Ball (in)	1.81 in

Technical Specifications

Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication Type	Grease
Outer Material	Carbon Steel - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	7
Zerk Fitting SW	Y
Race Material	Bronze
Thread Type	UNF
Configuration	Female
Housing Style	Female Rod End
Product Selection Available SW	Y
Product Type	TF
Construction	Three-Piece Rod End with Zerk Fitting
Axial Load	535
Series	Commercial
Bearing Type	Rod End
Across Wrench Flats	0.625
Max Static Radial Load	5,350
Type	Female Rod End
Lubrication	Zerk Fitting
Thread	RH
Bore Size (in)	0.4375 in
Class	Commercial
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288724100
Weight	0.62 LB
Packaged Length	4.25 IN
Packaged Width	2.15 IN
Packaged Height	0.95 IN
HTC	8483.30.8055
Country of Origin	Mexico
