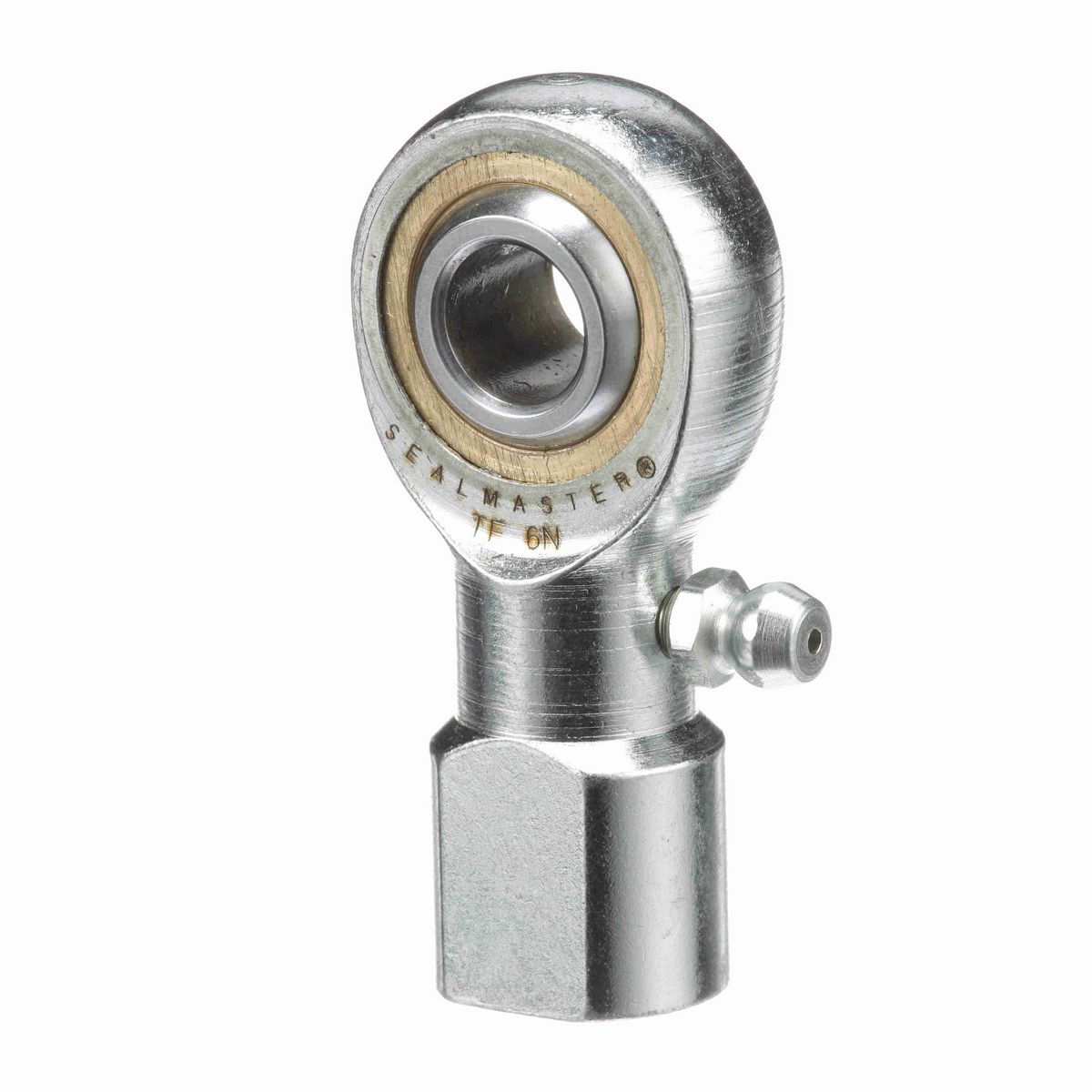

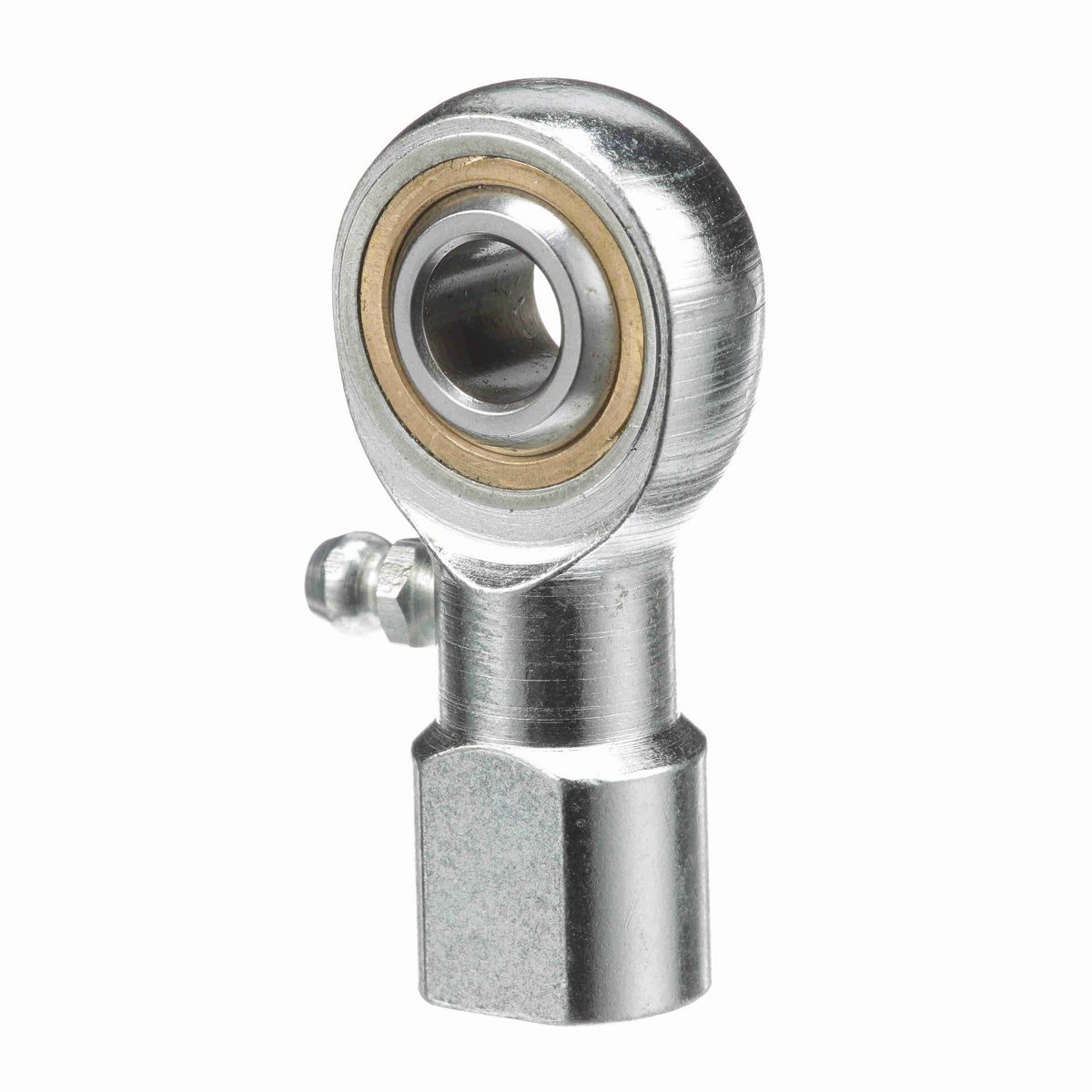

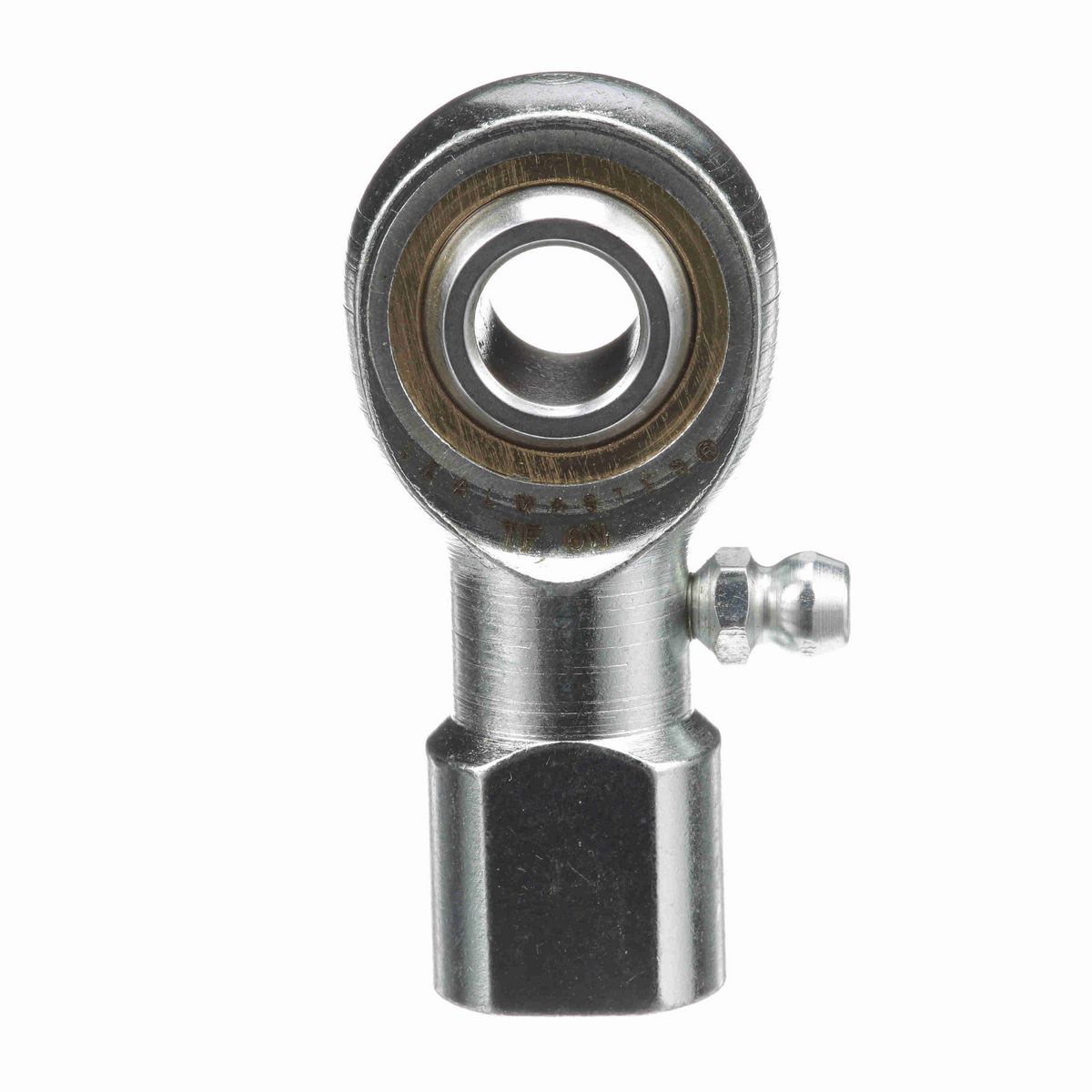

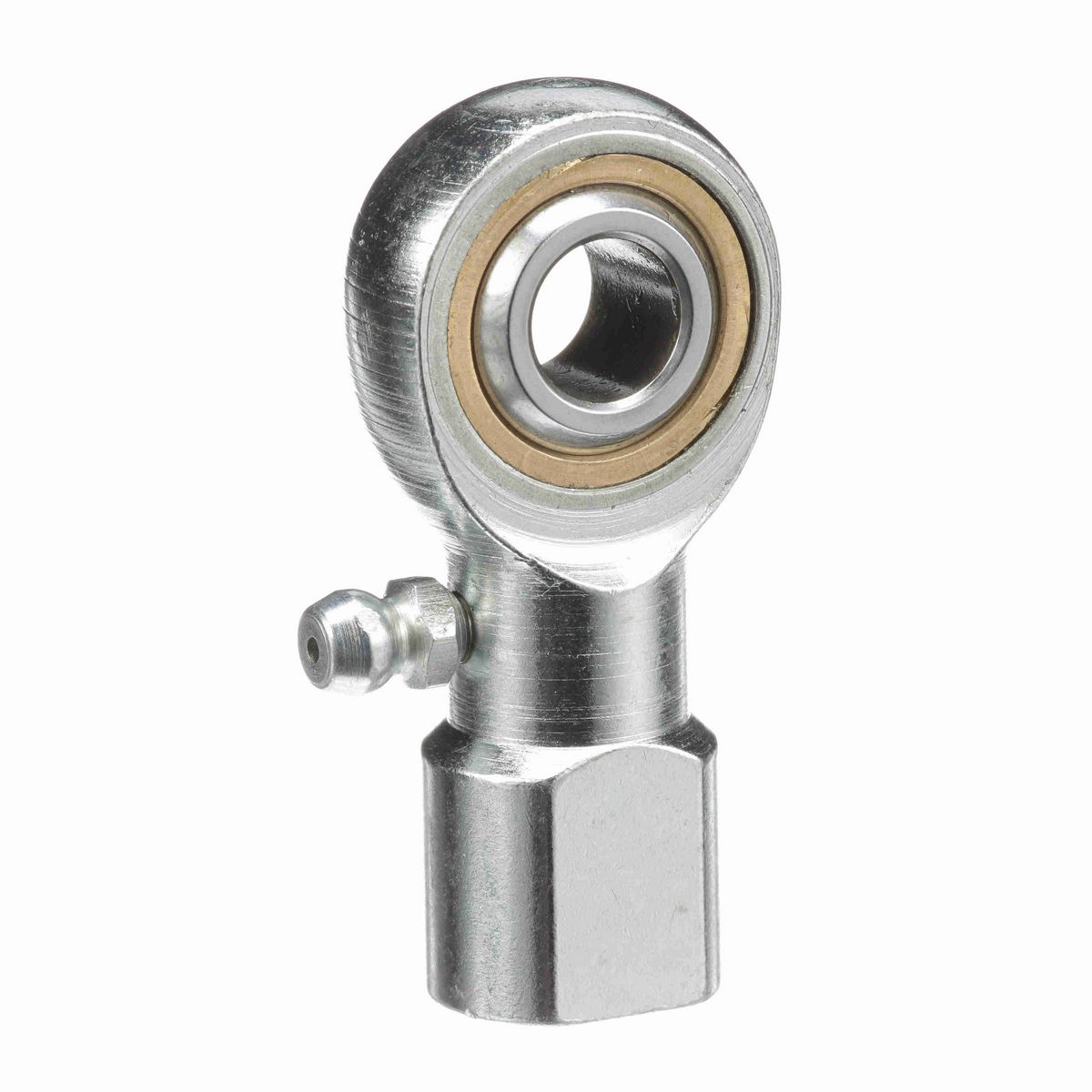

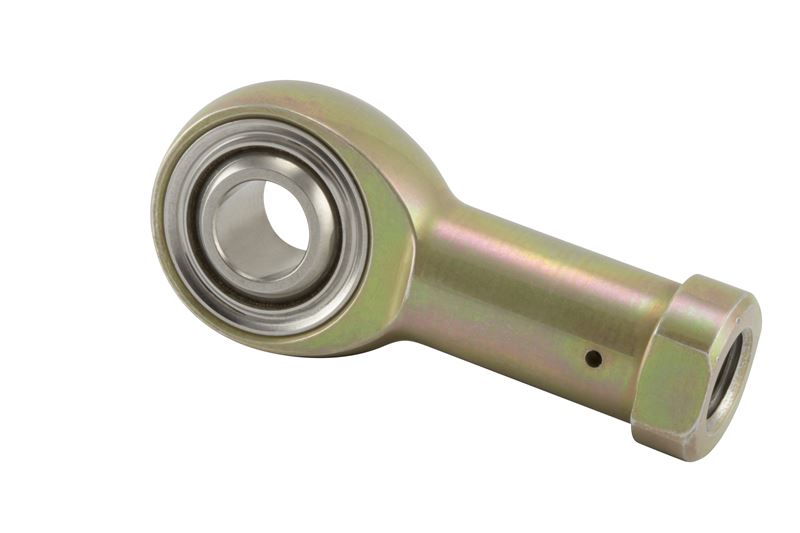

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race

Dimensions

Thread Size	#3/8-24
Thread Length (in)	0.906 in
Base Diameter (in)	0.688 in
Head Diameter (in)	1 in
Ball Diameter (in)	0.718 in
Ball Flat Diameter (in)	0.517 in
Housing Width (in)	0.406 in
Ball Width (in)	0.5 in
Length to Center of Ball (in)	1.63 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Housing Style	Female Rod End
Thread Type	UNF
Misalignment Angle - a Deg. +/-	6
Construction	Three-Piece Rod End with Zerk Fitting
Axial Load	445
Race Material	Bronze
Series	Commercial
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Across Wrench Flats	0.562
Product Selection Available SW	Y
Configuration	Female
Lubrication Type	Grease
Bearing Type	Rod End
Product Type	TF
Zerk Fitting SW	Y
Lubrication	Zerk Fitting
Type	Female Rod End
Thread	RH
Max Static Radial Load	4,450
Bore Size (in)	0.3750 in
Class	Commercial
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288724094
Weight	0.15 LB
Packaged Length	2.13 IN
Packaged Width	1.79 IN
Packaged Height	1.00 IN
HTC	8483.30.8055
Country of Origin	Mexico
