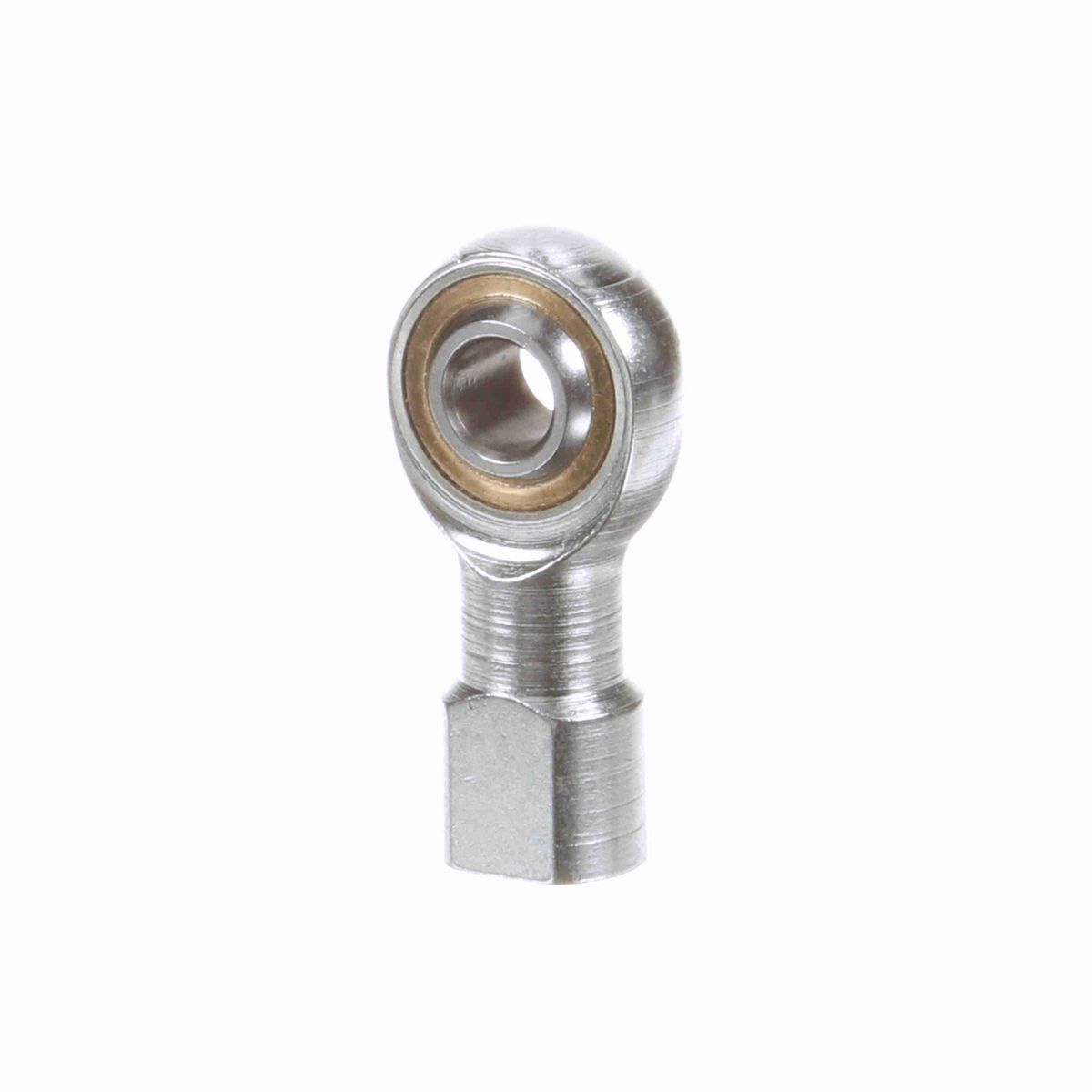

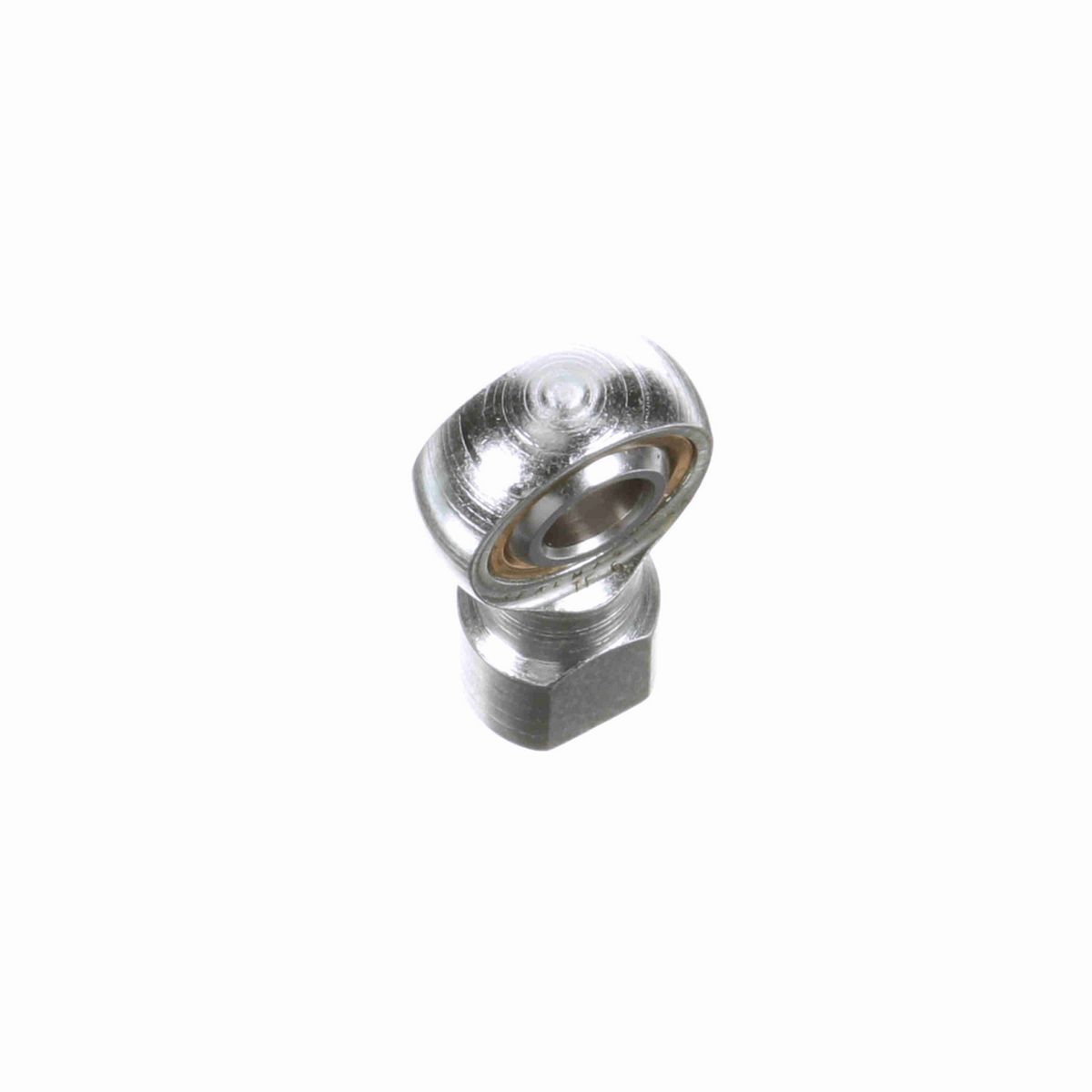

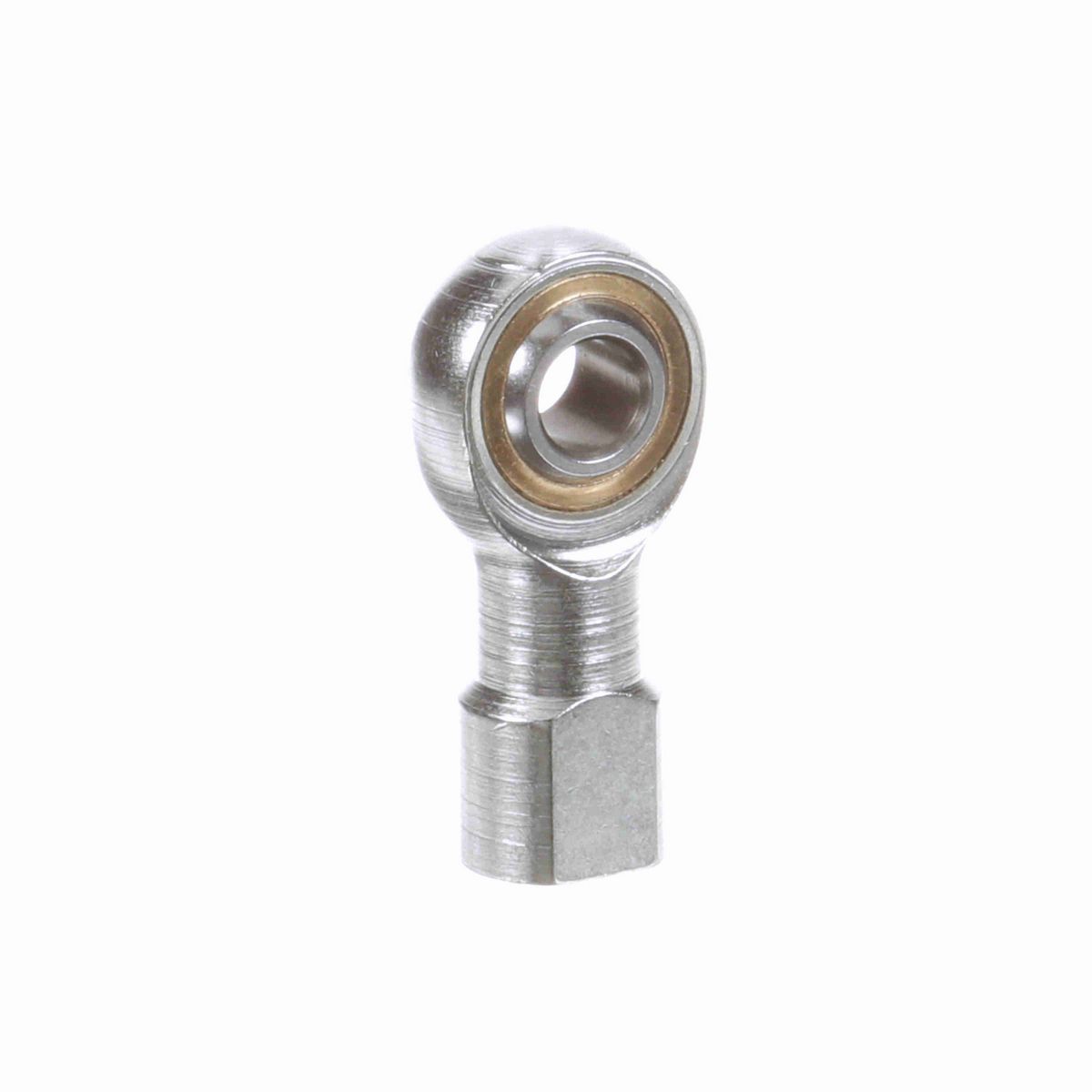

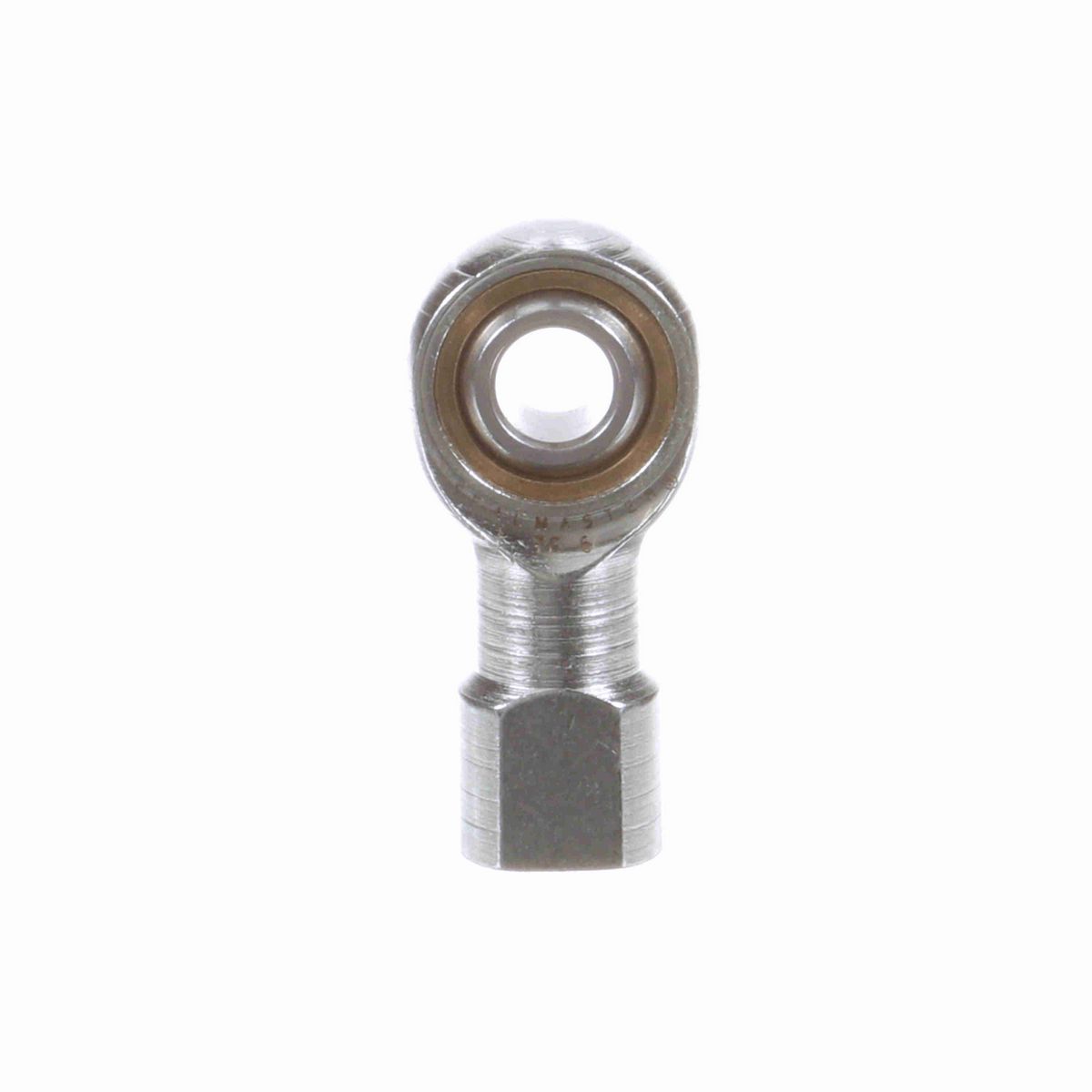

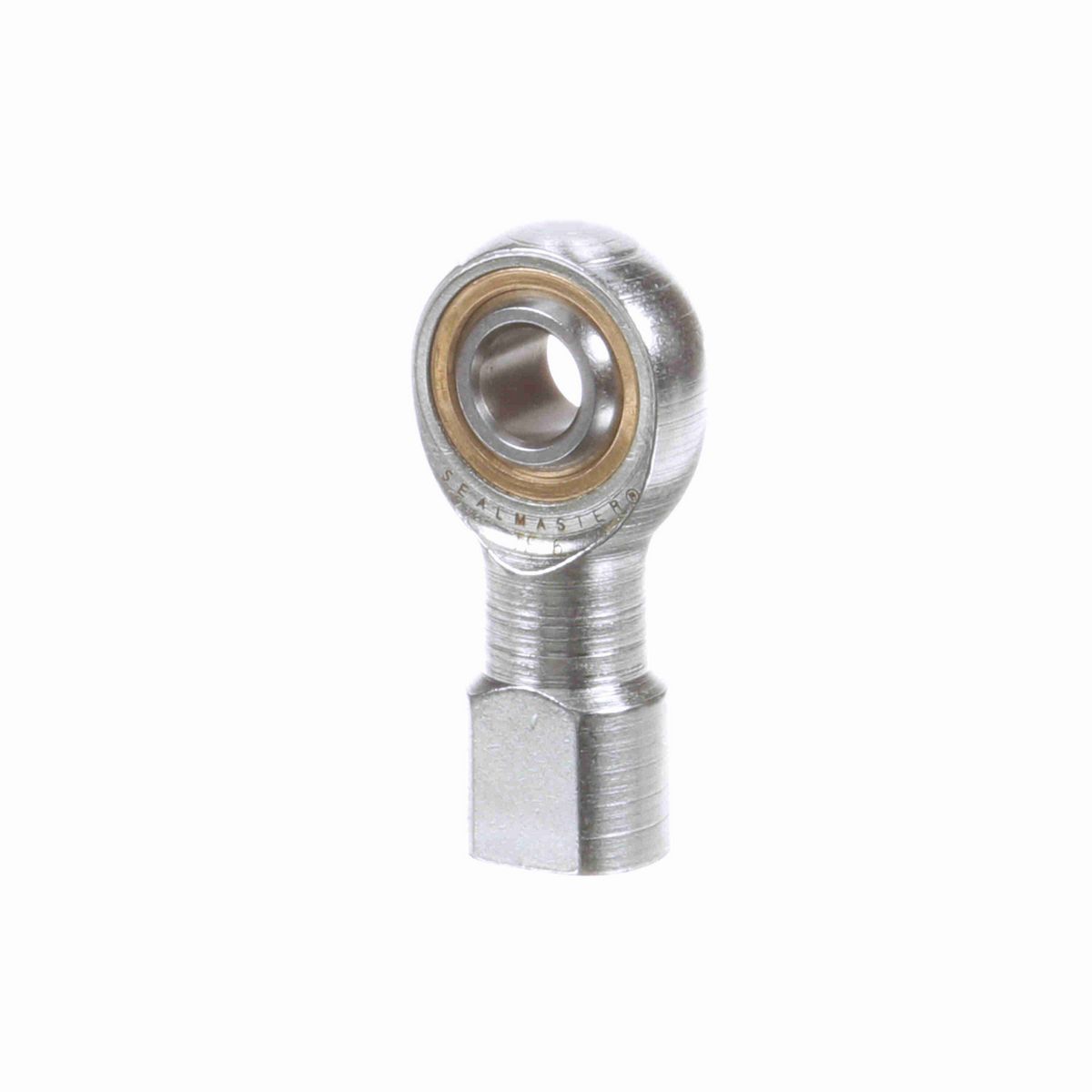

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race

Dimensions

Head Diameter (in)	1 in
Housing Width (in)	0.406 in
Thread Length (in)	0.906 in
Ball Flat Diameter (in)	0.517 in
Thread Size	#3/8-24
Base Diameter (in)	0.688 in
Ball Diameter (in)	0.718 in
Ball Width (in)	0.5 in
Length to Center of Ball (in)	1.63 in

Technical Specifications

Across Wrench Flats	0.562
Series	Commercial
Misalignment Angle - a Deg. +/-	6
Race Material	Bronze
Axial Load	445
Bearing Type	Rod End
Configuration	Female
Housing Style	Female Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Construction	Three-Piece Rod End
Outer Material	Carbon Steel - Corrosion Resistant Plating
Lubrication Type	Grease
Thread Type	UNF
Product Selection Available SW	Y
Product Type	TF
Zerk Fitting SW	N
Max Static Radial Load	4,450
Thread	RH
Lubrication	No Zerk Fitting
Type	Female Rod End
Bore Size (in)	0.3750 in
Class	Commercial
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288723493
Weight	0.55 LB
Packaged Length	3.70 IN
Packaged Width	2.00 IN
Packaged Height	0.75 IN
HTC	8483.30.8055
Country of Origin	Mexico
