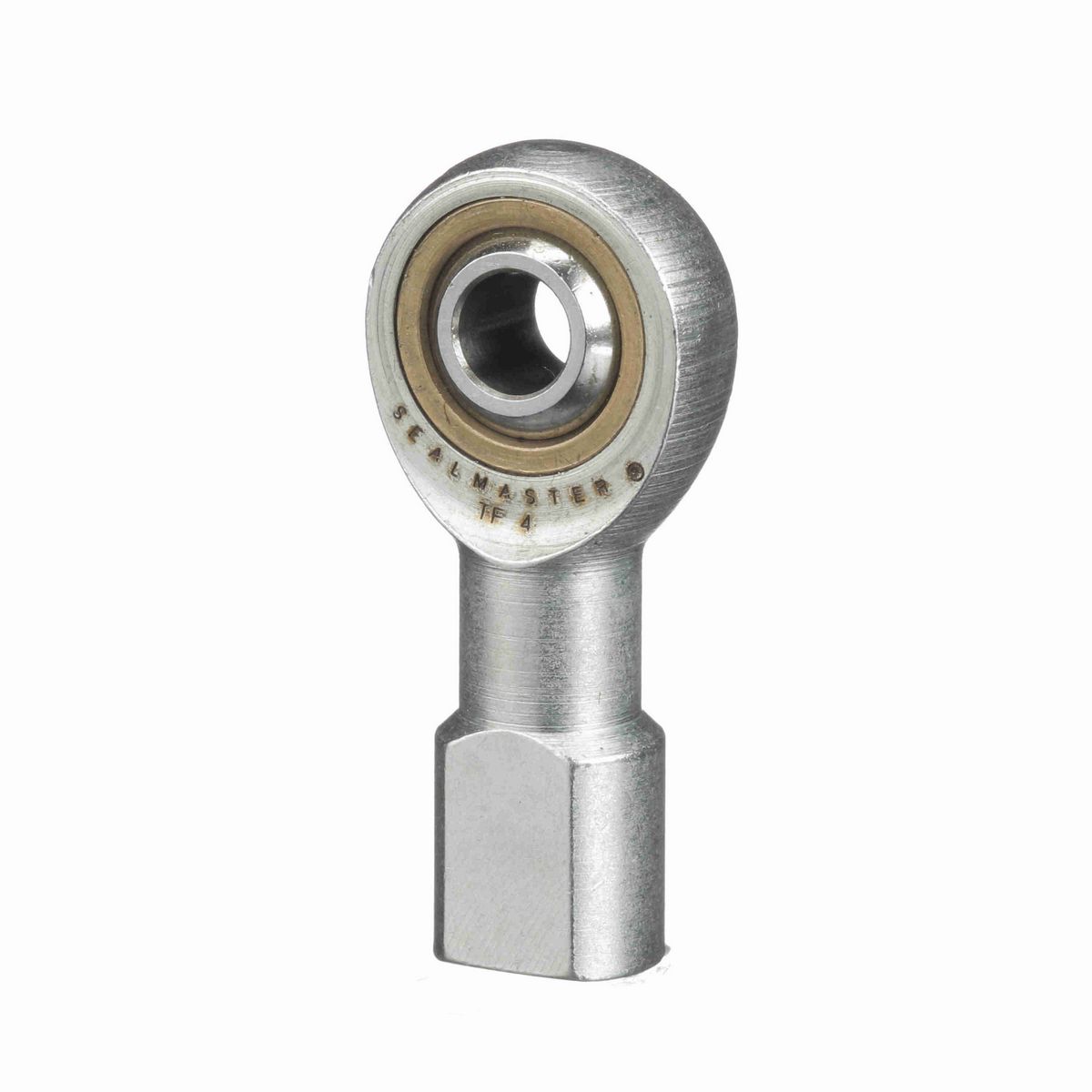

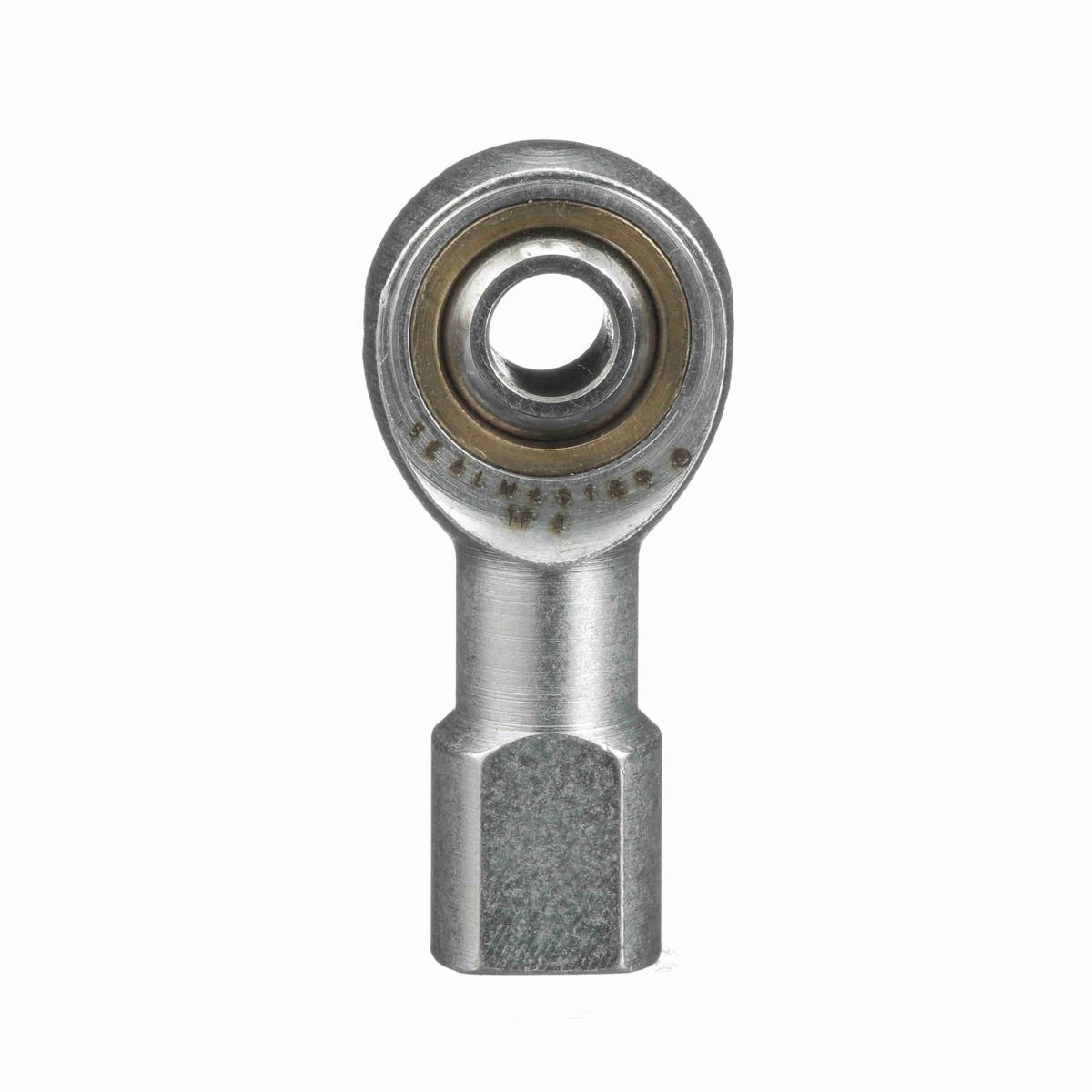

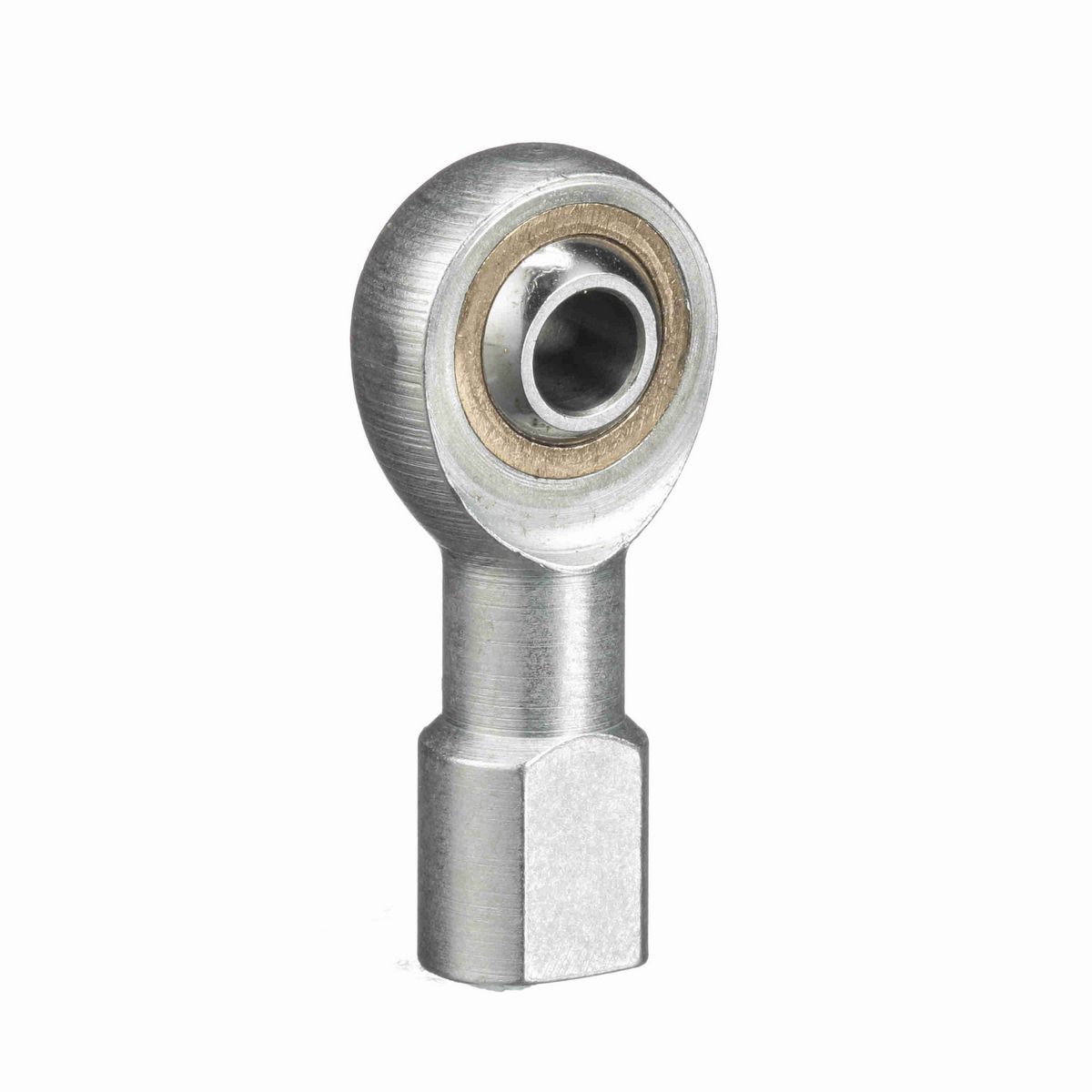

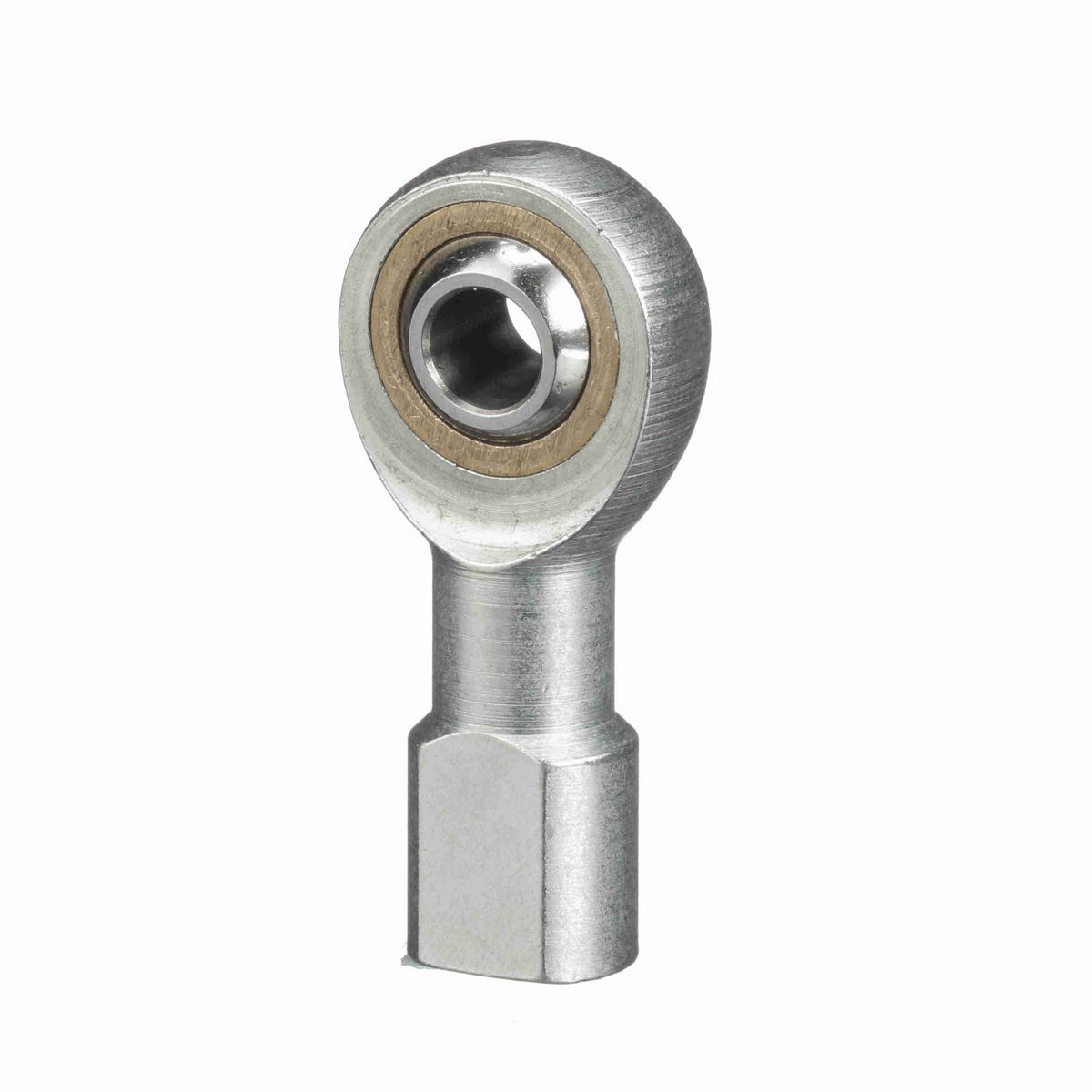

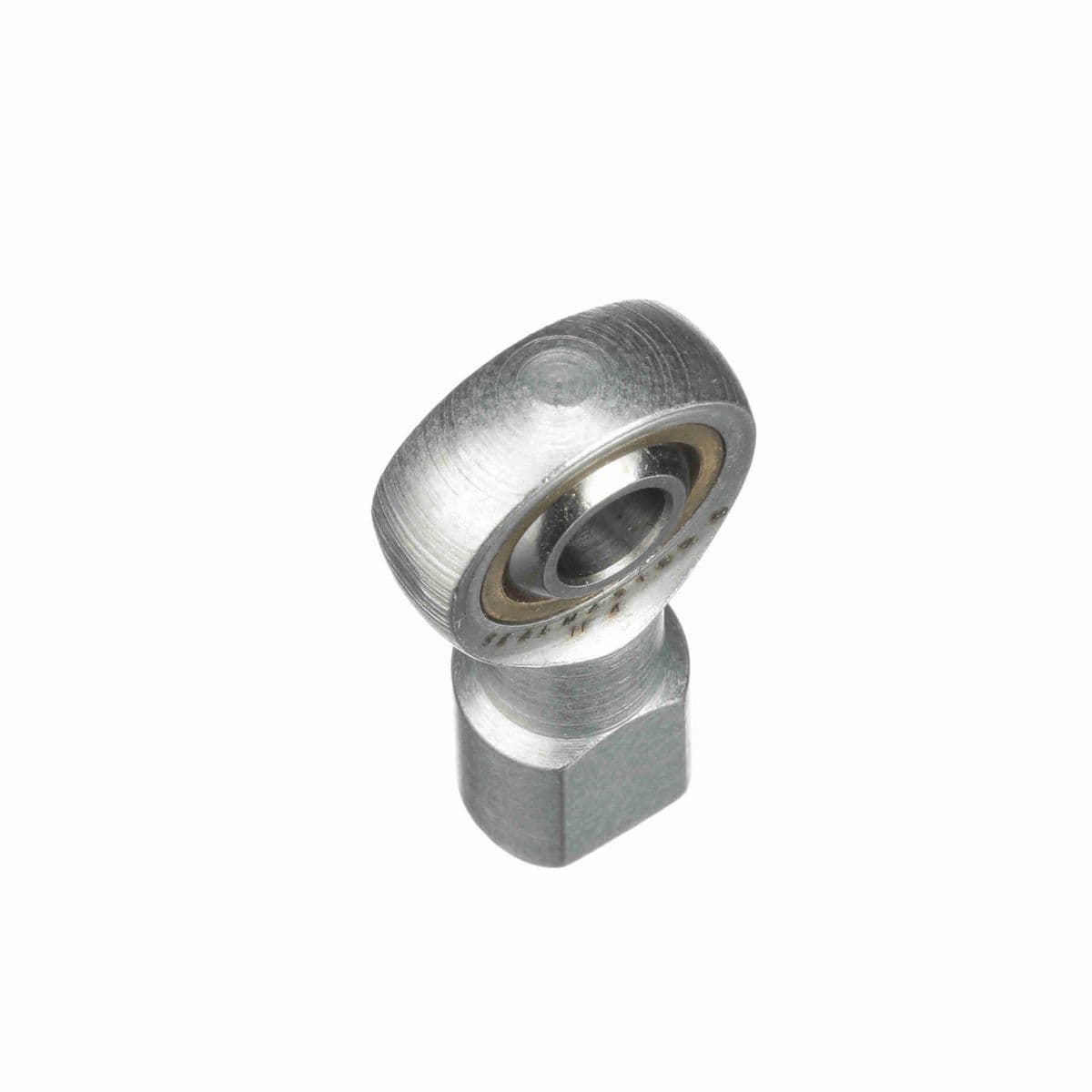

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race

Dimensions

Thread Size	#1/4-28
Thread Length (in)	0.719 in
Ball Flat Diameter (in)	0.331 in
Ball Width (in)	0.375 in
Base Diameter (in)	0.469 in
Ball Diameter (in)	0.5 in
Head Diameter (in)	0.75 in
Housing Width (in)	0.281 in
Length to Center of Ball (in)	1.31 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Housing Style	Female Rod End
Axial Load	270
Construction	Three-Piece Rod End
Across Wrench Flats	0.375
Thread Type	UNF
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Selection Available SW	Y
Lubrication Type	Grease
Configuration	Female
Race Material	Bronze
Series	Commercial
Bearing Type	Rod End
Zerk Fitting SW	N
Misalignment Angle - a Deg. +/-	8
Product Type	TF
Max Static Radial Load	2,700
Thread	RH
Lubrication	No Zerk Fitting
Type	Female Rod End
Class	Commercial
Bore Size (in)	0.2500 in
Lubrication Method	No Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	None

General Specifications

UPC	662288723479
Weight	0.06 LB
Packaged Length	2.65 IN
Packaged Width	2.10 IN
Packaged Height	0.85 IN
HTC	8483.30.8055
Country of Origin	Mexico
