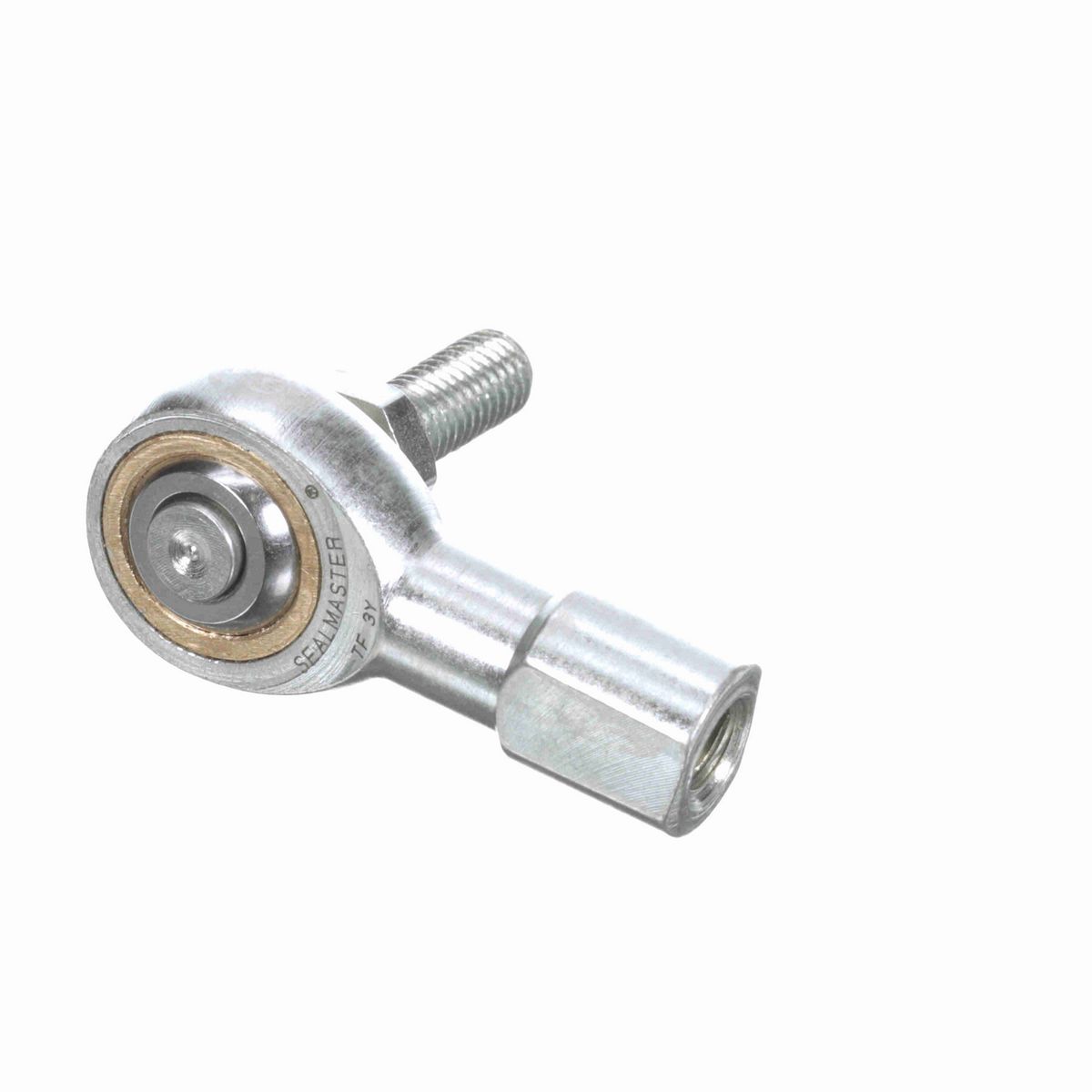

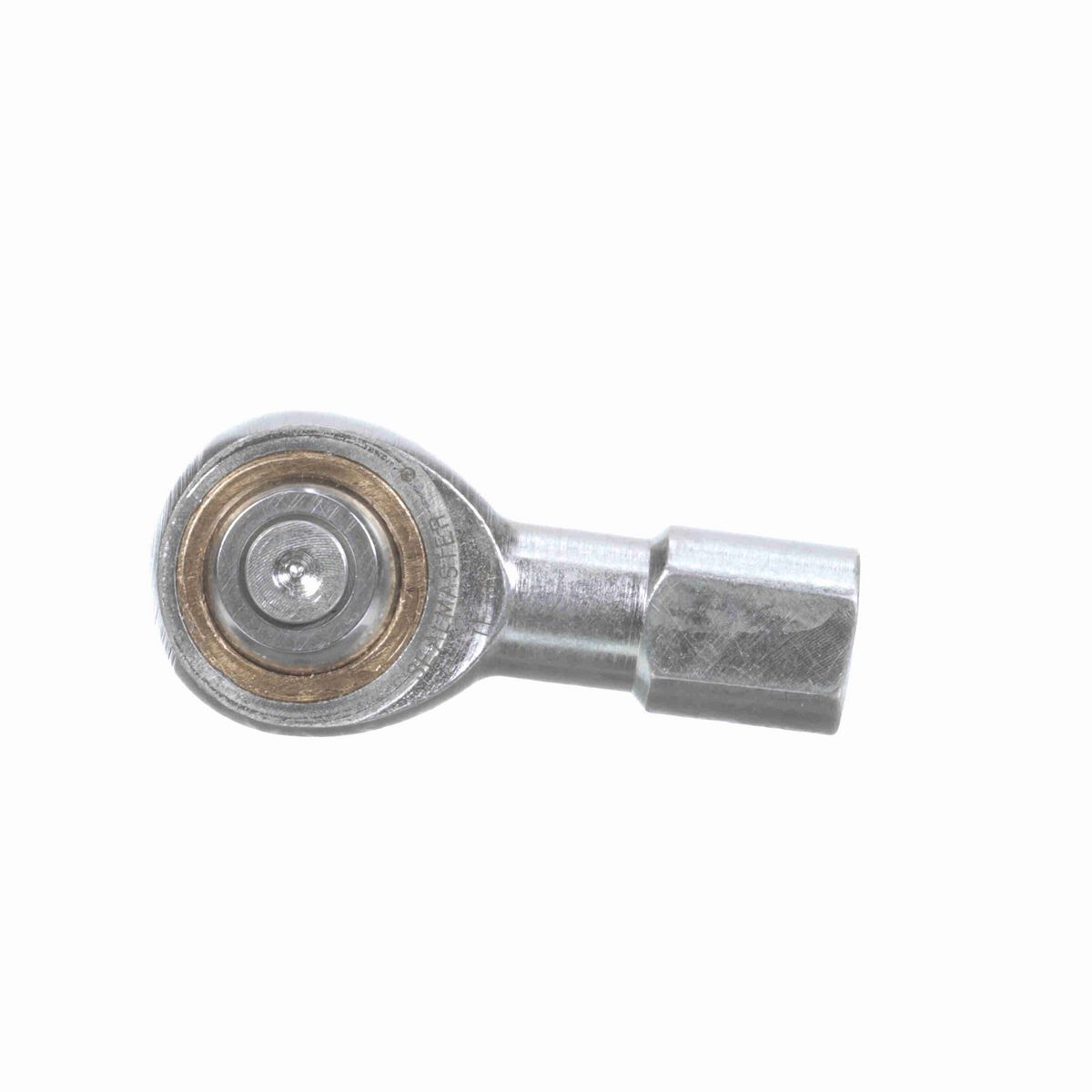

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race
• Y Stud

Dimensions

Thread Size	#10-32
Housing Width (in)	0.25 in
Base Diameter (in)	0.375 in
Ball Width (in)	0.312 in
Ball Diameter (in)	0.437 in
Ball Flat Diameter (in)	0.306 in
Thread Length (in)	0.531 in
Head Diameter (in)	0.625 in
Stud Length to Center of Ball (in)	0.97 in
Stud Thread Length (in)	0.4375 in
Length to Center of Ball (in)	1.06 in
Stud Length to Hex (in)	0.5 in

Technical Specifications

Construction	Three-Piece Rod End with Y Stud
Bearing Type	Rod End
Housing Style	Female Rod End
Zerk Fitting SW	N
Race Material	Bronze
Product Selection Available SW	N
Outer Material	Carbon Steel - Corrosion Resistant Plating
Axial Load	185
Product Type	TF
Y Stud Material	Carbon Steel - corrosion resistant plating
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication Type	Grease
Across Wrench Flats	0.312
Thread Type	UNF
Configuration	Female
Series	Commercial
Lubrication	No Zerk Fitting
Max Static Radial Load	1,850
Type	Female Rod End
Misalignment Angle B3	27
Thread	RH
Bore Size (in)	0.1875 in
Class	Commercial
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288723936
Weight	0.05 LB
Packaged Length	1.38 IN
Packaged Width	1.13 IN
Packaged Height	0.63 IN
HTC	8483.30.8055
Country of Origin	Mexico
