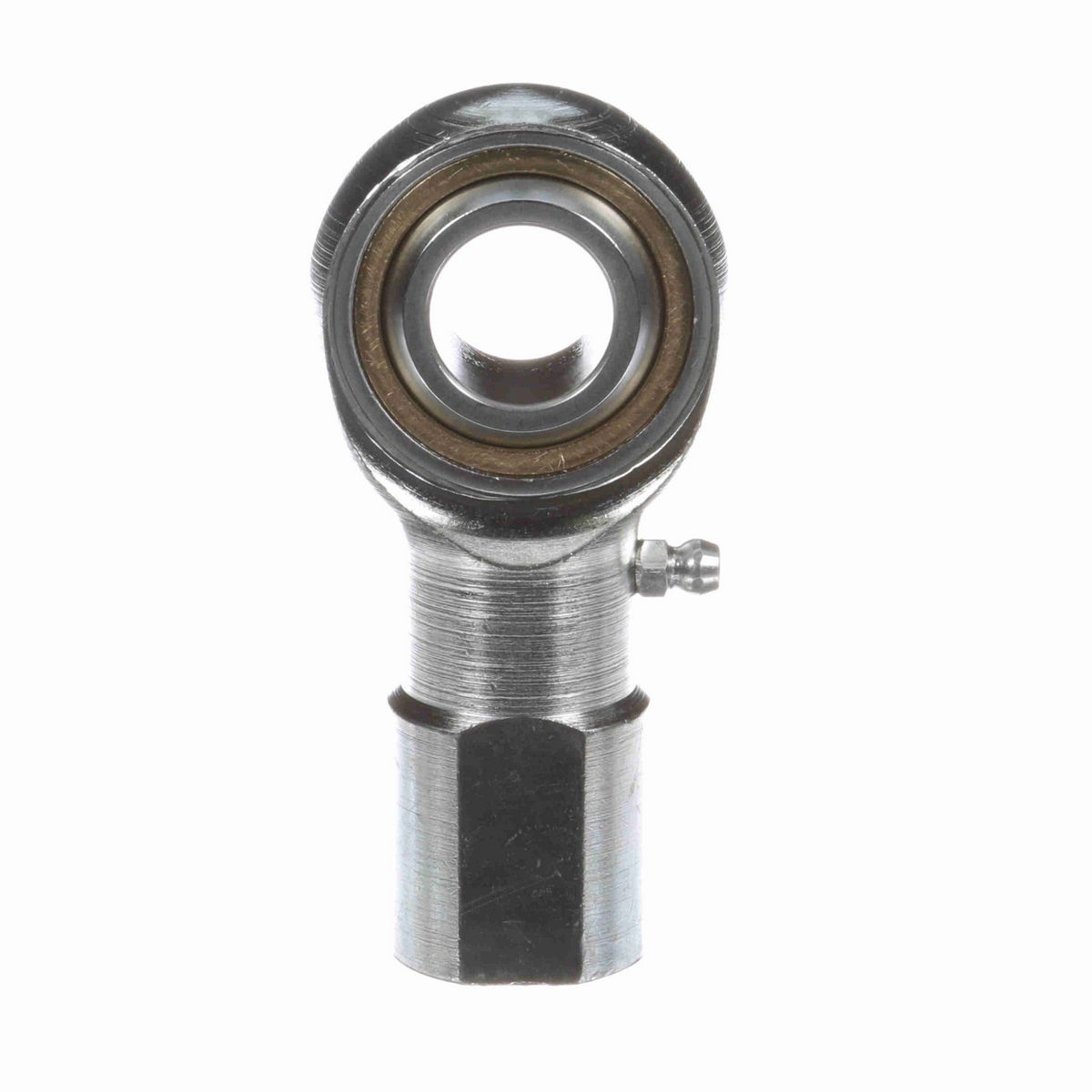

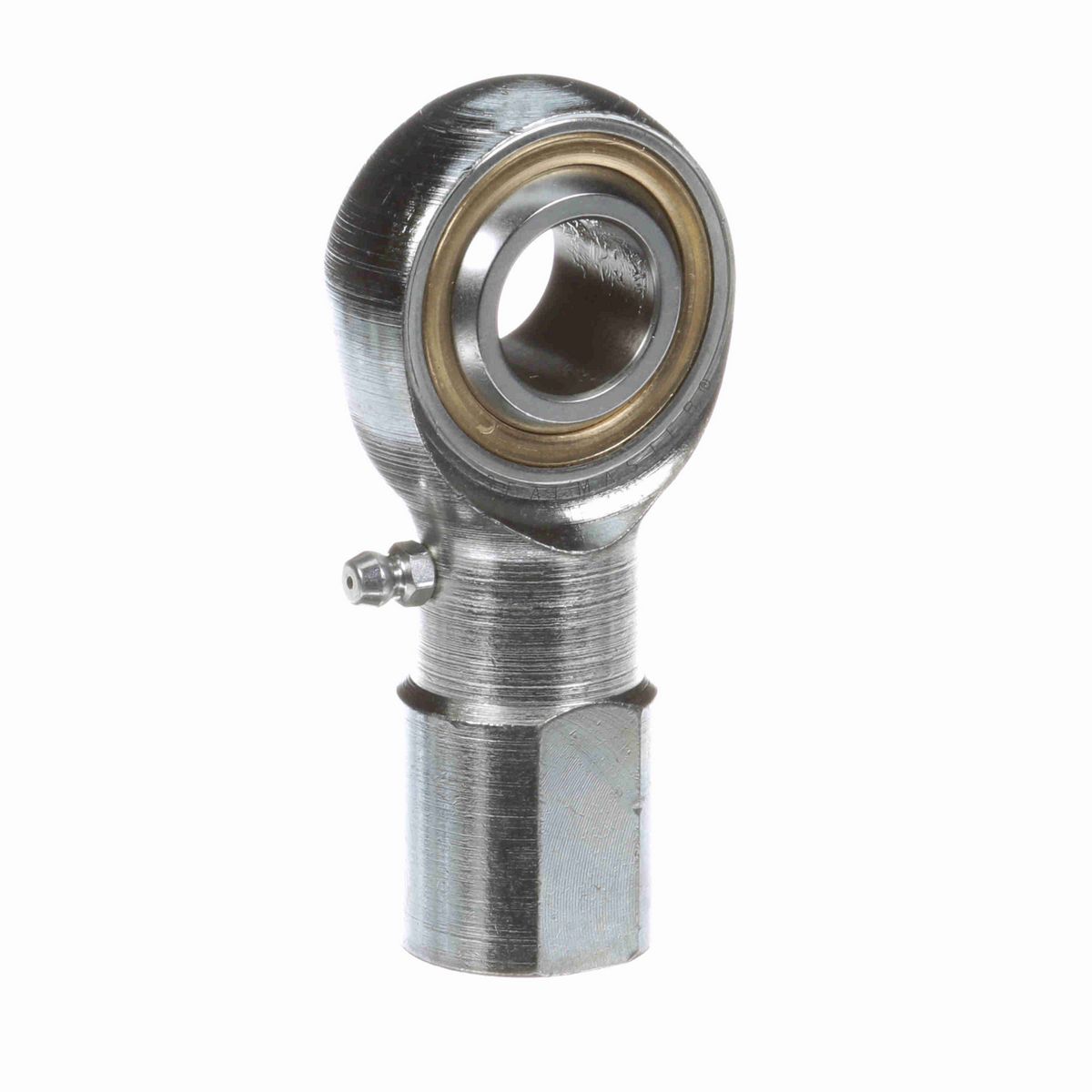

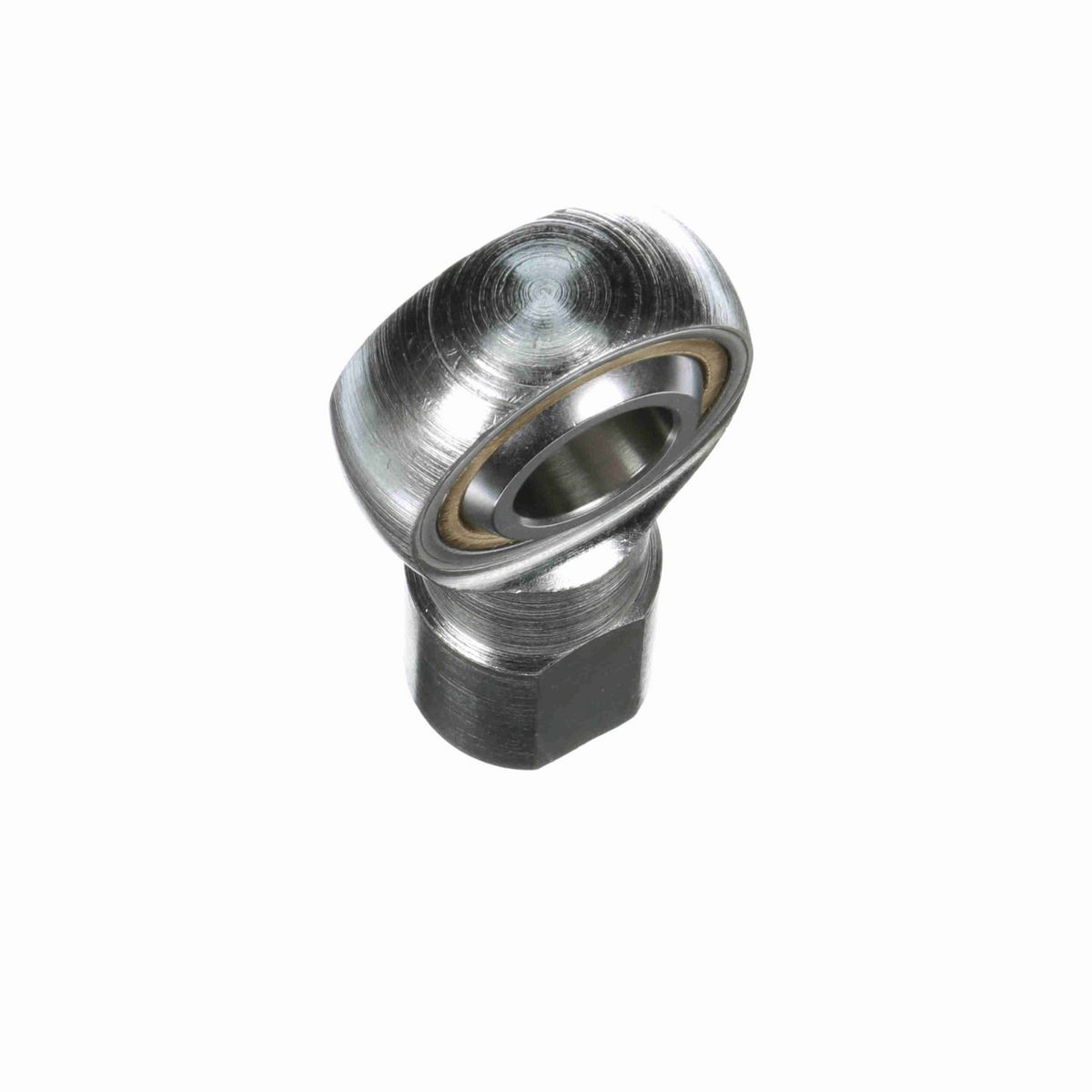

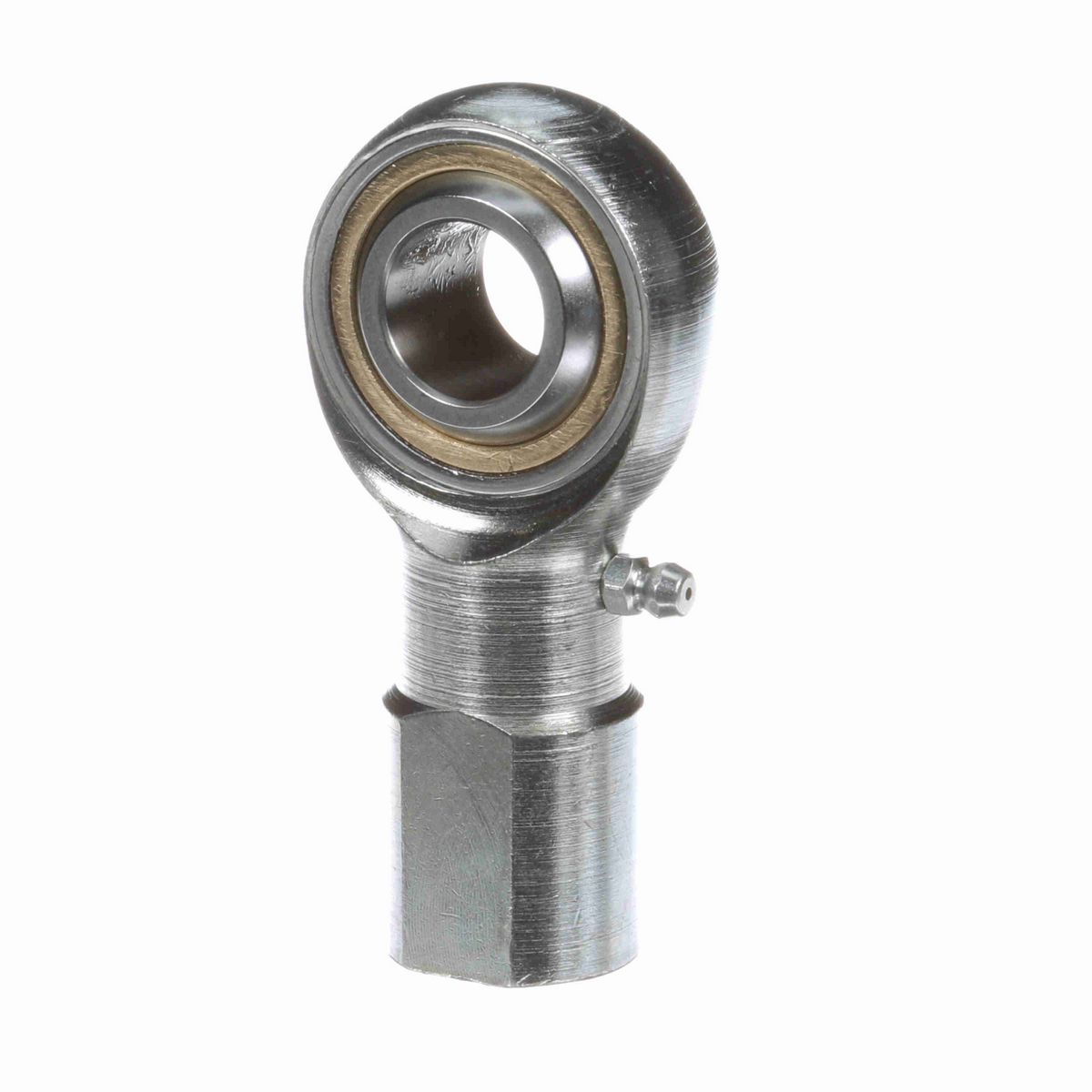

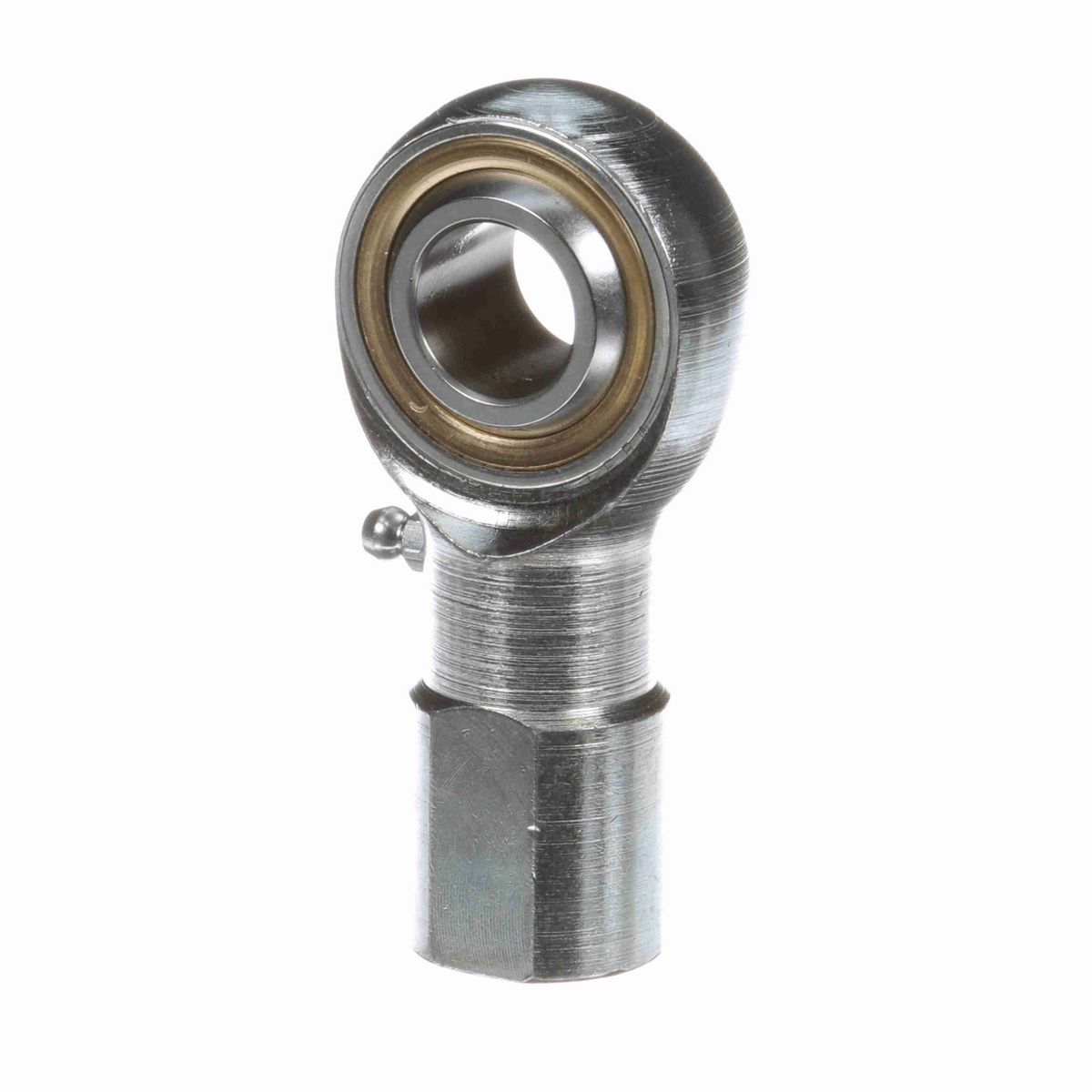

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race

Dimensions

Thread Size	#3/4-16
Ball Flat Diameter (in)	0.978 in
Ball Diameter (in)	1.312 in
Thread Length (in)	1.719 in
Housing Width (in)	0.687 in
Ball Width (in)	0.875 in
Base Diameter (in)	1.125 in
Head Diameter (in)	1.75 in
Length to Center of Ball (in)	2.88 in

Technical Specifications

Misalignment Angle - a Deg. +/-	7
Bearing Type	Rod End
Series	Commercial
Axial Load	1,130
Construction	Three-Piece Rod End with Zerk Fitting
Lubrication Type	Grease
Configuration	Female
Product Selection Available SW	Y
Zerk Fitting SW	Y
Race Material	Bronze
Outer Material	Carbon Steel - Corrosion Resistant Plating
Thread Type	UNF
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Housing Style	Female Rod End
Across Wrench Flats	1
Product Type	TF
Lubrication	Zerk Fitting
Type	Female Rod End
Max Static Radial Load	11,300
Thread	RH
Class	Commercial
Bore Size (in)	0.7500 in
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288724131
Weight	0.69 LB
Packaged Length	2.25 IN
Packaged Width	3.95 IN
Packaged Height	1.20 IN
HTC	8483.30.8055
Country of Origin	Mexico
