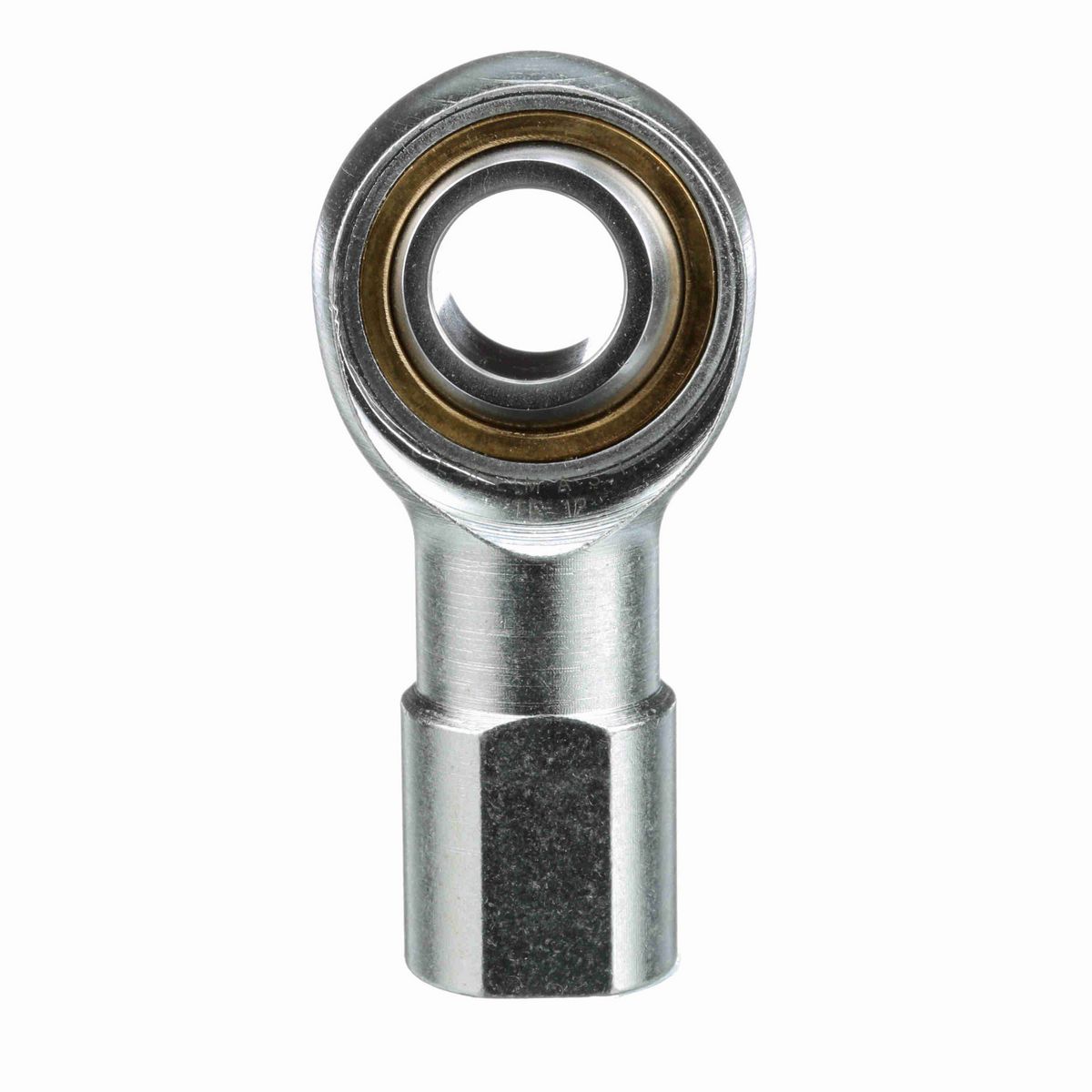

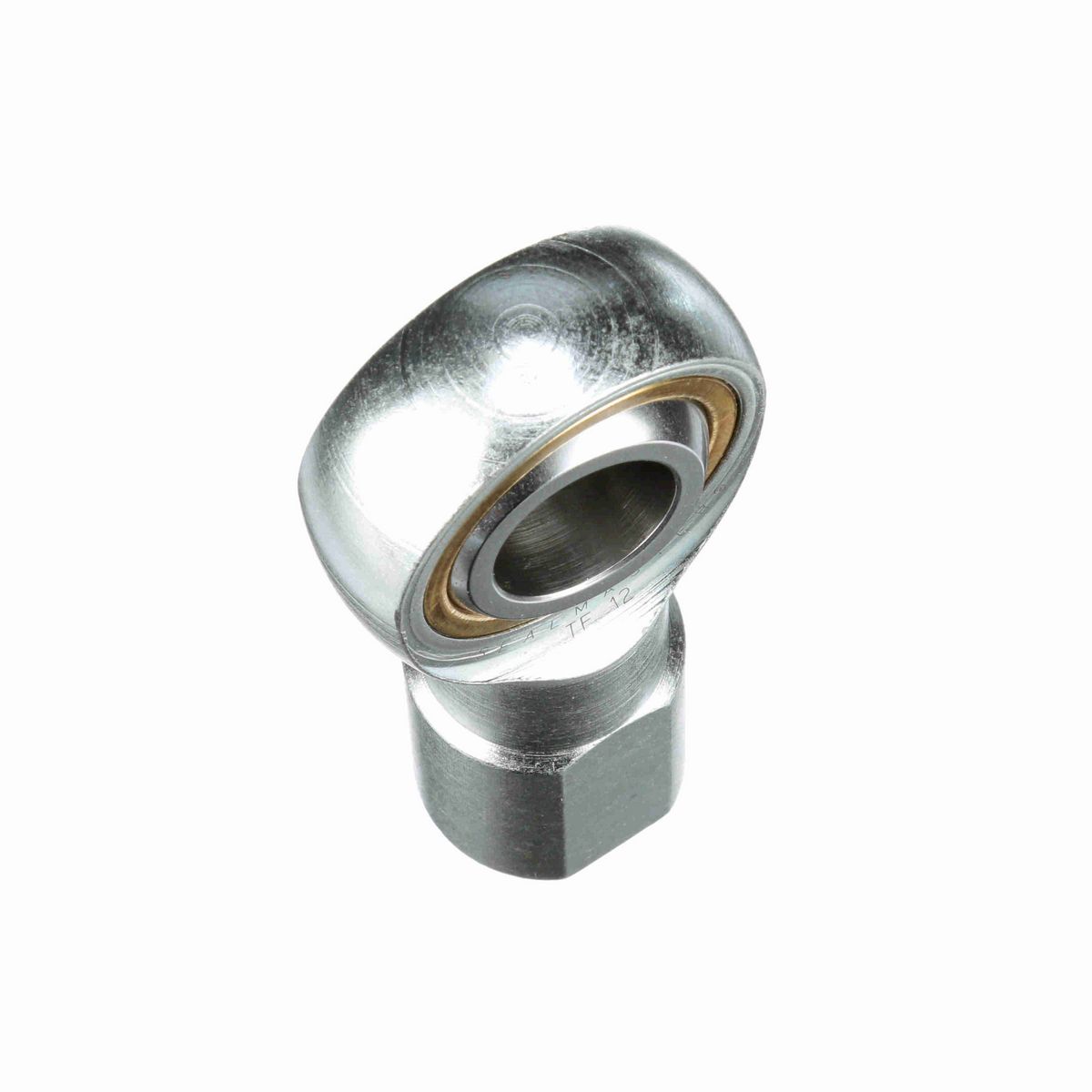

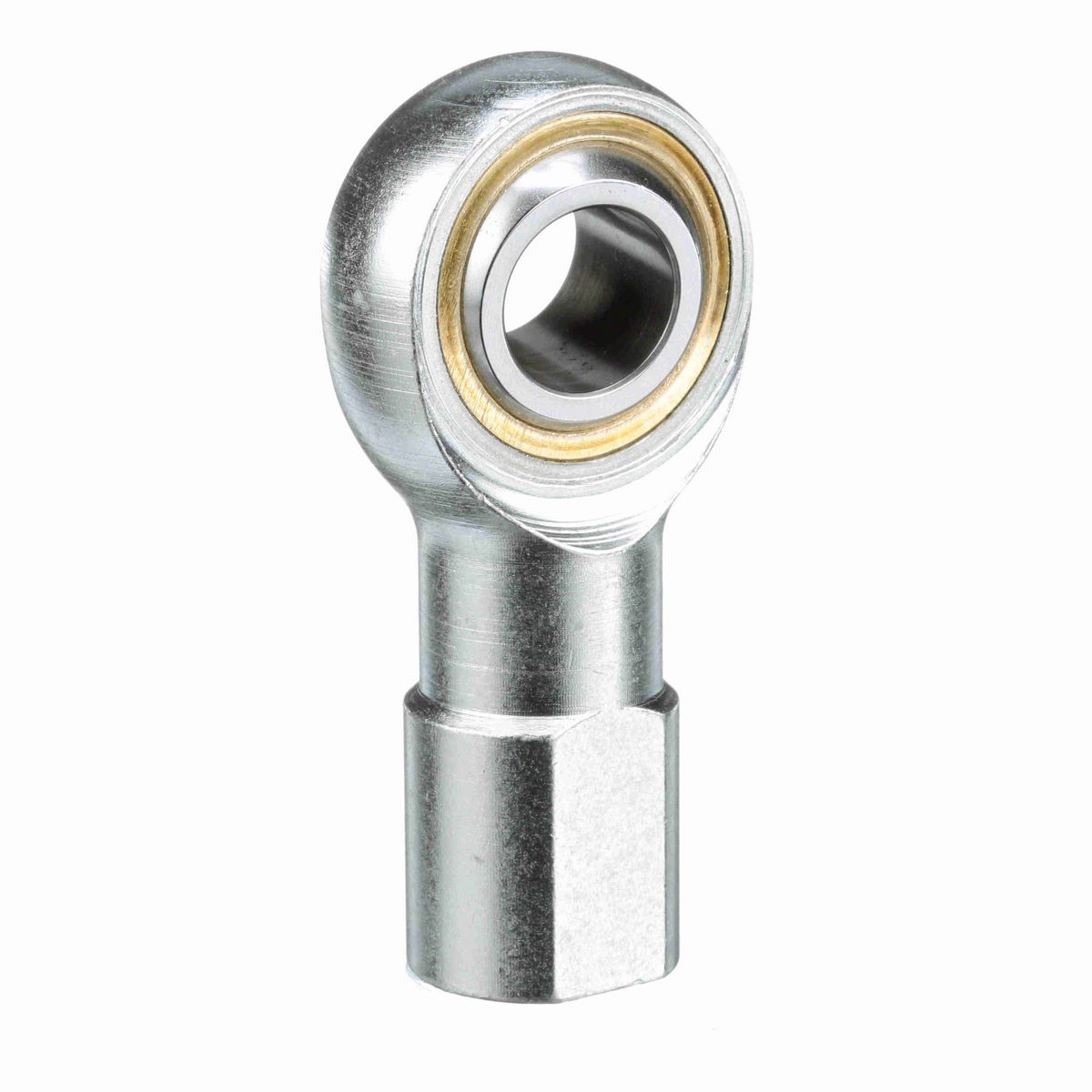

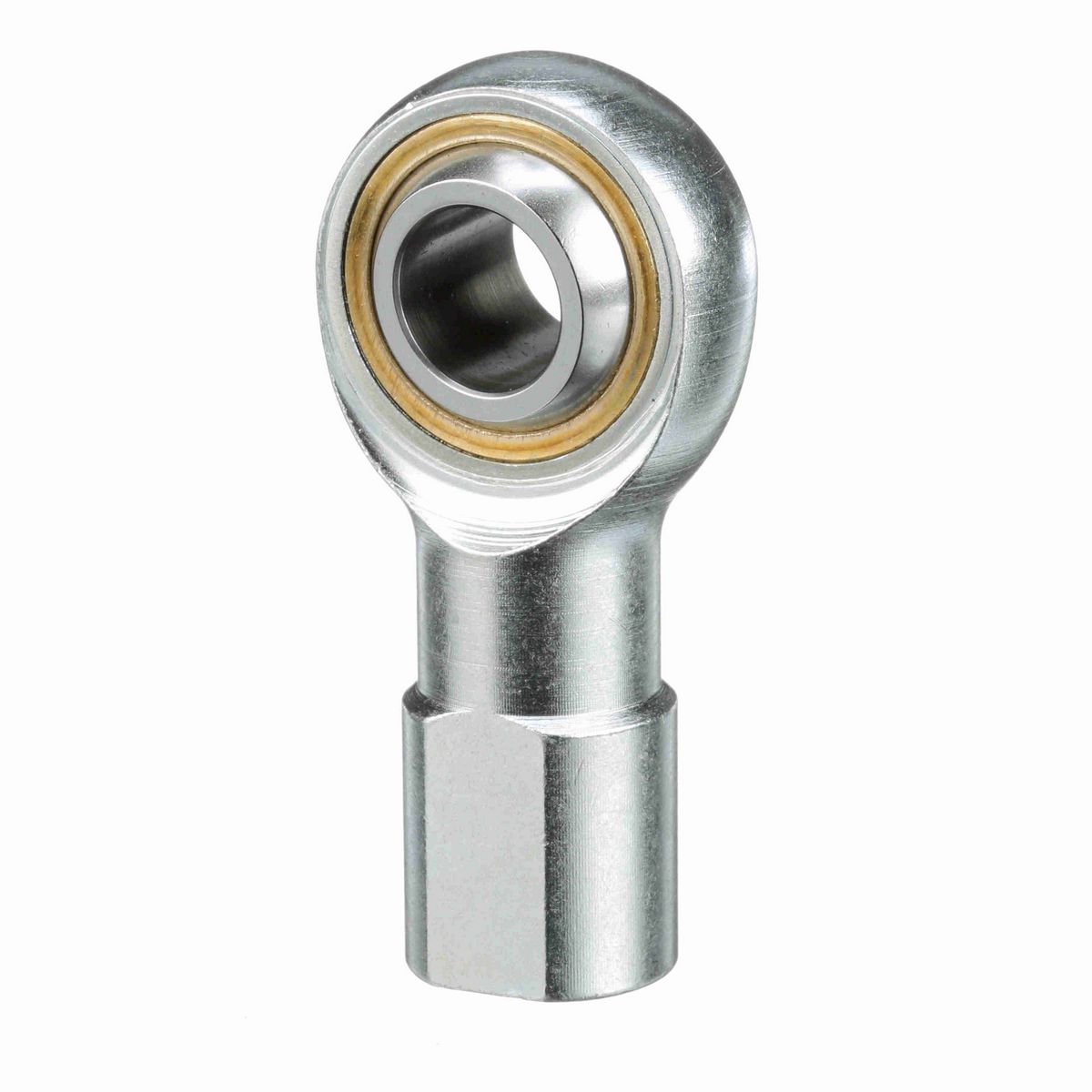

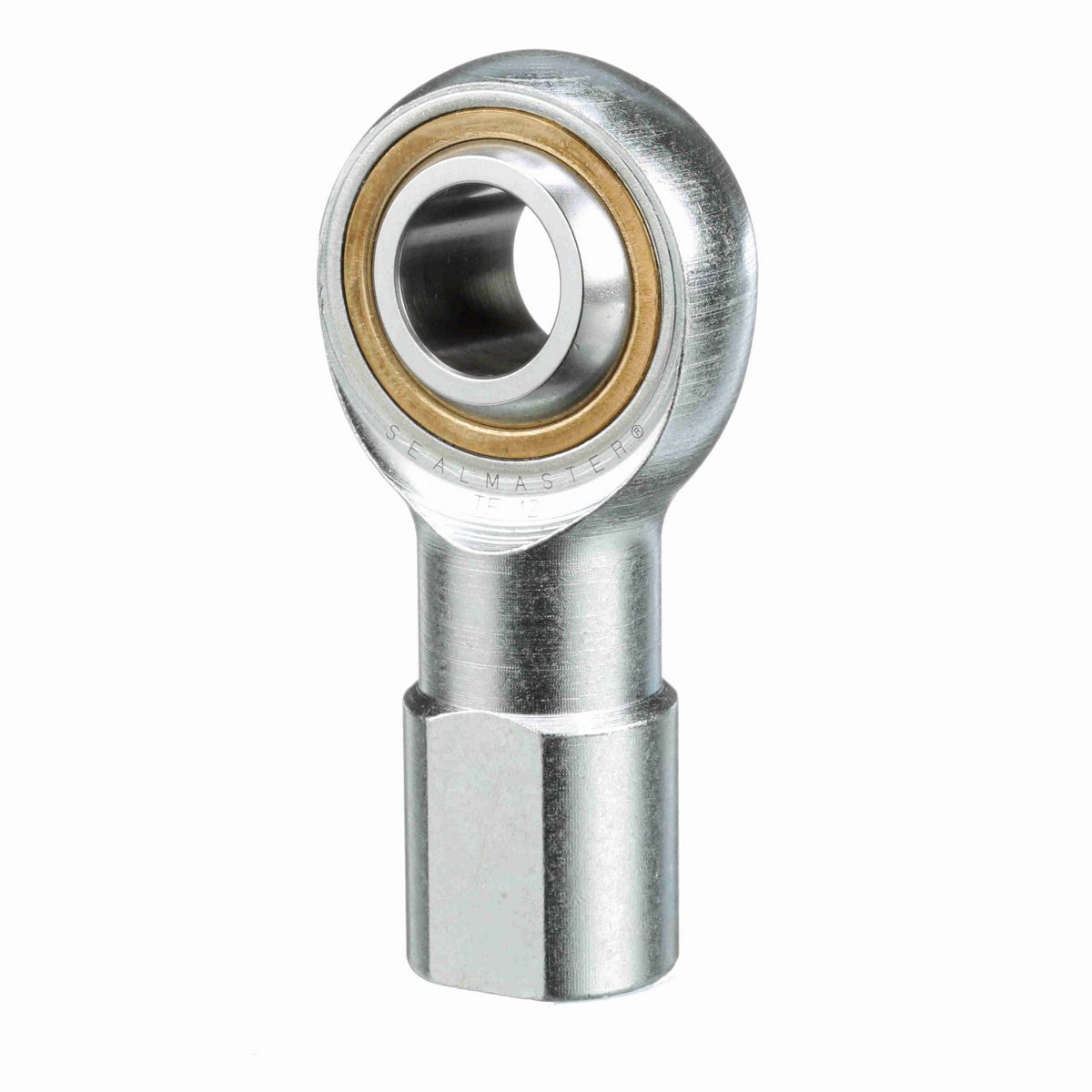

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• One-Piece Bronze Race

Dimensions

Ball Width (in)	0.875 in
Head Diameter (in)	1.75 in
Thread Length (in)	1.719 in
Ball Flat Diameter (in)	0.978 in
Base Diameter (in)	1.125 in
Housing Width (in)	0.687 in
Ball Diameter (in)	1.312 in
Thread Size	#3/4-16
Length to Center of Ball (in)	2.88 in

Technical Specifications

Lubrication Type	Grease
Housing Style	Female Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Construction	Three-Piece Rod End
Product Type	TF
Product Selection Available SW	Y
Bearing Type	Rod End
Misalignment Angle - a Deg. +/-	7
Outer Material	Carbon Steel - Corrosion Resistant Plating
Zerk Fitting SW	N
Axial Load	1,130
Across Wrench Flats	1
Race Material	Bronze
Series	Commercial
Configuration	Female
Thread Type	UNF
Type	Female Rod End
Max Static Radial Load	11,300
Lubrication	No Zerk Fitting
Thread	RH
Class	Commercial
Bore Size (in)	0.7500 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288723530
Weight	0.69 LB
Packaged Length	5.10 IN
Packaged Width	6.00 IN
Packaged Height	3.20 IN
HTC	8483.30.8055
Country of Origin	Mexico
