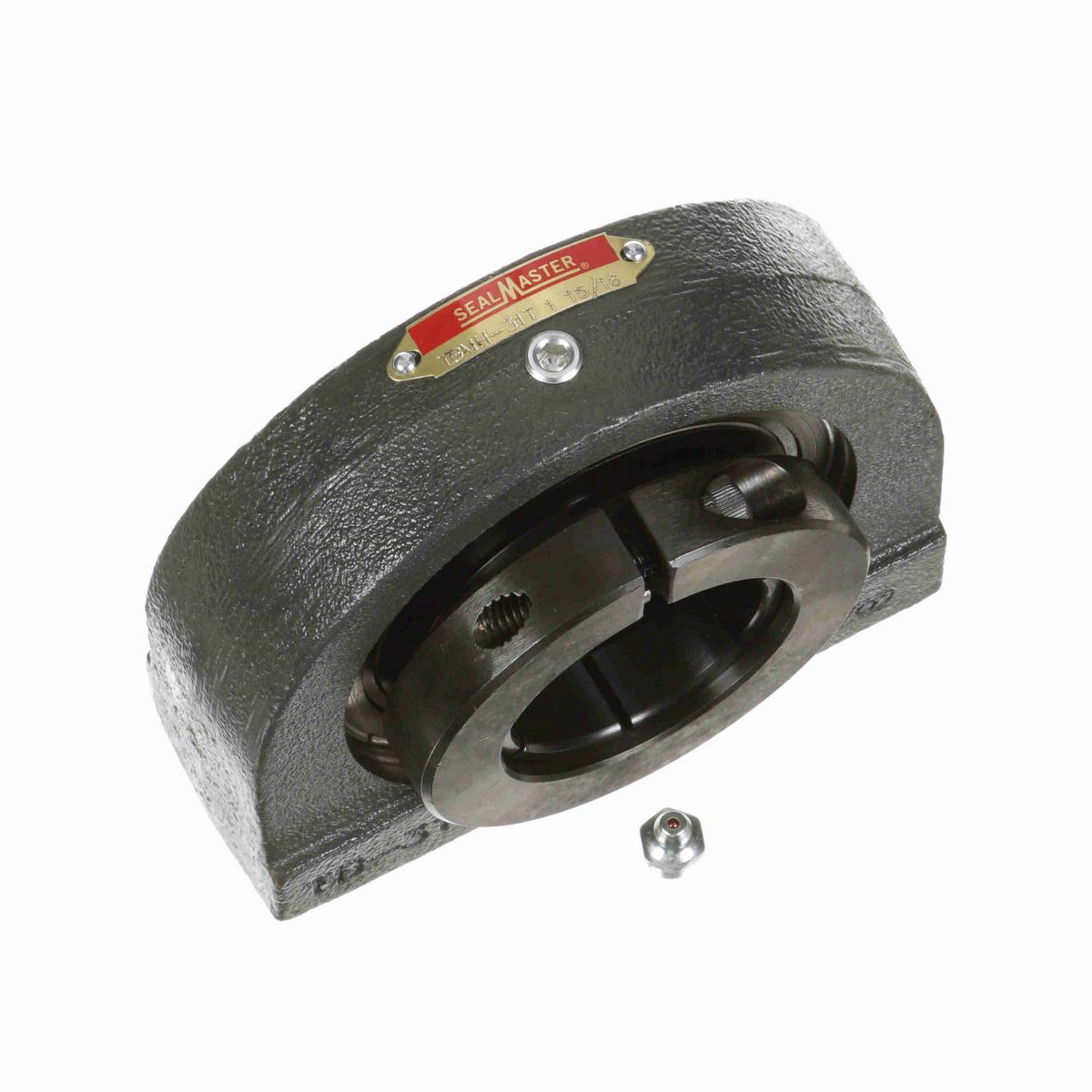

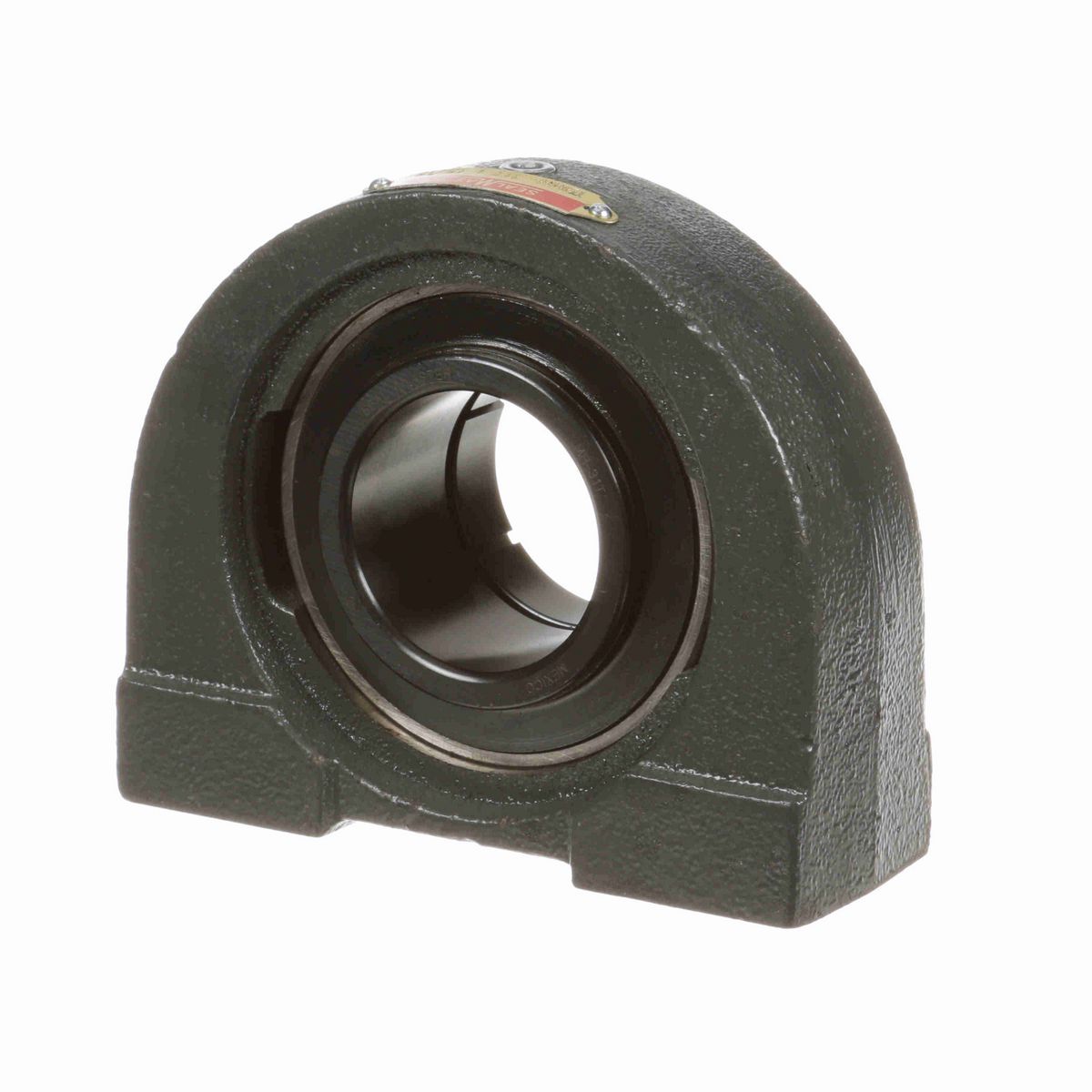

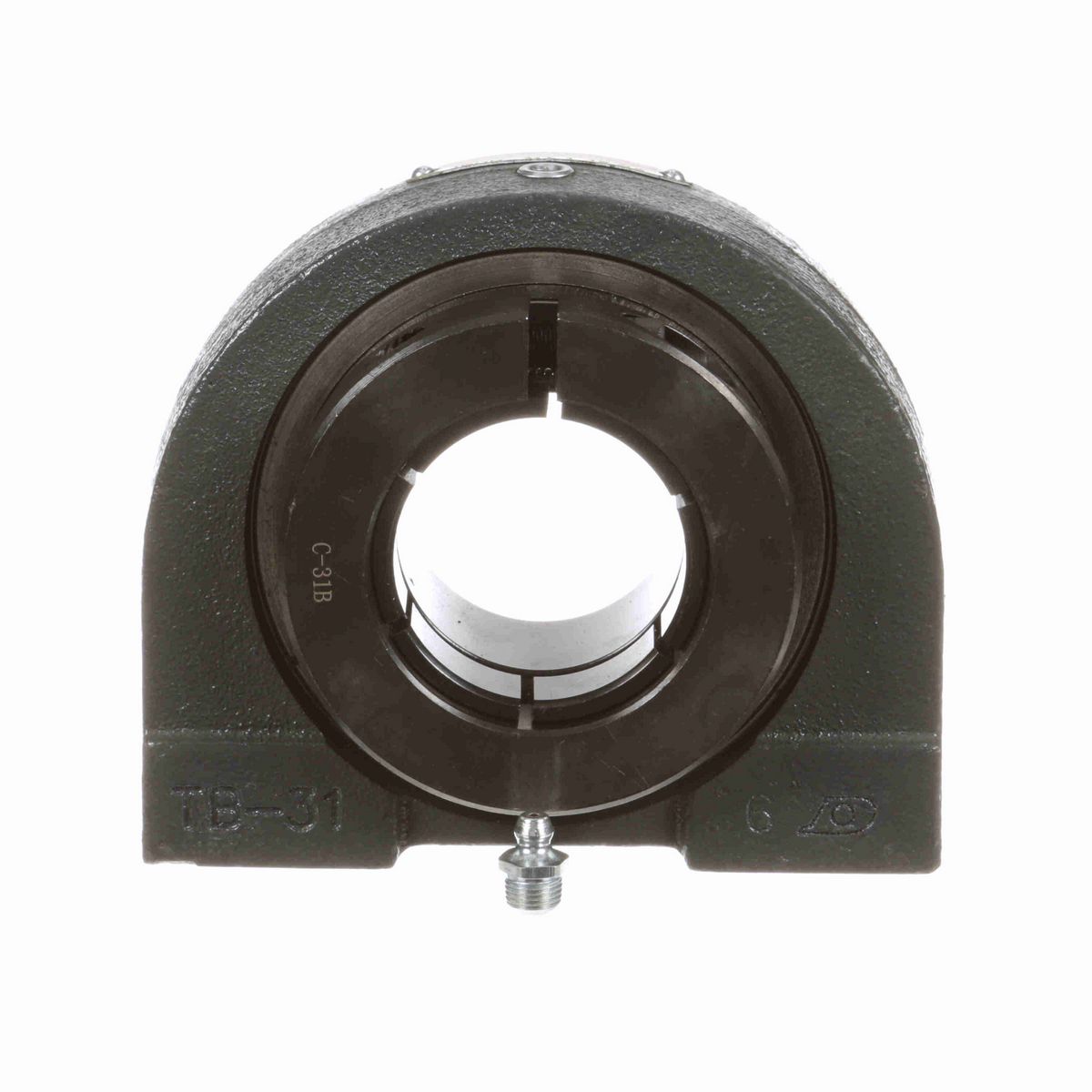

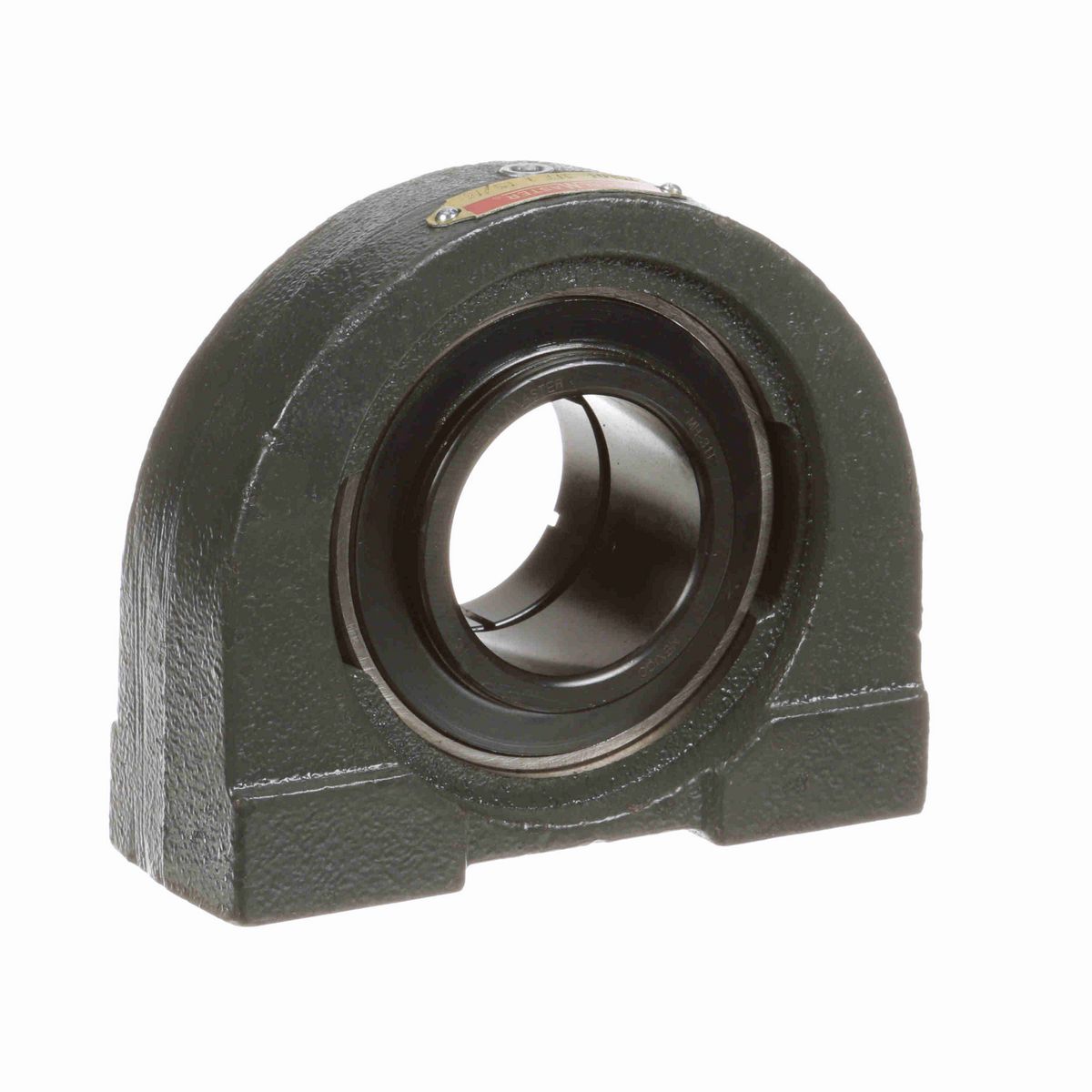

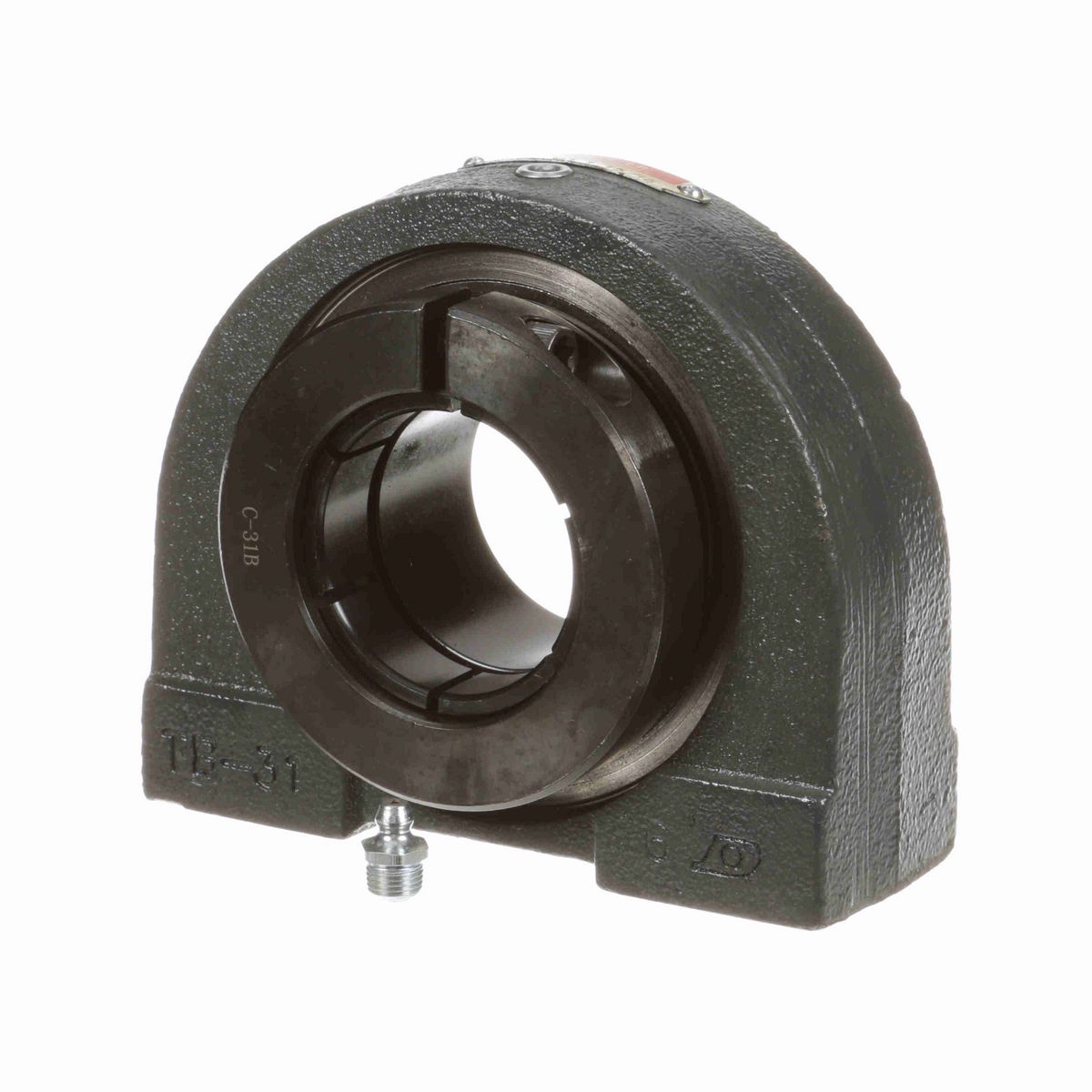

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Thread Size	5/8-11
Overall Height (in)	4.63 in
Base Width (in)	2 in
Overall Length (in)	5.44 in
Overall Width (in)	2.17 in
Bore Diameter (in)	1.9375 in
Thread Depth (in)	0.88 in
Base to Center Height (in)	2.252 in
Length Through Bore (in)	2.0937 in
Bolt Spacing (in)	4.000 in
Centerline to Outermost Bearing Face (in)	1.34375 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Tapped Base
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	3.375 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,216 lb
Grease Fitting Thread Size	1/8 NPT
Radial Clearance	Standard
Insert	MH-31T
Inner Ring Outside Diameter (in)	2.4688 in
Shaft Locking Type	Concentric
End Cap Available	No
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	3000 rpm
Housing Material	Cast Iron
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-115
Dynamic Load Rating (lb)	7,889 lb
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Base Length (in)	5.438 in
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Bearing Type	Standard Duty
Housing Width (in)	2 in

General Specifications

UPC	662461340981
Weight	7.25 LB
Packaged Length	6.30 IN
Packaged Width	6.90 IN
Packaged Height	2.40 IN
HTC	8483.20.8040
Country of Origin	Mexico
