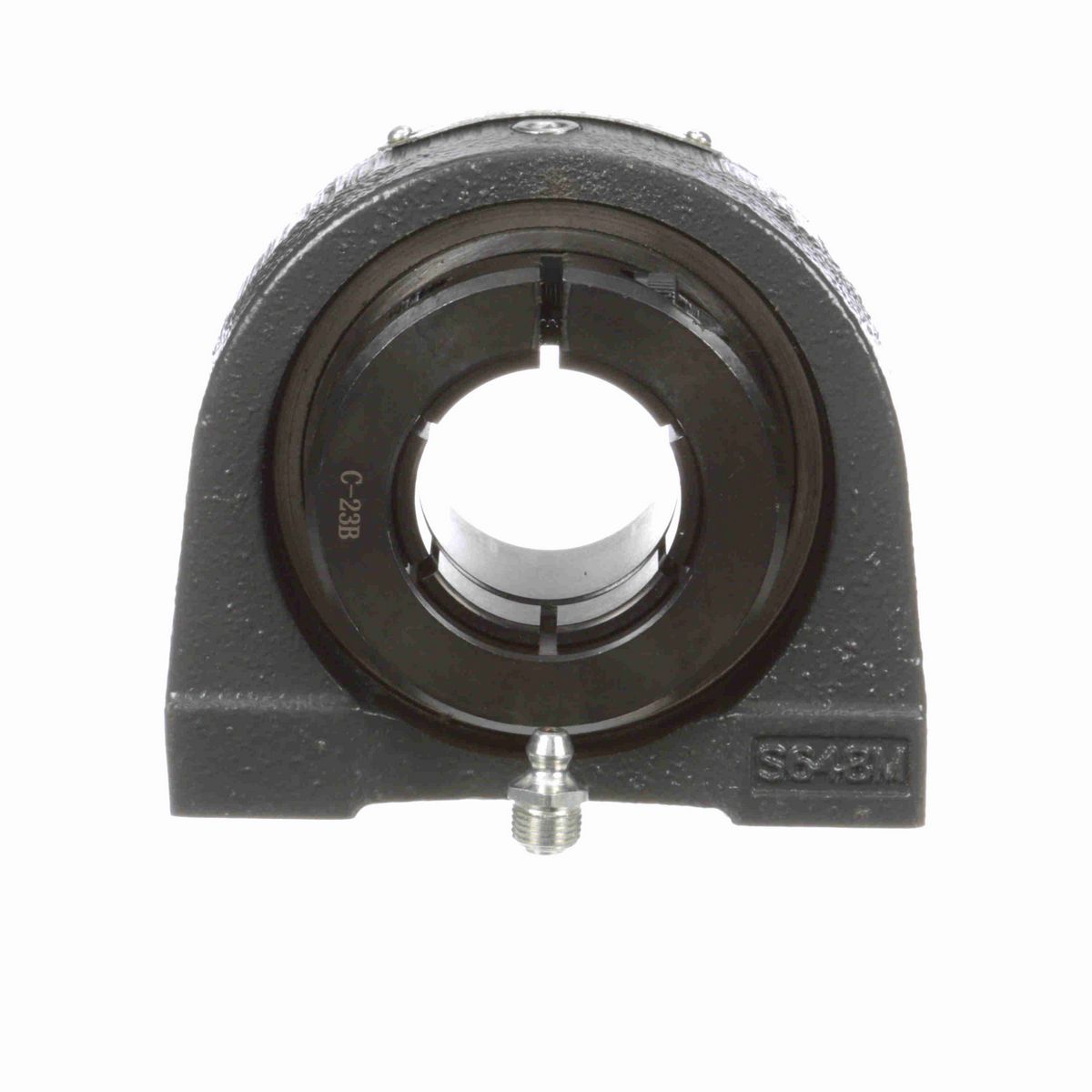

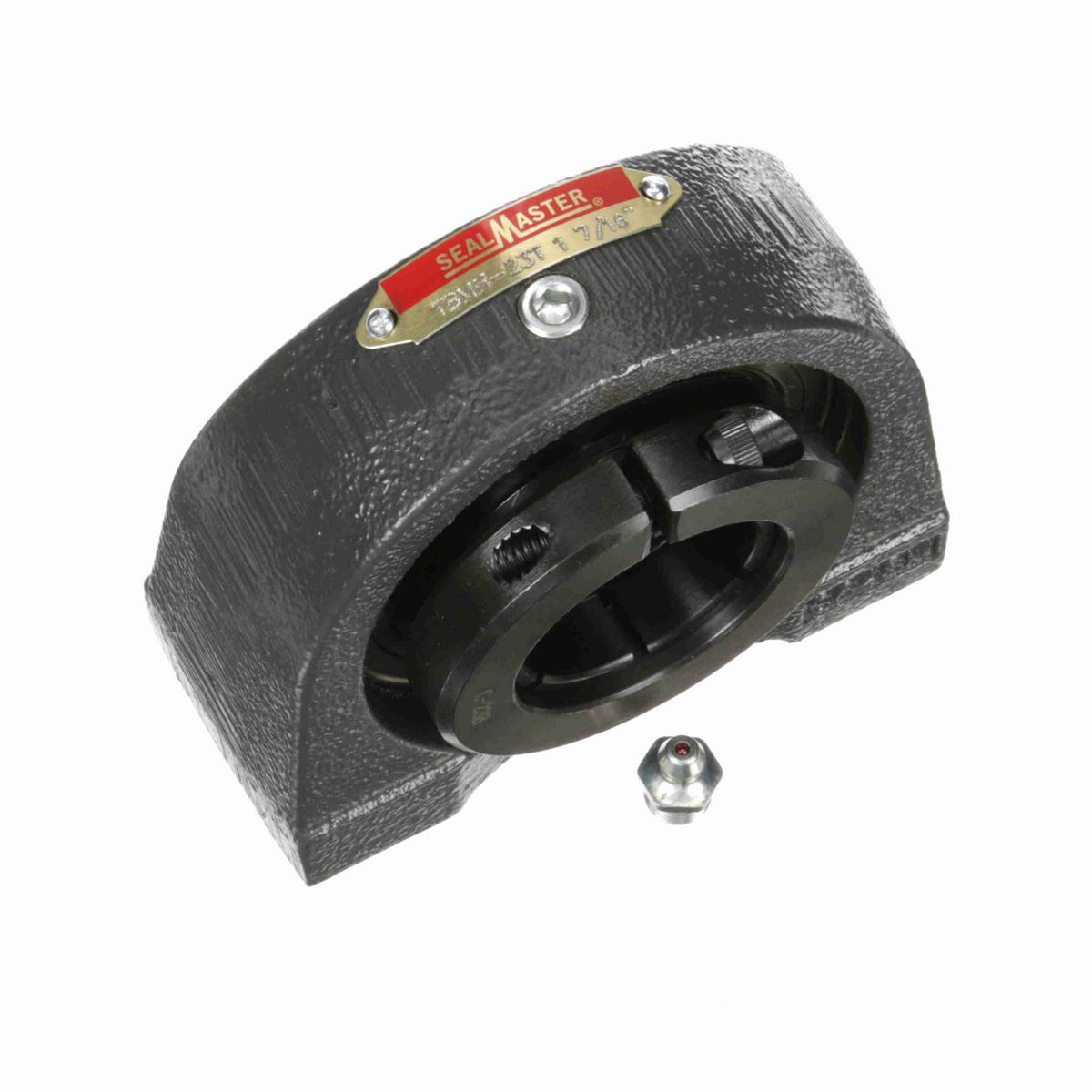

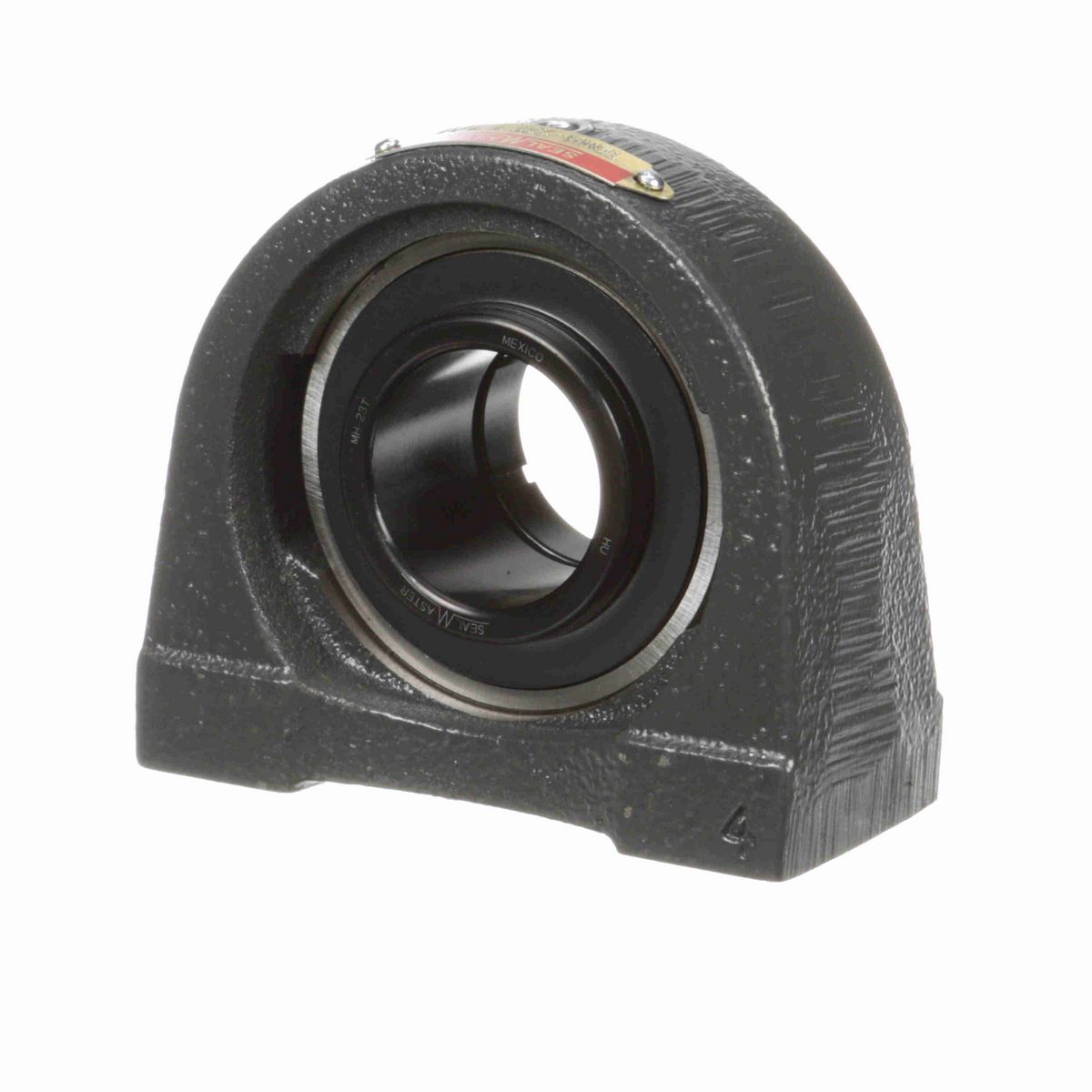

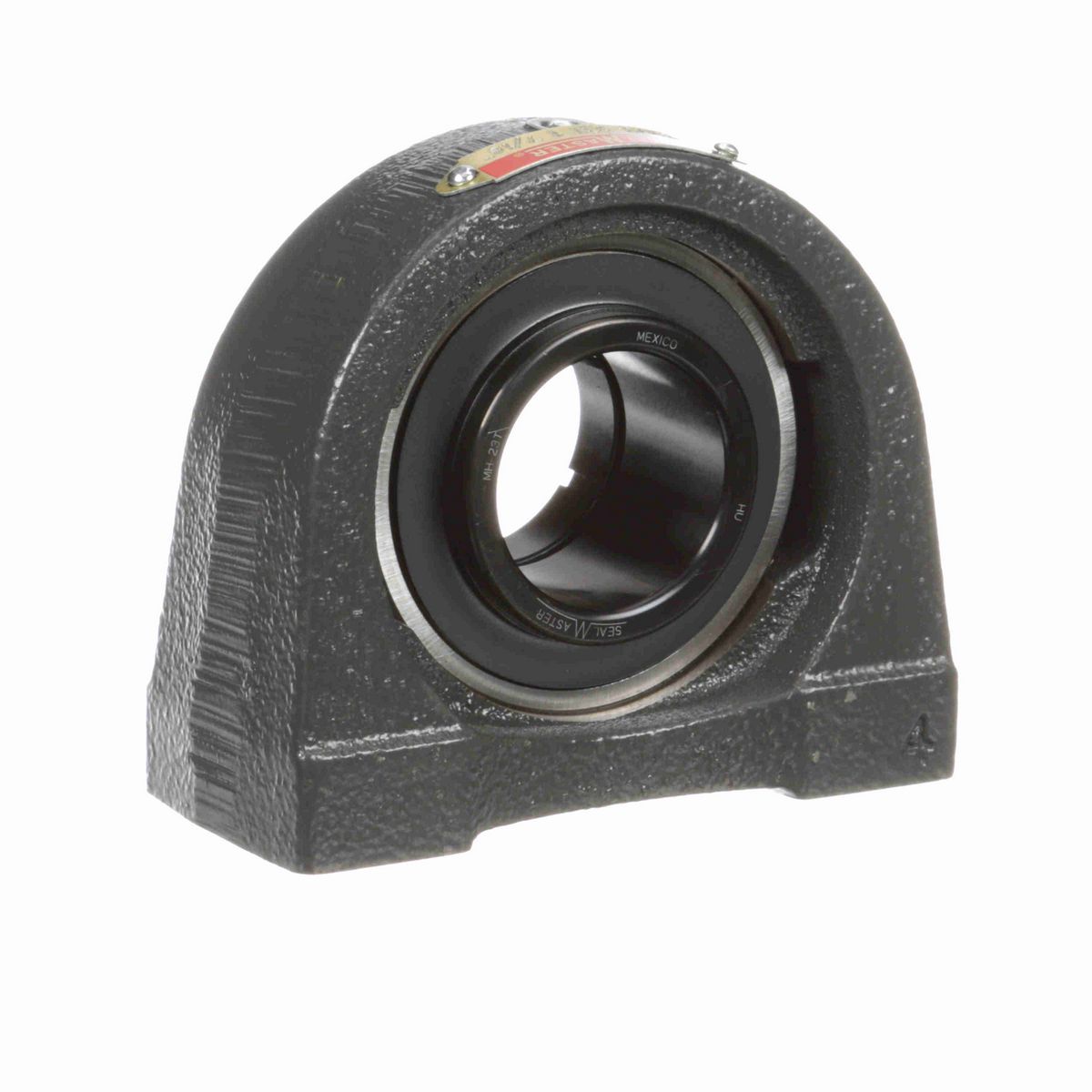

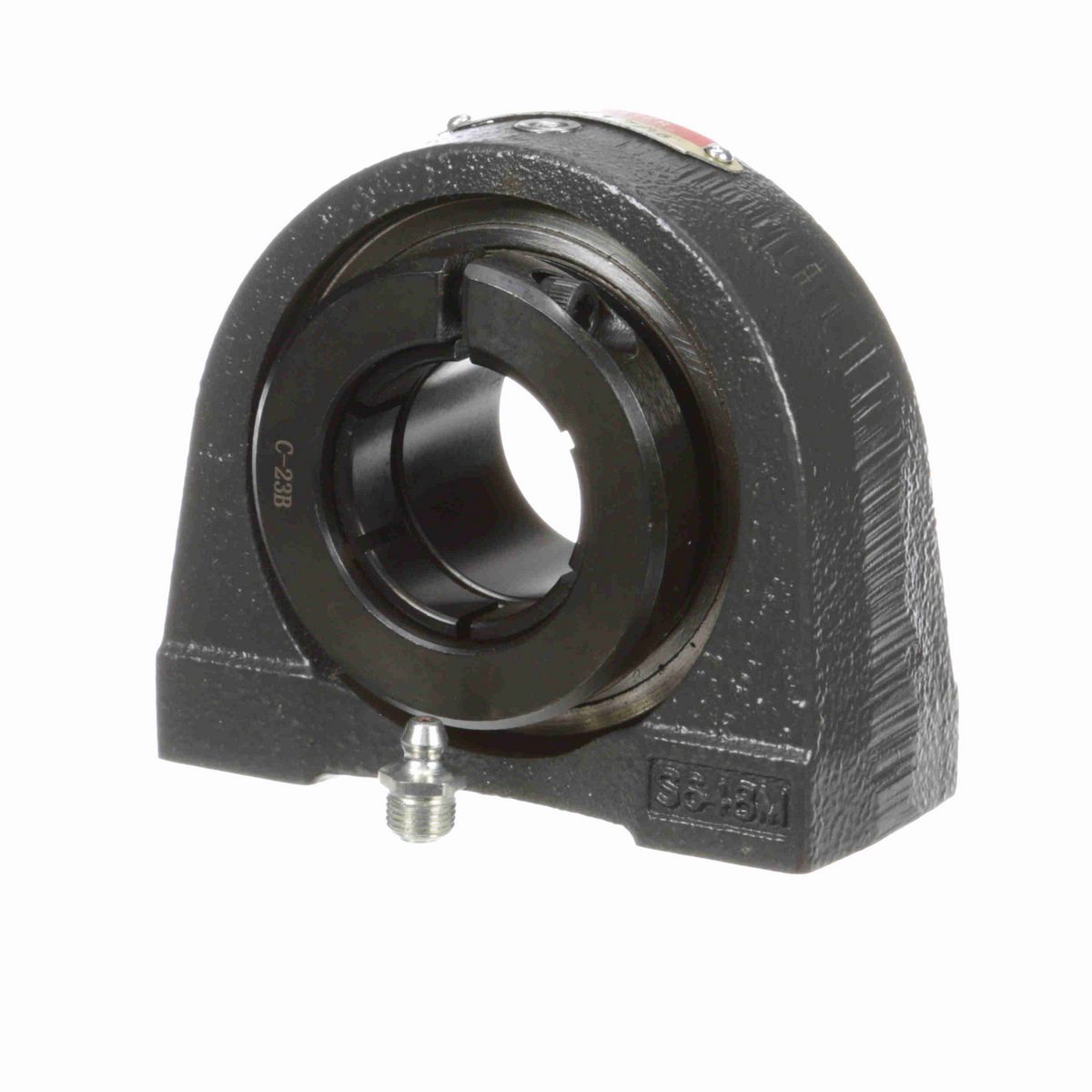

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Base Width (in)	1.75 in
Overall Height (in)	1.75 in
Overall Length (in)	4.41 in
Thread Size	1/2-13
Overall Width (in)	1.88 in
Bore Diameter (in)	1.4375 in
Thread Depth (in)	0.75 in
Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.6875 in
Bolt Spacing (in)	3.25 in
Centerline to Outermost Bearing Face (in)	1.063 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	2.5625 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	5,782 lb
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Insert	MH-23T
Radial Clearance	Standard
Maximum Speed (RPM)	4000 rpm
Base Length (in)	4.25 in
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
End Cap Available	No
Static Load Rating (lb)	3,493 lb
Bearing Insert Material	52100 Bearing Steel
Size Code	2-17
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Concentric
Bearing Type	Standard Duty
Inner Ring Outside Diameter (in)	1.8620 in
Housing Width (in)	1.88 in

General Specifications

UPC	662461340967
Weight	3.99 LB
Packaged Length	5.20 IN
Packaged Width	5.30 IN
Packaged Height	2.00 IN
HTC	8483.20.8040
Country of Origin	Mexico
