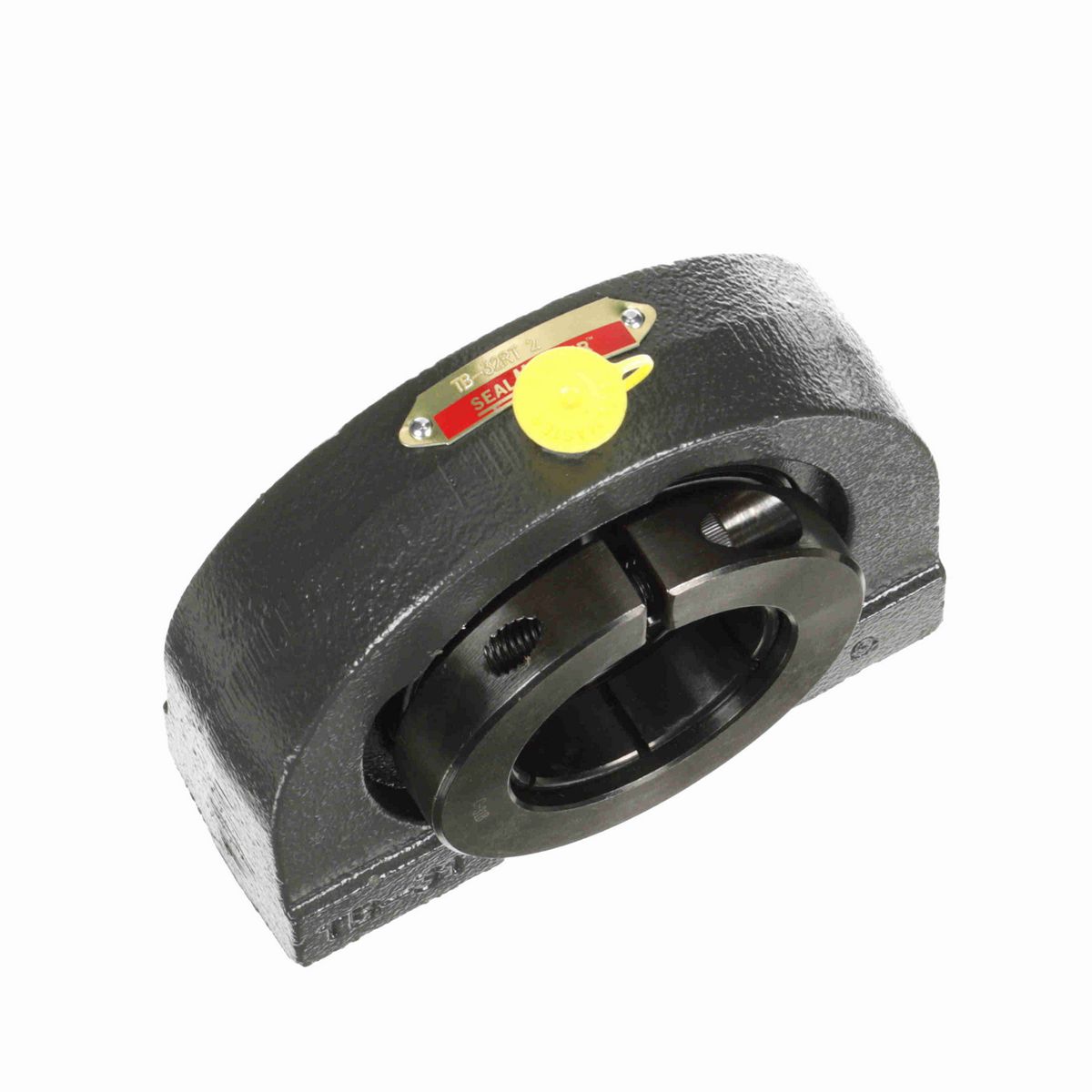

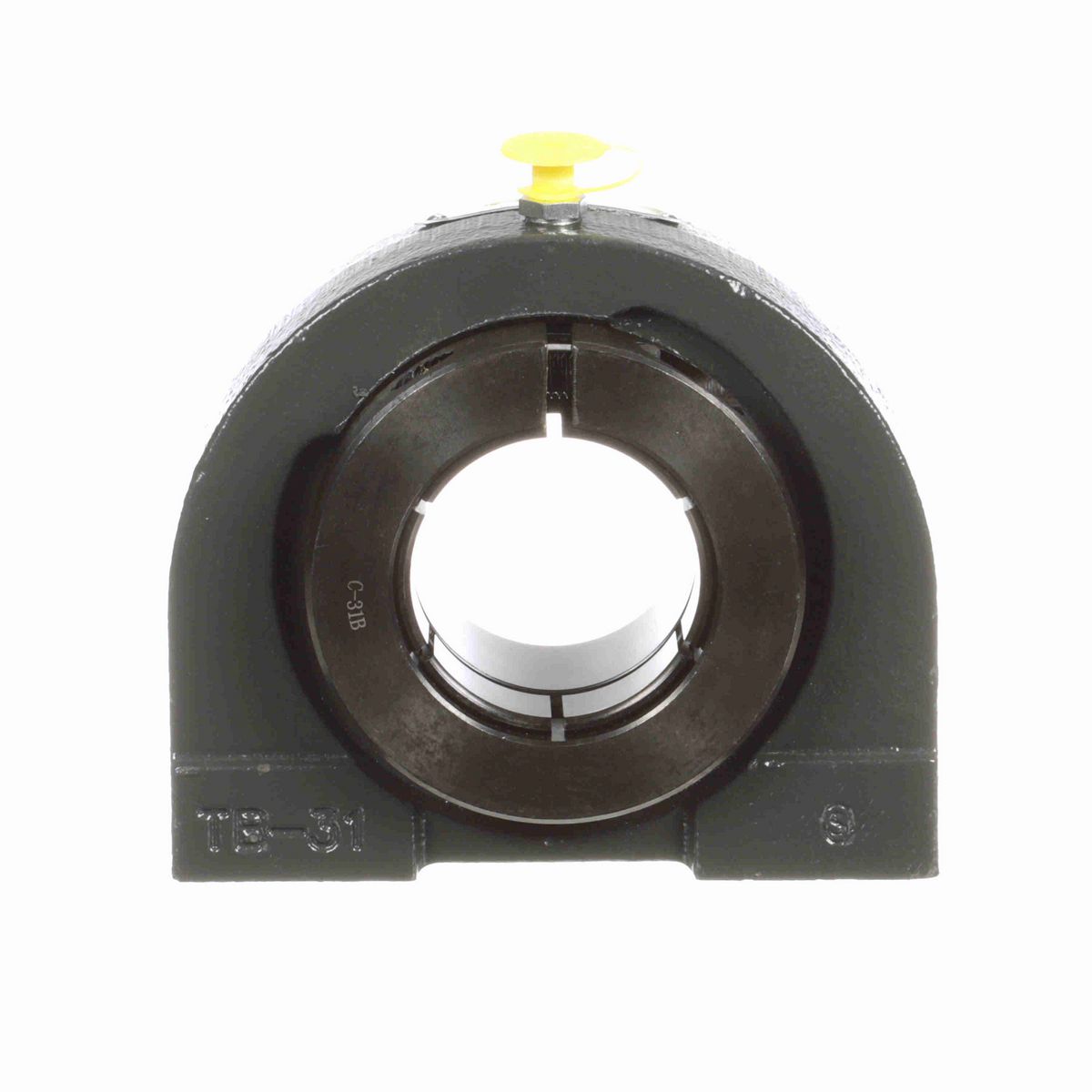

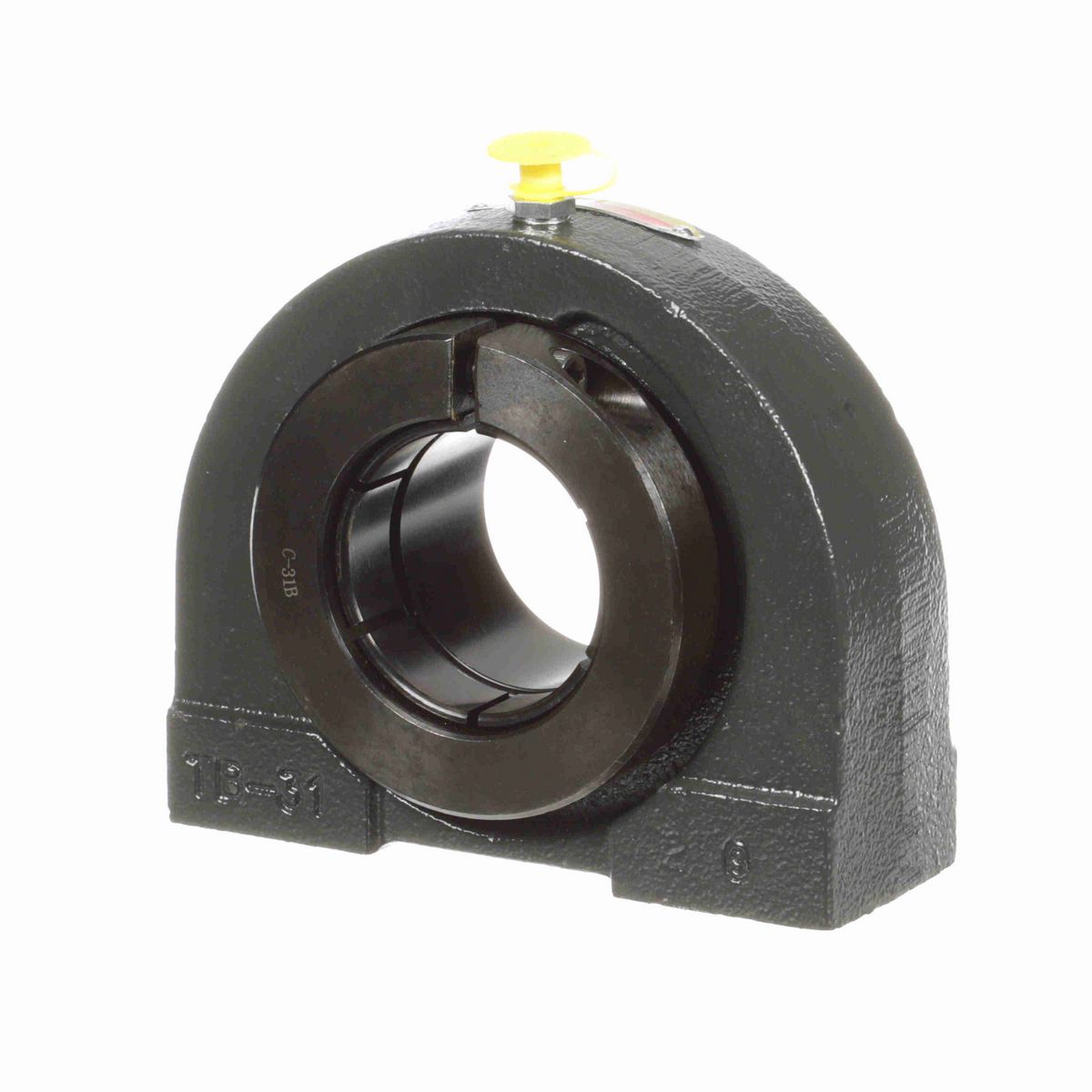

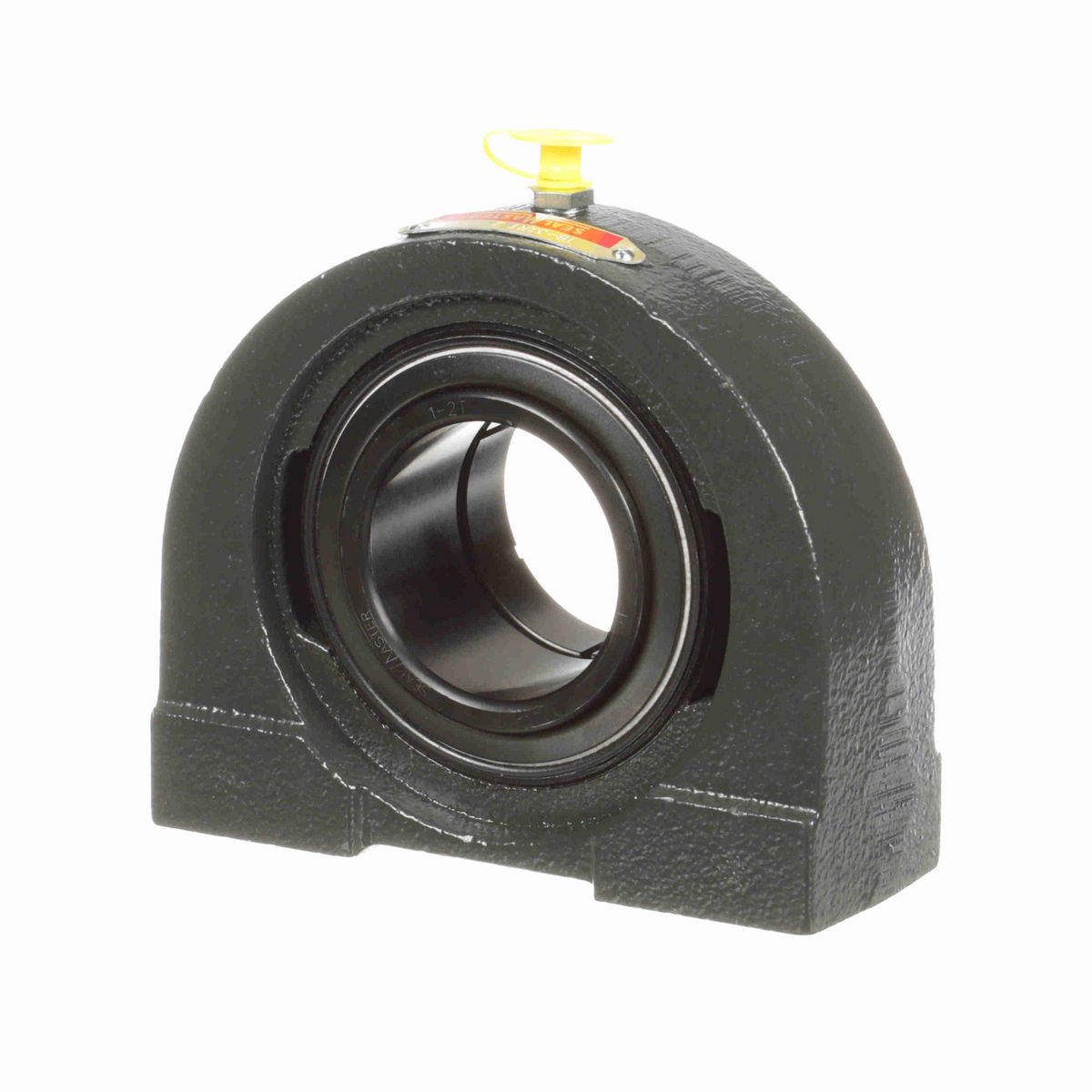

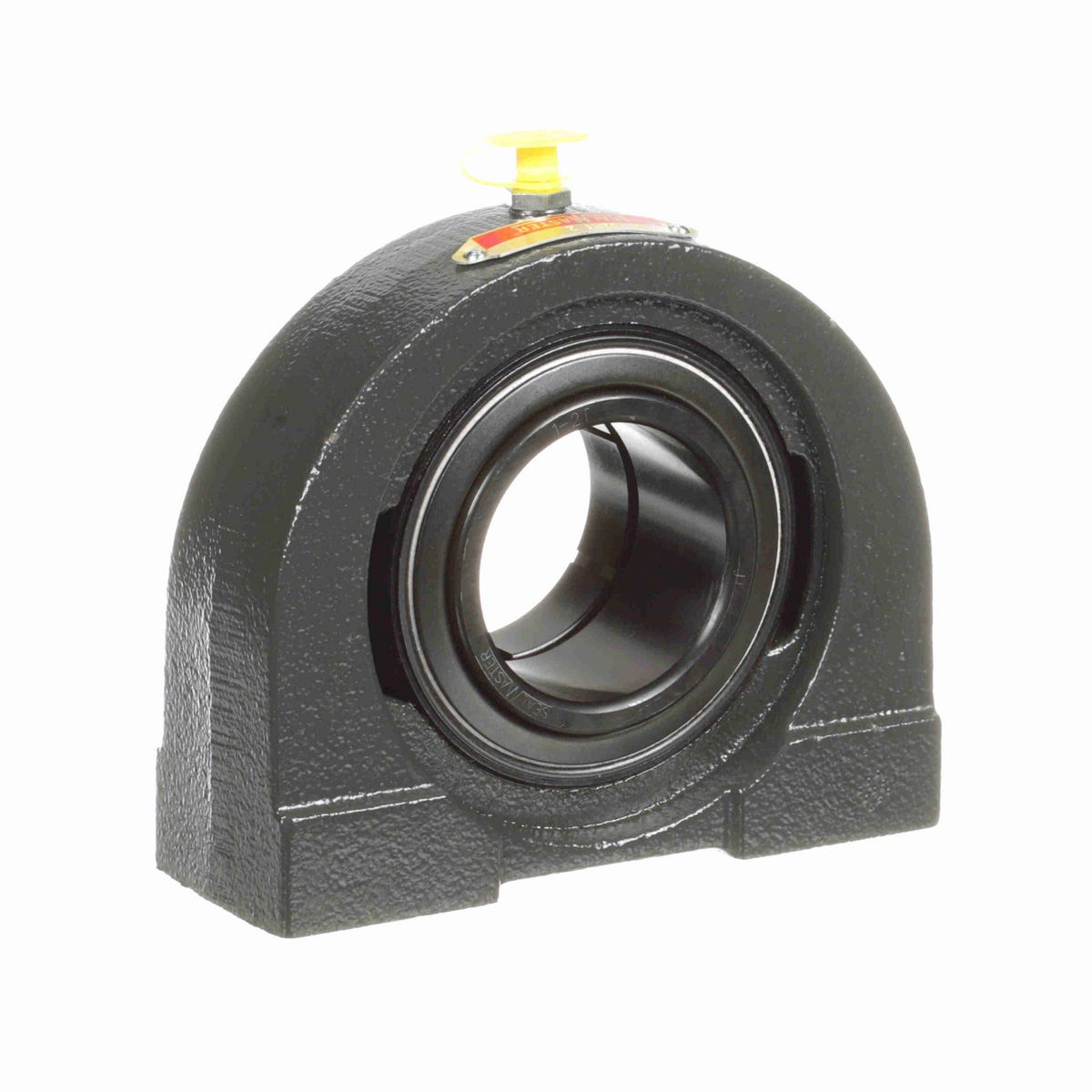

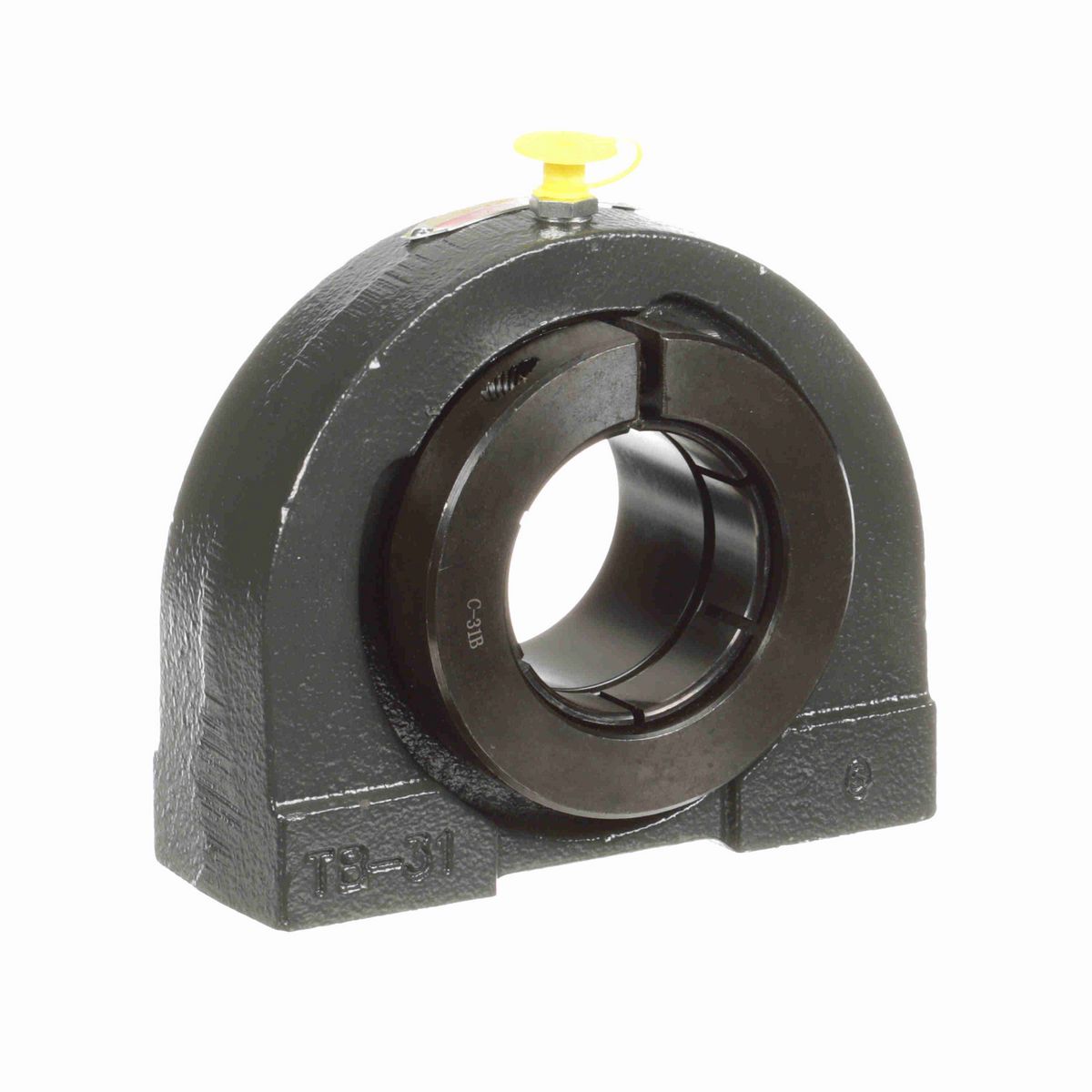

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	5/8-11
Overall Length (in)	5.44 in
Overall Height (in)	4.63 in
Base Width (in)	2 in
Overall Width (in)	2.17 in
Bore Diameter (in)	2 in
Thread Depth (in)	0.88 in
Base to Center Height (in)	2.252 in
Length Through Bore (in)	2.0937 in
Centerline to Outermost Bearing Face (in)	1.344 in
Bolt Spacing (in)	4.000 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Tapped Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	3.375 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
End Cap Available	No
Inner Ring Outside Diameter (in)	2.4688 in
Maximum Speed (RPM)	5000 rpm
Insert	1-2T
Static Load Rating (lb)	5,216 lb
Housing Material	Cast Iron
Shaft Locking Type	Concentric
Dynamic Load Rating (lb)	7,889 lb
Bearing Insert Material	52100 Bearing Steel
Base Length (in)	5.438 in
Size Code	2-115
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
Housing Width (in)	2 in

General Specifications

UPC	662461070178
Weight	7.60 LB
Packaged Length	6.06 IN
Packaged Width	5.94 IN
Packaged Height	2.19 IN
HTC	8483.20.8040
Country of Origin	United States of America
