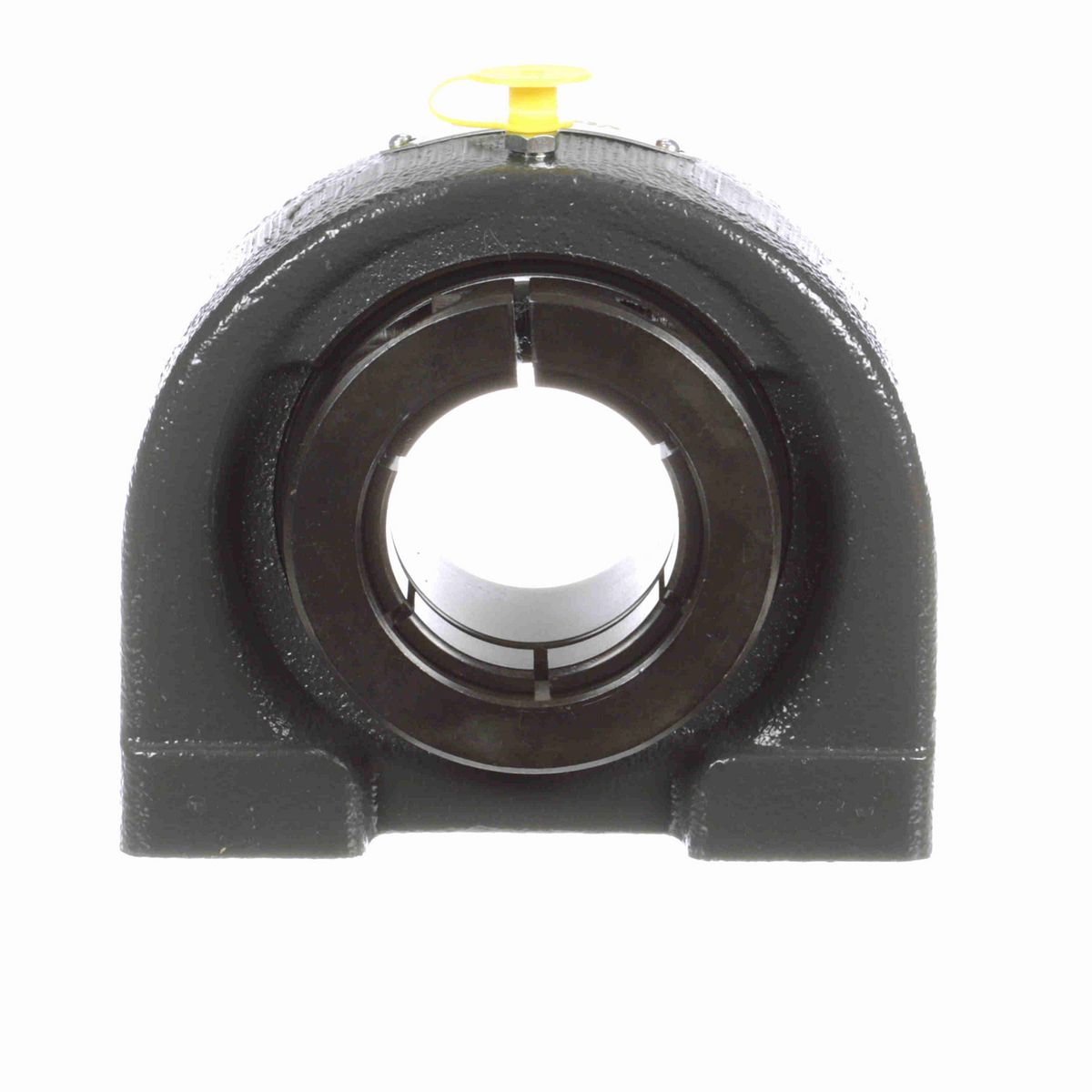

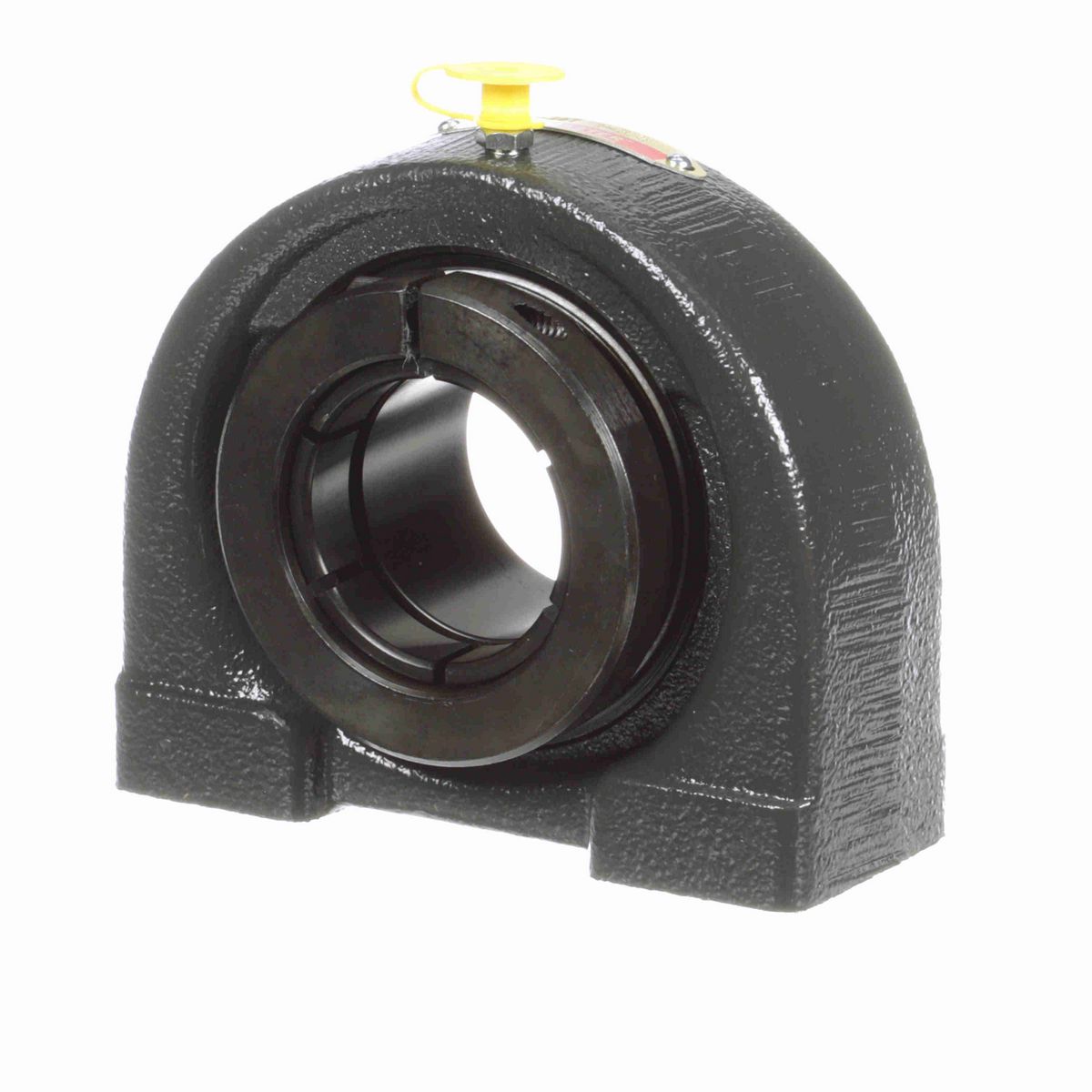

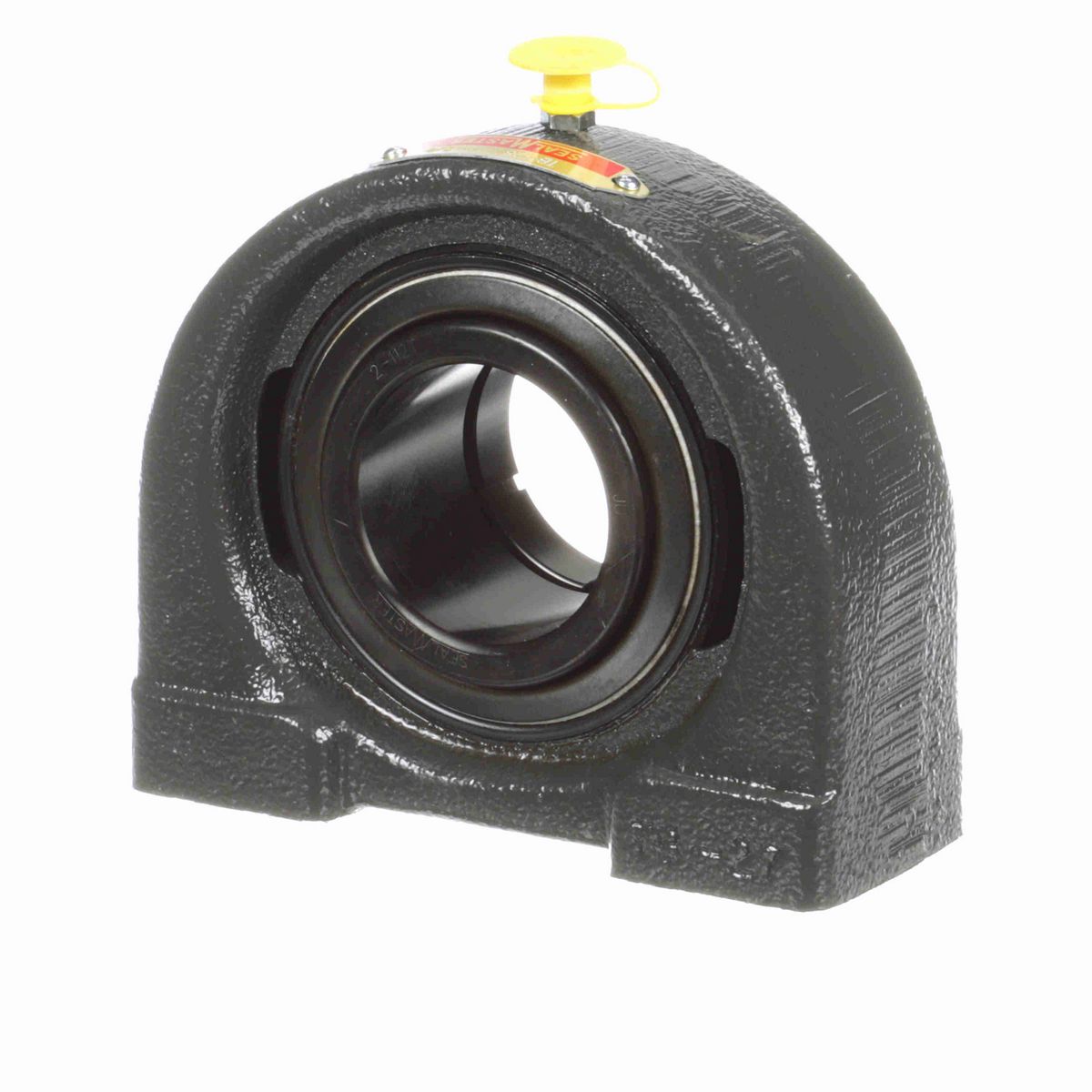

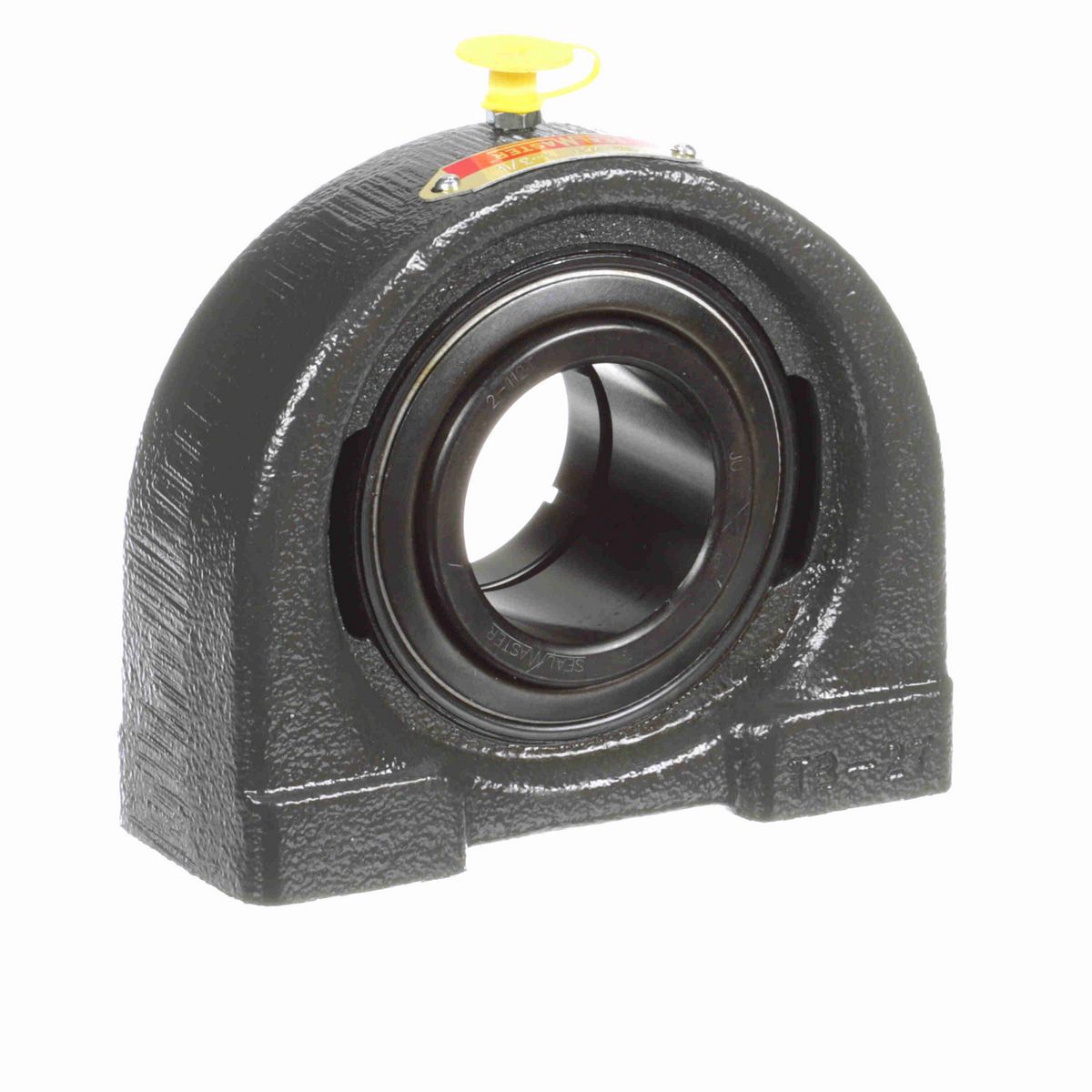

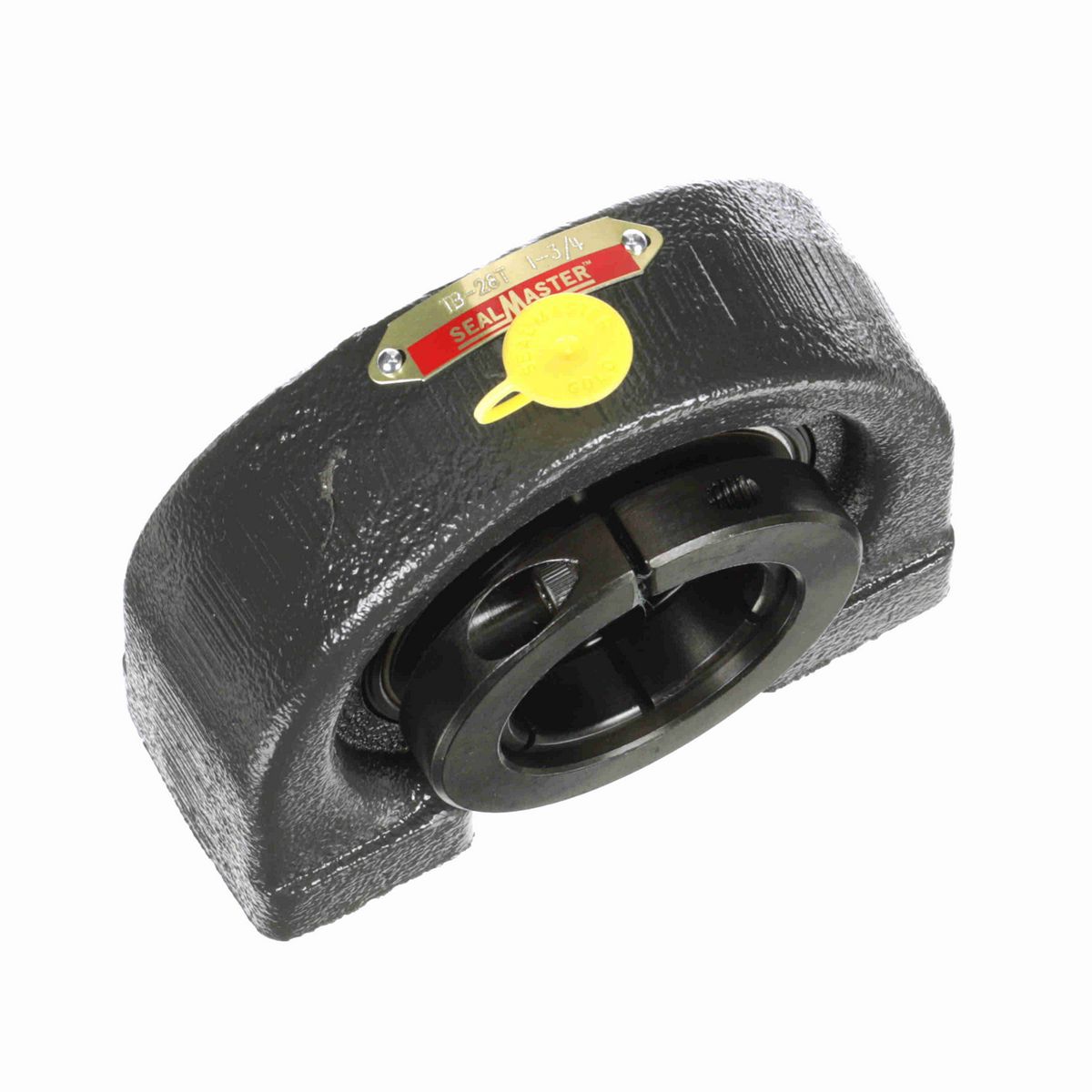

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Base Width (in)	2 in
Overall Height (in)	4.25 in
Overall Length (in)	5 in
Overall Width (in)	2 in
Bore Diameter (in)	1.75 in
Thread Depth (in)	0.75 in
Base to Center Height (in)	2.125 in
Length Through Bore (in)	2.000 in
Centerline to Outermost Bearing Face (in)	1.250 in
Bolt Spacing (in)	3.750 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Tapped Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.938 in
Housing Coating	Powder Coated
Housing Material	Cast Iron
Size Code	2-111
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,901 lb
Maximum Speed (RPM)	5300 rpm
Inner Ring Outside Diameter (in)	2.297 in
Radial Clearance	Standard
Shaft Locking Type	Concentric
End Cap Available	No
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	5,139 lb
Insert	2-112T
Grease Fitting Thread Size	1/4-28
Bearing Type	Standard Duty
Base Length (in)	5.000 in
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Width (in)	2 in

General Specifications

UPC	662461031100
Weight	6.40 LB
Packaged Length	6.06 IN
Packaged Width	5.94 IN
Packaged Height	2.19 IN
HTC	8483.20.8040
Country of Origin	United States of America
