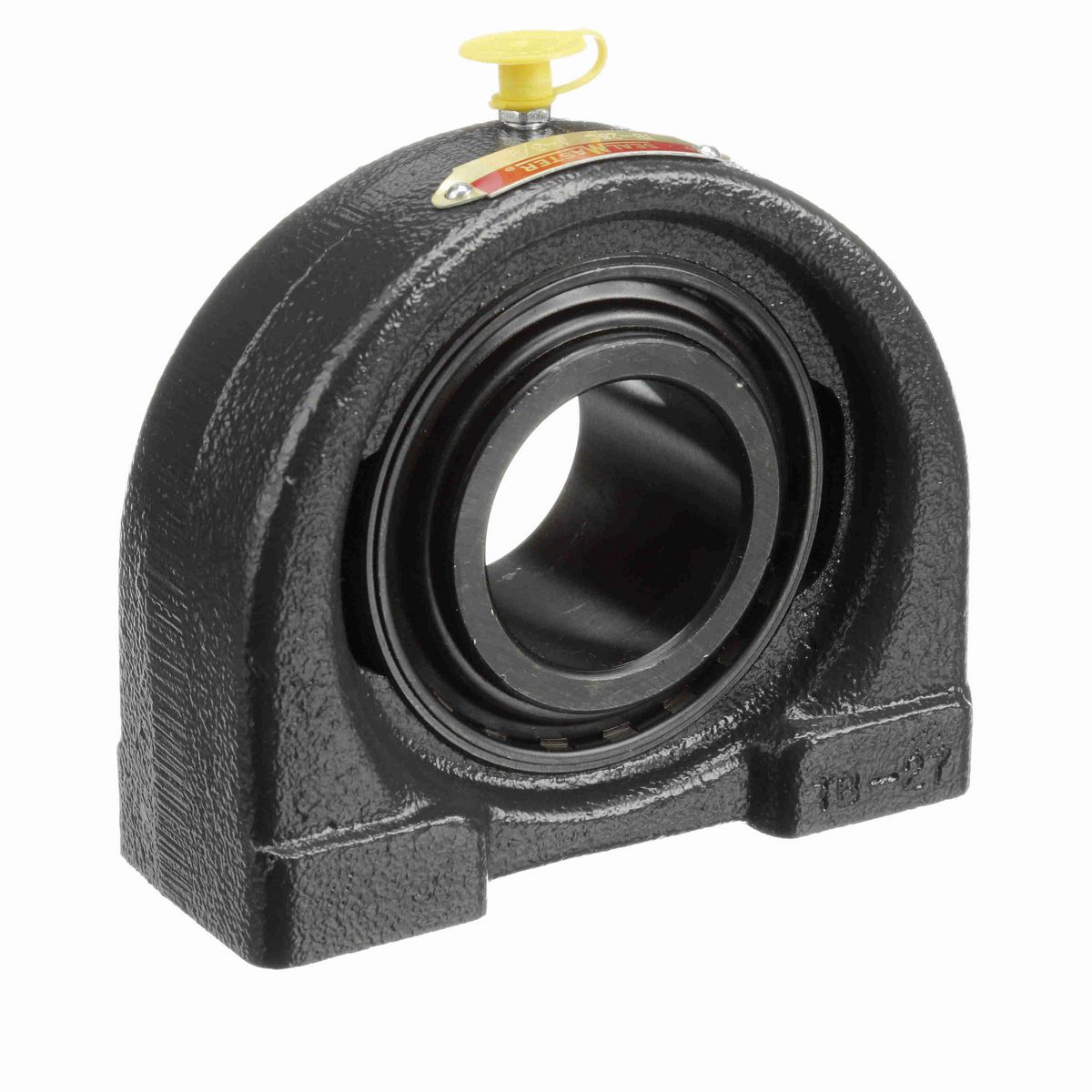

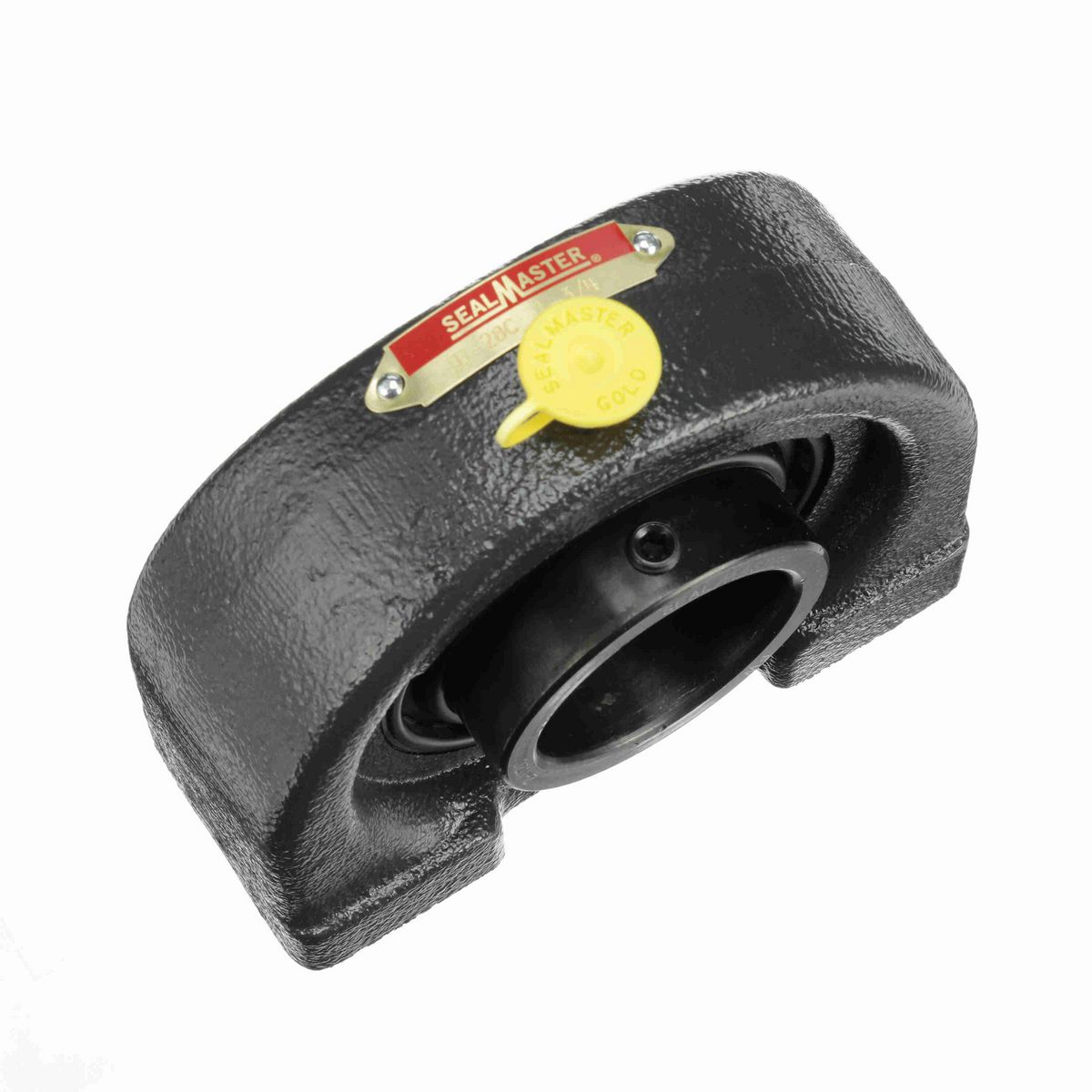

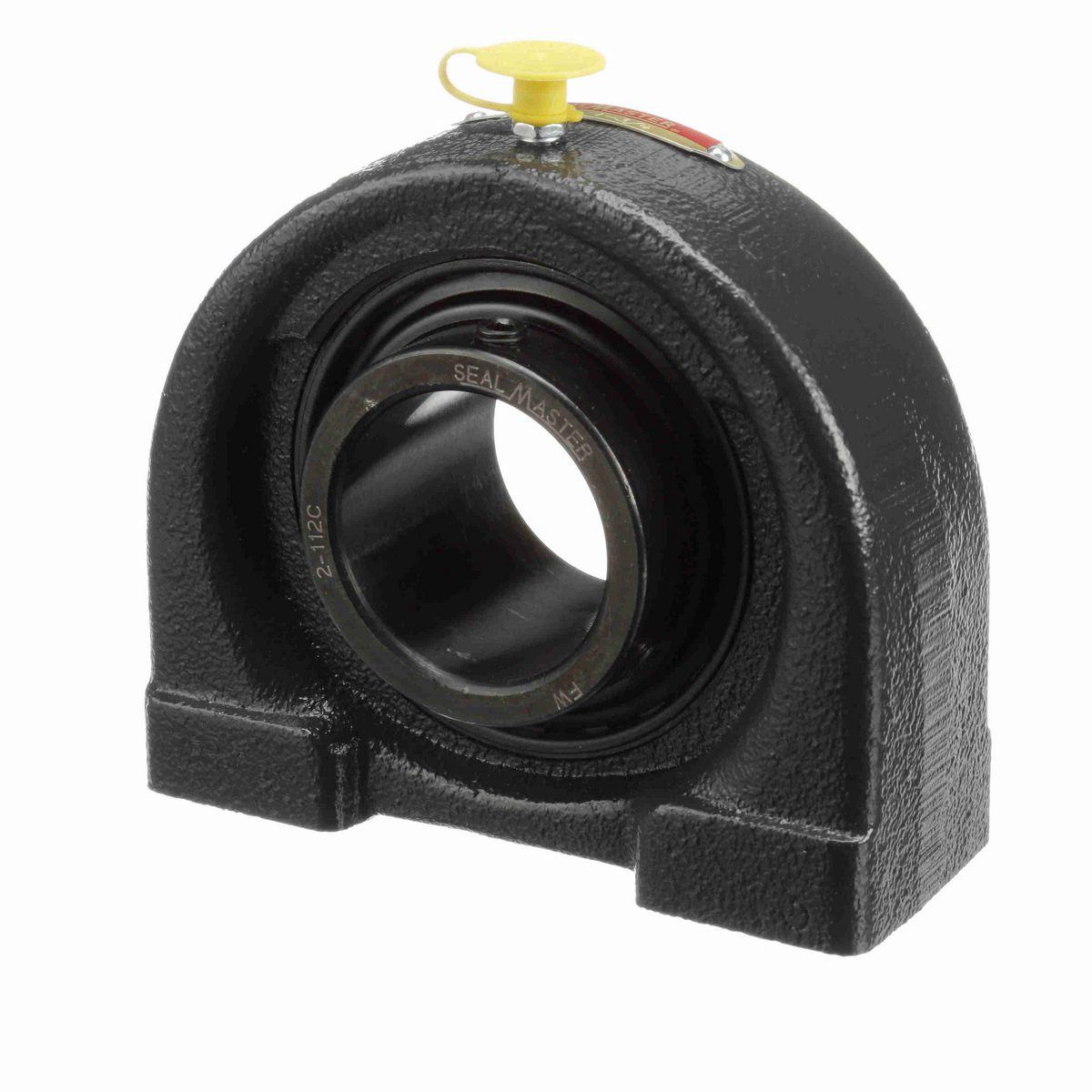

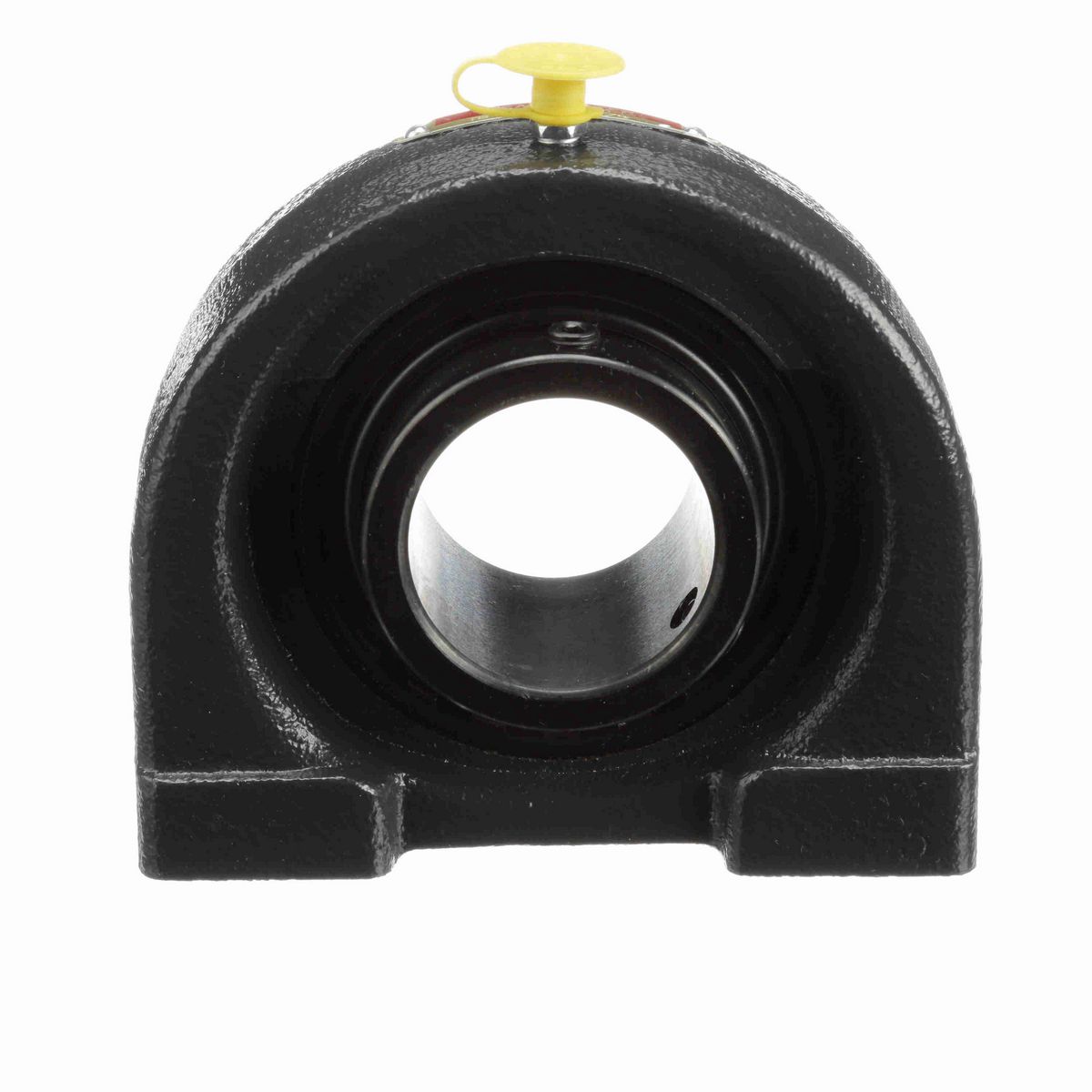

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Overall Length (in)	5 in
Base Width (in)	2 in
Overall Height (in)	4.25 in
Overall Width (in)	2 in
Bore Diameter (in)	1.75 in
Thread Depth (in)	0.75 in
Base to Center Height (in)	2.125 in
Length Through Bore (in)	2.000 in
Centerline to Outermost Bearing Face (in)	1.188 in
Bolt Spacing (in)	3.750 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Housing Coating	Powder Coated
Bearing Type	Standard Duty
Inner Ring Outside Diameter (in)	2.297 in
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Maximum Speed (RPM)	3800 rpm
Housing Material	Cast Iron
Insert	2-112C
Shaft Locking Type	Set Screw
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-111
Max Operating Temperature (F)	220 °F
Static Load Rating (lb)	5,139 lb
End Cap Available	No
Base Length (in)	5.000 in
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,901 lb
Housing Width (in)	2 in

General Specifications

UPC	662461024522
Weight	6.09 LB
Packaged Length	5.94 IN
Packaged Width	6.06 IN
Packaged Height	2.19 IN
HTC	8483.20.8040
Country of Origin	United States of America
