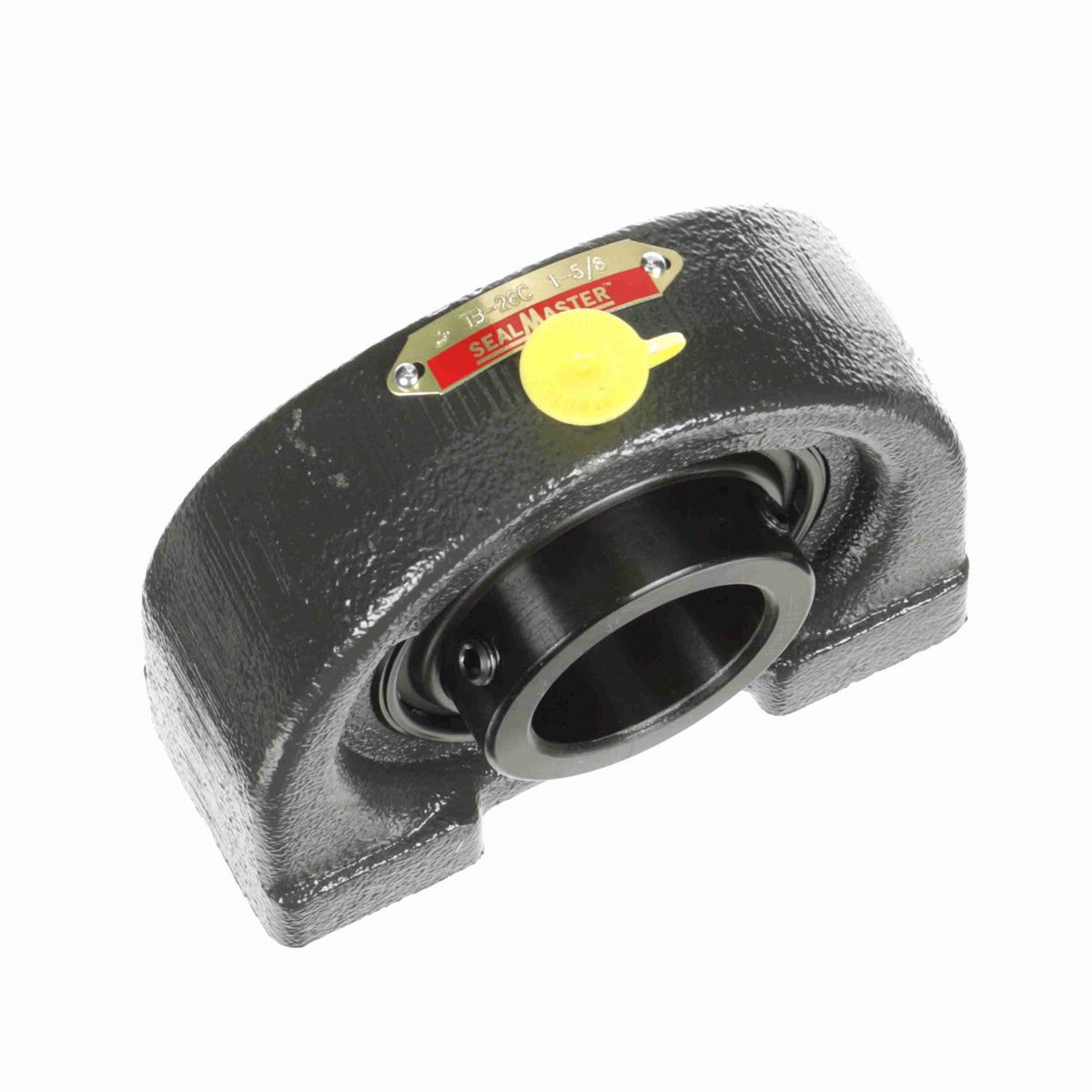

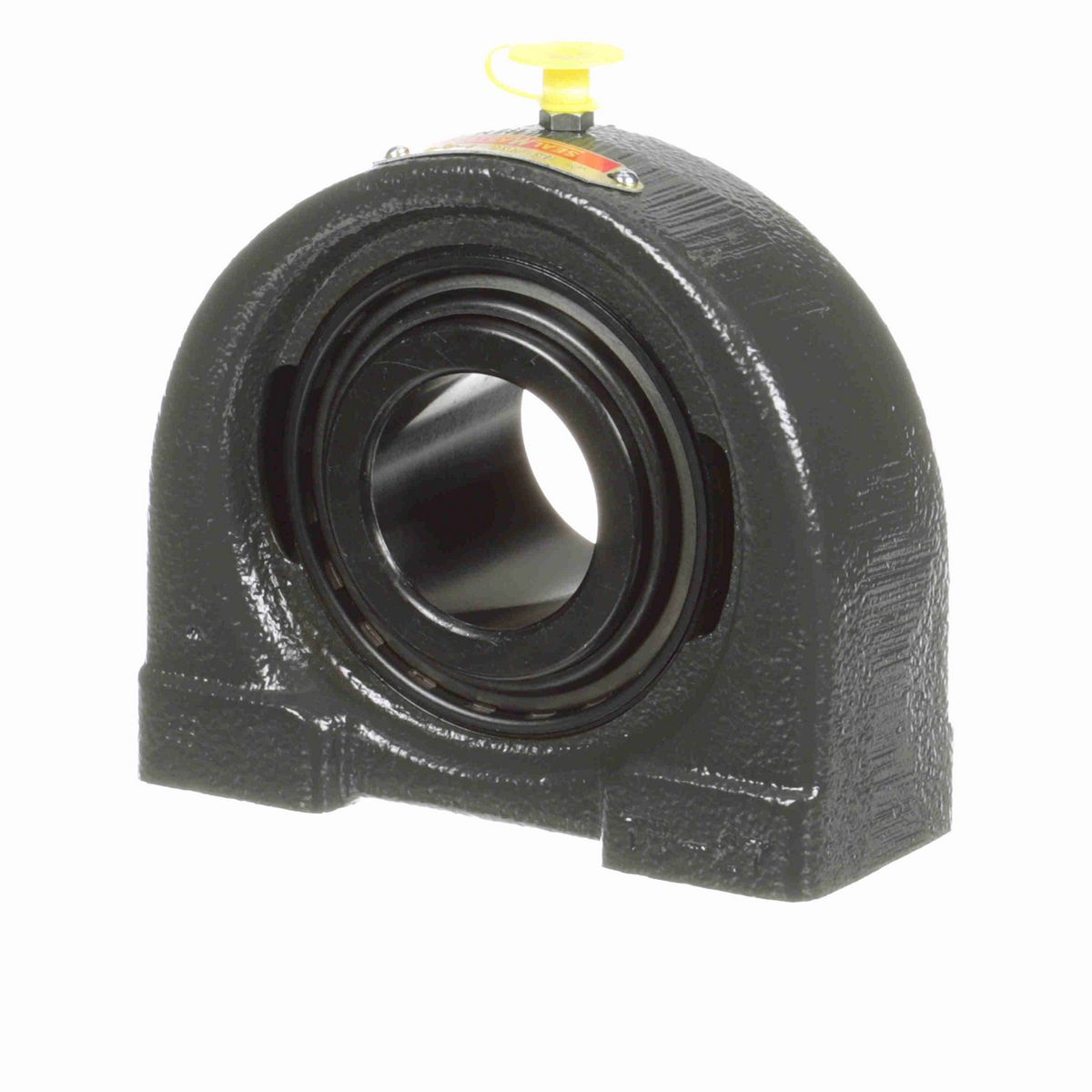

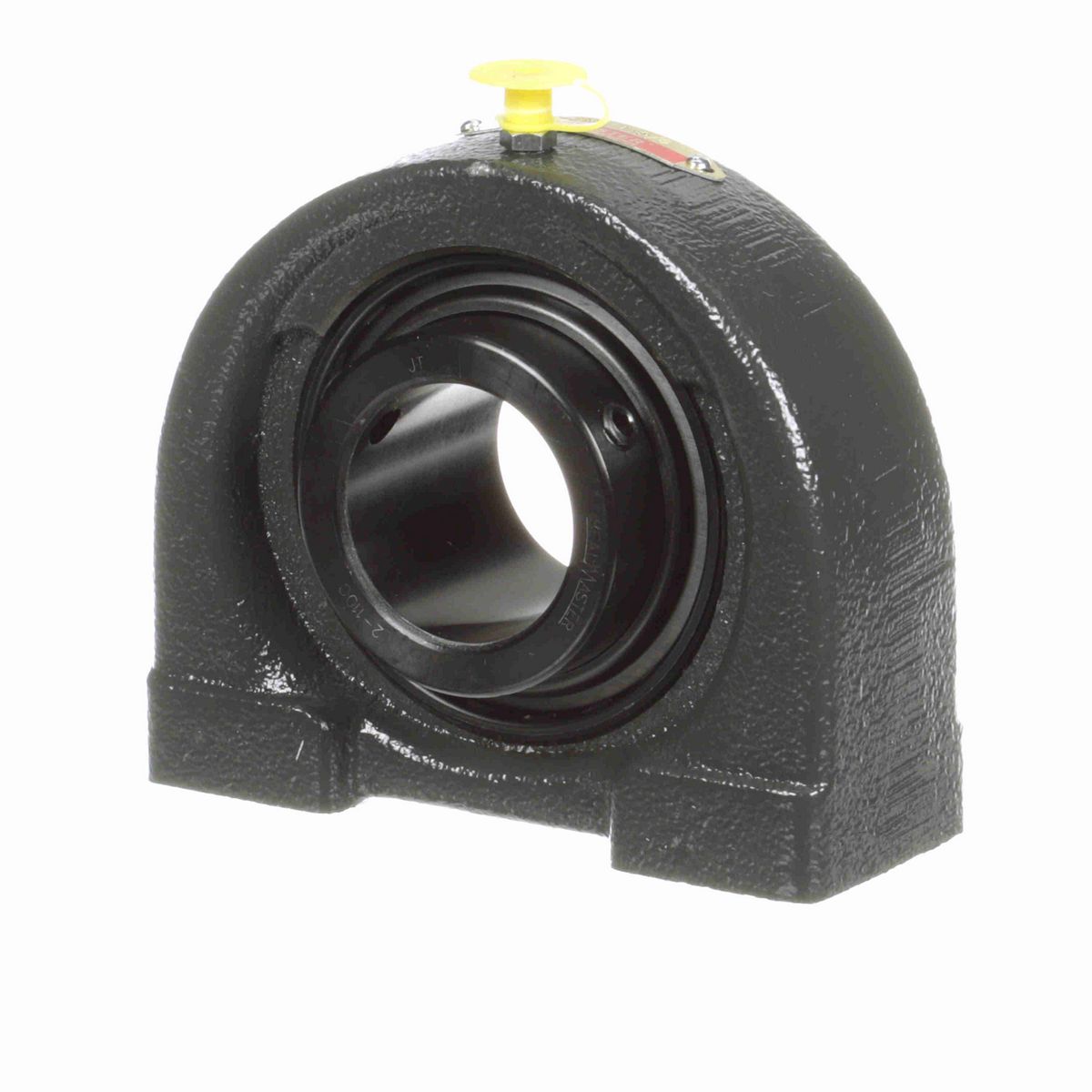

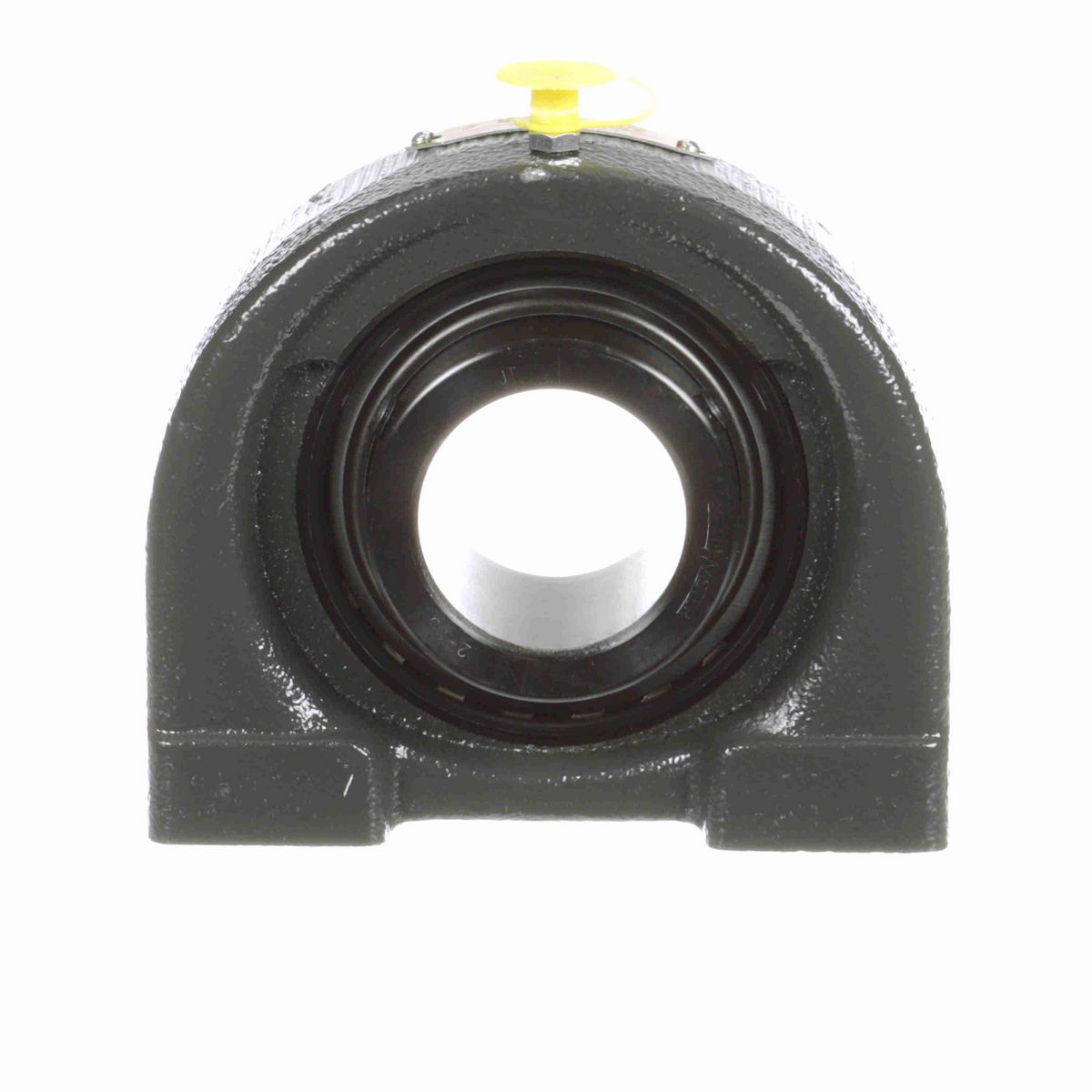

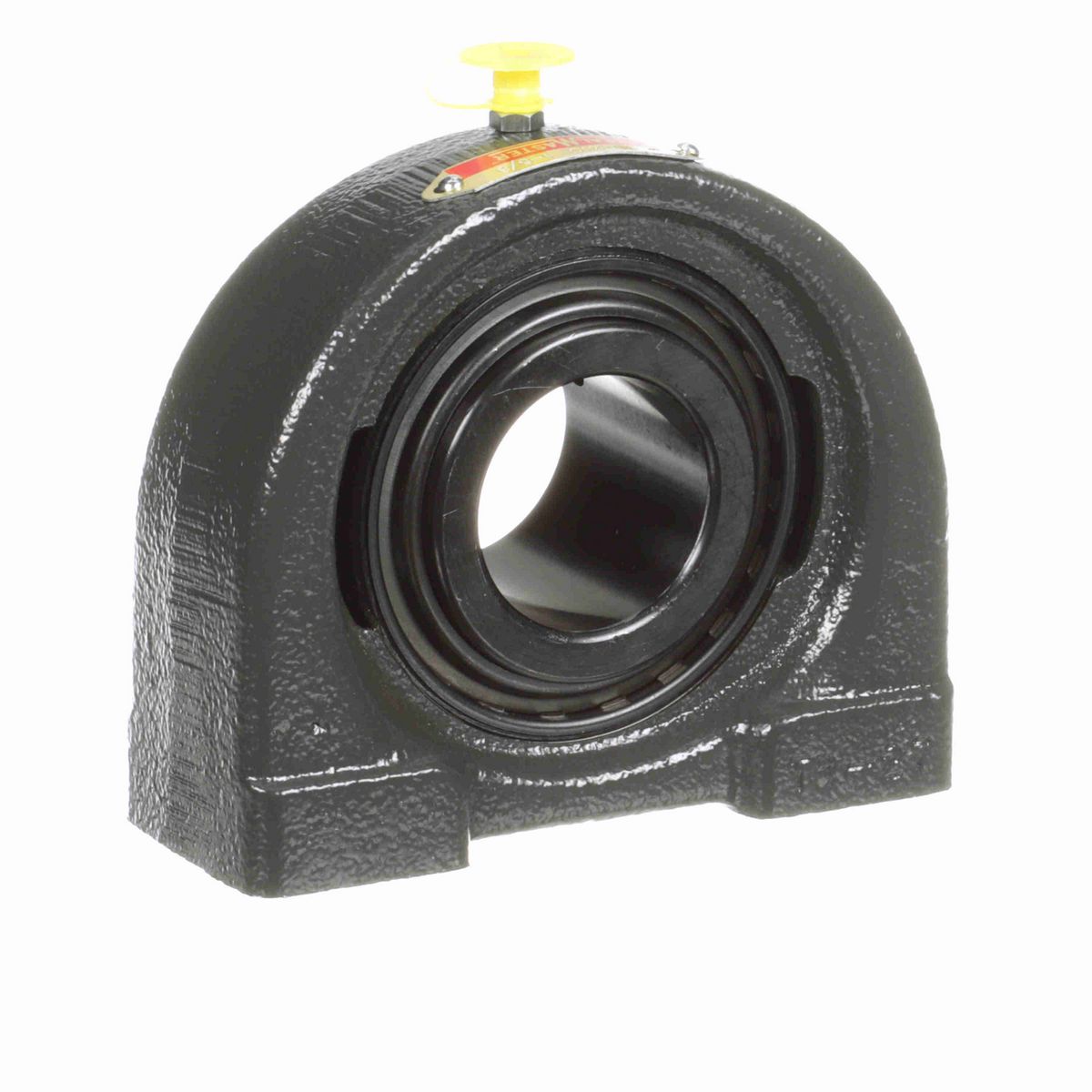

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Base Width (in)	2 in
Overall Length (in)	5 in
Overall Height (in)	4.25 in
Overall Width (in)	2 in
Bore Diameter (in)	1.625 in
Base to Center Height (in)	2.125 in
Thread Depth (in)	0.75 in
Length Through Bore (in)	2.000 in
Bolt Spacing (in)	3.750 in
Centerline to Outermost Bearing Face (in)	1.188 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.297 in
Bearing Type	Standard Duty
Static Load Rating (lb)	5,139 lb
Maximum Speed (RPM)	3800 rpm
Max Operating Temperature (F)	220 °F
Misalignment Capability	±2.0° Misalignment - Static Only
Base Length (in)	5.000 in
Dynamic Load Rating (lb)	7,901 lb
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
Size Code	2-111
Bearing Insert Finish	Black Oxide
Insert	2-110C
Radial Clearance	Standard
End Cap Available	No
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	Fixed
Housing Width (in)	2 in

General Specifications

UPC	662461024508
Weight	6.50 LB
Packaged Length	6.06 IN
Packaged Width	5.94 IN
Packaged Height	2.19 IN
HTC	8483.20.8040
Country of Origin	United States of America
