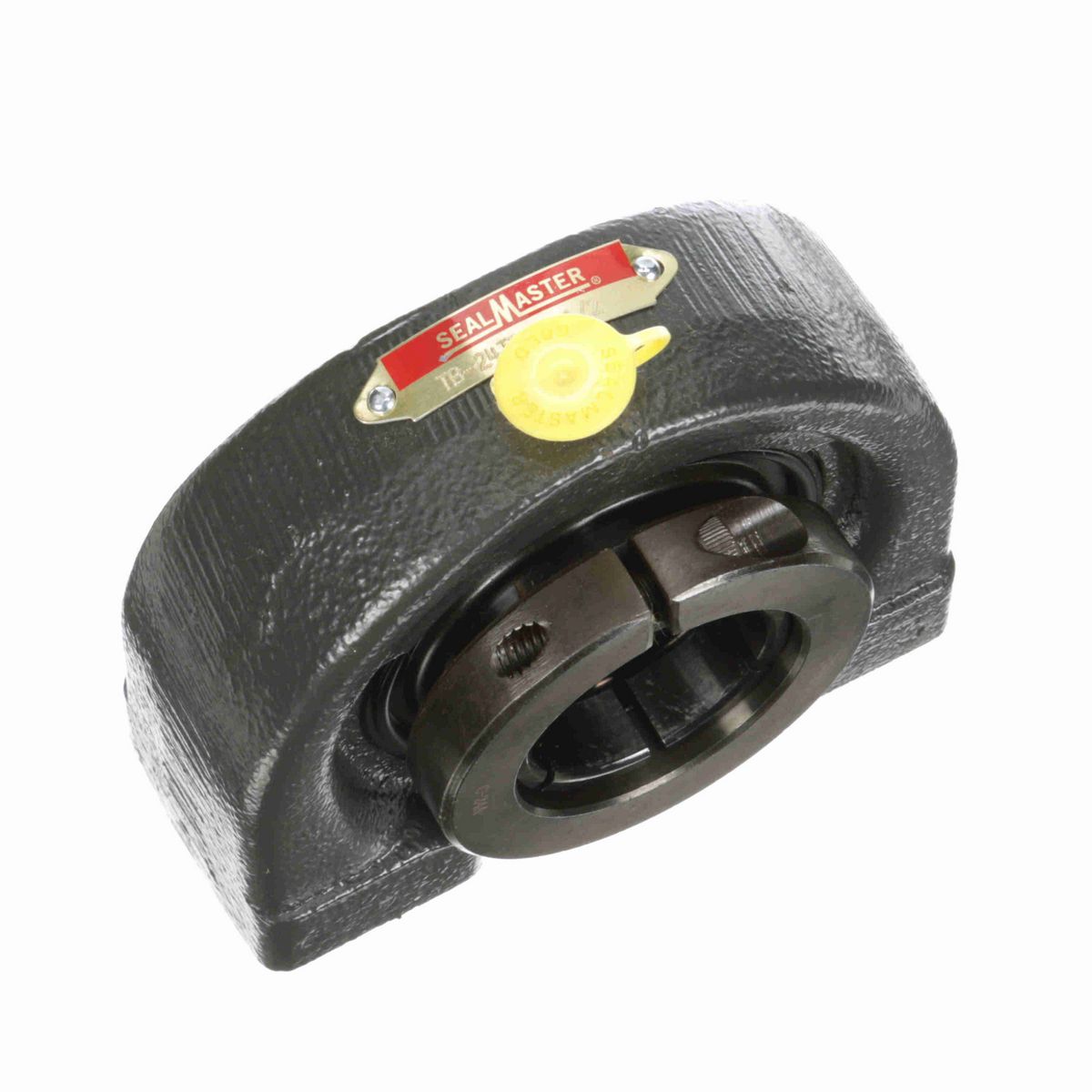

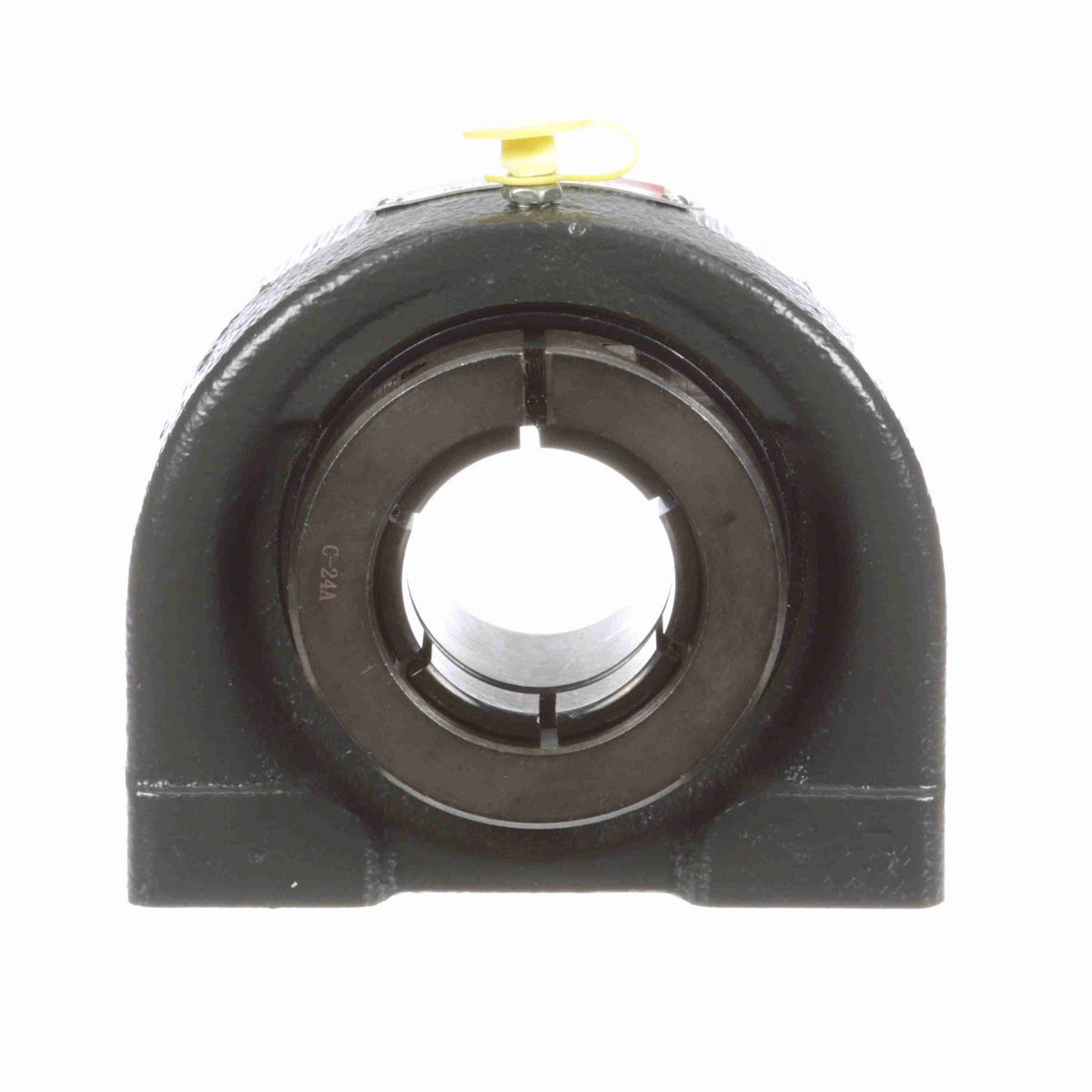

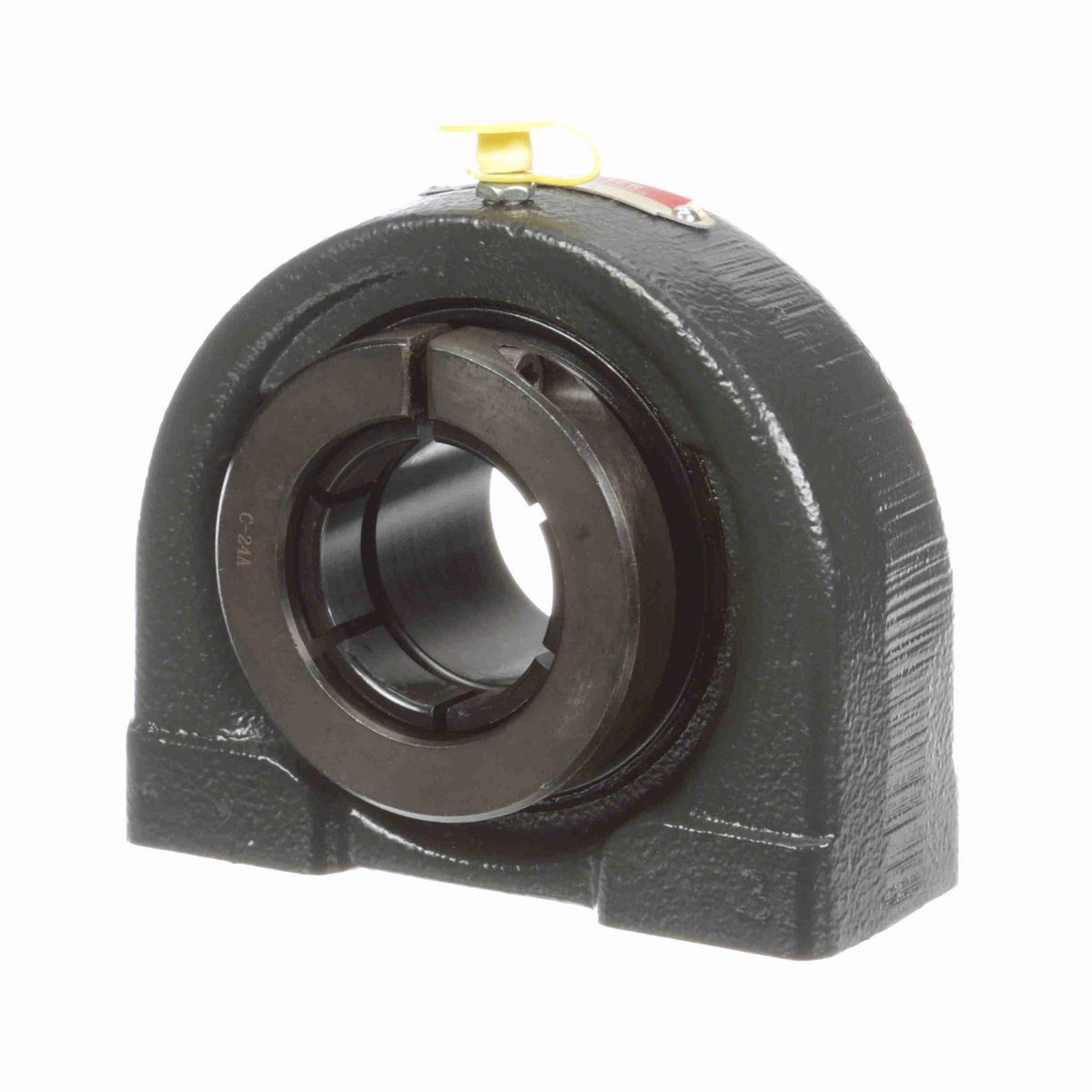

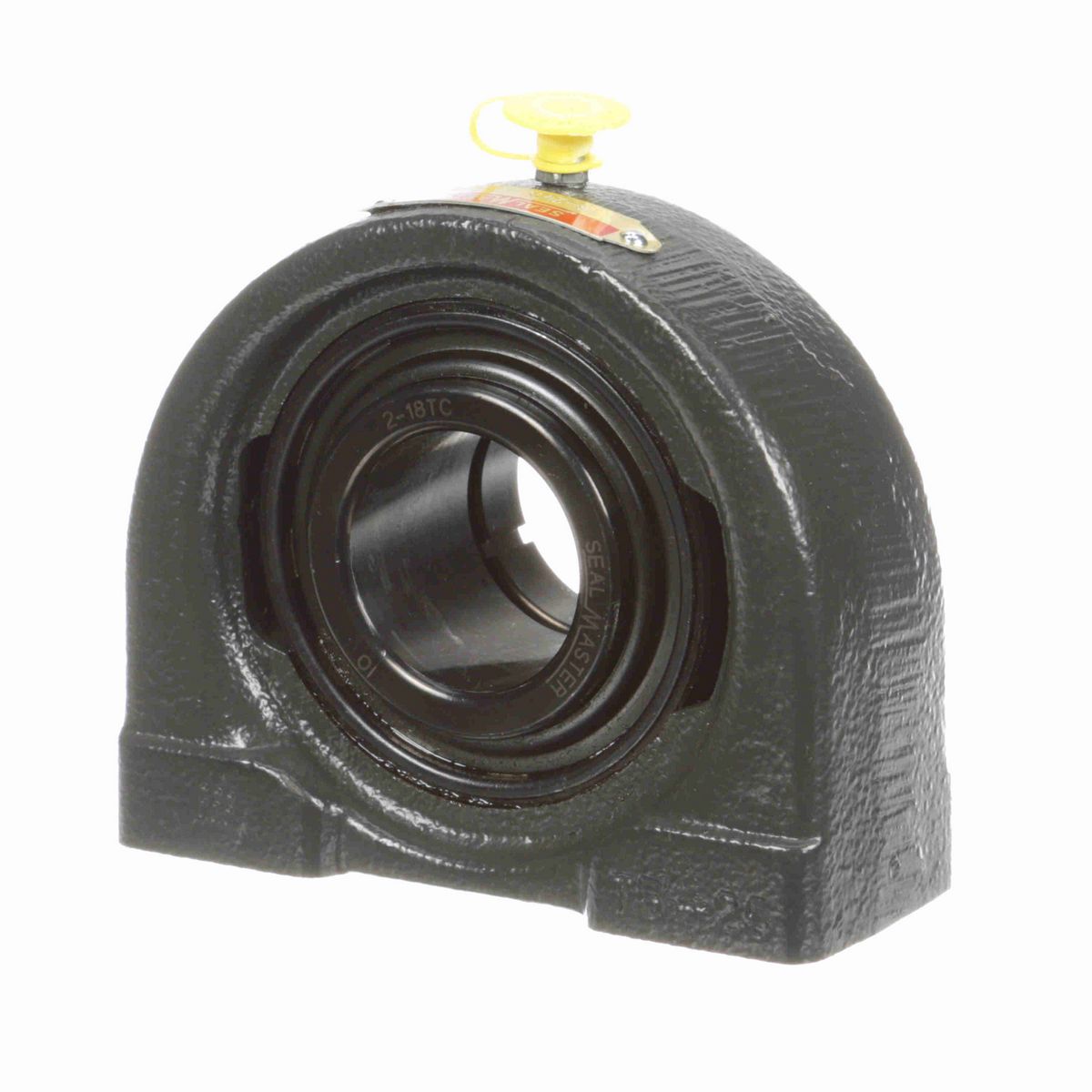

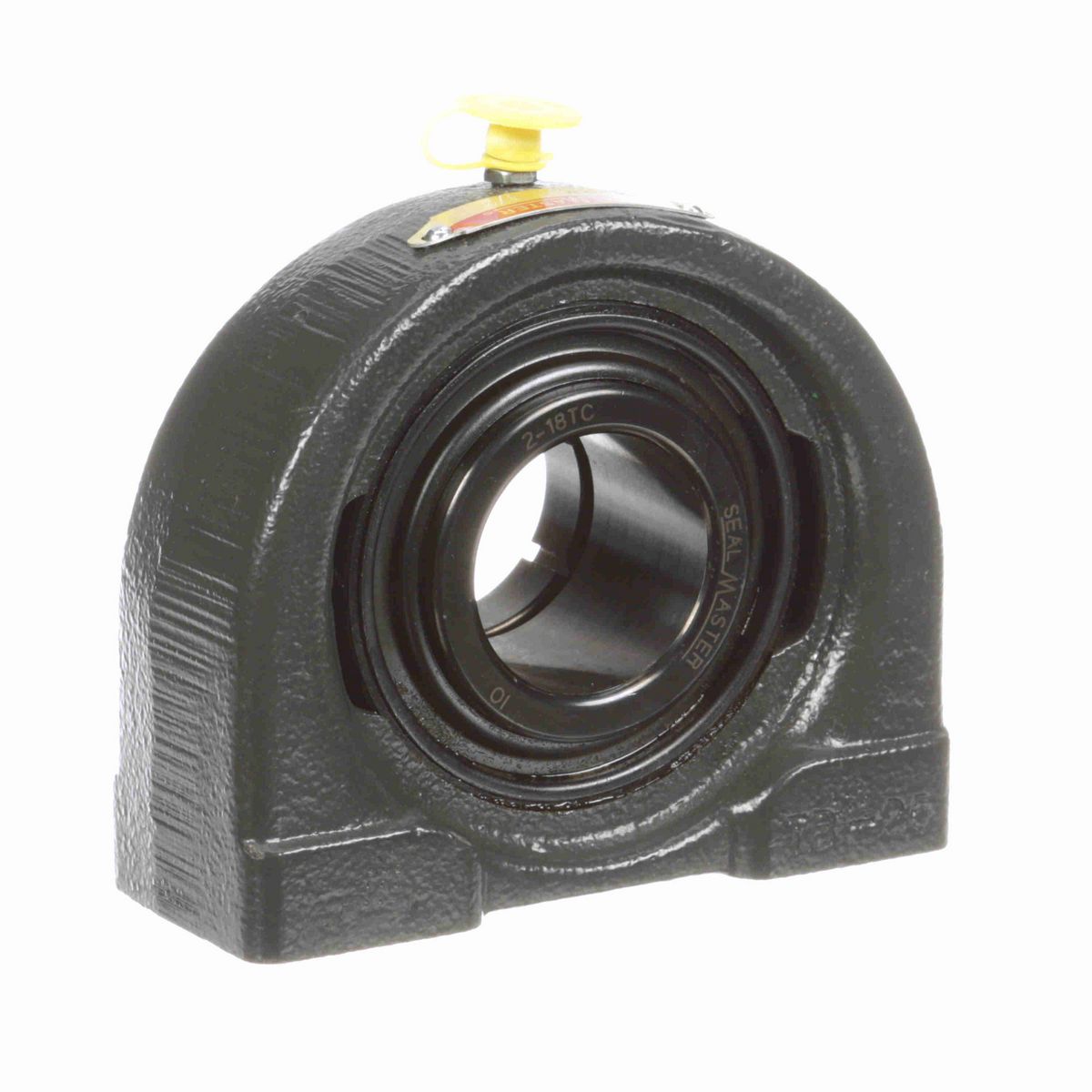

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Base Width (in)	1.88 in
Overall Length (in)	4.63 in
Overall Height (in)	3.93 in
Overall Width (in)	2 in
Bore Diameter (in)	1.5000 in
Base to Center Height (in)	1.9375 in
Thread Depth (in)	0.75 in
Length Through Bore (in)	2.000 in
Centerline to Outermost Bearing Face (in)	1.25 in
Bolt Spacing (in)	3.500 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Tapped Base
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.688 in
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/4-28
Inner Ring Outside Diameter (in)	2.0625 in
Base Length (in)	4.625 in
Bearing Type	Standard Duty
Shaft Locking Type	Concentric
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
Maximum Speed (RPM)	4150 rpm
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	7,340 lb
Housing Coating	Powder Coated
Size Code	2-19
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Static Load Rating (lb)	4,467 lb
Insert	2-18TC
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Housing Width (in)	1.88 in

General Specifications

UPC	662461034101
Weight	5.30 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
