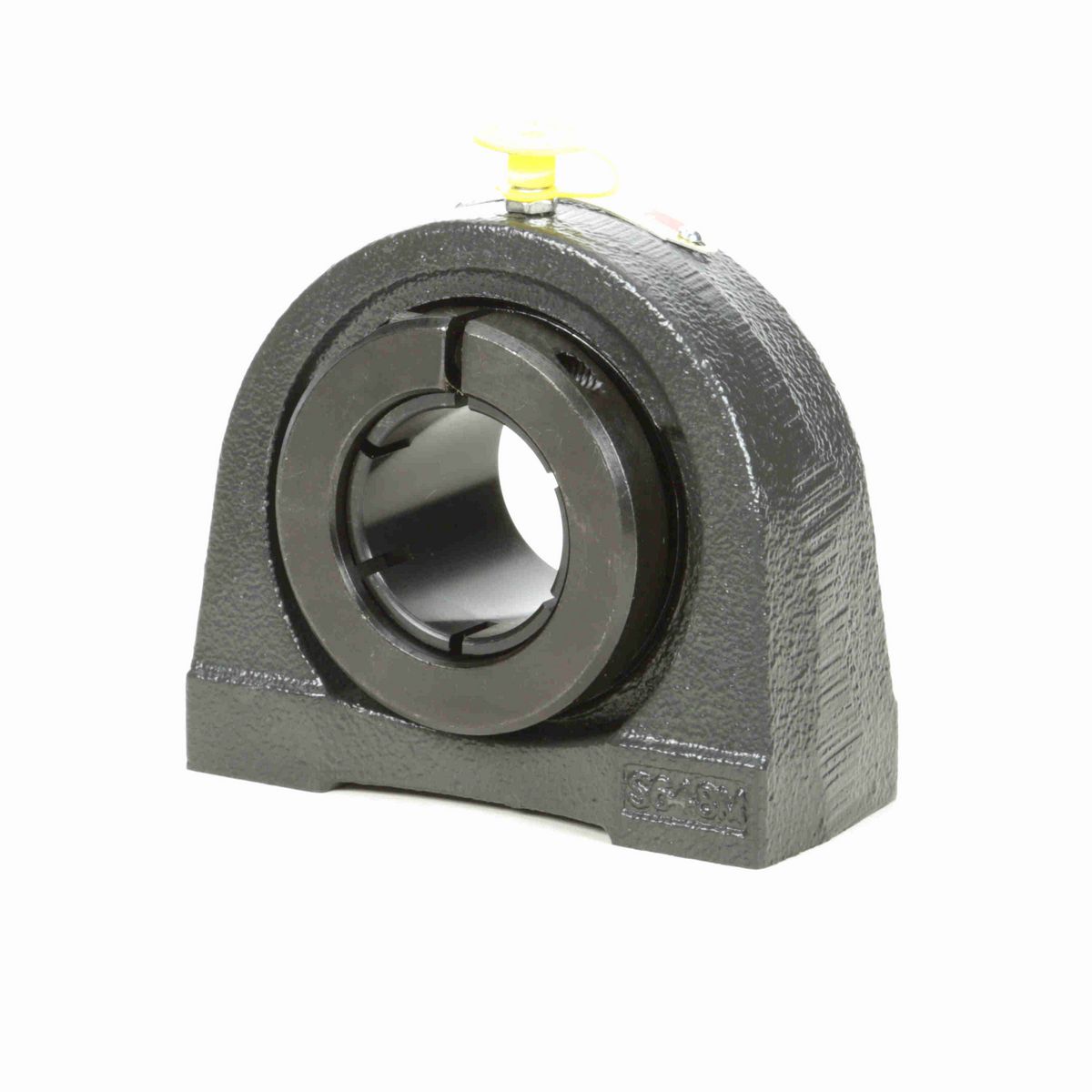

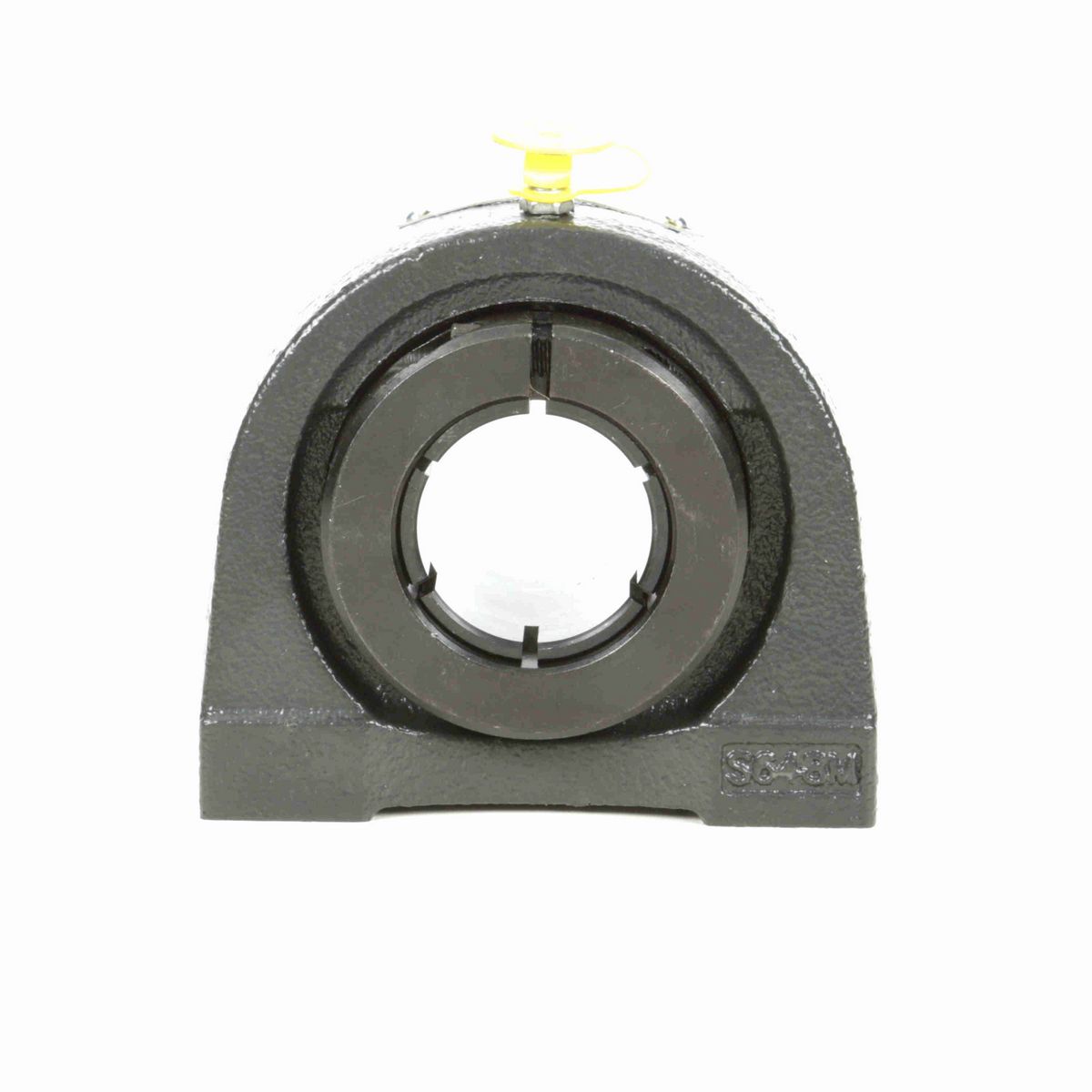

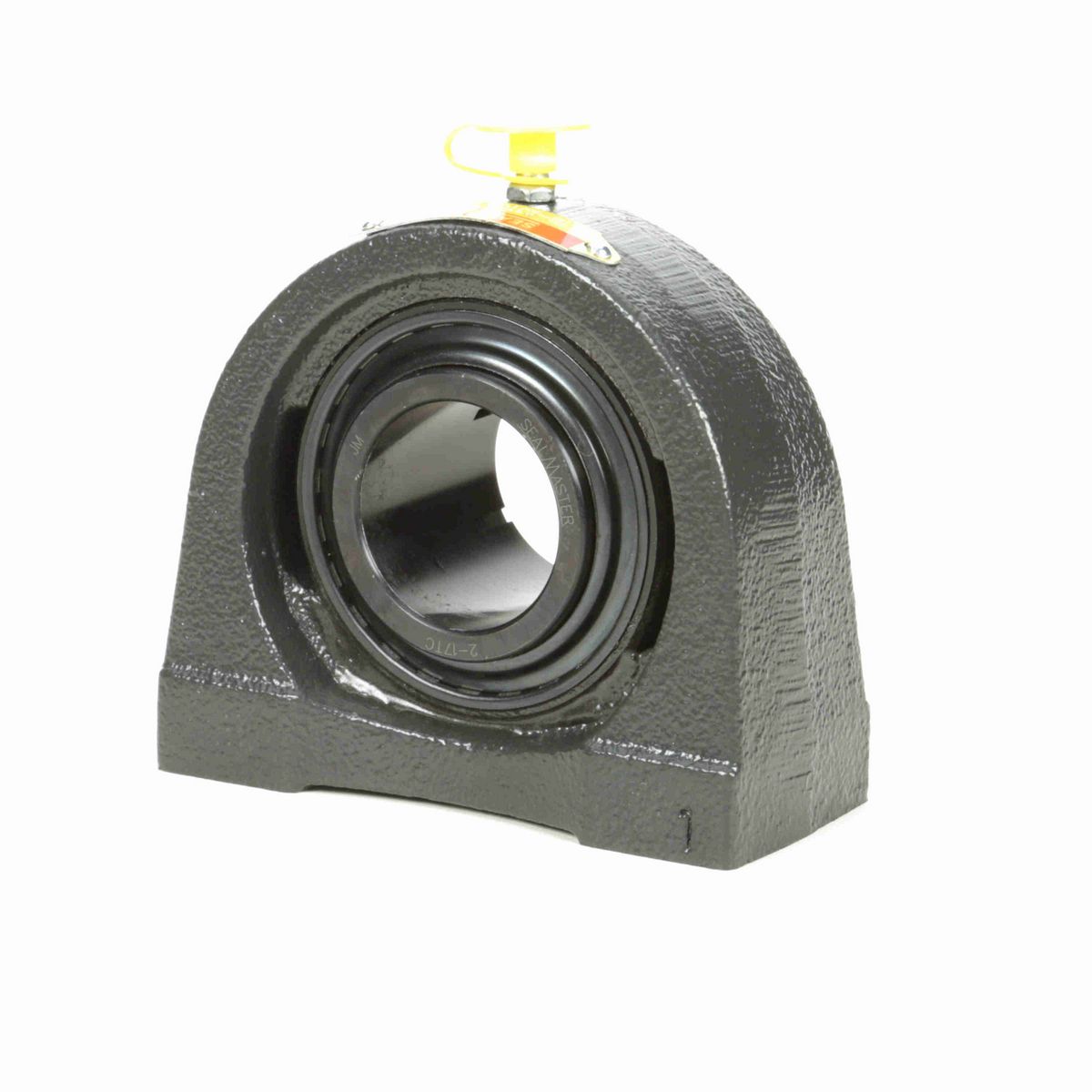

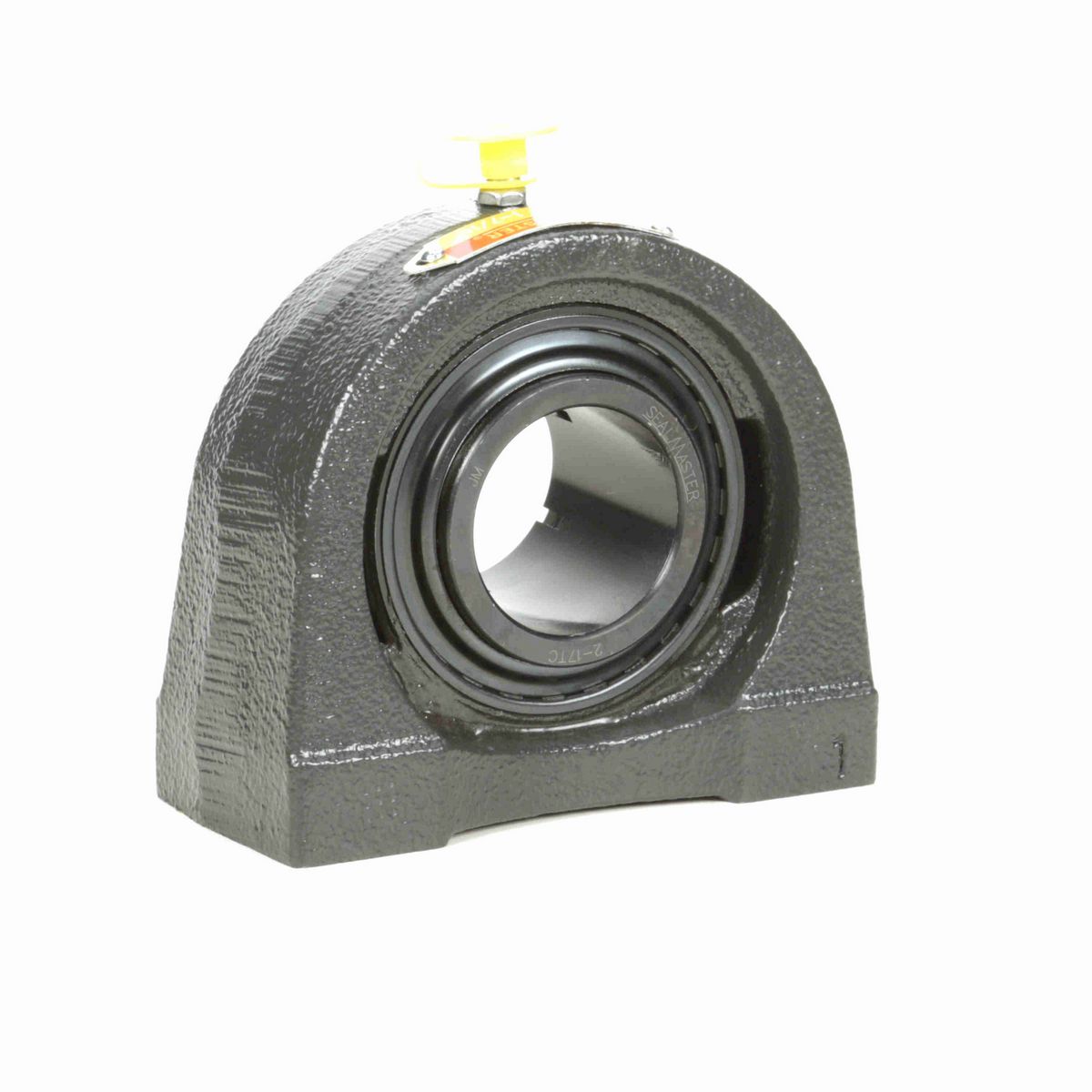

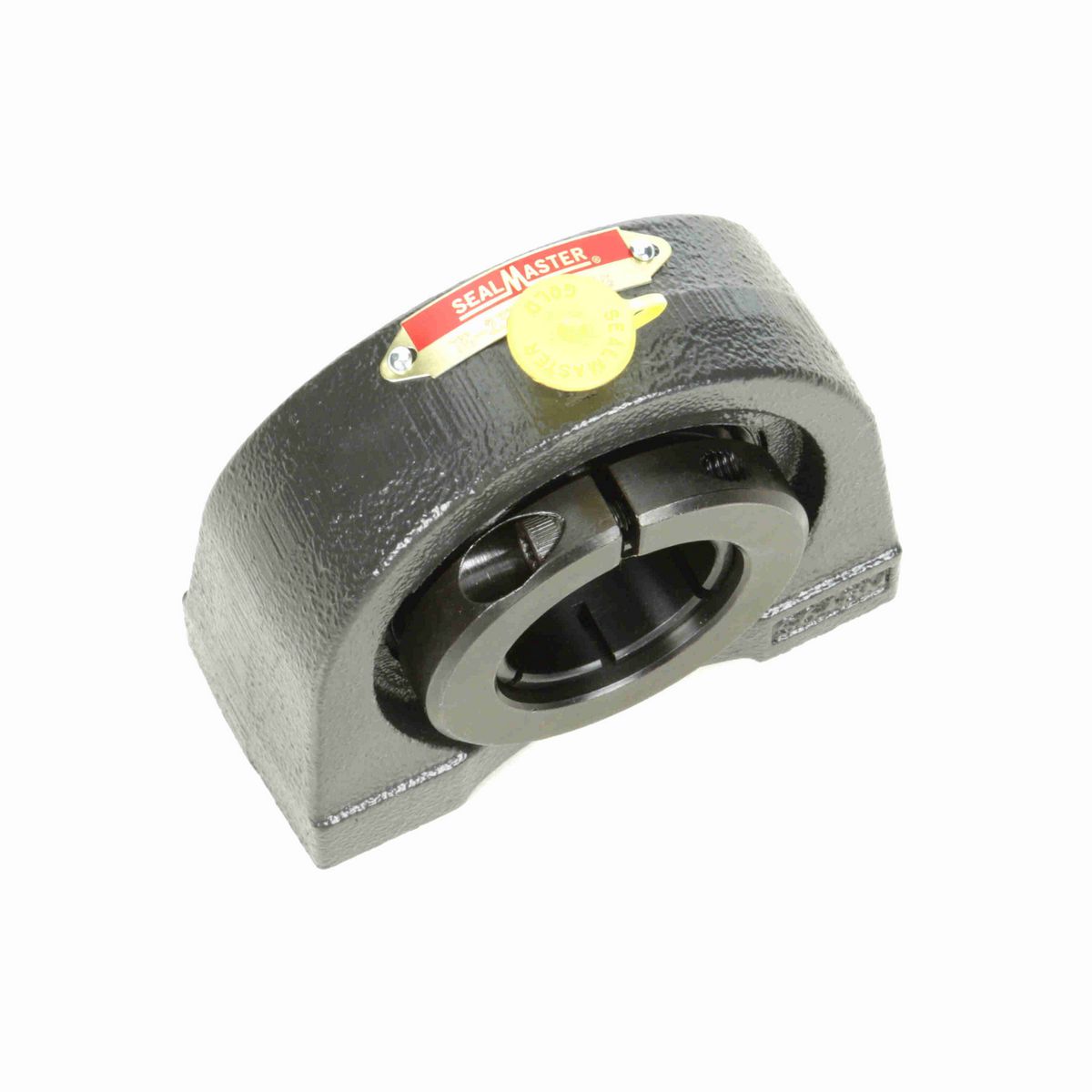

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Overall Height (in)	3.75 in
Base Width (in)	1.75 in
Overall Length (in)	4.41 in
Overall Width (in)	1.88 in
Bore Diameter (in)	1.4375 in
Thread Depth (in)	0.75 in
Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.6875 in
Bolt Spacing (in)	3.25 in
Centerline to Outermost Bearing Face (in)	1.063 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Tapped Base
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.563 in
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Finish	Black Oxide
Base Length (in)	4.25 in
Cage Type	Land Riding Retainer
Maximum Speed (RPM)	4650 rpm
Static Load Rating (lb)	3,493 lb
Shaft Locking Type	Concentric
Radial Clearance	Standard
Bearing Type	Standard Duty
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	1.8620 in
Dynamic Load Rating (lb)	5,782 lb
Size Code	2-17
Insert	2-17TC
Max Operating Temperature (F)	220 °F
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/4-28
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Housing Width (in)	1.88 in

General Specifications

UPC	662461034095
Weight	4.45 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
