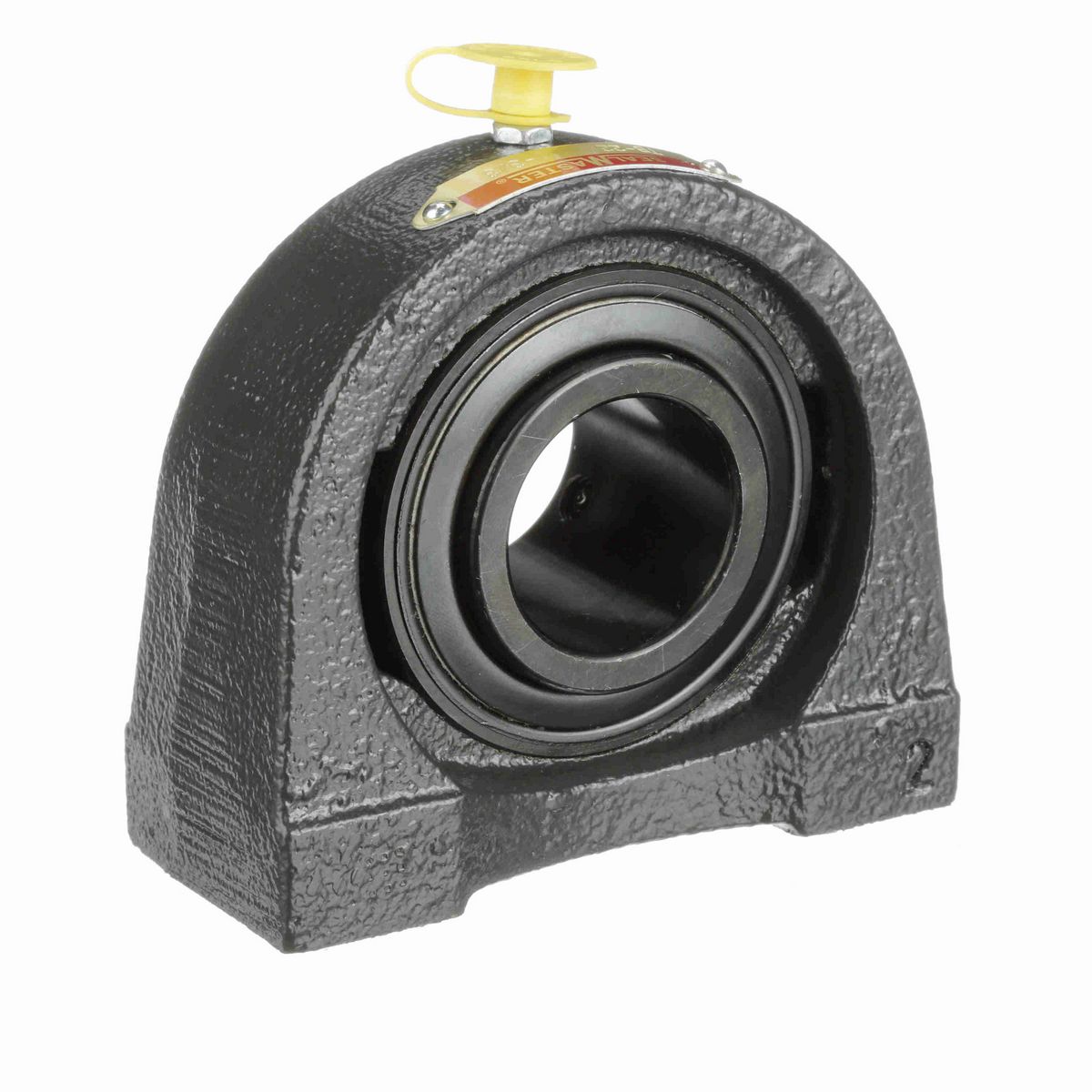

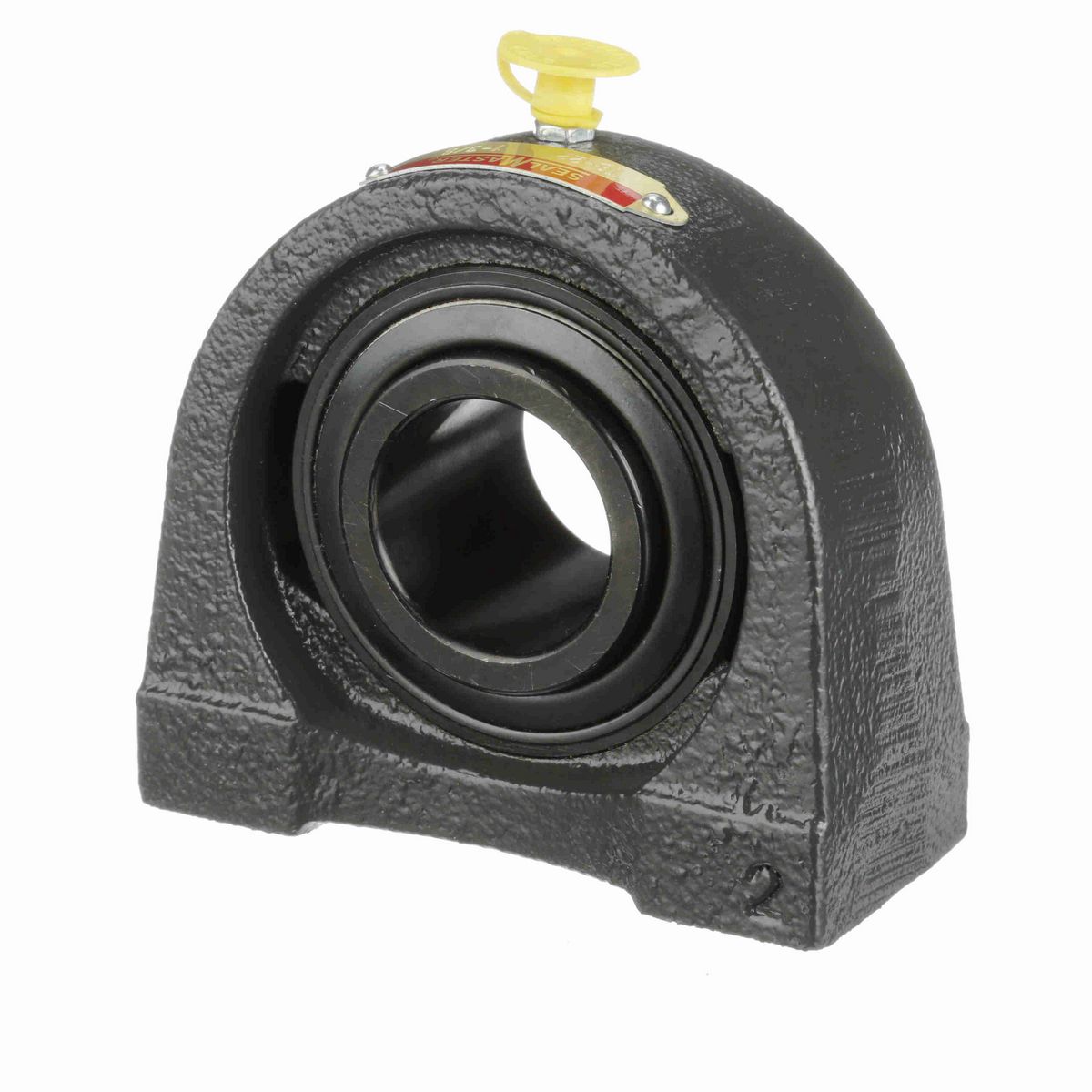

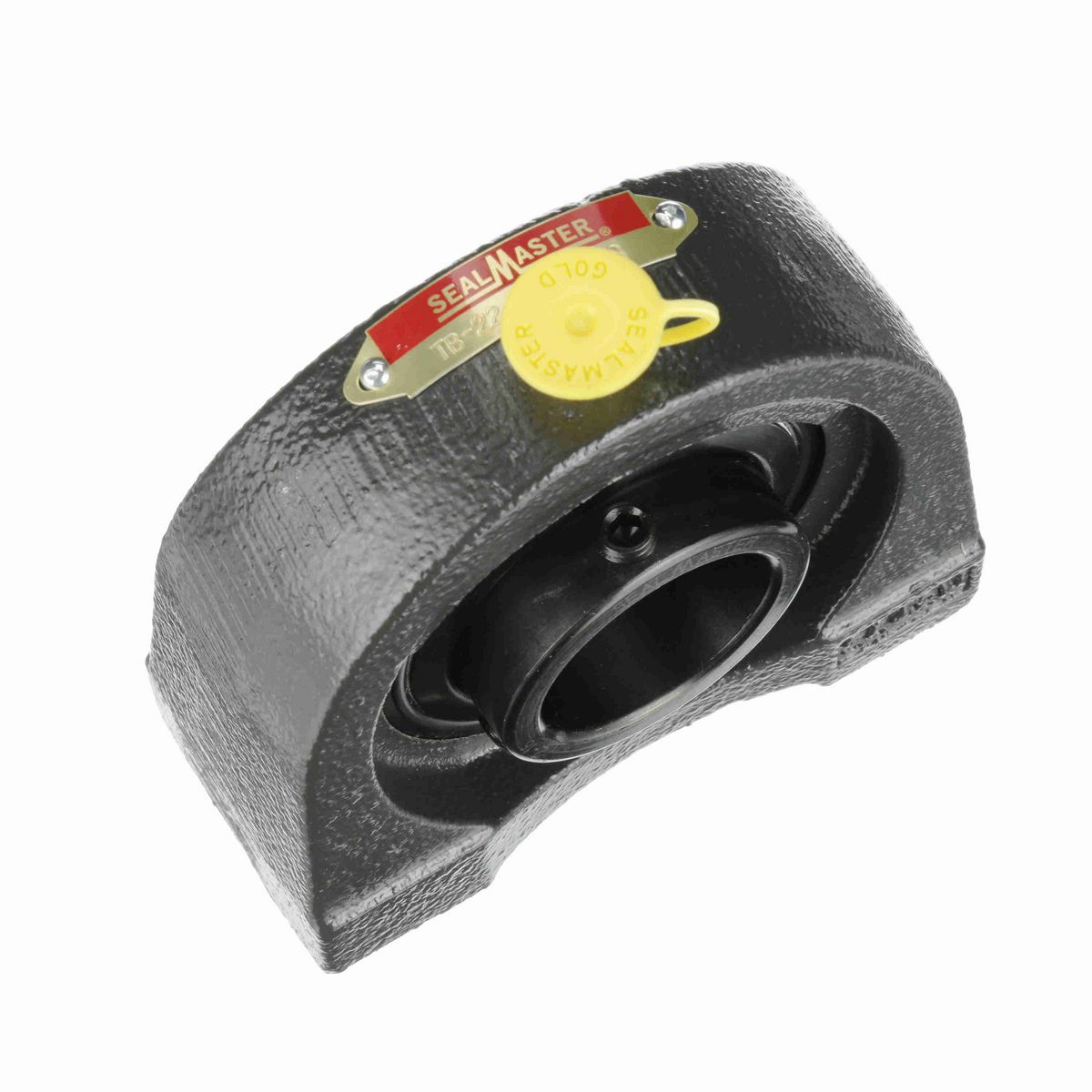

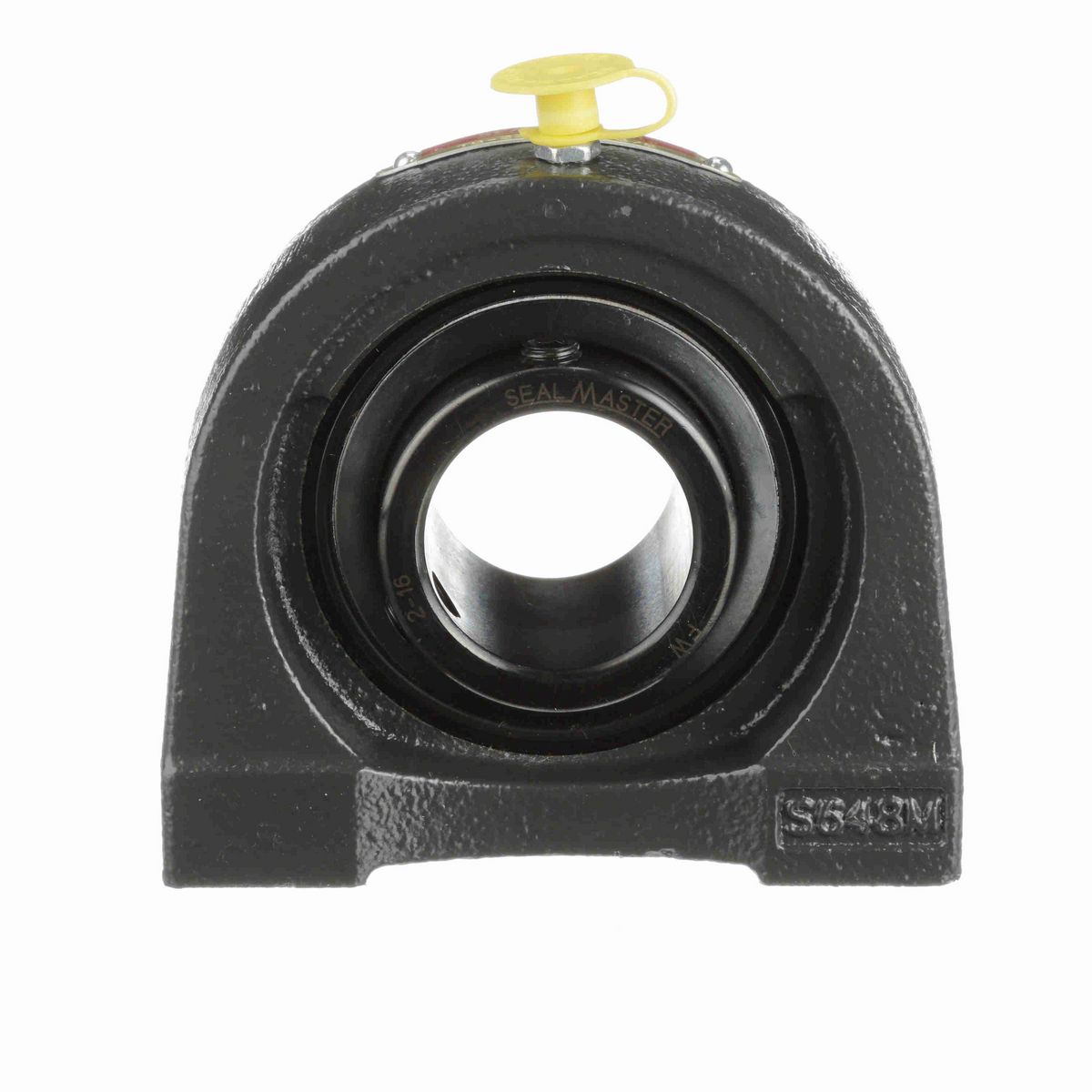

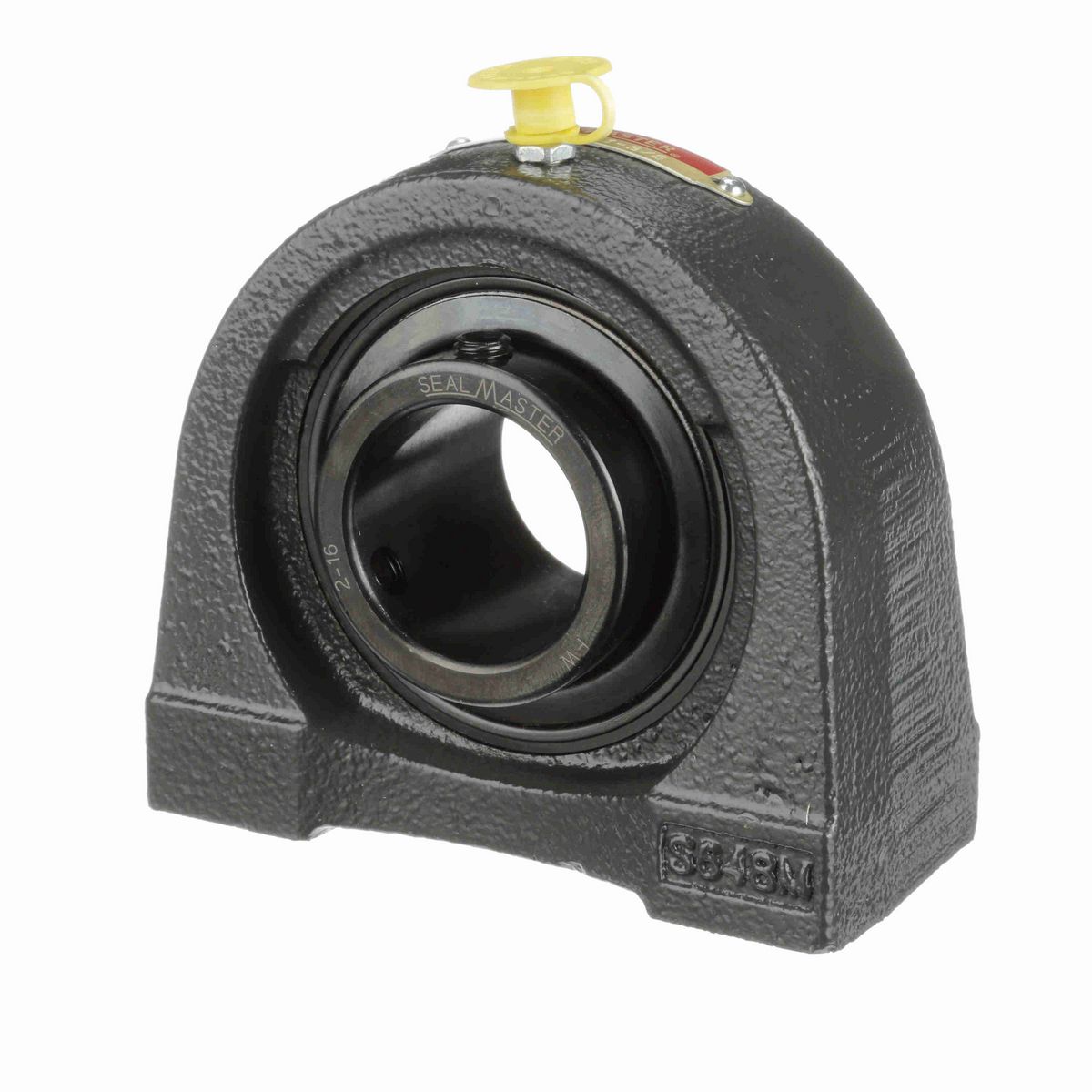

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Base Width (in)	1.75 in
Overall Length (in)	4.41 in
Overall Height (in)	3.75 in
Overall Width (in)	1.88 in
Bore Diameter (in)	1.3750 in
Thread Depth (in)	0.75 in
Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.6875 in
Centerline to Outermost Bearing Face (in)	1.000 in
Bolt Spacing (in)	3.25 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Shaft Locking Type	Set Screw
Base Length (in)	4.25 in
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	5,782 lb
Maximum Speed (RPM)	4650 rpm
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	1.859 in
Housing Material	Cast Iron
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Size Code	2-17
Radial Clearance	Standard
Insert	2-16
Static Load Rating (lb)	3,493 lb
Cage Type	Land Riding Retainer
Housing Width (in)	1.88 in

General Specifications

UPC	662461007235
Weight	3.98 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
