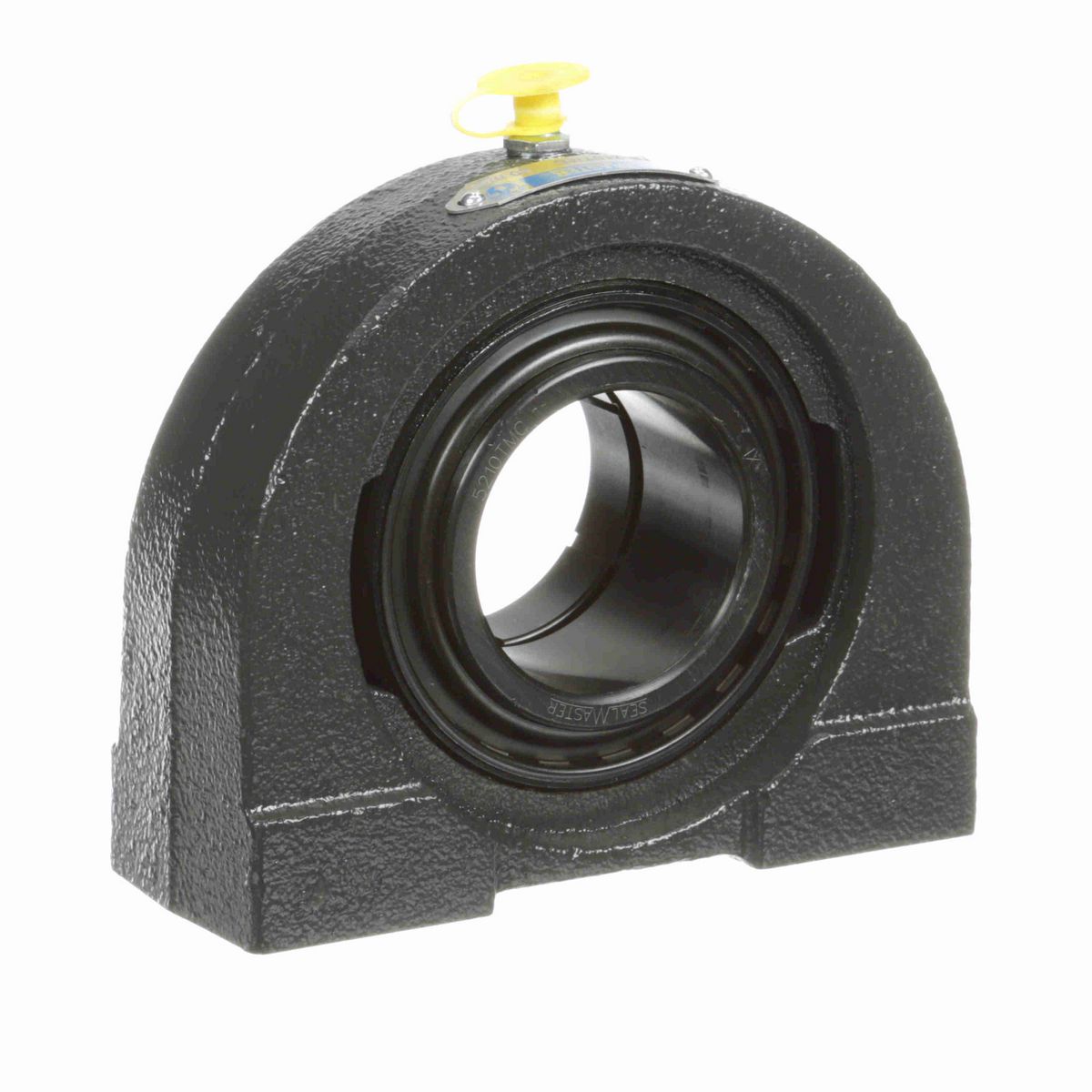

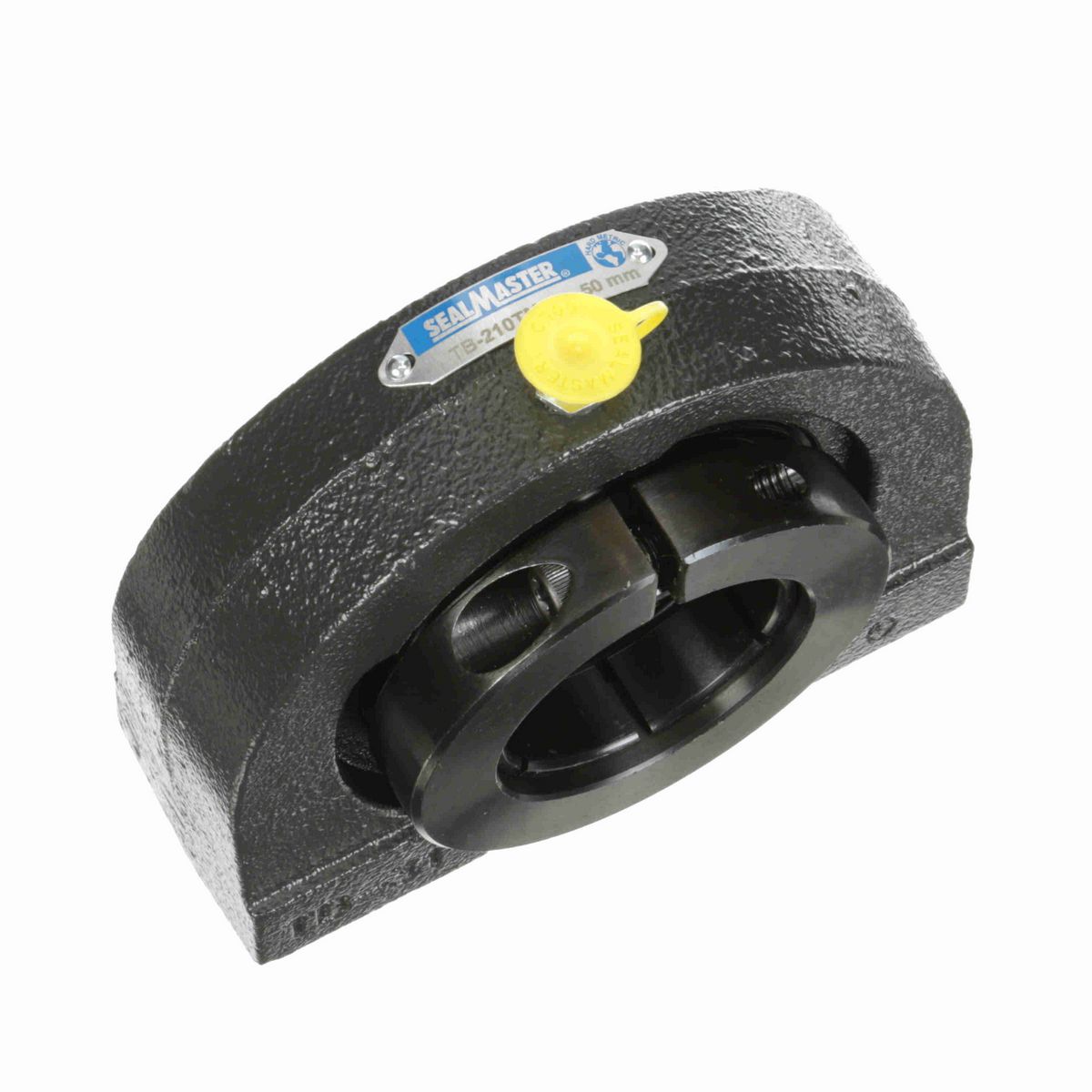

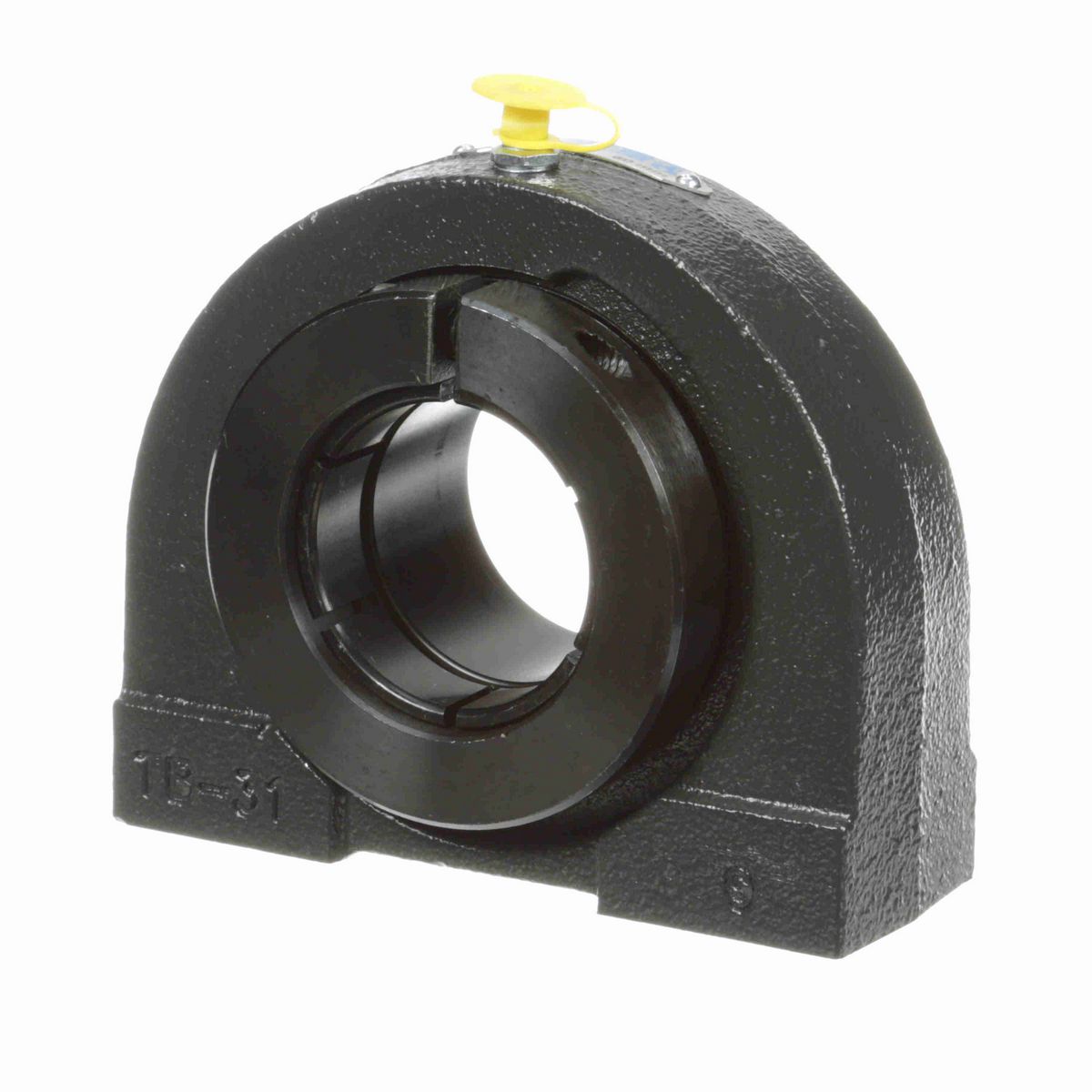

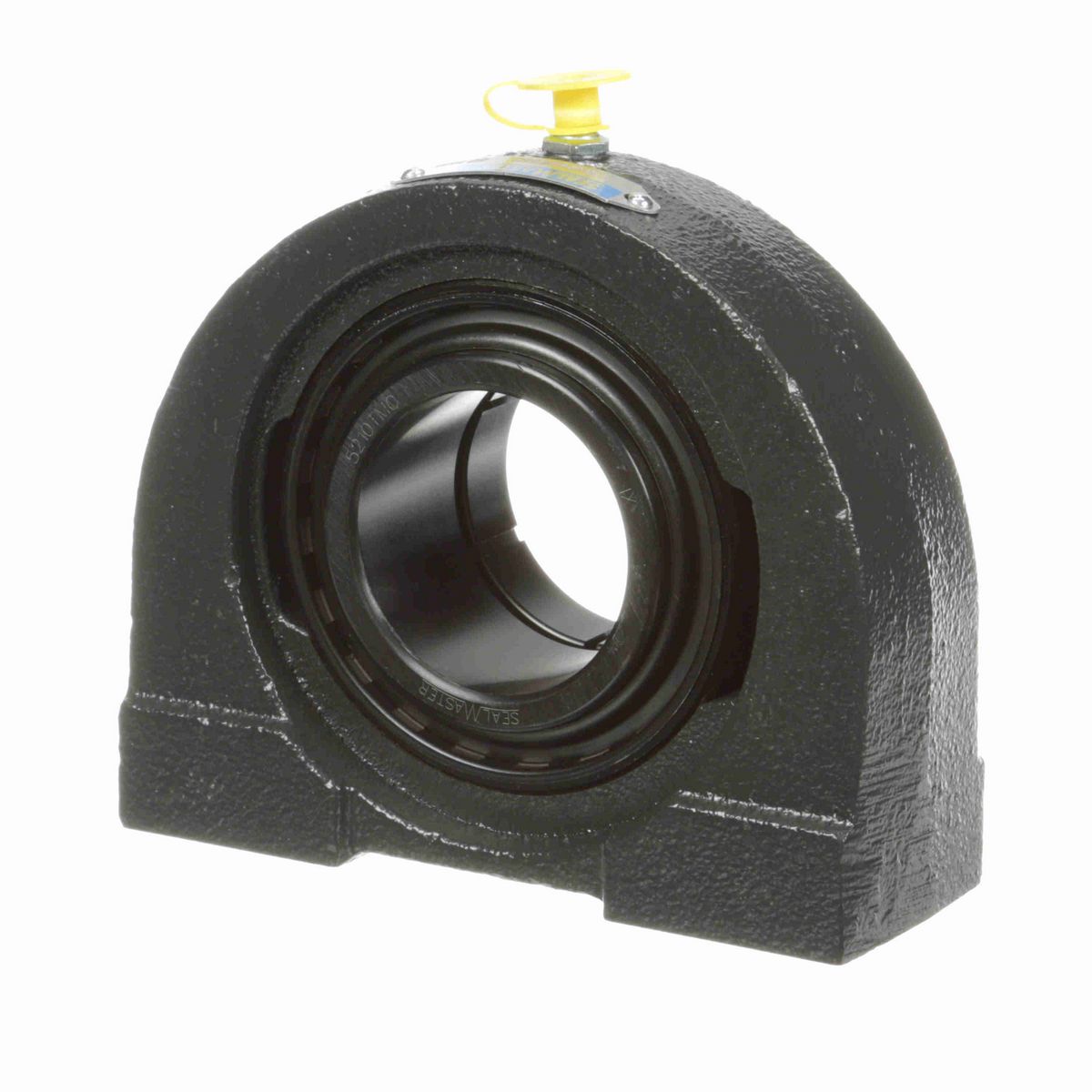

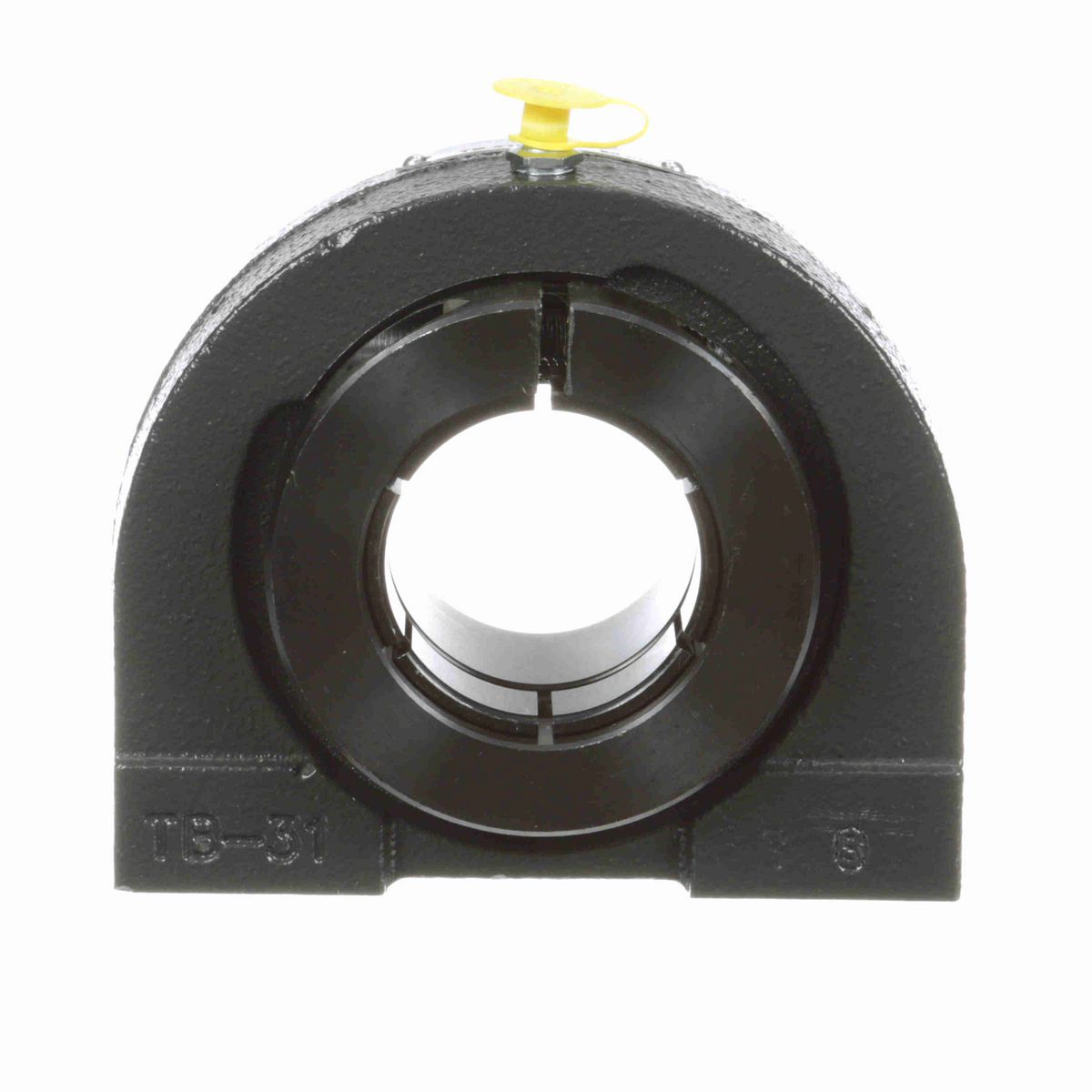

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal with black oxide bearing races
• Metric fitting and mounting bolts
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	5/8-11
Overall Height (in)	4.63 in
Overall Length (in)	5.44 in
Base Width (in)	2 in
Overall Width (in)	2.17 in
Bore Diameter (mm)	50 mm
Base to Center Height (in)	2.252 in
Thread Depth (in)	0.88 in
Length Through Bore (in)	2.0937 in
Bolt Spacing (in)	4 in
Centerline to Outermost Bearing Face (in)	1.42 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Dynamic Load Rating (lb)	7,889 lb
Base Length (in)	5.438 in
Housing Coating	Powder Coated
Radial Clearance	Standard
Static Load Rating (lb)	5,216 lb
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.4688 in
Size Code	2-115
Maximum Speed (RPM)	3550 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Concentric
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	M10 x 1MM
Bearing Insert Finish	Black Oxide
Insert	5210TMC
Bearing Type	Standard Duty
End Cap Available	No
Housing Width (in)	2 in

General Specifications

UPC	662461254127
Weight	8.60 LB
Packaged Length	5.94 IN
Packaged Width	6.06 IN
Packaged Height	2.19 IN
HTC	8483.20.8040
Country of Origin	United States of America
